IPv6 Extension Routing If you want to implement a new IPv6 routing extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionRoutingDemux. More...
#include <ipv6-extension.h>

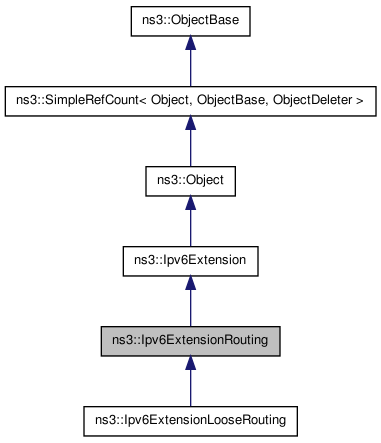

Inheritance diagram for ns3::Ipv6ExtensionRouting:

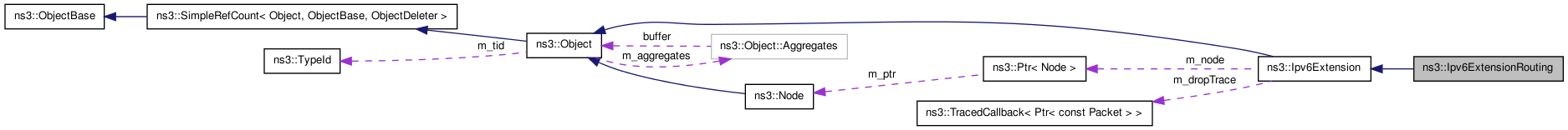

Collaboration diagram for ns3::Ipv6ExtensionRouting:
Public Member Functions | |
| Ipv6ExtensionRouting () | |
| Constructor. | |
| ~Ipv6ExtensionRouting () | |
| Destructor. | |
| virtual uint8_t | GetExtensionNumber () const |
| Get the extension number. | |
| virtual uint8_t | GetTypeRouting () const |
| Get the type of routing. | |
| virtual uint8_t | Process (Ptr< Packet > &packet, uint8_t offset, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &isDropped) |
| Process method. | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. | |
Static Public Attributes | |
| static const uint8_t | EXT_NUMBER = 43 |
| Routing extension number. | |
Detailed Description
IPv6 Extension Routing If you want to implement a new IPv6 routing extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionRoutingDemux.
Member Function Documentation
| virtual uint8_t ns3::Ipv6ExtensionRouting::GetExtensionNumber | ( | ) | const [virtual] |
| static TypeId ns3::Ipv6ExtensionRouting::GetTypeId | ( | void | ) | [static] |
Get the type identificator.
This method returns the TypeId associated to ns3::Ipv6ExtensionRouting.
- Returns:
- type identificator
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6Extension/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionDemux/Extensions/[i]/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionRouting
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6ExtensionRoutingDemux/Routing Extensions/[i]
No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv6Extension:
-
ExtensionNumber: The IPv6 extension number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::Ipv6Extension:
- Drop: Drop ipv6 packet
Reimplemented from ns3::Ipv6Extension.
Reimplemented in ns3::Ipv6ExtensionLooseRouting.
| virtual uint8_t ns3::Ipv6ExtensionRouting::GetTypeRouting | ( | ) | const [virtual] |
| virtual uint8_t ns3::Ipv6ExtensionRouting::Process | ( | Ptr< Packet > & | packet, | |
| uint8_t | offset, | |||
| Ipv6Header const & | ipv6Header, | |||
| Ipv6Address | dst, | |||
| uint8_t * | nextHeader, | |||
| bool & | isDropped | |||
| ) | [virtual] |
Process method.
Called from Ipv6L3Protocol::Receive.
- Parameters:
-
packet the packet offset the offset of the extension to process ipv6Header the IPv6 header of packet received dst destination address of the packet received (i.e. us) nextHeader the next header isDropped if the packet must be dropped
- Returns:
- the size processed
Implements ns3::Ipv6Extension.
Reimplemented in ns3::Ipv6ExtensionLooseRouting.
The documentation for this class was generated from the following files:
- src/internet-stack/ipv6-extension.h
- doc/introspected-doxygen.h
