Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Member Functions | Friends

ns3::Ipv6L3Protocol Class Reference

IPv6 layer implementation. More...

#include <ipv6-l3-protocol.h>

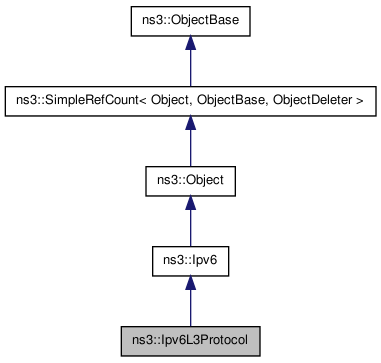

Inheritance diagram for ns3::Ipv6L3Protocol:
Inheritance graph
[legend]

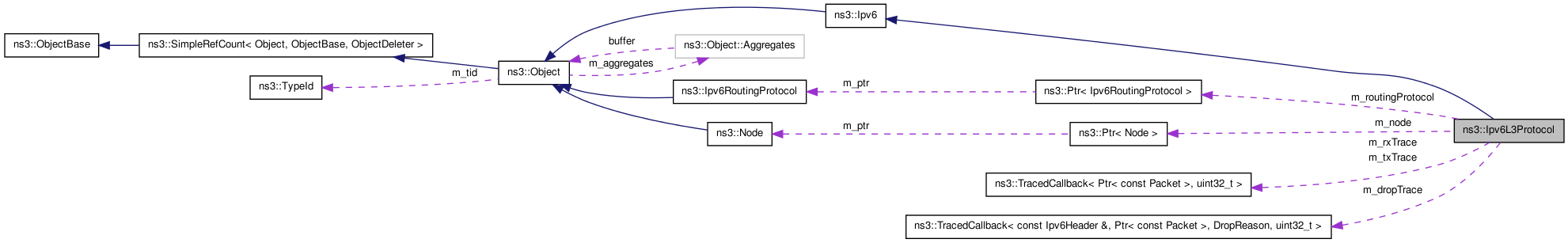

Collaboration diagram for ns3::Ipv6L3Protocol:
Collaboration graph
[legend]

List of all members.

Public Types

enum  DropReason {
  DROP_TTL_EXPIRED = 1, DROP_NO_ROUTE, DROP_INTERFACE_DOWN, DROP_ROUTE_ERROR,
  DROP_UNKNOWN_PROTOCOL
}


Reason why a packet has been dropped.

More...

Public Member Functions

 Ipv6L3Protocol ()
 Constructor.
virtual ~Ipv6L3Protocol ()
 Destructor.
void SetNode (Ptr< Node > node)
 Set node for this stack.
void Insert (Ptr< Ipv6L4Protocol > protocol)
 Add an L4 protocol.
void Remove (Ptr< Ipv6L4Protocol > protocol)
 Remove an L4 protocol.
Ptr< Ipv6L4Protocol > GetProtocol (int protocolNumber) const
 Get L4 protocol by protocol number.
Ptr< Socket > CreateRawSocket ()
 Create raw IPv6 socket.
void DeleteRawSocket (Ptr< Socket > socket)
 Remove raw IPv6 socket.
void SetDefaultTtl (uint8_t ttl)
 Set the default TTL.
void Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
 Receive method when a packet arrive in the stack. This method removes IPv6 header and forward up to L4 protocol.
void Send (Ptr< Packet > packet, Ipv6Address source, Ipv6Address destination, uint8_t protocol, Ptr< Ipv6Route > route)
 Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.
void SetRoutingProtocol (Ptr< Ipv6RoutingProtocol > routingProtocol)
 Set routing protocol for this stack.
Ptr< Ipv6RoutingProtocol > GetRoutingProtocol () const
 Get current routing protocol used.
uint32_t AddInterface (Ptr< NetDevice > device)
 Add IPv6 interface for a device.
Ptr< Ipv6Interface > GetInterface (uint32_t i) const
 Get an interface.
uint32_t GetNInterfaces () const
 Get current number of interface on this stack.
int32_t GetInterfaceForAddress (Ipv6Address addr) const
 Get interface index which has specified IPv6 address.
int32_t GetInterfaceForPrefix (Ipv6Address addr, Ipv6Prefix mask) const
 Get interface index which match specified address/prefix.
int32_t GetInterfaceForDevice (Ptr< const NetDevice > device) const
 Get interface index which is on a specified net device.
bool AddAddress (uint32_t i, Ipv6InterfaceAddress address)
 Add an address on interface.
Ipv6InterfaceAddress GetAddress (uint32_t interfaceIndex, uint32_t addressIndex) const
 Get an address.
uint32_t GetNAddresses (uint32_t interface) const
 Get number of address for an interface.
bool RemoveAddress (uint32_t interfaceIndex, uint32_t addressIndex)
 Remove an address from an interface.
void SetMetric (uint32_t i, uint16_t metric)
 Set metric for an interface.
uint16_t GetMetric (uint32_t i) const
 Get metric for an interface.
uint16_t GetMtu (uint32_t i) const
 Get MTU for an interface.
bool IsUp (uint32_t i) const
 Is specified interface up ?
void SetUp (uint32_t i)
 Set an interface up.
void SetDown (uint32_t i)
 set an interface down.
bool IsForwarding (uint32_t i) const
 Is interface allows forwarding ?
void SetForwarding (uint32_t i, bool val)
 Enable or disable forwarding on interface.
Ptr< NetDevice > GetNetDevice (uint32_t i)
 Get device by index.
Ptr< Icmpv6L4Protocol > GetIcmpv6 () const
 Get ICMPv6 protocol.
void AddAutoconfiguredAddress (uint32_t interface, Ipv6Address network, Ipv6Prefix mask, uint8_t flags, uint32_t validTime, uint32_t preferredTime, Ipv6Address defaultRouter=Ipv6Address::GetZero())
 Add an autoconfigured address with RA information.
void RemoveAutoconfiguredAddress (uint32_t interface, Ipv6Address network, Ipv6Prefix mask, Ipv6Address defaultRouter)
 Remove an autoconfigured address.
virtual void RegisterExtensions ()
 Register the IPv6 Extensions.
virtual void RegisterOptions ()
 Register the IPv6 Options.

Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID of this class.

Static Public Attributes

static const uint16_t PROT_NUMBER
 The protocol number for IPv6 (0x86DD).

Protected Member Functions

virtual void DoDispose ()
 Dispose object.
virtual void NotifyNewAggregate ()
 Notify other components connected to the node that a new stack member is now connected.

Friends

class Ipv6L3ProtocolTestCase
class Ipv6ExtensionLooseRouting

Detailed Description

IPv6 layer implementation.

This class contains two distinct groups of trace sources. The trace sources 'Rx' and 'Tx' are called, respectively, immediately after receiving from the NetDevice and immediately before sending to a NetDevice for transmitting a packet. These are low level trace sources that include the Ipv6Header already serialized into the packet. In contrast, the Drop, SendOutgoing, UnicastForward, and LocalDeliver trace sources are slightly higher-level and pass around the Ipv6Header as an explicit parameter and not as part of the packet.

Member Enumeration Documentation

enum ns3::Ipv6L3Protocol::DropReason

Reason why a packet has been dropped.

Enumerator:
DROP_TTL_EXPIRED

Packet TTL has expired

DROP_NO_ROUTE

No route to host

DROP_INTERFACE_DOWN

Interface is down so can not send packet

DROP_ROUTE_ERROR

Route error

DROP_UNKNOWN_PROTOCOL

Unknown L4 protocol

Member Function Documentation

bool ns3::Ipv6L3Protocol::AddAddress ( uint32_t  i,
Ipv6InterfaceAddress  address
) [virtual]

Add an address on interface.

Parameters:
i interface index
address to add

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::AddAutoconfiguredAddress ( uint32_t  interface,
Ipv6Address  network,
Ipv6Prefix  mask,
uint8_t  flags,
uint32_t  validTime,
uint32_t  preferredTime,
Ipv6Address  defaultRouter = Ipv6Address::GetZero()
)

Add an autoconfigured address with RA information.

Parameters:
interface interface index
network network prefix
mask network mask
flags flags of the prefix information option (home agent, ...)
validTime valid time of the prefix
preferredTime preferred time of the prefix
defaultRouter default router address
uint32_t ns3::Ipv6L3Protocol::AddInterface ( Ptr< NetDevice >  device  )  [virtual]

Add IPv6 interface for a device.

Parameters:
device net device
Returns:
interface index

Implements ns3::Ipv6.

Ptr<Socket> ns3::Ipv6L3Protocol::CreateRawSocket (  )

Create raw IPv6 socket.

Returns:
newly raw socket
void ns3::Ipv6L3Protocol::DeleteRawSocket ( Ptr< Socket >  socket  )

Remove raw IPv6 socket.

Parameters:
socket socket to remove
Ipv6InterfaceAddress ns3::Ipv6L3Protocol::GetAddress ( uint32_t  interfaceIndex,
uint32_t  addressIndex
) const [virtual]

Get an address.

Parameters:
interfaceIndex interface index
addressIndex address index on the interface
Returns:
Ipv6InterfaceAddress or assert if not found

Implements ns3::Ipv6.

Ptr<Icmpv6L4Protocol> ns3::Ipv6L3Protocol::GetIcmpv6 (  )  const

Get ICMPv6 protocol.

Returns:
Icmpv6L4Protocol pointer
Ptr<Ipv6Interface> ns3::Ipv6L3Protocol::GetInterface ( uint32_t  i  )  const

Get an interface.

Parameters:
i interface index
Returns:
IPv6 interface pointer
int32_t ns3::Ipv6L3Protocol::GetInterfaceForAddress ( Ipv6Address  addr  )  const [virtual]

Get interface index which has specified IPv6 address.

Parameters:
addr IPv6 address
Returns:
interface index or -1 if not found

Implements ns3::Ipv6.

int32_t ns3::Ipv6L3Protocol::GetInterfaceForDevice ( Ptr< const NetDevice >  device  )  const [virtual]

Get interface index which is on a specified net device.

Parameters:
device net device

Implements ns3::Ipv6.

int32_t ns3::Ipv6L3Protocol::GetInterfaceForPrefix ( Ipv6Address  addr,
Ipv6Prefix  mask
) const [virtual]

Get interface index which match specified address/prefix.

Parameters:
addr IPv6 address
mask IPv6 prefix (mask)
Returns:
interface index or -1 if not found

Implements ns3::Ipv6.

uint16_t ns3::Ipv6L3Protocol::GetMetric ( uint32_t  i  )  const [virtual]

Get metric for an interface.

Parameters:
i index
Returns:
metric

Implements ns3::Ipv6.

uint16_t ns3::Ipv6L3Protocol::GetMtu ( uint32_t  i  )  const [virtual]

Get MTU for an interface.

Parameters:
i index
Returns:
MTU

Implements ns3::Ipv6.

uint32_t ns3::Ipv6L3Protocol::GetNAddresses ( uint32_t  interface  )  const [virtual]

Get number of address for an interface.

Parameters:
interface interface index
Returns:
number of address

Implements ns3::Ipv6.

Ptr<NetDevice> ns3::Ipv6L3Protocol::GetNetDevice ( uint32_t  i  )  [virtual]

Get device by index.

Parameters:
i device index on this stack
Returns:
NetDevice pointer

Implements ns3::Ipv6.

uint32_t ns3::Ipv6L3Protocol::GetNInterfaces (  )  const [virtual]

Get current number of interface on this stack.

Returns:
number of interface registered

Implements ns3::Ipv6.

Ptr<Ipv6L4Protocol> ns3::Ipv6L3Protocol::GetProtocol ( int  protocolNumber  )  const

Get L4 protocol by protocol number.

Parameters:
protocolNumber protocol number
Returns:
corresponding Ipv6L4Protocol or 0 if not found
Ptr<Ipv6RoutingProtocol> ns3::Ipv6L3Protocol::GetRoutingProtocol (  )  const [virtual]

Get current routing protocol used.

Returns:
routing protocol

Implements ns3::Ipv6.

static TypeId ns3::Ipv6L3Protocol::GetTypeId ( void   )  [static]

Get the type ID of this class.

This method returns the TypeId associated to ns3::Ipv6L3Protocol.

Returns:
type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6/$ns3::Ipv6L3Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6L3Protocol

Attributes defined for this type:

  • DefaultTtl: The TTL value set by default on all outgoing packets generated on this node.
  • InterfaceList: The set of IPv6 interfaces associated to this IPv6 stack.

Attributes defined in parent class ns3::Ipv6:

  • IpForward: Globally enable or disable IP forwarding for all current and future IPv6 devices.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

TraceSources defined for this type:

  • Tx: Send IPv6 packet to outgoing interface.
  • Rx: Receive IPv6 packet from incoming interface.
  • Drop: Drop IPv6 packet

Reimplemented from ns3::Ipv6.

void ns3::Ipv6L3Protocol::Insert ( Ptr< Ipv6L4Protocol >  protocol  )

Add an L4 protocol.

Parameters:
protocol L4 protocol
bool ns3::Ipv6L3Protocol::IsForwarding ( uint32_t  i  )  const [virtual]

Is interface allows forwarding ?

Parameters:
i interface index

Implements ns3::Ipv6.

bool ns3::Ipv6L3Protocol::IsUp ( uint32_t  i  )  const [virtual]

Is specified interface up ?

Parameters:
i interface index

Implements ns3::Ipv6.

virtual void ns3::Ipv6L3Protocol::NotifyNewAggregate (  )  [protected, virtual]

Notify other components connected to the node that a new stack member is now connected.

This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together.

Reimplemented from ns3::Object.

void ns3::Ipv6L3Protocol::Receive ( Ptr< NetDevice >  device,
Ptr< const Packet >  p,
uint16_t  protocol,
const Address &  from,
const Address &  to,
NetDevice::PacketType  packetType
)

Receive method when a packet arrive in the stack. This method removes IPv6 header and forward up to L4 protocol.

Parameters:
device network device
p the packet
protocol next header value
from address of the correspondant
to address of the destination
packetType type of the packet
void ns3::Ipv6L3Protocol::Remove ( Ptr< Ipv6L4Protocol >  protocol  )

Remove an L4 protocol.

Parameters:
protocol L4 protocol to remove
bool ns3::Ipv6L3Protocol::RemoveAddress ( uint32_t  interfaceIndex,
uint32_t  addressIndex
) [virtual]

Remove an address from an interface.

Parameters:
interfaceIndex interface index
addressIndex address index on the interface

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress ( uint32_t  interface,
Ipv6Address  network,
Ipv6Prefix  mask,
Ipv6Address  defaultRouter
)

Remove an autoconfigured address.

Typically it is used when an autoconfigured address expires.

Parameters:
interface interface index
network network prefix
mask network mask
defaultRouter gateway
void ns3::Ipv6L3Protocol::Send ( Ptr< Packet >  packet,
Ipv6Address  source,
Ipv6Address  destination,
uint8_t  protocol,
Ptr< Ipv6Route >  route
)

Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.

Parameters:
packet packet to send
source source address of packet
destination address of packet
protocol number of packet
route route to take
void ns3::Ipv6L3Protocol::SetDefaultTtl ( uint8_t  ttl  )

Set the default TTL.

Parameters:
ttl TTL to set
void ns3::Ipv6L3Protocol::SetDown ( uint32_t  i  )  [virtual]

set an interface down.

Parameters:
i interface index

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::SetForwarding ( uint32_t  i,
bool  val
) [virtual]

Enable or disable forwarding on interface.

Parameters:
i interface index
val true = enable forwarding, false = disable

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::SetMetric ( uint32_t  i,
uint16_t  metric
) [virtual]

Set metric for an interface.

Parameters:
i index
metric

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::SetNode ( Ptr< Node >  node  )

Set node for this stack.

Parameters:
node node to set
void ns3::Ipv6L3Protocol::SetRoutingProtocol ( Ptr< Ipv6RoutingProtocol >  routingProtocol  )  [virtual]

Set routing protocol for this stack.

Parameters:
routingProtocol IPv6 routing protocol to set

Implements ns3::Ipv6.

void ns3::Ipv6L3Protocol::SetUp ( uint32_t  i  )  [virtual]

Set an interface up.

Parameters:
i interface index

Implements ns3::Ipv6.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:55 for NS-3 by  doxygen 1.7.1
