ns3::Icmpv6L4Protocol Class Reference

An implementation of the ICMPv6 protocol. More...

#include <icmpv6-l4-protocol.h>

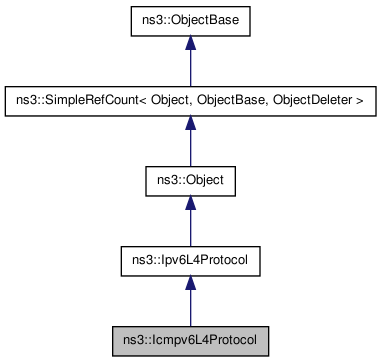

Inheritance diagram for ns3::Icmpv6L4Protocol:
Inheritance graph
[legend]

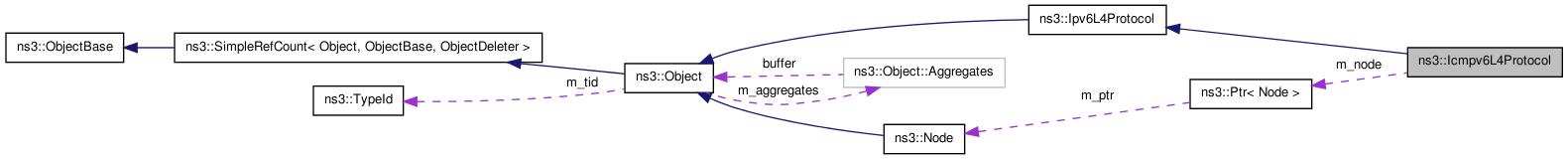

Collaboration diagram for ns3::Icmpv6L4Protocol:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Icmpv6L4Protocol ()
 Constructor.
virtual ~Icmpv6L4Protocol ()
 Destructor.
void SetNode (Ptr< Node > node)
 Set the node.
void NotifyNewAggregate ()
 This method is called by AddAgregate and completes the aggregation by setting the node in the ICMPv6 stack and adding ICMPv6 factory to IPv6 stack connected to the node.
virtual int GetProtocolNumber () const
 Get the protocol number.
virtual int GetVersion () const
 Get the version of the protocol.
void SendMessage (Ptr< Packet > packet, Ipv6Address src, Ipv6Address dst, uint8_t ttl)
 Send a packet via ICMPv6, note that packet already contains ICMPv6 header.
void SendMessage (Ptr< Packet > packet, Ipv6Address dst, Icmpv6Header &icmpv6Hdr, uint8_t ttl)
 Send a packet via ICMPv6.
void DoDAD (Ipv6Address target, Ptr< Ipv6Interface > interface)
 Do the Duplication Address Detection (DAD). It consists in sending a NS with our IPv6 as target. If we received a NA with matched target address, we could not use the address, else the address pass from TENTATIVE to PERMANENT.
void SendNA (Ipv6Address src, Ipv6Address dst, Address *hardwareAddress, uint8_t flags)
 Send a Neighbor Adverstisement.
void SendEchoReply (Ipv6Address src, Ipv6Address dst, uint16_t id, uint16_t seq, Ptr< Packet > data)
 Send a Echo Reply.
void SendNS (Ipv6Address src, Ipv6Address dst, Ipv6Address target, Address hardwareAddress)
 Send a Neighbor Solicitation.
void SendErrorDestinationUnreachable (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code)
 Send an error Destination Unreachable.
void SendErrorTooBig (Ptr< Packet > malformedPacket, Ipv6Address dst, uint32_t mtu)
 Send an error Too Big.
void SendErrorTimeExceeded (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code)
 Send an error Time Exceeded.
void SendErrorParameterError (Ptr< Packet > malformedPacket, Ipv6Address dst, uint8_t code, uint32_t ptr)
 Send an error Parameter Error.
void SendRedirection (Ptr< Packet > redirectedPacket, Ipv6Address dst, Ipv6Address redirTarget, Ipv6Address redirDestination, Address redirHardwareTarget)
 Send an ICMPv6 Redirection.
Ptr< Packet > ForgeNS (Ipv6Address src, Ipv6Address dst, Ipv6Address target, Address hardwareAddress)
 Forge a Neighbor Solicitation.
Ptr< Packet > ForgeNA (Ipv6Address src, Ipv6Address dst, Address *hardwareAddress, uint8_t flags)
 Forge a Neighbor Advertisement.
Ptr< Packet > ForgeRS (Ipv6Address src, Ipv6Address dst, Address hardwareAddress)
 Forge a Router Solicitation.
Ptr< Packet > ForgeEchoRequest (Ipv6Address src, Ipv6Address dst, uint16_t id, uint16_t seq, Ptr< Packet > data)
 Forge an Echo Request.
virtual enum
Ipv6L4Protocol::RxStatus_e 		Receive (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > interface)
 Receive method.
bool Lookup (Ipv6Address dst, Ptr< NetDevice > device, Ptr< NdiscCache > cache, Address *hardwareDestination)
 Lookup in the ND cache for the IPv6 address.
bool Lookup (Ptr< Packet > p, Ipv6Address dst, Ptr< NetDevice > device, Ptr< NdiscCache > cache, Address *hardwareDestination)
 Lookup in the ND cache for the IPv6 address (similar as ARP protocol).
void SendRS (Ipv6Address src, Ipv6Address dst, Address hardwareAddress)
 Send a Router Solicitation.
Ptr< NdiscCache > CreateCache (Ptr< NetDevice > device, Ptr< Ipv6Interface > interface)
 Create a neighbor cache.
bool IsAlwaysDad () const
 Is the node must do DAD.

Static Public Member Functions

static TypeId GetTypeId ()
 Interface ID.
static uint16_t GetStaticProtocolNumber ()
 Get ICMPv6 protocol number.
static void FunctionDadTimeout (Ptr< Icmpv6L4Protocol > icmpv6, Ipv6Interface *interface, Ipv6Address addr)
 Function called when DAD timeout.

Static Public Attributes

static const uint8_t PROT_NUMBER
 ICMPv6 protocol number (58).
static const uint8_t MAX_INITIAL_RTR_ADVERT_INTERVAL
 Neighbor Discovery router constants : max initial RA initial interval.
static const uint8_t MAX_INITIAL_RTR_ADVERTISEMENTS
 Neighbor Discovery router constants : max initial RA transmission.
static const uint8_t MAX_FINAL_RTR_ADVERTISEMENTS
 Neighbor Discovery router constants : max final RA transmission.
static const uint8_t MIN_DELAY_BETWEEN_RAS
 Neighbor Discovery router constants : min delay between RA.
static const uint32_t MAX_RA_DELAY_TIME
 Neighbor Discovery router constants : max delay between RA.
static const uint8_t MAX_RTR_SOLICITATION_DELAY
 Neighbor Discovery host constants : max RS delay.
static const uint8_t RTR_SOLICITATION_INTERVAL
 Neighbor Discovery host constants : RS interval.
static const uint8_t MAX_RTR_SOLICITATIONS
 Neighbor Discovery host constants : max RS transmission.
static const uint8_t MAX_MULTICAST_SOLICIT
 Neighbor Discovery node constants : max multicast solicitations.
static const uint8_t MAX_UNICAST_SOLICIT
 Neighbor Discovery node constants : max unicast solicitations.
static const uint8_t MAX_ANYCAST_DELAY_TIME
 Neighbor Discovery node constants : max anycast delay.
static const uint8_t MAX_NEIGHBOR_ADVERTISEMENT
 Neighbor Discovery node constants : max NA transmission.
static const uint32_t REACHABLE_TIME
 Neighbor Discovery node constants : reachable time.
static const uint32_t RETRANS_TIMER
 Neighbor Discovery node constants : retransmission timer.
static const uint8_t DELAY_FIRST_PROBE_TIME
 Neighbor Discovery node constants : delay for the first probe.
static const double MIN_RANDOM_FACTOR
 Neighbor Discovery node constants : min random factor.
static const double MAX_RANDOM_FACTOR
 Neighbor Discovery node constants : max random factor.

Protected Member Functions

virtual void DoDispose ()
 Dispose this object.

Detailed Description

An implementation of the ICMPv6 protocol.

Member Function Documentation

Ptr<NdiscCache> ns3::Icmpv6L4Protocol::CreateCache ( Ptr< NetDevice >  device,
Ptr< Ipv6Interface >  interface
)

Create a neighbor cache.

Parameters:
device thet NetDevice
interface the IPv6 interface
Returns:
a smart pointer of NdCache or 0 if problem
void ns3::Icmpv6L4Protocol::DoDAD ( Ipv6Address  target,
Ptr< Ipv6Interface >  interface
)

Do the Duplication Address Detection (DAD). It consists in sending a NS with our IPv6 as target. If we received a NA with matched target address, we could not use the address, else the address pass from TENTATIVE to PERMANENT.

Parameters:
target target address
interface interface
Ptr<Packet> ns3::Icmpv6L4Protocol::ForgeEchoRequest ( Ipv6Address  src,
Ipv6Address  dst,
uint16_t  id,
uint16_t  seq,
Ptr< Packet >  data
)

Forge an Echo Request.

Parameters:
src source address
dst destination address
id ID of the packet
seq sequence number
data the data
Returns:
Echo Request packet (without IPv6 header)
Ptr<Packet> ns3::Icmpv6L4Protocol::ForgeNA ( Ipv6Address  src,
Ipv6Address  dst,
Address *  hardwareAddress,
uint8_t  flags
)

Forge a Neighbor Advertisement.

Parameters:
src source IPv6 address
dst destination IPv6 address
hardwareAddress our mac address
flags flags (bitfield => R (4), S (2), O (1))
Returns:
NA packet (with IPv6 header)
Ptr<Packet> ns3::Icmpv6L4Protocol::ForgeNS ( Ipv6Address  src,
Ipv6Address  dst,
Ipv6Address  target,
Address  hardwareAddress
)

Forge a Neighbor Solicitation.

Parameters:
src source IPv6 address
dst destination IPv6 address
target target IPv6 address
hardwareAddress our mac address
Returns:
NS packet (with IPv6 header)
Ptr<Packet> ns3::Icmpv6L4Protocol::ForgeRS ( Ipv6Address  src,
Ipv6Address  dst,
Address  hardwareAddress
)

Forge a Router Solicitation.

Parameters:
src source IPv6 address
dst destination IPv6 address
hardwareAddress our mac address
Returns:
RS packet (with IPv6 header)
static void ns3::Icmpv6L4Protocol::FunctionDadTimeout ( Ptr< Icmpv6L4Protocol >  icmpv6,
Ipv6Interface *  interface,
Ipv6Address  addr
) [static]

Function called when DAD timeout.

Parameters:
icmpv6 Icmpv6L4Protocol instance
interface the interface
addr the IPv6 address
virtual int ns3::Icmpv6L4Protocol::GetProtocolNumber (  )  const [virtual]

Get the protocol number.

Returns:
protocol number

Implements ns3::Ipv6L4Protocol.

static uint16_t ns3::Icmpv6L4Protocol::GetStaticProtocolNumber (  )  [static]

Get ICMPv6 protocol number.

Returns:
protocol number
static TypeId ns3::Icmpv6L4Protocol::GetTypeId ( void   )  [static]

Interface ID.

This method returns the TypeId associated to ns3::Icmpv6L4Protocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv6L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv6L4Protocol/$ns3::Icmpv6L4Protocol

Attributes defined for this type:

  • DAD: Always do DAD check.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

Attributes defined in parent class ns3::Ipv6L4Protocol:

  • ProtocolNumber: The IPv6 protocol number.

No TraceSources defined for this type.

Reimplemented from ns3::Ipv6L4Protocol.

virtual int ns3::Icmpv6L4Protocol::GetVersion (  )  const [virtual]

Get the version of the protocol.

Returns:
version
bool ns3::Icmpv6L4Protocol::IsAlwaysDad (  )  const

Is the node must do DAD.

Returns:
true if node has to do DAD.
bool ns3::Icmpv6L4Protocol::Lookup ( Ptr< Packet >  p,
Ipv6Address  dst,
Ptr< NetDevice >  device,
Ptr< NdiscCache >  cache,
Address *  hardwareDestination
)

Lookup in the ND cache for the IPv6 address (similar as ARP protocol).

It also send NS request to target and store the waiting packet.

Parameters:
p the packet
dst destination address
device device
cache the neighbor cache
hardwareDestination hardware address
Returns:
true if the address is in the ND cache, the hardwareDestination is updated.
bool ns3::Icmpv6L4Protocol::Lookup ( Ipv6Address  dst,
Ptr< NetDevice >  device,
Ptr< NdiscCache >  cache,
Address *  hardwareDestination
)

Lookup in the ND cache for the IPv6 address.

Parameters:
dst destination address
device device
cache the neighbor cache
hardwareDestination hardware address
Note:
Unlike other Lookup method, it does not send NS request!
virtual enum Ipv6L4Protocol::RxStatus_e ns3::Icmpv6L4Protocol::Receive ( Ptr< Packet >  p,
Ipv6Address const &  src,
Ipv6Address const &  dst,
Ptr< Ipv6Interface >  interface
) [virtual]

Receive method.

Parameters:
p the packet
src source address
dst destination address
interface the interface from which the packet is coming

Implements ns3::Ipv6L4Protocol.

void ns3::Icmpv6L4Protocol::SendEchoReply ( Ipv6Address  src,
Ipv6Address  dst,
uint16_t  id,
uint16_t  seq,
Ptr< Packet >  data
)

Send a Echo Reply.

Parameters:
src source IPv6 address
dst destination IPv6 address
id id of the packet
seq sequence number
data auxiliary data
void ns3::Icmpv6L4Protocol::SendErrorDestinationUnreachable ( Ptr< Packet >  malformedPacket,
Ipv6Address  dst,
uint8_t  code
)

Send an error Destination Unreachable.

Parameters:
malformedPacket the malformed packet
dst destination IPv6 address
code code of the error
void ns3::Icmpv6L4Protocol::SendErrorParameterError ( Ptr< Packet >  malformedPacket,
Ipv6Address  dst,
uint8_t  code,
uint32_t  ptr
)

Send an error Parameter Error.

Parameters:
malformedPacket the malformed packet
dst destination IPv6 address
code code of the error
ptr byte of p where the error is located
void ns3::Icmpv6L4Protocol::SendErrorTimeExceeded ( Ptr< Packet >  malformedPacket,
Ipv6Address  dst,
uint8_t  code
)

Send an error Time Exceeded.

Parameters:
malformedPacket the malformed packet
dst destination IPv6 address
code code of the error
void ns3::Icmpv6L4Protocol::SendErrorTooBig ( Ptr< Packet >  malformedPacket,
Ipv6Address  dst,
uint32_t  mtu
)

Send an error Too Big.

Parameters:
malformedPacket the malformed packet
dst destination IPv6 address
mtu the mtu
void ns3::Icmpv6L4Protocol::SendMessage ( Ptr< Packet >  packet,
Ipv6Address  src,
Ipv6Address  dst,
uint8_t  ttl
)

Send a packet via ICMPv6, note that packet already contains ICMPv6 header.

Parameters:
packet the packet to send which contains ICMPv6 header
src source address
dst destination address
ttl next hop limit
void ns3::Icmpv6L4Protocol::SendMessage ( Ptr< Packet >  packet,
Ipv6Address  dst,
Icmpv6Header &  icmpv6Hdr,
uint8_t  ttl
)

Send a packet via ICMPv6.

Parameters:
packet the packet to send
dst destination address
icmpv6Hdr ICMPv6 header (needed to calculate checksum after source address is determined by routing stuff
ttl next hop limit
void ns3::Icmpv6L4Protocol::SendNA ( Ipv6Address  src,
Ipv6Address  dst,
Address *  hardwareAddress,
uint8_t  flags
)

Send a Neighbor Adverstisement.

Parameters:
src source IPv6 address
dst destination IPv6 address
hardwareAddress our MAC address
flags to set (4 = flag R, 2 = flag S, 3 = flag O)
void ns3::Icmpv6L4Protocol::SendNS ( Ipv6Address  src,
Ipv6Address  dst,
Ipv6Address  target,
Address  hardwareAddress
)

Send a Neighbor Solicitation.

Parameters:
src source IPv6 address
dst destination IPv6 address
target target IPv6 address
hardwareAddress our mac address
void ns3::Icmpv6L4Protocol::SendRedirection ( Ptr< Packet >  redirectedPacket,
Ipv6Address  dst,
Ipv6Address  redirTarget,
Ipv6Address  redirDestination,
Address  redirHardwareTarget
)

Send an ICMPv6 Redirection.

Parameters:
redirectedPacket the redirected packet
dst destination IPv6 address
redirTarget IPv6 target address for Icmpv6Redirection
redirDestination IPv6 destination address for Icmpv6Redirection
redirHardwareTarget L2 target address for Icmpv6OptionRdirected
void ns3::Icmpv6L4Protocol::SendRS ( Ipv6Address  src,
Ipv6Address  dst,
Address  hardwareAddress
)

Send a Router Solicitation.

Parameters:
src link-local source address
dst destination address (usealy ff02::2 i.e all-routers)
hardwareAddress link-layer address (SHOULD be included if src is not ::
void ns3::Icmpv6L4Protocol::SetNode ( Ptr< Node >  node  )

Set the node.

Parameters:
node the node to set
The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:55 for NS-3 by  doxygen 1.7.1
