IPv6 Neighbor Discovery cache. More...

#include <ndisc-cache.h>

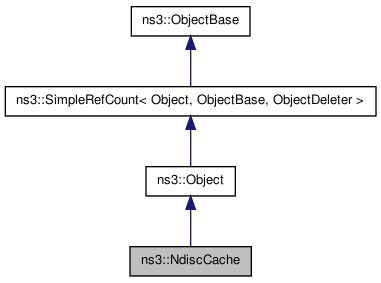

Inheritance diagram for ns3::NdiscCache:

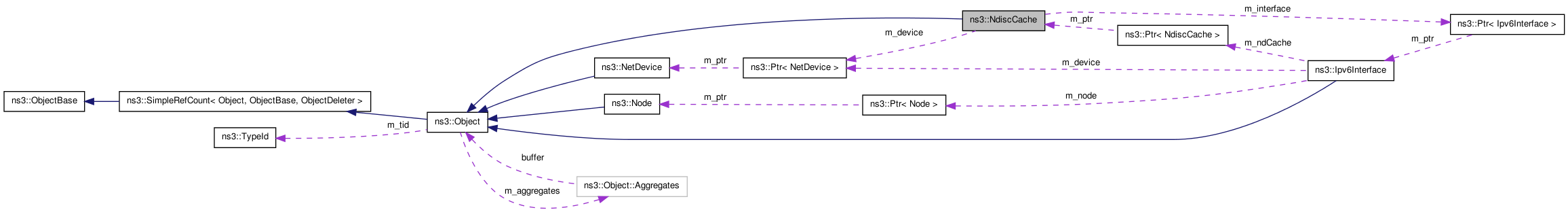

Collaboration diagram for ns3::NdiscCache:

Classes
class	Entry
	A record that holds information about an NdiscCache entry. More...
Public Member Functions
	NdiscCache ()
	Constructor.
	~NdiscCache ()
	Destructor.
Ptr< NetDevice >	GetDevice () const
	Get the NetDevice associated with this cache.
Ptr< Ipv6Interface >	GetInterface () const
	Get the Ipv6Interface associated with this cache.
NdiscCache::Entry *	Lookup (Ipv6Address dst)
	Lookup in the cache.
NdiscCache::Entry *	Add (Ipv6Address to)
	Add an entry.
void	Remove (NdiscCache::Entry *entry)
	Delete an entry.
void	Flush ()
	Flush the cache.
void	SetUnresQlen (uint32_t unresQlen)
	Set the max number of waiting packet.
uint32_t	GetUnresQlen ()
	Get the max number of waiting packet.
void	SetDevice (Ptr< NetDevice > device, Ptr< Ipv6Interface > interface)
	Set the device and interface.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Attributes
static const uint32_t	DEFAULT_UNRES_QLEN = 3
	Default value for unres qlen.

Detailed Description

IPv6 Neighbor Discovery cache.

Member Function Documentation

NdiscCache::Entry* ns3::NdiscCache::Add ( Ipv6Address to )

Add an entry.

Parameters:

to

address to add

Returns:: an new Entry

Ptr<NetDevice> ns3::NdiscCache::GetDevice ( ) const

Get the NetDevice associated with this cache.

Returns:: NetDevice

static TypeId ns3::NdiscCache::GetTypeId ( void ) [static]

Get the type ID.

This method returns the TypeId associated to ns3::NdiscCache.

Returns:: type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::NdiscCache
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::NdiscCache

Attributes defined for this type:

UnresolvedQueueSize: Size of the queue for packets pending an NA reply.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

uint32_t ns3::NdiscCache::GetUnresQlen ( )

Get the max number of waiting packet.

Returns:: max number

NdiscCache::Entry* ns3::NdiscCache::Lookup ( Ipv6Address dst )

Lookup in the cache.

Parameters:

dst

destination address

Returns:: the entry if found, 0 otherwise

void ns3::NdiscCache::Remove ( NdiscCache::Entry * entry )

Delete an entry.

Parameters:

entry

pointer to delete from the list.

void ns3::NdiscCache::SetDevice	(	Ptr< NetDevice >	device,
		Ptr< Ipv6Interface >	interface
	)

Set the device and interface.

Parameters:

	device	the device
	interface	the IPv6 interface

void ns3::NdiscCache::SetUnresQlen ( uint32_t unresQlen )

Set the max number of waiting packet.

Parameters:

unresQlen

value to set

The documentation for this class was generated from the following files:

src/internet-stack/ndisc-cache.h
doc/introspected-doxygen.h
