ns3::NdiscCache::Entry Class Reference

A record that holds information about an NdiscCache entry. More...

#include <ndisc-cache.h>

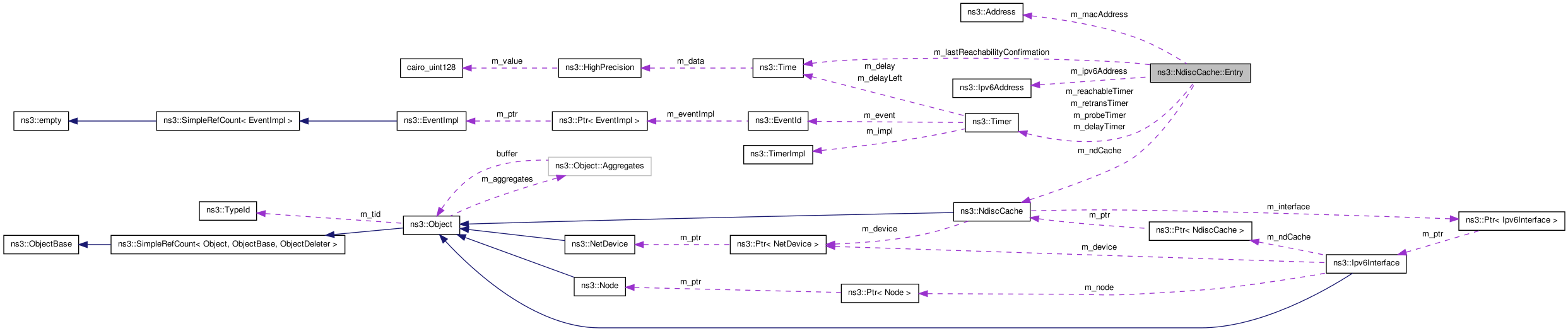

Collaboration diagram for ns3::NdiscCache::Entry:

List of all members.

Public Member Functions
	Entry (NdiscCache *nd)
	Constructor.
void	MarkIncomplete (Ptr< Packet > p)
	Changes the state to this entry to INCOMPLETE.
std::list< Ptr< Packet > >	MarkReachable (Address mac)
	Changes the state to this entry to REACHABLE.
void	MarkProbe ()
	Changes the state to this entry to PROBE.
std::list< Ptr< Packet > >	MarkStale (Address mac)
	Changes the state to this entry to STALE.
void	MarkStale ()
	Changes the state to this entry to STALE.
void	MarkReachable ()
	Changes the state to this entry to REACHABLE.
void	MarkDelay ()
	Change the state to this entry to DELAY.
void	AddWaitingPacket (Ptr< Packet > p)
	Add a packet (or replace old value) in the queue.
void	ClearWaitingPacket ()
	Clear the waiting packet list.
bool	IsStale () const
	Is the entry STALE.
bool	IsReachable () const
	Is the entry REACHABLE.
bool	IsDelay () const
	Is the entry DELAY.
bool	IsIncomplete () const
	Is the entry INCOMPLETE.
bool	IsProbe () const
	Is the entry PROBE.
Address	GetMacAddress () const
	Get the MAC address of this entry.
void	SetMacAddress (Address mac)
	Set the MAC address of this entry.
bool	IsRouter () const
	If the entry is a host or a router.
void	SetRouter (bool router)
	Set the node type.
uint8_t	GetNSRetransmit () const
	Get the number of NS retransmit.
void	IncNSRetransmit ()
	Increment NS retransmit.
void	ResetNSRetransmit ()
	Reset NS retransmit (=0).
Time	GetLastReachabilityConfirmation () const
	Get the time of last reachability confirmation.
void	UpdateLastReachabilityconfirmation ()
	Update the time of last reachability confirmation.
void	StartReachableTimer ()
	Start the reachable timer.
void	StopReachableTimer ()
	Stop the reachable timer.
void	StartRetransmitTimer ()
	Start retransmit timer.
void	StopRetransmitTimer ()
	Stop retransmit timer.
void	StartProbeTimer ()
	Start probe timer.
void	StopProbeTimer ()
	Stop probe timer.
void	StartDelayTimer ()
	Start delay timer.
void	StopDelayTimer ()
	Stop delay timer.
void	FunctionReachableTimeout ()
	Function called when reachable timer timeout.
void	FunctionRetransmitTimeout ()
	Function called when retransmit timer timeout. It verify that the NS retransmit has reached the max so discard the entry otherwise it retransmit a NS.
void	FunctionProbeTimeout ()
	Function called when probe timer timeout.
void	FunctionDelayTimeout ()
	Function called when delay timer timeout.
void	SetIpv6Address (Ipv6Address ipv6Address)
	Set the IPv6 address.

---

Detailed Description

A record that holds information about an NdiscCache entry.

---

Constructor & Destructor Documentation

ns3::NdiscCache::Entry::Entry

(

NdiscCache *

nd

)

Constructor.

Parameters:

nd

The NdiscCache this entry belongs to.

---

Member Function Documentation

void ns3::NdiscCache::Entry::AddWaitingPacket

(

Ptr< Packet >

p

)

Add a packet (or replace old value) in the queue.

Parameters:

p

packet to add

Time ns3::NdiscCache::Entry::GetLastReachabilityConfirmation

(

)

const

Get the time of last reachability confirmation.

Returns:

time

Address ns3::NdiscCache::Entry::GetMacAddress

(

)

const

Get the MAC address of this entry.

Returns:

the L2 address

uint8_t ns3::NdiscCache::Entry::GetNSRetransmit

(

)

const

Get the number of NS retransmit.

Returns:

number of NS that have been retransmit

bool ns3::NdiscCache::Entry::IsDelay

(

)

const

Is the entry DELAY.

Returns:

true if the entry is in DELAY state, false otherwise

bool ns3::NdiscCache::Entry::IsIncomplete

(

)

const

Is the entry INCOMPLETE.

Returns:

true if the entry is in INCOMPLETE state, false otherwise

bool ns3::NdiscCache::Entry::IsProbe

(

)

const

Is the entry PROBE.

Returns:

true if the entry is in PROBE state, false otherwise

bool ns3::NdiscCache::Entry::IsReachable

(

)

const

Is the entry REACHABLE.

Returns:

true if the entry is in REACHABLE state, false otherwise

bool ns3::NdiscCache::Entry::IsRouter

(

)

const

If the entry is a host or a router.

Returns:

true if the node is a router, 0 if it is a host

bool ns3::NdiscCache::Entry::IsStale

(

)

const

Is the entry STALE.

Returns:

true if the entry is in STALE state, false otherwise

void ns3::NdiscCache::Entry::MarkIncomplete

(

Ptr< Packet >

p

)

Changes the state to this entry to INCOMPLETE.

Parameters:

p

packet that wait to be sent

std::list<Ptr<Packet> > ns3::NdiscCache::Entry::MarkReachable

(

Address

mac

)

Changes the state to this entry to REACHABLE.

Parameters:

mac

MAC address

Returns:

the list of packet waiting

std::list<Ptr<Packet> > ns3::NdiscCache::Entry::MarkStale

(

Address

mac

)

Changes the state to this entry to STALE.

Parameters:

mac

L2 address

Returns:

the list of packet waiting

void ns3::NdiscCache::Entry::SetIpv6Address

(

Ipv6Address

ipv6Address

)

Set the IPv6 address.

Parameters:

ipv6Address

IPv6 address

void ns3::NdiscCache::Entry::SetMacAddress

(

Address

mac

)

Set the MAC address of this entry.

Parameters:

mac

the MAC address to set

void ns3::NdiscCache::Entry::SetRouter

(

bool

router

)

Set the node type.

Parameters:

router

true is a router, false means a host

---

The documentation for this class was generated from the following file:

• src/internet-stack/ndisc-cache.h
