An Address Block and its associated Address TLV Blocks. More...

#include <packetbb.h>

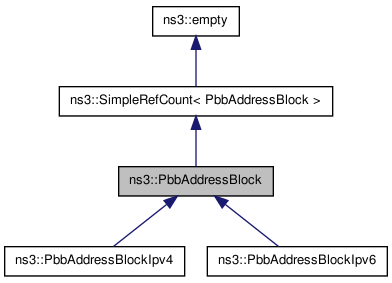

Inheritance diagram for ns3::PbbAddressBlock:

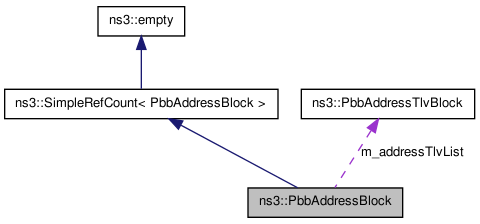

Collaboration diagram for ns3::PbbAddressBlock:

Public Types
typedef std::list< Address > ::iterator	AddressIterator
typedef std::list< Address > ::const_iterator	ConstAddressIterator
typedef std::list< uint8_t > ::iterator	PrefixIterator
typedef std::list< uint8_t > ::const_iterator	ConstPrefixIterator
typedef PbbAddressTlvBlock::Iterator	TlvIterator
typedef PbbAddressTlvBlock::ConstIterator	ConstTlvIterator
Public Member Functions
AddressIterator	AddressBegin (void)
ConstAddressIterator	AddressBegin (void) const
AddressIterator	AddressEnd (void)
ConstAddressIterator	AddressEnd (void) const
int	AddressSize (void) const
bool	AddressEmpty (void) const
Address	AddressFront (void) const
Address	AddressBack (void) const
void	AddressPushFront (Address address)
	Prepends an address to the front of this block.
void	AddressPopFront (void)
	Removes an address from the front of this block.
void	AddressPushBack (Address address)
	Appends an address to the back of this block.
void	AddressPopBack (void)
	Removes an address from the back of this block.
AddressIterator	AddressInsert (AddressIterator position, const Address value)
	Inserts an address at the specified position in this block.
AddressIterator	AddressErase (AddressIterator position)
	Removes the address at the specified position.
AddressIterator	AddressErase (AddressIterator first, AddressIterator last)
	Removes all addresses from [first, last) (includes first, not includes last).
void	AddressClear (void)
	Removes all addresses from this block.
PrefixIterator	PrefixBegin (void)
ConstPrefixIterator	PrefixBegin (void) const
PrefixIterator	PrefixEnd (void)
ConstPrefixIterator	PrefixEnd (void) const
int	PrefixSize (void) const
bool	PrefixEmpty (void) const
uint8_t	PrefixFront (void) const
uint8_t	PrefixBack (void) const
void	PrefixPushFront (uint8_t prefix)
	Prepends a prefix to the front of this block.
void	PrefixPopFront (void)
	Removes a prefix from the front of this block.
void	PrefixPushBack (uint8_t prefix)
	Appends a prefix to the back of this block.
void	PrefixPopBack (void)
	Removes a prefix from the back of this block.
PrefixIterator	PrefixInsert (PrefixIterator position, const uint8_t value)
	Inserts a prefix at the specified position in this block.
PrefixIterator	PrefixErase (PrefixIterator position)
	Removes the prefix at the specified position.
PrefixIterator	PrefixErase (PrefixIterator first, PrefixIterator last)
	Removes all prefixes from [first, last) (includes first, not includes last).
void	PrefixClear (void)
	Removes all prefixes from this block.
TlvIterator	TlvBegin (void)
ConstTlvIterator	TlvBegin (void) const
TlvIterator	TlvEnd (void)
ConstTlvIterator	TlvEnd (void) const
int	TlvSize (void) const
bool	TlvEmpty (void) const
Ptr< PbbAddressTlv >	TlvFront (void)
const Ptr< PbbAddressTlv >	TlvFront (void) const
Ptr< PbbAddressTlv >	TlvBack (void)
const Ptr< PbbAddressTlv >	TlvBack (void) const
void	TlvPushFront (Ptr< PbbAddressTlv > address)
	Prepends an address TLV to the front of this message.
void	TlvPopFront (void)
	Removes an address TLV from the front of this message.
void	TlvPushBack (Ptr< PbbAddressTlv > address)
	Appends an address TLV to the back of this message.
void	TlvPopBack (void)
	Removes an address TLV from the back of this message.
TlvIterator	TlvInsert (TlvIterator position, const Ptr< PbbTlv > value)
	Inserts an address TLV at the specified position in this block.
TlvIterator	TlvErase (TlvIterator position)
	Removes the address TLV at the specified position.
TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all address TLVs from [first, last) (includes first, not includes last).
void	TlvClear (void)
	Removes all address TLVs from this block.
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator &start) const
	Serializes this address block into the specified buffer.
void	Deserialize (Buffer::Iterator &start)
	Deserializes an address block from the specified buffer.
void	Print (std::ostream &os) const
	Pretty-prints the contents of this address block.
void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this address block, with specified indentation.
bool	operator== (const PbbAddressBlock &other) const
bool	operator!= (const PbbAddressBlock &other) const
Protected Member Functions
virtual uint8_t	GetAddressLength (void) const =0
virtual void	SerializeAddress (uint8_t *buffer, ConstAddressIterator iter) const =0
virtual Address	DeserializeAddress (uint8_t *buffer) const =0
virtual void	PrintAddress (std::ostream &os, ConstAddressIterator iter) const =0

Detailed Description

An Address Block and its associated Address TLV Blocks.

This is a pure virtual base class, when creating address blocks, you should instantiate either PbbAddressBlockIpv4 or PbbAddressBlockIpv6.

Member Function Documentation

Address ns3::PbbAddressBlock::AddressBack ( void ) const

Returns:: the last address in this block.

AddressIterator ns3::PbbAddressBlock::AddressBegin ( void )

Returns:: an iterator to the first address in this block.

ConstAddressIterator ns3::PbbAddressBlock::AddressBegin ( void ) const

Returns:: a const iterator to the first address in this block.

bool ns3::PbbAddressBlock::AddressEmpty ( void ) const

Returns:: true if there are no addresses in this block, false otherwise.

ConstAddressIterator ns3::PbbAddressBlock::AddressEnd ( void ) const

Returns:: a const iterator to the last address in this block.

AddressIterator ns3::PbbAddressBlock::AddressEnd ( void )

Returns:: an iterator to the last address in this block.

AddressIterator ns3::PbbAddressBlock::AddressErase ( AddressIterator position )

Removes the address at the specified position.

Parameters:

position

an Iterator pointing to the address to erase.

Returns:: an iterator pointing to the next address in the block.

AddressIterator ns3::PbbAddressBlock::AddressErase	(	AddressIterator	first,
		AddressIterator	last
	)

Removes all addresses from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first address to erase (inclusive).
	last	an Iterator pointing to the element past the last address to erase.

Returns:: an iterator pointing to the next address in the block.

Address ns3::PbbAddressBlock::AddressFront ( void ) const

Returns:: the first address in this block.

AddressIterator ns3::PbbAddressBlock::AddressInsert	(	AddressIterator	position,
		const Address	value
	)

Inserts an address at the specified position in this block.

Parameters:

	position	an Iterator pointing to the position in this block to insert the address.
	value	the address to insert.

Returns:: An iterator pointing to the newly inserted address.

void ns3::PbbAddressBlock::AddressPushBack ( Address address )

Appends an address to the back of this block.

Parameters:

address

the address to append.

void ns3::PbbAddressBlock::AddressPushFront ( Address address )

Prepends an address to the front of this block.

Parameters:

address

the address to prepend.

int ns3::PbbAddressBlock::AddressSize ( void ) const

Returns:: the number of addresses in this block.

void ns3::PbbAddressBlock::Deserialize ( Buffer::Iterator & start )

Deserializes an address block from the specified buffer.

Parameters:

start

a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

uint32_t ns3::PbbAddressBlock::GetSerializedSize ( void ) const

Returns:: The size (in bytes) needed to serialize this address block.

uint8_t ns3::PbbAddressBlock::PrefixBack ( void ) const

Returns:: the last prefix in this block.

PrefixIterator ns3::PbbAddressBlock::PrefixBegin ( void )

Returns:: an iterator to the first prefix in this block.

ConstPrefixIterator ns3::PbbAddressBlock::PrefixBegin ( void ) const

Returns:: a const iterator to the first prefix in this block.

bool ns3::PbbAddressBlock::PrefixEmpty ( void ) const

Returns:: true if there are no prefixes in this block, false otherwise.

PrefixIterator ns3::PbbAddressBlock::PrefixEnd ( void )

Returns:: an iterator to the last prefix in this block.

ConstPrefixIterator ns3::PbbAddressBlock::PrefixEnd ( void ) const

Returns:: a const iterator to the last prefix in this block.

PrefixIterator ns3::PbbAddressBlock::PrefixErase ( PrefixIterator position )

Removes the prefix at the specified position.

Parameters:

position

an Iterator pointing to the prefix to erase.

Returns:: an iterator pointing to the next prefix in the block.

PrefixIterator ns3::PbbAddressBlock::PrefixErase	(	PrefixIterator	first,
		PrefixIterator	last
	)

Removes all prefixes from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first prefix to erase (inclusive).
	last	an Iterator pointing to the element past the last prefix to erase.

Returns:: an iterator pointing to the next prefix in the block.

uint8_t ns3::PbbAddressBlock::PrefixFront ( void ) const

Returns:: the first prefix in this block.

PrefixIterator ns3::PbbAddressBlock::PrefixInsert	(	PrefixIterator	position,
		const uint8_t	value
	)

Inserts a prefix at the specified position in this block.

Parameters:

	position	an Iterator pointing to the position in this block to insert the prefix.
	value	the prefix to insert.

Returns:: An iterator pointing to the newly inserted prefix.

void ns3::PbbAddressBlock::PrefixPushBack ( uint8_t prefix )

Appends a prefix to the back of this block.

Parameters:

prefix

the prefix to append.

void ns3::PbbAddressBlock::PrefixPushFront ( uint8_t prefix )

Prepends a prefix to the front of this block.

Parameters:

prefix

the prefix to prepend.

int ns3::PbbAddressBlock::PrefixSize ( void ) const

Returns:: the number of prefixes in this block.

void ns3::PbbAddressBlock::Print	(	std::ostream &	os,
		int	level
	)			const

Pretty-prints the contents of this address block, with specified indentation.

Parameters:

	os	a stream object to print to.
	level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

void ns3::PbbAddressBlock::Print ( std::ostream & os ) const

Pretty-prints the contents of this address block.

Parameters:

os

a stream object to print to.

void ns3::PbbAddressBlock::Serialize ( Buffer::Iterator & start ) const

Serializes this address block into the specified buffer.

Parameters:

start

a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Ptr<PbbAddressTlv> ns3::PbbAddressBlock::TlvBack ( void )

Returns:: a smart pointer to the last address TLV in this message.

const Ptr<PbbAddressTlv> ns3::PbbAddressBlock::TlvBack ( void ) const

Returns:: a const smart pointer to the last address TLV in this message.

TlvIterator ns3::PbbAddressBlock::TlvBegin ( void )

Returns:: an iterator to the first address TLV in this block.

ConstTlvIterator ns3::PbbAddressBlock::TlvBegin ( void ) const

Returns:: a const iterator to the first address TLV in this block.

bool ns3::PbbAddressBlock::TlvEmpty ( void ) const

Returns:: true if there are no address TLVs in this block, false otherwise.

ConstTlvIterator ns3::PbbAddressBlock::TlvEnd ( void ) const

Returns:: a const iterator to the last address TLV in this block.

TlvIterator ns3::PbbAddressBlock::TlvEnd ( void )

Returns:: an iterator to the last address TLV in this block.

TlvIterator ns3::PbbAddressBlock::TlvErase ( TlvIterator position )

Removes the address TLV at the specified position.

Parameters:

position

an Iterator pointing to the address TLV to erase.

Returns:: an iterator pointing to the next address TLV in the block.

TlvIterator ns3::PbbAddressBlock::TlvErase	(	TlvIterator	first,
		TlvIterator	last
	)

Removes all address TLVs from [first, last) (includes first, not includes last).

Parameters:

	first	an Iterator pointing to the first address TLV to erase (inclusive).
	last	an Iterator pointing to the element past the last address TLV to erase.

Returns:: an iterator pointing to the next address TLV in the message.

Ptr<PbbAddressTlv> ns3::PbbAddressBlock::TlvFront ( void )

Returns:: a smart pointer to the first address TLV in this block.

const Ptr<PbbAddressTlv> ns3::PbbAddressBlock::TlvFront ( void ) const

Returns:: a const smart pointer to the first address TLV in this message.

TlvIterator ns3::PbbAddressBlock::TlvInsert	(	TlvIterator	position,
		const Ptr< PbbTlv >	value
	)

Inserts an address TLV at the specified position in this block.

Parameters:

	position	an Iterator pointing to the position in this block to insert the address TLV.
	value	the prefix to insert.

Returns:: An iterator pointing to the newly inserted address TLV.

void ns3::PbbAddressBlock::TlvPushBack ( Ptr< PbbAddressTlv > address )

Appends an address TLV to the back of this message.

Parameters:

address

a smart pointer to the address TLV to append.

void ns3::PbbAddressBlock::TlvPushFront ( Ptr< PbbAddressTlv > address )

Prepends an address TLV to the front of this message.

Parameters:

address

a smart pointer to the address TLV to prepend.

int ns3::PbbAddressBlock::TlvSize ( void ) const

Returns:: the number of address TLVs in this block.

The documentation for this class was generated from the following file:

src/node/packetbb.h

ns3::PbbAddressBlock Class Reference

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Function Documentation
