ns3::QstaWifiMac Class Reference

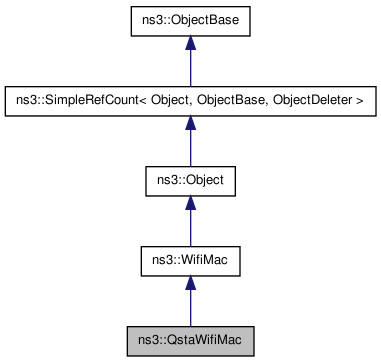

Inheritance diagram for ns3::QstaWifiMac:
Inheritance graph
[legend]

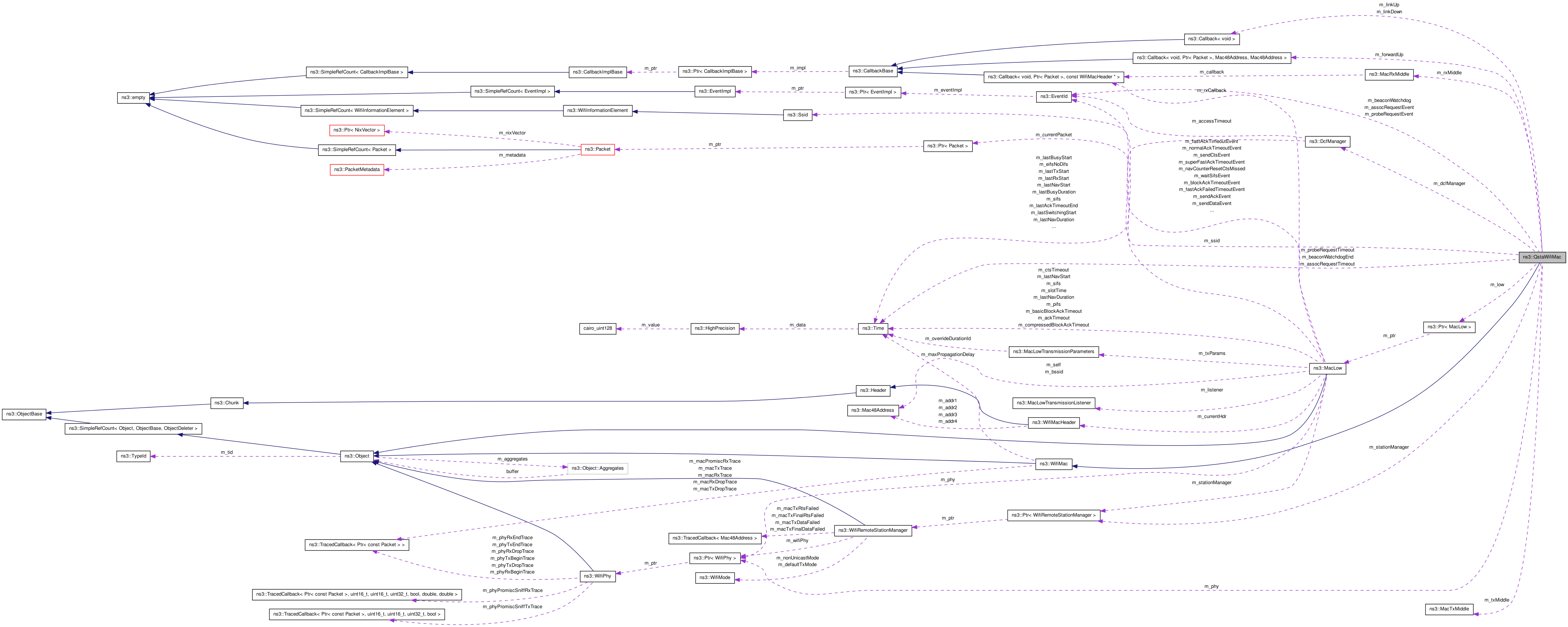

Collaboration diagram for ns3::QstaWifiMac:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void SetSlot (Time slotTime)
virtual void SetSifs (Time sifs)
virtual void SetEifsNoDifs (Time eifsNoDifs)
virtual void SetAckTimeout (Time ackTimeout)
virtual void SetCtsTimeout (Time ctsTimeout)
virtual void SetPifs (Time pifs)
virtual Time GetSlot (void) const
virtual Time GetSifs (void) const
virtual Time GetEifsNoDifs (void) const
virtual Time GetAckTimeout (void) const
virtual Time GetCtsTimeout (void) const
virtual Time GetPifs (void) const
virtual void SetWifiPhy (Ptr< WifiPhy > phy)
virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)
virtual bool SupportsSendFrom (void) const
virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)
virtual void SetLinkUpCallback (Callback< void > linkUp)
virtual void SetLinkDownCallback (Callback< void > linkDown)
virtual Mac48Address GetAddress (void) const
virtual Ssid GetSsid (void) const
virtual void SetAddress (Mac48Address address)
virtual void SetSsid (Ssid ssid)
virtual Mac48Address GetBssid (void) const
virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)
virtual Time GetBasicBlockAckTimeout (void) const
virtual Time GetCompressedBlockAckTimeout (void) const
void SetMaxMissedBeacons (uint32_t missed)
void SetProbeRequestTimeout (Time timeout)
void SetAssocRequestTimeout (Time timeout)
void StartActiveAssociation (void)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::QstaWifiMac.

Member Function Documentation

virtual void ns3::QstaWifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to,
Mac48Address  from
) [inline, virtual]
Parameters:
packet the packet to send.
to the address to which the packet should be sent.
from the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::Enqueue ( Ptr< const Packet packet,
Mac48Address  to
) [virtual]
Parameters:
packet the packet to send.
to the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetAckTimeout ( void   )  const [virtual]
Returns:
the current ACK timeout duration.

Implements ns3::WifiMac.

virtual Mac48Address ns3::QstaWifiMac::GetAddress ( void   )  const [virtual]
Returns:
the MAC address associated to this MAC layer.

Implements ns3::WifiMac.

virtual Mac48Address ns3::QstaWifiMac::GetBssid ( void   )  const [virtual]
Returns:
the bssid of the network this device belongs to.

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetCtsTimeout ( void   )  const [virtual]
Returns:
the current CTS timeout duration.

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetEifsNoDifs ( void   )  const [virtual]
Returns:
the current EIFS minus DIFS duration

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetPifs ( void   )  const [virtual]
Returns:
the current PIFS duration.

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetSifs ( void   )  const [virtual]
Returns:
the current SIFS duration.

Implements ns3::WifiMac.

virtual Time ns3::QstaWifiMac::GetSlot ( void   )  const [virtual]
Returns:
the current slot duration.

Implements ns3::WifiMac.

virtual Ssid ns3::QstaWifiMac::GetSsid ( void   )  const [virtual]
Returns:
the ssid which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

static TypeId ns3::QstaWifiMac::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::QstaWifiMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiMac/$ns3::QstaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::QstaWifiMac

Attributes defined for this type:

  • ProbeRequestTimeout: The interval between two consecutive probe request attempts.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 50000000ns
    • Flags: construct write read
  • AssocRequestTimeout: The interval between two consecutive assoc request attempts.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 500000000ns
    • Flags: construct write read
  • MaxMissedBeacons: Number of beacons which much be consecutively missed before we attempt to restart association.
  • ActiveProbing: If true, we send probe requests. If false, we don't.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write
  • VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
  • VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
  • BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
  • BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class

Attributes defined in parent class ns3::WifiMac:

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 75000ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 75000ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 281000ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 99000ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 16000ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 60000ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 9000ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 25000ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 3333ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiMac:

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Reimplemented from ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetAckTimeout ( Time  ackTimeout  )  [virtual]
Parameters:
ackTimeout the duration of an ACK timeout.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetAddress ( Mac48Address  address  )  [virtual]
Parameters:
address the current address of this MAC layer.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetCtsTimeout ( Time  ctsTimeout  )  [virtual]
Parameters:
ctsTimeout the duration of a CTS timeout.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetEifsNoDifs ( Time  eifsNoDifs  )  [virtual]
Parameters:
eifsNoDifs the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetForwardUpCallback ( Callback< void, Ptr< Packet >, Mac48Address, Mac48Address upCallback  )  [virtual]
Parameters:
upCallback the callback to invoke when a packet must be forwarded up the stack.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetLinkDownCallback ( Callback< void >  linkDown  )  [virtual]
Parameters:
linkDown the callback to invoke when the link becomes down.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetLinkUpCallback ( Callback< void >  linkUp  )  [virtual]
Parameters:
linkUp the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetPifs ( Time  pifs  )  [virtual]
Parameters:
pifs the pifs duration.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetSifs ( Time  sifs  )  [virtual]
Parameters:
sifs the sifs duration

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetSlot ( Time  slotTime  )  [virtual]
Parameters:
slotTime the slot duration

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetSsid ( Ssid  ssid  )  [virtual]
Parameters:
ssid the current ssid of this MAC layer.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetWifiPhy ( Ptr< WifiPhy phy  )  [virtual]
Parameters:
phy the physical layer attached to this MAC.

Implements ns3::WifiMac.

virtual void ns3::QstaWifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager stationManager  )  [virtual]
Parameters:
stationManager the station manager attached to this MAC.

Implements ns3::WifiMac.


The documentation for this class was generated from the following files:
