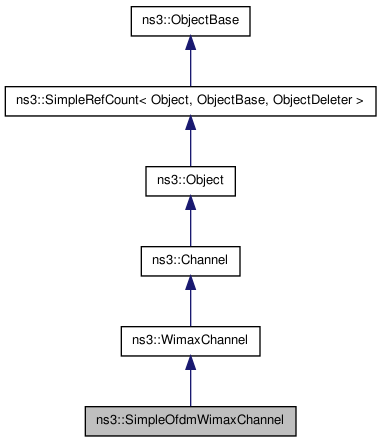

Inheritance diagram for ns3::SimpleOfdmWimaxChannel:

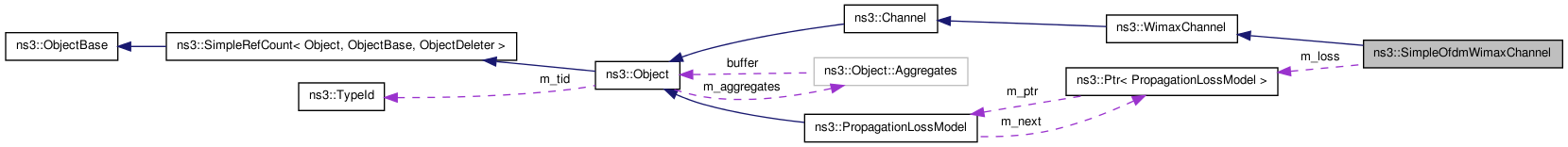

Collaboration diagram for ns3::SimpleOfdmWimaxChannel:

Public Types
enum	PropModel { RANDOM_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, COST231_PROPAGATION }
Public Member Functions
	SimpleOfdmWimaxChannel (PropModel propModel)
	Creates a channel and sets the propagation model.
void	Send (Time BlockTime, uint32_t burstSize, Ptr< WimaxPhy > phy, bool isFirstBlock, bool isLastBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double txPowerDbm, Ptr< PacketBurst > burst)
	Sends a dummy fec block to all connected physical devices.
void	SetPropagationModel (PropModel propModel)
	sets the propagation model

Constructor & Destructor Documentation

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( PropModel propModel )

Creates a channel and sets the propagation model.

Parameters:

propModel

the propagation model to use

Member Function Documentation

void ns3::SimpleOfdmWimaxChannel::Send	(	Time	BlockTime,
		uint32_t	burstSize,
		Ptr< WimaxPhy >	phy,
		bool	isFirstBlock,
		bool	isLastBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	txPowerDbm,
		Ptr< PacketBurst >	burst
	)

Sends a dummy fec block to all connected physical devices.

Parameters:

	BlockTime	the time needed to send the block
	burstSize	the size of the burst
	phy	the sender device
	isFirstBlock	true if this block is the first one, false otherwise
	isLastBlock	true if this block is the last one, false otherwise
	frequency	the frequency on which the block is sent
	modulationType	the modulation used to send the fec block
	direction	uplink or downlink
	txPowerDbm	the transmission power
	burst	the packet burst to send

void ns3::SimpleOfdmWimaxChannel::SetPropagationModel ( PropModel propModel )

sets the propagation model

Parameters:

propModel

the propagation model to used

The documentation for this class was generated from the following file:
