NS-3: ns3::UanMac Class Reference

Virtual base class for all UAN MAC protocols. More...

#include <uan-mac.h>

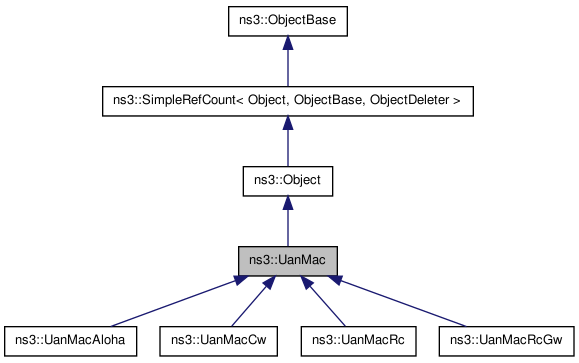

Inheritance diagram for ns3::UanMac:

Inheritance graph

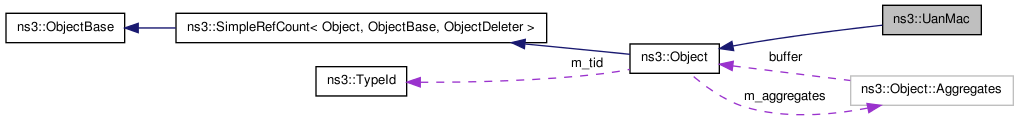

Collaboration diagram for ns3::UanMac:

Collaboration graph

List of all members.

Public Member Functions
virtual Address	GetAddress (void)=0
virtual void	SetAddress (UanAddress addr)=0
virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)=0
virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)=0
virtual void	AttachPhy (Ptr< UanPhy > phy)=0
virtual Address	GetBroadcast (void) const =0
virtual void	Clear (void)=0

Detailed Description

Virtual base class for all UAN MAC protocols.

Member Function Documentation

virtual void ns3::UanMac::AttachPhy ( Ptr< UanPhy > phy ) [pure virtual]

Attach PHY layer to this MAC. Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters:

phy

Phy layer to attach to this MAC

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::Clear ( void ) [pure virtual]

Clears all pointer references

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual bool ns3::UanMac::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)			`[pure virtual]`

Enqueue packet to be transmitted

Parameters:

	pkt	Packet to be transmitted
	dest	Destination address
	protocolNumber	Protocol #. Usage varies by MAC

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual Address ns3::UanMac::GetAddress ( void ) [pure virtual]

Returns:: MAC Address

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual Address ns3::UanMac::GetBroadcast ( void ) const [pure virtual]

Returns:: Broadcast address

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::SetAddress ( UanAddress addr ) [pure virtual]

Parameters:

addr

UanAddress for this MAC

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::SetForwardUpCb ( Callback< void, Ptr< Packet >, const UanAddress & > cb ) [pure virtual]

Parameters:

cb

Callback to be called when a packet is forwarded up to higher layer

Implemented in ns3::UanMacAloha, ns3::UanMacRcGw, and ns3::UanMacRc.

The documentation for this class was generated from the following file:

src/devices/uan/model/uan-mac.h
