Base class for UAN Phy models. More...

#include <uan-phy.h>

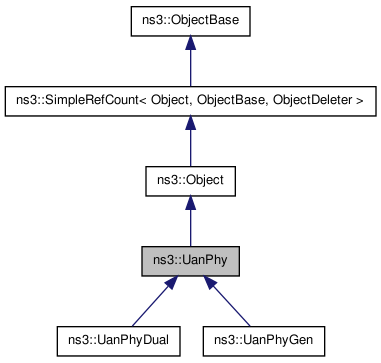

Inheritance diagram for ns3::UanPhy:

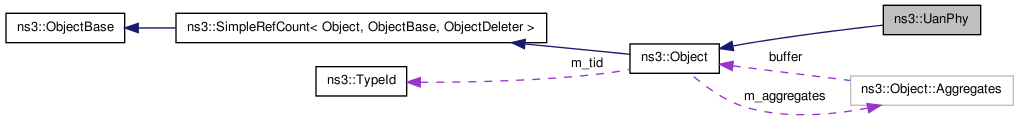

Collaboration diagram for ns3::UanPhy:

Public Types
enum	State { IDLE, CCABUSY, RX, TX }
	Enum defining possible Phy states.
typedef Callback< void, Ptr < Packet >, double, UanTxMode >	RxOkCallback
typedef Callback< void, Ptr < Packet >, double >	RxErrCallback
Public Member Functions
virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)=0
virtual void	RegisterListener (UanPhyListener *listener)=0
virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Packet arriving from channel: i.e. leading bit of packet has arrived.
virtual void	SetReceiveOkCallback (RxOkCallback cb)=0
virtual void	SetReceiveErrorCallback (RxErrCallback cb)=0
virtual void	SetRxGainDb (double gain)=0
virtual void	SetTxPowerDb (double txpwr)=0
virtual void	SetRxThresholdDb (double thresh)=0
virtual void	SetCcaThresholdDb (double thresh)=0
virtual double	GetRxGainDb (void)=0
virtual double	GetTxPowerDb (void)=0
virtual double	GetRxThresholdDb (void)=0
virtual double	GetCcaThresholdDb (void)=0
virtual bool	IsStateIdle (void)=0
virtual bool	IsStateBusy (void)=0
virtual bool	IsStateRx (void)=0
virtual bool	IsStateTx (void)=0
virtual bool	IsStateCcaBusy (void)=0
virtual Ptr< UanChannel >	GetChannel (void) const =0
virtual Ptr< UanNetDevice >	GetDevice (void)=0
virtual void	SetChannel (Ptr< UanChannel > channel)=0
virtual void	SetDevice (Ptr< UanNetDevice > device)=0
virtual void	SetMac (Ptr< UanMac > mac)=0
virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
virtual void	NotifyIntChange (void)=0
virtual void	SetTransducer (Ptr< UanTransducer > trans)=0
virtual Ptr< UanTransducer >	GetTransducer (void)=0
virtual uint32_t	GetNModes (void)=0
virtual UanTxMode	GetMode (uint32_t n)=0
virtual Ptr< Packet >	GetPacketRx (void) const =0
virtual void	Clear (void)=0

Detailed Description

Base class for UAN Phy models.

Member Typedef Documentation

typedef Callback<void, Ptr<Packet>, double > ns3::UanPhy::RxErrCallback

arg1: packet received successfully arg2: snr of packet

typedef Callback<void, Ptr<Packet>, double, UanTxMode> ns3::UanPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet

Member Function Documentation

virtual void ns3::UanPhy::Clear ( void ) [pure virtual]

Clears all pointer references

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual double ns3::UanPhy::GetCcaThresholdDb ( void ) [pure virtual]

Returns:: Threshold signal strength in dB to enter CCA busy mode

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual Ptr<UanChannel> ns3::UanPhy::GetChannel ( void ) const [pure virtual]

Returns:: Channel this phy is attached to

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual Ptr<UanNetDevice> ns3::UanPhy::GetDevice ( void ) [pure virtual]

Returns:: the Net Device that this Phy is a part of

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual UanTxMode ns3::UanPhy::GetMode ( uint32_t n ) [pure virtual]

Parameters:

n

Mode number of mode to return (place in Modeslist)

Returns:: Mode n

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual uint32_t ns3::UanPhy::GetNModes ( void ) [pure virtual]

Returns:: Number of TX modes supported by this PHY

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual Ptr<Packet> ns3::UanPhy::GetPacketRx ( void ) const [pure virtual]

Warning:: Returns non-valid pointer if IsStateRx == false

Returns:: Packet currently being received in PHY

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual double ns3::UanPhy::GetRxGainDb ( void ) [pure virtual]

Returns:: Gain added to signal at receiver in dB

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual double ns3::UanPhy::GetRxThresholdDb ( void ) [pure virtual]

Returns:: Required signal strength, in dB, to begin receiving packet

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual Ptr<UanTransducer> ns3::UanPhy::GetTransducer ( void ) [pure virtual]

Returns:: Transducer this Phy outputs to / receives from

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual double ns3::UanPhy::GetTxPowerDb ( void ) [pure virtual]

Returns:: Current TX power output

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual bool ns3::UanPhy::IsStateBusy ( void ) [pure virtual]

Returns:: True if Phy is not IDLE

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual bool ns3::UanPhy::IsStateCcaBusy ( void ) [pure virtual]

Returns:: True if Phy is not TX or RX but the channel is sensed busy

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual bool ns3::UanPhy::IsStateIdle ( void ) [pure virtual]

Returns:: True if Phy is IDLE

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual bool ns3::UanPhy::IsStateRx ( void ) [pure virtual]

Returns:: True if Phy is currently in receive mode

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual bool ns3::UanPhy::IsStateTx ( void ) [pure virtual]

Returns:: True if Phy is busy transmitting

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::NotifyIntChange ( void ) [pure virtual]

Function called when there has been a change in the ammount of interference this node is experiencing from other transmissions

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)			`[pure virtual]`

Parameters:

	packet	Packet that is beginning transmission
	txPowerDb	Transmit power of packet
	txMode	Transmission mode of packet

Notification that there is a transmission beginning on the transducer that this Phy is attached to.

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::RegisterListener ( UanPhyListener * listener ) [pure virtual]

Parameters:

listener

New listener to register

Register an object to be notified of common Phy events

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)			`[pure virtual]`

Parameters:

	pkt	Packet to transmit
	modeNum	Index of mode in SupportedModes list to use for transmission

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetCcaThresholdDb ( double thresh ) [pure virtual]

Parameters:

thresh

Signal power at receiver required for CCA busy state

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetChannel ( Ptr< UanChannel > channel ) [pure virtual]

Parameters:

channel

The channel this Phy is attached to

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetDevice ( Ptr< UanNetDevice > device ) [pure virtual]

Parameters:

device

The Net Device this Phy is a part of

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetMac ( Ptr< UanMac > mac ) [pure virtual]

Parameters:

mac

The MAC forwarding messages to this Phy

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetReceiveErrorCallback ( RxErrCallback cb ) [pure virtual]

Parameters:

cb

Callback to be enabled when a packet is received with errors

Implemented in ns3::UanPhyGen.

virtual void ns3::UanPhy::SetReceiveOkCallback ( RxOkCallback cb ) [pure virtual]

Parameters:

cb

Callback to be enabled when packet is received without error

Implemented in ns3::UanPhyGen.

virtual void ns3::UanPhy::SetRxGainDb ( double gain ) [pure virtual]

Parameters:

gain

Gain added at receiver

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetRxThresholdDb ( double thresh ) [pure virtual]

Parameters:

thresh

Threshold SINR for propper reception in dB

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetTransducer ( Ptr< UanTransducer > trans ) [pure virtual]

Parameters:

trans

Transducer this Phy outputs to / receives from

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::SetTxPowerDb ( double txpwr ) [pure virtual]

Parameters:

txpwr

Final output transmission power in dB

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

virtual void ns3::UanPhy::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)			`[pure virtual]`

Packet arriving from channel: i.e. leading bit of packet has arrived.

Parameters:

	pkt	Packet which is arriving
	rxPowerDb	Signal power of incoming packet in dB
	txMode	Transmission mode defining modulation of incoming packet
	pdp	Power delay profile of incoming packet

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

The documentation for this class was generated from the following file:

src/devices/uan/model/uan-phy.h
