ns3::UanPhyGen Class Reference

Generic PHY model. More...

#include <uan-phy-gen.h>

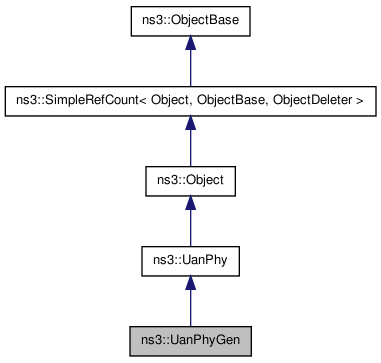

Inheritance diagram for ns3::UanPhyGen:
Inheritance graph
[legend]

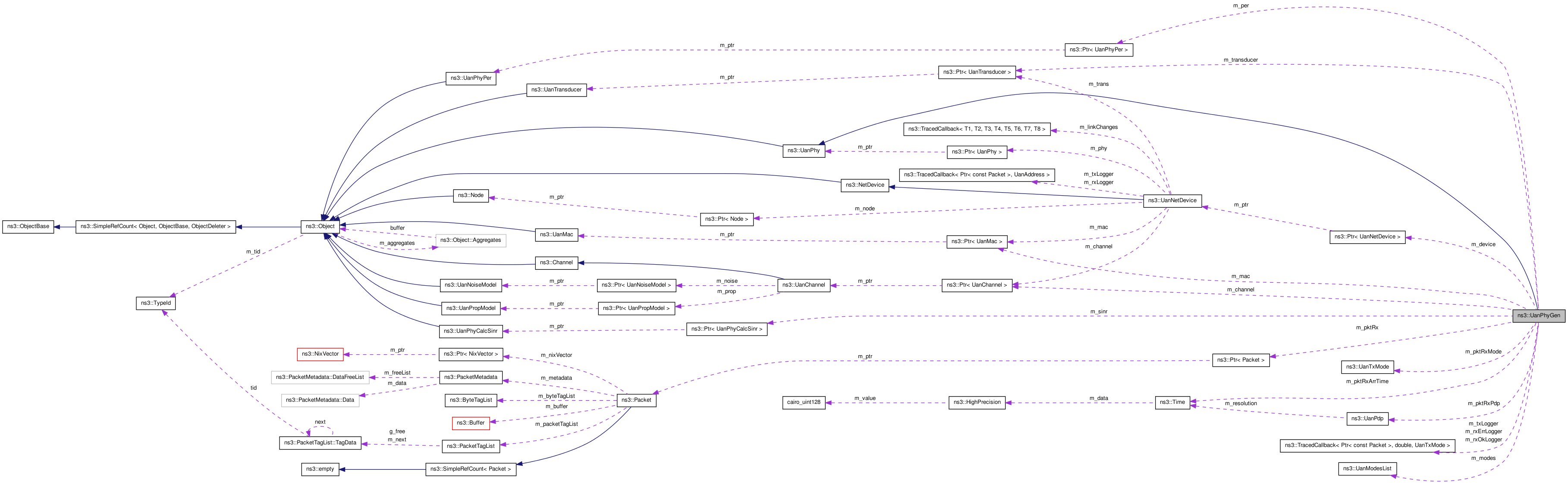

Collaboration diagram for ns3::UanPhyGen:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void SendPacket (Ptr< Packet > pkt, uint32_t modeNum)
virtual void RegisterListener (UanPhyListener *listener)
virtual void StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
 Packet arriving from channel: i.e. leading bit of packet has arrived.
virtual void SetReceiveOkCallback (RxOkCallback cb)
virtual void SetReceiveErrorCallback (RxErrCallback cb)
virtual bool IsStateIdle (void)
virtual bool IsStateBusy (void)
virtual bool IsStateRx (void)
virtual bool IsStateTx (void)
virtual bool IsStateCcaBusy (void)
virtual void SetRxGainDb (double gain)
virtual void SetTxPowerDb (double txpwr)
virtual void SetRxThresholdDb (double thresh)
virtual void SetCcaThresholdDb (double thresh)
virtual double GetRxGainDb (void)
virtual double GetTxPowerDb (void)
virtual double GetRxThresholdDb (void)
virtual double GetCcaThresholdDb (void)
virtual Ptr< UanChannel > GetChannel (void) const
virtual Ptr< UanNetDevice > GetDevice (void)
virtual Ptr< UanTransducer > GetTransducer (void)
virtual void SetChannel (Ptr< UanChannel > channel)
virtual void SetDevice (Ptr< UanNetDevice > device)
virtual void SetMac (Ptr< UanMac > mac)
virtual void SetTransducer (Ptr< UanTransducer > trans)
virtual void NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
virtual void NotifyIntChange (void)
virtual uint32_t GetNModes (void)
virtual UanTxMode GetMode (uint32_t n)
virtual Ptr< Packet > GetPacketRx (void) const
virtual void Clear (void)

Static Public Member Functions

static UanModesList GetDefaultModes (void)
static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::UanPhyGen.

Protected Member Functions

virtual void DoDispose ()

Detailed Description

Generic PHY model.

This is a generic PHY class. SINR and PER information are controlled via attributes. By adapting the SINR and PER models to a specific situation, this PHY should be able to model a wide variety of networks.

Member Function Documentation

virtual void ns3::UanPhyGen::Clear ( void   )  [virtual]

Clears all pointer references

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::DoDispose (  )  [protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

virtual double ns3::UanPhyGen::GetCcaThresholdDb ( void   )  [virtual]
Returns:
Threshold signal strength in dB to enter CCA busy mode

Implements ns3::UanPhy.

virtual Ptr<UanChannel> ns3::UanPhyGen::GetChannel ( void   )  const [virtual]
Returns:
Channel this phy is attached to

Implements ns3::UanPhy.

static UanModesList ns3::UanPhyGen::GetDefaultModes ( void   )  [static]
Returns:
Default TX modes of UanPhyGen
virtual Ptr<UanNetDevice> ns3::UanPhyGen::GetDevice ( void   )  [virtual]
Returns:
the Net Device that this Phy is a part of

Implements ns3::UanPhy.

virtual UanTxMode ns3::UanPhyGen::GetMode ( uint32_t  n  )  [virtual]
Parameters:
n Mode number of mode to return (place in Modeslist)
Returns:
Mode n

Implements ns3::UanPhy.

virtual uint32_t ns3::UanPhyGen::GetNModes ( void   )  [virtual]
Returns:
Number of TX modes supported by this PHY

Implements ns3::UanPhy.

virtual Ptr<Packet> ns3::UanPhyGen::GetPacketRx ( void   )  const [virtual]
Warning:
Returns non-valid pointer if IsStateRx == false
Returns:
Packet currently being received in PHY

Implements ns3::UanPhy.

virtual double ns3::UanPhyGen::GetRxGainDb ( void   )  [virtual]
Returns:
Gain added to signal at receiver in dB

Implements ns3::UanPhy.

virtual double ns3::UanPhyGen::GetRxThresholdDb ( void   )  [virtual]
Returns:
Required signal strength, in dB, to begin receiving packet

Implements ns3::UanPhy.

virtual Ptr<UanTransducer> ns3::UanPhyGen::GetTransducer ( void   )  [virtual]
Returns:
Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

virtual double ns3::UanPhyGen::GetTxPowerDb ( void   )  [virtual]
Returns:
Current TX power output

Implements ns3::UanPhy.

static TypeId ns3::UanPhyGen::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::UanPhyGen.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyGen
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyGen

Attributes defined for this type:

  • CcaThreshold: Aggregate energy of incoming signals to move to CCA Busy state dB
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 10
    • Flags: construct write read
  • RxThreshold: Required SNR for signal acquisition in dB
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 10
    • Flags: construct write read
  • TxPower: Transmission output power in dB
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 190
    • Flags: construct write read
  • RxGain: Gain added to incoming signal at receiver
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: construct write read
  • SupportedModes: List of modes supported by this PHY
    • Set with class: UanModesListValue
    • Underlying type: UanModesList
    • Initial value: 2|0|1|
    • Flags: construct write read
  • PerModel: Functor to calculate PER based on SINR and TxMode
  • SinrModel: Functor to calculate SINR based on pkt arrivals and modes

TraceSources defined for this type:

  • RxOk: A packet was received successfully
  • RxError: A packet was received unsuccessfully
  • Tx: Packet transmission beginning

Reimplemented from ns3::Object.

virtual bool ns3::UanPhyGen::IsStateBusy ( void   )  [virtual]
Returns:
True if Phy is not IDLE

Implements ns3::UanPhy.

virtual bool ns3::UanPhyGen::IsStateCcaBusy ( void   )  [virtual]
Returns:
True if Phy is not TX or RX but the channel is sensed busy

Implements ns3::UanPhy.

virtual bool ns3::UanPhyGen::IsStateIdle ( void   )  [virtual]
Returns:
True if Phy is IDLE

Implements ns3::UanPhy.

virtual bool ns3::UanPhyGen::IsStateRx ( void   )  [virtual]
Returns:
True if Phy is currently in receive mode

Implements ns3::UanPhy.

virtual bool ns3::UanPhyGen::IsStateTx ( void   )  [virtual]
Returns:
True if Phy is busy transmitting

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::NotifyIntChange ( void   )  [virtual]

Function called when there has been a change in the ammount of interference this node is experiencing from other transmissions

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::NotifyTransStartTx ( Ptr< Packet >  packet,
double  txPowerDb,
UanTxMode  txMode
) [virtual]
Parameters:
packet Packet that is beginning transmission
txPowerDb Transmit power of packet
txMode Transmission mode of packet

Notification that there is a transmission beginning on the transducer that this Phy is attached to.

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::RegisterListener ( UanPhyListener *  listener  )  [virtual]
Parameters:
listener New listener to register

Register an object to be notified of common Phy events

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SendPacket ( Ptr< Packet >  pkt,
uint32_t  modeNum
) [virtual]
Parameters:
pkt Packet to transmit
modeNum Index of mode in SupportedModes list to use for transmission

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetCcaThresholdDb ( double  thresh  )  [virtual]
Parameters:
thresh Signal power at receiver required for CCA busy state

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetChannel ( Ptr< UanChannel >  channel  )  [virtual]
Parameters:
channel The channel this Phy is attached to

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetDevice ( Ptr< UanNetDevice >  device  )  [virtual]
Parameters:
device The Net Device this Phy is a part of

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetMac ( Ptr< UanMac >  mac  )  [virtual]
Parameters:
mac The MAC forwarding messages to this Phy

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetReceiveErrorCallback ( RxErrCallback  cb  )  [virtual]
Parameters:
cb Callback to be enabled when a packet is received with errors

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetReceiveOkCallback ( RxOkCallback  cb  )  [virtual]
Parameters:
cb Callback to be enabled when packet is received without error

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetRxGainDb ( double  gain  )  [virtual]
Parameters:
gain Gain added at receiver

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetRxThresholdDb ( double  thresh  )  [virtual]
Parameters:
thresh Threshold SINR for propper reception in dB

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetTransducer ( Ptr< UanTransducer >  trans  )  [virtual]
Parameters:
trans Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::SetTxPowerDb ( double  txpwr  )  [virtual]
Parameters:
txpwr Final output transmission power in dB

Implements ns3::UanPhy.

virtual void ns3::UanPhyGen::StartRxPacket ( Ptr< Packet >  pkt,
double  rxPowerDb,
UanTxMode  txMode,
UanPdp  pdp
) [virtual]

Packet arriving from channel: i.e. leading bit of packet has arrived.

Parameters:
pkt Packet which is arriving
rxPowerDb Signal power of incoming packet in dB
txMode Transmission mode defining modulation of incoming packet
pdp Power delay profile of incoming packet

Implements ns3::UanPhy.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:52 for NS-3 by  doxygen 1.7.1
