ns3::UanTransducer Class Reference

Virtual base for Transducer objects. More...

#include <uan-transducer.h>

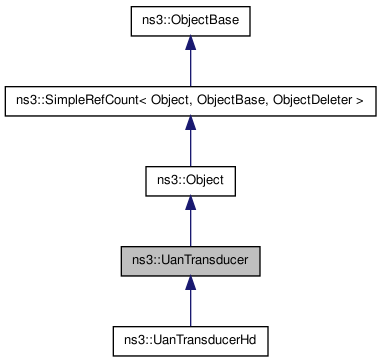

Inheritance diagram for ns3::UanTransducer:

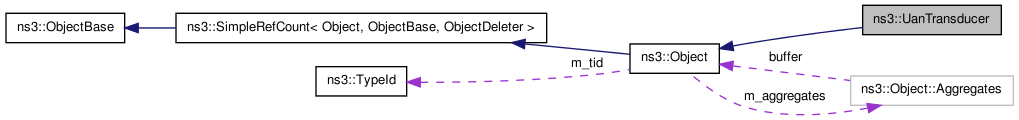

Collaboration diagram for ns3::UanTransducer:

List of all members.

Public Types
enum	State { TX, RX }
	Transducer state (receiving or transmitting).
typedef std::list < UanPacketArrival >	ArrivalList
	Arrival list is a standard template library list of UanPacketArrivals objects.
typedef std::list< Ptr< UanPhy > >	UanPhyList
	UanPhyList is a standard template library list of UanPhy objects.
Public Member Functions
virtual State	GetState (void) const =0
virtual bool	IsRx (void) const =0
virtual bool	IsTx (void) const =0
virtual const ArrivalList &	GetArrivalList (void) const =0
virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Receive Notify this object that a new packet has arrived at this nodes location.
virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
	Transmit a packet from this transducer.
virtual void	SetChannel (Ptr< UanChannel > chan)=0
virtual Ptr< UanChannel >	GetChannel (void) const =0
virtual void	AddPhy (Ptr< UanPhy > phy)=0
virtual const UanPhyList &	GetPhyList (void) const =0
virtual void	Clear (void)=0

---

Detailed Description

Virtual base for Transducer objects.

The Transducer was added to support classes such as UanPhyDual. In a generic Phy setting, this class functions to hold information about all possibly interfering packets.

---

Member Function Documentation

virtual void ns3::UanTransducer::AddPhy

(

Ptr< UanPhy >

phy

)

[pure virtual]

Parameters:

phy

Add phy above this transducer (may connect > 1 Phy to a transducer)

Implemented in ns3::UanTransducerHd.

virtual void ns3::UanTransducer::Clear

(

void

)

[pure virtual]

Clears all pointer references

Implemented in ns3::UanTransducerHd.

virtual const ArrivalList& ns3::UanTransducer::GetArrivalList

(

void

)

const [pure virtual]

Returns:

List of all packets currently crossing this node in the water.

Implemented in ns3::UanTransducerHd.

virtual Ptr<UanChannel> ns3::UanTransducer::GetChannel

(

void

)

const [pure virtual]

Returns:

Channel this transducer is attached to

Implemented in ns3::UanTransducerHd.

virtual const UanPhyList& ns3::UanTransducer::GetPhyList

(

void

)

const [pure virtual]

Returns:

List of all Phy's this transducer sends packets to.

Implemented in ns3::UanTransducerHd.

virtual State ns3::UanTransducer::GetState

(

void

)

const [pure virtual]

Returns:

State (TX or RX) of this transducer

Implemented in ns3::UanTransducerHd.

virtual bool ns3::UanTransducer::IsRx

(

void

)

const [pure virtual]

Returns:

True if this transducer is available for receiving an incoming packet.

Implemented in ns3::UanTransducerHd.

virtual bool ns3::UanTransducer::IsTx

(

void

)

const [pure virtual]

Returns:

True if there is a packet being transmitted from this transducer.

Implemented in ns3::UanTransducerHd.

virtual void ns3::UanTransducer::Receive	(	Ptr< Packet >	packet,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)			[pure virtual]

Receive Notify this object that a new packet has arrived at this nodes location.

Parameters:

	packet	Packet arriving
	rxPowerDb	Signal power in dB of arriving packet
	txMode	Mode arriving packet is using
	pdp	PDP of arriving signal

Implemented in ns3::UanTransducerHd.

virtual void ns3::UanTransducer::SetChannel

(

Ptr< UanChannel >

chan

)

[pure virtual]

Parameters:

chan

Channel this transducer is attached to

Implemented in ns3::UanTransducerHd.

virtual void ns3::UanTransducer::Transmit	(	Ptr< UanPhy >	src,
		Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)			[pure virtual]

Transmit a packet from this transducer.

Parameters:

	src	Source PHY
	packet	Packet to transmit
	txPowerDb	Outgoing Tx power of packet
	txMode	Mode to transmit packet with.

Implemented in ns3::UanTransducerHd.

---

The documentation for this class was generated from the following file:

• src/devices/uan/model/uan-transducer.h
