ns3::UanPhyPerGenDefault Class Reference

Default Packet Error Rate calculator for UanPhyGen Considers no error if SINR is > user defined threshold (configured by an attribute). More...

#include <uan-phy-gen.h>

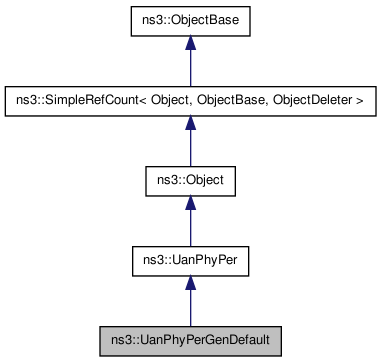

Inheritance diagram for ns3::UanPhyPerGenDefault:

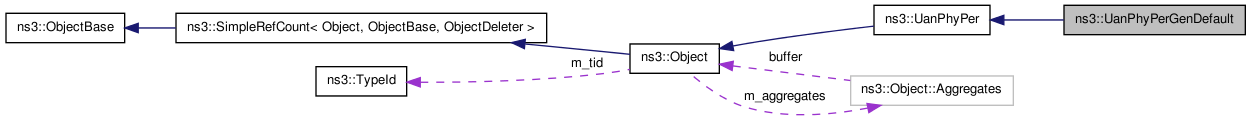

Collaboration diagram for ns3::UanPhyPerGenDefault:

List of all members.

Public Member Functions
virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyPerGenDefault.

---

Detailed Description

Default Packet Error Rate calculator for UanPhyGen Considers no error if SINR is > user defined threshold (configured by an attribute).

---

Member Function Documentation

virtual double ns3::UanPhyPerGenDefault::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)			[virtual]

Calculates the prob. of packet error based on SINR at the receiver and a tx mode.

Parameters:

	pkt	Packet which is under consideration
	sinrDb	SINR at receiver
	mode	TX mode used to transmit packet

Returns:

Probability of packet error

Implements ns3::UanPhyPer.

static TypeId ns3::UanPhyPerGenDefault::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UanPhyPerGenDefault.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyPerGenDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyPerGenDefault

Attributes defined for this type:

• Threshold: SINR cutoff for good packet reception
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 8
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/uan/model/uan-phy-gen.h
• doc/introspected-doxygen.h
