ns3::UanPropModel Class Reference

#include <uan-prop-model.h>

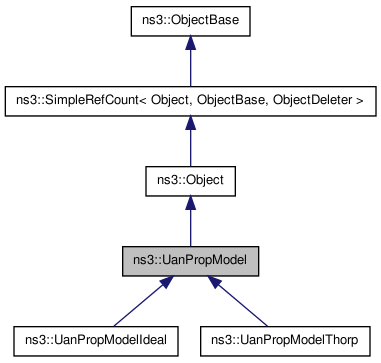

Inheritance diagram for ns3::UanPropModel:

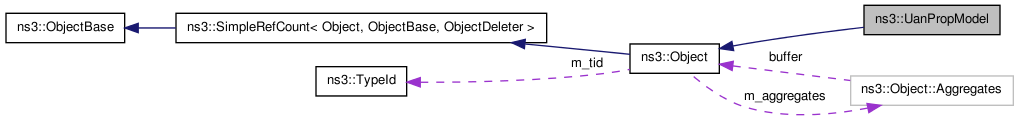

Collaboration diagram for ns3::UanPropModel:

List of all members.

Public Member Functions
virtual double	GetPathLossDb (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode txMode)=0
virtual UanPdp	GetPdp (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)=0
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)=0
virtual void	Clear (void)
virtual void	DoDispose (void)

---

Detailed Description

Base class for implemented underwater propagation models

---

Member Function Documentation

virtual void ns3::UanPropModel::Clear

(

void

)

[virtual]

Clears all pointer references

virtual void ns3::UanPropModel::DoDispose

(

void

)

[virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

virtual Time ns3::UanPropModel::GetDelay	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	mode
	)			[pure virtual]

Finds propagation delay between nodes a and b

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	mode	TX mode of transmission

Returns:

Propagation delay

Implemented in ns3::UanPropModelIdeal, and ns3::UanPropModelThorp.

virtual double ns3::UanPropModel::GetPathLossDb	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	txMode
	)			[pure virtual]

Computes pathloss between nodes a and b.

Returns:

Pathloss in dB re 1 uPa

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	txMode	TX mode of transmission between a and b

Implemented in ns3::UanPropModelIdeal, and ns3::UanPropModelThorp.

virtual UanPdp ns3::UanPropModel::GetPdp	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	mode
	)			[pure virtual]

Returns:

PDP for link between nodes a and b

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	mode	TX mode of transmission from a to b

Implemented in ns3::UanPropModelIdeal, and ns3::UanPropModelThorp.

---

The documentation for this class was generated from the following file:

• src/devices/uan/model/uan-prop-model.h
