ns3::UanPropModelThorp Class Reference

Uses Thorp's approximation to compute pathloss. Assumes implulse PDP. More...

#include <uan-prop-model-thorp.h>

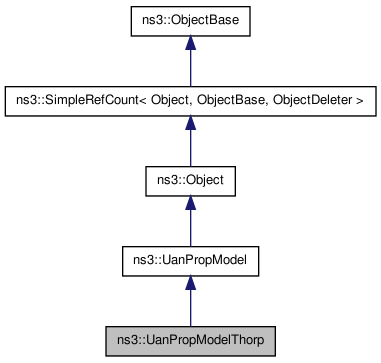

Inheritance diagram for ns3::UanPropModelThorp:

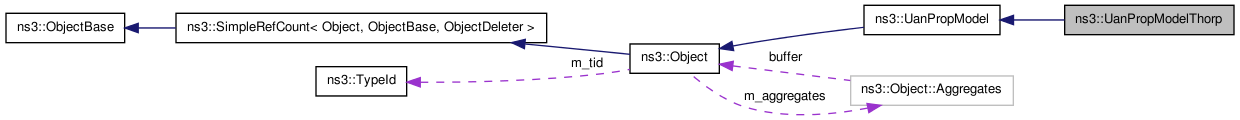

Collaboration diagram for ns3::UanPropModelThorp:

List of all members.

Public Member Functions
virtual double	GetPathLossDb (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
virtual UanPdp	GetPdp (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPropModelThorp.

---

Detailed Description

Uses Thorp's approximation to compute pathloss. Assumes implulse PDP.

---

Member Function Documentation

virtual Time ns3::UanPropModelThorp::GetDelay	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	mode
	)			[virtual]

Finds propagation delay between nodes a and b

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	mode	TX mode of transmission

Returns:

Propagation delay

Implements ns3::UanPropModel.

virtual double ns3::UanPropModelThorp::GetPathLossDb	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	txMode
	)			[virtual]

Computes pathloss between nodes a and b.

Returns:

Pathloss in dB re 1 uPa

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	txMode	TX mode of transmission between a and b

Implements ns3::UanPropModel.

virtual UanPdp ns3::UanPropModelThorp::GetPdp	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		UanTxMode	mode
	)			[virtual]

Returns:

PDP for link between nodes a and b

Parameters:

	a	Ptr to mobility model of node a
	b	Ptr to mobility model of node b
	mode	TX mode of transmission from a to b

Implements ns3::UanPropModel.

static TypeId ns3::UanPropModelThorp::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UanPropModelThorp.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPropModelThorp
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPropModelThorp

Attributes defined for this type:

• SpreadCoef: Spreading coefficient used in calculation of Thorp's approximation
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1.5
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/uan/model/uan-prop-model-thorp.h
• doc/introspected-doxygen.h
