ns3::UplinkSchedulerMBQoS Class Reference

This class implements a Migration-based Quality of Service uplink scheduler(MBQoS). More...

#include <bs-uplink-scheduler-mbqos.h>

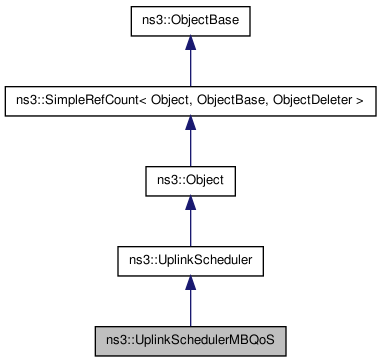

Inheritance diagram for ns3::UplinkSchedulerMBQoS:
Inheritance graph
[legend]

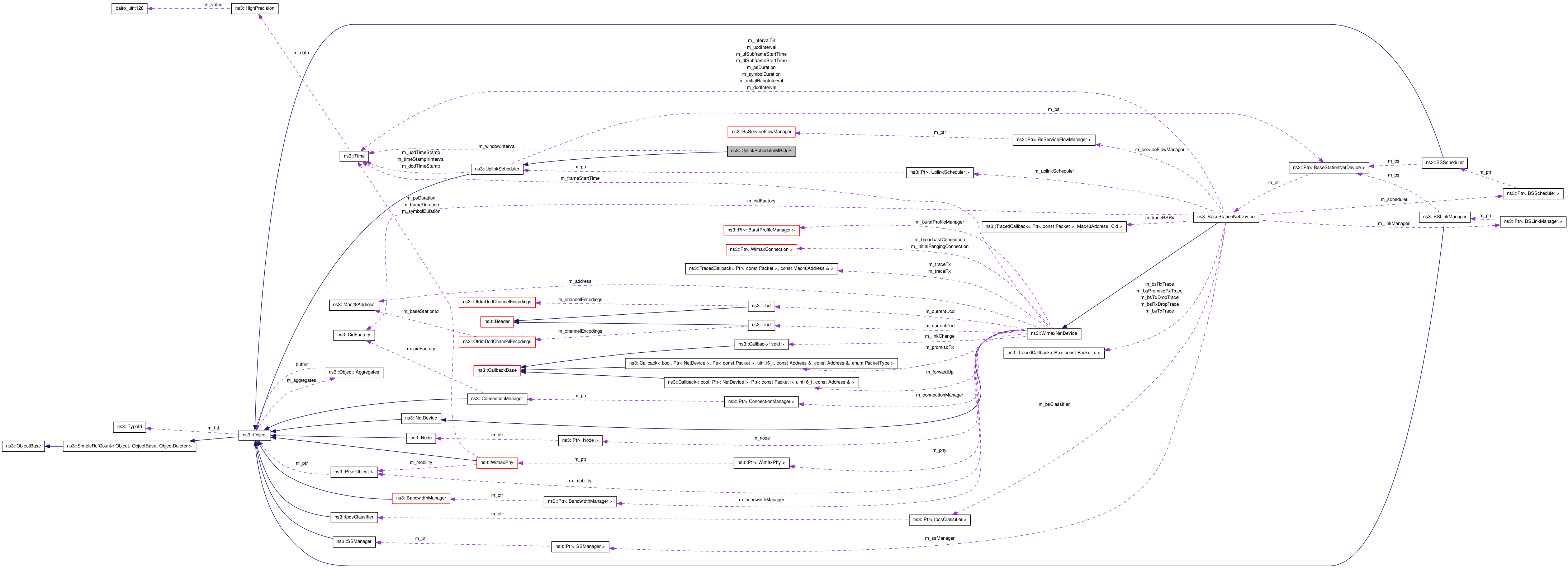

Collaboration diagram for ns3::UplinkSchedulerMBQoS:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 UplinkSchedulerMBQoS (Time time)
std::list< OfdmUlMapIe > GetUplinkAllocations (void) const
void GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)
uint32_t CalculateAllocationStartTime (void)
void AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void Schedule (void)
void ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
bool ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void SetupServiceFlow (SSRecord *ssRecord, ServiceFlow *serviceFlow)
void CheckDeadline (uint32_t &availableSymbols)
 Check deadline from jobs. Migrate requests if necessary.
void CheckMinimumBandwidth (uint32_t &availableSymbols)
 Check if Minimum bandwidth is guarantee. Migrate requests if necessary.
void UplinkSchedWindowTimer (void)
 Reset the current window. According to a configured time, reset the window.
void EnqueueJob (UlJob::JobPriority priority, Ptr< UlJob > job)
 Enqueue a job in a priority queue.
Ptr< UlJob > DequeueJob (UlJob::JobPriority priority)
 Dequeue a job from a priority queue.
void ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)
Time DetermineDeadline (ServiceFlow *serviceFlow)
 Calculates deadline of a request.
void InitOnce (void)
uint32_t CountSymbolsQueue (std::list< Ptr< UlJob > > jobs)
uint32_t CountSymbolsJobs (Ptr< UlJob > job)
void OnSetRequestedBandwidth (ServiceFlowRecord *sfr)
Ptr< UlJob > CreateUlJob (SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedType, ReqType reqType)
uint32_t GetPendingSize (ServiceFlow *serviceFlow)
bool ServiceBandwidthRequestsBytes (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols, uint32_t allocationSizeBytes)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::UplinkSchedulerMBQoS.

Detailed Description

This class implements a Migration-based Quality of Service uplink scheduler(MBQoS).

This uplink scheduler uses three queues, the low priority queue, the intermediate queue and the high priority queue. The scheduler serves the requests in strict priority order from the high priority queue to the low priority queue. The low priority queue stores the bandwidth requests of the BE service flow. The intermediate queue holds bandwidth requests sent by rtPS and by nrtPS connections. rtPS and nrtPS requests can migrate to the high priority queue to guarantee that their QoS requirements are met. Besides the requests migrated from the intermediate queue, the high priority queue stores periodic grants and unicast request opportunities that must be scheduled in the following frame. To guarantee the maximum delay requirement, the BS assigns a deadline to each rtPS bandwidth request in the intermediate queue. The minimum bandwidth requirement of both rtPS and nrtPS connections is guaranteed over a window of duration T . Implementation of uplink scheduler: Freitag, J.; da Fonseca, N.L.S., "Uplink Scheduling with Quality of Service in IEEE 802.16 Networks," Global Telecommunications Conference, 2007. GLOBECOM '07. IEEE , vol., no., pp.2503-2508, 26-30 Nov. 2007 URL: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=4411386&isnumber=4410910

Member Function Documentation

void ns3::UplinkSchedulerMBQoS::CheckDeadline ( uint32_t &  availableSymbols  )

Check deadline from jobs. Migrate requests if necessary.

Parameters:
availableSymbols available symbols in the uplink frame This method verifies for each rtPS request whether it should be migrated to the high priority queue or not. The conditions for migration are: request deadline expires in the frame following the next one, and the amount of bandwidth requested is less than or equal to the amount of available bytes in the next uplink frame.
void ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth ( uint32_t &  availableSymbols  )

Check if Minimum bandwidth is guarantee. Migrate requests if necessary.

Parameters:
availableSymbols available symbols in the uplink frame. This method first calculate a priority value for each request in the intermediate queue. Then, sorts the intermediate queue according to the priority values. Finally, while there is available bandwidth, the scheduler migrate the requests to the high priority queue.
uint32_t ns3::UplinkSchedulerMBQoS::CountSymbolsJobs ( Ptr< UlJob >  job  )
Parameters:
job job

Count the amount of symbols of a job.

uint32_t ns3::UplinkSchedulerMBQoS::CountSymbolsQueue ( std::list< Ptr< UlJob > >  jobs  )
Parameters:
jobs List of jobs

Sum the amount of symbols of each job of a queue

Ptr<UlJob> ns3::UplinkSchedulerMBQoS::CreateUlJob ( SSRecord *  ssRecord,
enum ServiceFlow::SchedulingType  schedType,
ReqType  reqType
)
Parameters:
ssRecord Subscriber station record
schedType Service flow type
reqType Type of packet

Create and fill information of a job.

Ptr<UlJob> ns3::UplinkSchedulerMBQoS::DequeueJob ( UlJob::JobPriority  priority  )

Dequeue a job from a priority queue.

Parameters:
priority Priority of queue
Time ns3::UplinkSchedulerMBQoS::DetermineDeadline ( ServiceFlow *  serviceFlow  )

Calculates deadline of a request.

Parameters:
serviceFlow Service flow of connection
void ns3::UplinkSchedulerMBQoS::EnqueueJob ( UlJob::JobPriority  priority,
Ptr< UlJob >  job
)

Enqueue a job in a priority queue.

Parameters:
priority Priority of queue
job job information
void ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate ( bool &  ,
bool &  ,
bool &  ,
bool &
) [virtual]

Determines if channel descriptors sent in the current frame are required to be updated

Implements ns3::UplinkScheduler.

static TypeId ns3::UplinkSchedulerMBQoS::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::UplinkSchedulerMBQoS.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkScheduler/$ns3::UplinkSchedulerMBQoS
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkSchedulerMBQoS

Attributes defined for this type:

  • WindowInterval: The time to wait to reset window
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 1000000000ns
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::UplinkScheduler.

void ns3::UplinkSchedulerMBQoS::InitOnce ( void   )  [virtual]

This method is called once to initialize window.

Implements ns3::UplinkScheduler.

The documentation for this class was generated from the following files:
