ns3::UplinkSchedulerSimple Class Reference

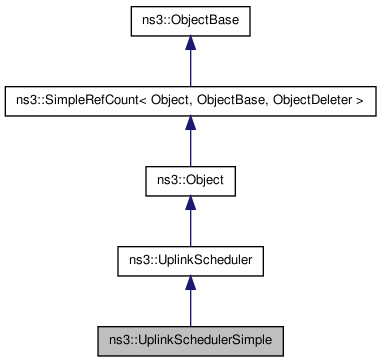

Inheritance diagram for ns3::UplinkSchedulerSimple:
Inheritance graph
[legend]

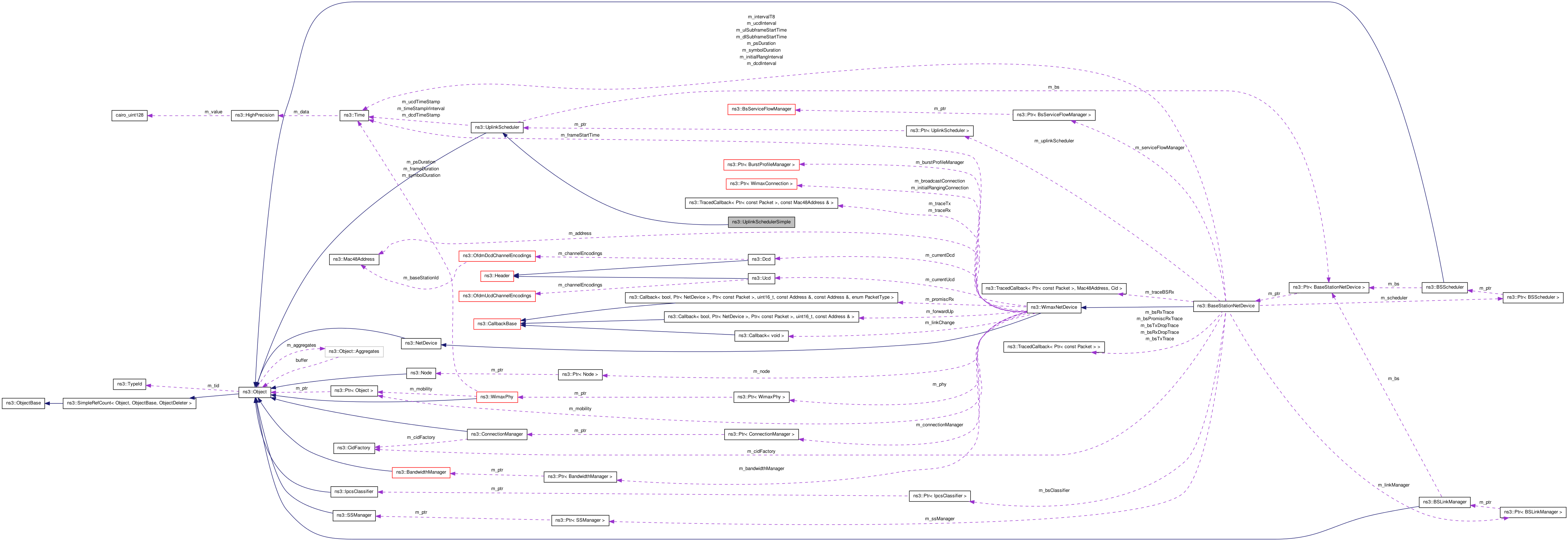

Collaboration diagram for ns3::UplinkSchedulerSimple:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 UplinkSchedulerSimple (Ptr< BaseStationNetDevice > bs)
std::list< OfdmUlMapIeGetUplinkAllocations (void) const
void GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)
 Determines if channel descriptors sent in the current frame are required to be updated.
uint32_t CalculateAllocationStartTime (void)
void AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void Schedule (void)
void ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
bool ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void SetupServiceFlow (SSRecord *ssRecord, ServiceFlow *serviceFlow)
void ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)
void InitOnce (void)
void OnSetRequestedBandwidth (ServiceFlowRecord *sfr)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::UplinkSchedulerSimple.

Member Function Documentation

static TypeId ns3::UplinkSchedulerSimple::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::UplinkSchedulerSimple.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UplinkSchedulerSimple
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UplinkSchedulerSimple

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::UplinkScheduler.
