Routing table entry. More...
#include <aodv-rtable.h>

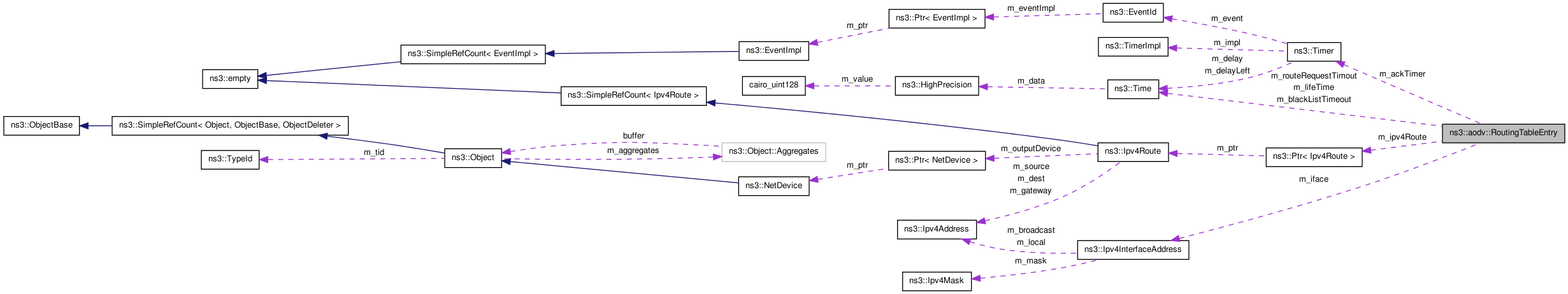

Collaboration diagram for ns3::aodv::RoutingTableEntry:
Public Member Functions | |
| RoutingTableEntry (Ptr< NetDevice > dev=0, Ipv4Address dst=Ipv4Address(), bool vSeqNo=false, uint32_t m_seqNo=0, Ipv4InterfaceAddress iface=Ipv4InterfaceAddress(), uint16_t hops=0, Ipv4Address nextHop=Ipv4Address(), Time lifetime=Simulator::Now()) | |
| c-to | |
| void | Invalidate (Time badLinkLifetime) |
| Mark entry as "down" (i.e. disable it). | |
| bool | operator== (Ipv4Address const dst) const |
| Compare destination address. | |
| void | Print (std::ostream &os) const |
Precursors management | |
| bool | InsertPrecursor (Ipv4Address id) |
| bool | LookupPrecursor (Ipv4Address id) |
| bool | DeletePrecursor (Ipv4Address id) |
| Delete precursor. | |
| void | DeleteAllPrecursors () |
| Delete all precursors. | |
| bool | IsPrecursorListEmpty () const |
| void | GetPrecursors (std::vector< Ipv4Address > &prec) const |
Fields | |
|
| |
| Timer | m_ackTimer |
| RREP_ACK timer. | |
| Ipv4Address | GetDestination () const |
| Ptr< Ipv4Route > | GetRoute () const |
| void | SetRoute (Ptr< Ipv4Route > r) |
| void | SetNextHop (Ipv4Address nextHop) |
| Ipv4Address | GetNextHop () const |
| void | SetOutputDevice (Ptr< NetDevice > dev) |
| Ptr< NetDevice > | GetOutputDevice () const |
| Ipv4InterfaceAddress | GetInterface () const |
| void | SetInterface (Ipv4InterfaceAddress iface) |
| void | SetValidSeqNo (bool s) |
| bool | GetValidSeqNo () const |
| void | SetSeqNo (uint32_t sn) |
| uint32_t | GetSeqNo () const |
| void | SetHop (uint16_t hop) |
| uint16_t | GetHop () const |
| void | SetLifeTime (Time lt) |
| Time | GetLifeTime () const |
| void | SetFlag (RouteFlags flag) |
| RouteFlags | GetFlag () const |
| void | SetRreqCnt (uint8_t n) |
| uint8_t | GetRreqCnt () const |
| void | IncrementRreqCnt () |
| void | SetUnidirectional (bool u) |
| bool | IsUnidirectional () const |
| void | SetBalcklistTimeout (Time t) |
| Time | GetBlacklistTimeout () const |
Detailed Description
Routing table entry.
Member Function Documentation
| bool ns3::aodv::RoutingTableEntry::DeletePrecursor | ( | Ipv4Address | id | ) |
Delete precursor.
- Parameters:
-
id precursor address
- Returns:
- true on success
| void ns3::aodv::RoutingTableEntry::GetPrecursors | ( | std::vector< Ipv4Address > & | prec | ) | const |
Inserts precursors in vector prec if they does not yet exist in vector
| bool ns3::aodv::RoutingTableEntry::InsertPrecursor | ( | Ipv4Address | id | ) |
Insert precursor in precursor list if it doesn't yet exist in the list
- Parameters:
-
id precursor address
- Returns:
- true on success
| bool ns3::aodv::RoutingTableEntry::IsPrecursorListEmpty | ( | ) | const |
Check that precursor list empty
- Returns:
- true if precursor list empty
| bool ns3::aodv::RoutingTableEntry::LookupPrecursor | ( | Ipv4Address | id | ) |
Lookup precursor by address
- Parameters:
-
id precursor address
- Returns:
- true on success
| bool ns3::aodv::RoutingTableEntry::operator== | ( | Ipv4Address const | dst | ) | const [inline] |
Compare destination address.
- Returns:
- true if equal
The documentation for this class was generated from the following file:
- src/routing/aodv/aodv-rtable.h
