ns3::dot11s::PeerManagementProtocol Class Reference
[IEEE 802.11s draft]

802.11s Peer Management Protocol model More...

#include <peer-management-protocol.h>

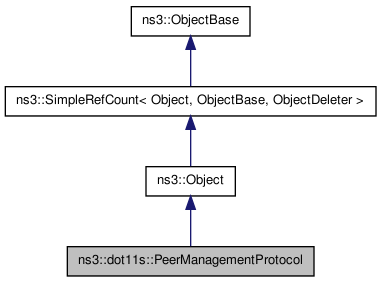

Inheritance diagram for ns3::dot11s::PeerManagementProtocol:
Inheritance graph
[legend]

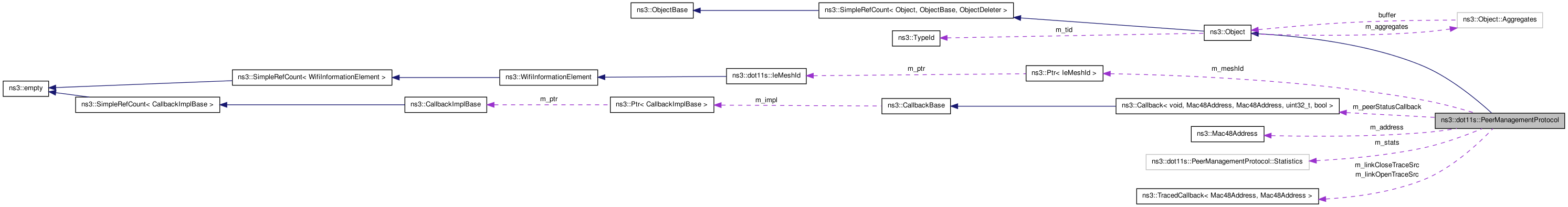

Collaboration diagram for ns3::dot11s::PeerManagementProtocol:
Collaboration graph
[legend]

List of all members.

Classes

struct  BeaconInfo
 Keeps information about beacon of peer station: beacon interval, association ID, last time we have received a beacon.
struct  Statistics

Public Member Functions

void DoDispose ()
bool Install (Ptr< MeshPointDevice >)
 Install PMP on given mesh point.
This methods interact with MAC_layer plug-in

Methods that handle beacon sending/receiving procedure.

Ptr< IeBeaconTiming > GetBeaconTimingElement (uint32_t interface)
 When we are sending a beacon - we fill beacon timing element.
void ReceiveBeacon (uint32_t interface, Mac48Address peerAddress, Time beaconInterval, Ptr< IeBeaconTiming > beaconTiming)
 To initiate peer link we must notify about received beacon.

void ReceivePeerLinkFrame (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress, uint16_t aid, IePeerManagement peerManagementElement, IeConfiguration meshConfig)
 Methods that handle Peer link management frames interaction:
void ConfigurationMismatch (uint32_t interface, Mac48Address peerAddress)
 Cancels peer link due to broken configuration (Mesh ID or Supported rates).
void TransmissionFailure (uint32_t interface, const Mac48Address peerAddress)
 Cancels peer link due to successive transmission failures.
void TransmissionSuccess (uint32_t interface, const Mac48Address peerAddress)
 resets transmission failure statistics
bool IsActiveLink (uint32_t interface, Mac48Address peerAddress)
 Checks if there is established link.
Interface to other protocols (MLME)

void SetPeerLinkStatusCallback (Callback< void, Mac48Address, Mac48Address, uint32_t, bool > cb)
 Set peer link status change callback.
Ptr< PeerLink > FindPeerLink (uint32_t interface, Mac48Address peerAddress)
 Find active peer link by my interface and peer interface MAC.
std::vector< Ptr< PeerLink > > GetPeerLinks () const
 Get list of all active peer links.
std::vector< Mac48Address > GetPeers (uint32_t interface) const
 Get list of active peers of my given interface.
Mac48Address GetAddress ()
 Get mesh point address. TODO this used by plugins only. Now MAC plugins can ask MP addrress directly from main MAC.
uint8_t GetNumberOfLinks ()
void SetMeshId (std::string s)
Ptr< IeMeshId > GetMeshId () const
void SetBeaconCollisionAvoidance (bool enable)
 Enable or disable beacon collision avoidance.
bool GetBeaconCollisionAvoidance () const
void NotifyBeaconSent (uint32_t interface, Time beaconInterval)
 Notify about beacon send event, needed to schedule BCA.
void Report (std::ostream &) const
 : Report statistics
void ResetStats ()

Static Public Member Functions

static TypeId GetTypeId ()
 This method returns the TypeId associated to ns3::dot11s::PeerManagementProtocol.

Detailed Description

802.11s Peer Management Protocol model

Member Function Documentation

void ns3::dot11s::PeerManagementProtocol::DoDispose (  )  [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Ptr<IeBeaconTiming> ns3::dot11s::PeerManagementProtocol::GetBeaconTimingElement ( uint32_t  interface  )

When we are sending a beacon - we fill beacon timing element.

Returns:
IeBeaconTiming is a beacon timing element that should be present in beacon
Parameters:
interface is a interface sending a beacon
static TypeId ns3::dot11s::PeerManagementProtocol::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::dot11s::PeerManagementProtocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::dot11s::PeerManagementProtocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::dot11s::PeerManagementProtocol

Attributes defined for this type:

  • MaxNumberOfPeerLinks: Maximum number of peer links
  • MaxBeaconShiftValue: Maximum number of TUs for beacon shifting
  • EnableBeaconCollisionAvoidance: Enable/Disable Beacon collision avoidance.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

TraceSources defined for this type:

  • LinkOpen: New peer link opened
  • LinkClose: New peer link closed

Reimplemented from ns3::Object.

bool ns3::dot11s::PeerManagementProtocol::Install ( Ptr< MeshPointDevice >   )

Install PMP on given mesh point.

Installing protocol cause installing its interface MAC plugins.

Also MP aggregates all installed protocols, PMP protocol can be accessed via MeshPointDevice::GetObject<PeerManagementProtocol>();

void ns3::dot11s::PeerManagementProtocol::ReceiveBeacon ( uint32_t  interface,
Mac48Address  peerAddress,
Time  beaconInterval,
Ptr< IeBeaconTiming >  beaconTiming
)

To initiate peer link we must notify about received beacon.

Parameters:
interface the interface where a beacon was received from
peerAddress address of station, which sent a beacon
beaconInterval beacon interval (needed by beacon loss counter)
beaconTiming beacon timing element (needed by BCA)
void ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame ( uint32_t  interface,
Mac48Address  peerAddress,
Mac48Address  peerMeshPointAddress,
uint16_t  aid,
IePeerManagement  peerManagementElement,
IeConfiguration  meshConfig
)

Methods that handle Peer link management frames interaction:

Deliver Peer link management information to the protocol-part

Parameters:
interface is a interface ID of a given MAC (interfaceID rather than MAC address, because many interfaces may have the same MAC)
peerAddress is address of peer
peerMeshPointAddress is address of peer mesh point device (equal to peer address when only one interface)
aid is association ID, which peer has assigned to us
peerManagementElement is peer link management element
meshConfig is mesh configuration element taken from the peer management frame
The documentation for this class was generated from the following files:
