ns3::dot11s::PeerManagementProtocolMac Class Reference [IEEE 802.11s draft]

This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol. More...

#include <peer-management-protocol-mac.h>

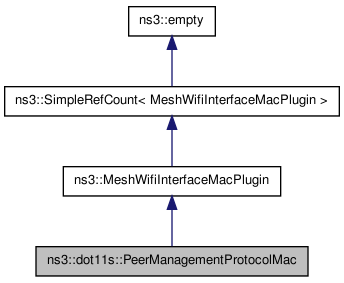

Inheritance diagram for ns3::dot11s::PeerManagementProtocolMac:

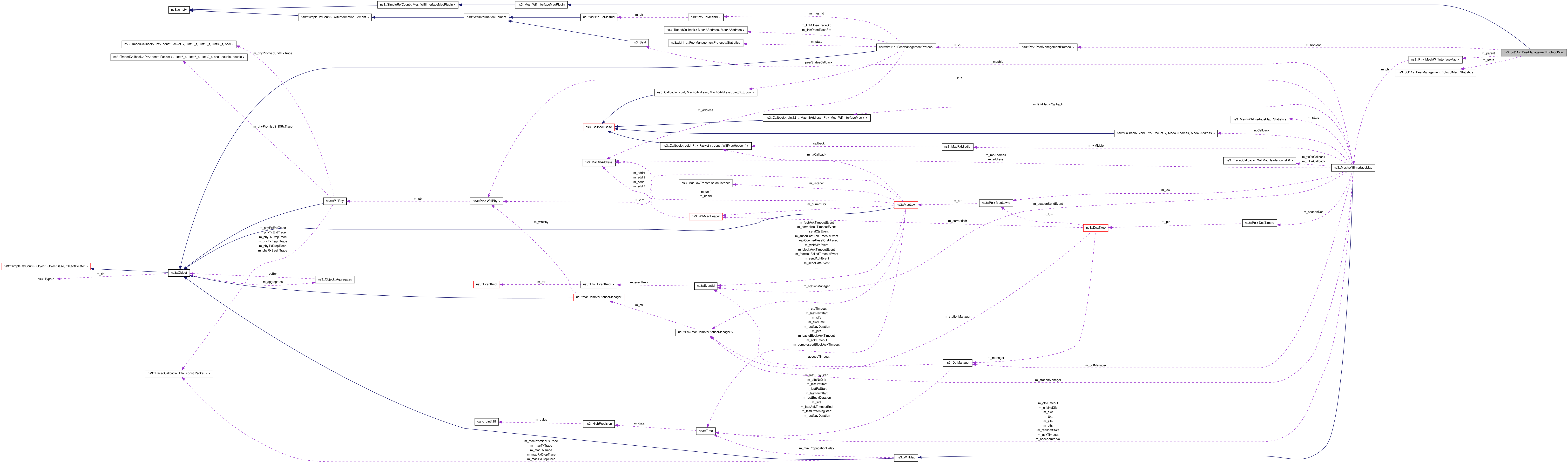

Collaboration diagram for ns3::dot11s::PeerManagementProtocolMac:

List of all members.

Classes
struct	PlinkFrameStart
struct	Statistics
Public Member Functions
	PeerManagementProtocolMac (uint32_t interface, Ptr< PeerManagementProtocol > protocol)
Inherited from plugin abstract class
void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Each plugin must be installed on interface to work.
bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Process received frame.
bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Update frame before it will be forwarded down.
void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon before it will be formed and sent.
Statistics:
void	Report (std::ostream &) const
void	ResetStats ()
uint32_t	GetLinkMetric (Mac48Address peerAddress)
Friends
class	PeerManagementProtocol
class	PeerLink

---

Detailed Description

This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol.

---

Member Function Documentation

bool ns3::dot11s::PeerManagementProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)			[virtual]

Process received frame.

Returns:

false if (and only if) frame should be dropped TODO define when MAC call this

Implements ns3::MeshWifiInterfaceMacPlugin.

void ns3::dot11s::PeerManagementProtocolMac::UpdateBeacon

(

MeshWifiBeacon &

beacon

)

const [virtual]

Update beacon before it will be formed and sent.

TODO define when MAC call this

Implements ns3::MeshWifiInterfaceMacPlugin.

bool ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame	(	Ptr< Packet >	packet,
		WifiMacHeader &	header,
		Mac48Address	from,
		Mac48Address	to
	)			[virtual]

Update frame before it will be forwarded down.

Returns:

false if (and only if) frame should be dropped TODO define when MAC call this, preconditions & postconditions

Implements ns3::MeshWifiInterfaceMacPlugin.

---

The documentation for this class was generated from the following file:

• src/devices/mesh/dot11s/peer-management-protocol-mac.h
