ns3::AnimationInterface Class Reference

Interface to network animator. More...

#include <animation-interface.h>

Collaboration diagram for ns3::AnimationInterface:

Public Types
typedef void(*	AnimWriteCallback )(const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages

Public Member Functions
	AnimationInterface (const std::string filename, uint64_t maxPktsPerFile=MAX_PKTS_PER_TRACE_FILE, bool usingXML=true)
	Constructor.
	~AnimationInterface ()
	Destructor for the animator interface.
int64_t	AssignStreams (int64_t stream)
void	EnablePacketMetadata (bool enable)
	Enable Packet metadata.
uint64_t	GetTracePktCount ()
	Get trace file packet count (This used only for testing)
bool	IsStarted (void)
	Is AnimationInterface started.
void	ResetAnimWriteCallback ()
	Reset the write callback function.
void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events.
void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness.
bool	SetOutputFile (const std::string &fn)
	Specify that animation commands are to be written to the specified output file.
void	SetRandomPosition (bool setRandPos)
	Set random position if a Mobility Model does not exists for the node.
void	SetStartTime (Time t)
	Specify the time at which capture should start.
void	SetStopTime (Time t)
	Specify the time at which capture should stop.
void	SetXMLOutput ()
	Specify that animation commands are to be written in XML format.
void	ShowAll802_11 (bool showAll)
	Show all 802.11 frames. Default: show only frames accepted by mac layer.
void	ShowNode (uint32_t nodeId, bool show=true)
	Helper function to show/hide a node.
void	ShowNode (Ptr< Node > n, bool show=true)
	Helper function to show/hide a node.
void	StartAnimation (bool restart=false)
	Writes the topology information and sets up the appropriate animation packet tx callback.
void	StopAnimation ()
	Closes the interface to the animator.
void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link.
void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link.
void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color.
void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color.
void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node.
void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node.

Static Public Member Functions
static bool	IsInitialized (void)
	Check if AnimationInterface is initialized.
static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node.
static void	SetLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
	Helper function to set the description for a link.
static void	SetLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
	Helper function to set the description for a link.
static void	SetNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to set the node color.
static void	SetNodeColor (NodeContainer nc, uint8_t r, uint8_t g, uint8_t b)
	Helper function to set the color of nodes in a container.
static void	SetNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to set a brief description for a given node.
static void	SetNodeDescription (NodeContainer nc, std::string descr)
	Helper function to set a brief description for nodes in a Node Container.

Private Member Functions
void	AddMargin ()
void	AddPendingCsmaPacket (uint64_t AnimUid, AnimPacketInfo &)
void	AddPendingLtePacket (uint64_t AnimUid, AnimPacketInfo &)
void	AddPendingUanPacket (uint64_t AnimUid, AnimPacketInfo &)
void	AddPendingWifiPacket (uint64_t AnimUid, AnimPacketInfo &)
void	AddPendingWimaxPacket (uint64_t AnimUid, AnimPacketInfo &)
void	ConnectCallbacks ()
void	ConnectLte ()
void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)
void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)
void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)
bool	CsmaPacketIsPending (uint64_t AnimUid)
void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)
void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)
void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)
uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)
std::vector< std::string >	GetElementsFromContext (std::string context)
std::string	GetIpv4Address (Ptr< NetDevice > nd)
std::string	GetNetAnimVersion ()
Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)
std::string	GetPacketMetadata (Ptr< const Packet > p)
Vector	GetPosition (Ptr< Node > n)
std::string	GetPreamble (void)
std::string	GetXMLClose (std::string name)
std::string	GetXMLOpen_anim (uint32_t lp)
std::string	GetXMLOpen_packet (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, std::string auxInfo="")
std::string	GetXMLOpen_topology (double minX, double minY, double maxX, double maxY)
std::string	GetXMLOpen_wpacket (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, double range)
std::string	GetXMLOpenClose_link (uint32_t fromLp, uint32_t fromId, uint32_t toLp, uint32_t toId)
std::string	GetXMLOpenClose_linkupdate (uint32_t fromId, uint32_t toId, std::string)
std::string	GetXMLOpenClose_meta (std::string metaInfo)
std::string	GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY)
std::string	GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY, struct Rgb rgb)
std::string	GetXMLOpenClose_nodeupdate (uint32_t id, bool visible=true)
std::string	GetXMLOpenClose_rx (uint32_t toLp, uint32_t toId, double fbRx, double lbRx)
bool	IsInTimeWindow ()
bool	LtePacketIsPending (uint64_t AnimUid)
void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)
void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)
void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)
void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)
void	MobilityAutoCheck ()
void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)
bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)
void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)
void	OutputWirelessPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)
void	PurgePendingCsma ()
void	PurgePendingLte ()
void	PurgePendingWifi ()
void	PurgePendingWimax ()
void	RecalcTopoBounds (Vector v)
std::vector< Ptr< Node > >	RecalcTopoBounds ()
void	StartNewTraceFile ()
bool	UanPacketIsPending (uint64_t AnimUid)
void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)
void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)
Vector	UpdatePosition (Ptr< Node > n)
Vector	UpdatePosition (Ptr< Node > n, Vector v)
void	WifiMacRxTrace (std::string context, Ptr< const Packet > p)
bool	WifiPacketIsPending (uint64_t AnimUid)
void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyRxEndTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyTxEndTrace (std::string context, Ptr< const Packet > p)
bool	WimaxPacketIsPending (uint64_t AnimUid)
void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)
void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)
void	WriteDummyPacket ()
int	WriteN (const char *, uint32_t)
int	WriteN (const std::string &)

Private Attributes
uint64_t	gAnimUid
uint64_t	m_currentPktCount
bool	m_enablePacketMetadata
FILE *	m_f
std::map< std::string, uint32_t >	m_macToNodeIdMap
uint64_t	m_maxPktsPerFile
Time	m_mobilityPollInterval
std::map< uint32_t, Vector >	m_nodeLocation
std::string	m_originalFileName
std::string	m_outputFileName
bool	m_outputFileSet
std::map< uint64_t, AnimPacketInfo >	m_pendingCsmaPackets
std::map< uint64_t, AnimPacketInfo >	m_pendingLtePackets
std::map< uint64_t, AnimPacketInfo >	m_pendingUanPackets
std::map< uint64_t, AnimPacketInfo >	m_pendingWifiPackets
std::map< uint64_t, AnimPacketInfo >	m_pendingWimaxPackets
bool	m_randomPosition
bool	m_started
Time	m_startTime
Time	m_stopTime
double	m_topoMaxX
double	m_topoMaxY
double	m_topoMinX
double	m_topoMinY
Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables.
AnimWriteCallback	m_writeCallback
bool	m_xml

Static Private Attributes
static std::map < P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	linkProperties
static std::map< uint32_t, Rgb >	nodeColors
static std::map< uint32_t, std::string >	nodeDescriptions

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 92 of file animation-interface.h.

Member Typedef Documentation

typedef void(* ns3::AnimationInterface::AnimWriteCallback)(const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 206 of file animation-interface.h.

Constructor & Destructor Documentation

ns3::AnimationInterface::AnimationInterface	(	const std::string	filename,
		uint64_t	maxPktsPerFile = MAX_PKTS_PER_TRACE_FILE,
		bool	usingXML = true
	)

Constructor.

Parameters

filename	The Filename for the trace file used by the Animator
maxPktsPerFile	The maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktPerFile' number of packets
usingXML	Set to true if XML output traces are required

Definition at line 63 of file animation-interface.cc.

References ns3::initialized, m_uniformRandomVariable, and StartAnimation().

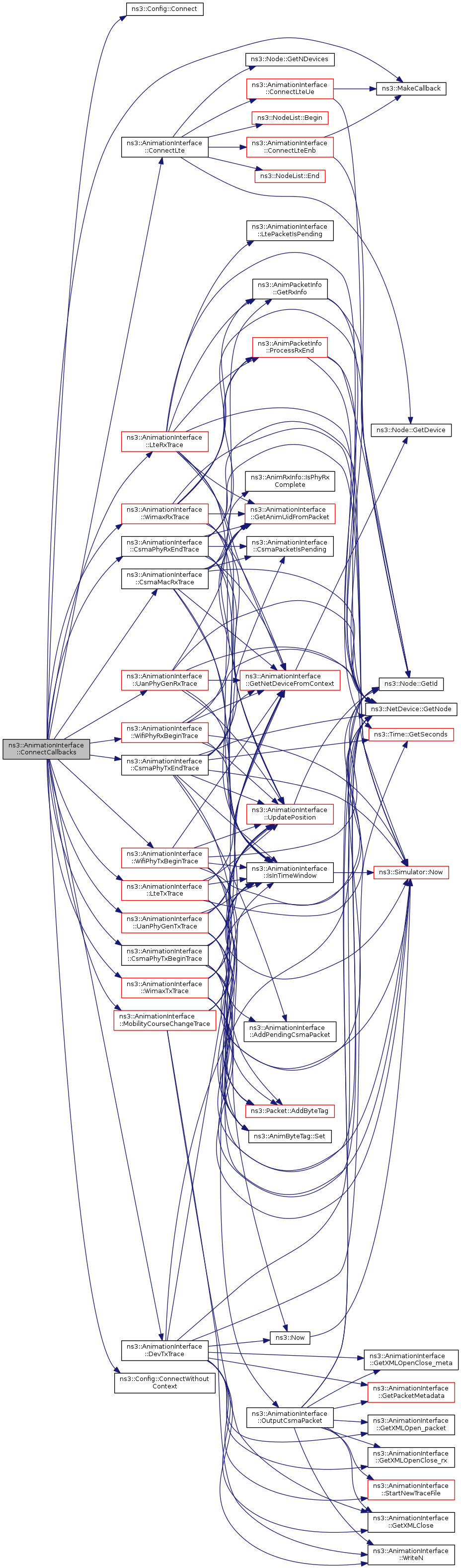

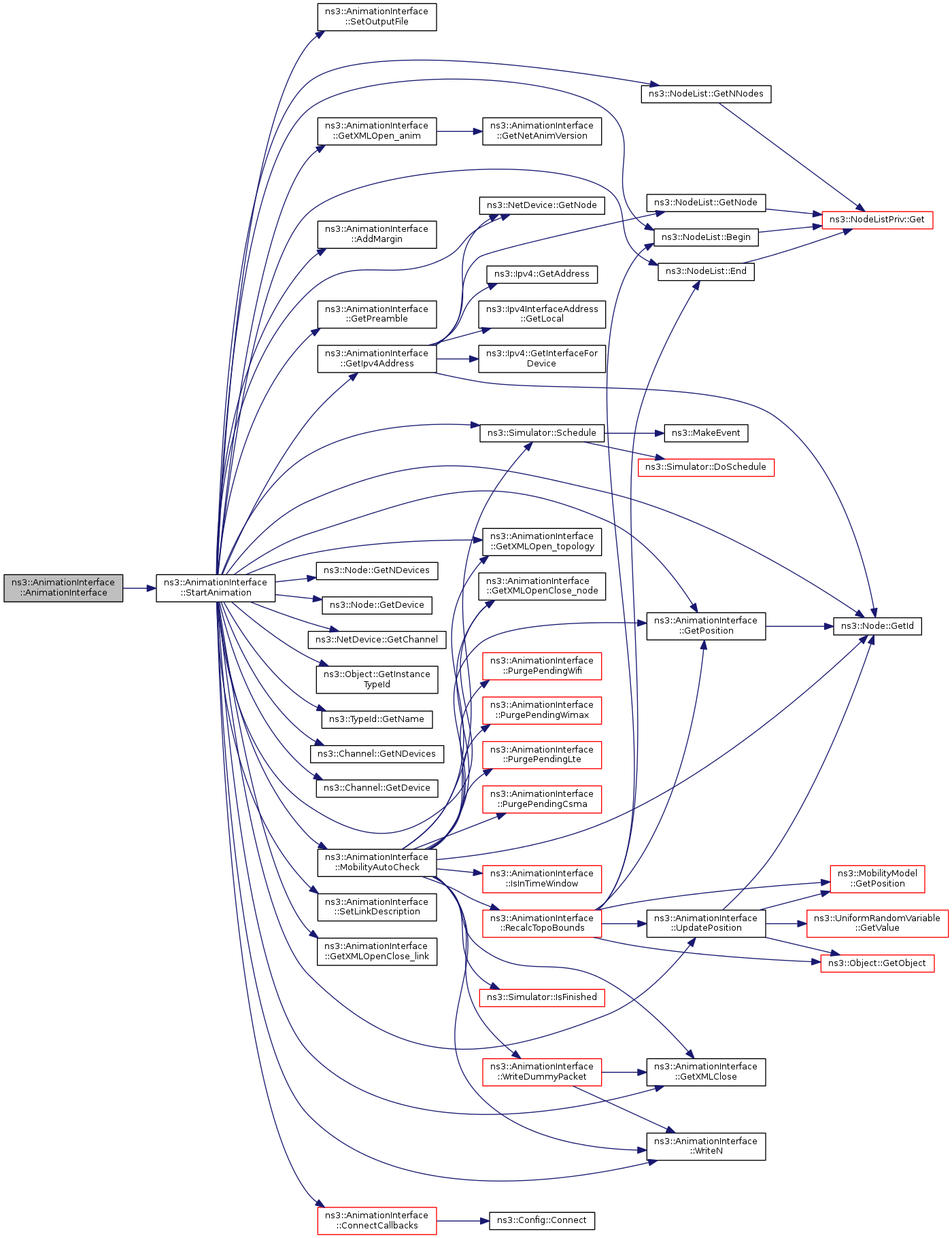

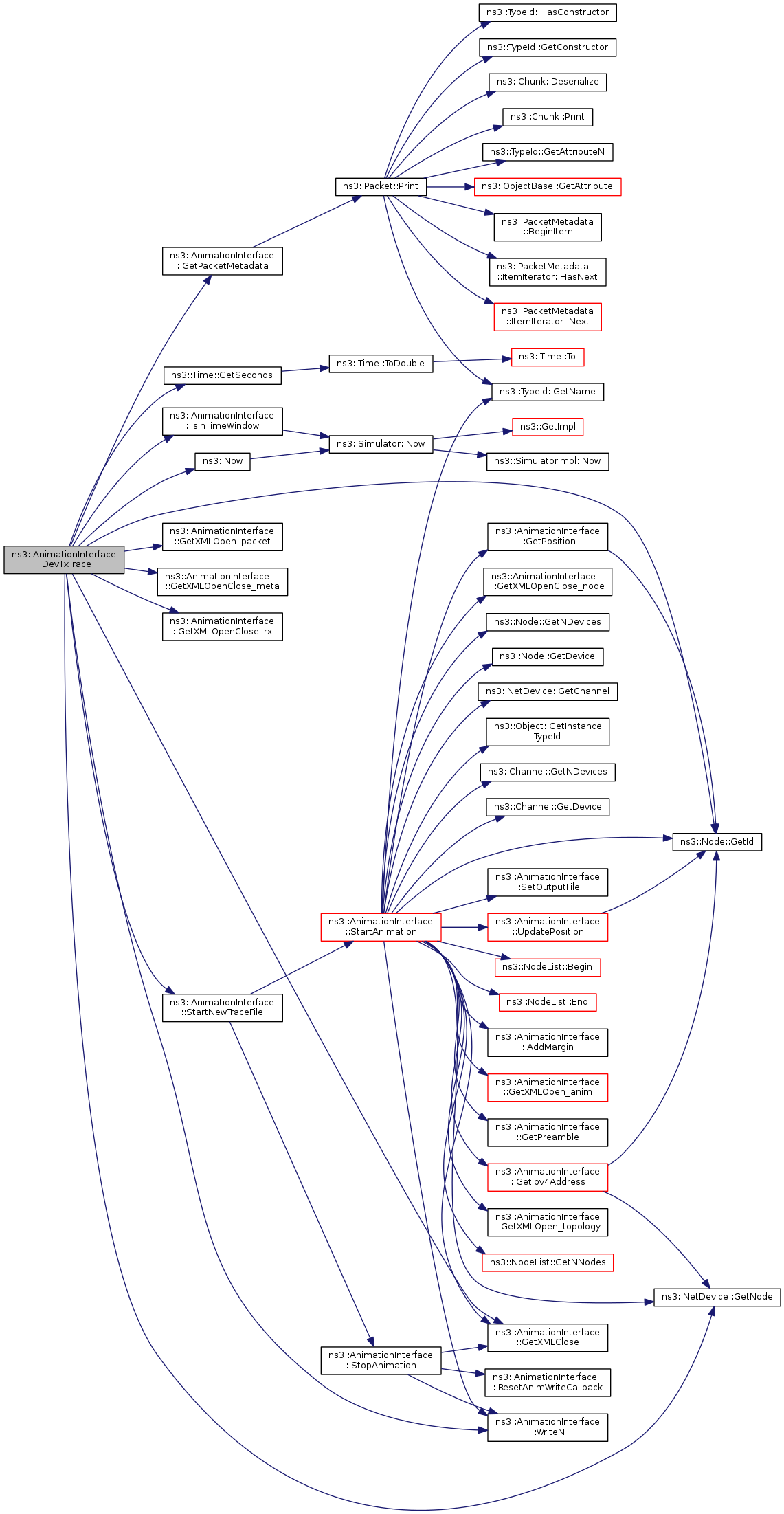

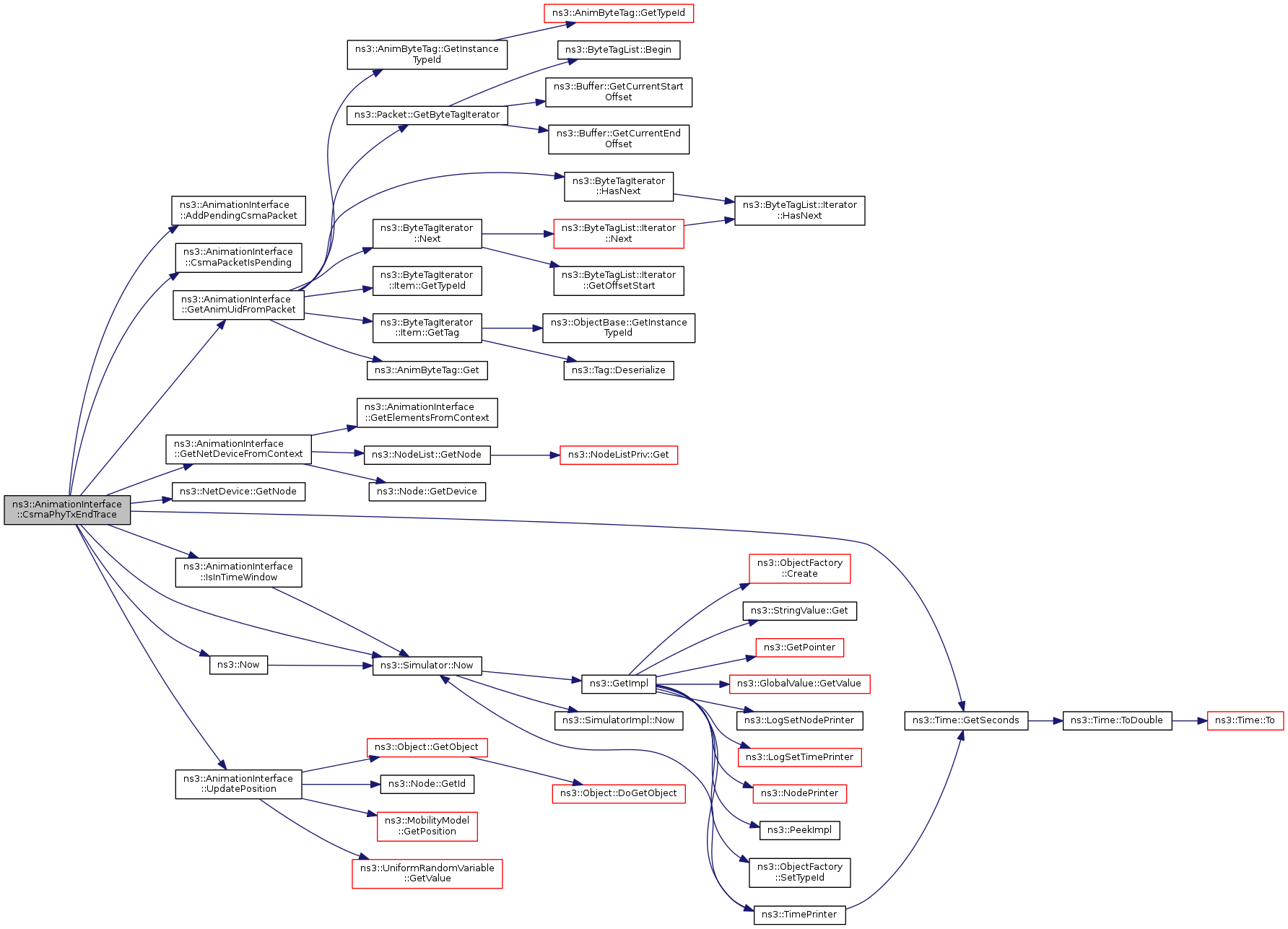

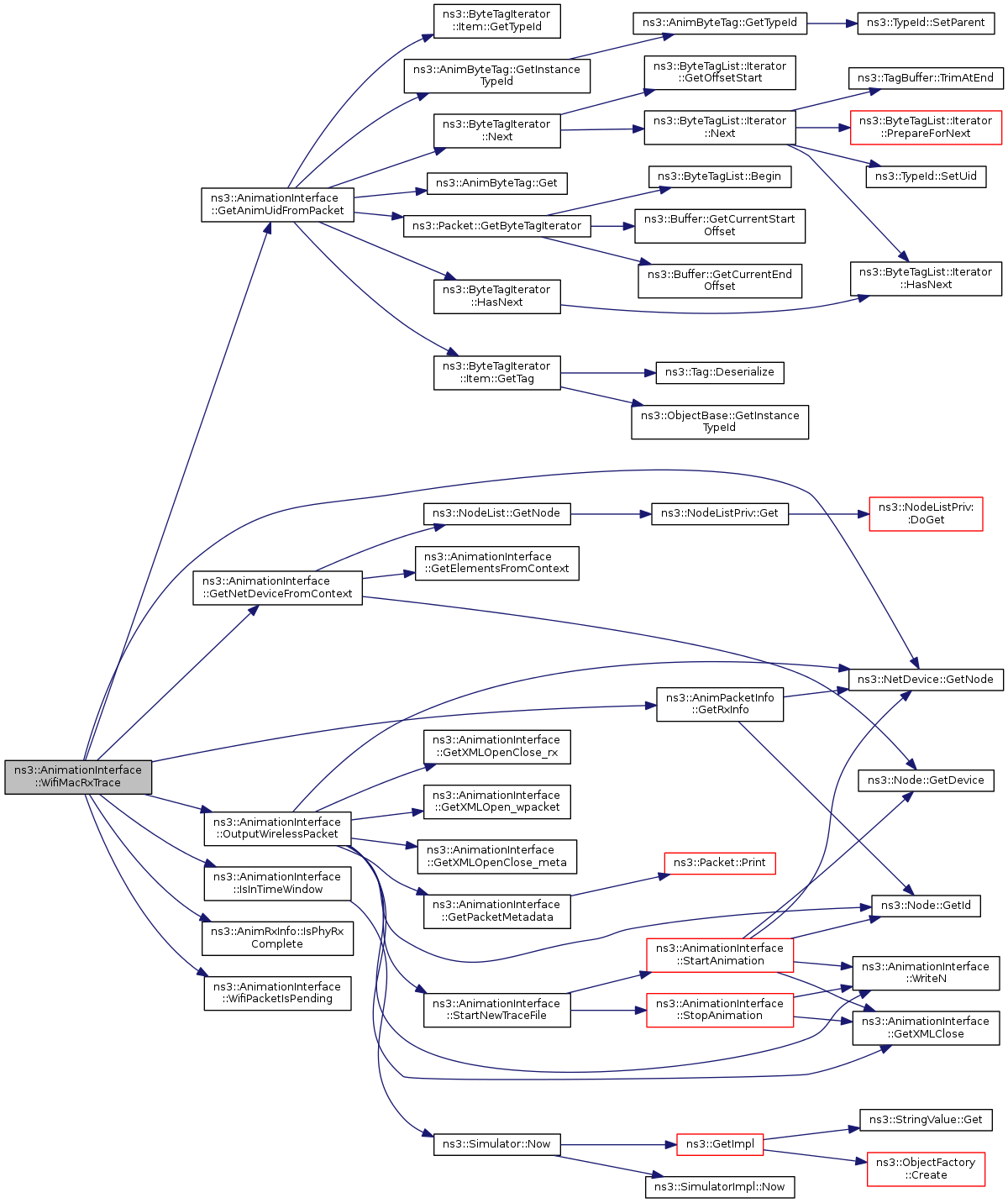

Here is the call graph for this function:

ns3::AnimationInterface::~AnimationInterface

(

)

Destructor for the animator interface.

Definition at line 77 of file animation-interface.cc.

References StopAnimation().

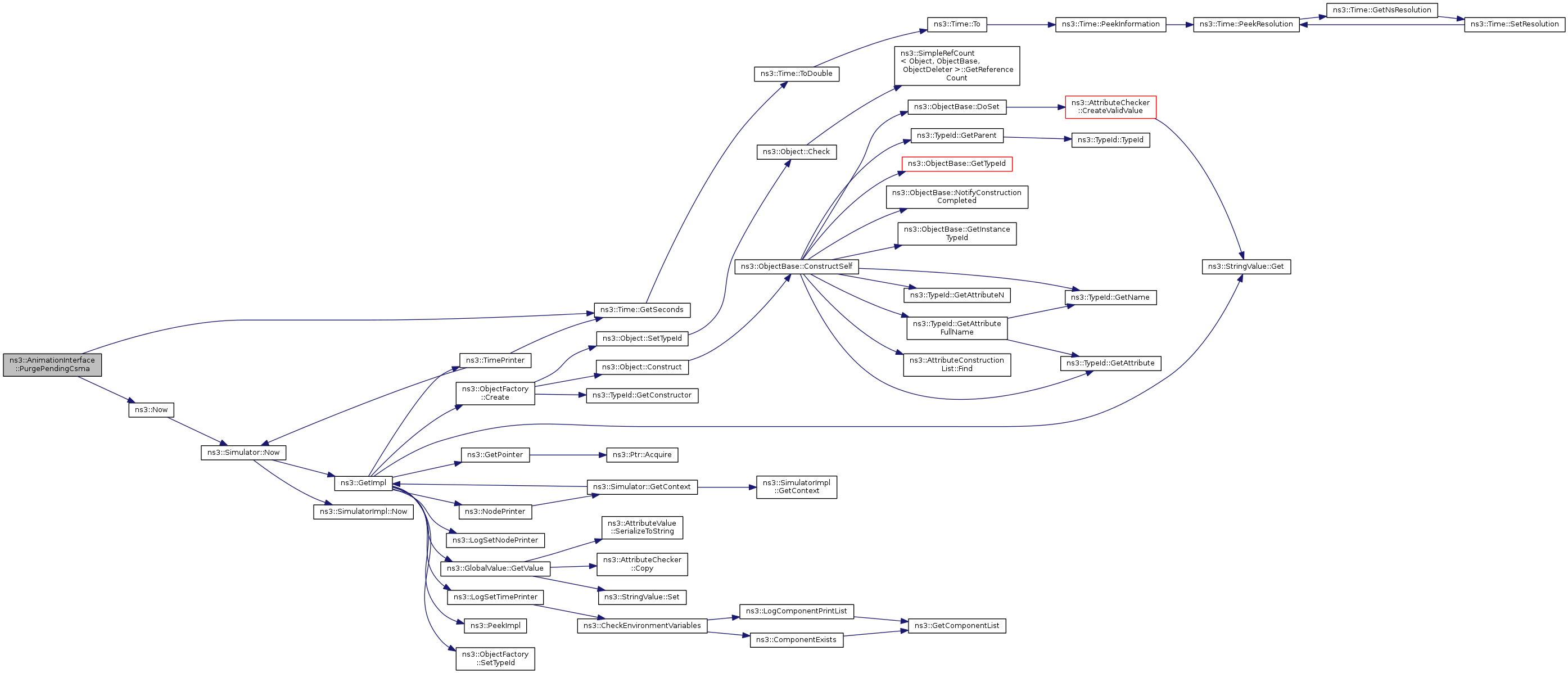

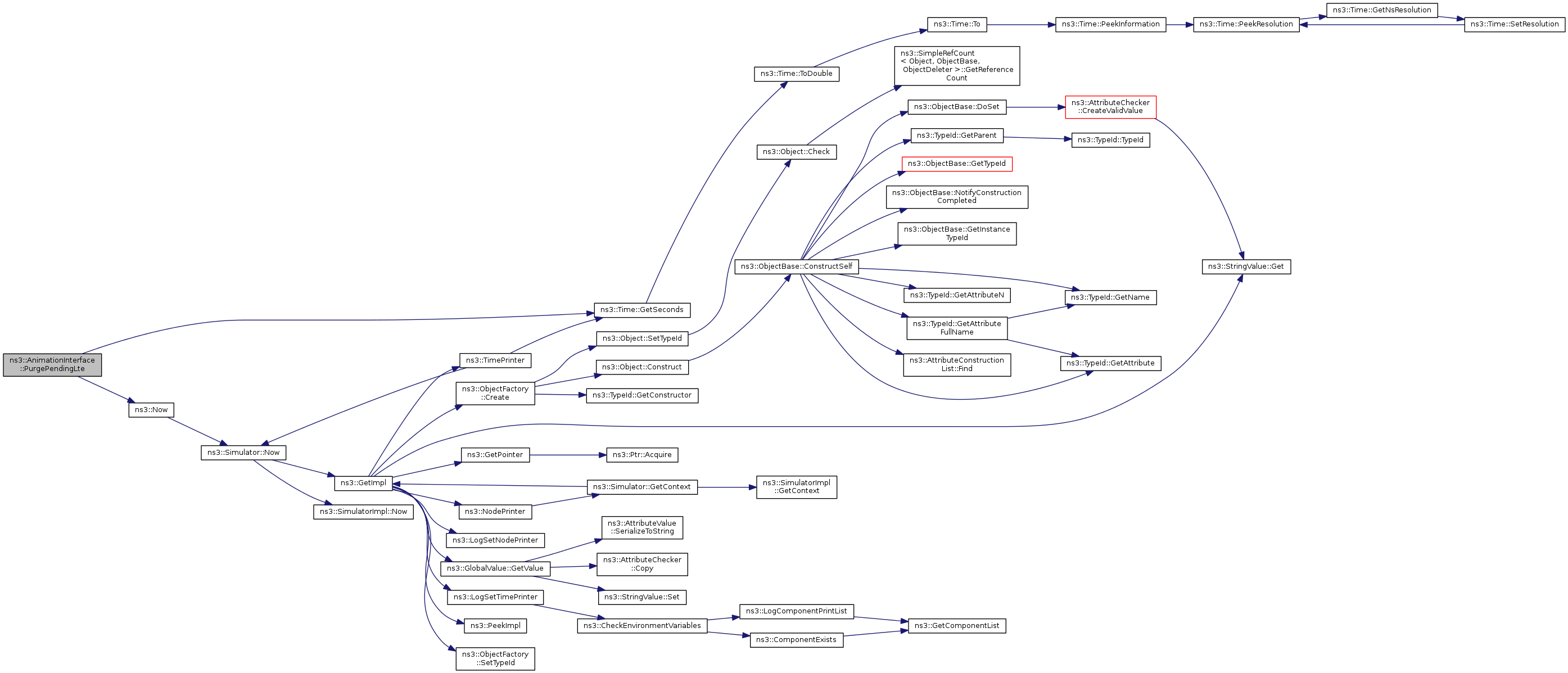

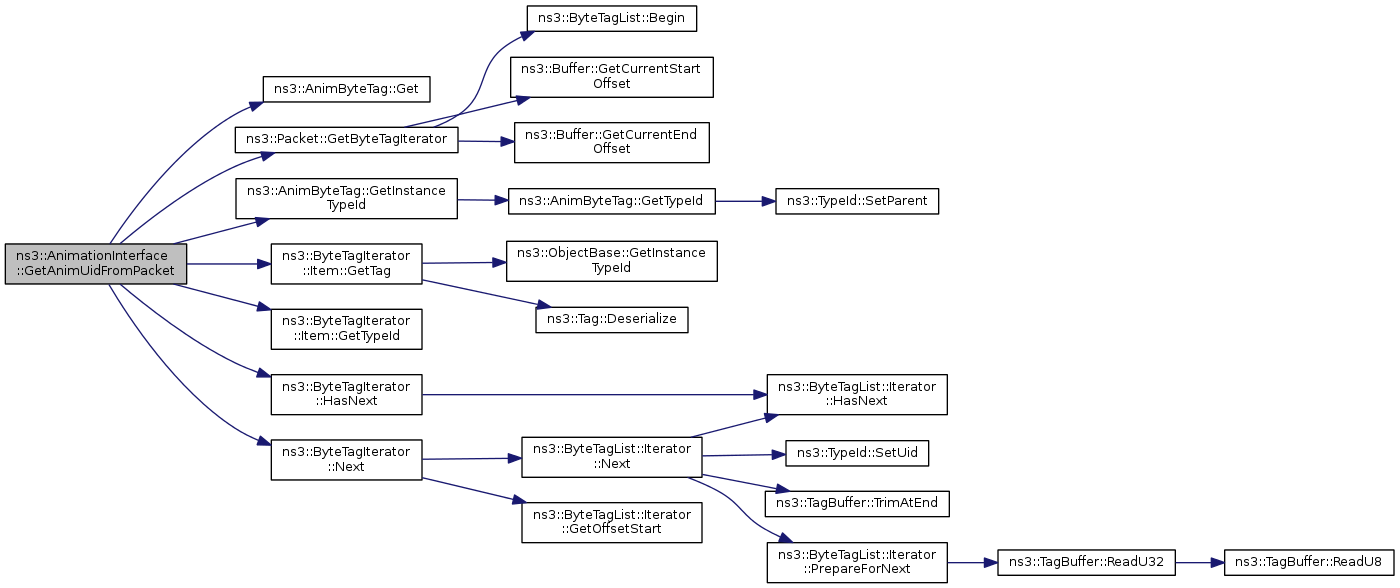

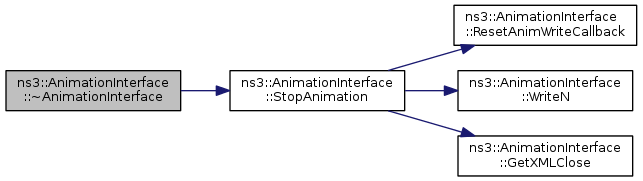

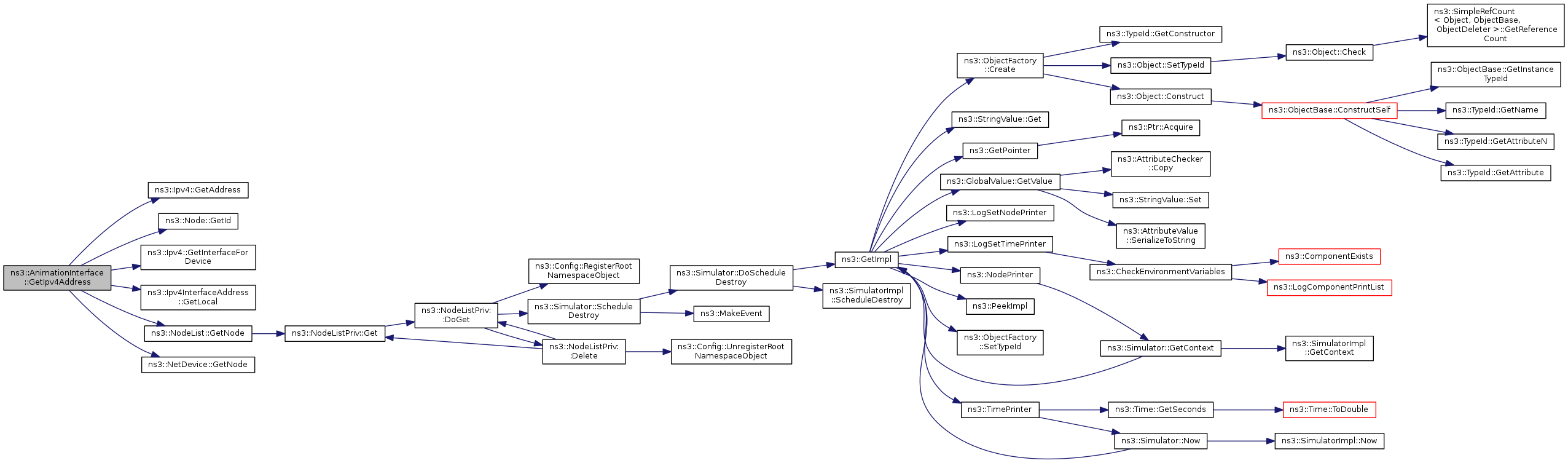

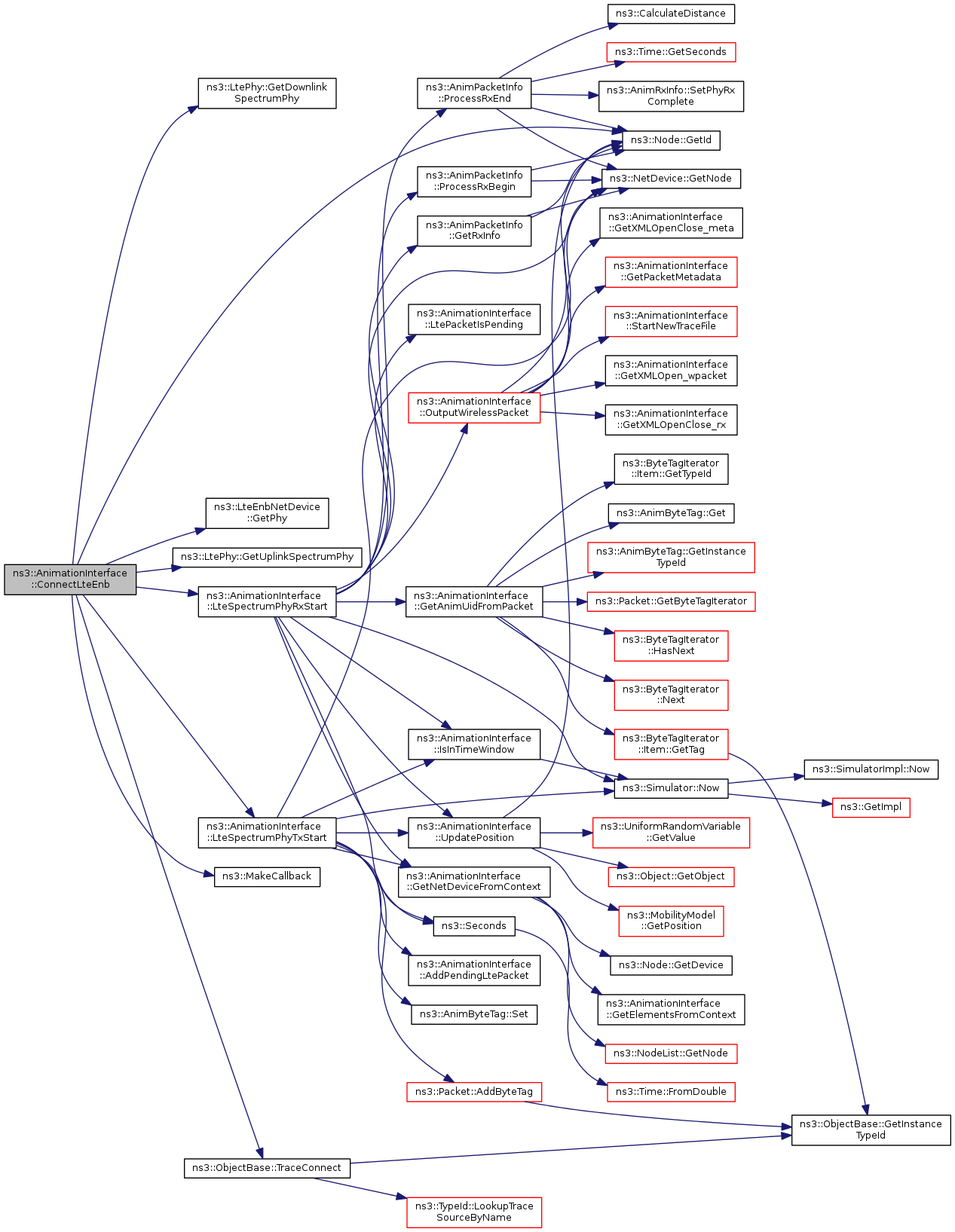

Here is the call graph for this function:

Member Function Documentation

void ns3::AnimationInterface::AddMargin ( )

private

Definition at line 625 of file animation-interface.cc.

References m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, NS_LOG_INFO, and visualizer.higcontainer::w.

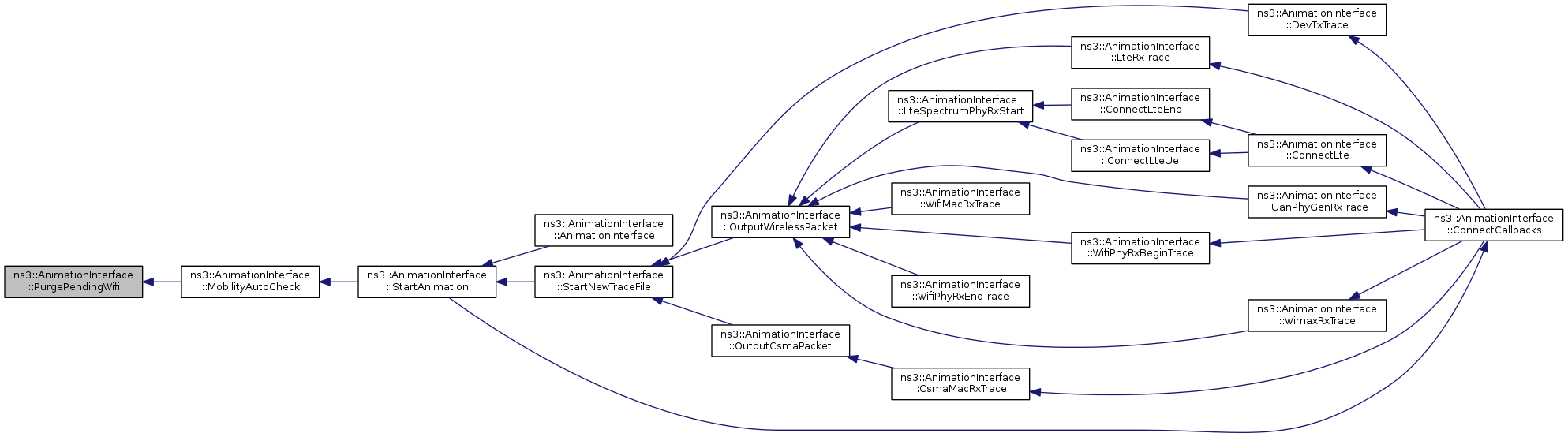

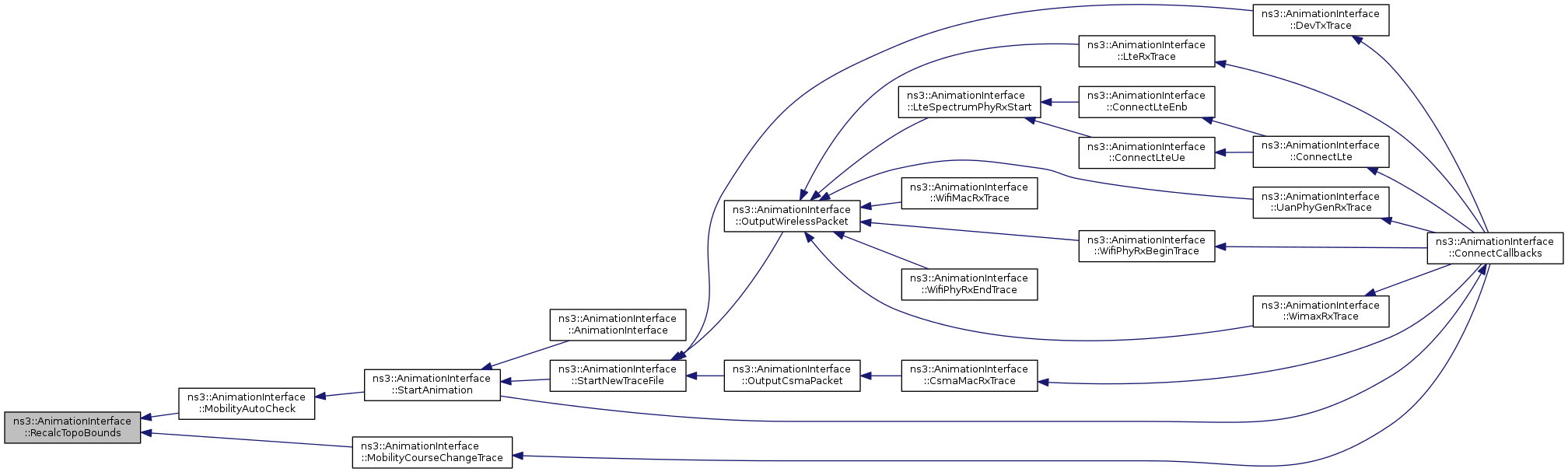

Referenced by RecalcTopoBounds(), and StartAnimation().

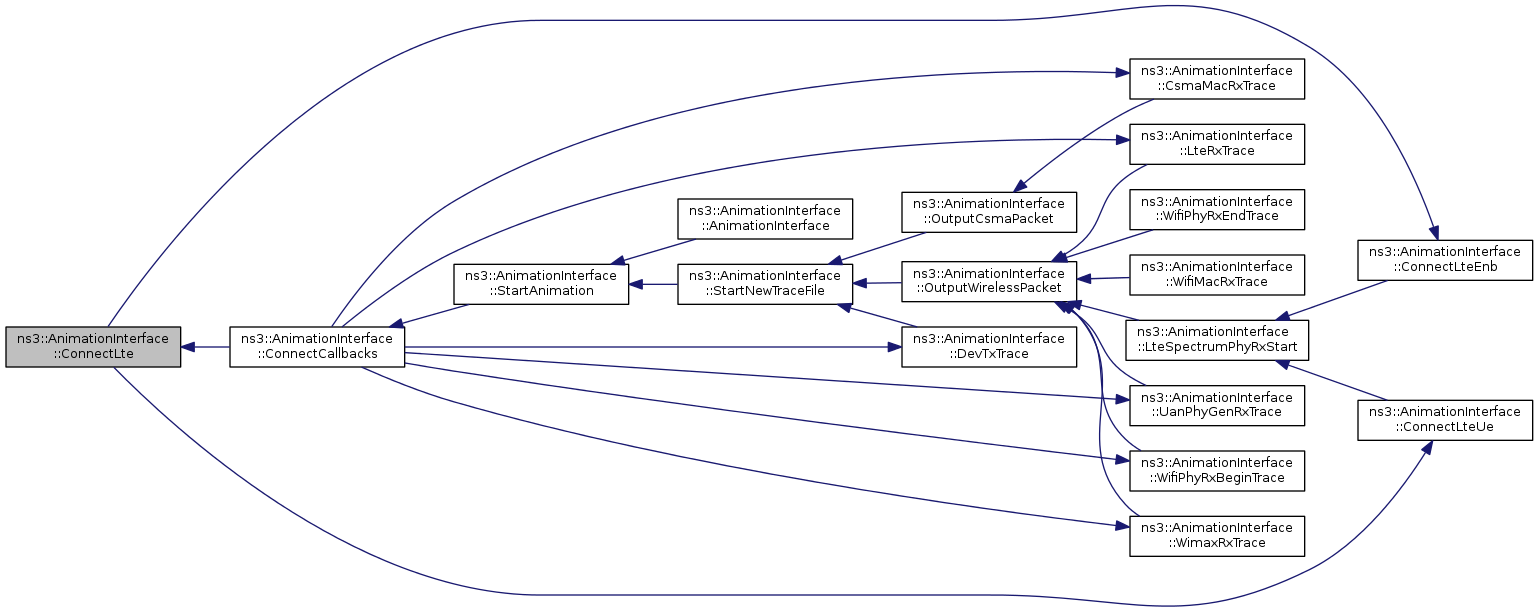

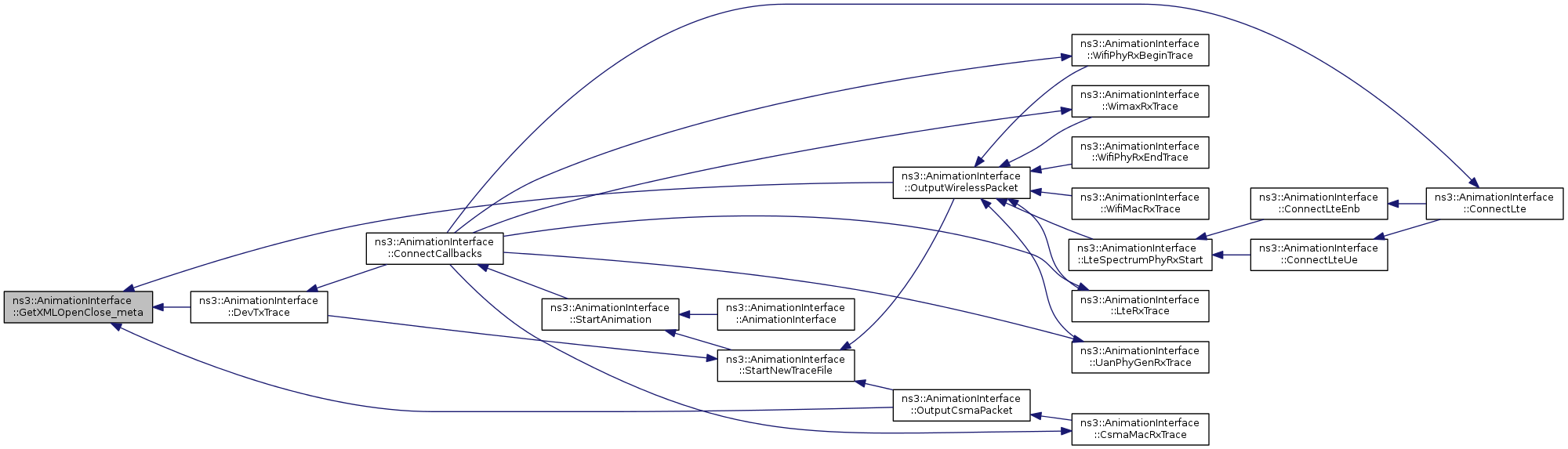

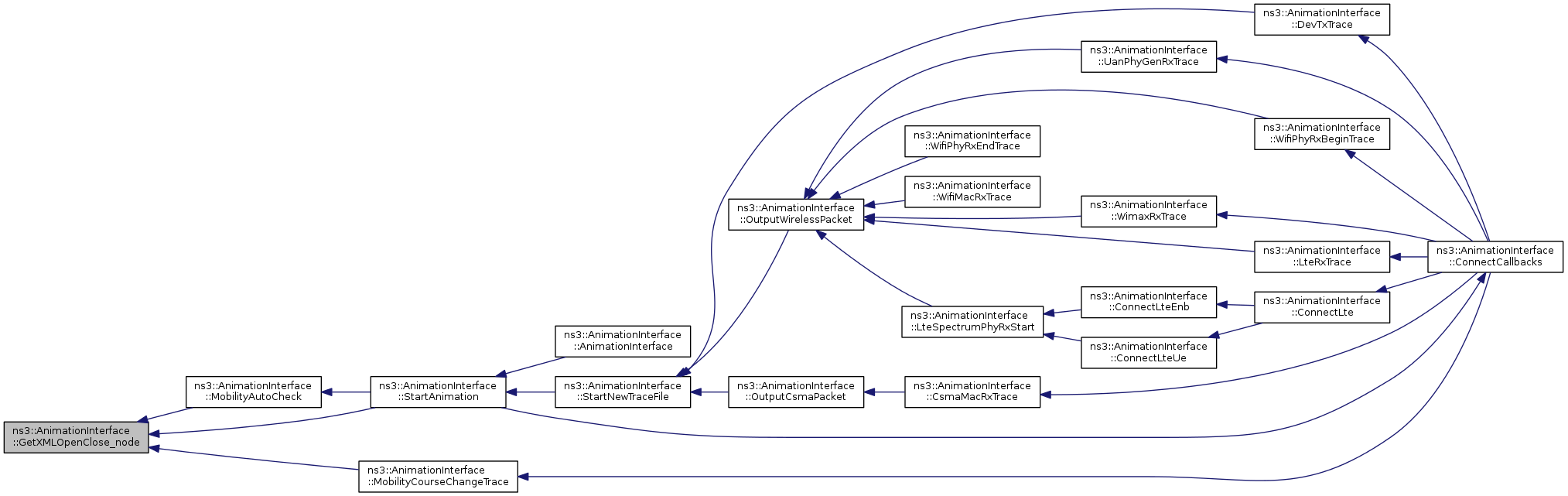

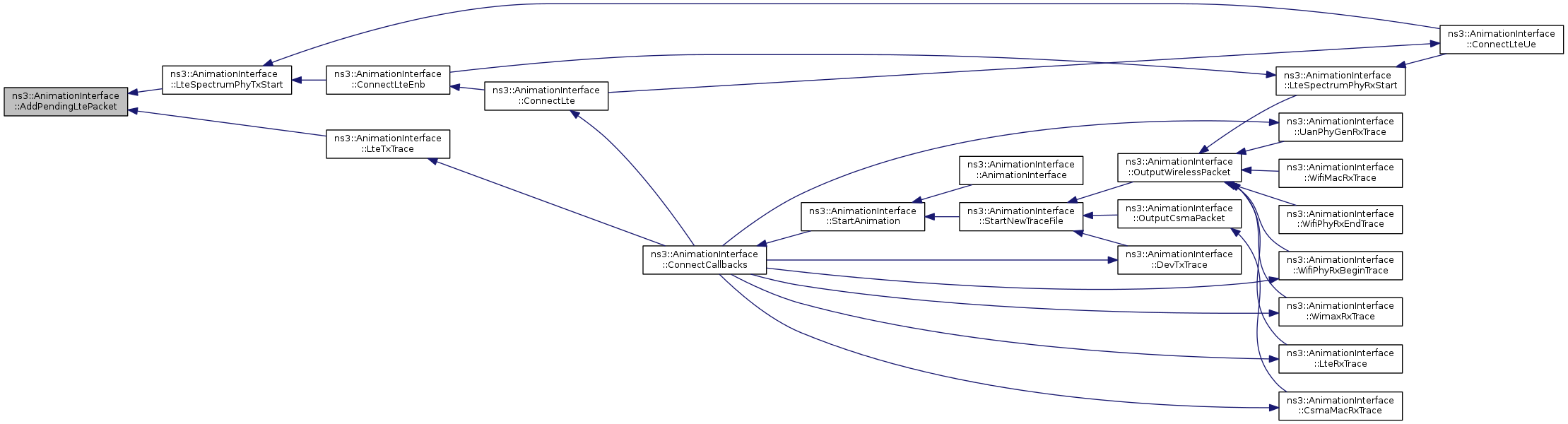

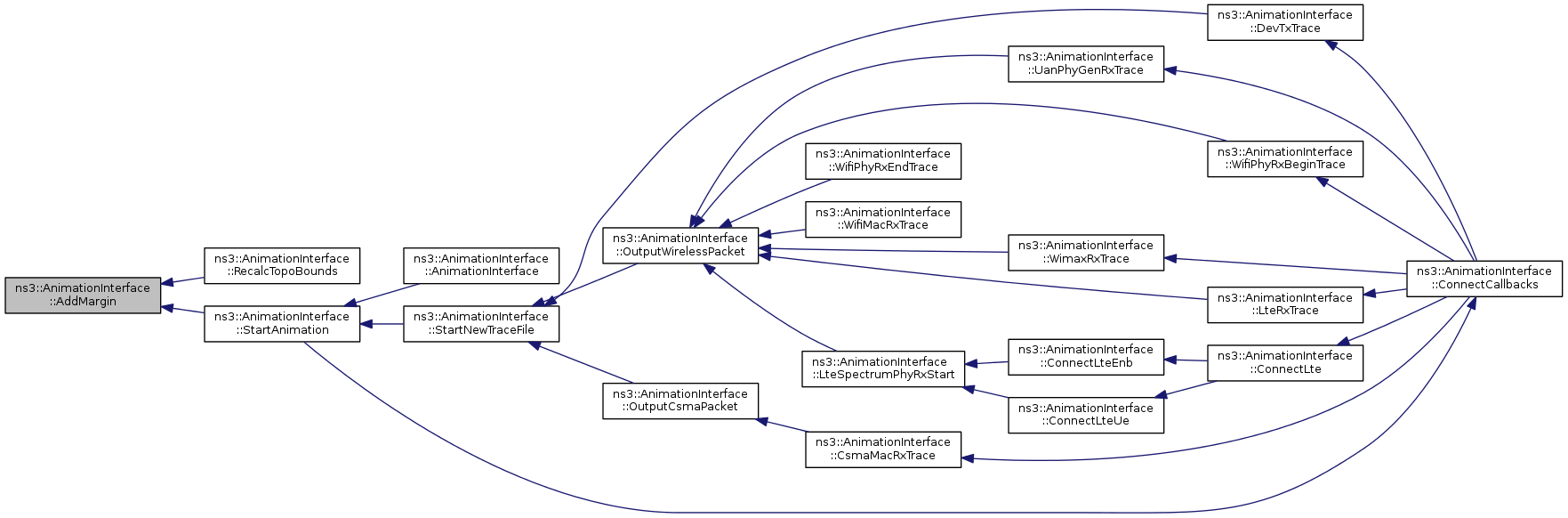

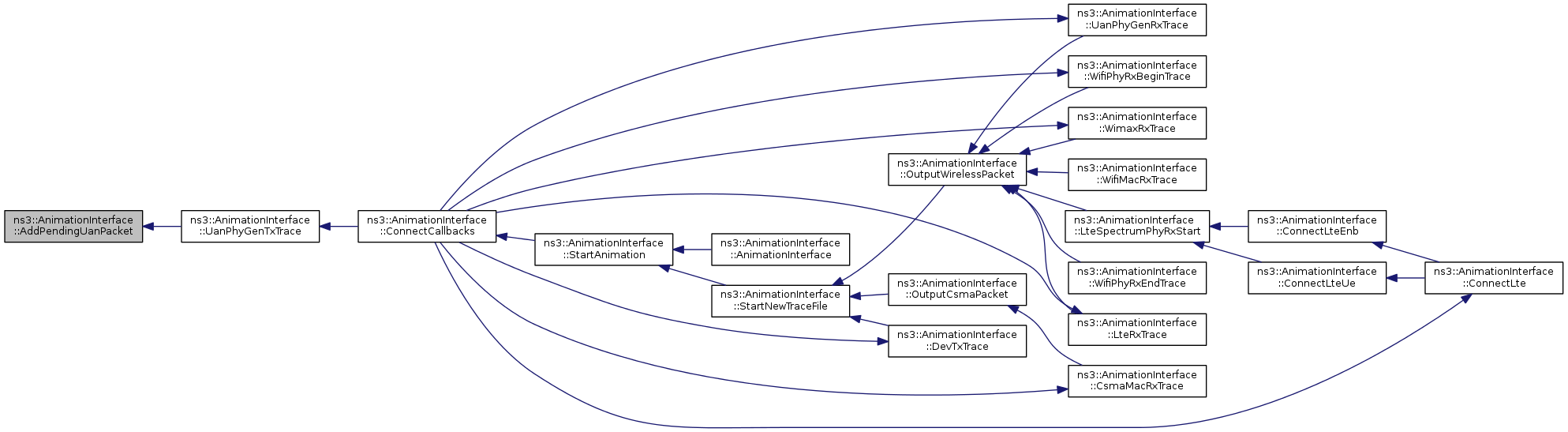

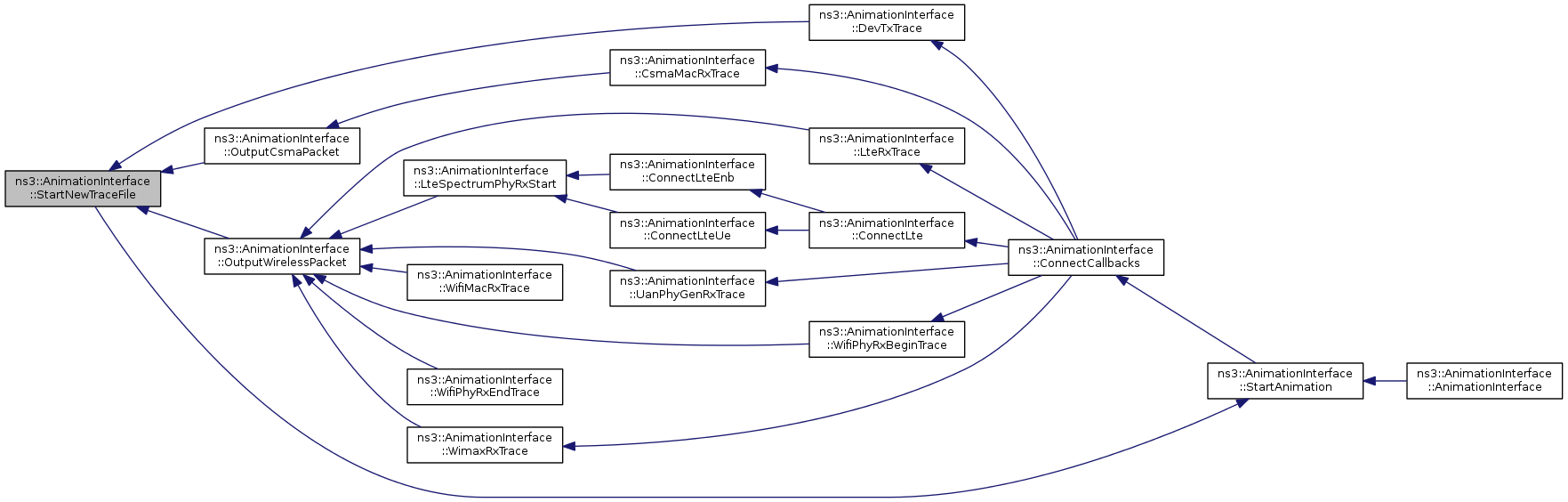

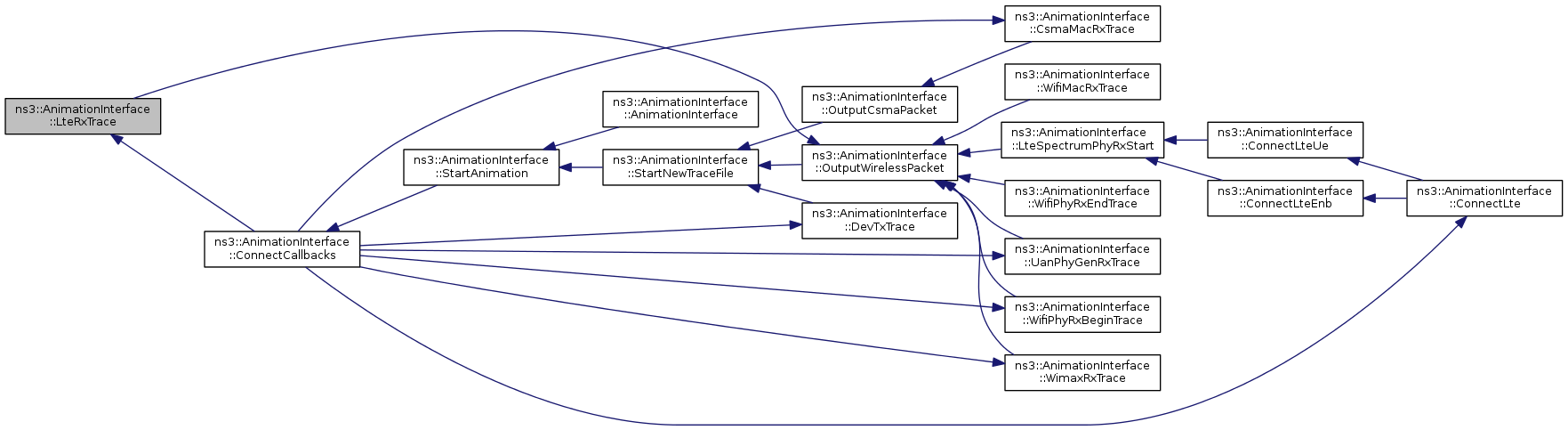

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingCsmaPacket ( uint64_t  AnimUid, AnimPacketInfo &  pktinfo  )

private

Definition at line 799 of file animation-interface.cc.

References m_pendingCsmaPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by CsmaPhyTxBeginTrace(), and CsmaPhyTxEndTrace().

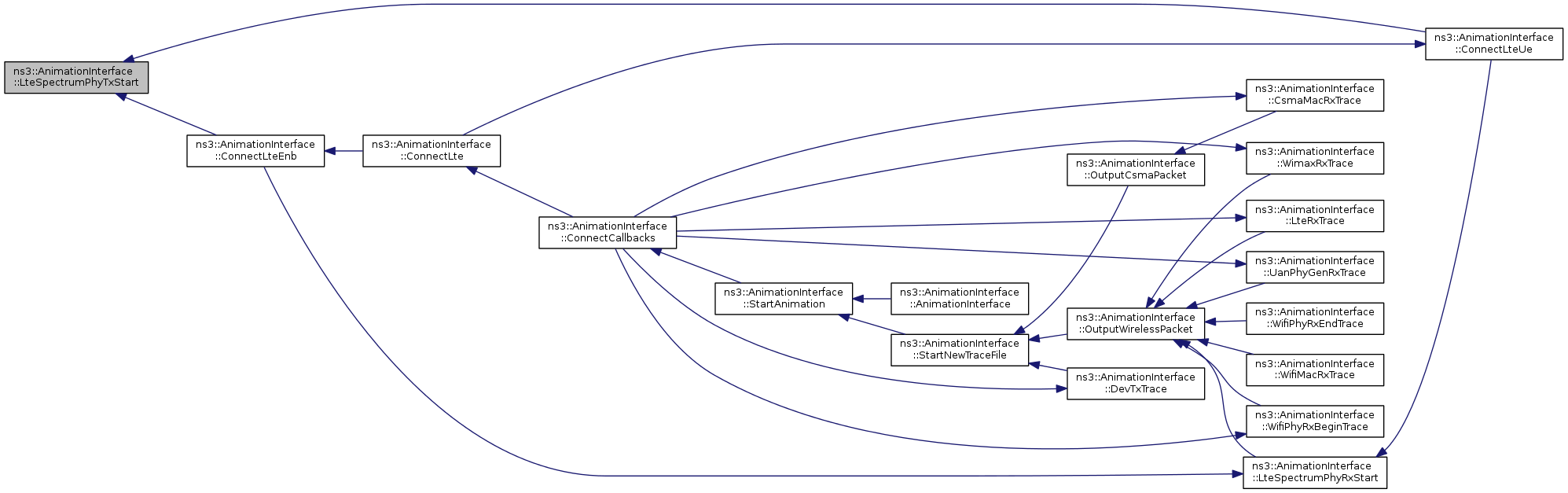

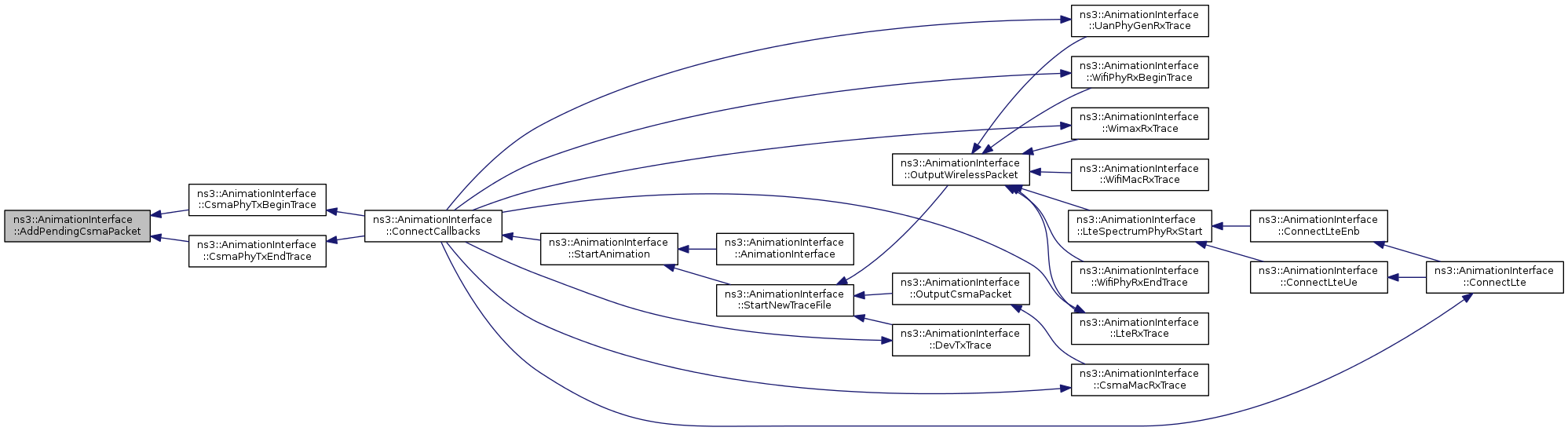

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingLtePacket ( uint64_t  AnimUid, AnimPacketInfo &  pktinfo  )

private

Definition at line 793 of file animation-interface.cc.

References m_pendingLtePackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by LteSpectrumPhyTxStart(), and LteTxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingUanPacket ( uint64_t  AnimUid, AnimPacketInfo &  pktinfo  )

private

Definition at line 776 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenTxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWifiPacket ( uint64_t  AnimUid, AnimPacketInfo &  pktinfo  )

private

Definition at line 782 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxBeginTrace().

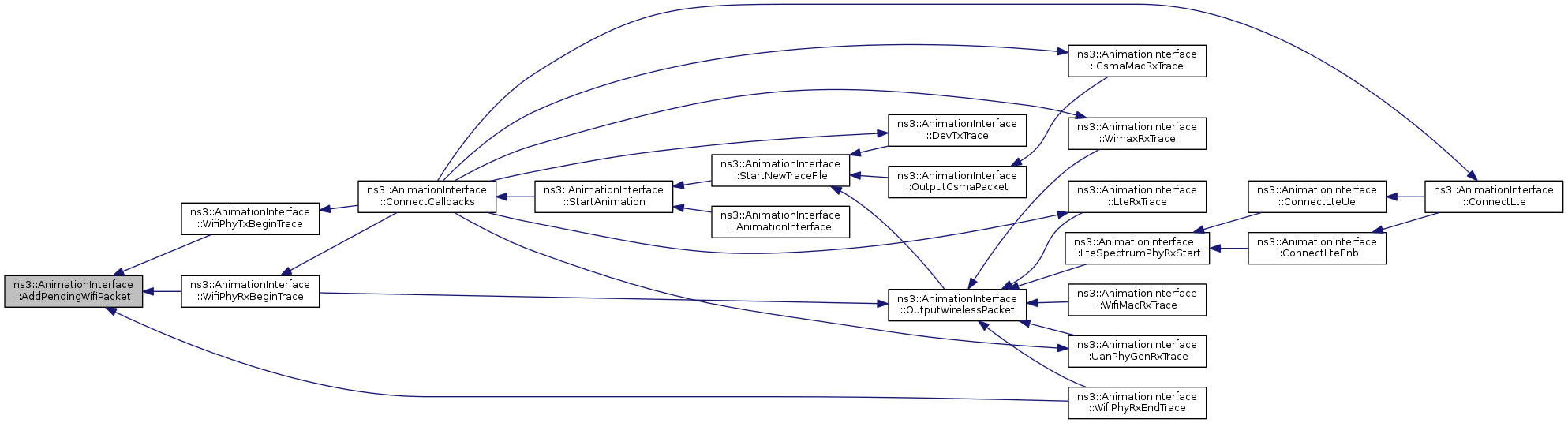

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWimaxPacket ( uint64_t  AnimUid, AnimPacketInfo &  pktinfo  )

private

Definition at line 787 of file animation-interface.cc.

References m_pendingWimaxPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by WimaxTxTrace().

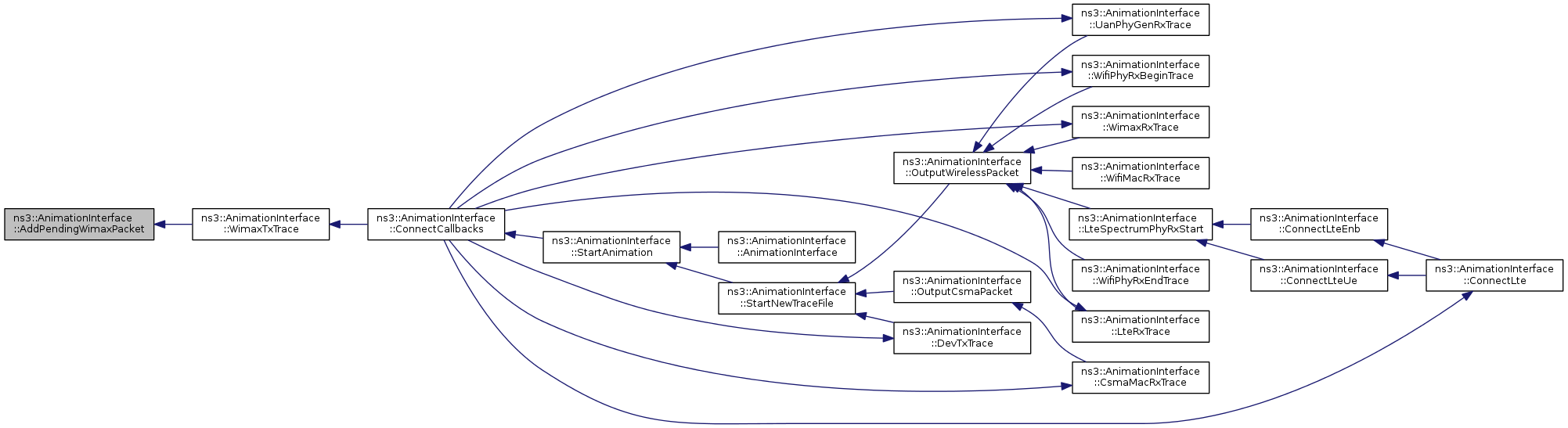

Here is the caller graph for this function:

int64_t ns3::AnimationInterface::AssignStreams

(

int64_t

stream

)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Definition at line 1319 of file animation-interface.cc.

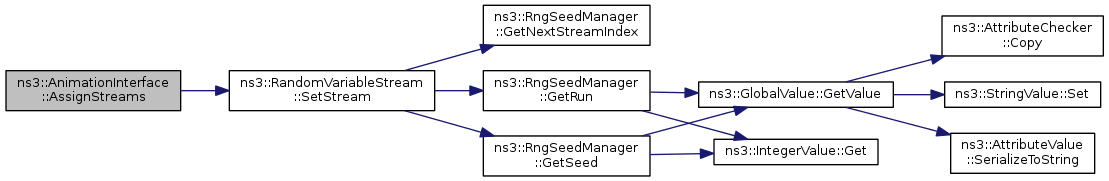

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Definition at line 562 of file animation-interface.cc.

References ns3::Config::Connect(), ConnectLte(), ns3::Config::ConnectWithoutContext(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

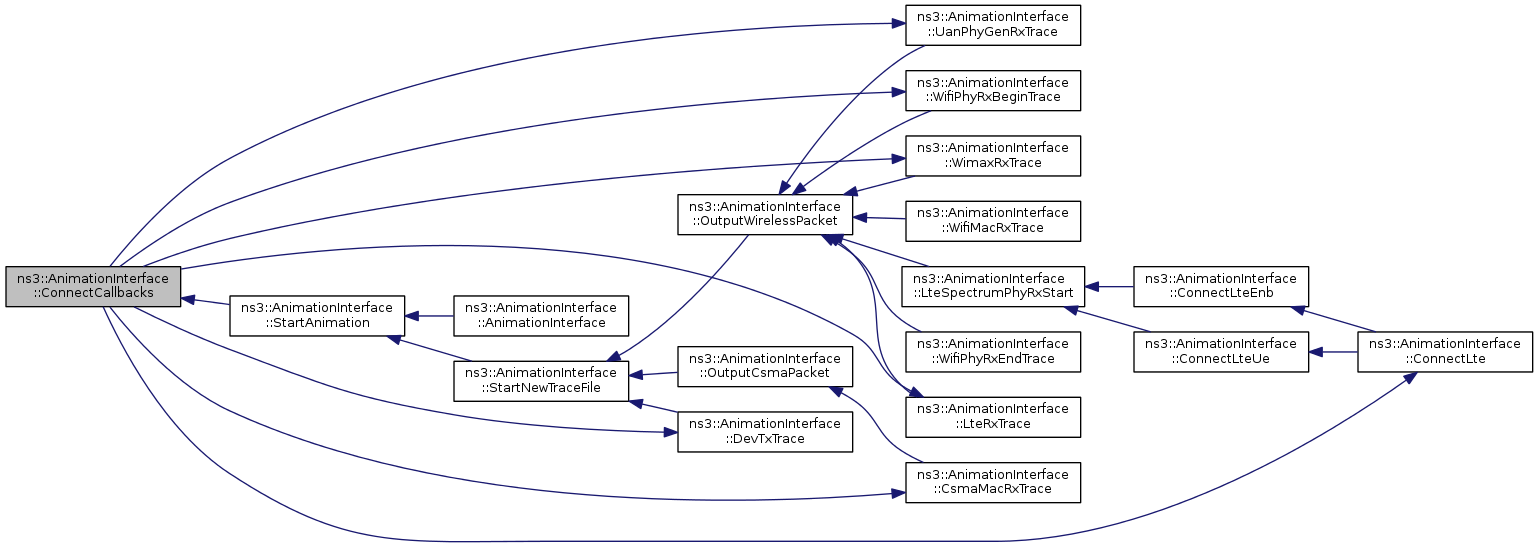

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLte ( )

private

Definition at line 535 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), and NS_ASSERT.

Referenced by ConnectCallbacks().

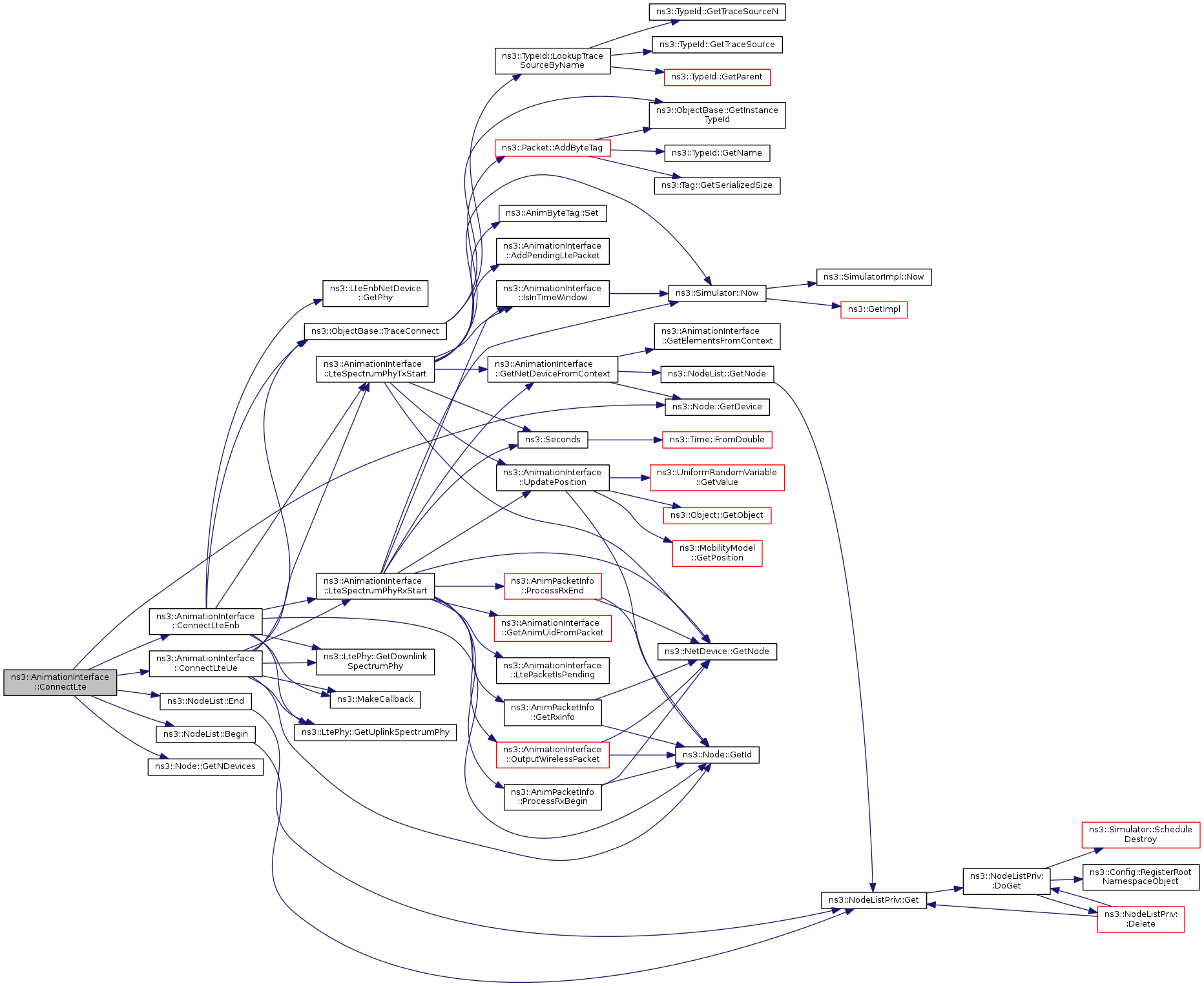

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteEnb ( Ptr< Node >  n, Ptr< LteEnbNetDevice >  nd, uint32_t  devIndex  )

private

Definition at line 491 of file animation-interface.cc.

References ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::Node::GetId(), ns3::LteEnbNetDevice::GetPhy(), ns3::LtePhy::GetUplinkSpectrumPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), ns3::MakeCallback(), and ns3::ObjectBase::TraceConnect().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteUe ( Ptr< Node >  n, Ptr< LteUeNetDevice >  nd, uint32_t  devIndex  )

private

Definition at line 514 of file animation-interface.cc.

References ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::Node::GetId(), ns3::LtePhy::GetUplinkSpectrumPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), ns3::MakeCallback(), and ns3::ObjectBase::TraceConnect().

Referenced by ConnectLte().

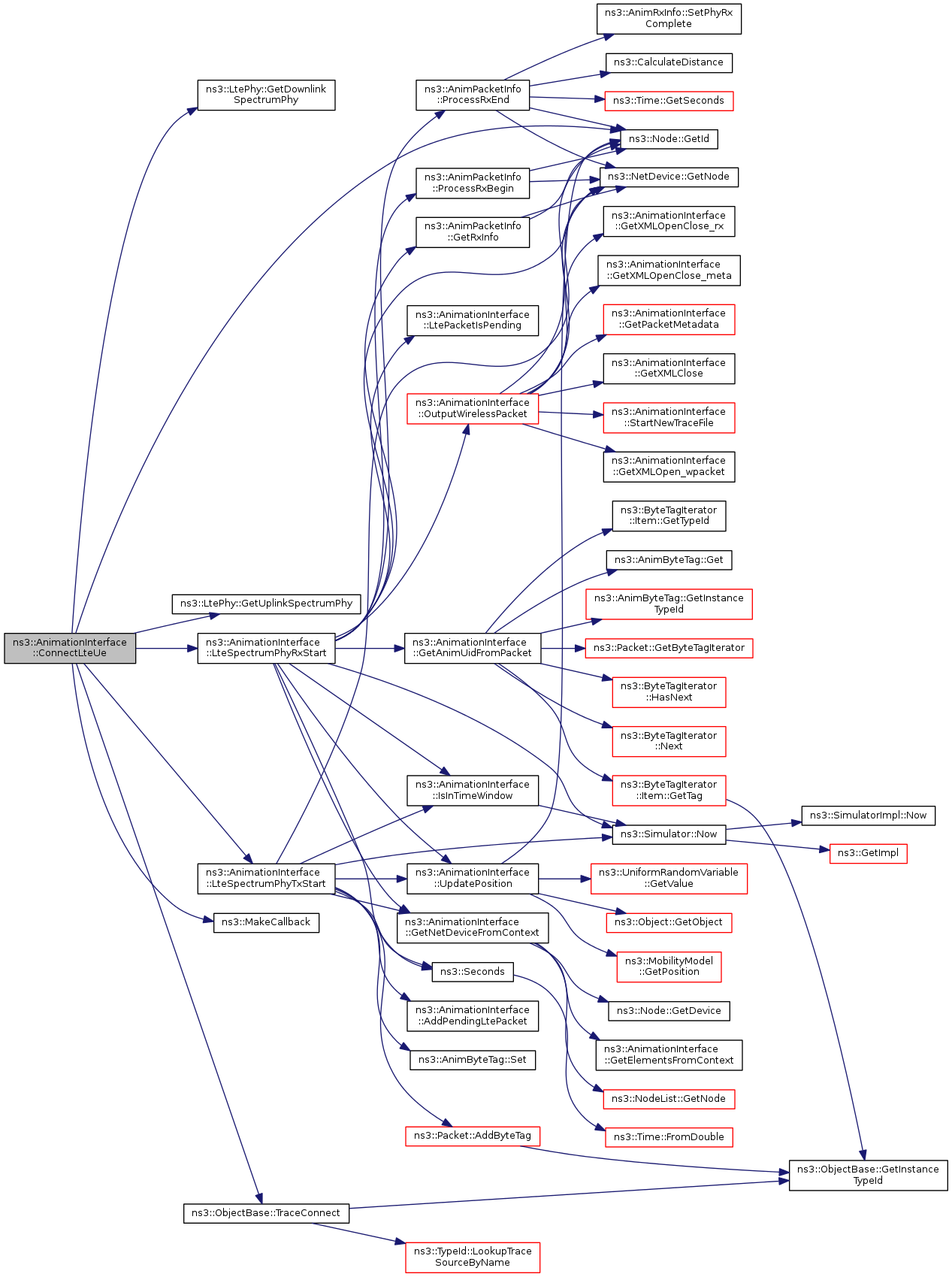

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaMacRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1211 of file animation-interface.cc.

References CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

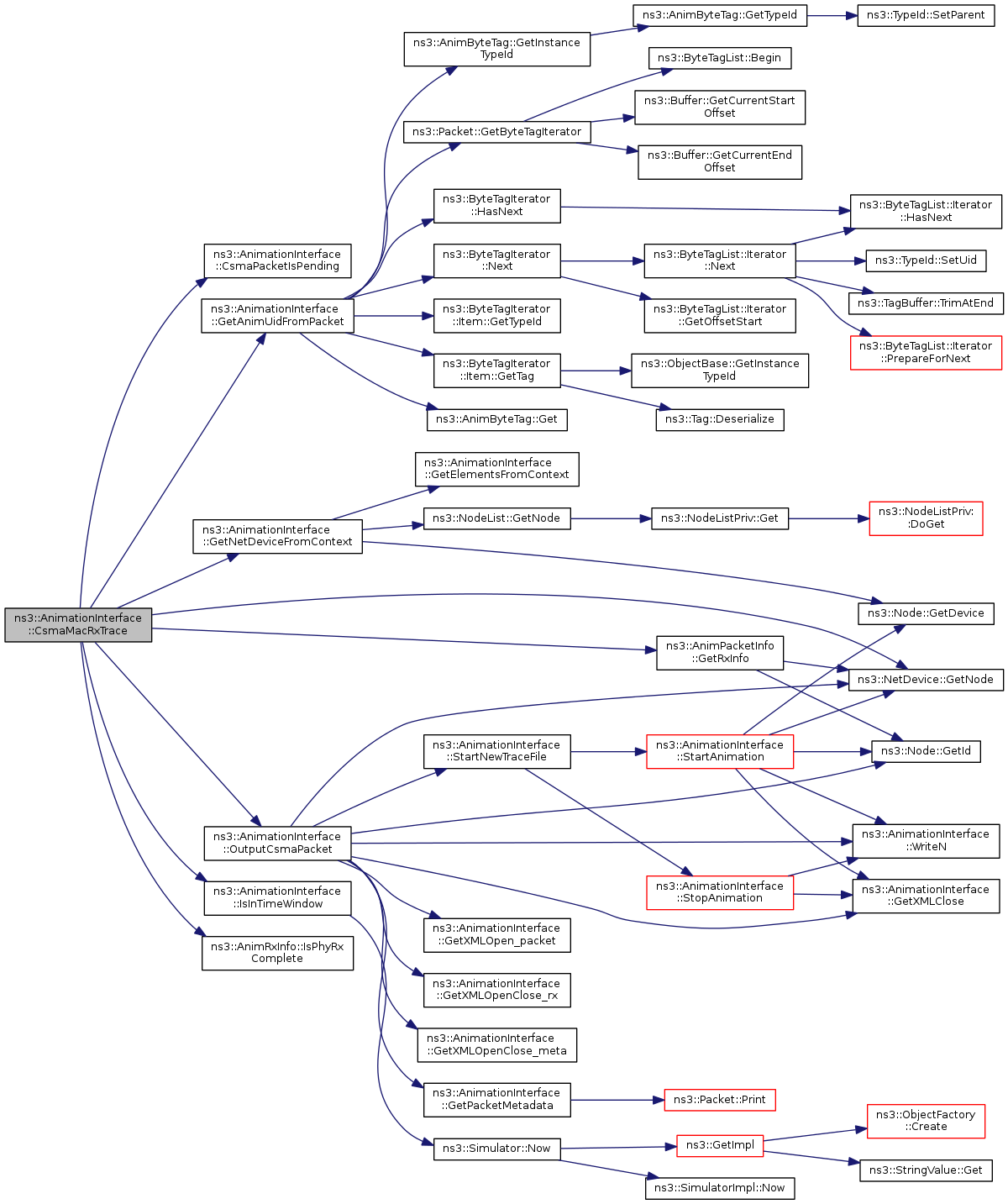

Here is the call graph for this function:

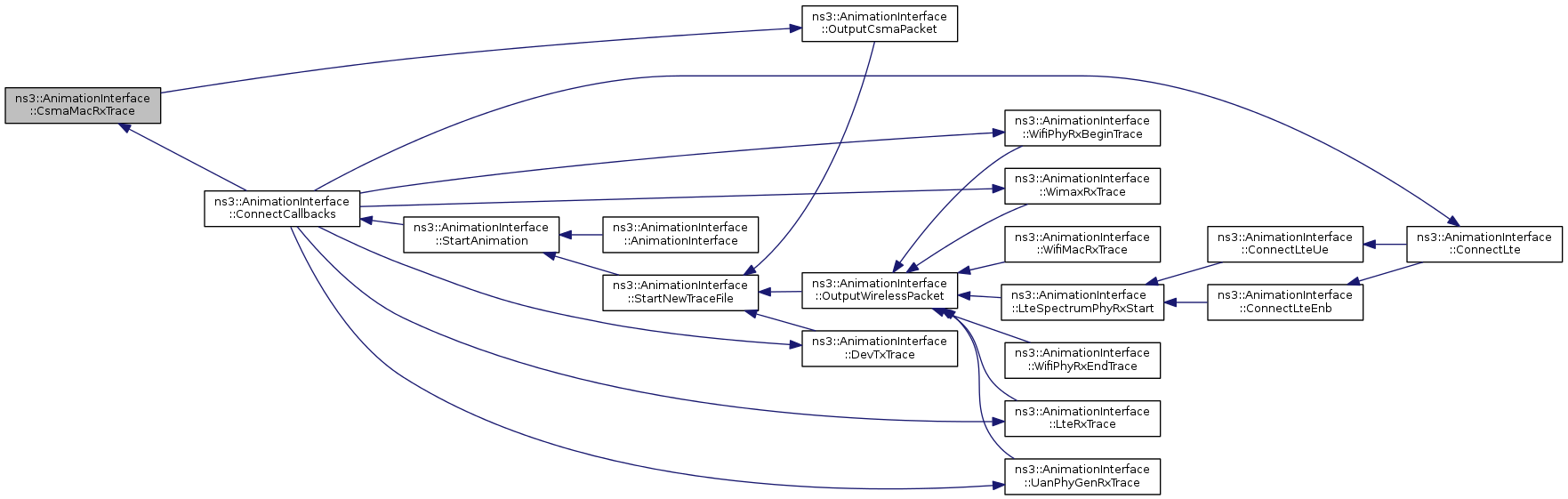

Here is the caller graph for this function:

bool ns3::AnimationInterface::CsmaPacketIsPending ( uint64_t  AnimUid )

private

Definition at line 186 of file animation-interface.cc.

References m_pendingCsmaPackets.

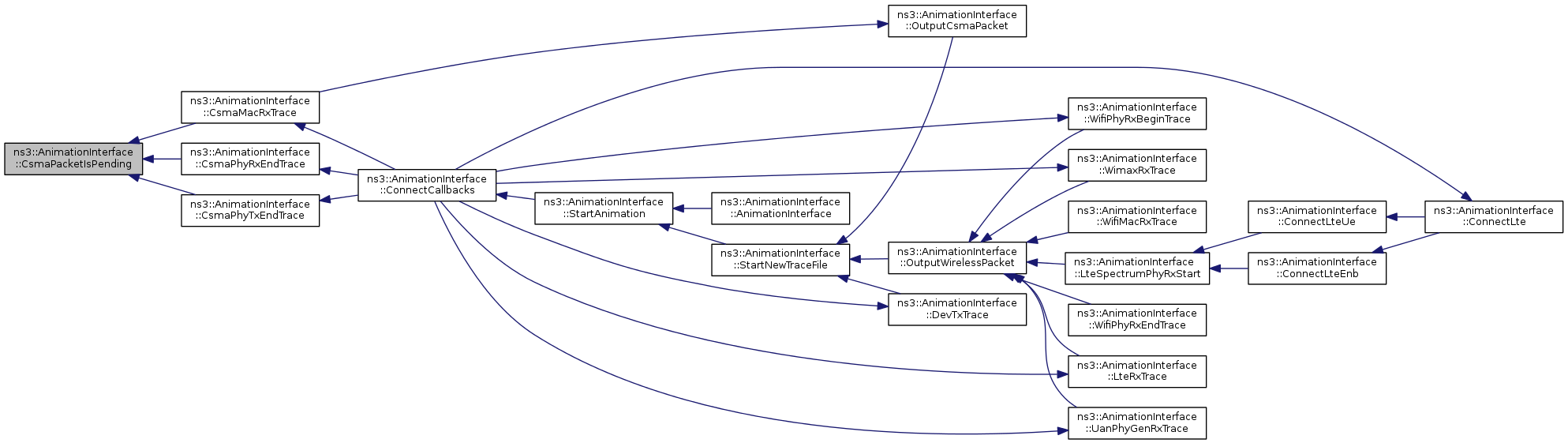

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), and CsmaPhyTxEndTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyRxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1189 of file animation-interface.cc.

References CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_pendingCsmaPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, ns3::AnimPacketInfo::ProcessRxEnd(), and UpdatePosition().

Referenced by ConnectCallbacks().

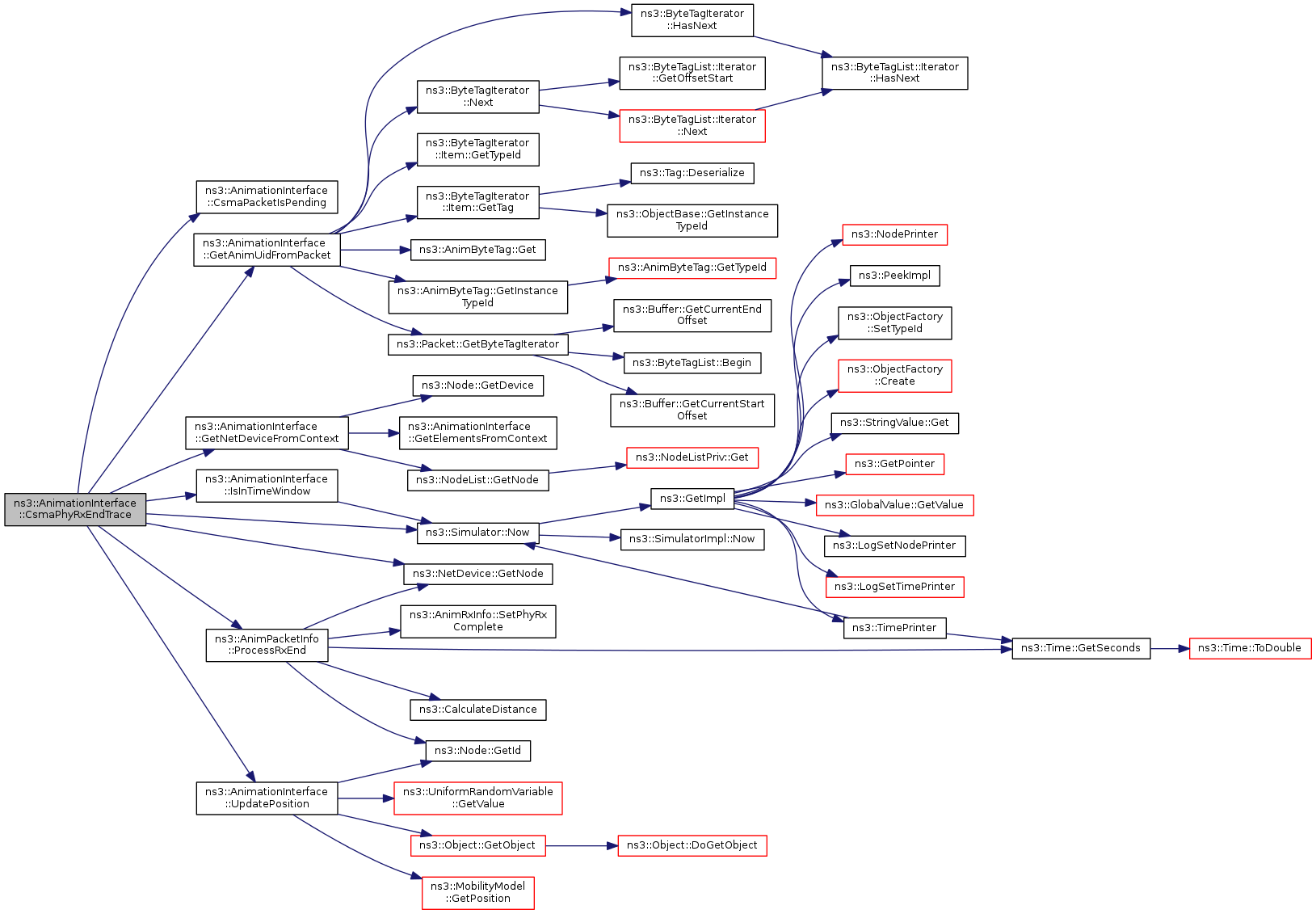

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1149 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingCsmaPacket(), gAnimUid, GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

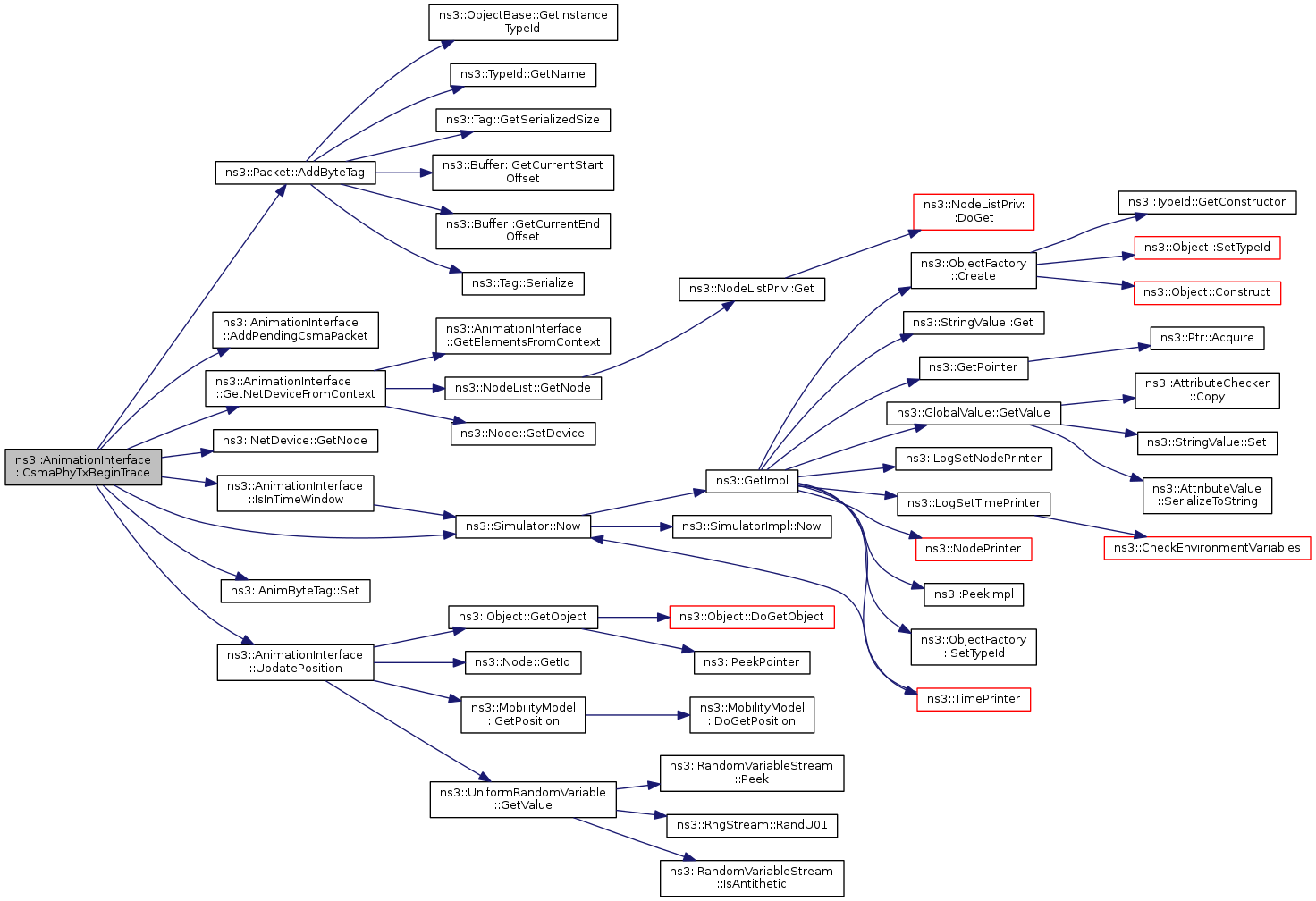

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1167 of file animation-interface.cc.

References AddPendingCsmaPacket(), CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::Time::GetSeconds(), IsInTimeWindow(), ns3::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, m_started, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

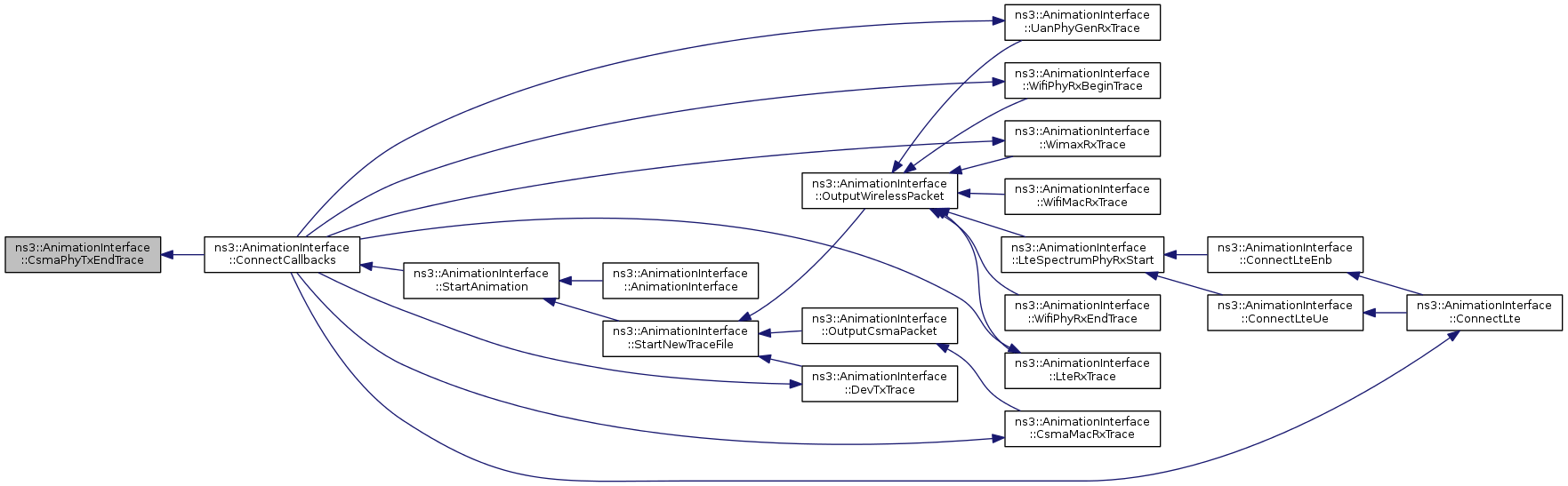

Here is the caller graph for this function:

void ns3::AnimationInterface::DevTxTrace ( std::string  context, Ptr< const Packet >  p, Ptr< NetDevice >  tx, Ptr< NetDevice >  rx, Time  txTime, Time  rxTime  )

private

Definition at line 725 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::NetDevice::GetNode(), GetPacketMetadata(), ns3::Time::GetSeconds(), GetXMLClose(), GetXMLOpen_packet(), GetXMLOpenClose_meta(), GetXMLOpenClose_rx(), IsInTimeWindow(), m_currentPktCount, m_enablePacketMetadata, m_started, m_xml, ns3::Now(), NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

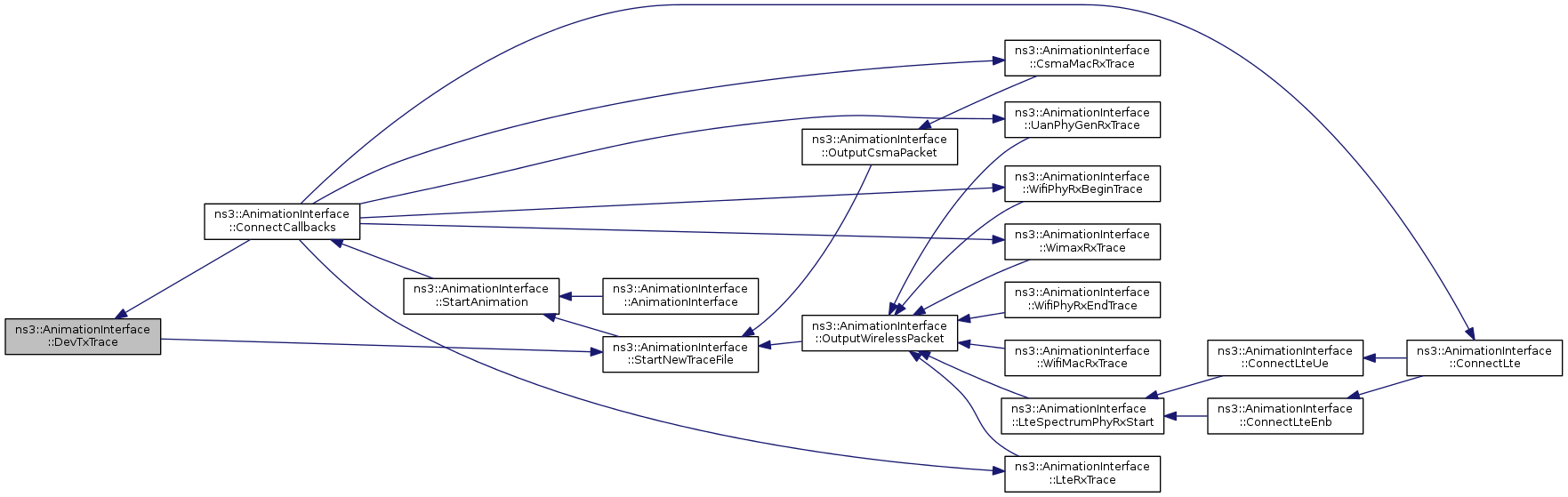

Here is the caller graph for this function:

void ns3::AnimationInterface::EnablePacketMetadata

(

bool

enable

)

Enable Packet metadata.

Parameters

enable

if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Definition at line 139 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

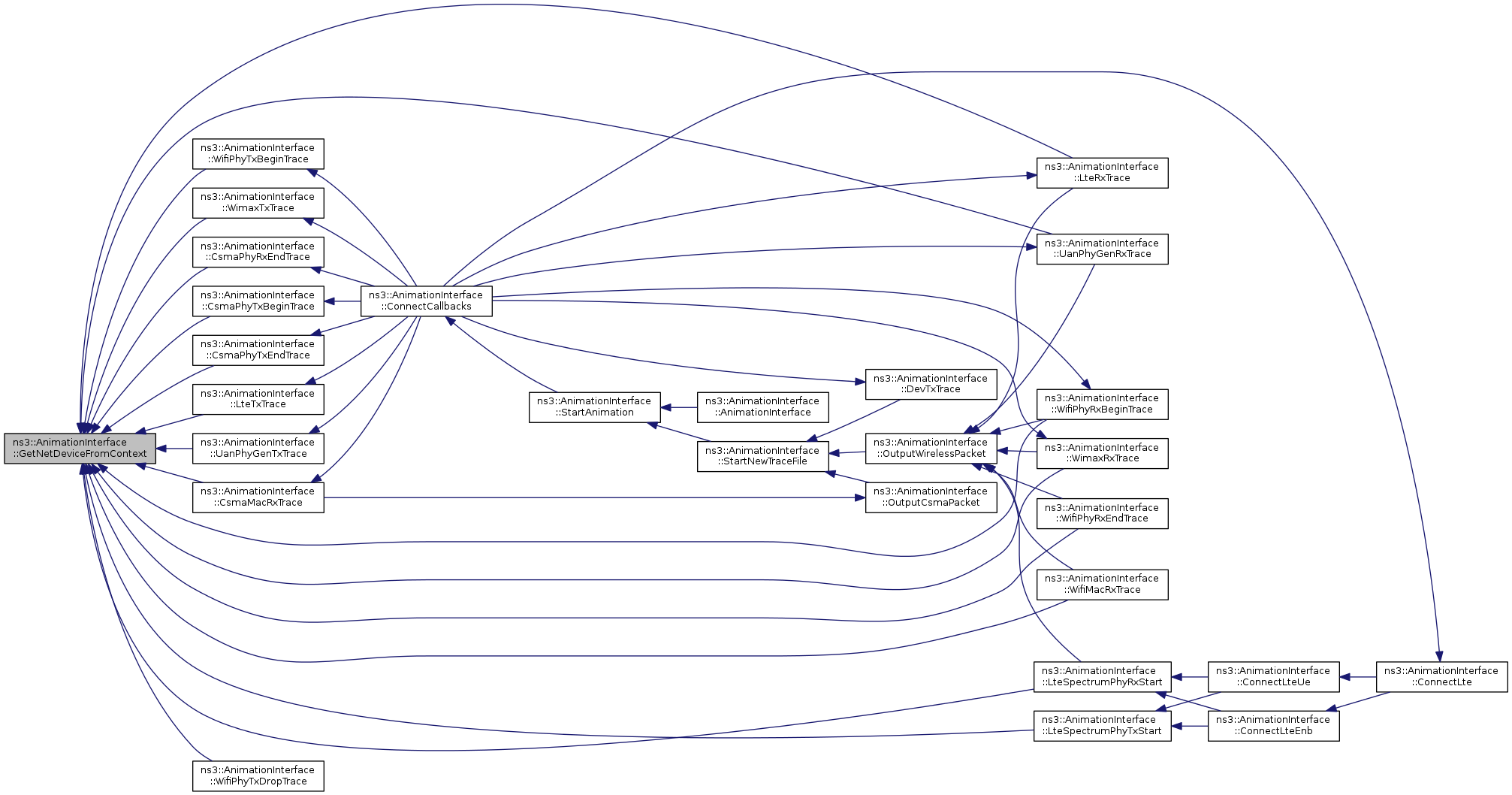

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet >  p )

private

Definition at line 805 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::Packet::GetByteTagIterator(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

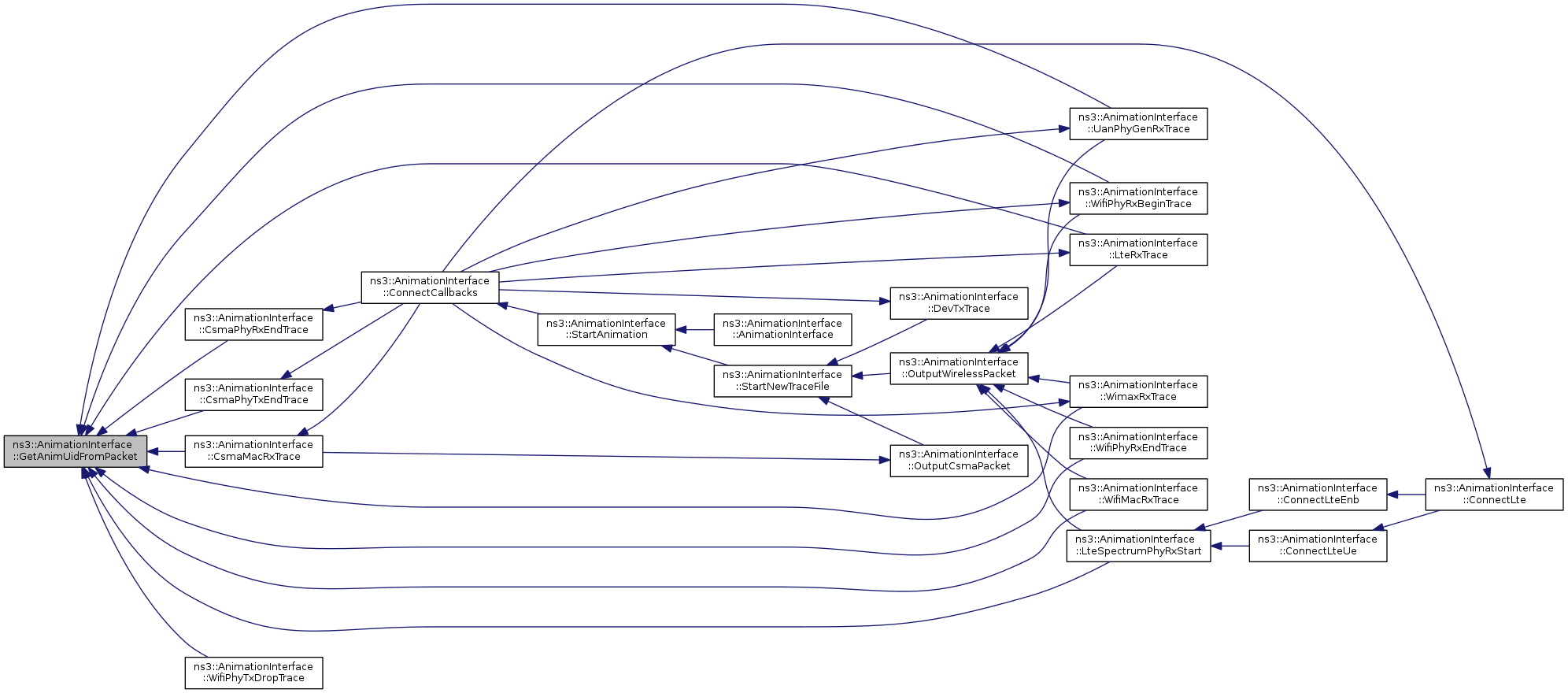

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxDropTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( std::string  context )

private

Definition at line 1754 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext().

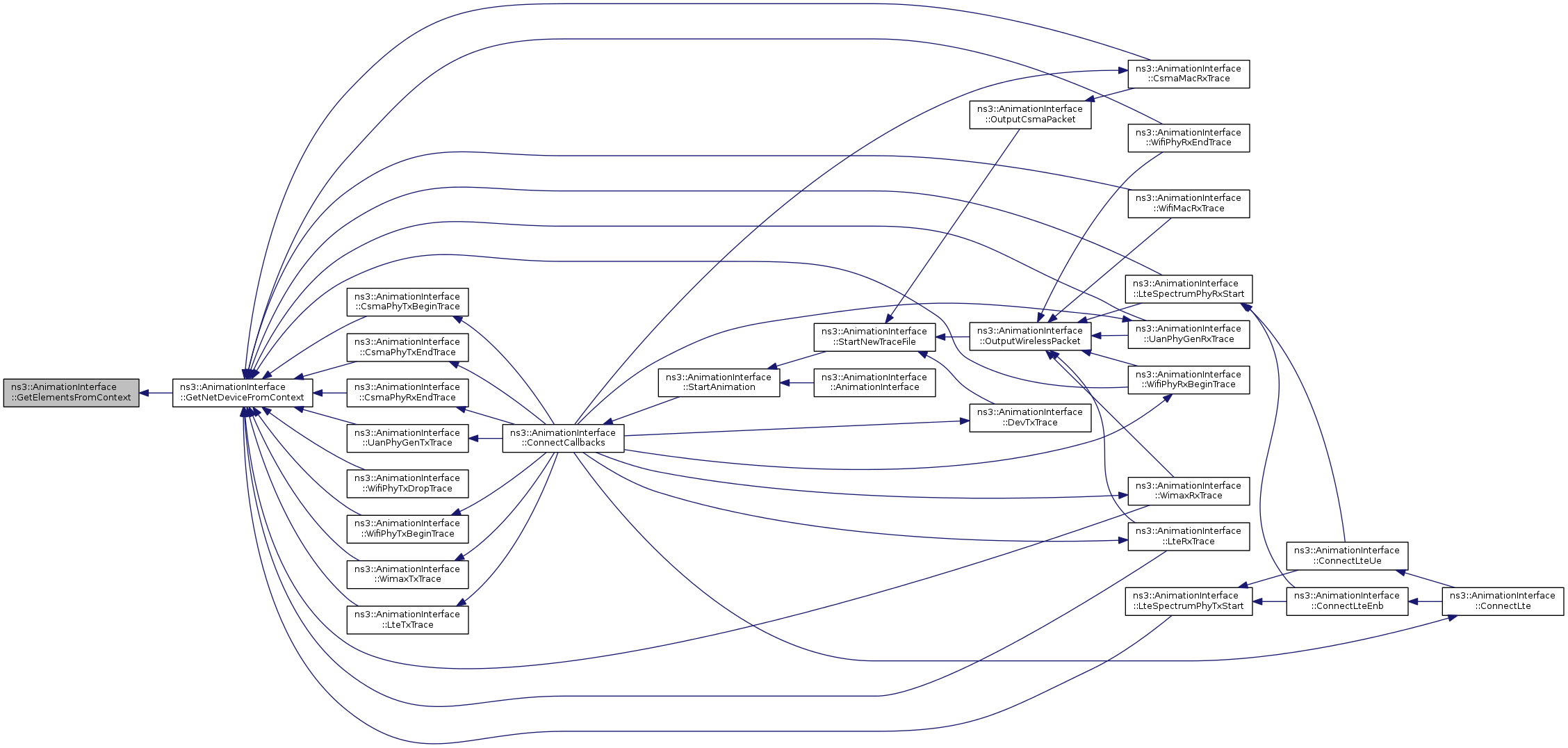

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice >  nd )

private

Definition at line 361 of file animation-interface.cc.

References ns3::Ipv4::GetAddress(), ns3::Node::GetId(), ns3::Ipv4::GetInterfaceForDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and ns3::NetDevice::GetNode().

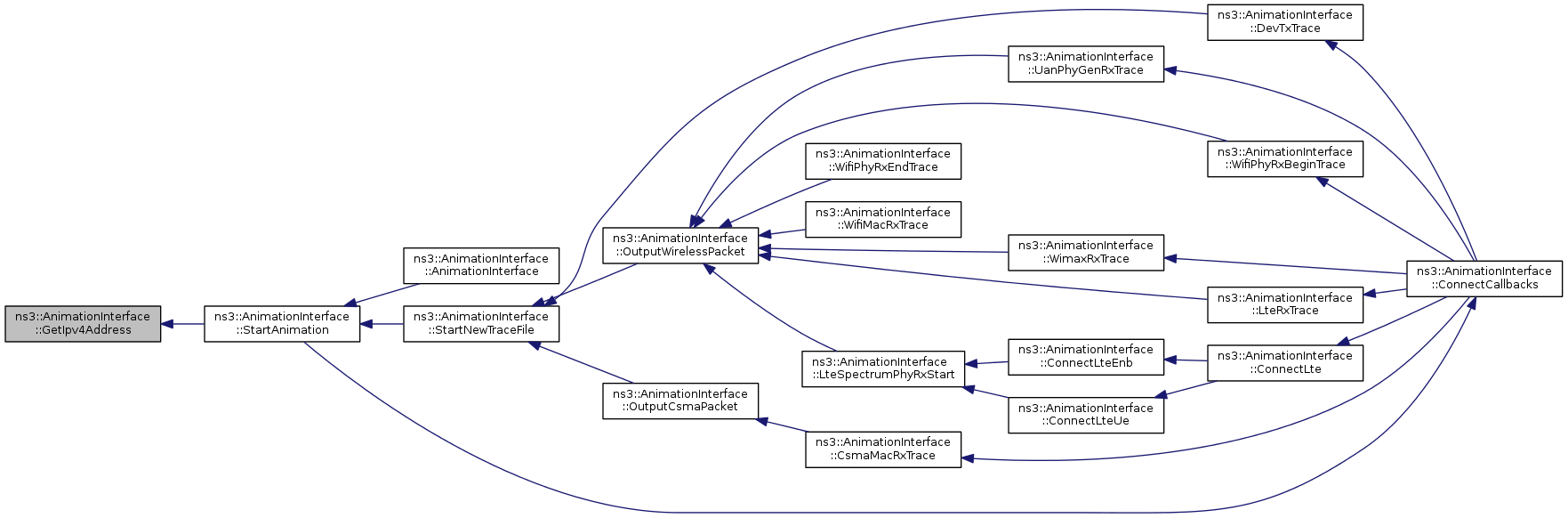

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Definition at line 106 of file animation-interface.cc.

Referenced by GetXMLOpen_anim().

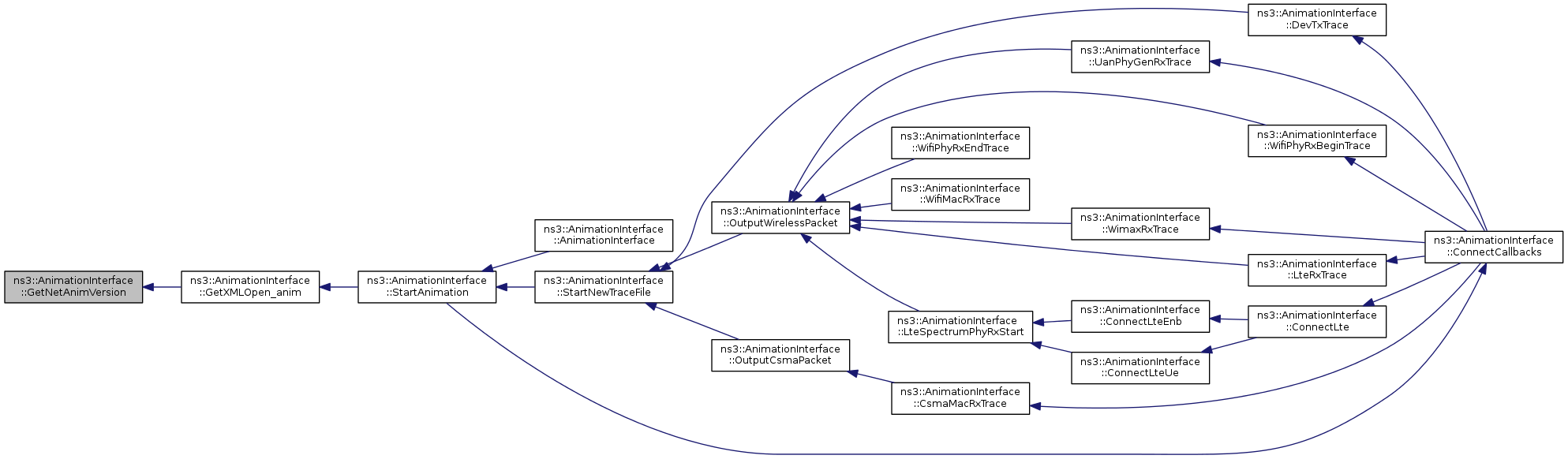

Here is the caller graph for this function:

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string  context )

private

Definition at line 764 of file animation-interface.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

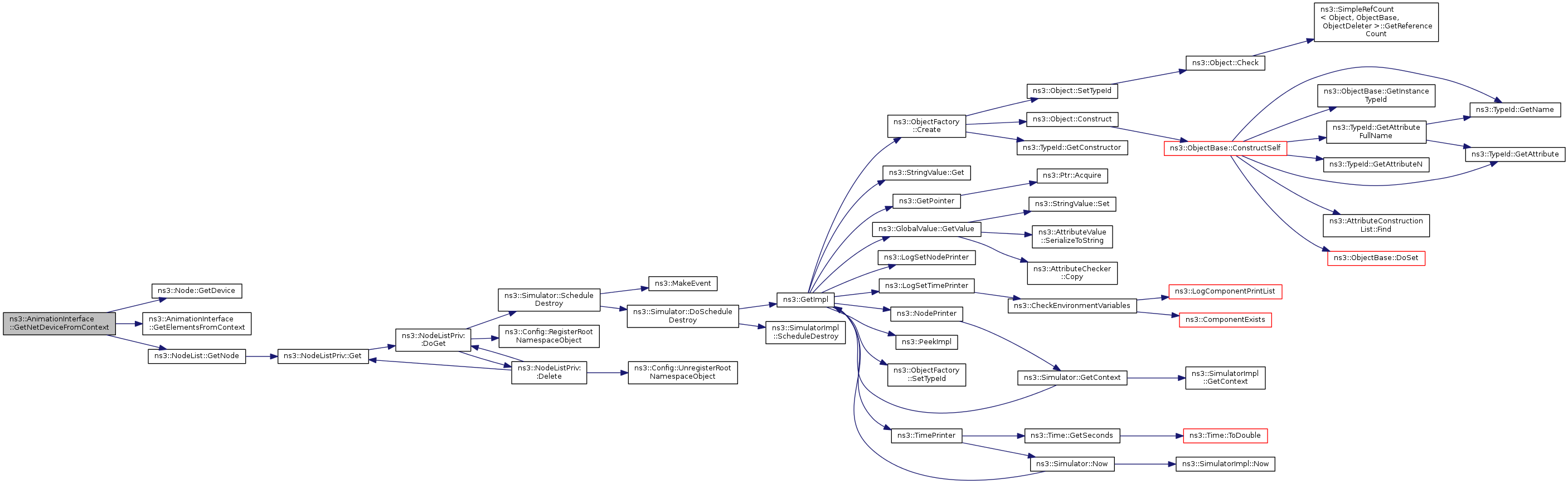

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet >  p )

private

Definition at line 1306 of file animation-interface.cc.

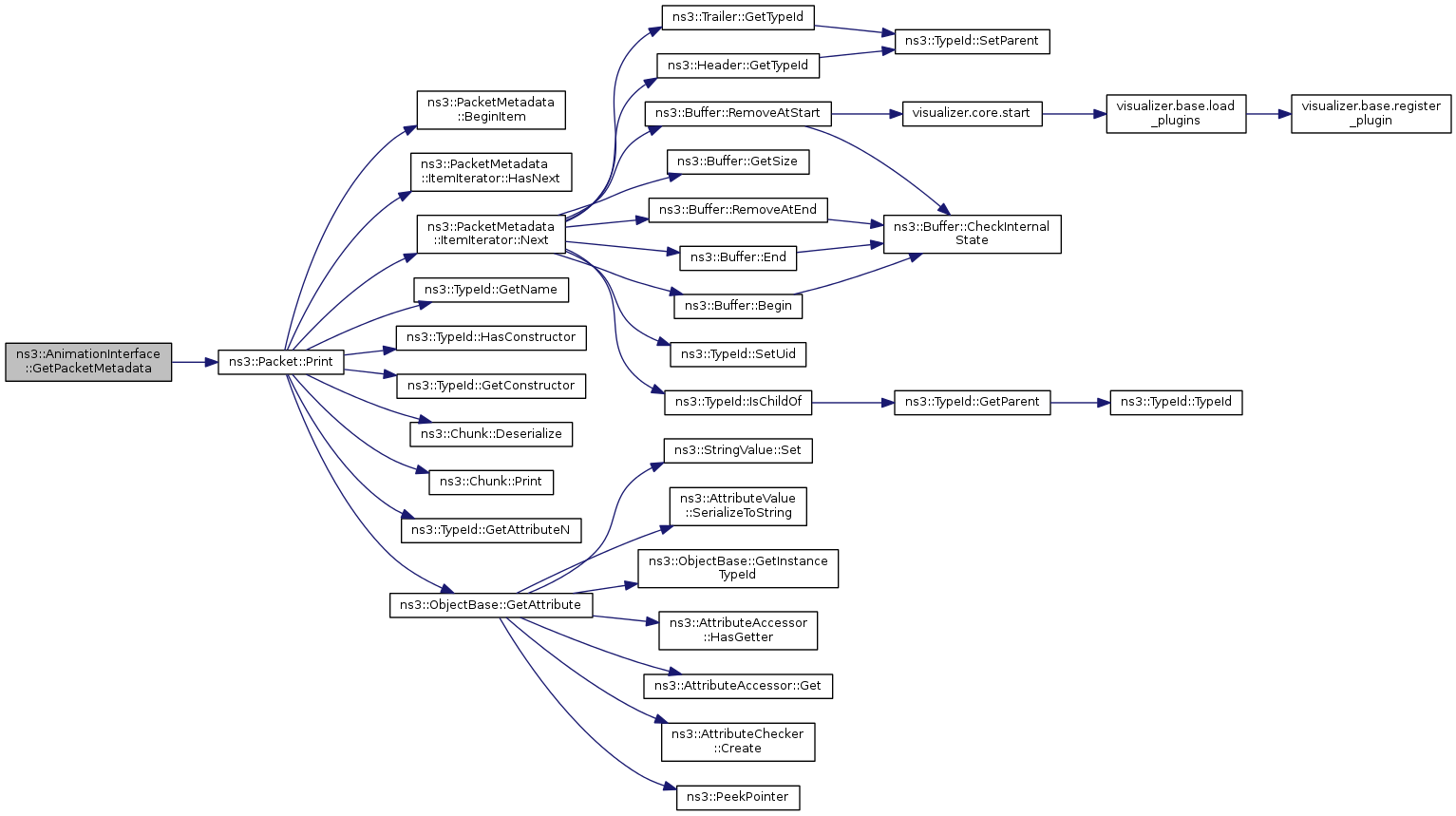

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node >  n )

private

Definition at line 242 of file animation-interface.cc.

References ns3::Node::GetId(), m_nodeLocation, and NS_FATAL_ERROR.

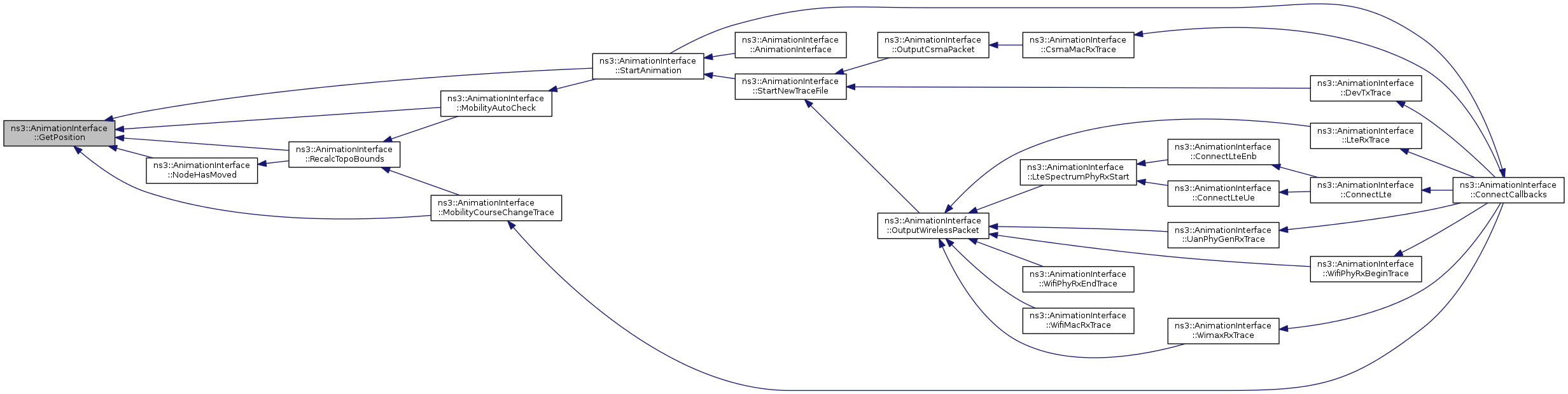

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), NodeHasMoved(), RecalcTopoBounds(), and StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPreamble ( void  )

private

Definition at line 1330 of file animation-interface.cc.

Referenced by StartAnimation().

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetTracePktCount

(

)

Get trace file packet count (This used only for testing)

returns Number of packets recorded in the current trace file

Definition at line 1313 of file animation-interface.cc.

References m_currentPktCount.

std::string ns3::AnimationInterface::GetXMLClose ( std::string  name )

inlineprivate

Definition at line 578 of file animation-interface.h.

Referenced by DevTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), OutputCsmaPacket(), OutputWirelessPacket(), StartAnimation(), StopAnimation(), and WriteDummyPacket().

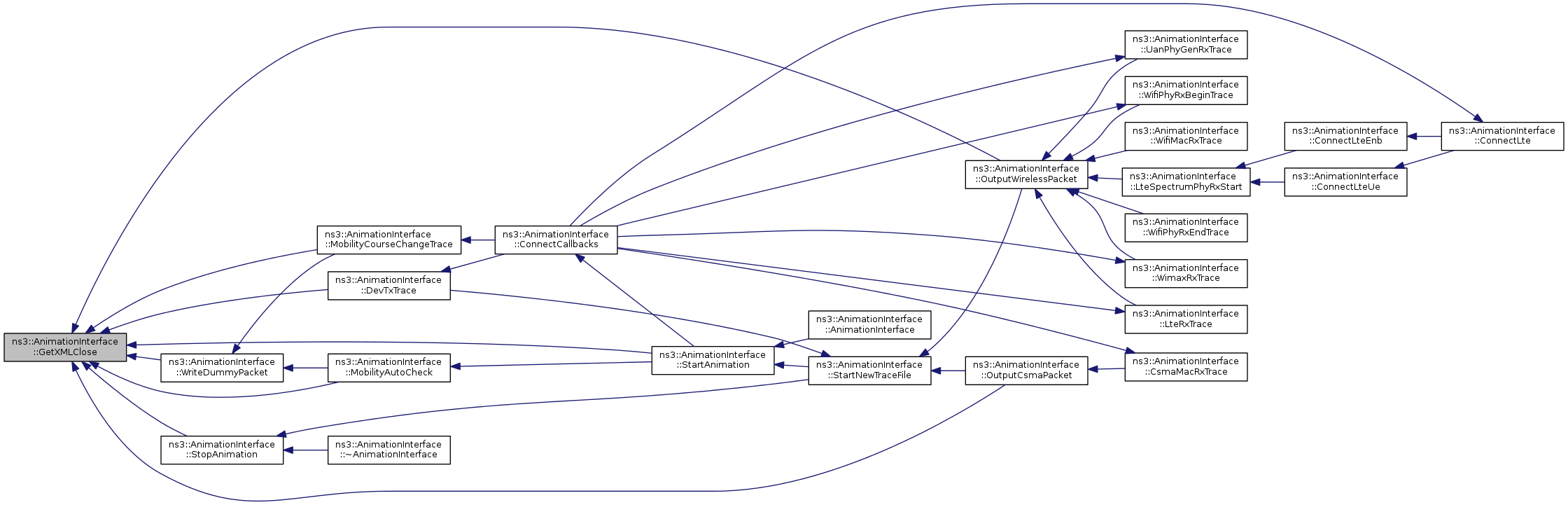

Here is the caller graph for this function:

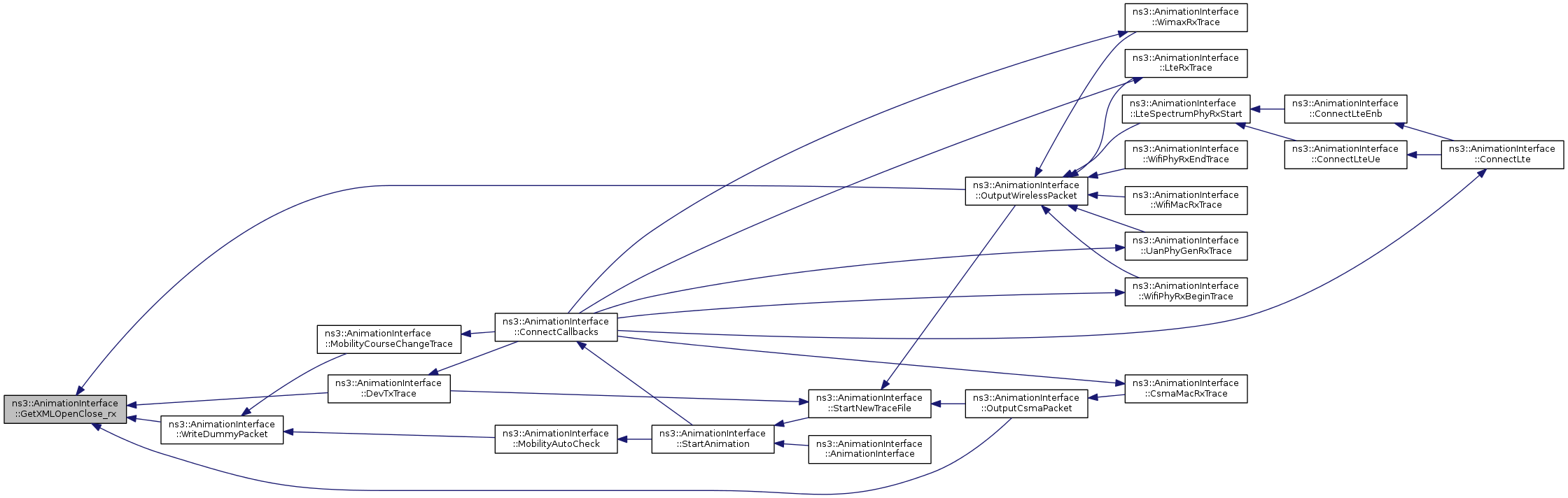

std::string ns3::AnimationInterface::GetXMLOpen_anim ( uint32_t  lp )

private

Definition at line 1587 of file animation-interface.cc.

References GetNetAnimVersion().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_packet ( uint32_t  fromLp, uint32_t  fromId, double  fbTx, double  lbTx, std::string  auxInfo = ""  )

private

Definition at line 1711 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), and WriteDummyPacket().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_topology ( double  minX, double  minY, double  maxX, double  maxY  )

private

Definition at line 1593 of file animation-interface.cc.

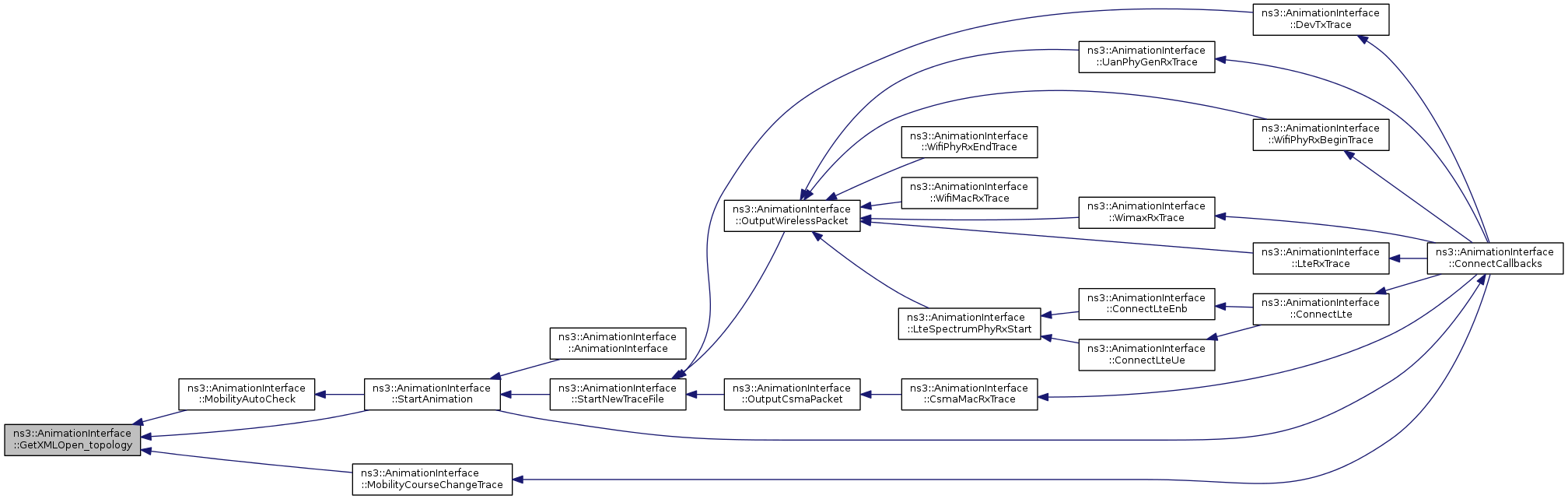

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), and StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_wpacket ( uint32_t  fromLp, uint32_t  fromId, double  fbTx, double  lbTx, double  range  )

private

Definition at line 1723 of file animation-interface.cc.

Referenced by OutputWirelessPacket().

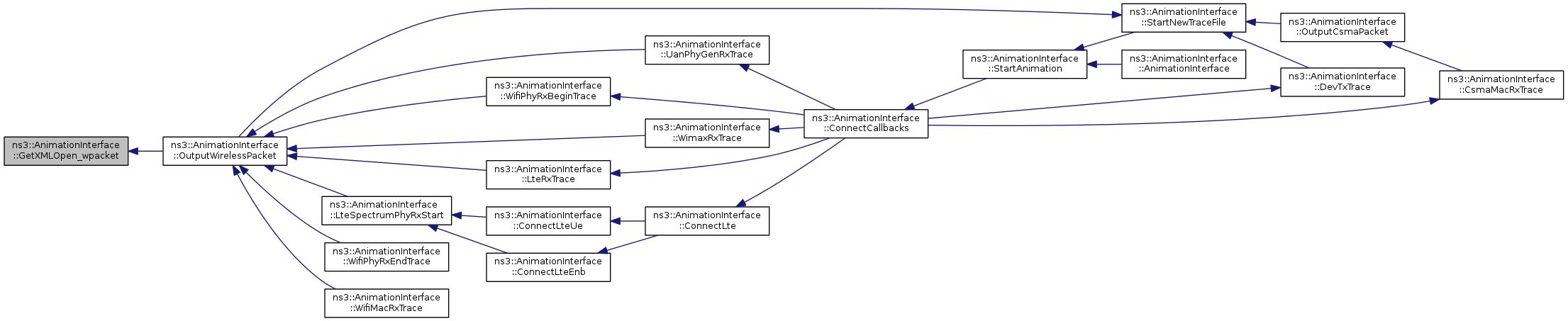

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_link ( uint32_t  fromLp, uint32_t  fromId, uint32_t  toLp, uint32_t  toId  )

private

Definition at line 1680 of file animation-interface.cc.

References ns3::LinkProperties::fromNodeDescription, ns3::LinkProperties::linkDescription, linkProperties, and ns3::LinkProperties::toNodeDescription.

Referenced by StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_linkupdate ( uint32_t  fromId, uint32_t  toId, std::string  linkDescription  )

private

Definition at line 1666 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Now().

Referenced by UpdateLinkDescription().

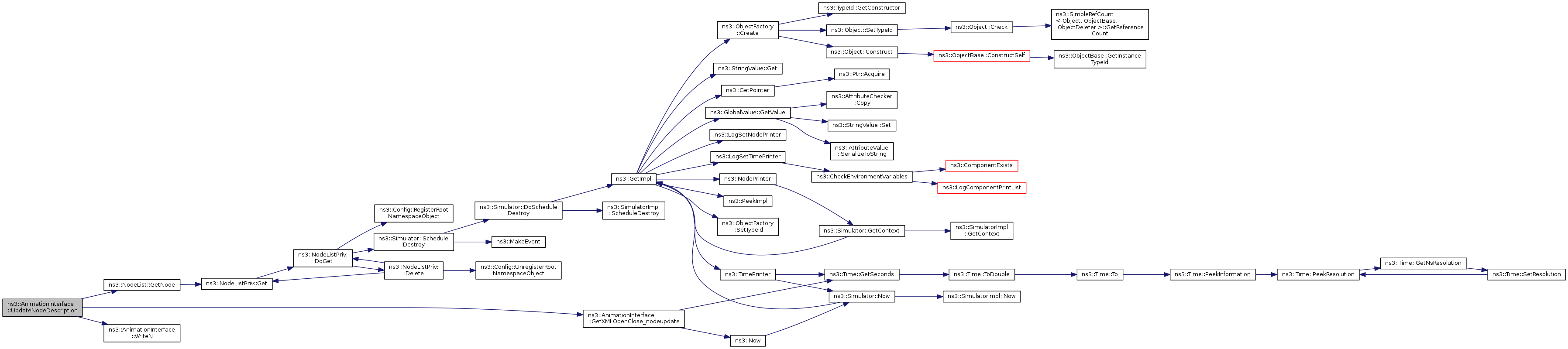

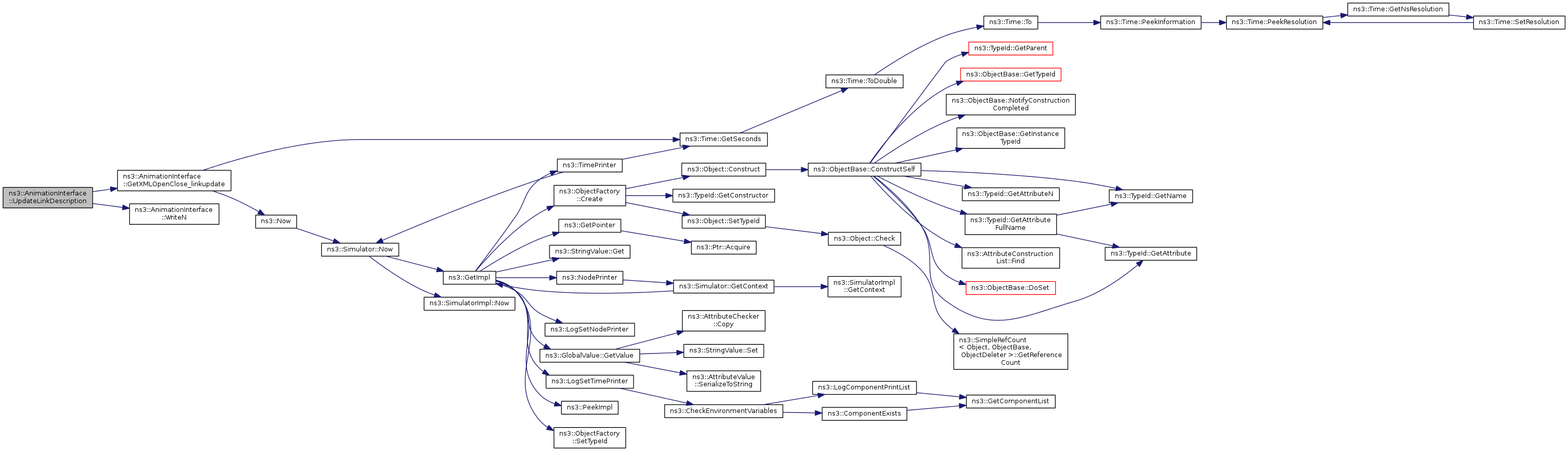

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_meta ( std::string  metaInfo )

private

Definition at line 1746 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_node ( uint32_t  lp, uint32_t  id, double  locX, double  locY  )

private

Definition at line 1630 of file animation-interface.cc.

References nodeDescriptions.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), and StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_node ( uint32_t  lp, uint32_t  id, double  locX, double  locY, struct Rgb  rgb  )

private

Definition at line 1646 of file animation-interface.cc.

References ns3::Rgb::b, ns3::Rgb::g, nodeDescriptions, and ns3::Rgb::r.

std::string ns3::AnimationInterface::GetXMLOpenClose_nodeupdate ( uint32_t  id, bool  visible = true  )

private

Definition at line 1603 of file animation-interface.cc.

References ns3::Rgb::b, ns3::Rgb::g, ns3::Time::GetSeconds(), nodeColors, nodeDescriptions, ns3::Now(), and ns3::Rgb::r.

Referenced by ShowNode(), UpdateNodeColor(), and UpdateNodeDescription().

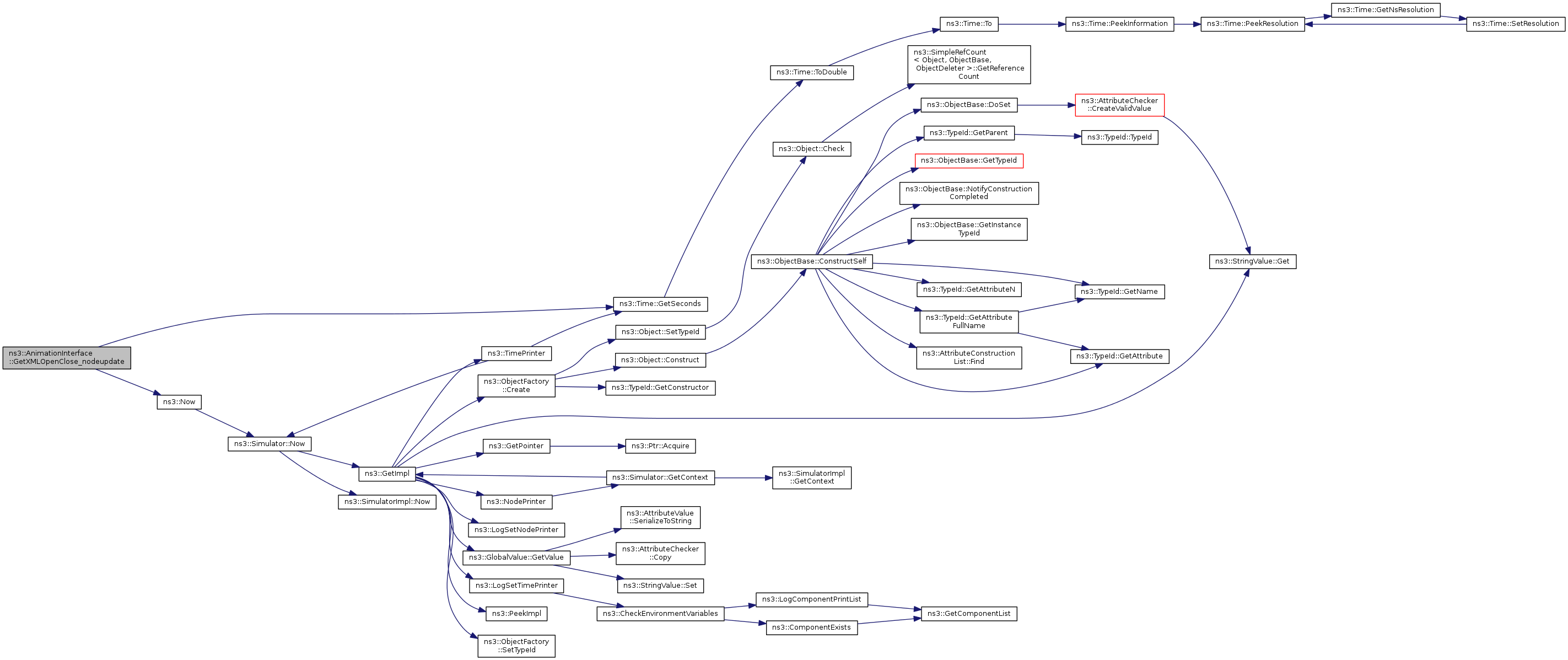

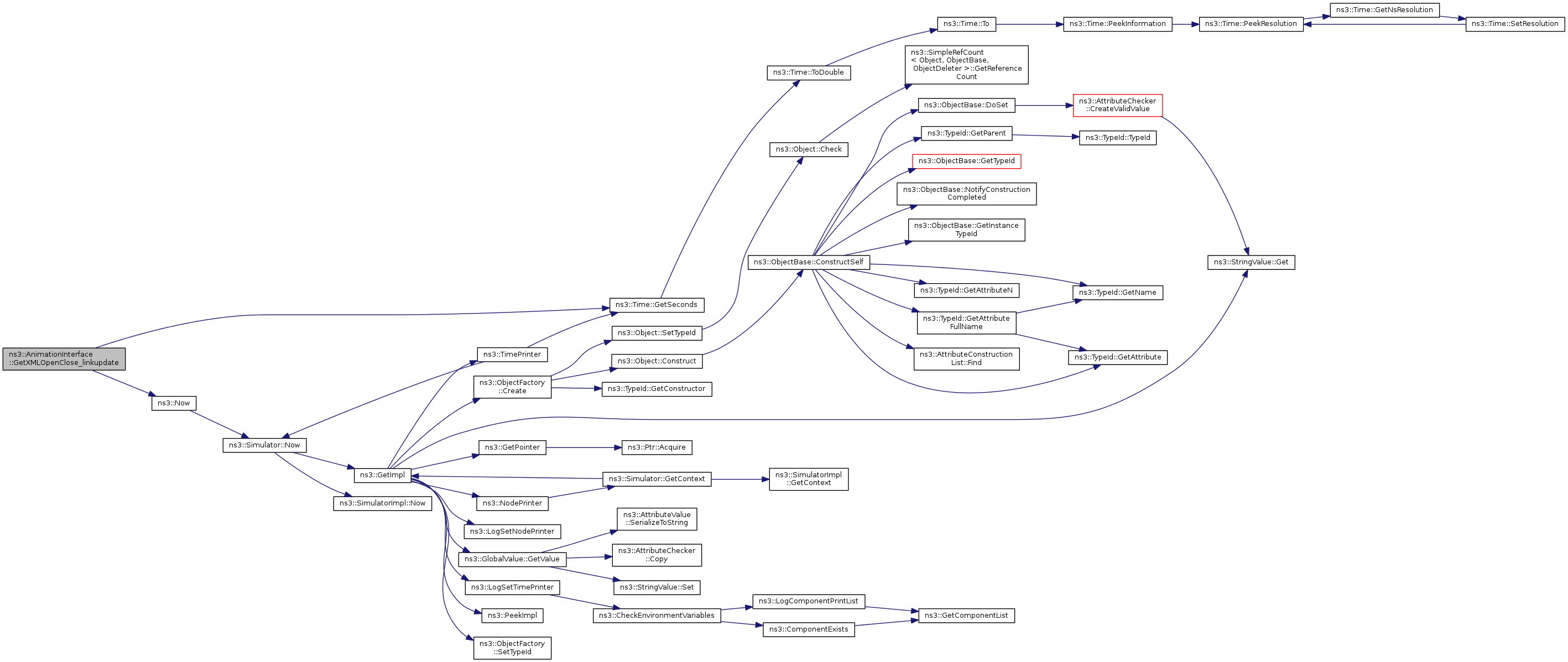

Here is the call graph for this function:

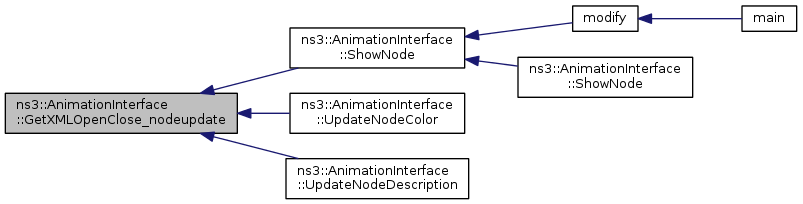

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_rx ( uint32_t  toLp, uint32_t  toId, double  fbRx, double  lbRx  )

private

Definition at line 1735 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacket(), and WriteDummyPacket().

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsInitialized ( void  )

static

Check if AnimationInterface is initialized.

Returns

true if AnimationInterface was already initialized

Definition at line 146 of file animation-interface.cc.

References ns3::initialized.

bool ns3::AnimationInterface::IsInTimeWindow ( )

private

Definition at line 167 of file animation-interface.cc.

References m_startTime, m_stopTime, and ns3::Simulator::Now().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

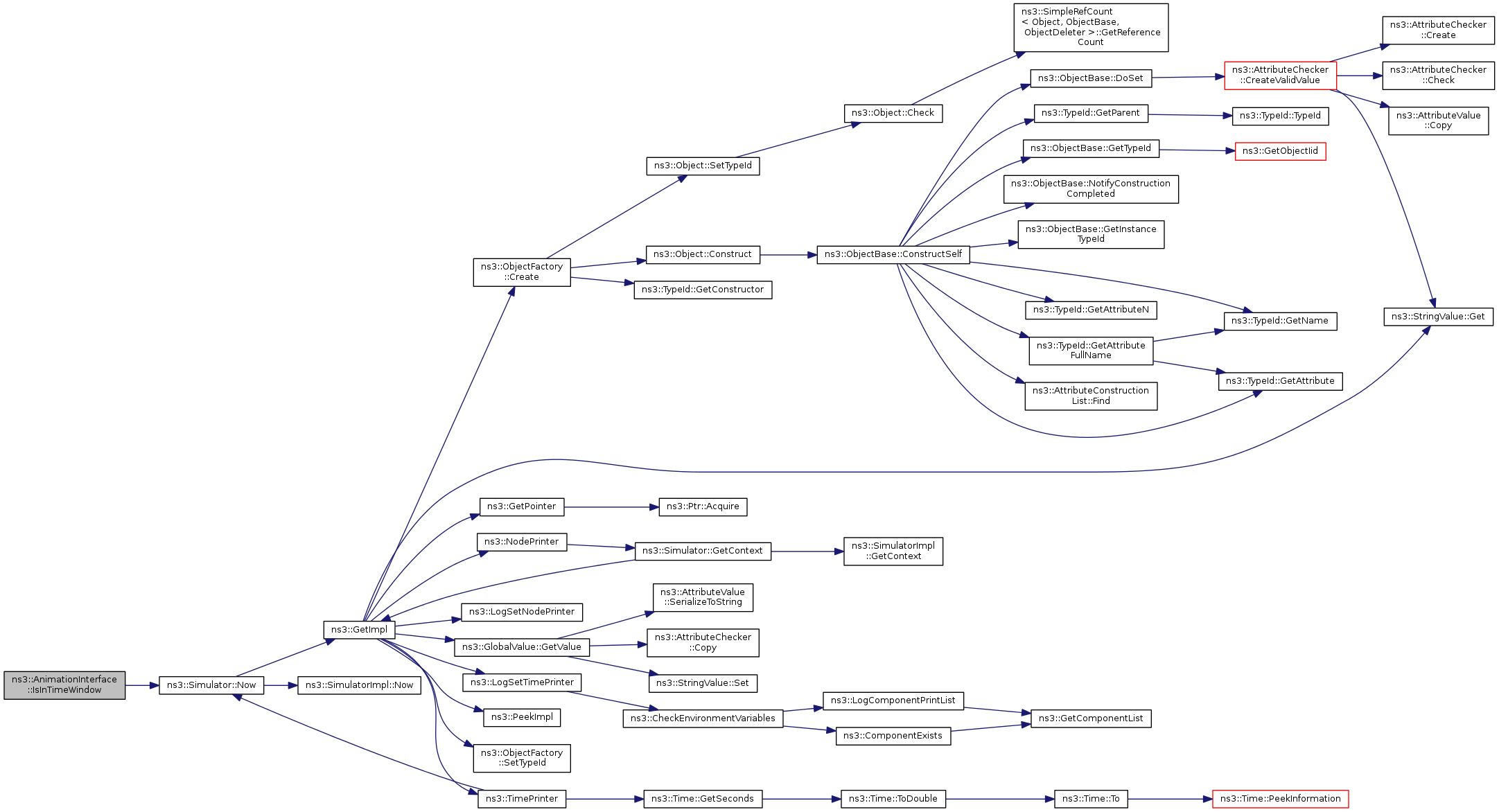

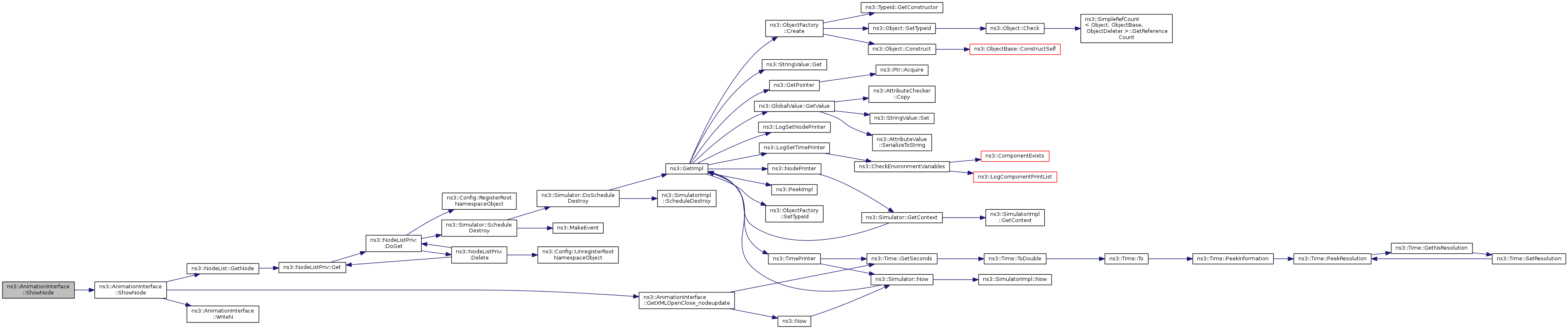

Here is the call graph for this function:

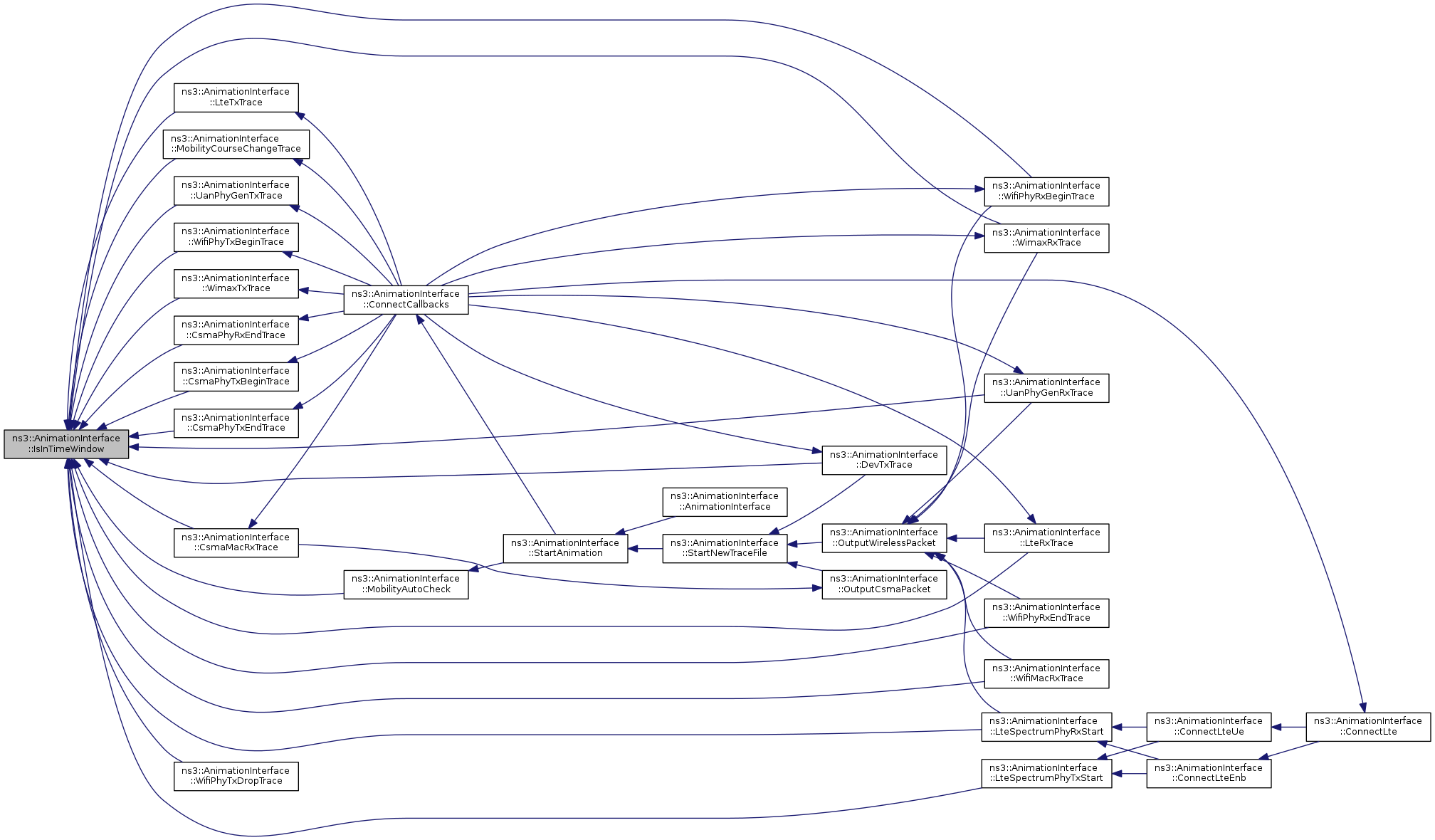

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsStarted

(

void

)

Is AnimationInterface started.

Returns

true if AnimationInterface was started

Definition at line 151 of file animation-interface.cc.

References m_started.

bool ns3::AnimationInterface::LtePacketIsPending ( uint64_t  AnimUid )

private

Definition at line 197 of file animation-interface.cc.

References m_pendingLtePackets.

Referenced by LteRxTrace(), and LteSpectrumPhyRxStart().

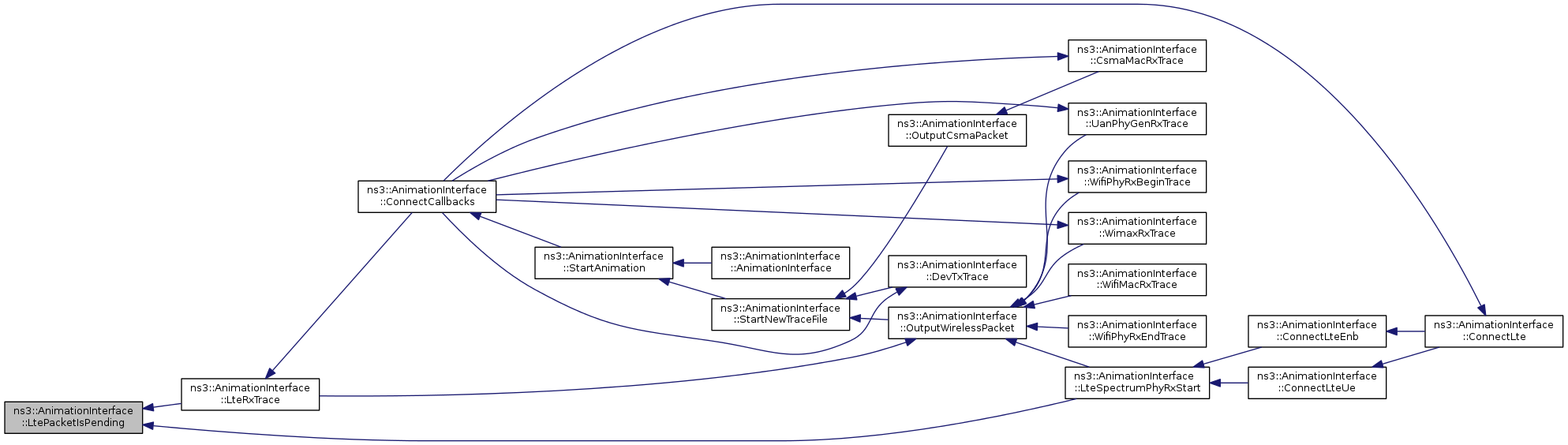

Here is the caller graph for this function:

void ns3::AnimationInterface::LteRxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 1069 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), LtePacketIsPending(), m_pendingLtePackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectCallbacks().

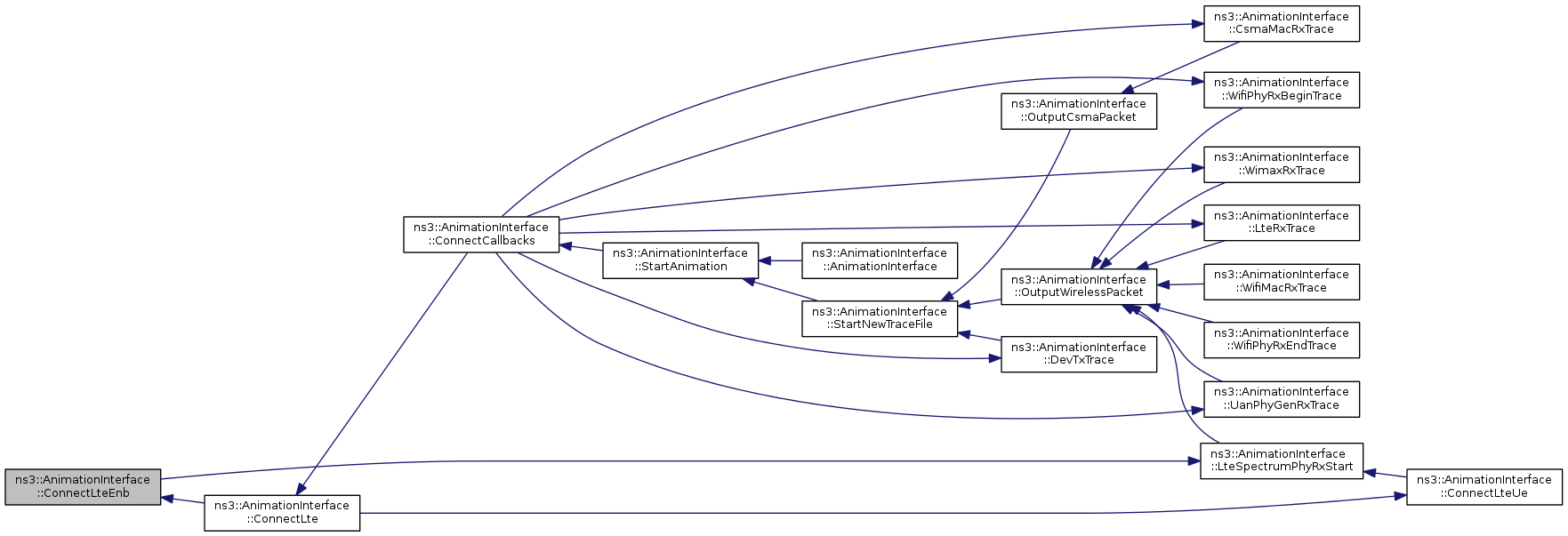

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyRxStart ( std::string  context, Ptr< const PacketBurst >  pb  )

private

Definition at line 1118 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), list, LtePacketIsPending(), m_pendingLtePackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

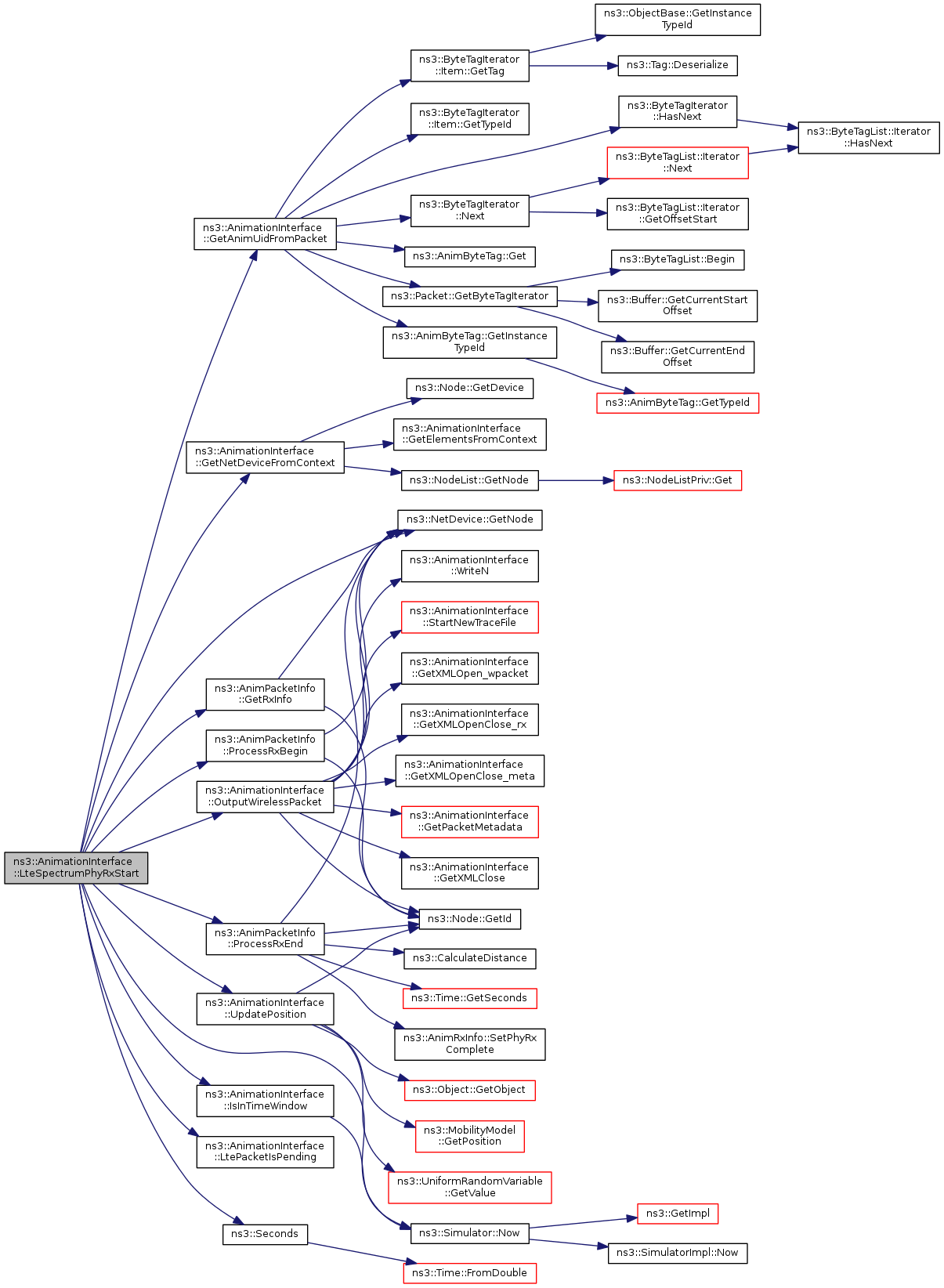

Here is the call graph for this function:

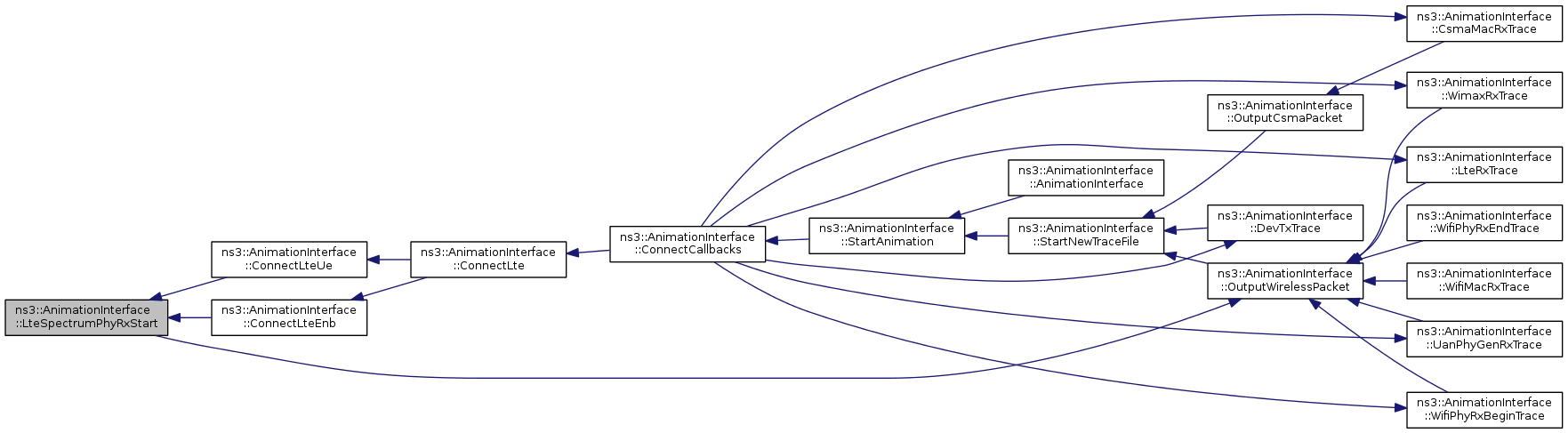

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyTxStart ( std::string  context, Ptr< const PacketBurst >  pb  )

private

Definition at line 1092 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), list, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::Seconds(), ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

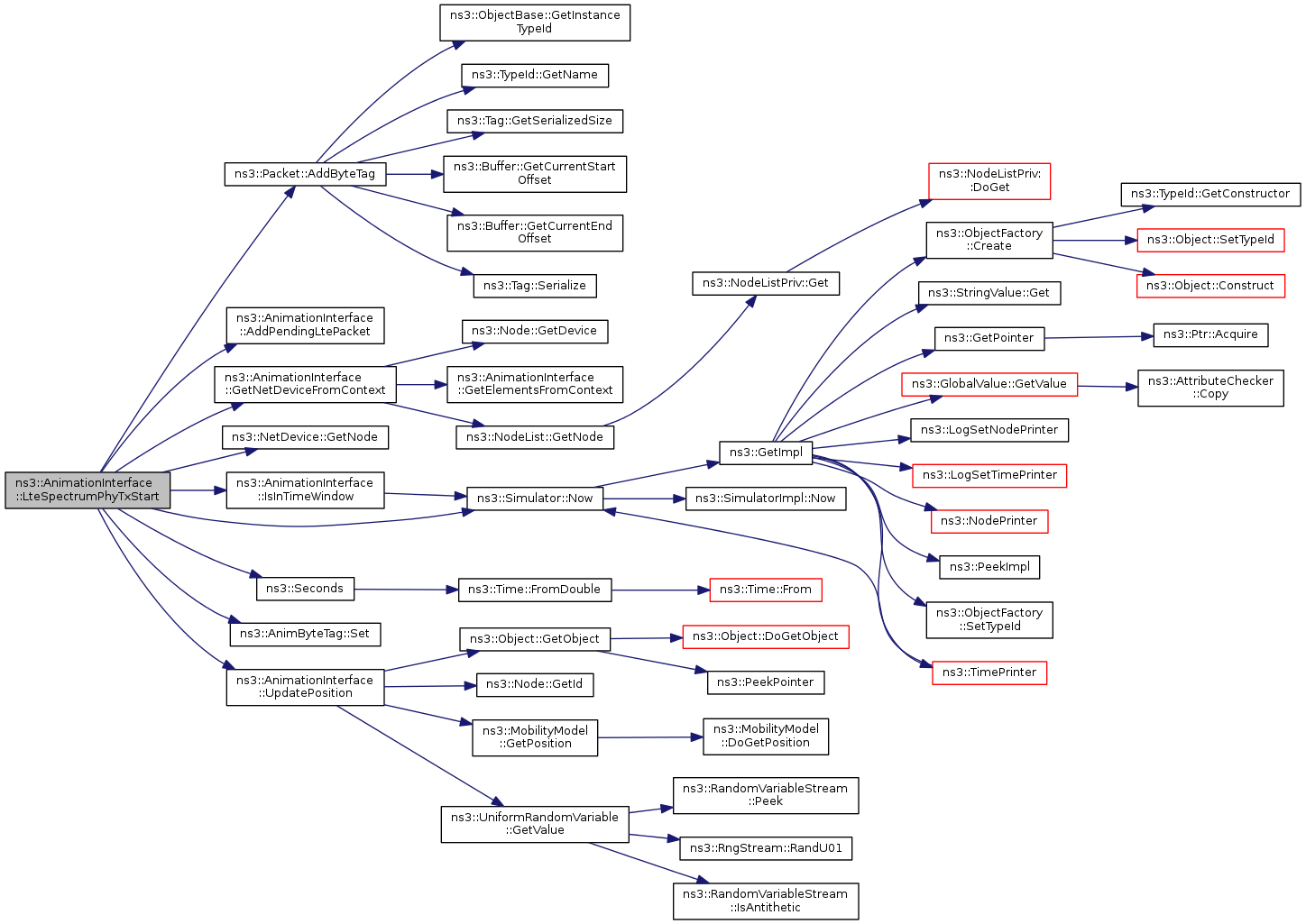

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteTxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 1050 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::Seconds(), ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityAutoCheck ( )

private

Definition at line 1279 of file animation-interface.cc.

References ns3::Node::GetId(), GetPosition(), GetXMLClose(), GetXMLOpen_topology(), GetXMLOpenClose_node(), ns3::Simulator::IsFinished(), IsInTimeWindow(), m_mobilityPollInterval, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, NS_ASSERT, PurgePendingCsma(), PurgePendingLte(), PurgePendingWifi(), PurgePendingWimax(), RecalcTopoBounds(), ns3::Simulator::Schedule(), WriteDummyPacket(), WriteN(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by StartAnimation().

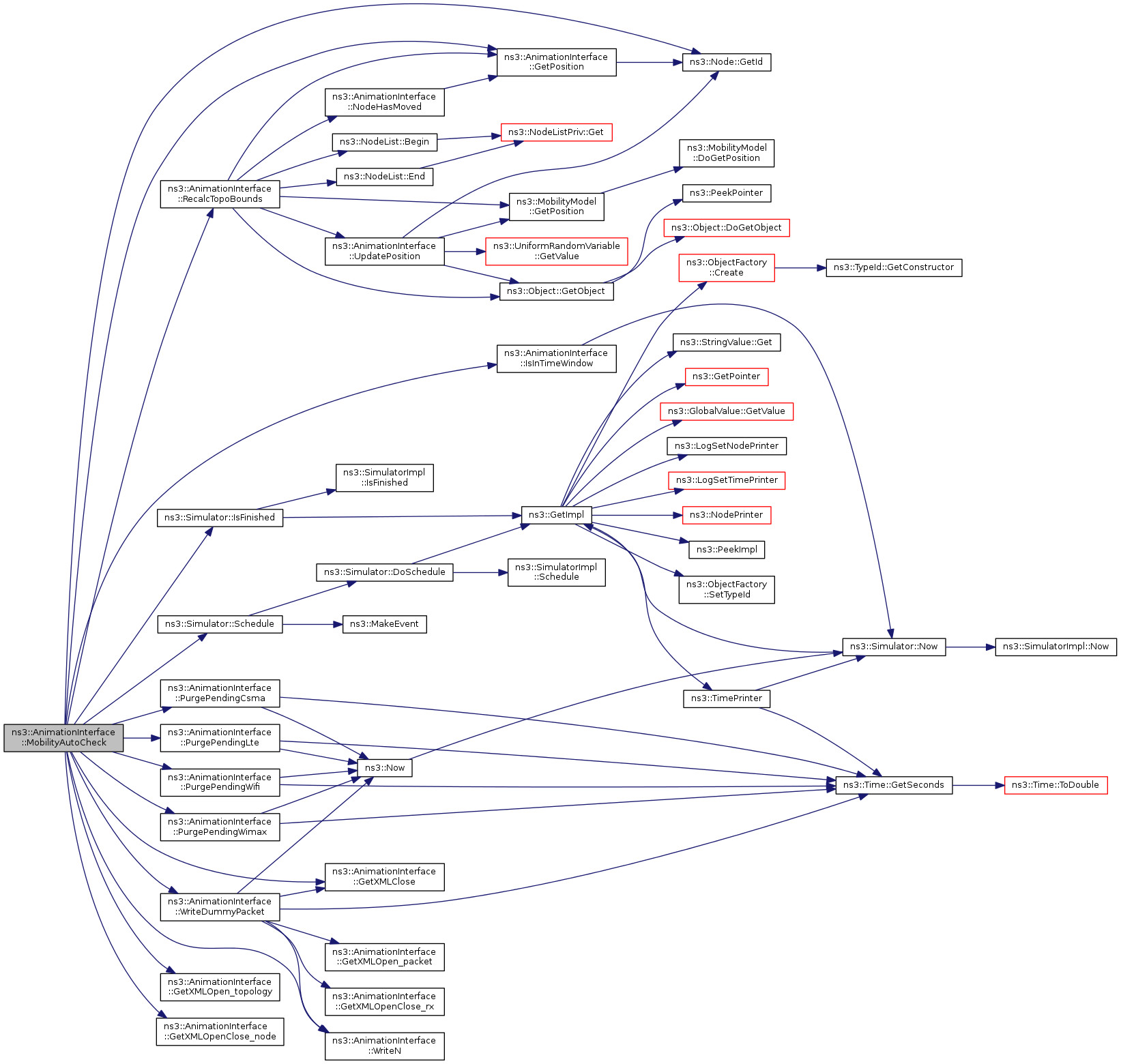

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel >  mob )

private

Definition at line 1238 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), GetXMLClose(), GetXMLOpen_topology(), GetXMLOpenClose_node(), IsInTimeWindow(), m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, NS_ASSERT, RecalcTopoBounds(), UpdatePosition(), WriteDummyPacket(), WriteN(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by ConnectCallbacks().

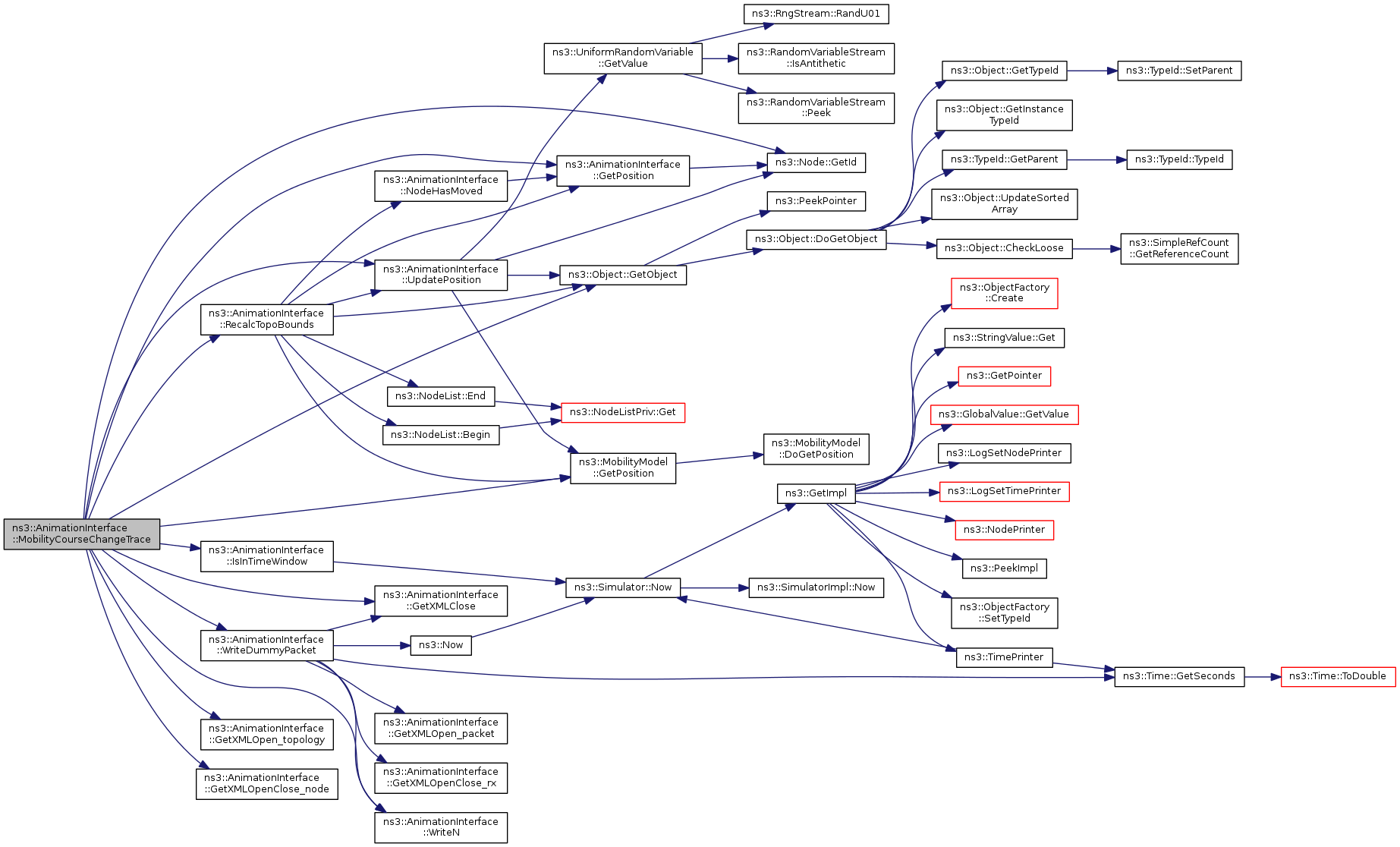

Here is the call graph for this function:

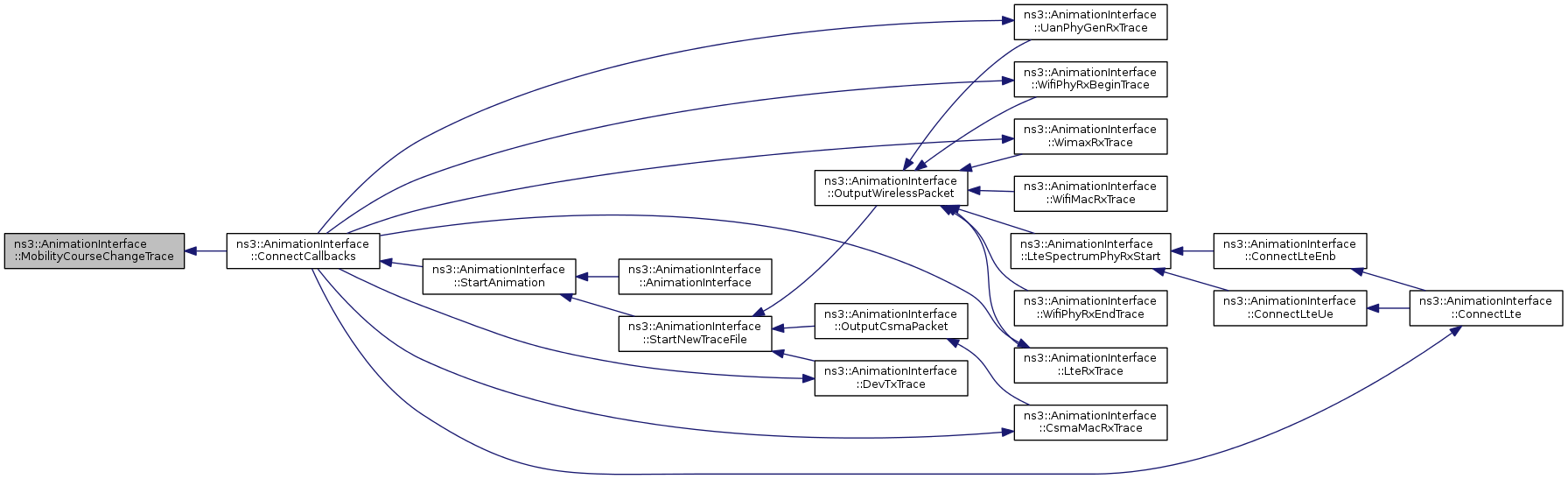

Here is the caller graph for this function:

bool ns3::AnimationInterface::NodeHasMoved ( Ptr< Node >  n, Vector  newLocation  )

private

Definition at line 1264 of file animation-interface.cc.

References GetPosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by RecalcTopoBounds().

Here is the call graph for this function:

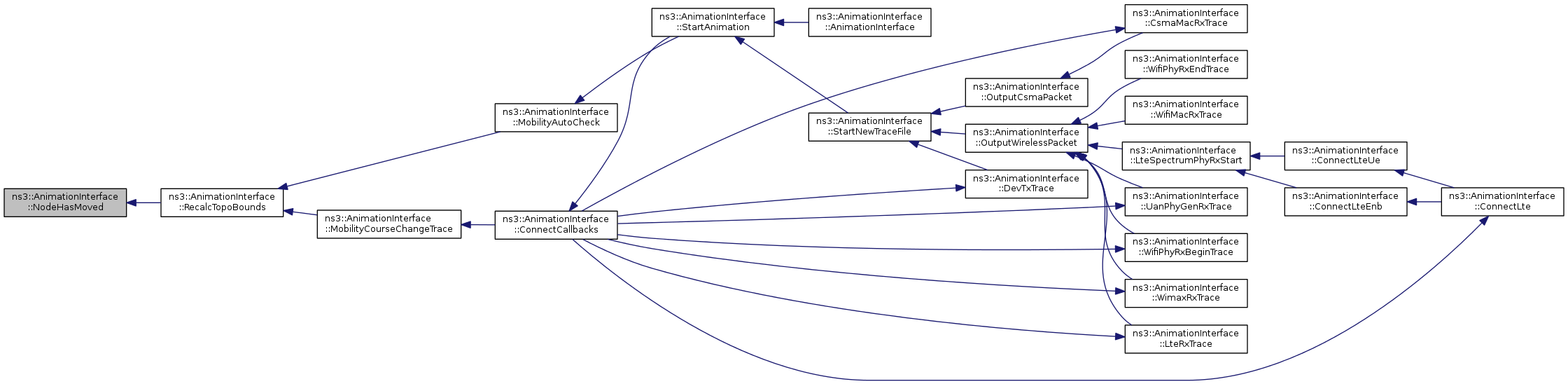

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputCsmaPacket ( Ptr< const Packet >  p, AnimPacketInfo &  pktInfo, AnimRxInfo  pktrxInfo  )

private

Definition at line 1409 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::NetDevice::GetNode(), GetPacketMetadata(), GetXMLClose(), GetXMLOpen_packet(), GetXMLOpenClose_meta(), GetXMLOpenClose_rx(), m_enablePacketMetadata, ns3::AnimRxInfo::m_fbRx, ns3::AnimPacketInfo::m_fbTx, ns3::AnimRxInfo::m_lbRx, ns3::AnimPacketInfo::m_lbTx, ns3::AnimRxInfo::m_rxnd, ns3::AnimPacketInfo::m_txnd, m_xml, NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by CsmaMacRxTrace().

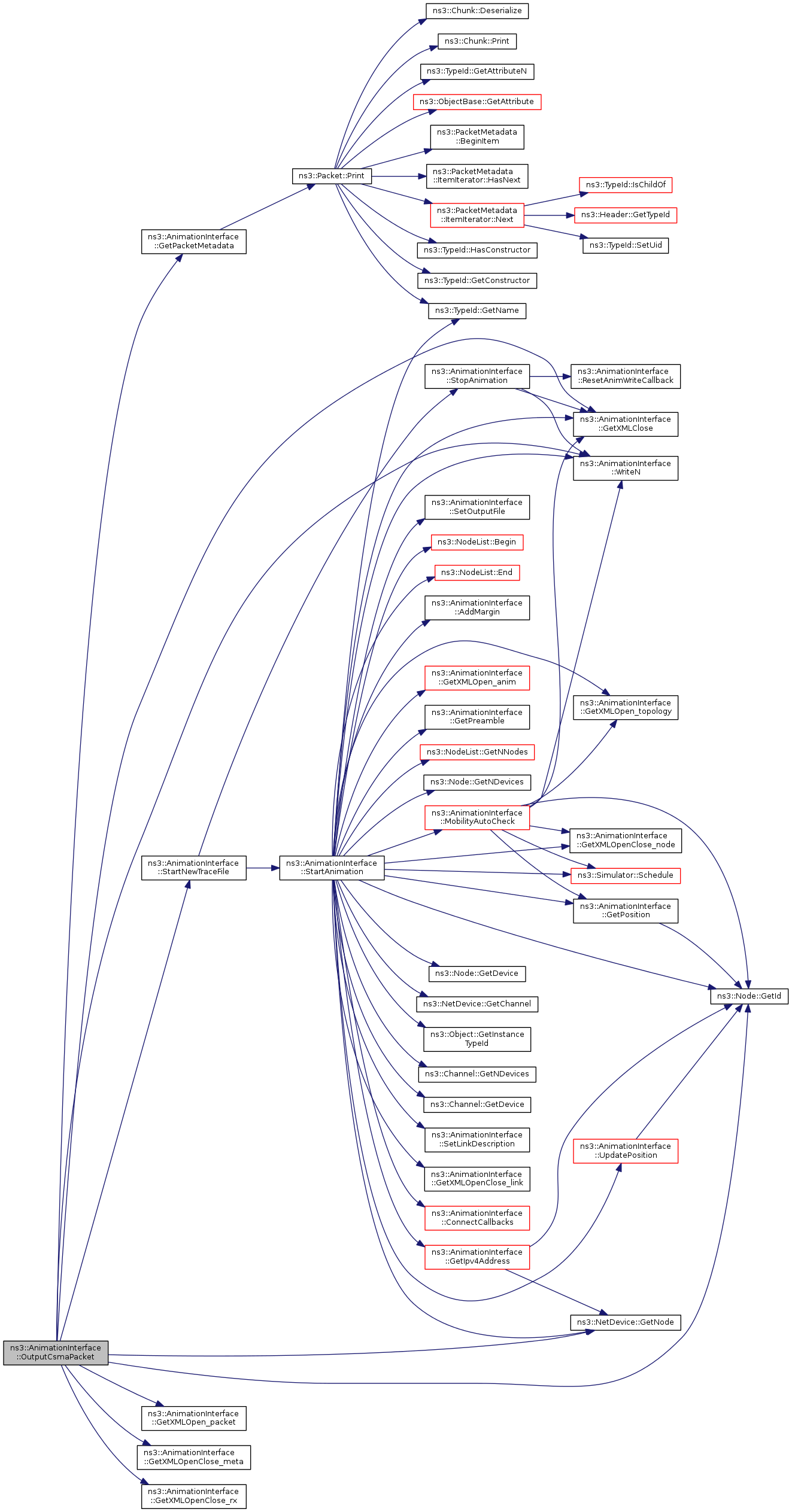

Here is the call graph for this function:

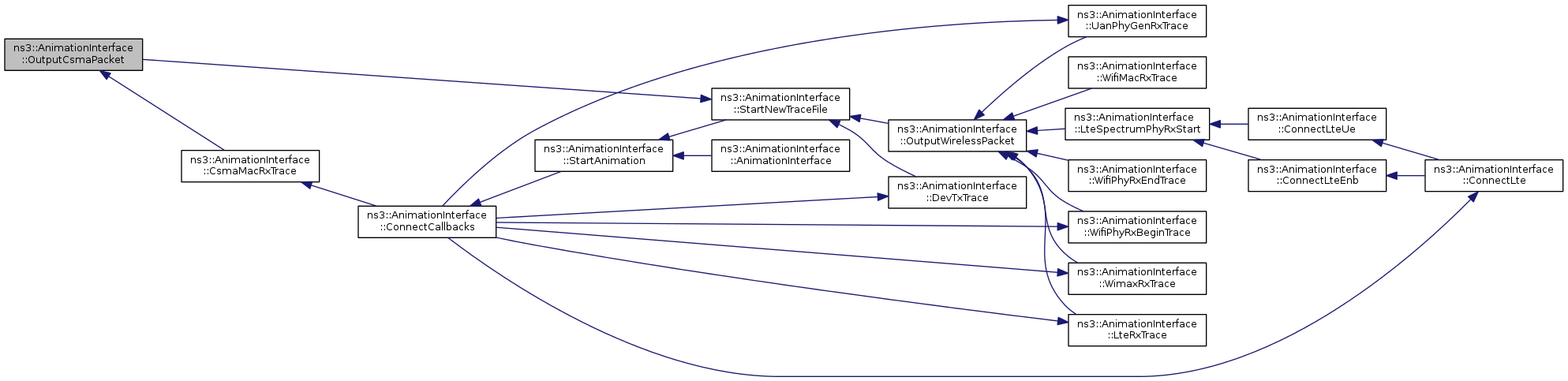

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacket ( Ptr< const Packet >  p, AnimPacketInfo &  pktInfo, AnimRxInfo  pktrxInfo  )

private

Definition at line 1386 of file animation-interface.cc.

References ns3::AnimPacketInfo::firstlastbitDelta, ns3::Node::GetId(), ns3::NetDevice::GetNode(), GetPacketMetadata(), GetXMLClose(), GetXMLOpen_wpacket(), GetXMLOpenClose_meta(), GetXMLOpenClose_rx(), m_enablePacketMetadata, ns3::AnimRxInfo::m_fbRx, ns3::AnimPacketInfo::m_fbTx, ns3::AnimRxInfo::m_lbRx, ns3::AnimRxInfo::m_rxnd, ns3::AnimPacketInfo::m_txnd, ns3::AnimPacketInfo::m_txNodeId, m_xml, NS_ASSERT, ns3::AnimRxInfo::rxRange, StartNewTraceFile(), and WriteN().

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WimaxRxTrace().

Here is the call graph for this function:

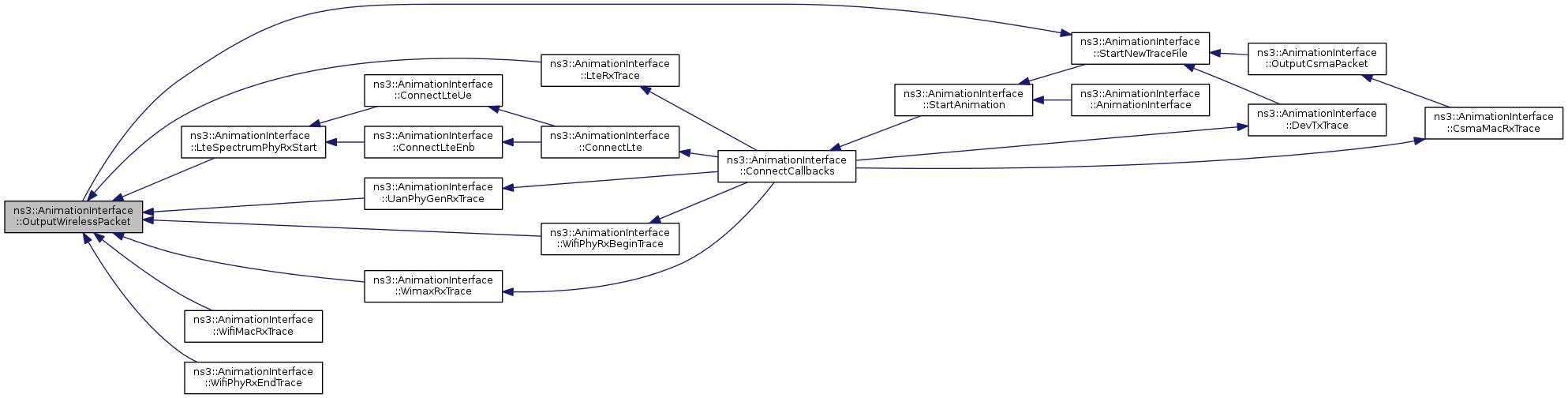

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingCsma ( )

private

Definition at line 334 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingCsmaPackets, ns3::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingLte ( )

private

Definition at line 308 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingLtePackets, ns3::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingWifi ( )

private

Definition at line 253 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWifiPackets, ns3::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingWimax ( )

private

Definition at line 280 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWimaxPackets, ns3::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RecalcTopoBounds ( Vector  v )

private

Definition at line 669 of file animation-interface.cc.

References AddMargin(), m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, ns3::Vector3D::x, and ns3::Vector3D::y.

Here is the call graph for this function:

std::vector< Ptr< Node > > ns3::AnimationInterface::RecalcTopoBounds ( )

private

Definition at line 638 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

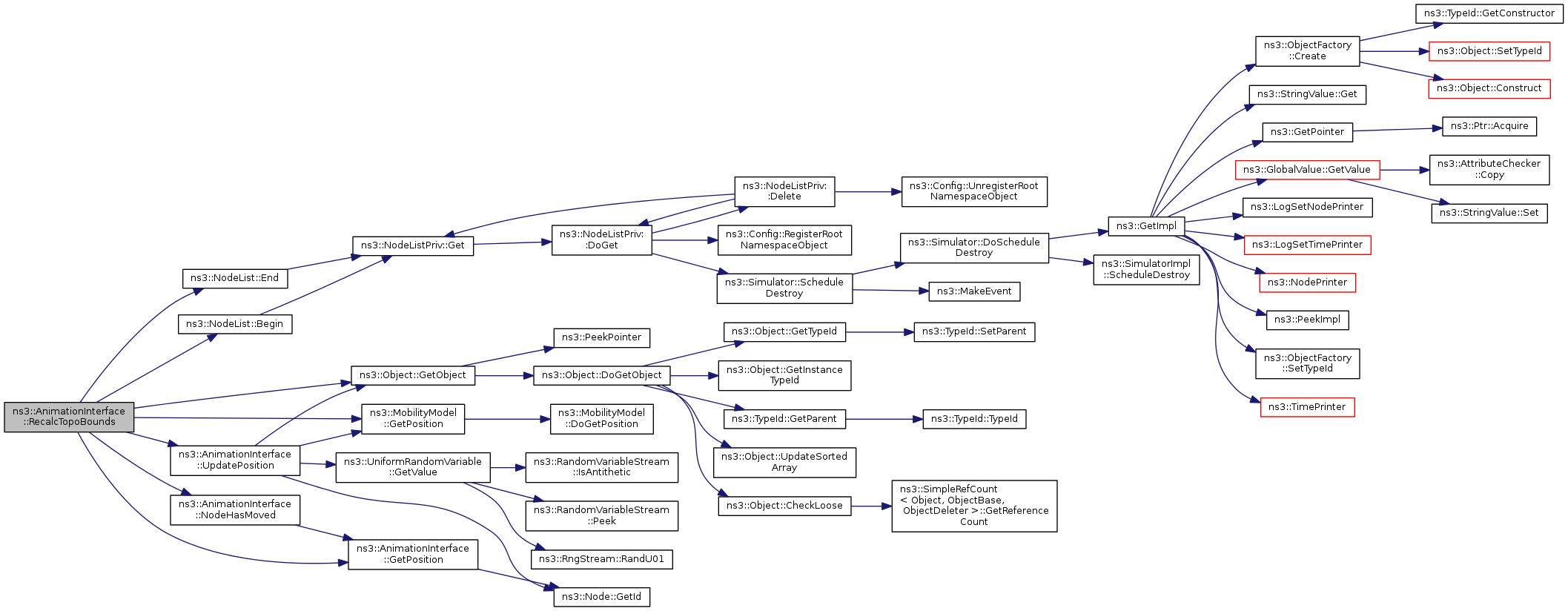

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ResetAnimWriteCallback

(

)

Reset the write callback function.

Definition at line 162 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

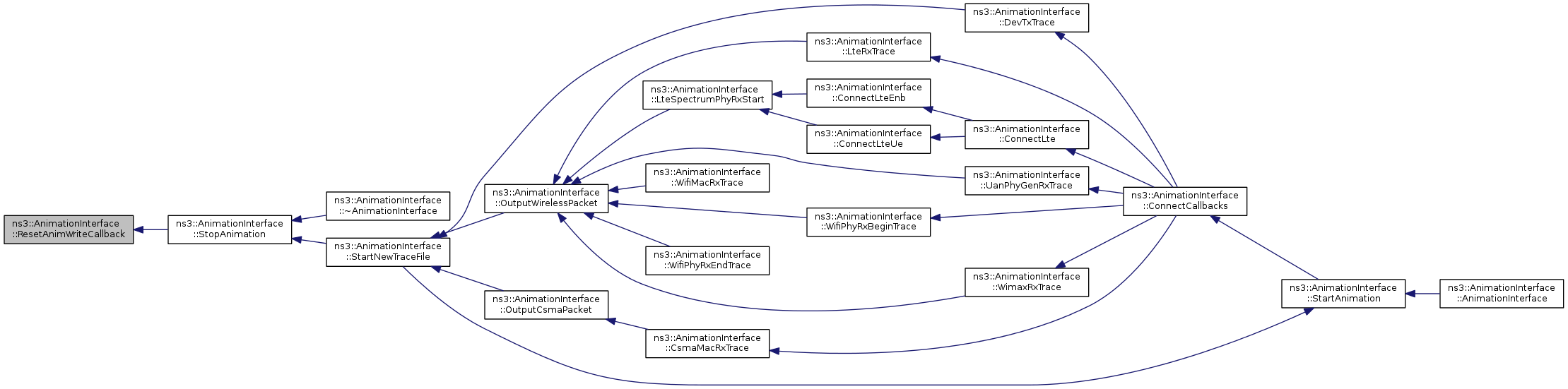

Here is the caller graph for this function:

void ns3::AnimationInterface::SetAnimWriteCallback

(

AnimWriteCallback

cb

)

Set a callback function to listen to AnimationInterface write events.

Parameters

cb	Address of callback function

Definition at line 157 of file animation-interface.cc.

References m_writeCallback.

void ns3::AnimationInterface::SetConstantPosition ( Ptr< Node >  n, double  x, double  y, double  z = 0  )

static

Helper function to set Constant Position for a given node.

Parameters

n	Ptr to the node
x	X co-ordinate of the node
y	Y co-ordinate of the node
z	Z co-ordinate of the node

Definition at line 1426 of file animation-interface.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_INFO.

Referenced by ns3::AnimationInterfaceTestCase::DoRun(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription ( uint32_t  fromNode, uint32_t  toNode, std::string  linkDescription, std::string  fromNodeDescription = "", std::string  toNodeDescription = ""  )

static

Helper function to set the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth
fromNodeDescription	Description at the "from Node" end such as IP address
toNodeDescription	Description at the "to Node" end such as Ip address

Definition at line 1513 of file animation-interface.cc.

References ns3::P2pLinkNodeIdPair::fromNode, linkProperties, and ns3::P2pLinkNodeIdPair::toNode.

Referenced by SetLinkDescription(), and StartAnimation().

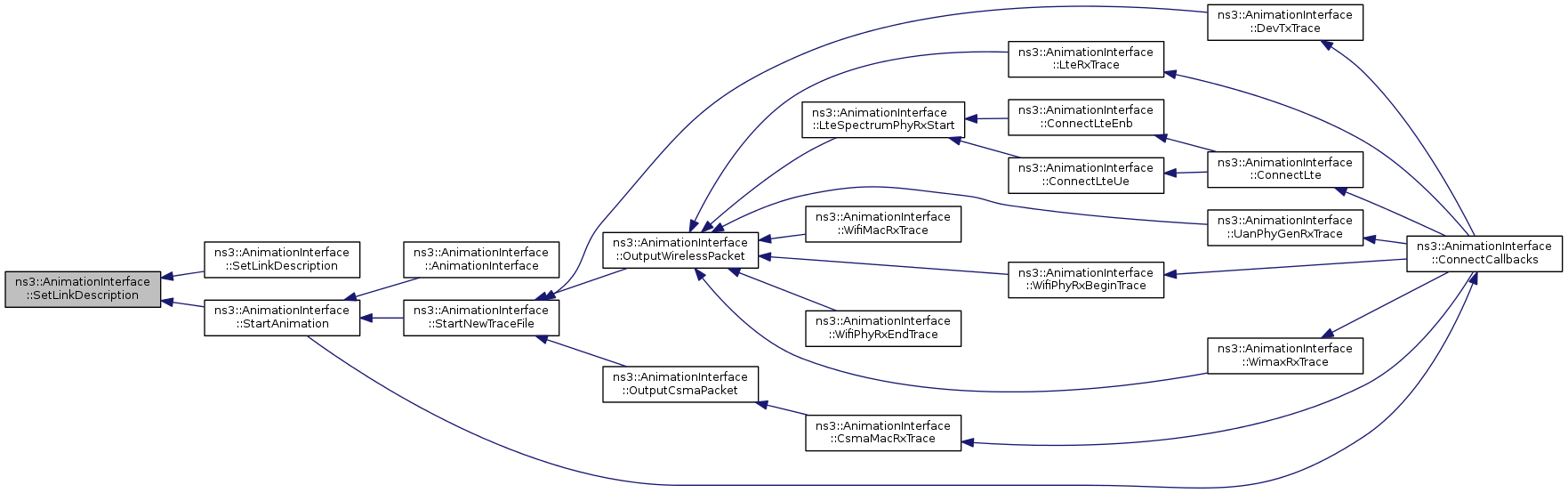

Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription ( Ptr< Node >  fromNode, Ptr< Node >  toNode, std::string  linkDescription, std::string  fromNodeDescription = "", std::string  toNodeDescription = ""  )

static

Helper function to set the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth
fromNodeDescription	Description at the "from Node" end such as IP address
toNodeDescription	Description at the "to Node" end such as Ip address

Definition at line 1537 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and SetLinkDescription().

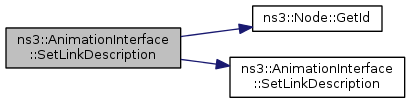

Here is the call graph for this function:

void ns3::AnimationInterface::SetMobilityPollInterval

(

Time

t

)

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters

t	Time interval between fetching mobility/position information Default: 0.25s

Definition at line 202 of file animation-interface.cc.

References m_mobilityPollInterval.

void ns3::AnimationInterface::SetNodeColor ( Ptr< Node >  n, uint8_t  r, uint8_t  g, uint8_t  b  )

static

Helper function to set the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1441 of file animation-interface.cc.

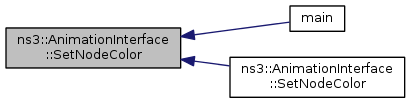

References ns3::Node::GetId(), ns3::initialized, nodeColors, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by main(), and SetNodeColor().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeColor ( NodeContainer  nc, uint8_t  r, uint8_t  g, uint8_t  b  )

static

Helper function to set the color of nodes in a container.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1484 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), NS_ASSERT, and SetNodeColor().

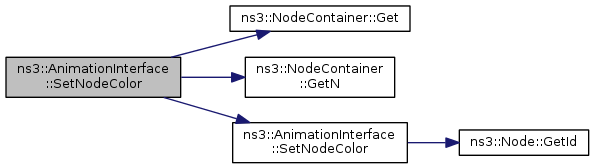

Here is the call graph for this function:

void ns3::AnimationInterface::SetNodeDescription ( Ptr< Node >  n, std::string  descr  )

static

Helper function to set a brief description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Definition at line 1548 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeDescription ( NodeContainer  nc, std::string  descr  )

static

Helper function to set a brief description for nodes in a Node Container.

Parameters

nc	NodeContainer containing the nodes
descr	A string to briefly describe the nodes

Definition at line 1572 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::NodeContainer::GetN(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

Here is the call graph for this function:

bool ns3::AnimationInterface::SetOutputFile

(

const std::string &

fn

)

Specify that animation commands are to be written to the specified output file.

This call is used to write the animation information to a text file that can later be used as input to the network animator tool.

Parameters

fn	The name of the output file.

Returns

true if successful open.

Definition at line 121 of file animation-interface.cc.

References m_f, m_outputFileName, m_outputFileSet, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by StartAnimation().

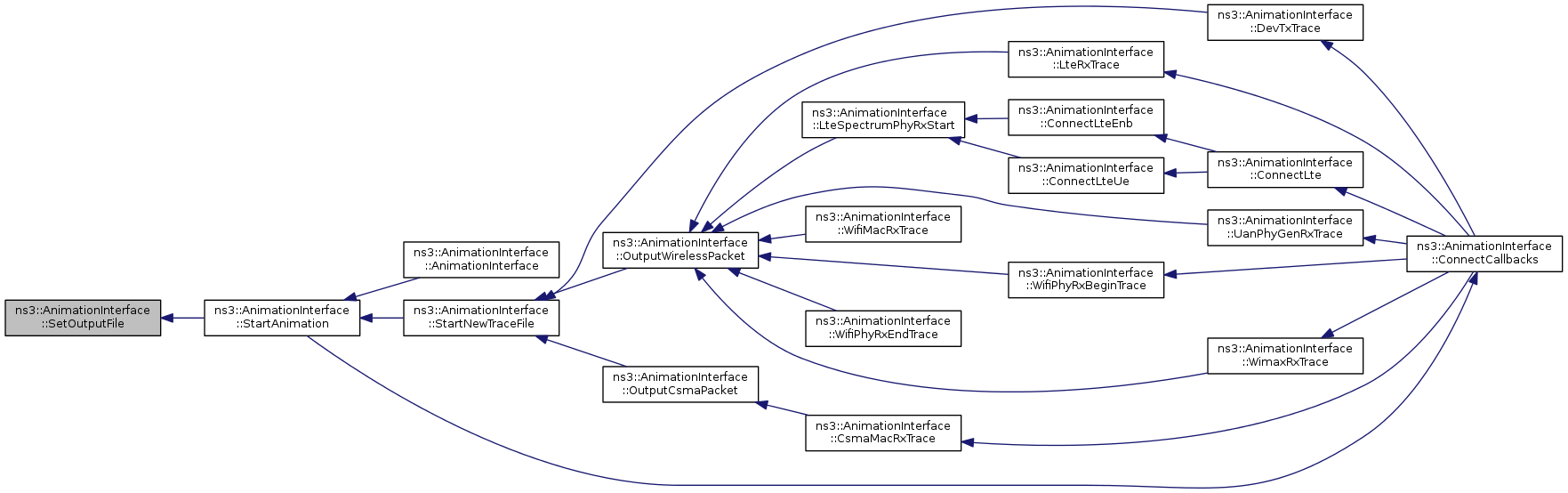

Here is the caller graph for this function:

void ns3::AnimationInterface::SetRandomPosition

(

bool

setRandPos

)

Set random position if a Mobility Model does not exists for the node.

Parameters

setRandPos

True if a random position can be set for a node without a Mobililty model

Definition at line 207 of file animation-interface.cc.

References m_randomPosition.

void ns3::AnimationInterface::SetStartTime

(

Time

t

)

Specify the time at which capture should start.

Parameters

t	The time at which AnimationInterface should begin capture of traffic info

Returns

none

Definition at line 111 of file animation-interface.cc.

References m_startTime.

void ns3::AnimationInterface::SetStopTime

(

Time

t

)

Specify the time at which capture should stop.

Parameters

t	The time at which AnimationInterface should stop capture of traffic info

Returns

none

Definition at line 116 of file animation-interface.cc.

References m_stopTime.

void ns3::AnimationInterface::SetXMLOutput

(

)

Specify that animation commands are to be written in XML format.

Returns

none

Definition at line 82 of file animation-interface.cc.

References m_xml, and NS_LOG_INFO.

void ns3::AnimationInterface::ShowAll802_11

(

bool

showAll

)

Show all 802.11 frames. Default: show only frames accepted by mac layer.

Parameters

showAll

if true shows all 802.11 frames including beacons, association request and acks (very chatty). if false only frames accepted by mac layer

void ns3::AnimationInterface::ShowNode	(	uint32_t	nodeId,
		bool	show = true
	)

Helper function to show/hide a node.

Parameters

nodeId	Id of the node
show	Set to true to show node, set to false to hide

Definition at line 1451 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), NS_ASSERT, NS_LOG_INFO, and WriteN().

Referenced by modify(), and ShowNode().

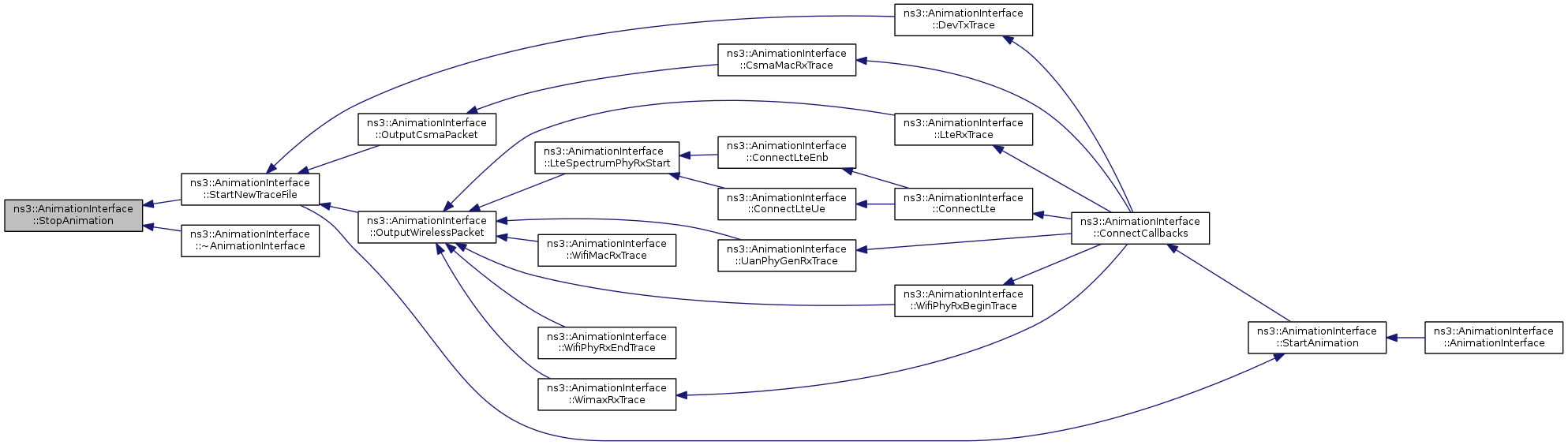

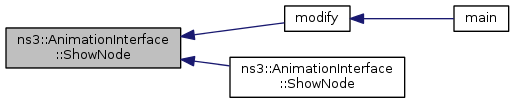

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ShowNode	(	Ptr< Node >	n,
		bool	show = true
	)

Helper function to show/hide a node.

Parameters

n	Ptr to the node
show	Set to true to show node, set to false to hide

Definition at line 1461 of file animation-interface.cc.

References ShowNode().

Here is the call graph for this function:

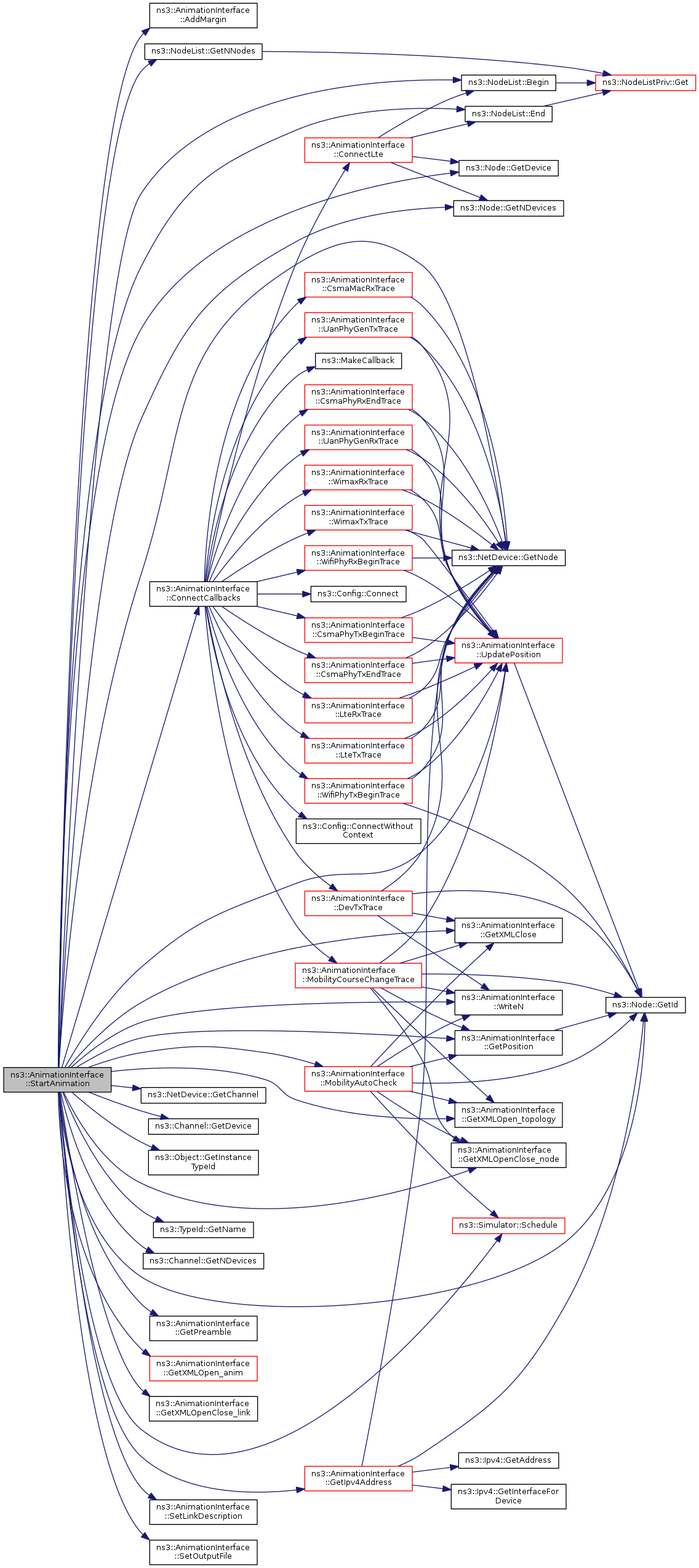

void ns3::AnimationInterface::StartAnimation

(

bool

restart = false

)

Writes the topology information and sets up the appropriate animation packet tx callback.

Writes the topology information to the appropriate output, depending on prior calls to SetOutputFile, SetServerPort, or SetInternalAnimation. Then creates the callbacks needed for the animator to start processing packets.

Parameters

restart

True when restarting animation

Definition at line 373 of file animation-interface.cc.

References AddMargin(), ns3::NodeList::Begin(), ConnectCallbacks(), ns3::NodeList::End(), ns3::NetDevice::GetChannel(), ns3::Channel::GetDevice(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Object::GetInstanceTypeId(), GetIpv4Address(), ns3::TypeId::GetName(), ns3::Channel::GetNDevices(), ns3::Node::GetNDevices(), ns3::NodeList::GetNNodes(), ns3::NetDevice::GetNode(), GetPosition(), GetPreamble(), GetXMLClose(), GetXMLOpen_anim(), GetXMLOpen_topology(), GetXMLOpenClose_link(), GetXMLOpenClose_node(), linkProperties, m_currentPktCount, m_mobilityPollInterval, m_outputFileName, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, m_xml, MobilityAutoCheck(), nodeColors, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, ns3::Simulator::Schedule(), SetLinkDescription(), SetOutputFile(), UpdatePosition(), WriteN(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by AnimationInterface(), and StartNewTraceFile().

Here is the call graph for this function:

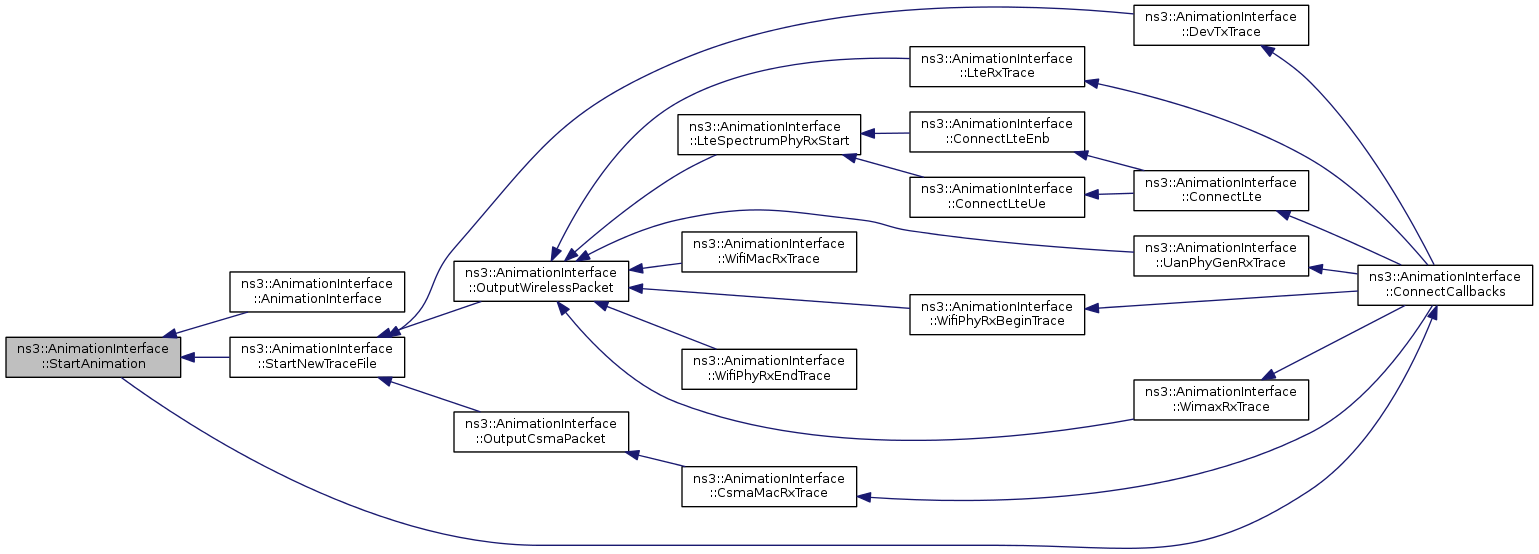

Here is the caller graph for this function:

void ns3::AnimationInterface::StartNewTraceFile ( )

private

Definition at line 89 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, m_originalFileName, m_outputFileName, StartAnimation(), and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

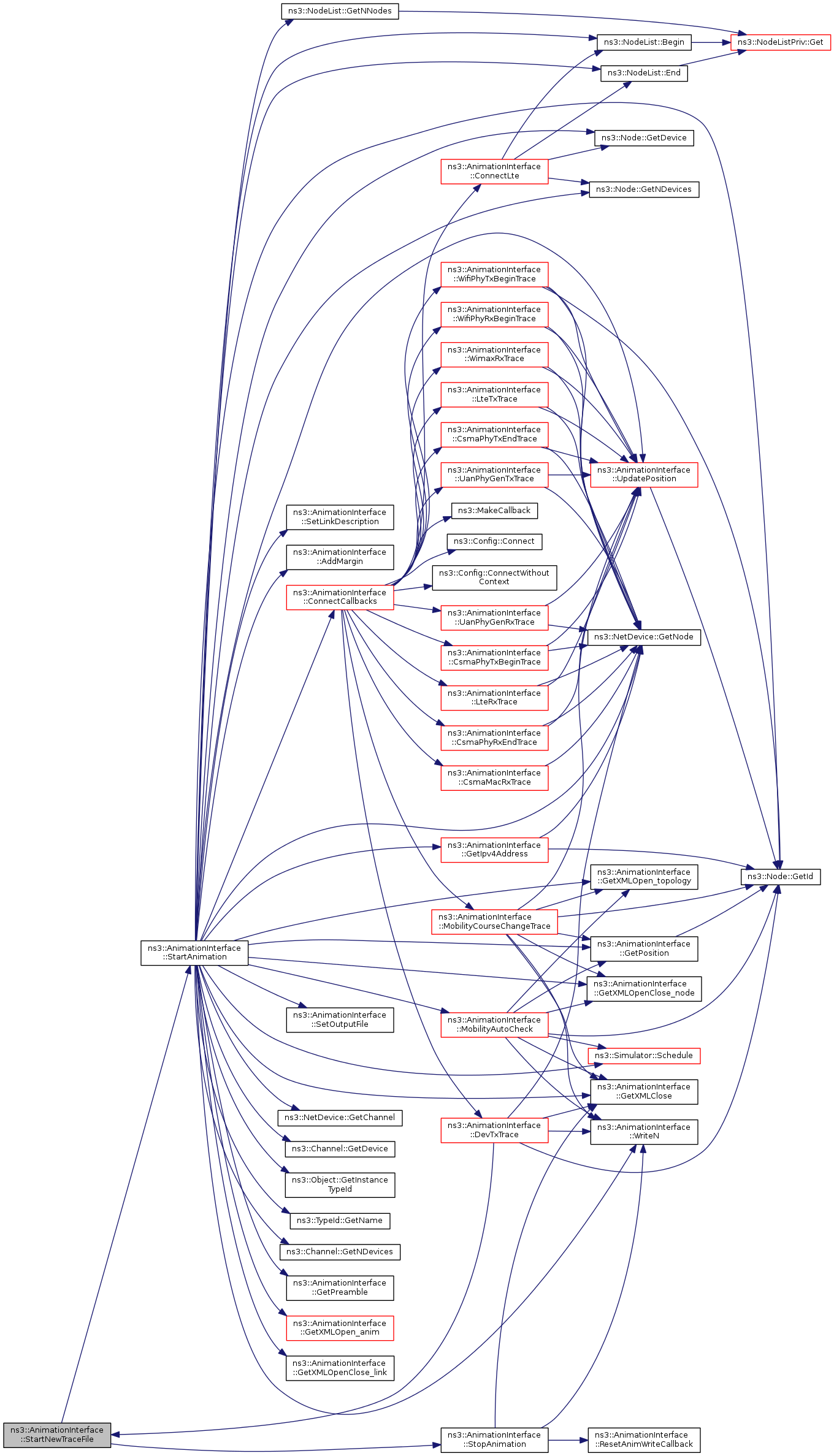

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::StopAnimation

(

)

Closes the interface to the animator.

Definition at line 599 of file animation-interface.cc.

References GetXMLClose(), m_f, m_outputFileSet, m_started, m_xml, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteN().

Referenced by StartNewTraceFile(), and ~AnimationInterface().

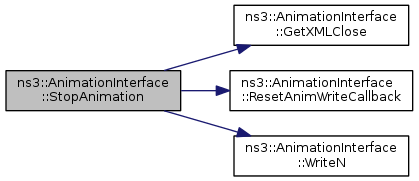

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::UanPacketIsPending ( uint64_t  AnimUid )

private

Definition at line 176 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenRxTrace().

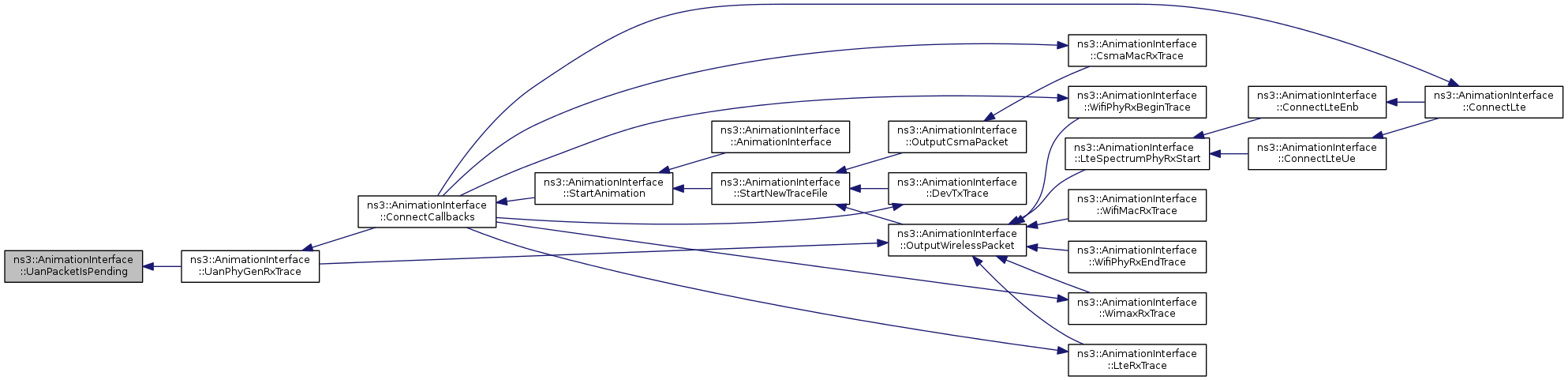

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 849 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_pendingUanPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), UanPacketIsPending(), and UpdatePosition().

Referenced by ConnectCallbacks().

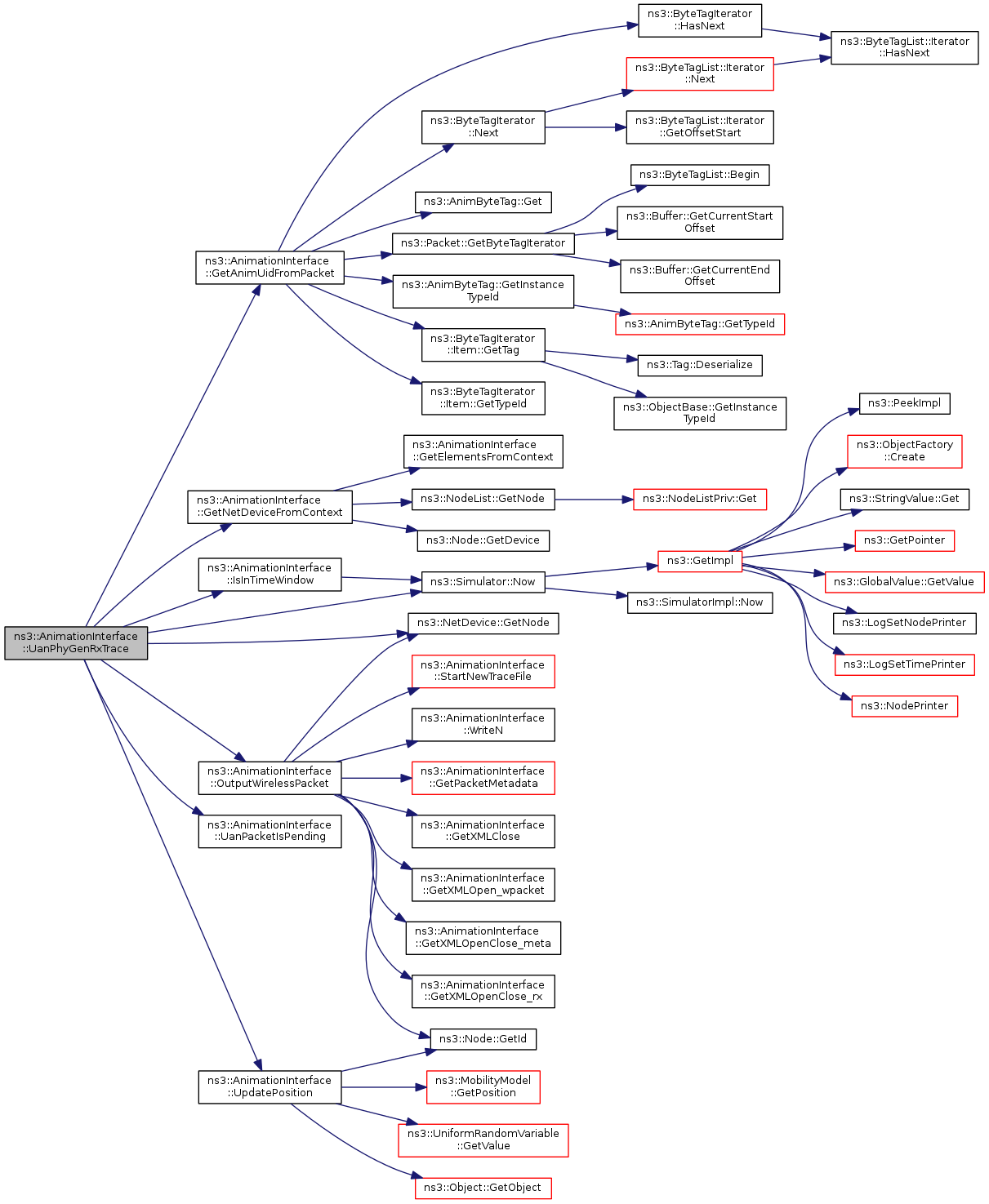

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenTxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 830 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingUanPacket(), gAnimUid, GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

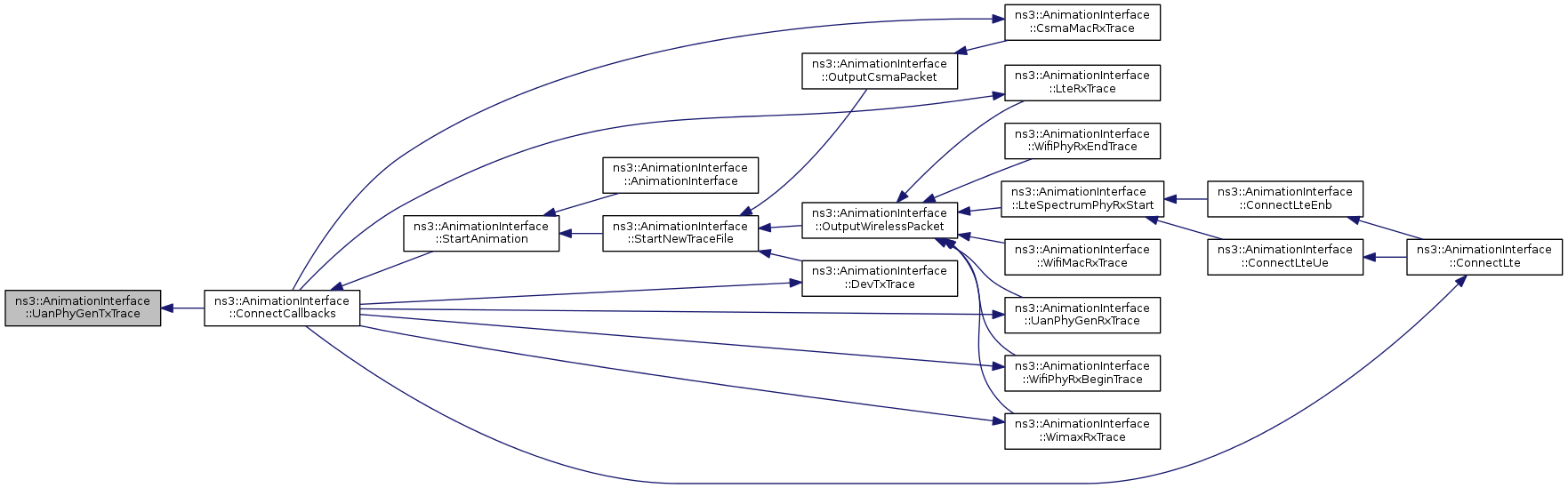

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Definition at line 1495 of file animation-interface.cc.

References GetXMLOpenClose_linkupdate(), and WriteN().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr to the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Definition at line 1503 of file animation-interface.cc.

References ns3::Node::GetId(), GetXMLOpenClose_linkupdate(), NS_ASSERT, and WriteN().

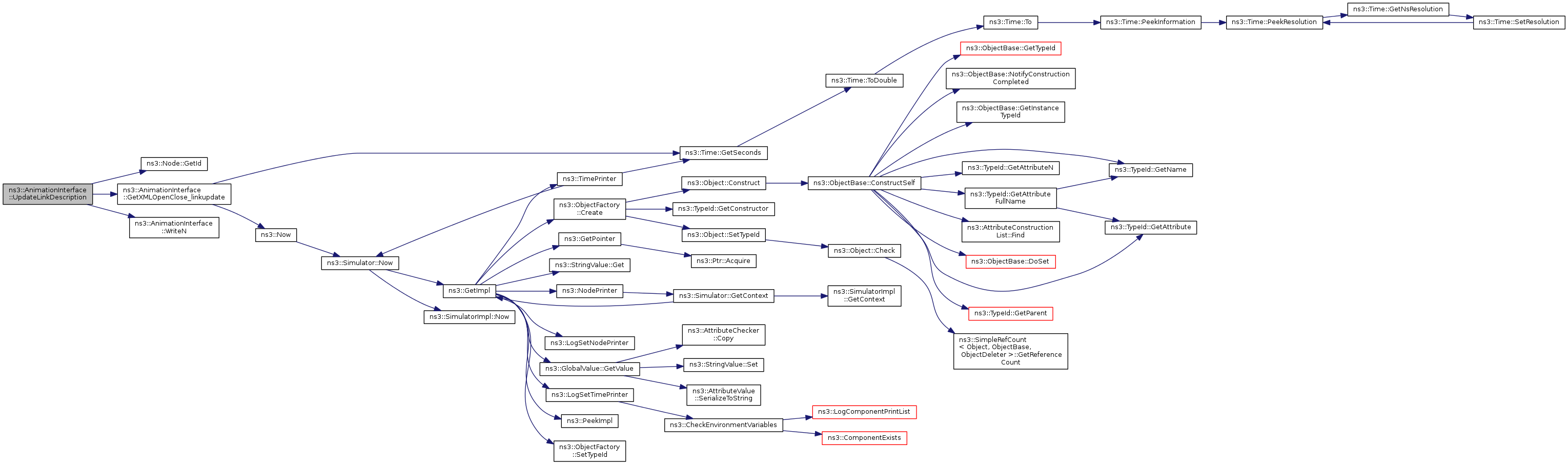

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1466 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

nodeId	Id of the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1471 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), nodeColors, NS_ASSERT, NS_LOG_INFO, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Definition at line 1556 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	uint32_t	nodeId,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

nodeId	Id of the node
descr	A string to briefly describe the node

Definition at line 1561 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), nodeDescriptions, NS_ASSERT, and WriteN().

Here is the call graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node >  n )

private

Definition at line 212 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), ns3::UniformRandomVariable::GetValue(), m_nodeLocation, m_randomPosition, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, m_uniformRandomVariable, and NS_LOG_UNCOND.

Referenced by CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

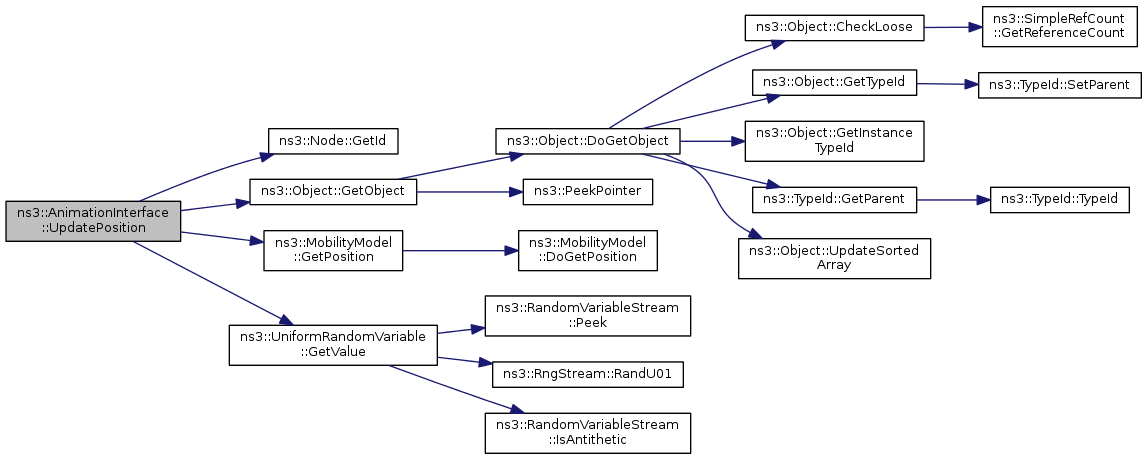

Here is the call graph for this function:

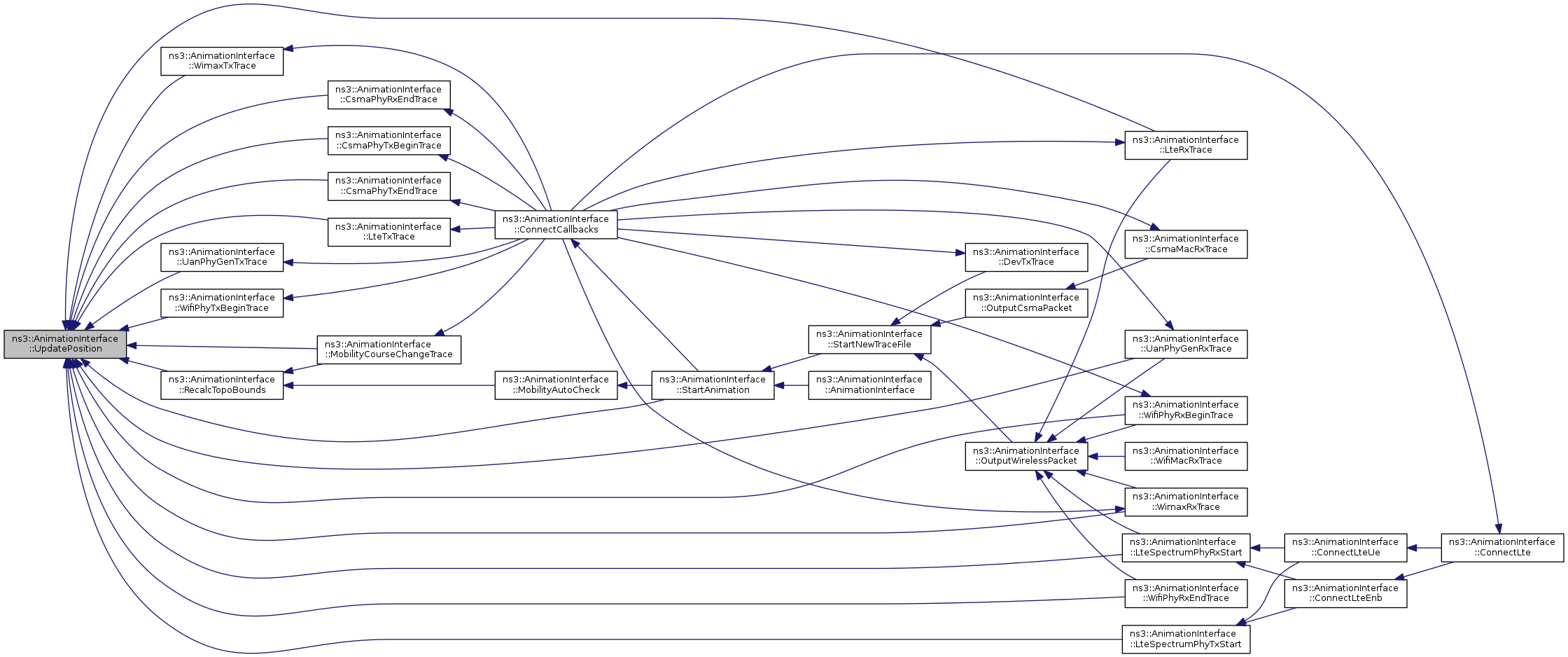

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node >  n, Vector  v  )

private

Definition at line 236 of file animation-interface.cc.

References ns3::Node::GetId(), and m_nodeLocation.

Here is the call graph for this function:

void ns3::AnimationInterface::WifiMacRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 982 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingWifiPackets, m_started, NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), and WifiPacketIsPending().

Here is the call graph for this function:

bool ns3::AnimationInterface::WifiPacketIsPending ( uint64_t  AnimUid )

private

Definition at line 181 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxDropTrace().

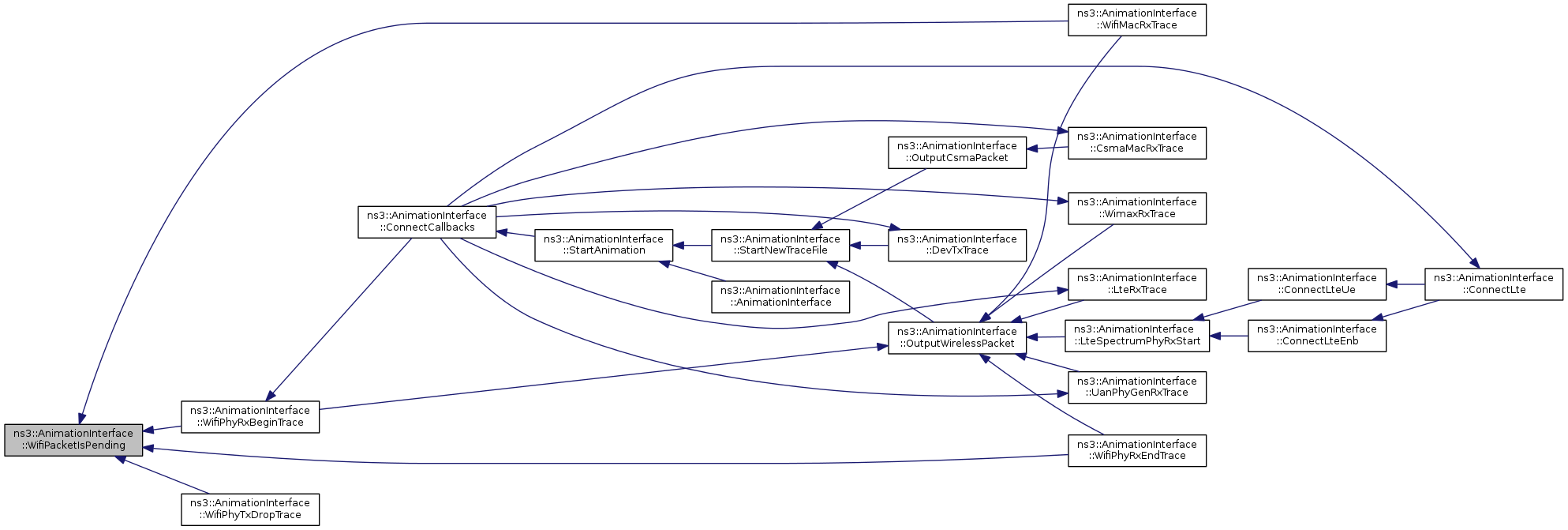

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 916 of file animation-interface.cc.

References AddPendingWifiPacket(), ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::Packet::PeekHeader(), UpdatePosition(), and WifiPacketIsPending().

Referenced by ConnectCallbacks().

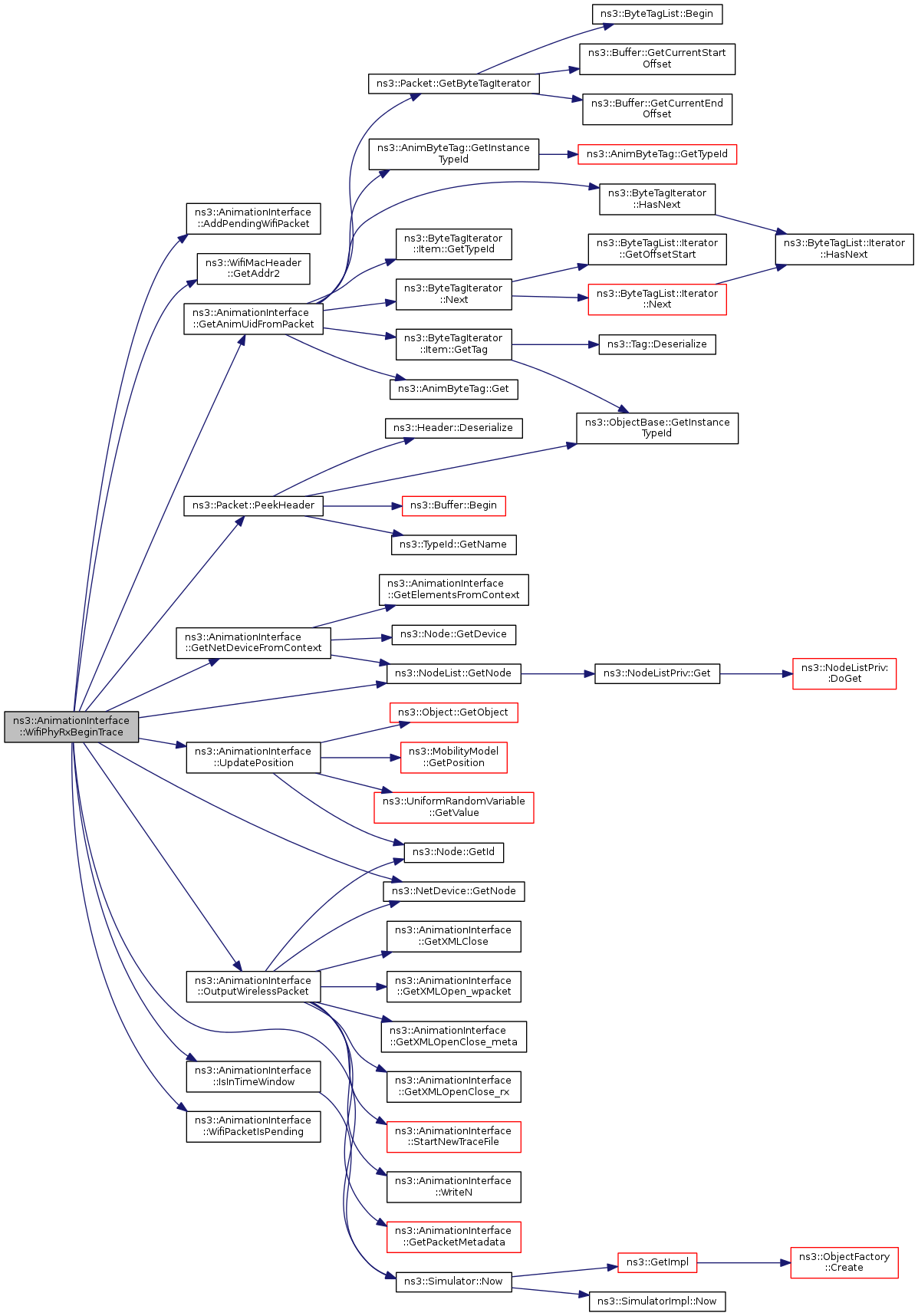

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1007 of file animation-interface.cc.

void ns3::AnimationInterface::WifiPhyRxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 955 of file animation-interface.cc.

References AddPendingWifiPacket(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingWifiPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxEnd(), UpdatePosition(), and WifiPacketIsPending().

Here is the call graph for this function:

void ns3::AnimationInterface::WifiPhyTxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 871 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingWifiPacket(), gAnimUid, ns3::Node::GetId(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_macToNodeIdMap, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

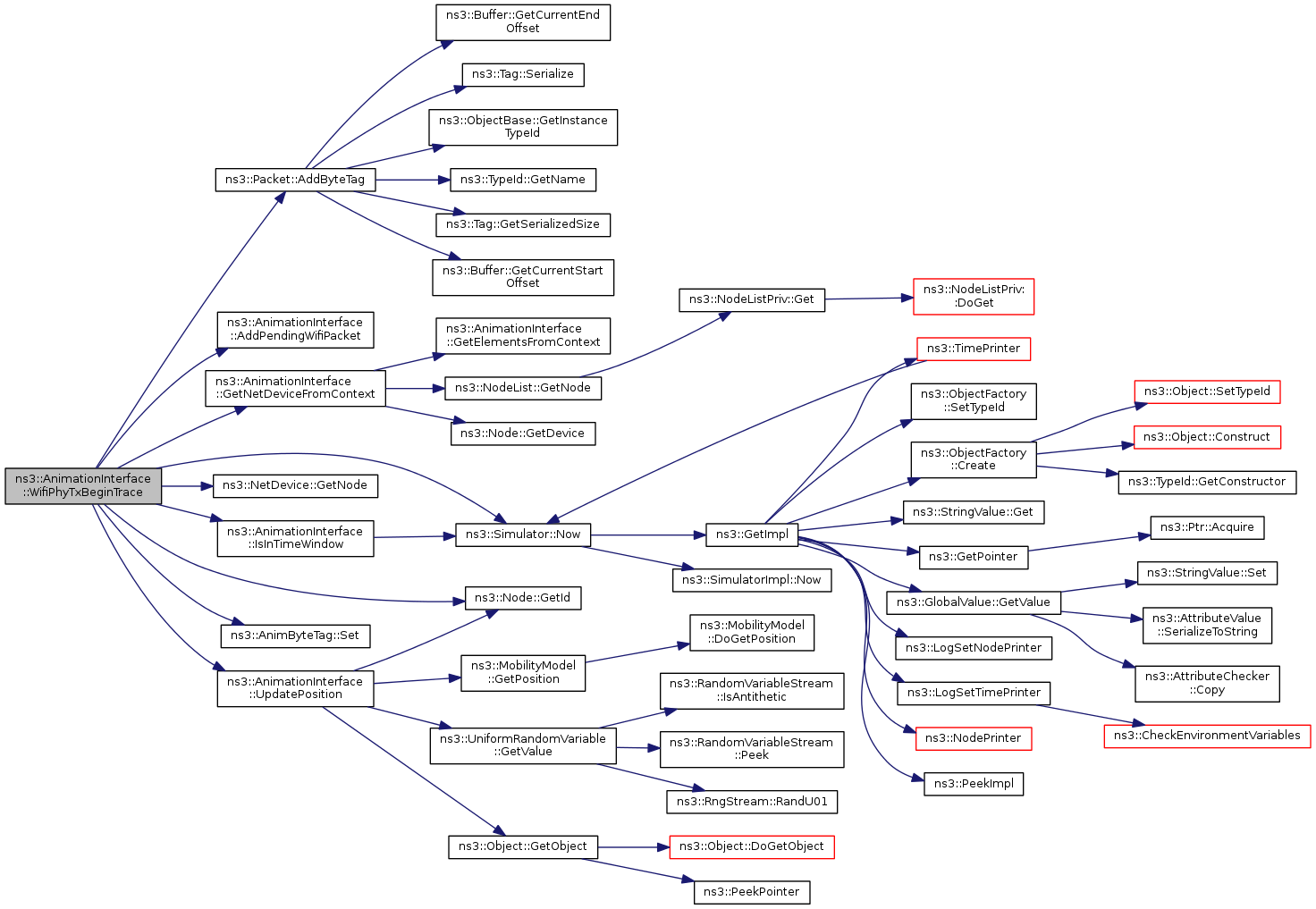

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 901 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingWifiPackets, m_started, NS_ASSERT, NS_LOG_INFO, and WifiPacketIsPending().

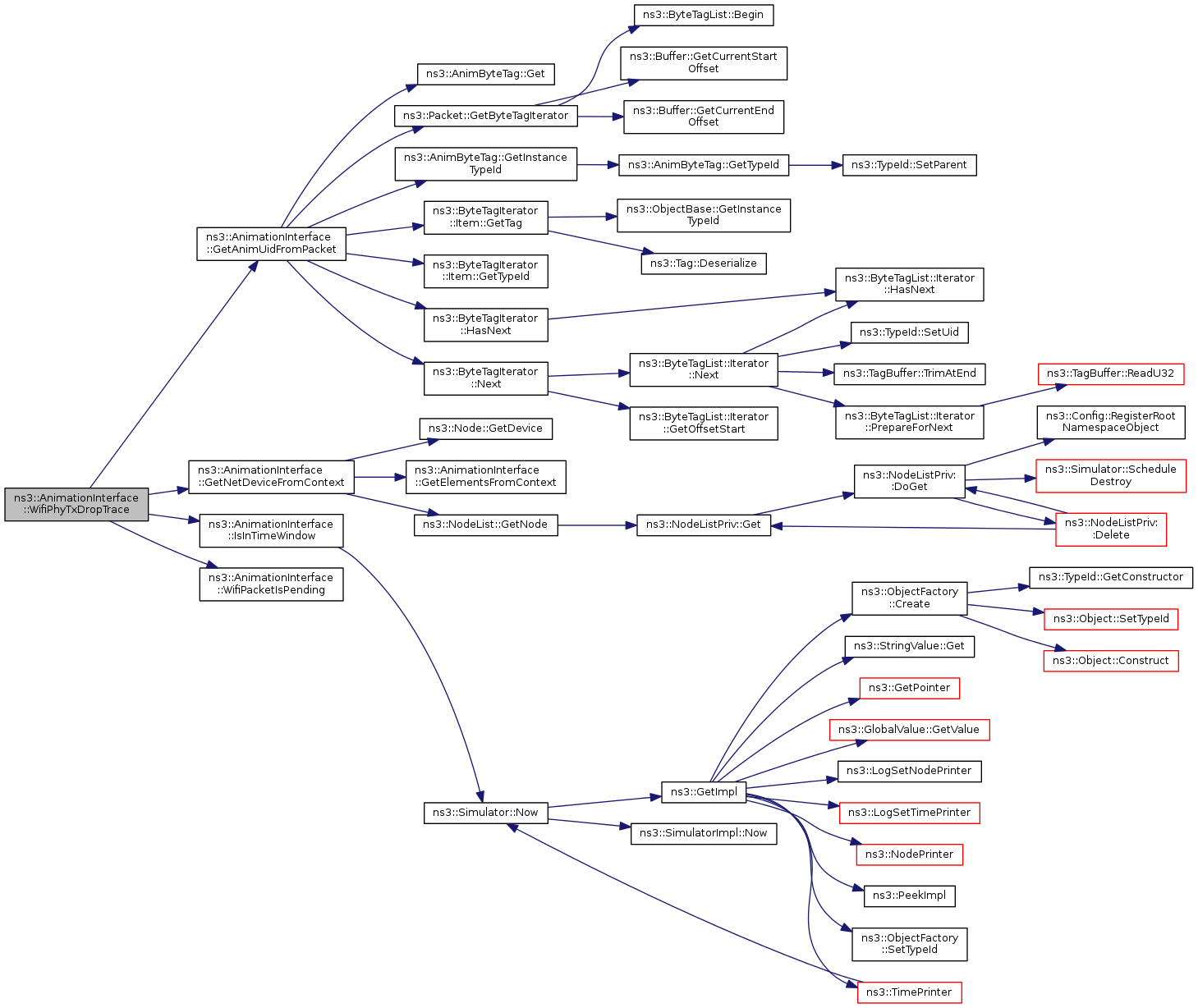

Here is the call graph for this function:

void ns3::AnimationInterface::WifiPhyTxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 896 of file animation-interface.cc.

bool ns3::AnimationInterface::WimaxPacketIsPending ( uint64_t  AnimUid )

private

Definition at line 192 of file animation-interface.cc.

References m_pendingWimaxPackets.

Referenced by WimaxRxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxRxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 1031 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), m_pendingWimaxPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), ns3::Seconds(), UpdatePosition(), and WimaxPacketIsPending().

Referenced by ConnectCallbacks().

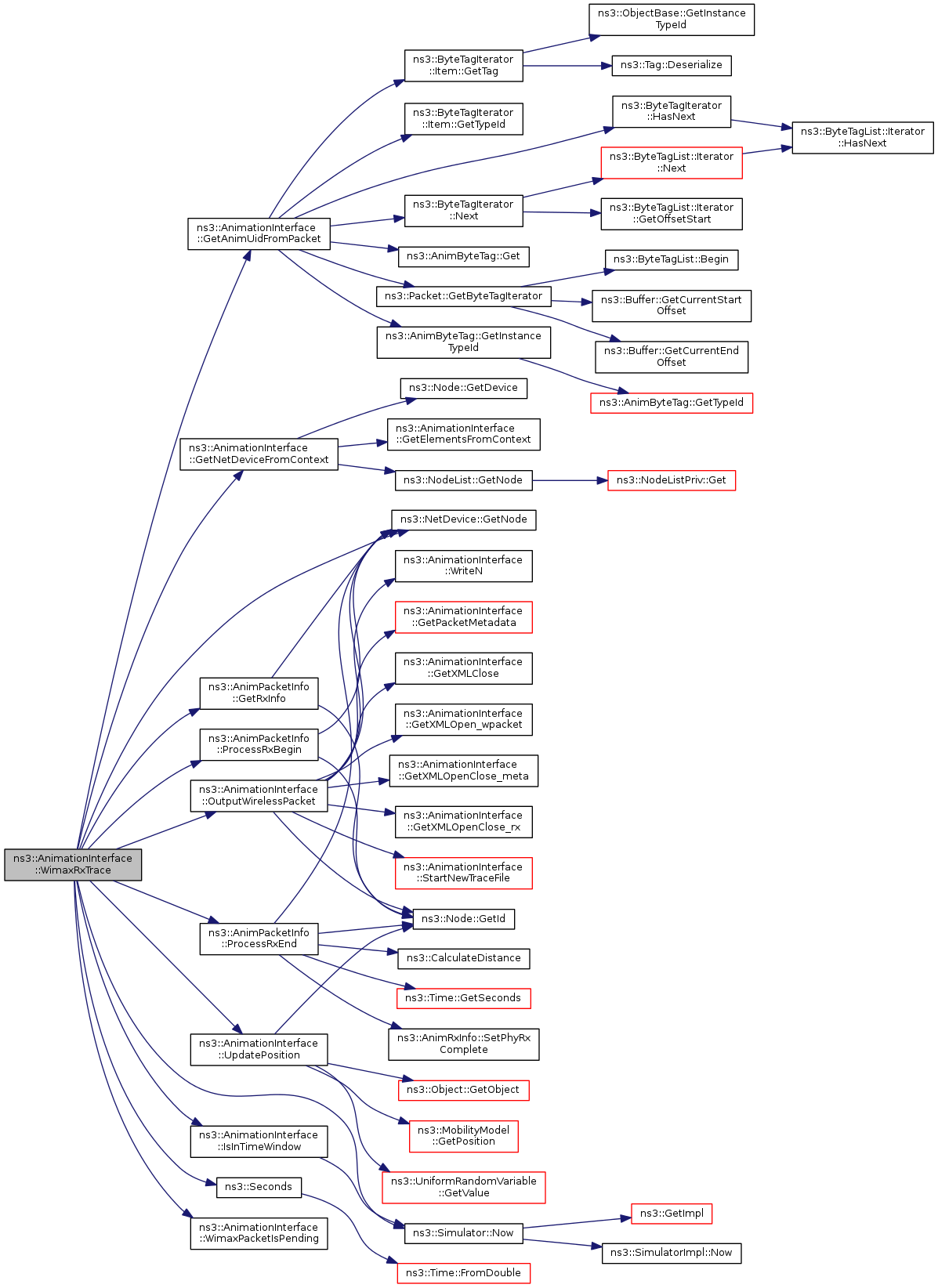

Here is the call graph for this function:

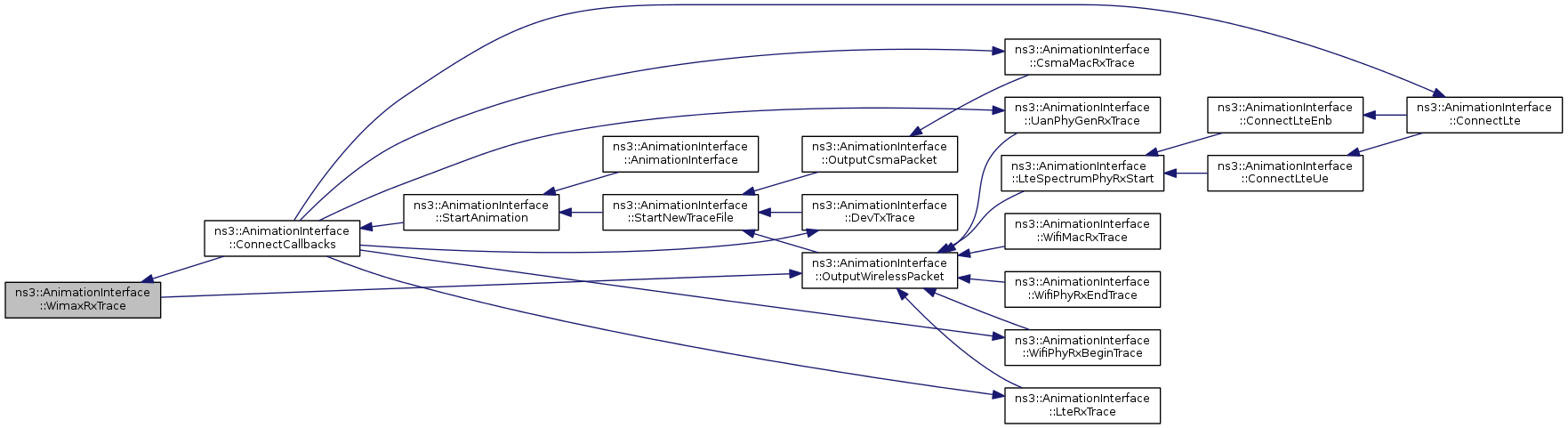

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxTxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 1012 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingWimaxPacket(), gAnimUid, GetNetDeviceFromContext(), ns3::NetDevice::GetNode(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::Seconds(), ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

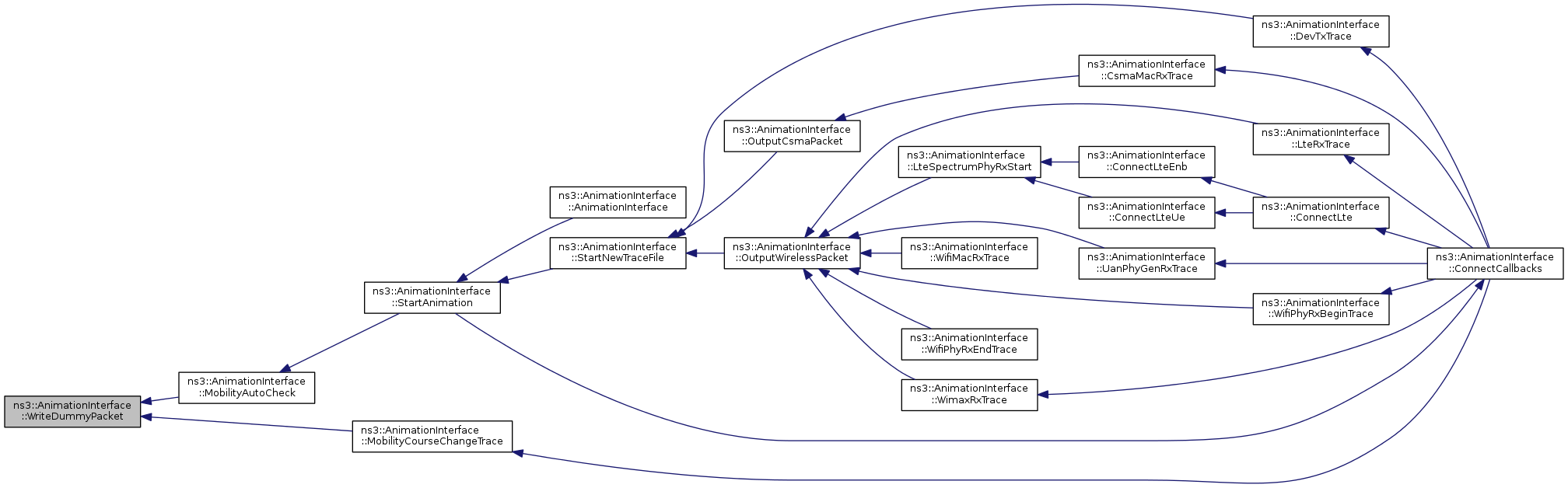

void ns3::AnimationInterface::WriteDummyPacket ( )

private

Definition at line 707 of file animation-interface.cc.

References ns3::Time::GetSeconds(), GetXMLClose(), GetXMLOpen_packet(), GetXMLOpenClose_rx(), m_xml, ns3::Now(), and WriteN().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

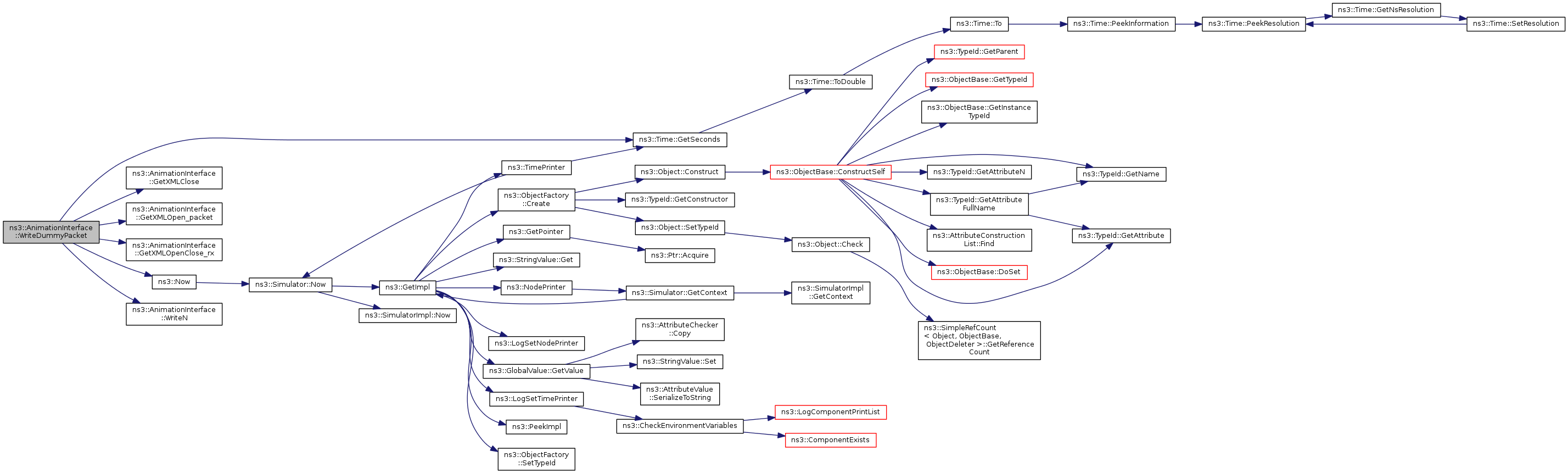

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN ( const char *  data, uint32_t  count  )

private

Definition at line 687 of file animation-interface.cc.

References data, and m_f.

Referenced by DevTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), OutputCsmaPacket(), OutputWirelessPacket(), ShowNode(), StartAnimation(), StopAnimation(), UpdateLinkDescription(), UpdateNodeColor(), UpdateNodeDescription(), WriteDummyPacket(), and WriteN().

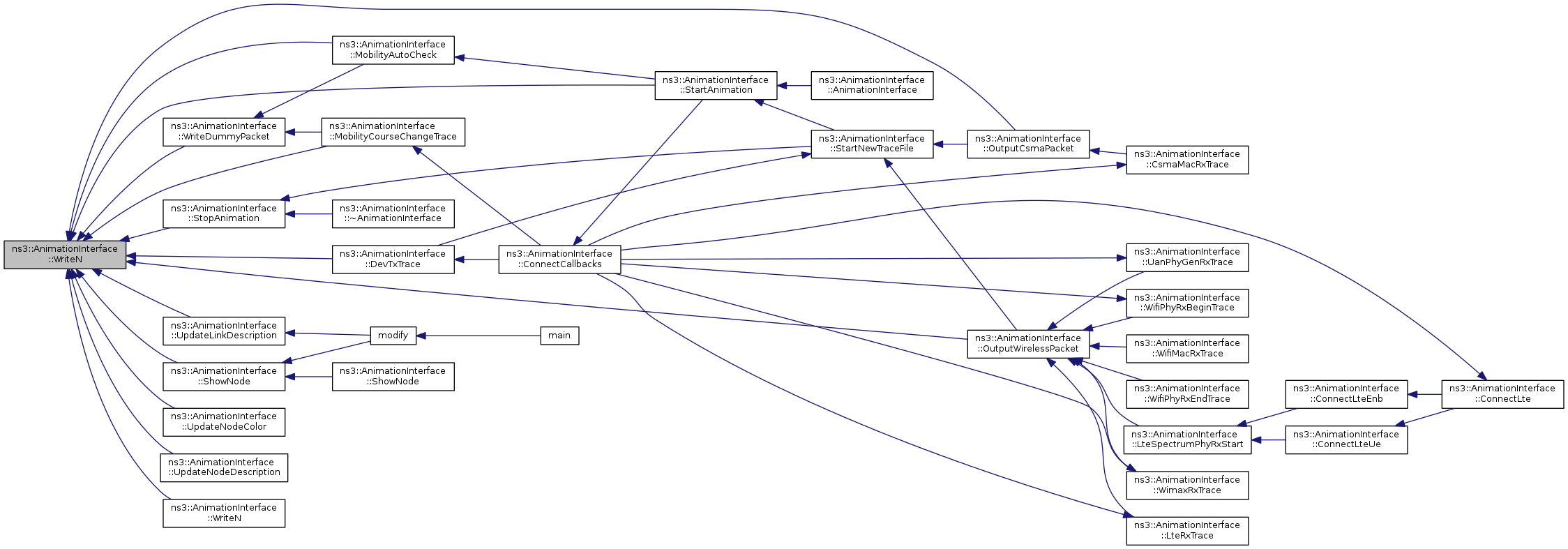

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN ( const std::string &  st )

private

Definition at line 615 of file animation-interface.cc.

References m_writeCallback, and WriteN().

Here is the call graph for this function:

Member Data Documentation

uint64_t ns3::AnimationInterface::gAnimUid

private

Definition at line 423 of file animation-interface.h.

Referenced by CsmaPhyTxBeginTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare > ns3::AnimationInterface::linkProperties

staticprivate

Definition at line 550 of file animation-interface.h.

Referenced by GetXMLOpenClose_link(), SetLinkDescription(), and StartAnimation().

uint64_t ns3::AnimationInterface::m_currentPktCount

private

Definition at line 551 of file animation-interface.h.

Referenced by DevTxTrace(), GetTracePktCount(), StartAnimation(), and StartNewTraceFile().

bool ns3::AnimationInterface::m_enablePacketMetadata

private

Definition at line 427 of file animation-interface.h.

Referenced by DevTxTrace(), EnablePacketMetadata(), OutputCsmaPacket(), and OutputWirelessPacket().

FILE* ns3::AnimationInterface::m_f

private

Definition at line 416 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), and WriteN().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap

private

Definition at line 541 of file animation-interface.h.

Referenced by WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

uint64_t ns3::AnimationInterface::m_maxPktsPerFile

private

Definition at line 430 of file animation-interface.h.

Referenced by StartNewTraceFile().

Time ns3::AnimationInterface::m_mobilityPollInterval

private

Definition at line 420 of file animation-interface.h.

Referenced by MobilityAutoCheck(), SetMobilityPollInterval(), and StartAnimation().

std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation

private

Definition at line 518 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

std::string ns3::AnimationInterface::m_originalFileName

private

Definition at line 431 of file animation-interface.h.

Referenced by StartNewTraceFile().

std::string ns3::AnimationInterface::m_outputFileName

private

Definition at line 421 of file animation-interface.h.

Referenced by SetOutputFile(), StartAnimation(), and StartNewTraceFile().

bool ns3::AnimationInterface::m_outputFileSet

private

Definition at line 422 of file animation-interface.h.

Referenced by SetOutputFile(), and StopAnimation().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingCsmaPackets

private

Definition at line 508 of file animation-interface.h.

Referenced by AddPendingCsmaPacket(), CsmaMacRxTrace(), CsmaPacketIsPending(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), and PurgePendingCsma().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingLtePackets

private

Definition at line 504 of file animation-interface.h.

Referenced by AddPendingLtePacket(), LtePacketIsPending(), LteRxTrace(), LteSpectrumPhyRxStart(), and PurgePendingLte().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingUanPackets

private

Definition at line 512 of file animation-interface.h.

Referenced by AddPendingUanPacket(), UanPacketIsPending(), and UanPhyGenRxTrace().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWifiPackets

private

Definition at line 496 of file animation-interface.h.

Referenced by AddPendingWifiPacket(), PurgePendingWifi(), WifiMacRxTrace(), WifiPacketIsPending(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxDropTrace().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWimaxPackets

private

Definition at line 500 of file animation-interface.h.

Referenced by AddPendingWimaxPacket(), PurgePendingWimax(), WimaxPacketIsPending(), and WimaxRxTrace().

bool ns3::AnimationInterface::m_randomPosition

private

Definition at line 424 of file animation-interface.h.

Referenced by SetRandomPosition(), and UpdatePosition().

bool ns3::AnimationInterface::m_started

private

Definition at line 426 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), IsStarted(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), StartAnimation(), StopAnimation(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Time ns3::AnimationInterface::m_startTime

private

Definition at line 428 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

Time ns3::AnimationInterface::m_stopTime

private

Definition at line 429 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

double ns3::AnimationInterface::m_topoMaxX

private

Definition at line 563 of file animation-interface.h.

Referenced by AddMargin(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMaxY

private

Definition at line 564 of file animation-interface.h.

Referenced by AddMargin(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinX

private

Definition at line 561 of file animation-interface.h.

Referenced by AddMargin(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinY

private

Definition at line 562 of file animation-interface.h.

Referenced by AddMargin(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

Ptr<UniformRandomVariable> ns3::AnimationInterface::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 582 of file animation-interface.h.

Referenced by AnimationInterface(), AssignStreams(), and UpdatePosition().

AnimWriteCallback ns3::AnimationInterface::m_writeCallback

private

Definition at line 425 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

bool ns3::AnimationInterface::m_xml

private

Definition at line 419 of file animation-interface.h.

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacket(), SetXMLOutput(), StartAnimation(), StopAnimation(), and WriteDummyPacket().

std::map< uint32_t, Rgb > ns3::AnimationInterface::nodeColors

staticprivate

Definition at line 548 of file animation-interface.h.

Referenced by GetXMLOpenClose_nodeupdate(), SetNodeColor(), StartAnimation(), and UpdateNodeColor().

std::map< uint32_t, std::string > ns3::AnimationInterface::nodeDescriptions

staticprivate

Definition at line 549 of file animation-interface.h.

Referenced by GetXMLOpenClose_node(), GetXMLOpenClose_nodeupdate(), SetNodeDescription(), and UpdateNodeDescription().

---

The documentation for this class was generated from the following files:

• src/netanim/model/animation-interface.h
• src/netanim/model/animation-interface.cc
