use constant rates for data and control transmissions More...

#include <constant-rate-wifi-manager.h>

Inheritance diagram for ns3::ConstantRateWifiManager:

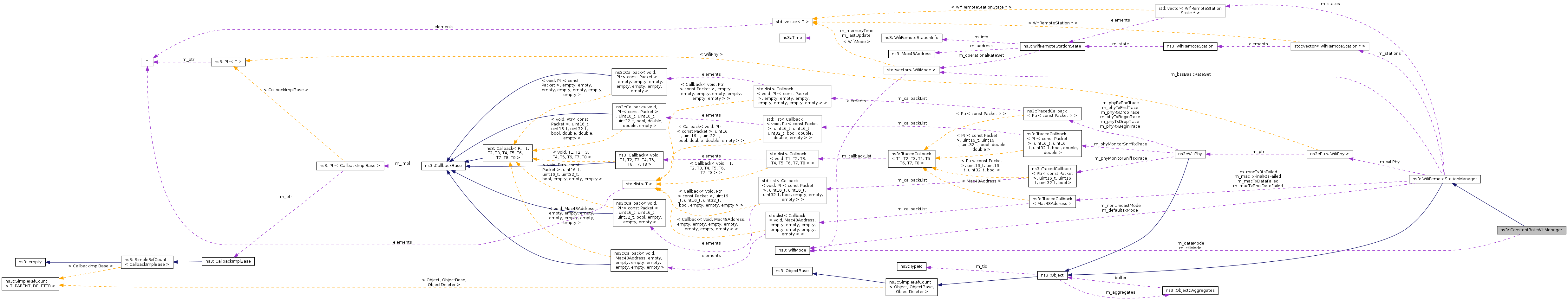

Collaboration diagram for ns3::ConstantRateWifiManager:

Public Member Functions
	ConstantRateWifiManager ()
virtual	~ConstantRateWifiManager ()
Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()
virtual	~WifiRemoteStationManager ()
void	AddBasicMode (WifiMode mode)
void	AddSupportedMode (Mac48Address address, WifiMode mode)
WifiMode	GetAckMode (Mac48Address address, WifiMode dataMode)
WifiMode	GetBasicMode (uint32_t i) const
WifiMode	GetCtsMode (Mac48Address address, WifiMode rtsMode)
WifiMode	GetDataMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
WifiMode	GetDefaultMode (void) const
uint32_t	GetFragmentationThreshold (void) const
uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
WifiRemoteStationInfo	GetInfo (Mac48Address address)
uint32_t	GetMaxSlrc (void) const
uint32_t	GetMaxSsrc (void) const
uint32_t	GetNBasicModes (void) const
WifiMode	GetNonUnicastMode (void) const
uint32_t	GetRtsCtsThreshold (void) const
WifiMode	GetRtsMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	IsAssociated (Mac48Address address) const
bool	IsBrandNew (Mac48Address address) const
bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool	IsWaitAssocTxOk (Mac48Address address) const
bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
void	RecordDisassociated (Mac48Address address)
void	RecordGotAssocTxFailed (Mac48Address address)
void	RecordGotAssocTxOk (Mac48Address address)
void	RecordWaitAssocTxOk (Mac48Address address)
void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)
void	Reset (void)
void	Reset (Mac48Address address)
void	SetFragmentationThreshold (uint32_t threshold)
void	SetMaxSlrc (uint32_t maxSlrc)
void	SetMaxSsrc (uint32_t maxSsrc)
void	SetRtsCtsThreshold (uint32_t threshold)
virtual void	SetupPhy (Ptr< WifiPhy > phy)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantRateWifiManager.

Private Member Functions
virtual WifiRemoteStation *	DoCreateStation (void) const
virtual WifiMode	DoGetDataMode (WifiRemoteStation *station, uint32_t size)
virtual WifiMode	DoGetRtsMode (WifiRemoteStation *station)
virtual void	DoReportDataFailed (WifiRemoteStation *station)
virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)
virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)
virtual void	DoReportRtsFailed (WifiRemoteStation *station)
virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
virtual bool	IsLowLatency (void) const

Private Attributes
WifiMode	m_ctlMode
WifiMode	m_dataMode

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)
uint32_t	GetNSupported (const WifiRemoteStation *station) const
WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const

Detailed Description

use constant rates for data and control transmissions

This class uses always the same transmission rate for every packet sent.

Definition at line 36 of file constant-rate-wifi-manager.h.

Constructor & Destructor Documentation

ns3::ConstantRateWifiManager::ConstantRateWifiManager ( )

Definition at line 48 of file constant-rate-wifi-manager.cc.

ns3::ConstantRateWifiManager::~ConstantRateWifiManager ( )

virtual

Definition at line 51 of file constant-rate-wifi-manager.cc.

Member Function Documentation

WifiRemoteStation * ns3::ConstantRateWifiManager::DoCreateStation ( void ) const

privatevirtual

Definition at line 57 of file constant-rate-wifi-manager.cc.

WifiMode ns3::ConstantRateWifiManager::DoGetDataMode	(	WifiRemoteStation *	station,
		uint32_t	size
	)

privatevirtual

Definition at line 97 of file constant-rate-wifi-manager.cc.

References m_dataMode.

WifiMode ns3::ConstantRateWifiManager::DoGetRtsMode ( WifiRemoteStation * station )

privatevirtual

Definition at line 102 of file constant-rate-wifi-manager.cc.

References m_ctlMode.

void ns3::ConstantRateWifiManager::DoReportDataFailed ( WifiRemoteStation * station )

privatevirtual

Definition at line 74 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatevirtual

Definition at line 83 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatevirtual

Definition at line 92 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatevirtual

Definition at line 88 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatevirtual

Definition at line 70 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatevirtual

Definition at line 78 of file constant-rate-wifi-manager.cc.

void ns3::ConstantRateWifiManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatevirtual

Definition at line 65 of file constant-rate-wifi-manager.cc.

TypeId ns3::ConstantRateWifiManager::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ConstantRateWifiManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager

Attributes defined for this type:

DataMode: The transmission mode to use for every data packet transmission
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: OfdmRate6Mbps
- Flags: construct write read
ControlMode: The transmission mode to use for every control packet transmission.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: OfdmRate6Mbps
- Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager:

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiRemoteStationManager:

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 31 of file constant-rate-wifi-manager.cc.

References m_ctlMode, m_dataMode, and ns3::TypeId::SetParent().

Here is the call graph for this function:
