ns3::Ipv6OptionJumbogram Class Reference

IPv6 Option Jumbogram. More...

#include <ipv6-option.h>

Inheritance diagram for ns3::Ipv6OptionJumbogram:

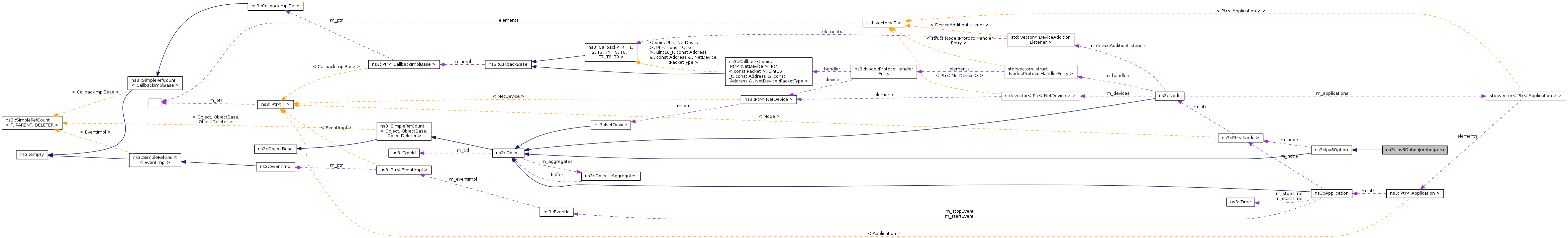

Collaboration diagram for ns3::Ipv6OptionJumbogram:

Public Member Functions
	Ipv6OptionJumbogram ()
	Constructor.
	~Ipv6OptionJumbogram ()
	Destructor.
virtual uint8_t	GetOptionNumber () const
	Get the option number.
virtual uint8_t	Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped)
	Process method Called from Ipv6L3Protocol::Receive.
Public Member Functions inherited from ns3::Ipv6Option
virtual	~Ipv6Option ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Attributes
static const uint8_t	OPT_NUMBER = 44
	Jumbogram option number.

Private Attributes
uint32_t	m_length
	The length of the packet.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

IPv6 Option Jumbogram.

Definition at line 188 of file ipv6-option.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionJumbogram::Ipv6OptionJumbogram

(

)

Constructor.

Definition at line 157 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6OptionJumbogram::~Ipv6OptionJumbogram

(

)

Destructor.

Definition at line 162 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint8_t ns3::Ipv6OptionJumbogram::GetOptionNumber ( ) const

virtual

Get the option number.

Returns

option number

Implements ns3::Ipv6Option.

Definition at line 167 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.

TypeId ns3::Ipv6OptionJumbogram::GetTypeId ( void  )

static

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6OptionJumbogram.

Returns

type identificator

No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv6Option:

• OptionNumber: The IPv6 option number.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Ipv6Option.

Definition at line 148 of file ipv6-option.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::Ipv6OptionJumbogram::Process ( Ptr< Packet >  packet, uint8_t  offset, Ipv6Header const &  ipv6Header, bool &  isDropped  )

virtual

Process method Called from Ipv6L3Protocol::Receive.

Parameters

packet	the packet
offset	the offset of the extension to process
ipv6Header	the IPv6 header of packet received
isDropped	if the packet must be dropped

Returns

the processed size

Implements ns3::Ipv6Option.

Definition at line 174 of file ipv6-option.cc.

References ns3::Packet::Copy(), ns3::Ipv6OptionJumbogramHeader::GetSerializedSize(), NS_LOG_FUNCTION, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

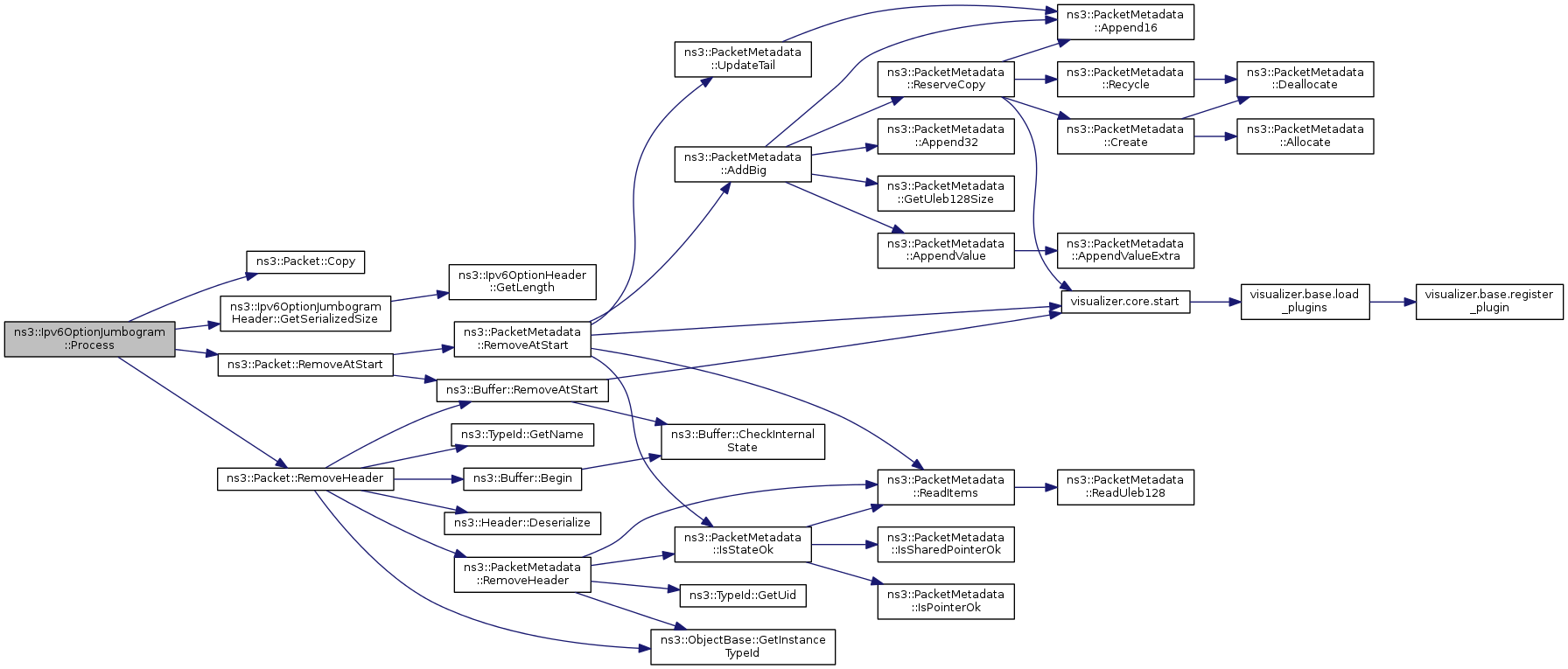

Here is the call graph for this function:

Member Data Documentation

uint32_t ns3::Ipv6OptionJumbogram::m_length

private

The length of the packet.

Definition at line 233 of file ipv6-option.h.

const uint8_t ns3::Ipv6OptionJumbogram::OPT_NUMBER = 44

static

Jumbogram option number.

Definition at line 194 of file ipv6-option.h.

Referenced by GetOptionNumber().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option.h
• doc/introspected-doxygen.h
• src/internet/model/ipv6-option.cc
