FLAME routing protocol. More...

#include <flame-protocol.h>

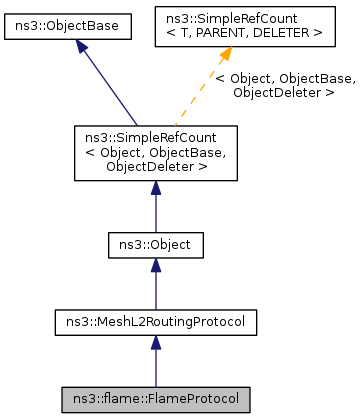

Inheritance diagram for ns3::flame::FlameProtocol:

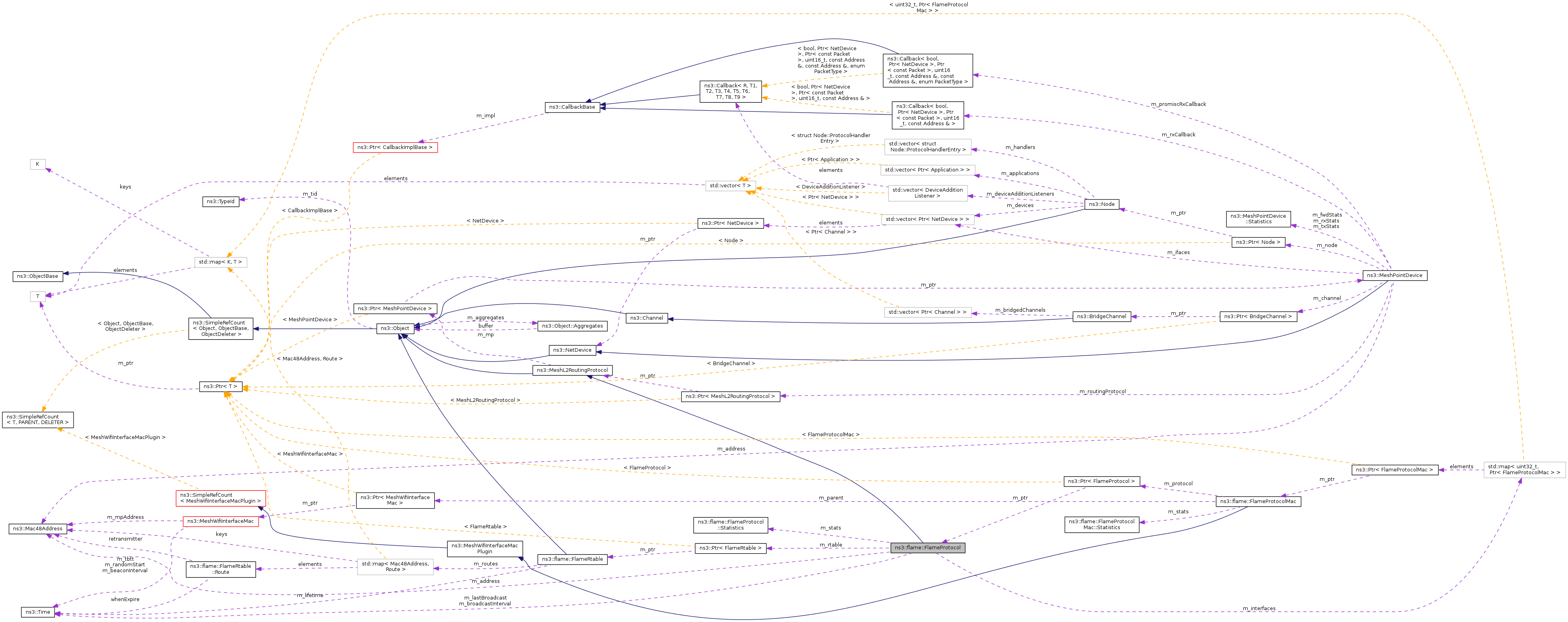

Collaboration diagram for ns3::flame::FlameProtocol:

Classes
struct	Statistics

Public Member Functions
	FlameProtocol ()
	~FlameProtocol ()
void	DoDispose ()
Mac48Address	GetAddress ()
bool	Install (Ptr< MeshPointDevice >)
	Install FLAME on given mesh point.
bool	RemoveRoutingStuff (uint32_t fromIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t &protocolType)
	Cleanup flame headers!
void	Report (std::ostream &) const
	Statistics.
bool	RequestRoute (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< const Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply)
	Route request, inherited from MeshL2RoutingProtocol.
void	ResetStats ()
Public Member Functions inherited from ns3::MeshL2RoutingProtocol
virtual	~MeshL2RoutingProtocol ()
	virtual D-tor for subclasses
Ptr< MeshPointDevice >	GetMeshPoint () const
	Each mesh protocol must be installed on the mesh point to work.
void	SetMeshPoint (Ptr< MeshPointDevice > mp)
	Set host mesh point, analog of SetNode (...) methods for upper layer protocols.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::flame::FlameProtocol.

Private Member Functions
	FlameProtocol (const FlameProtocol &)
bool	HandleDataFrame (uint16_t seqno, Mac48Address source, const FlameHeader flameHdr, Mac48Address receiver, uint32_t fromIface)
	Handles a packet: adds a routing information and drops packets by TTL or Seqno.
FlameProtocol &	operator= (const FlameProtocol &)

Private Attributes
uint8_t	m_maxCost
	Max Cost value (or TTL, because cost is actually hopcount)
uint16_t	m_myLastSeqno
	Sequence number:
Ptr< FlameRtable >	m_rtable
	Routing table:
Broadcast timers:
Time	m_broadcastInterval
Time	m_lastBroadcast
Statistics:
Statistics	m_stats

Static Private Attributes
static const uint16_t	FLAME_PROTOCOL = 0x4040
	LLC protocol number reserved by flame.

Information about MeshPointDeviceaddress, plugins
typedef std::map< uint32_t, Ptr< FlameProtocolMac > >	FlamePluginMap
FlamePluginMap	m_interfaces
Mac48Address	m_address

Additional Inherited Members
Public Types inherited from ns3::MeshL2RoutingProtocol
typedef Callback< void, bool, Ptr< Packet >, Mac48Address, Mac48Address, uint16_t, uint32_t >	RouteReplyCallback
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::MeshL2RoutingProtocol
Ptr< MeshPointDevice >	m_mp
	Host mesh point.

Detailed Description

FLAME routing protocol.

Definition at line 80 of file flame-protocol.h.

Member Typedef Documentation

typedef std::map<uint32_t, Ptr<FlameProtocolMac> > ns3::flame::FlameProtocol::FlamePluginMap

private

Definition at line 123 of file flame-protocol.h.

Constructor & Destructor Documentation

ns3::flame::FlameProtocol::FlameProtocol ( )

Definition at line 129 of file flame-protocol.cc.

ns3::flame::FlameProtocol::~FlameProtocol ( )

Definition at line 134 of file flame-protocol.cc.

ns3::flame::FlameProtocol::FlameProtocol ( const FlameProtocol & )

private

Member Function Documentation

void ns3::flame::FlameProtocol::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 138 of file flame-protocol.cc.

References m_interfaces, ns3::MeshL2RoutingProtocol::m_mp, and m_rtable.

Mac48Address ns3::flame::FlameProtocol::GetAddress ( void )

Definition at line 320 of file flame-protocol.cc.

References m_address.

Referenced by HandleDataFrame(), RemoveRoutingStuff(), and RequestRoute().

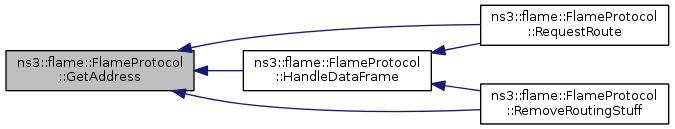

Here is the caller graph for this function:

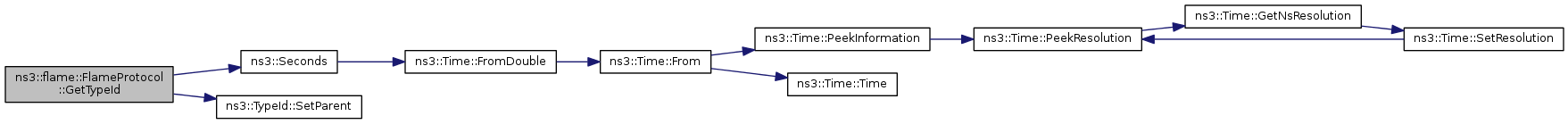

TypeId ns3::flame::FlameProtocol::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::flame::FlameProtocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/RoutingProtocol/$ns3::flame::FlameProtocol

Attributes defined for this type:

BroadcastInterval: How often we must send broadcast packets
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +5000000000.0ns
- Flags: construct write read
MaxCost: Cost threshold after which packet will be dropped
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 3:255
- Initial value: 32
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::MeshL2RoutingProtocol.

Definition at line 107 of file flame-protocol.cc.

References m_broadcastInterval, m_maxCost, ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::flame::FlameProtocol::HandleDataFrame	(	uint16_t	seqno,
		Mac48Address	source,
		const FlameHeader	flameHdr,
		Mac48Address	receiver,
		uint32_t	fromIface
	)

private

Handles a packet: adds a routing information and drops packets by TTL or Seqno.

Returns: true if packet shall be dropped

Definition at line 325 of file flame-protocol.cc.

References ns3::flame::FlameRtable::AddPath(), ns3::flame::FlameProtocol::Statistics::droppedTtl, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameHeader::GetCost(), ns3::flame::FlameHeader::GetSeqno(), ns3::flame::FlameRtable::Lookup(), m_maxCost, m_rtable, m_stats, ns3::flame::FlameRtable::LookupResult::retransmitter, ns3::flame::FlameRtable::LookupResult::seqnum, and ns3::flame::FlameProtocol::Statistics::totalDropped.

Referenced by RemoveRoutingStuff(), and RequestRoute().

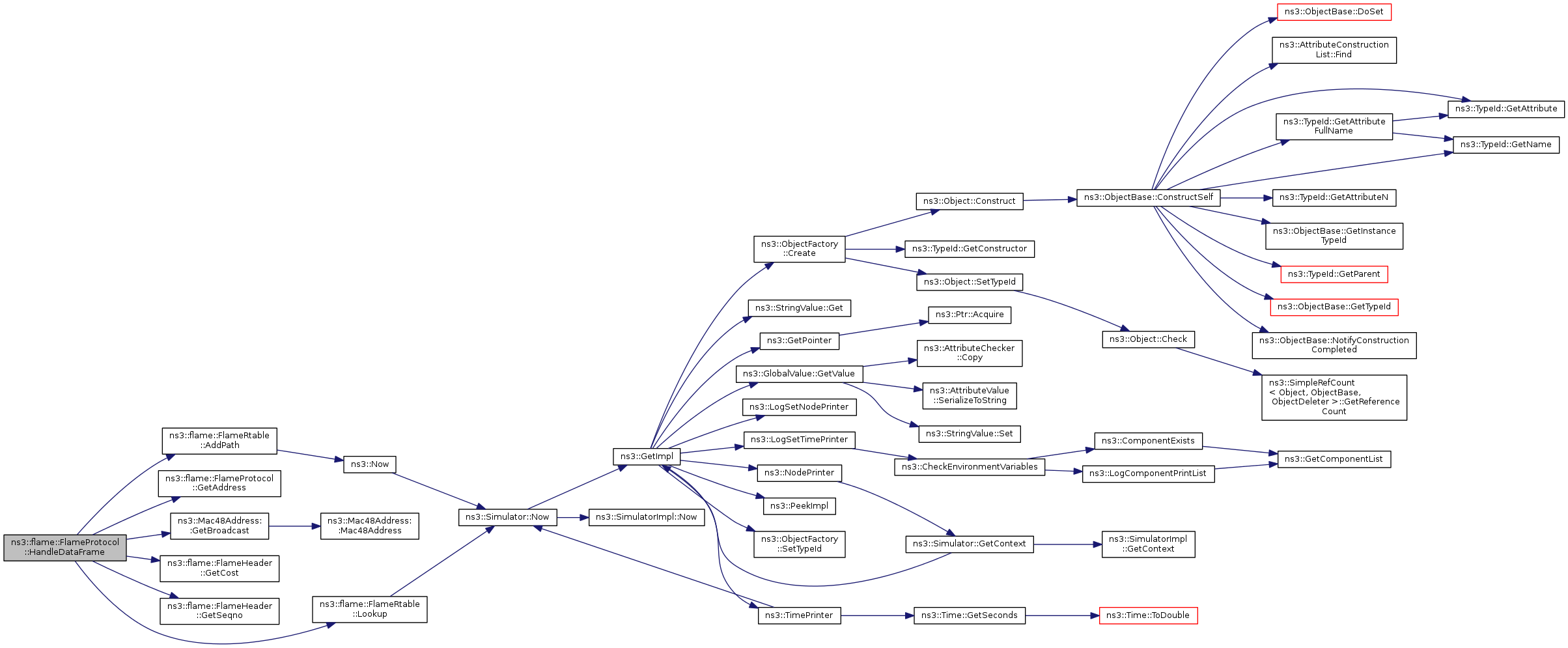

Here is the call graph for this function:

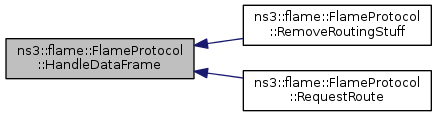

Here is the caller graph for this function:

bool ns3::flame::FlameProtocol::Install ( Ptr< MeshPointDevice > mp )

Install FLAME on given mesh point.

Installing protocol cause installing its interface MAC plugins.

Also MP aggregates all installed protocols, FLAME protocol can be accessed via MeshPointDevice::GetObject<flame::FlameProtocol>();

Definition at line 290 of file flame-protocol.cc.

References ns3::Object::AggregateObject(), ns3::Mac48Address::ConvertFrom(), ns3::MeshPointDevice::GetAddress(), ns3::MeshPointDevice::GetInterfaces(), ns3::MeshWifiInterfaceMac::InstallPlugin(), m_address, m_interfaces, ns3::MeshL2RoutingProtocol::m_mp, ns3::MeshWifiInterfaceMac::SetBeaconGeneration(), and ns3::MeshPointDevice::SetRoutingProtocol().

Referenced by ns3::FlameStack::InstallStack().

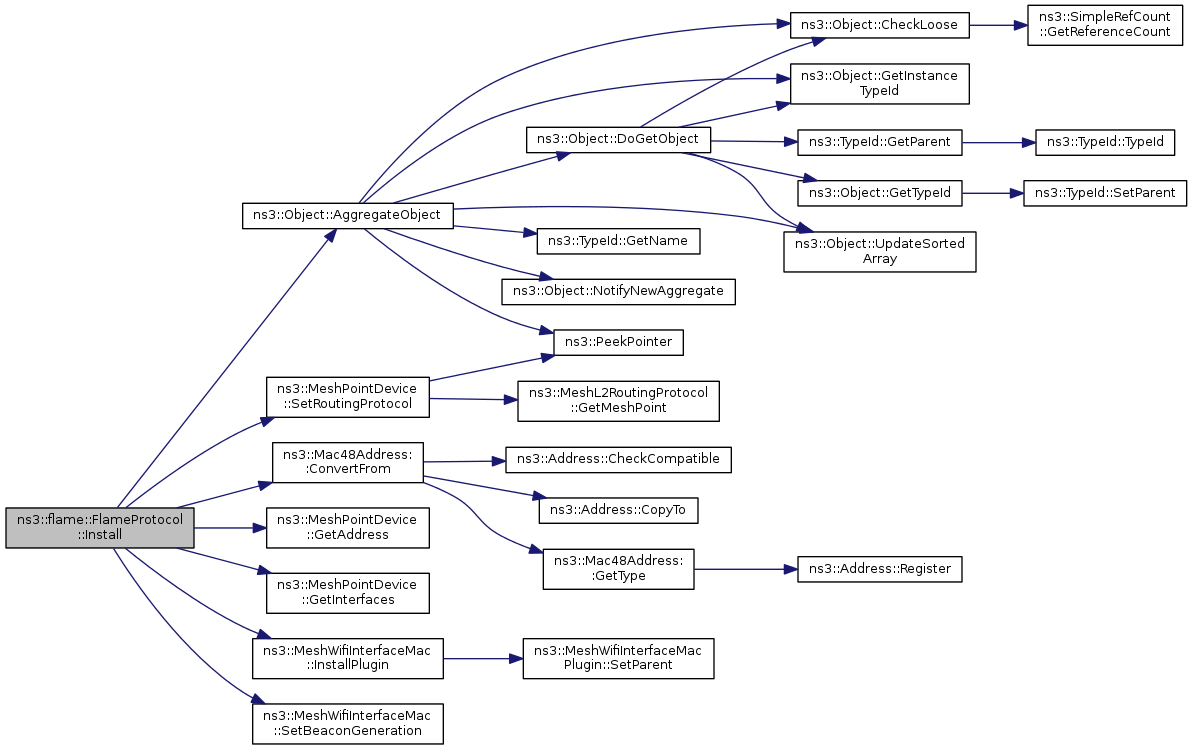

Here is the call graph for this function:

Here is the caller graph for this function:

FlameProtocol& ns3::flame::FlameProtocol::operator= ( const FlameProtocol & )

private

bool ns3::flame::FlameProtocol::RemoveRoutingStuff	(	uint32_t	fromIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< Packet >	packet,
		uint16_t &	protocolType
	)

virtual

Cleanup flame headers!

Implements ns3::MeshL2RoutingProtocol.

Definition at line 256 of file flame-protocol.cc.

References FLAME_PROTOCOL, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameHeader::GetSeqno(), HandleDataFrame(), m_broadcastInterval, m_lastBroadcast, ns3::MeshL2RoutingProtocol::m_mp, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::Seconds(), ns3::MeshPointDevice::Send(), and ns3::flame::FlameTag::transmitter.

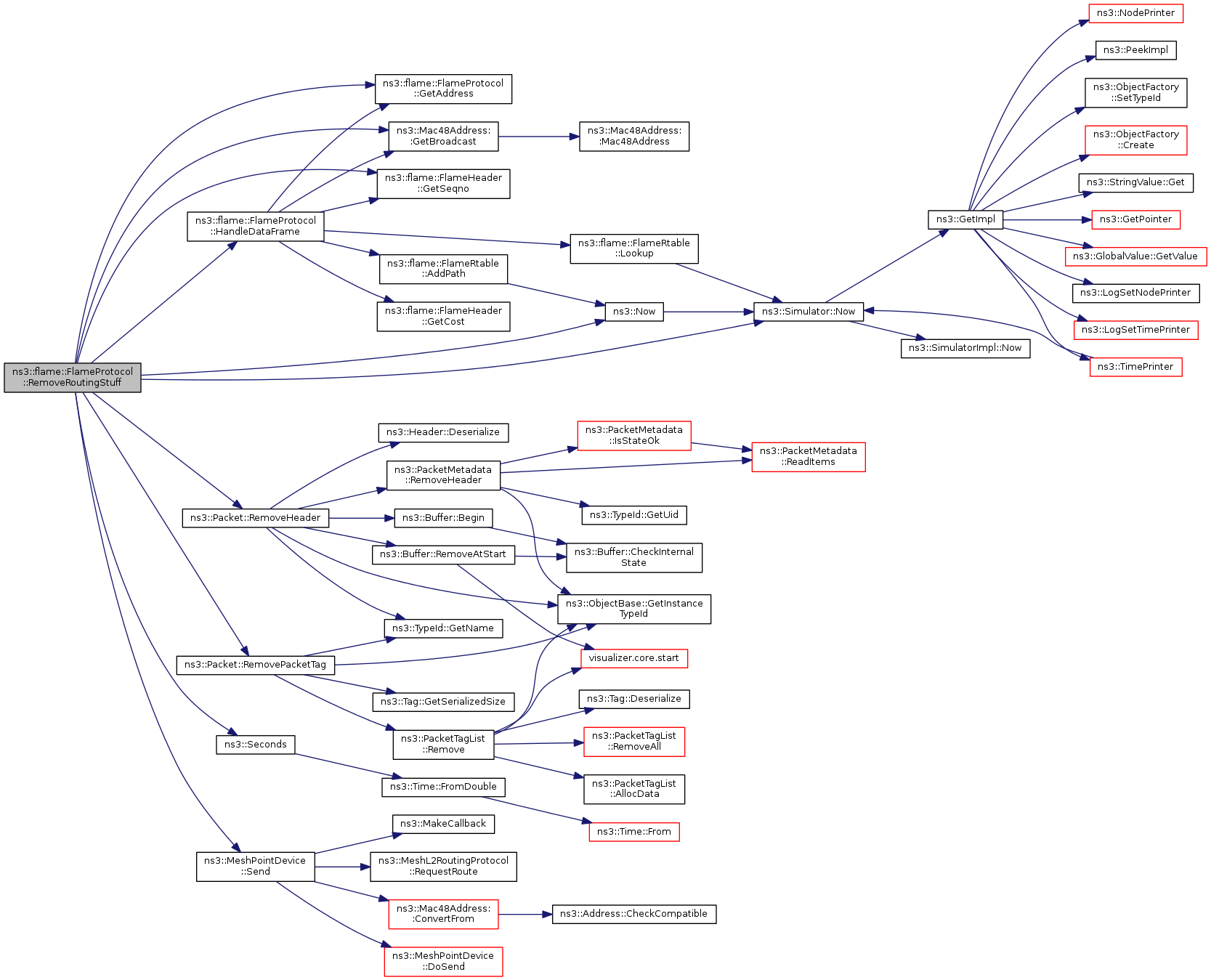

Here is the call graph for this function:

void ns3::flame::FlameProtocol::Report ( std::ostream & os ) const

Statistics.

Definition at line 362 of file flame-protocol.cc.

References ns3::Time::GetSeconds(), m_address, m_broadcastInterval, m_interfaces, m_maxCost, m_stats, and ns3::flame::FlameProtocol::Statistics::Print().

Referenced by ns3::FlameStack::Report().

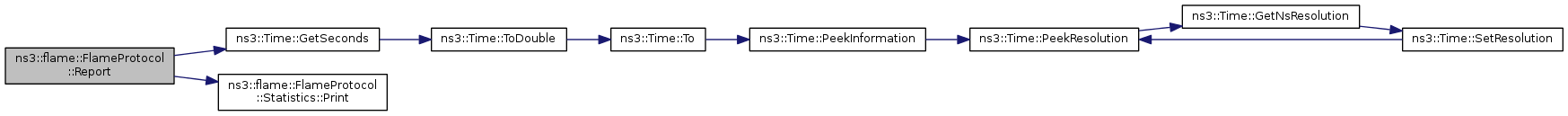

Here is the call graph for this function:

Here is the caller graph for this function:

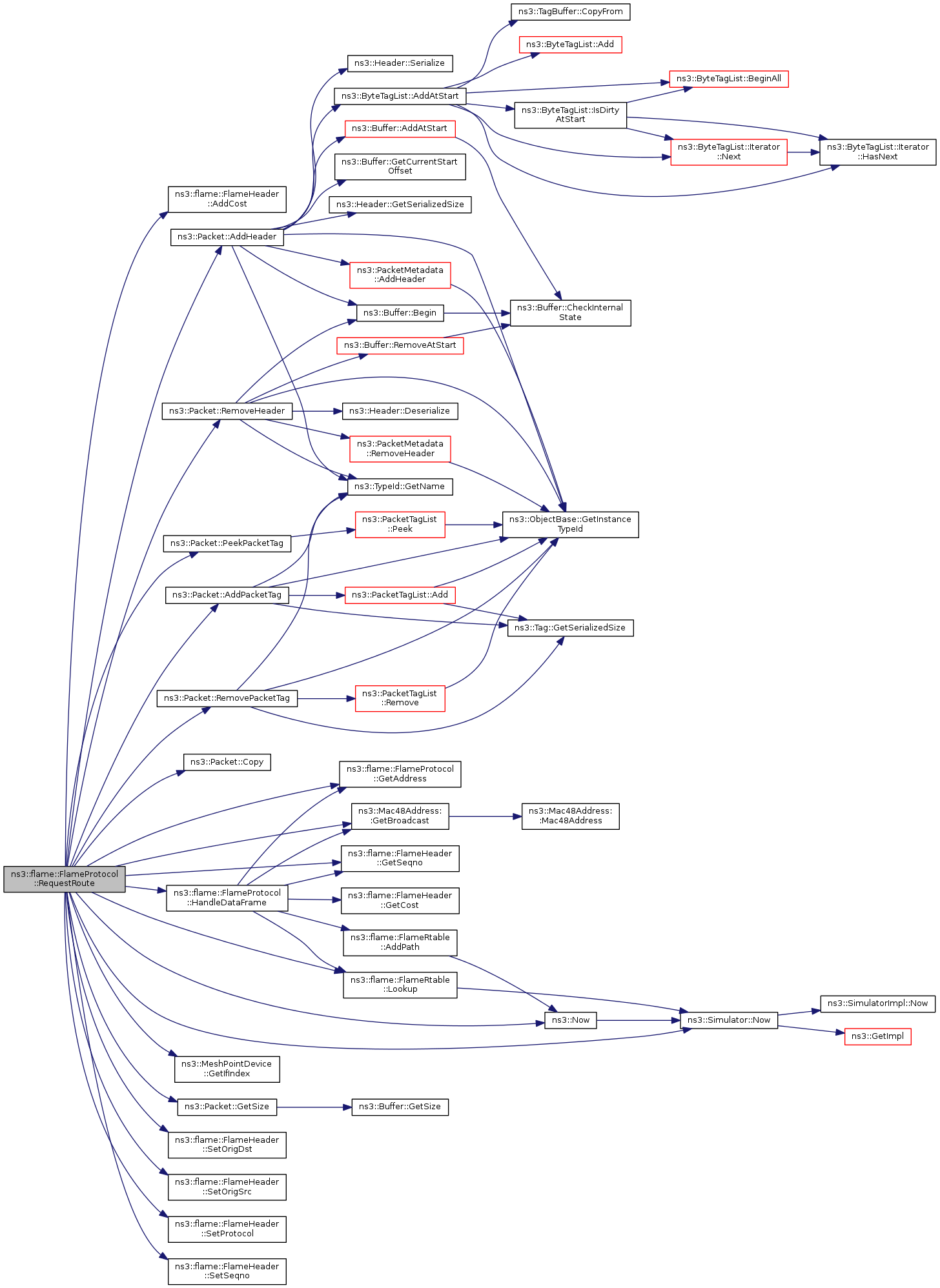

bool ns3::flame::FlameProtocol::RequestRoute	(	uint32_t	sourceIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< const Packet >	packet,
		uint16_t	protocolType,
		RouteReplyCallback	routeReply
	)
