ns3::ApWifiMac Class Reference

Wi-Fi AP state machineHandle association, dis-association and authentication, of STAs within an infrastructure BSS. More...

#include <ap-wifi-mac.h>

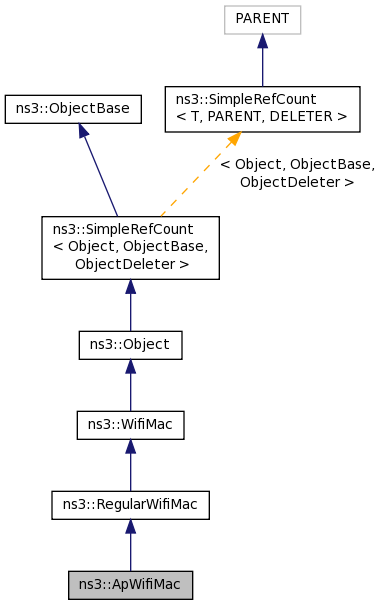

Inheritance diagram for ns3::ApWifiMac:

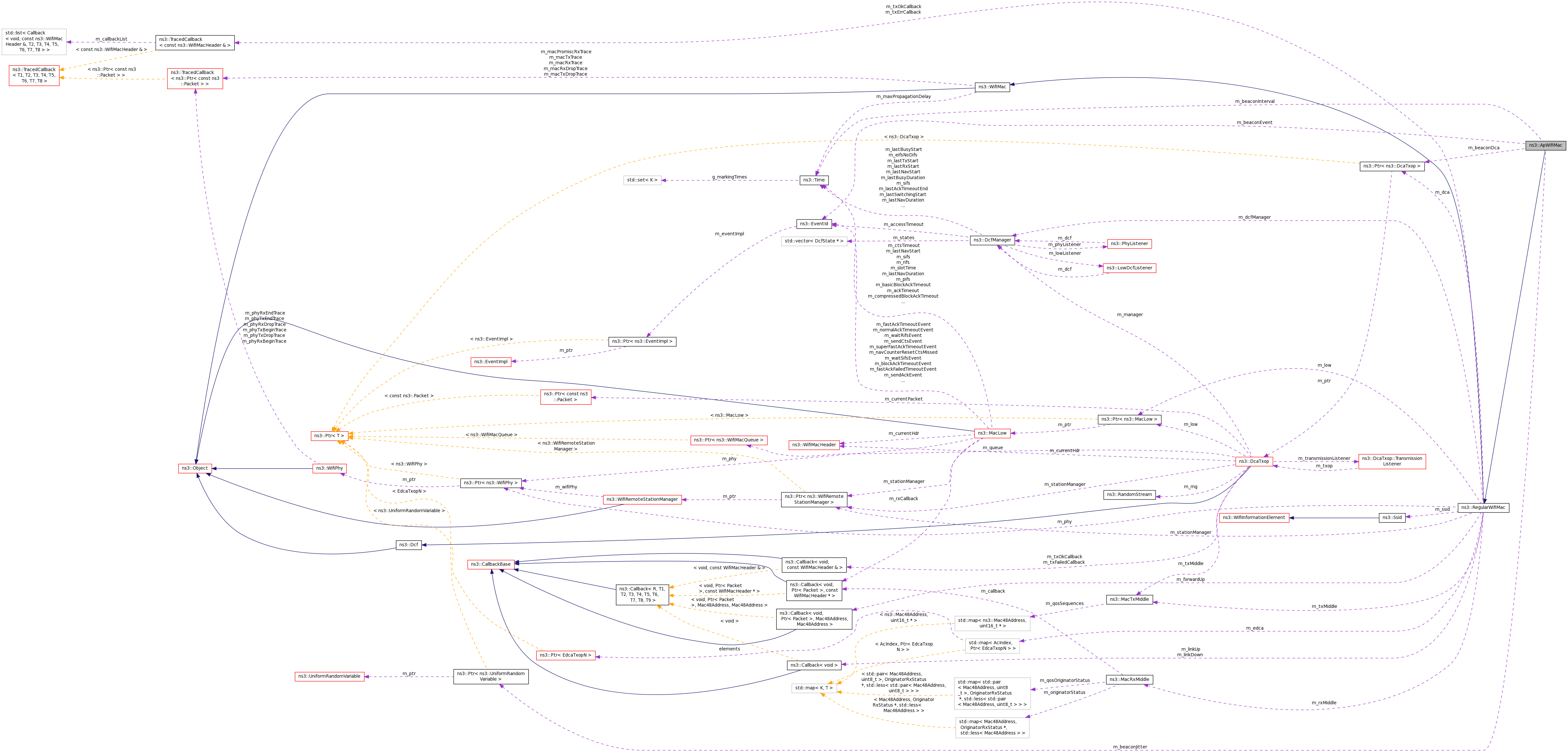

Collaboration diagram for ns3::ApWifiMac:

Public Member Functions
	ApWifiMac ()
virtual	~ApWifiMac ()

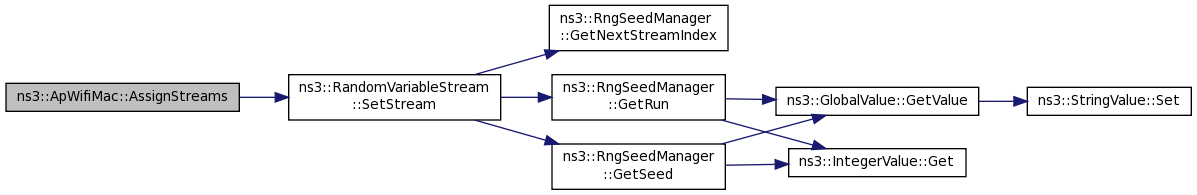

int64_t	AssignStreams (int64_t stream)
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
Time	GetBeaconInterval (void) const

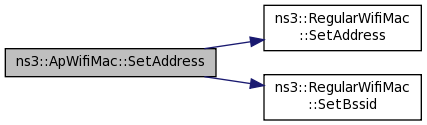

virtual void	SetAddress (Mac48Address address)
void	SetBeaconInterval (Time interval)
virtual void	SetLinkUpCallback (Callback< void > linkUp)
virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

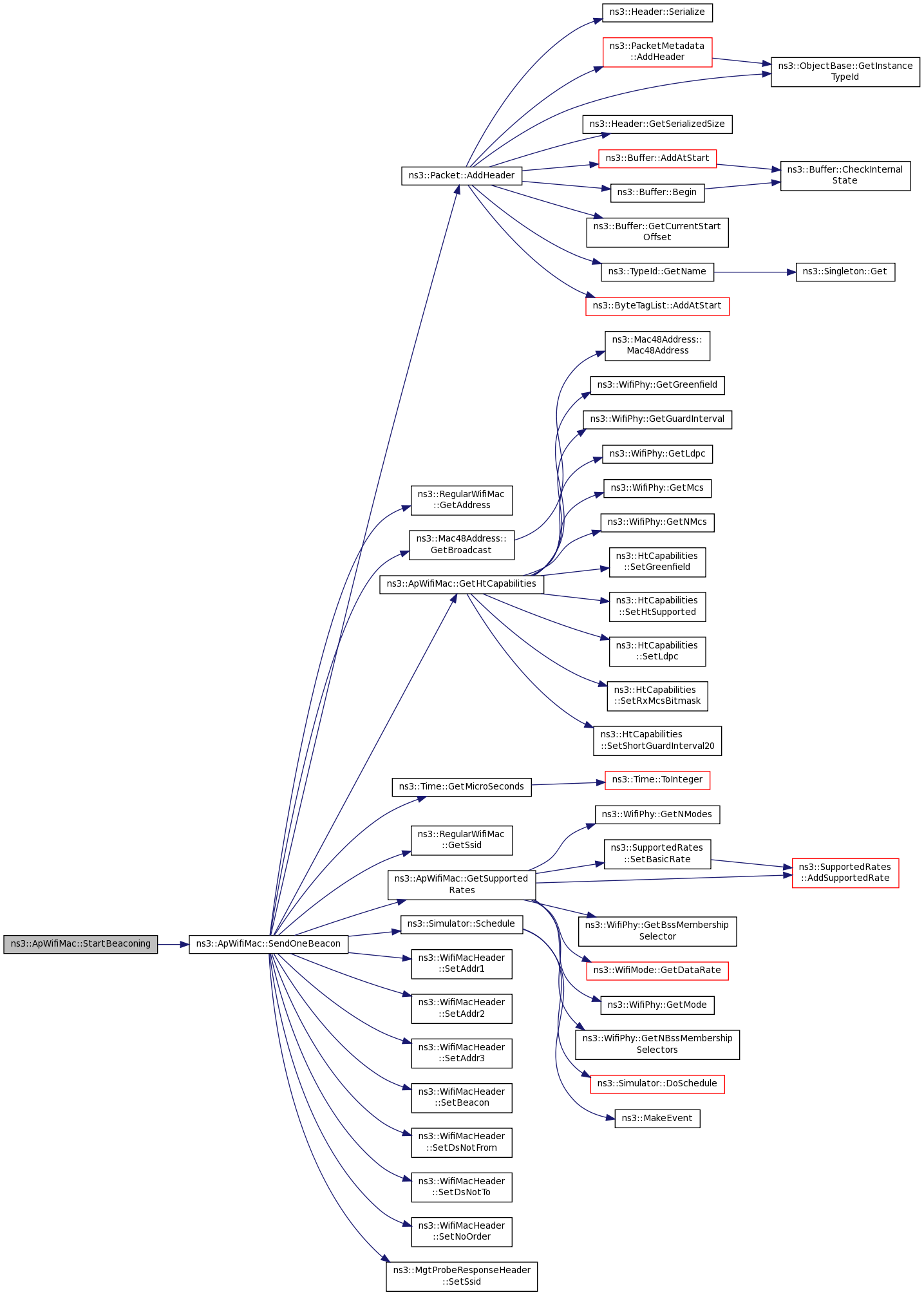

void	StartBeaconing (void)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()
virtual	~RegularWifiMac ()
Time	GetAckTimeout (void) const
virtual Mac48Address	GetAddress (void) const
virtual Time	GetBasicBlockAckTimeout (void) const
virtual Mac48Address	GetBssid (void) const
virtual Time	GetCompressedBlockAckTimeout (void) const
Time	GetCtsTimeout (void) const
bool	GetCtsToSelfSupported () const
Time	GetEifsNoDifs (void) const
Time	GetPifs (void) const
Time	GetRifs (void) const
Time	GetSifs (void) const
Time	GetSlot (void) const
virtual Ssid	GetSsid (void) const
virtual Ptr< WifiPhy >	GetWifiPhy () const
virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const
void	SetAckTimeout (Time ackTimeout)
virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void	SetBssid (Mac48Address bssid)
virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
void	SetCtsTimeout (Time ctsTimeout)
void	SetCtsToSelfSupported (bool enable)
void	SetEifsNoDifs (Time eifsNoDifs)
virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)
virtual void	SetLinkDownCallback (Callback< void > linkDown)
void	SetPifs (Time pifs)
virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...
void	SetRifs (Time rifs)
void	SetSifs (Time sifs)
void	SetSlot (Time slotTime)
virtual void	SetSsid (Ssid ssid)
virtual void	SetWifiPhy (Ptr< WifiPhy > phy)
Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)
Time	GetMaxPropagationDelay (void) const
Time	GetMsduLifetime (void) const
void	NotifyPromiscRx (Ptr< const Packet > packet)
void	NotifyRx (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyTx (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
void	SetMaxPropagationDelay (Time delay)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions

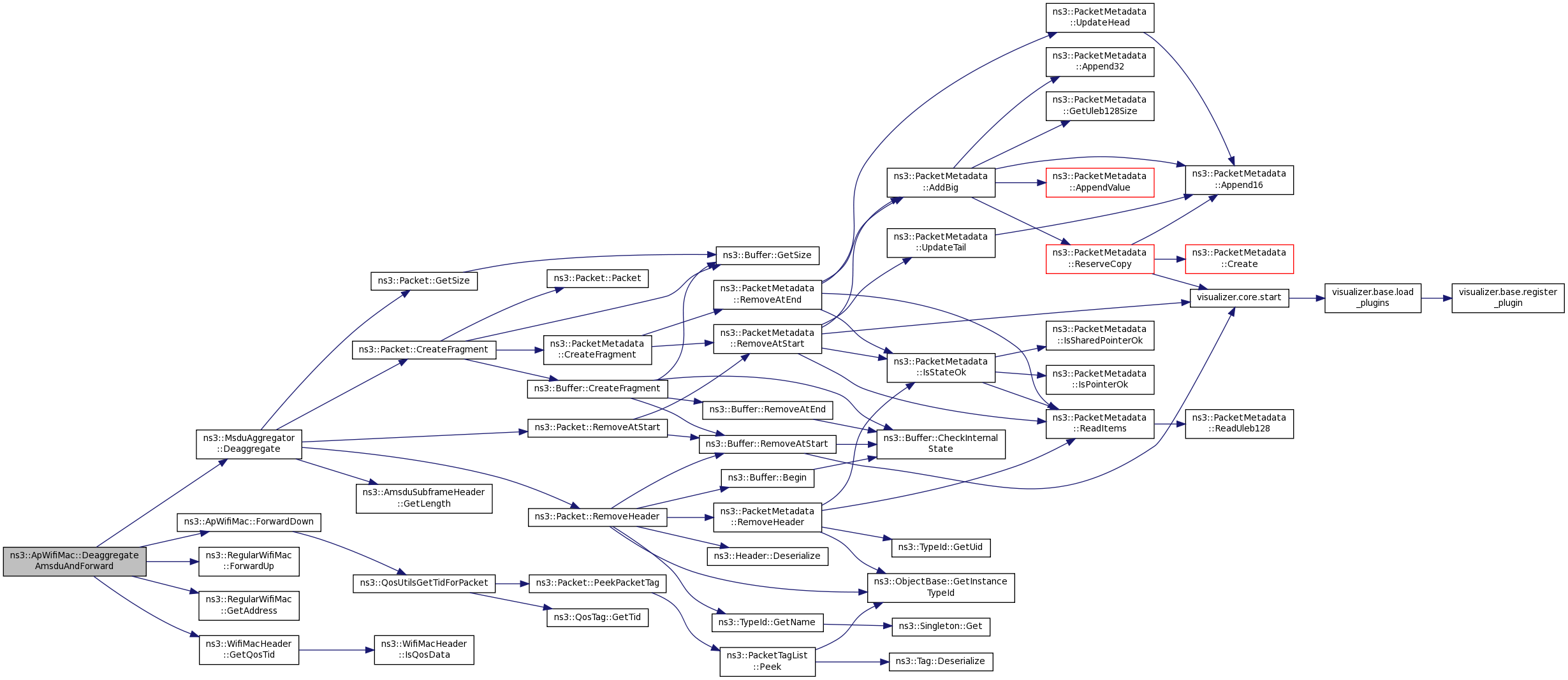

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)

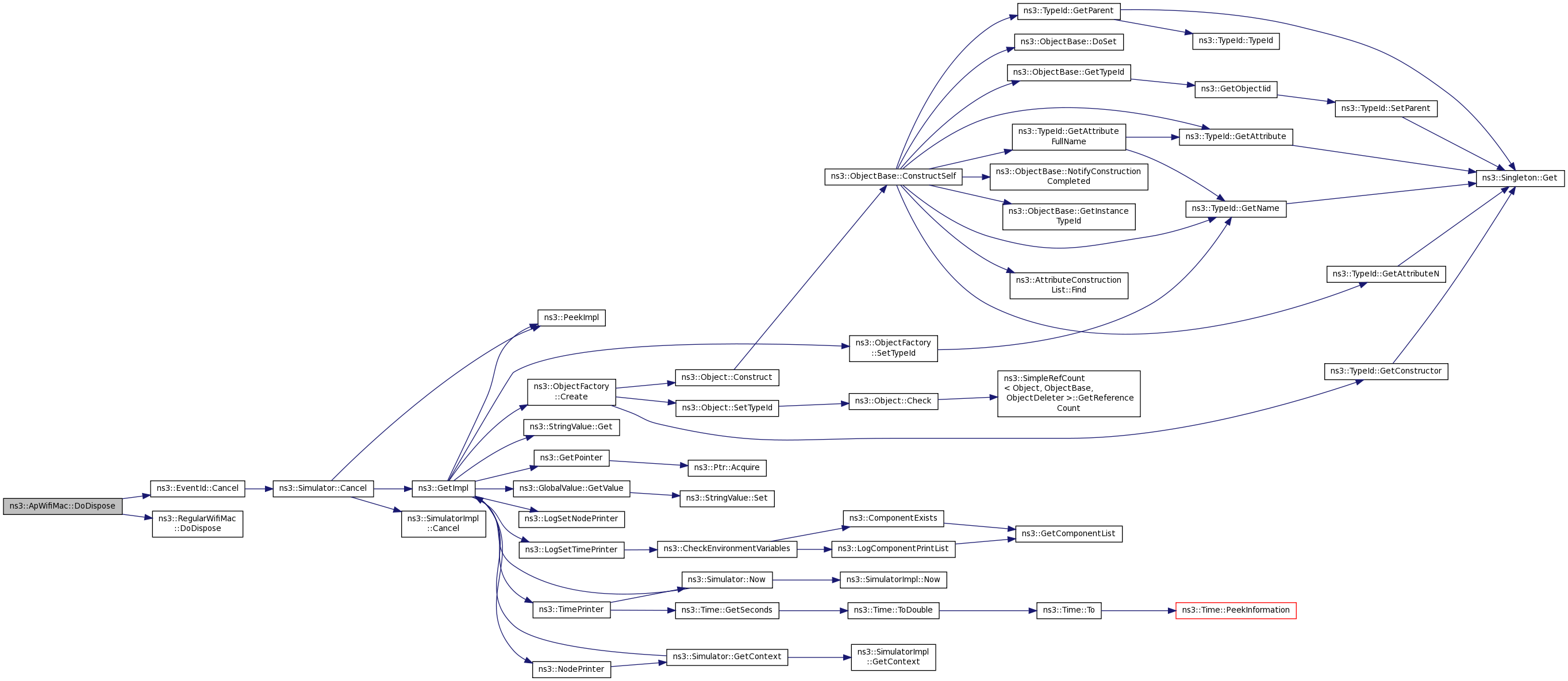

virtual void	DoDispose (void)
virtual void	DoInitialize (void)

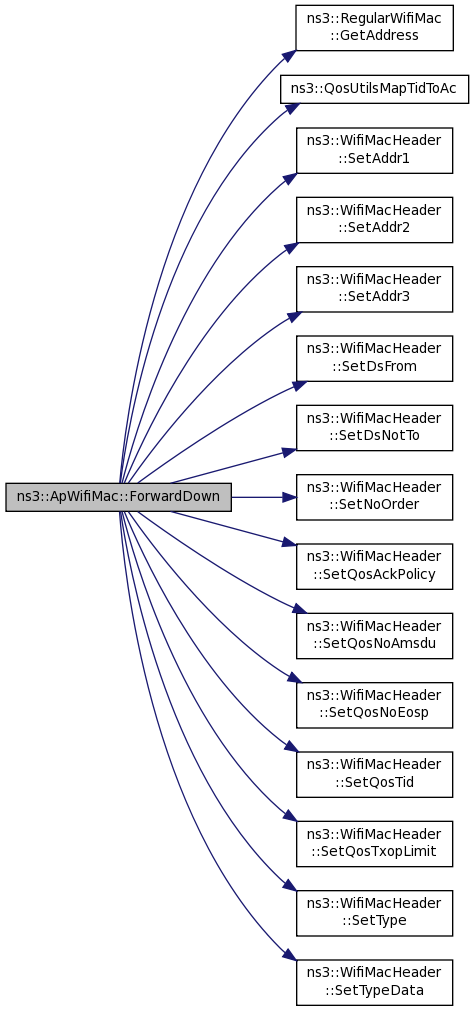

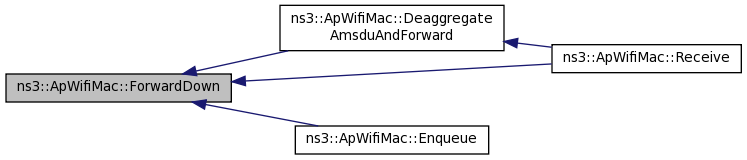

void	ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)

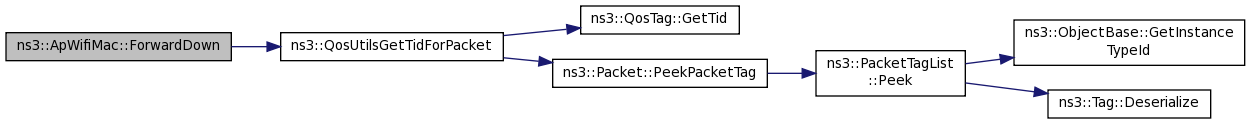

void	ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to, uint8_t tid)
bool	GetBeaconGeneration (void) const

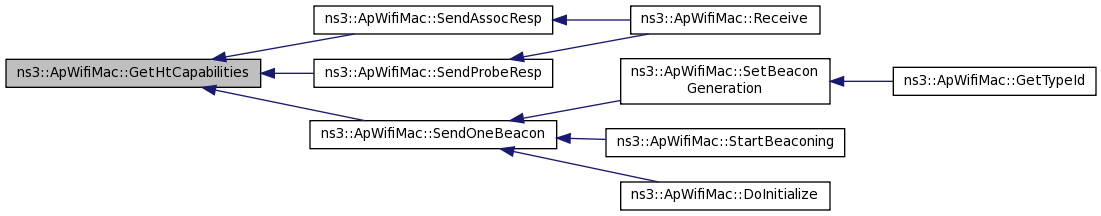

HtCapabilities	GetHtCapabilities (void) const
SupportedRates	GetSupportedRates (void) const

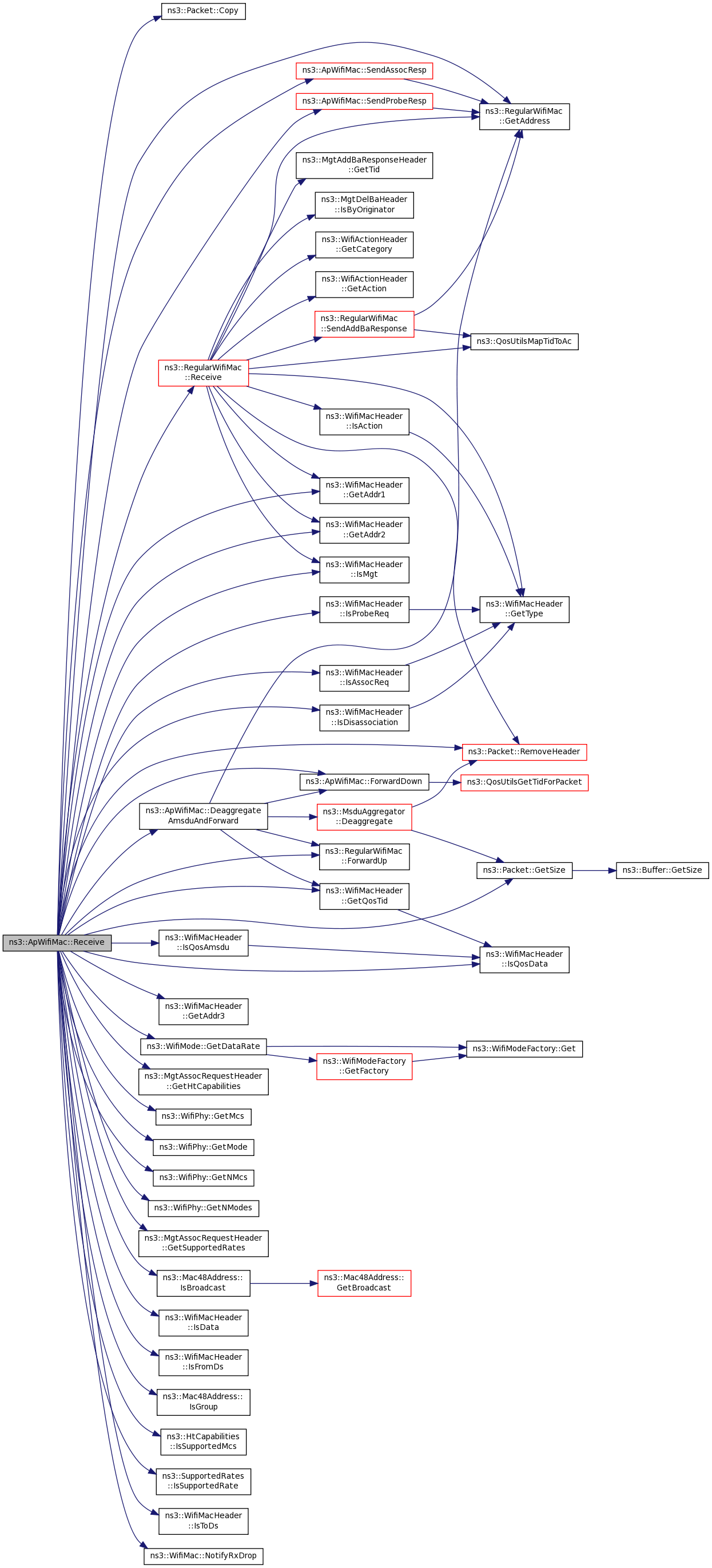

virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)

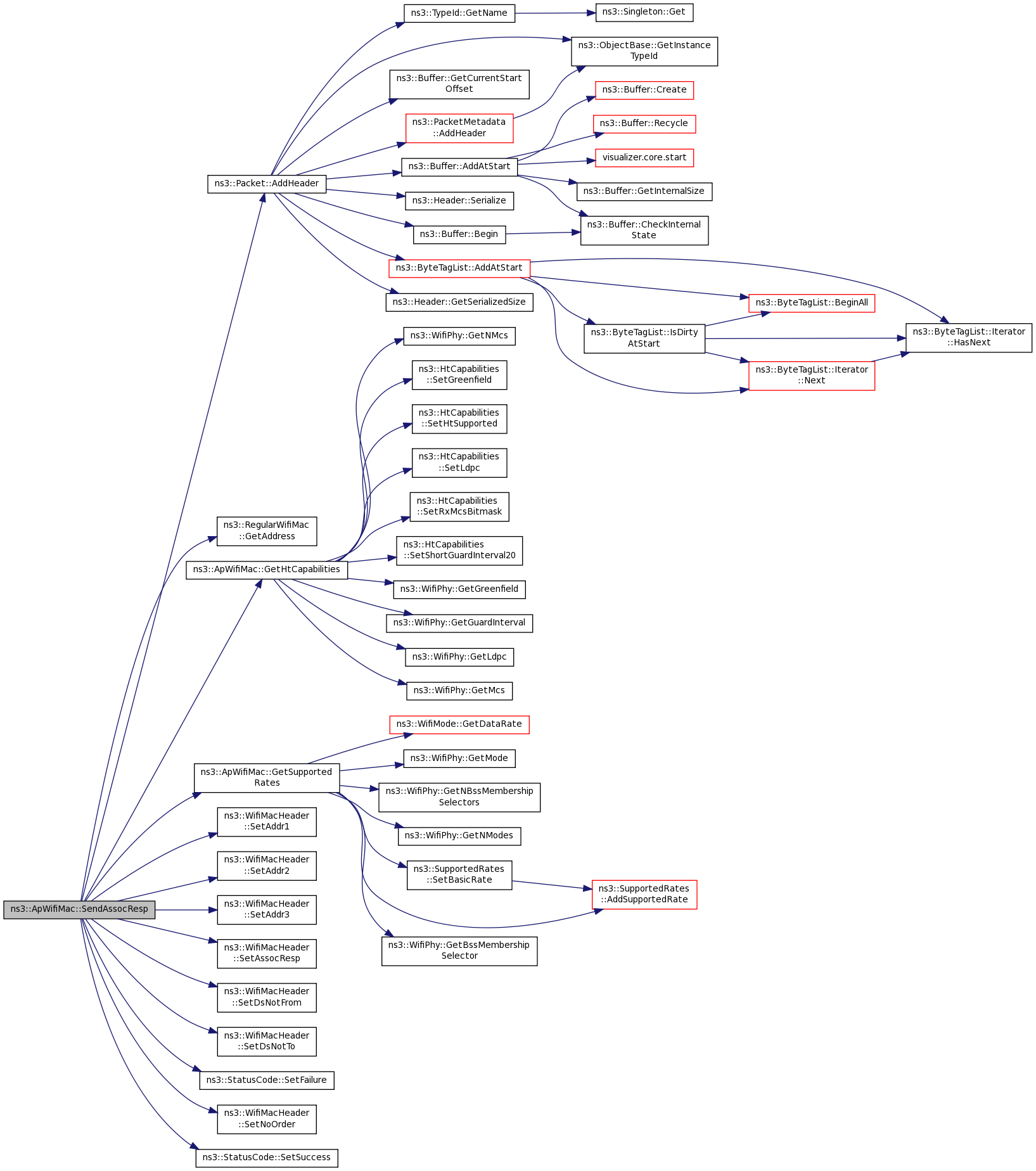

void	SendAssocResp (Mac48Address to, bool success)

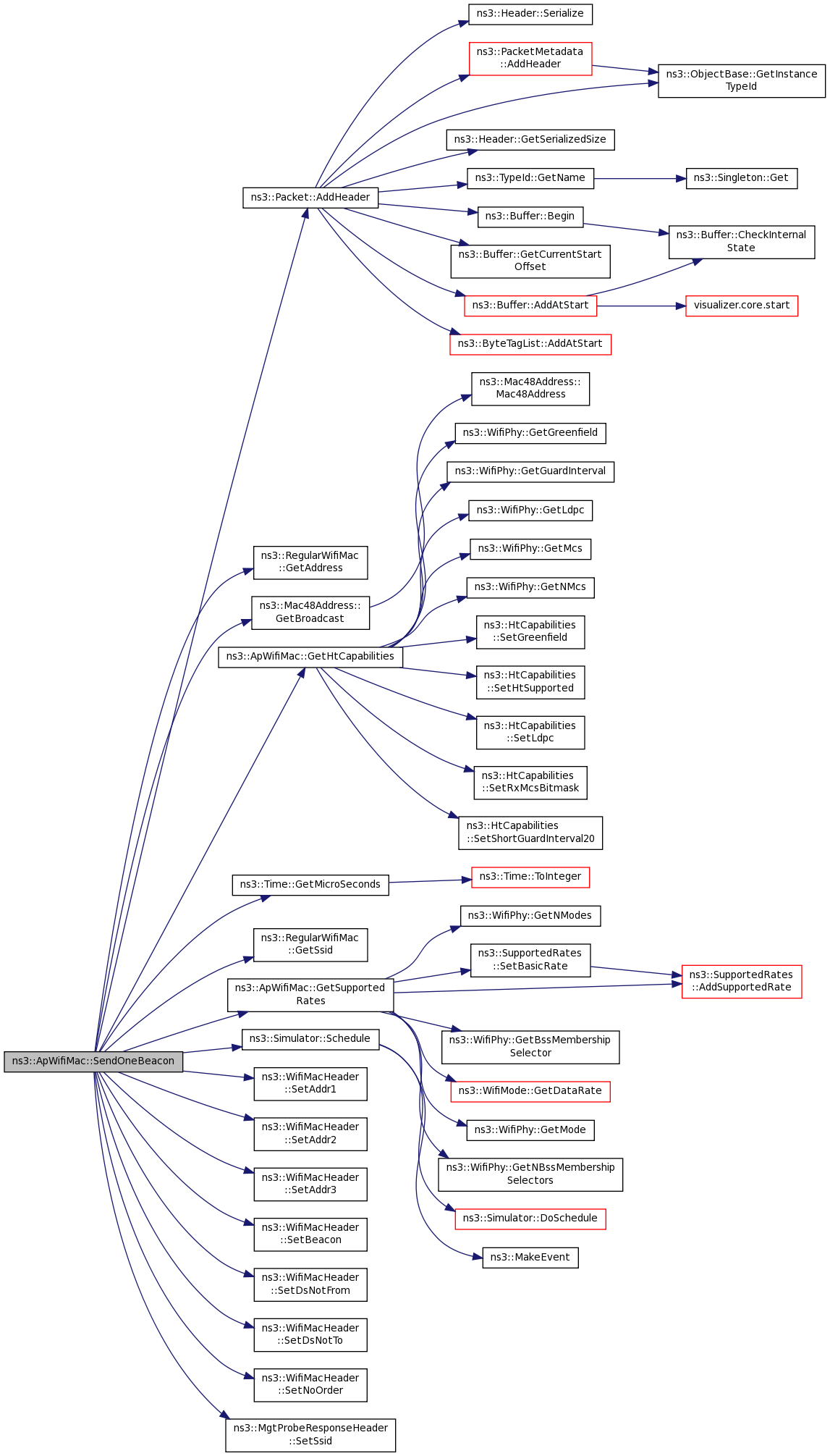

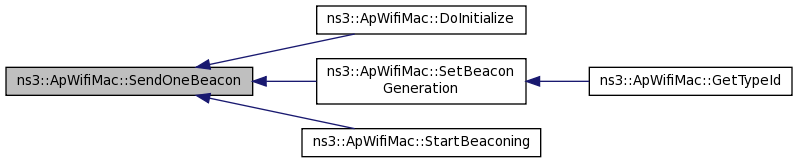

void	SendOneBeacon (void)

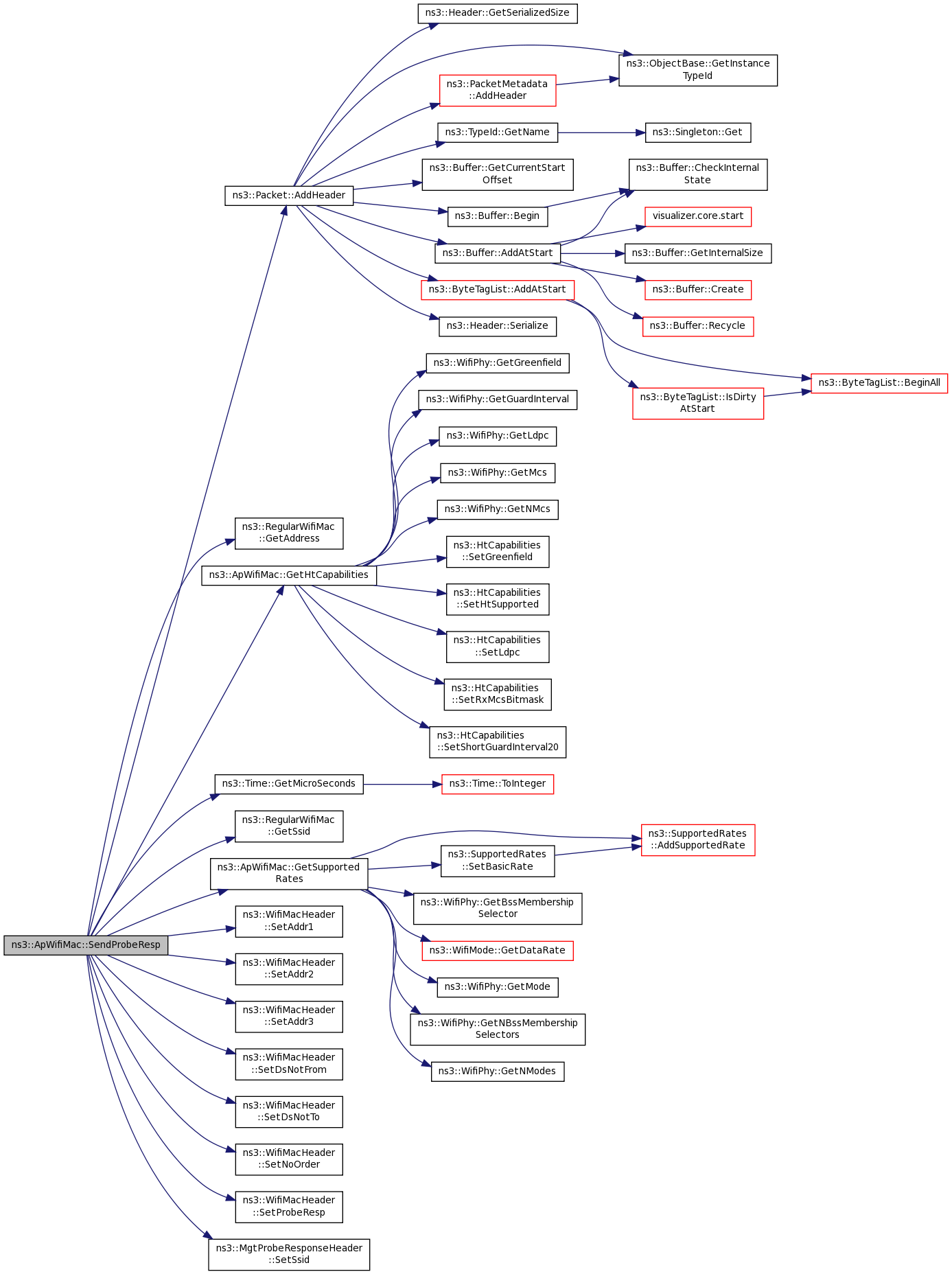

void	SendProbeResp (Mac48Address to)
void	SetBeaconGeneration (bool enable)

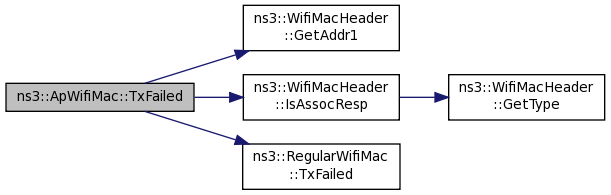

virtual void	TxFailed (const WifiMacHeader &hdr)

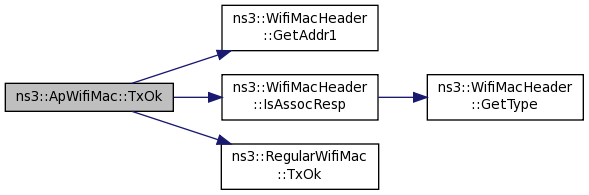

virtual void	TxOk (const WifiMacHeader &hdr)

Private Attributes
Ptr< DcaTxop >	m_beaconDca
EventId	m_beaconEvent
Time	m_beaconInterval
Ptr< UniformRandomVariable >	m_beaconJitter
bool	m_enableBeaconGeneration
bool	m_enableBeaconJitter

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues
Protected Member Functions inherited from ns3::RegularWifiMac
virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)
void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
bool	GetHtSupported () const
bool	GetQosSupported () const
virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
void	SetHtSupported (bool enable)
void	SetQosSupported (bool enable)
void	SetTypeOfStation (TypeOfStation type)
Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca
DcfManager *	m_dcfManager
EdcaQueues	m_edca
ForwardUpCallback	m_forwardUp
bool	m_htSupported
Callback< void >	m_linkDown
Callback< void >	m_linkUp
Ptr< MacLow >	m_low
Ptr< WifiPhy >	m_phy
bool	m_qosSupported
MacRxMiddle *	m_rxMiddle
Ssid	m_ssid
Ptr< WifiRemoteStationManager >	m_stationManager
MacTxMiddle *	m_txMiddle

Detailed Description

Wi-Fi AP state machine

Handle association, dis-association and authentication, of STAs within an infrastructure BSS.

Config Paths

ns3::ApWifiMac is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::ApWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::ApWifiMac

Attributes

• BeaconInterval: Delay between two beacons
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +102400000.0ns
  • Flags: construct write read
• BeaconJitter: A uniform random variable to cause the initial beacon starting time (after simulation time 0) to be distributed between 0 and the BeaconInterval.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::UniformRandomVariable >
  • Initial value: ns3::UniformRandomVariable
  • Flags: construct write read
• EnableBeaconJitter: If beacons are enabled, whether to jitter the initial send event.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• BeaconGeneration: Whether or not beacons are generated.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

• QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• HtSupported: This Boolean attribute is set to enable 802.11n support at this STA
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic set rate
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• DcaTxop: The DcaTxop object
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::DcaTxop >
  • Flags: read
• VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read

Attributes defined in parent class ns3::WifiMac

• CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +75000.0ns
  • Flags: construct write read
• AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +75000.0ns
  • Flags: construct write read
• BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +281000.0ns
  • Flags: construct write read
• CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +107000.0ns
  • Flags: construct write read
• Sifs: The value of the SIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +16000.0ns
  • Flags: construct write read
• EifsNoDifs: The value of EIFS-DIFS
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +60000.0ns
  • Flags: construct write read
• Slot: The duration of a Slot.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +9000.0ns
  • Flags: construct write read
• Pifs: The value of the PIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +25000.0ns
  • Flags: construct write read
• Rifs: The value of the RIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +2000.0ns
  • Flags: construct write read
• MaxPropagationDelay: The maximum propagation delay. Unused for now.
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +3333.0ns
  • Flags: construct write read
• Ssid: The ssid we want to belong to.
  • Set with class: SsidValue
  • Underlying type: Ssid
  • Initial value: default
  • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

• TxOkHeader: The header of successfully transmitted packet
• TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

• MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
• MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
• MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
• MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
• MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 40 of file ap-wifi-mac.h.

Constructor & Destructor Documentation

ns3::ApWifiMac::ApWifiMac

(

)

Definition at line 75 of file ap-wifi-mac.cc.

References ns3::AP, m_beaconDca, ns3::RegularWifiMac::m_dcfManager, m_enableBeaconGeneration, ns3::RegularWifiMac::m_low, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetTypeOfStation().

Here is the call graph for this function:

ns3::ApWifiMac::~ApWifiMac ( )

virtual

Definition at line 91 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::ApWifiMac::AssignStreams

(

int64_t

stream

)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Definition at line 184 of file ap-wifi-mac.cc.

References m_beaconJitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::ApWifiMac::DeaggregateAmsduAndForward ( Ptr< Packet >  aggregatedPacket, const WifiMacHeader *  hdr  )

privatevirtual

This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack. We override the WifiMac version here because, as an AP, we also need to think about redistributing to other associated STAs.

Parameters

aggregatedPacket	the Packet containing the A-MSDU.
hdr	a pointer to the MAC header for aggregatedPacket.

Reimplemented from ns3::RegularWifiMac.

Definition at line 634 of file ap-wifi-mac.cc.

References ns3::MsduAggregator::Deaggregate(), ForwardDown(), ns3::RegularWifiMac::ForwardUp(), ns3::RegularWifiMac::GetAddress(), ns3::WifiMacHeader::GetQosTid(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::DoDispose ( void  )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 97 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::RegularWifiMac::DoDispose(), m_beaconDca, m_beaconEvent, m_enableBeaconGeneration, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::ApWifiMac::DoInitialize ( void  )

privatevirtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::RegularWifiMac.

Definition at line 660 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::RegularWifiMac::DoInitialize(), ns3::RegularWifiMac::GetAddress(), ns3::Time::GetMicroSeconds(), ns3::UniformRandomVariable::GetValue(), m_beaconDca, m_beaconEvent, m_beaconInterval, m_beaconJitter, m_enableBeaconGeneration, m_enableBeaconJitter, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), and SendOneBeacon().

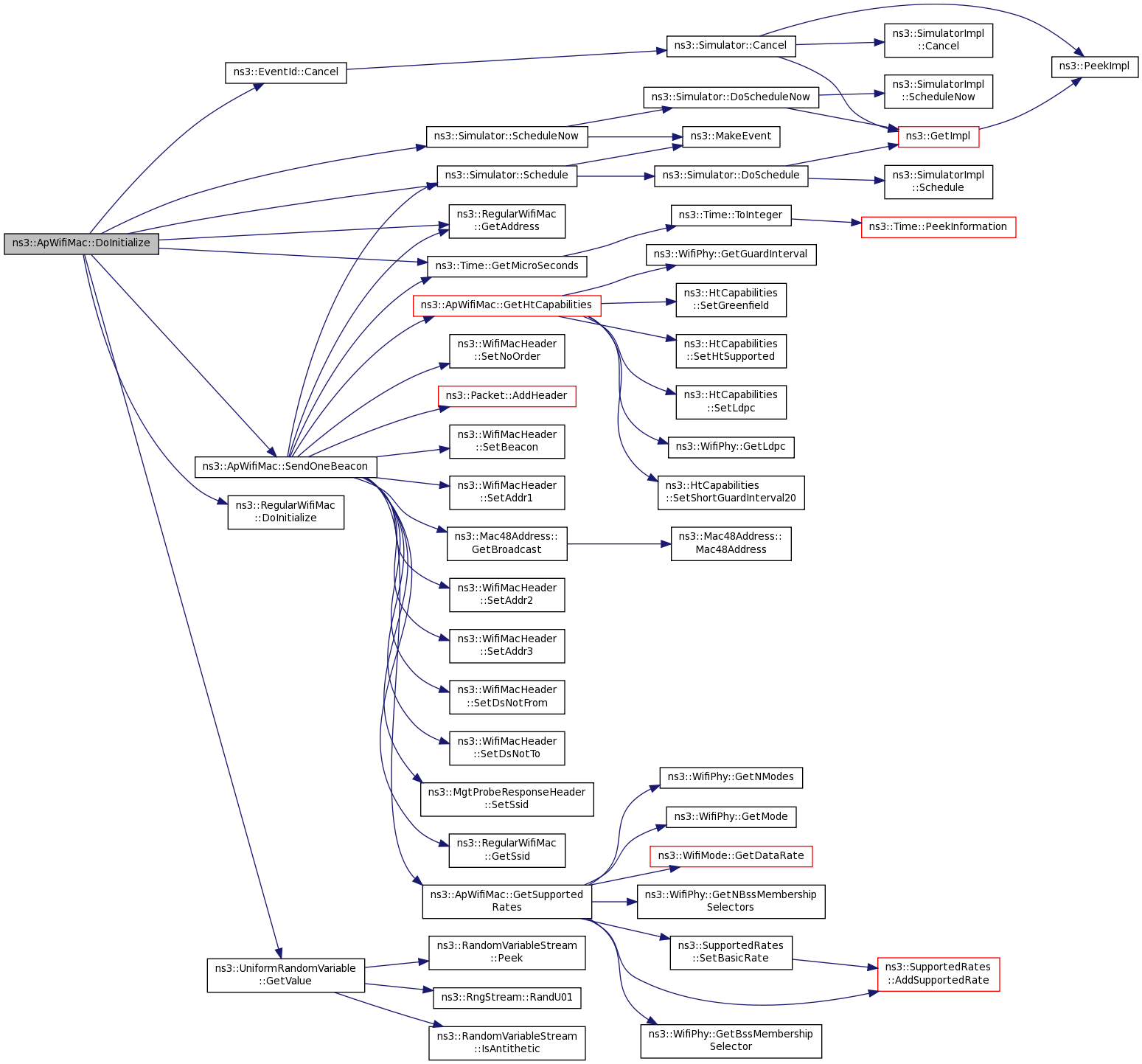

Here is the call graph for this function:

void ns3::ApWifiMac::Enqueue ( Ptr< const Packet >  packet, Mac48Address  to  )

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 277 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

void ns3::ApWifiMac::Enqueue ( Ptr< const Packet >  packet, Mac48Address  to, Mac48Address  from  )

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::RegularWifiMac.

Definition at line 267 of file ap-wifi-mac.cc.

References ForwardDown(), ns3::Mac48Address::IsBroadcast(), ns3::RegularWifiMac::m_stationManager, and NS_LOG_FUNCTION.

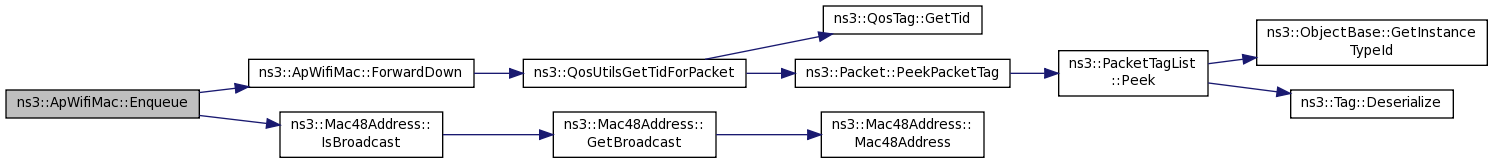

Here is the call graph for this function:

void ns3::ApWifiMac::ForwardDown ( Ptr< const Packet >  packet, Mac48Address  from, Mac48Address  to  )

private

Definition at line 192 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_qosSupported, NS_LOG_FUNCTION, and ns3::QosUtilsGetTidForPacket().

Referenced by DeaggregateAmsduAndForward(), Enqueue(), and Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::ForwardDown ( Ptr< const Packet >  packet, Mac48Address  from, Mac48Address  to, uint8_t  tid  )

private

Definition at line 218 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_htSupported, ns3::RegularWifiMac::m_qosSupported, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WifiMacHeader::SetTypeData(), and ns3::WIFI_MAC_QOSDATA.

Here is the call graph for this function:

bool ns3::ApWifiMac::GetBeaconGeneration ( void  ) const

private

Definition at line 132 of file ap-wifi-mac.cc.

References m_enableBeaconGeneration, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::ApWifiMac::GetBeaconInterval

(

void

)

const

Returns

the interval between two beacon transmissions.

Definition at line 139 of file ap-wifi-mac.cc.

References m_beaconInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

HtCapabilities ns3::ApWifiMac::GetHtCapabilities ( void  ) const

private

Definition at line 326 of file ap-wifi-mac.cc.

References ns3::WifiPhy::GetGreenfield(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiPhy::GetLdpc(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetNMcs(), ns3::RegularWifiMac::m_phy, ns3::HtCapabilities::SetGreenfield(), ns3::HtCapabilities::SetHtSupported(), ns3::HtCapabilities::SetLdpc(), ns3::HtCapabilities::SetRxMcsBitmask(), and ns3::HtCapabilities::SetShortGuardInterval20().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

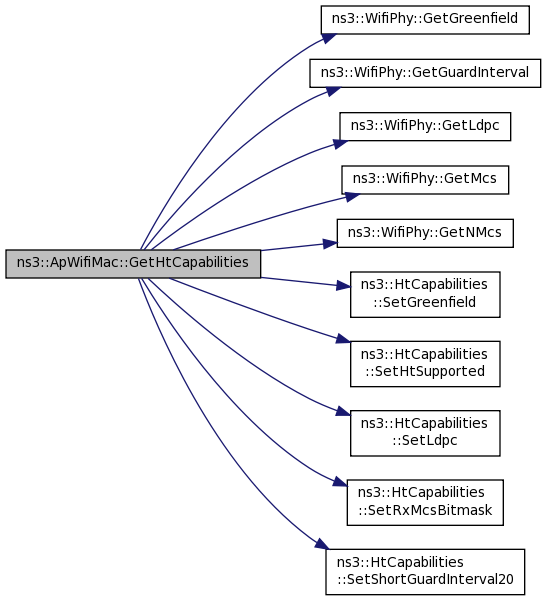

Here is the call graph for this function:

Here is the caller graph for this function:

SupportedRates ns3::ApWifiMac::GetSupportedRates ( void  ) const

private

Definition at line 294 of file ap-wifi-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::WifiPhy::GetBssMembershipSelector(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNBssMembershipSelectors(), ns3::WifiPhy::GetNModes(), ns3::RegularWifiMac::m_htSupported, ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, and ns3::SupportedRates::SetBasicRate().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

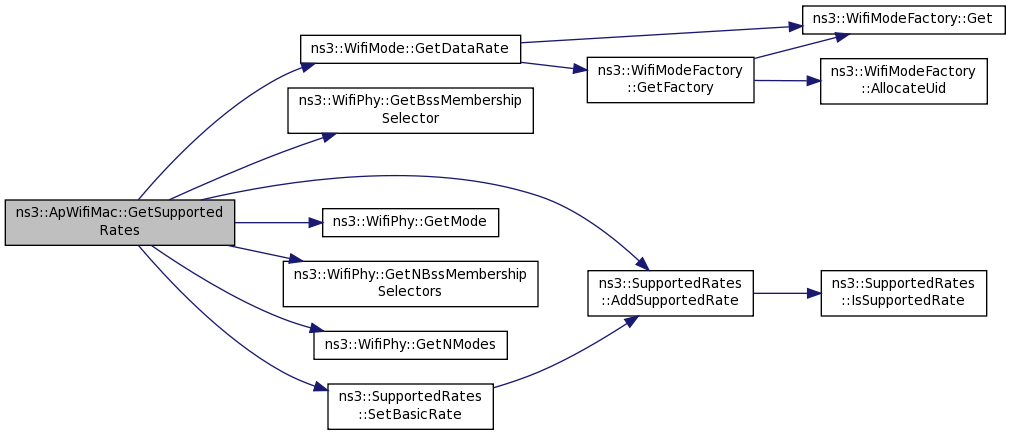

Here is the call graph for this function:

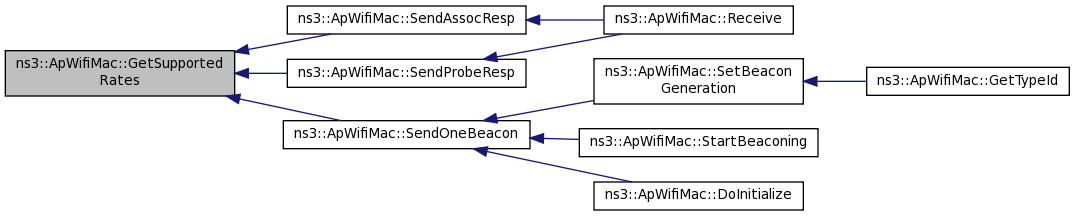

Here is the caller graph for this function:

TypeId ns3::ApWifiMac::GetTypeId ( void  )

static

Definition at line 48 of file ap-wifi-mac.cc.

References GetBeaconGeneration(), GetBeaconInterval(), m_beaconJitter, m_enableBeaconJitter, ns3::MakeTimeChecker(), SetBeaconGeneration(), SetBeaconInterval(), and ns3::TypeId::SetParent().

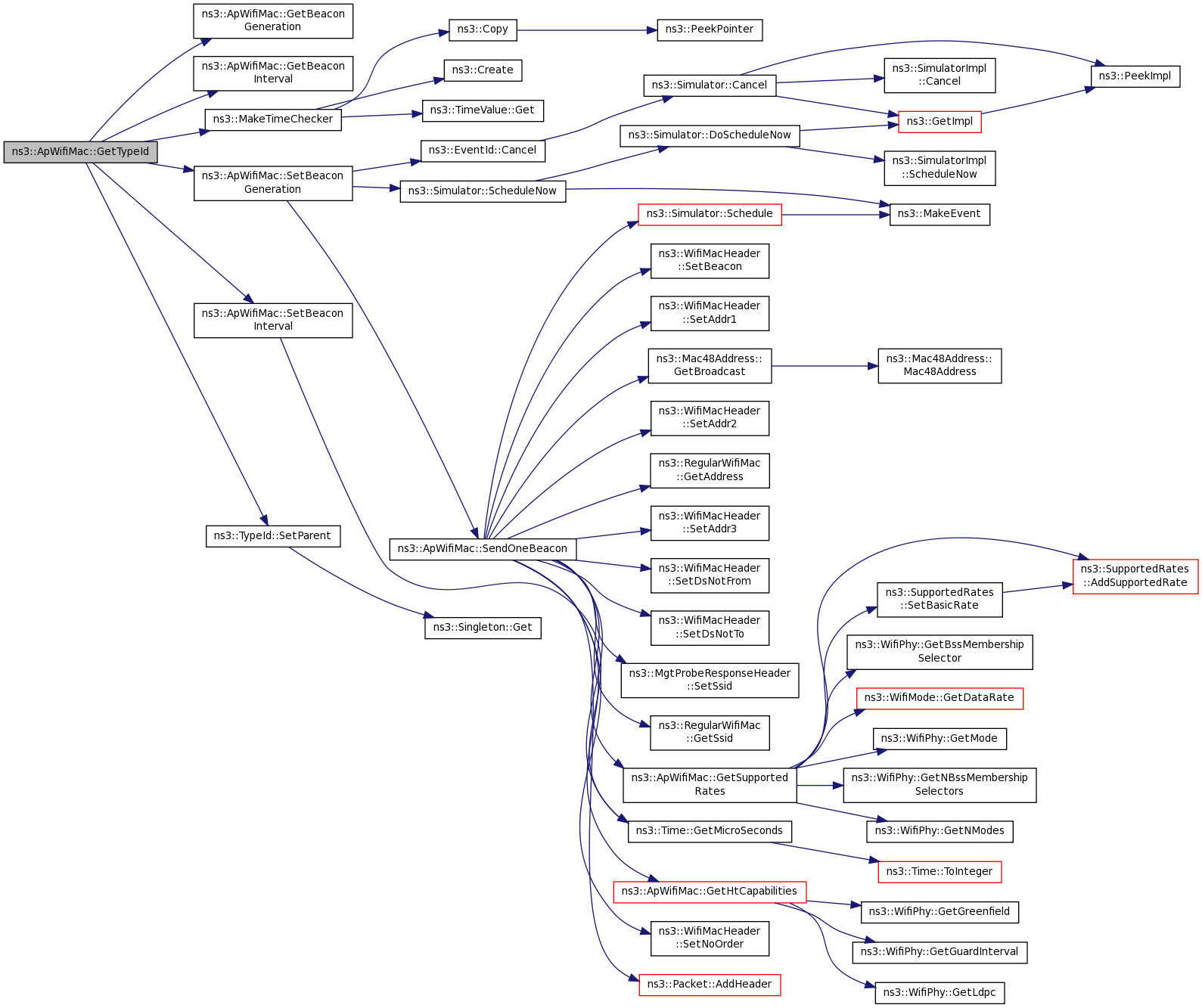

Here is the call graph for this function:

void ns3::ApWifiMac::Receive ( Ptr< Packet >  packet, const WifiMacHeader *  hdr  )

privatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

packet	the packet that has been received.
hdr	a pointer to the MAC header of the received frame.

Reimplemented from ns3::RegularWifiMac.

Definition at line 465 of file ap-wifi-mac.cc.

References ns3::Packet::Copy(), DeaggregateAmsduAndForward(), ForwardDown(), ns3::RegularWifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::RegularWifiMac::GetAddress(), ns3::WifiMode::GetDataRate(), ns3::MgtAssocRequestHeader::GetHtCapabilities(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetNModes(), ns3::WifiMacHeader::GetQosTid(), ns3::Packet::GetSize(), ns3::MgtAssocRequestHeader::GetSupportedRates(), ns3::WifiMacHeader::IsAssocReq(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsDisassociation(), ns3::WifiMacHeader::IsFromDs(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), ns3::WifiMacHeader::IsProbeReq(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), ns3::HtCapabilities::IsSupportedMcs(), ns3::SupportedRates::IsSupportedRate(), ns3::WifiMacHeader::IsToDs(), ns3::RegularWifiMac::m_htSupported, ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, ns3::WifiMac::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::RegularWifiMac::Receive(), ns3::Packet::RemoveHeader(), SendAssocResp(), and SendProbeResp().

Here is the call graph for this function:

void ns3::ApWifiMac::SendAssocResp ( Mac48Address  to, bool  success  )

private

Definition at line 370 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), GetHtCapabilities(), GetSupportedRates(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_htSupported, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetAssocResp(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::StatusCode::SetFailure(), ns3::WifiMacHeader::SetNoOrder(), and ns3::StatusCode::SetSuccess().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::SendOneBeacon ( void  )

private

Definition at line 409 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::Mac48Address::GetBroadcast(), GetHtCapabilities(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_beaconDca, m_beaconEvent, m_beaconInterval, ns3::RegularWifiMac::m_htSupported, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetBeacon(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), and ns3::MgtProbeResponseHeader::SetSsid().

Referenced by DoInitialize(), SetBeaconGeneration(), and StartBeaconing().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::SendProbeResp ( Mac48Address  to )

private

Definition at line 340 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), GetHtCapabilities(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_beaconInterval, ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_htSupported, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetProbeResp(), and ns3::MgtProbeResponseHeader::SetSsid().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::SetAddress ( Mac48Address  address )

virtual

Parameters

address

the current address of this MAC layer.

Reimplemented from ns3::RegularWifiMac.

Definition at line 107 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::RegularWifiMac::SetAddress(), and ns3::RegularWifiMac::SetBssid().

Here is the call graph for this function:

void ns3::ApWifiMac::SetBeaconGeneration ( bool  enable )

private

Definition at line 117 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), m_beaconEvent, m_enableBeaconGeneration, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendOneBeacon().

Referenced by GetTypeId().

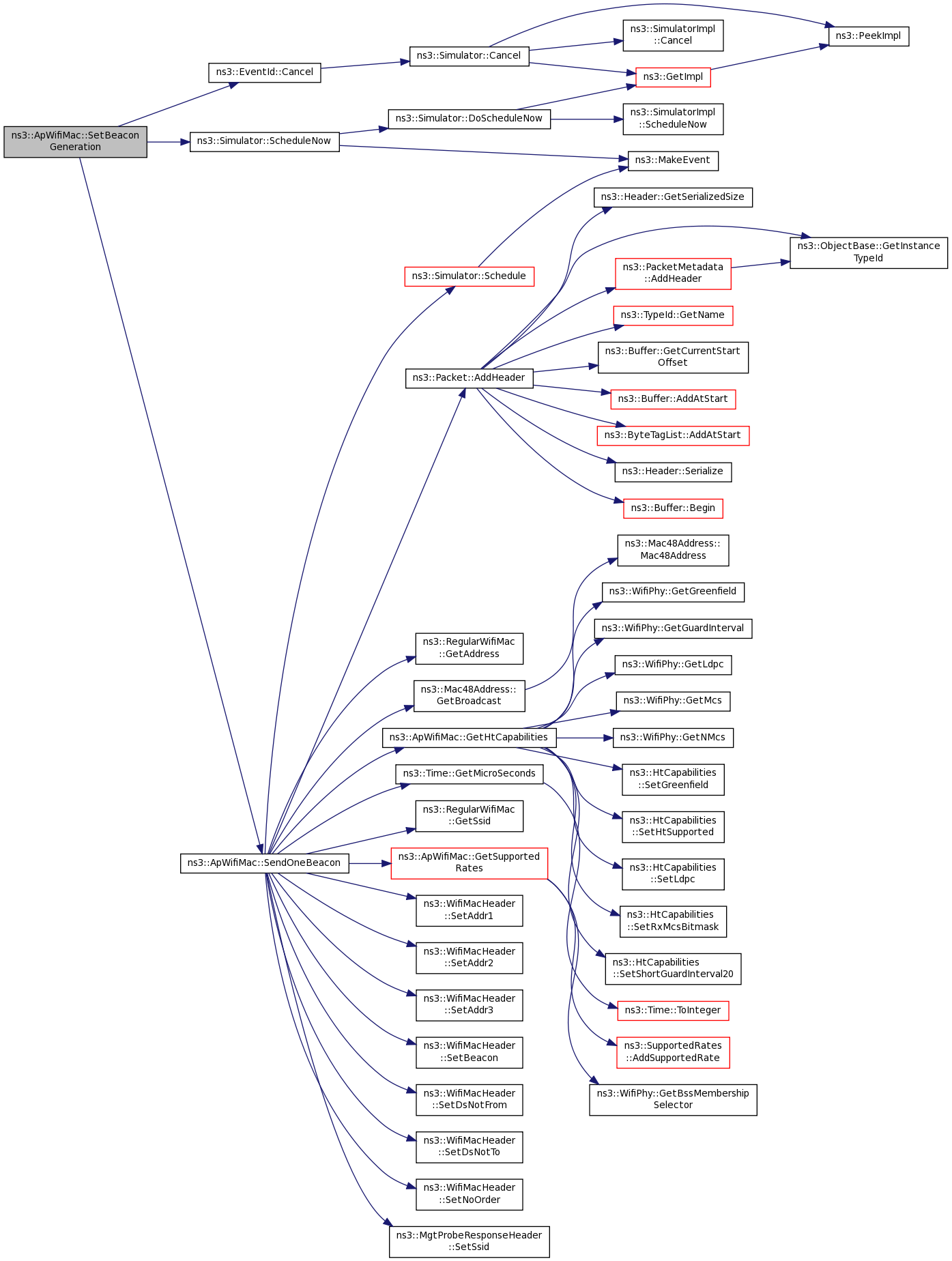

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::SetBeaconInterval

(

Time

interval

)

Parameters

interval

the interval between two beacon transmissions.

Definition at line 166 of file ap-wifi-mac.cc.

References ns3::Time::GetMicroSeconds(), m_beaconInterval, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ApWifiMac::SetLinkUpCallback ( Callback< void >  linkUp )

virtual

Parameters

linkUp

the callback to invoke when the link becomes up.

Reimplemented from ns3::RegularWifiMac.

Definition at line 154 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetLinkUpCallback().

Here is the call graph for this function:

void ns3::ApWifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager >  stationManager )

virtual

Parameters

stationManager

the station manager attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 146 of file ap-wifi-mac.cc.

References m_beaconDca, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetWifiRemoteStationManager().

Here is the call graph for this function:

void ns3::ApWifiMac::StartBeaconing

(

void

)

Start beacon transmission immediately.

Definition at line 177 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, and SendOneBeacon().

Here is the call graph for this function:

bool ns3::ApWifiMac::SupportsSendFrom ( void  ) const

virtual

Reimplemented from ns3::RegularWifiMac.

Definition at line 287 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

void ns3::ApWifiMac::TxFailed ( const WifiMacHeader &  hdr )

privatevirtual

Reimplemented from ns3::RegularWifiMac.

Definition at line 451 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::IsAssocResp(), ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::RegularWifiMac::TxFailed().

Here is the call graph for this function:

void ns3::ApWifiMac::TxOk ( const WifiMacHeader &  hdr )

privatevirtual

Reimplemented from ns3::RegularWifiMac.

Definition at line 437 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::IsAssocResp(), ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::RegularWifiMac::TxOk().

Here is the call graph for this function:

Member Data Documentation

Ptr<DcaTxop> ns3::ApWifiMac::m_beaconDca

private

Definition at line 138 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), DoDispose(), DoInitialize(), SendOneBeacon(), and SetWifiRemoteStationManager().

EventId ns3::ApWifiMac::m_beaconEvent

private

Definition at line 141 of file ap-wifi-mac.h.

Referenced by DoDispose(), DoInitialize(), SendOneBeacon(), and SetBeaconGeneration().

Time ns3::ApWifiMac::m_beaconInterval

private

Definition at line 139 of file ap-wifi-mac.h.

Referenced by DoInitialize(), GetBeaconInterval(), SendOneBeacon(), SendProbeResp(), and SetBeaconInterval().

Ptr<UniformRandomVariable> ns3::ApWifiMac::m_beaconJitter

private

Definition at line 142 of file ap-wifi-mac.h.

Referenced by AssignStreams(), DoInitialize(), and GetTypeId().

bool ns3::ApWifiMac::m_enableBeaconGeneration

private

Definition at line 140 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), DoDispose(), DoInitialize(), GetBeaconGeneration(), and SetBeaconGeneration().

bool ns3::ApWifiMac::m_enableBeaconJitter

private

Definition at line 143 of file ap-wifi-mac.h.

Referenced by DoInitialize(), and GetTypeId().

---

The documentation for this class was generated from the following files:

• src/wifi/model/ap-wifi-mac.h
• src/wifi/model/ap-wifi-mac.cc
