An implementation of a stream socket using TCP. More...

#include <tcp-newreno.h>

Inheritance diagram for ns3::TcpNewReno:

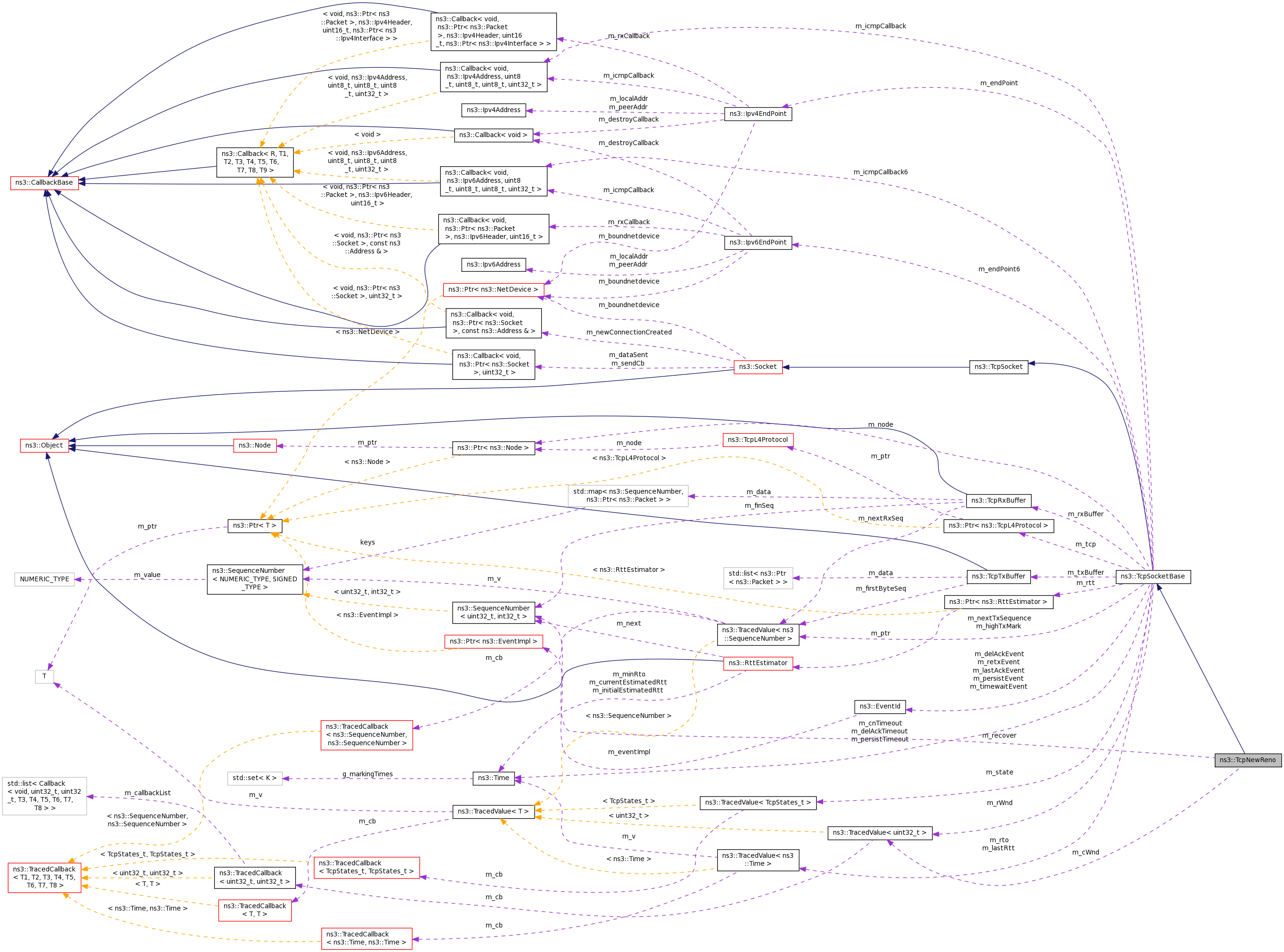

Collaboration diagram for ns3::TcpNewReno:

Public Member Functions
	TcpNewReno (void)

	TcpNewReno (const TcpNewReno &sock)

virtual	~TcpNewReno (void)

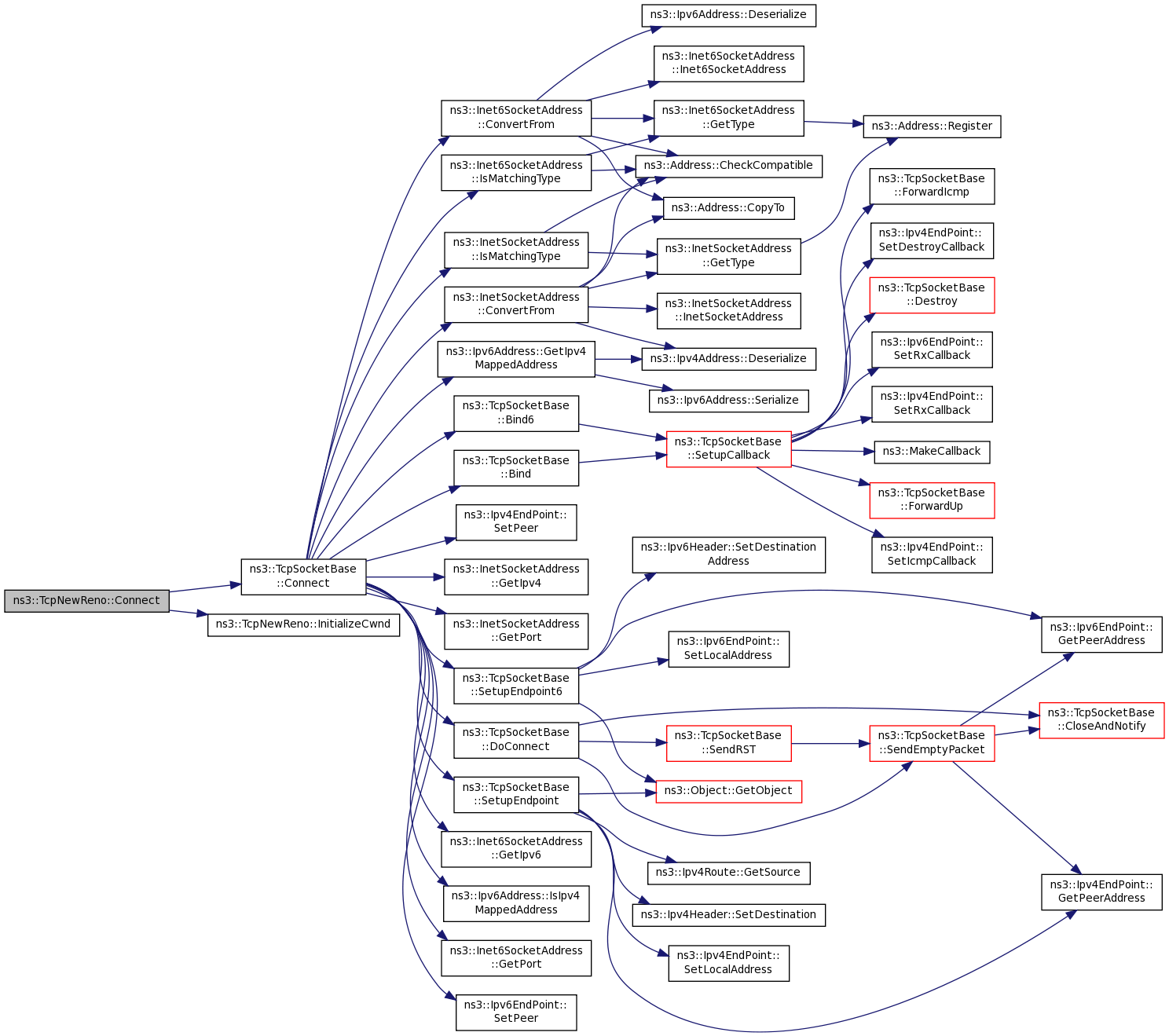

virtual int	Connect (const Address &address)

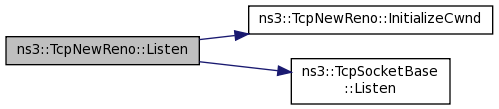

virtual int	Listen (void)

Public Member Functions inherited from ns3::TcpSocketBase
	TcpSocketBase (void)

	TcpSocketBase (const TcpSocketBase &sock)

virtual	~TcpSocketBase (void)

virtual int	Bind (void)

virtual int	Bind (const Address &address)

virtual int	Bind6 (void)
	Allocate a local IPv6 endpoint for this socket. More...

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)

virtual int	Close (void)

virtual enum SocketErrno	GetErrno (void) const

virtual Ptr< Node >	GetNode (void) const

virtual uint32_t	GetRxAvailable (void) const

virtual enum SocketType	GetSocketType (void) const

virtual int	GetSockName (Address &address) const

virtual uint32_t	GetTxAvailable (void) const

virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)

virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)

virtual int	Send (Ptr< Packet > p, uint32_t flags)

virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetRtt (Ptr< RttEstimator > rtt)

virtual void	SetTcp (Ptr< TcpL4Protocol > tcp)

virtual int	ShutdownRecv (void)

virtual int	ShutdownSend (void)

Public Member Functions inherited from ns3::TcpSocket
	TcpSocket (void)

virtual	~TcpSocket (void)

Public Member Functions inherited from ns3::Socket
	Socket (void)

virtual	~Socket (void)

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound netdevice, if any. More...

uint8_t	GetIpTos (void) const

virtual uint8_t	GetIpTtl (void) const

virtual uint8_t	GetIpv6HopLimit (void) const

uint8_t	GetIpv6Tclass (void) const

bool	IsIpRecvTos (void) const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl (void) const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool	IsIpv6RecvHopLimit (void) const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass (void) const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

Ptr< Packet >	Recv (void)
	Read a single packet from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

void	SetIpTos (uint8_t ipTos)

virtual void	SetIpTtl (uint8_t ipTtl)

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)

void	SetRecvCallback (Callback< void, Ptr< Socket > >)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

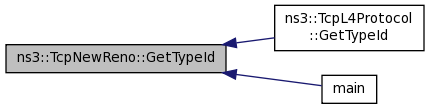

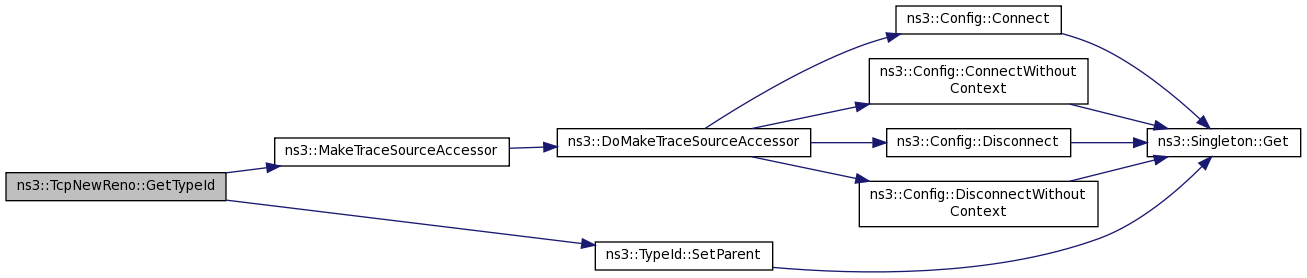

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::TcpSocketBase
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::TcpSocket
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions

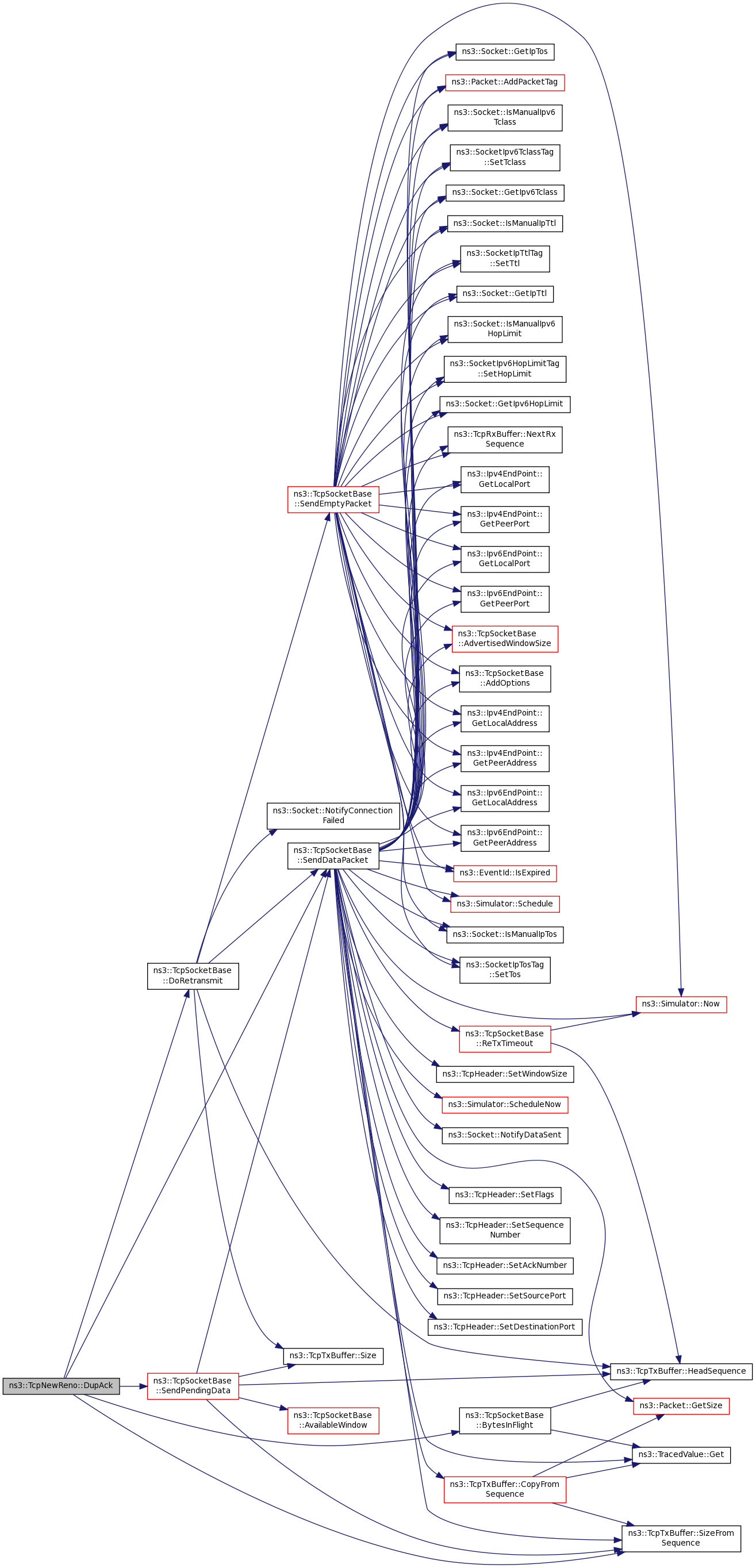

virtual void	DupAck (const TcpHeader &t, uint32_t count)

virtual Ptr< TcpSocketBase >	Fork (void)

virtual uint32_t	GetInitialCwnd (void) const

virtual uint32_t	GetSSThresh (void) const

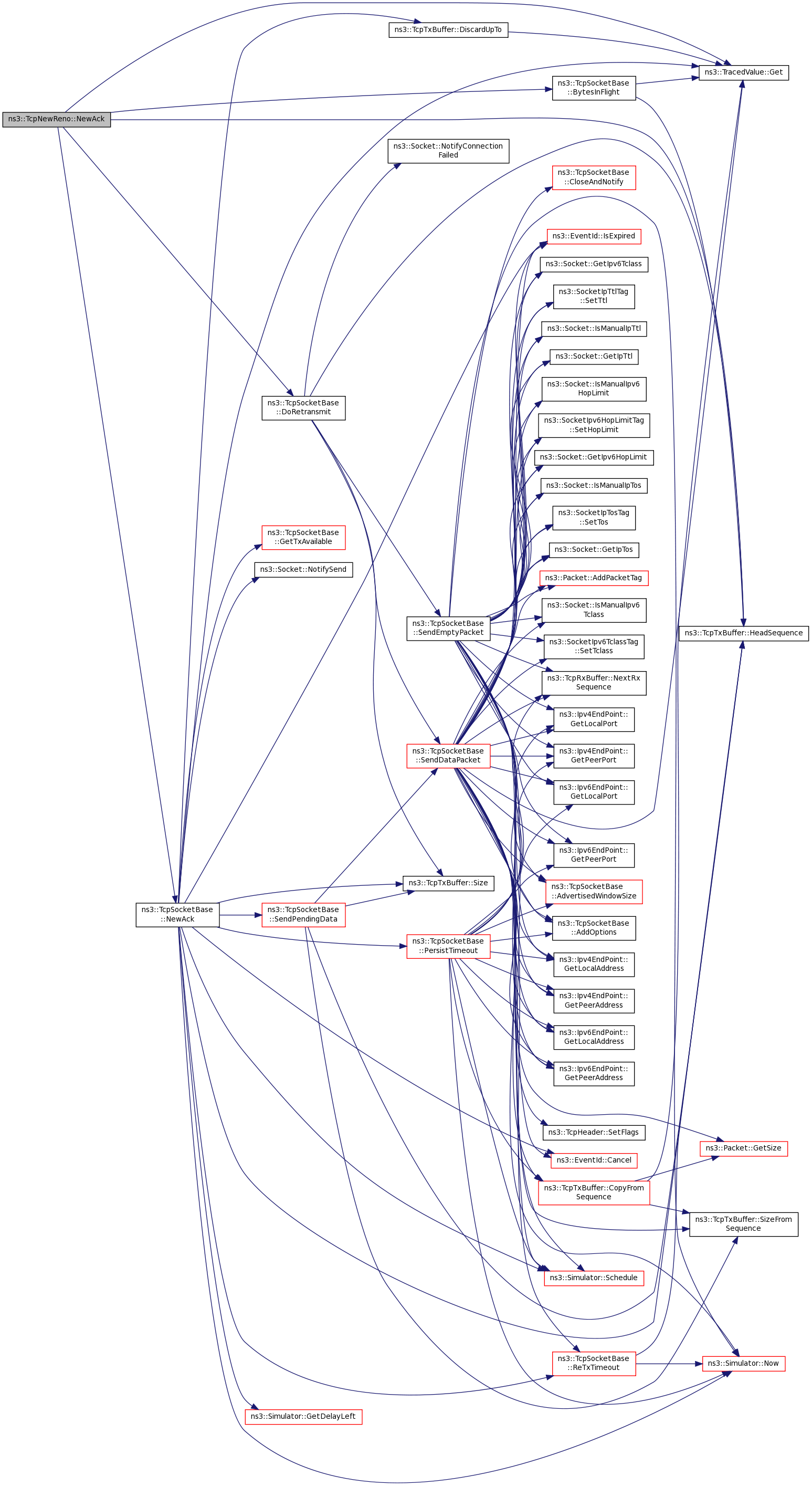

virtual void	NewAck (SequenceNumber32 const &seq)

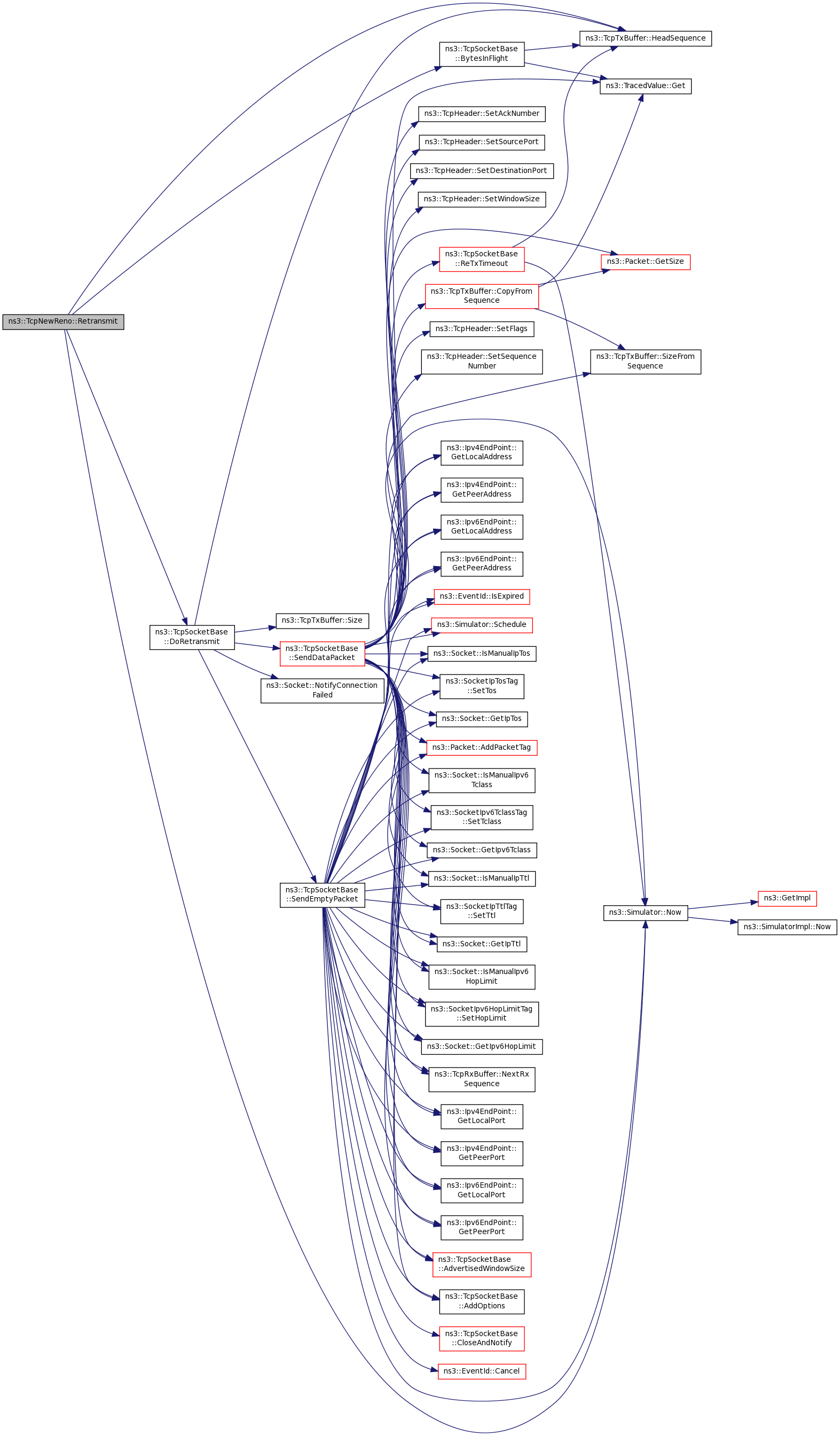

virtual void	Retransmit (void)

virtual void	SetInitialCwnd (uint32_t cwnd)

virtual void	SetSegSize (uint32_t size)

virtual void	SetSSThresh (uint32_t threshold)

virtual uint32_t	Window (void)

Protected Member Functions inherited from ns3::TcpSocketBase
virtual void	AddOptions (TcpHeader &)

virtual uint16_t	AdvertisedWindowSize (void)

virtual uint32_t	AvailableWindow (void)

virtual uint32_t	BytesInFlight (void)

void	CancelAllTimers (void)

void	CloseAndNotify (void)

void	CompleteFork (Ptr< Packet >, const TcpHeader &, const Address &fromAddress, const Address &toAdress)

void	ConnectionSucceeded (void)

void	DeallocateEndPoint (void)

virtual void	DelAckTimeout (void)

void	Destroy (void)

void	Destroy6 (void)

int	DoClose (void)

int	DoConnect (void)

virtual void	DoForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)

virtual void	DoForwardUp (Ptr< Packet > packet, Ipv6Header header, uint16_t port)

void	DoPeerClose (void)

virtual void	DoRetransmit (void)

virtual void	EstimateRtt (const TcpHeader &)

void	ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

void	ForwardIcmp6 (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

void	ForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)

void	ForwardUp6 (Ptr< Packet > packet, Ipv6Header header, uint16_t port)

virtual bool	GetAllowBroadcast (void) const
	Query whether broadcast datagram transmissions are allowed. More...

virtual uint32_t	GetConnCount (void) const

virtual Time	GetConnTimeout (void) const

virtual uint32_t	GetDelAckMaxCount (void) const

virtual Time	GetDelAckTimeout (void) const

virtual Time	GetPersistTimeout (void) const

virtual uint32_t	GetRcvBufSize (void) const

virtual uint32_t	GetSegSize (void) const

virtual uint32_t	GetSndBufSize (void) const

virtual bool	GetTcpNoDelay (void) const

virtual void	LastAckTimeout (void)

bool	OutOfRange (SequenceNumber32 head, SequenceNumber32 tail) const

void	PeerClose (Ptr< Packet >, const TcpHeader &)

virtual void	PersistTimeout (void)

void	ProcessClosing (Ptr< Packet >, const TcpHeader &)

void	ProcessEstablished (Ptr< Packet >, const TcpHeader &)

void	ProcessLastAck (Ptr< Packet >, const TcpHeader &)

void	ProcessListen (Ptr< Packet >, const TcpHeader &, const Address &, const Address &)

void	ProcessSynRcvd (Ptr< Packet >, const TcpHeader &, const Address &, const Address &)

void	ProcessSynSent (Ptr< Packet >, const TcpHeader &)

void	ProcessWait (Ptr< Packet >, const TcpHeader &)

virtual void	ReadOptions (const TcpHeader &)

virtual void	ReceivedAck (Ptr< Packet >, const TcpHeader &)

virtual void	ReceivedData (Ptr< Packet >, const TcpHeader &)

virtual void	ReTxTimeout (void)

uint32_t	SendDataPacket (SequenceNumber32 seq, uint32_t maxSize, bool withAck)

void	SendEmptyPacket (uint8_t flags)

bool	SendPendingData (bool withAck=false)

void	SendRST (void)

virtual bool	SetAllowBroadcast (bool allowBroadcast)
	Configure whether broadcast datagram transmissions are allowed. More...

virtual void	SetConnCount (uint32_t count)

virtual void	SetConnTimeout (Time timeout)

virtual void	SetDelAckMaxCount (uint32_t count)

virtual void	SetDelAckTimeout (Time timeout)

virtual void	SetPersistTimeout (Time timeout)

virtual void	SetRcvBufSize (uint32_t size)

virtual void	SetSndBufSize (uint32_t size)

virtual void	SetTcpNoDelay (bool noDelay)

int	SetupCallback (void)

int	SetupEndpoint (void)

int	SetupEndpoint6 (void)

void	TimeWait (void)

virtual uint32_t	UnAckDataCount (void)

Protected Member Functions inherited from ns3::Socket
virtual void	DoDispose (void)

bool	IsManualIpTos (void) const

bool	IsManualIpTtl (void) const

bool	IsManualIpv6HopLimit (void) const

bool	IsManualIpv6Tclass (void) const

void	NotifyConnectionFailed (void)

bool	NotifyConnectionRequest (const Address &from)

void	NotifyConnectionSucceeded (void)

void	NotifyDataRecv (void)

void	NotifyDataSent (uint32_t size)

void	NotifyErrorClose (void)

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)

void	NotifyNormalClose (void)

void	NotifySend (uint32_t spaceAvailable)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes
TracedValue< uint32_t >	m_cWnd

bool	m_inFastRec

uint32_t	m_initialCWnd

bool	m_limitedTx

SequenceNumber32	m_recover

uint32_t	m_retxThresh

uint32_t	m_ssThresh

Protected Attributes inherited from ns3::TcpSocketBase
bool	m_closeNotified

bool	m_closeOnEmpty

uint32_t	m_cnCount

uint32_t	m_cnRetries

Time	m_cnTimeout

bool	m_connected

uint32_t	m_delAckCount

EventId	m_delAckEvent

uint32_t	m_delAckMaxCount

Time	m_delAckTimeout

uint32_t	m_dupAckCount

Ipv4EndPoint *	m_endPoint

Ipv6EndPoint *	m_endPoint6

enum SocketErrno	m_errno

TracedValue< SequenceNumber32 >	m_highTxMark

Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback

Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback6

EventId	m_lastAckEvent

TracedValue< Time >	m_lastRtt

uint16_t	m_maxWinSize

double	m_msl

TracedValue< SequenceNumber32 >	m_nextTxSequence

Ptr< Node >	m_node

bool	m_noDelay

EventId	m_persistEvent

Time	m_persistTimeout

EventId	m_retxEvent

TracedValue< Time >	m_rto

Ptr< RttEstimator >	m_rtt

TracedValue< uint32_t >	m_rWnd

TcpRxBuffer	m_rxBuffer

uint32_t	m_segmentSize

bool	m_shutdownRecv

bool	m_shutdownSend

TracedValue< TcpStates_t >	m_state

Ptr< TcpL4Protocol >	m_tcp

EventId	m_timewaitEvent

TcpTxBuffer	m_txBuffer

Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice

bool	m_recvPktInfo

Private Member Functions
void	InitializeCwnd (void)

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	SocketErrno { ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE, ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT, ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV, ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST }

enum	SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }

Static Public Attributes inherited from ns3::TcpSocket
static const char *const	TcpStateName [LAST_STATE] = { "CLOSED", "LISTEN", "SYN_SENT", "SYN_RCVD", "ESTABLISHED", "CLOSE_WAIT", "LAST_ACK", "FIN_WAIT_1", "FIN_WAIT_2", "CLOSING", "TIME_WAIT" }

Detailed Description

An implementation of a stream socket using TCP.

This class contains the NewReno implementation of TCP, as of RFC 2582.

Config Paths

ns3::TcpNewReno is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::TcpL4Protocol/SocketList/[i]/$ns3::TcpNewReno

Attributes

ReTxThreshold: Threshold for fast retransmit
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read
LimitedTransmit: Enable limited transmit
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::TcpSocketBase

MaxSegLifetime: Maximum segment lifetime in seconds, use for TIME_WAIT state transition to CLOSED state
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 120
- Flags: construct write read
MaxWindowSize: Max size of advertised window
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 65535
- Flags: construct write read
IcmpCallback: Callback invoked whenever an icmp error is received on this socket.
- Set with class: CallbackValue
- Underlying type: Callback
- Initial value: 0
- Flags: construct write read
IcmpCallback6: Callback invoked whenever an icmpv6 error is received on this socket.
- Set with class: CallbackValue
- Underlying type: Callback
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::TcpSocket

SndBufSize: TcpSocket maximum transmit buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 131072
- Flags: construct write read
RcvBufSize: TcpSocket maximum receive buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 131072
- Flags: construct write read
SegmentSize: TCP maximum segment size in bytes (may be adjusted based on MTU discovery)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 536
- Flags: construct write read
SlowStartThreshold: TCP slow start threshold (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
InitialCwnd: TCP initial congestion window size (segments)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
ConnTimeout: TCP retransmission timeout when opening connection (seconds)
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
ConnCount: Number of connection attempts (SYN retransmissions) before returning failure
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 6
- Flags: construct write read
DelAckTimeout: Timeout value for TCP delayed acks, in seconds
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
DelAckCount: Number of packets to wait before sending a TCP ack
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
TcpNoDelay: Set to true to disable Nagle's algorithm
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
PersistTimeout: Persist timeout to probe for rx window
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +6000000000.0ns
- Flags: construct write read
