A base class for implementation of a stream socket using TCP. More...

#include <tcp-socket-base.h>

Inheritance diagram for ns3::TcpSocketBase:

Collaboration diagram for ns3::TcpSocketBase:

Public Member Functions

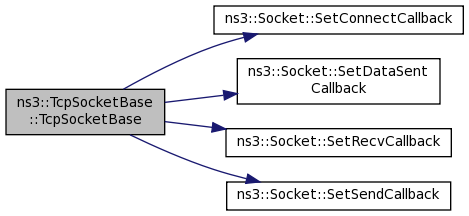

	TcpSocketBase (void)

	TcpSocketBase (const TcpSocketBase &sock)

virtual	~TcpSocketBase (void)

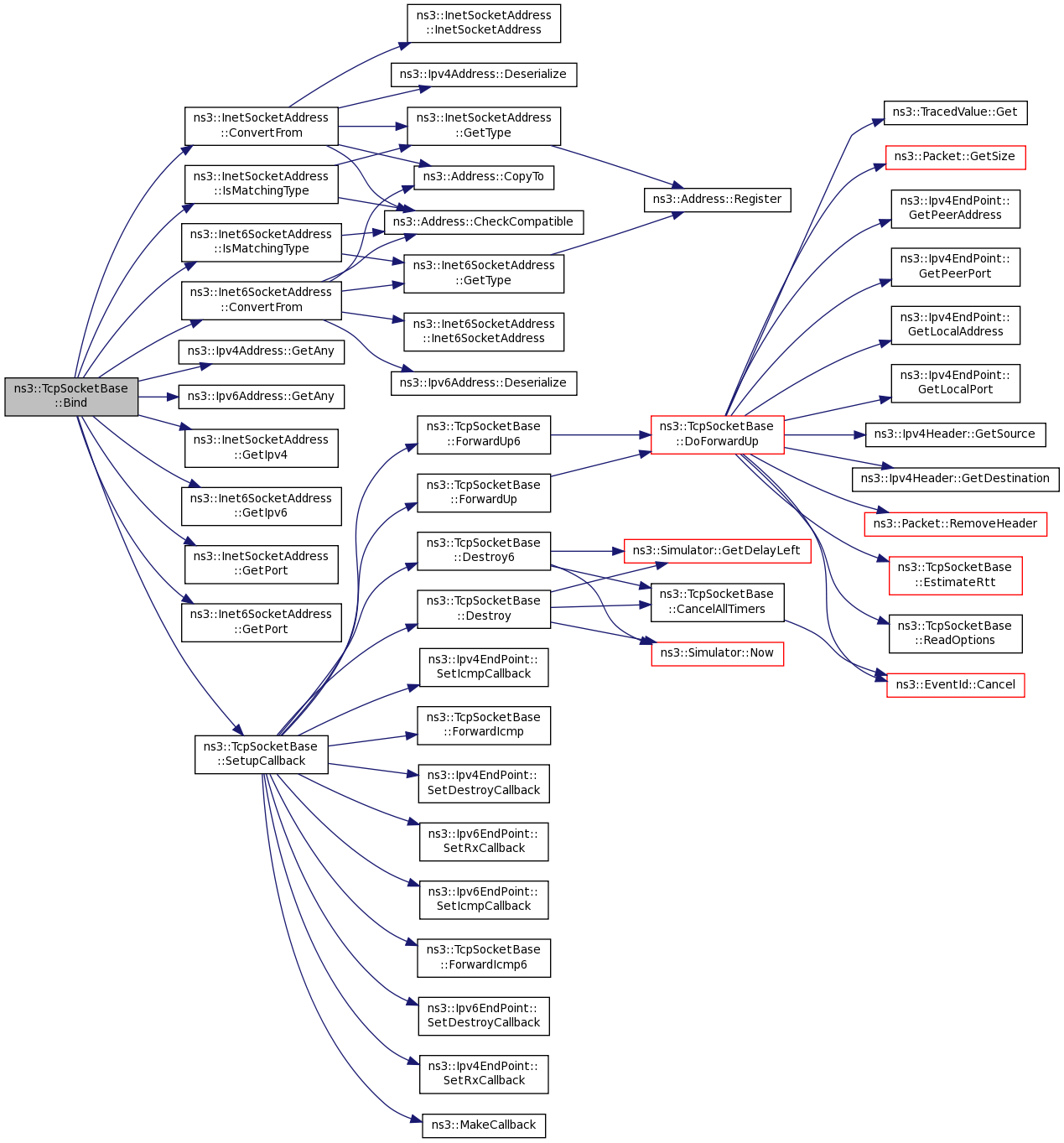

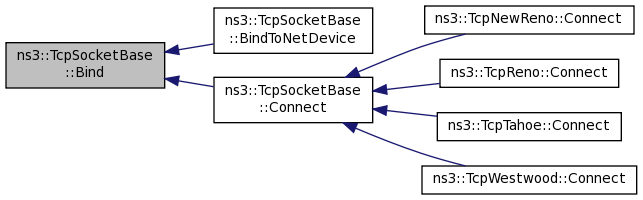

virtual int	Bind (void)

virtual int	Bind (const Address &address)

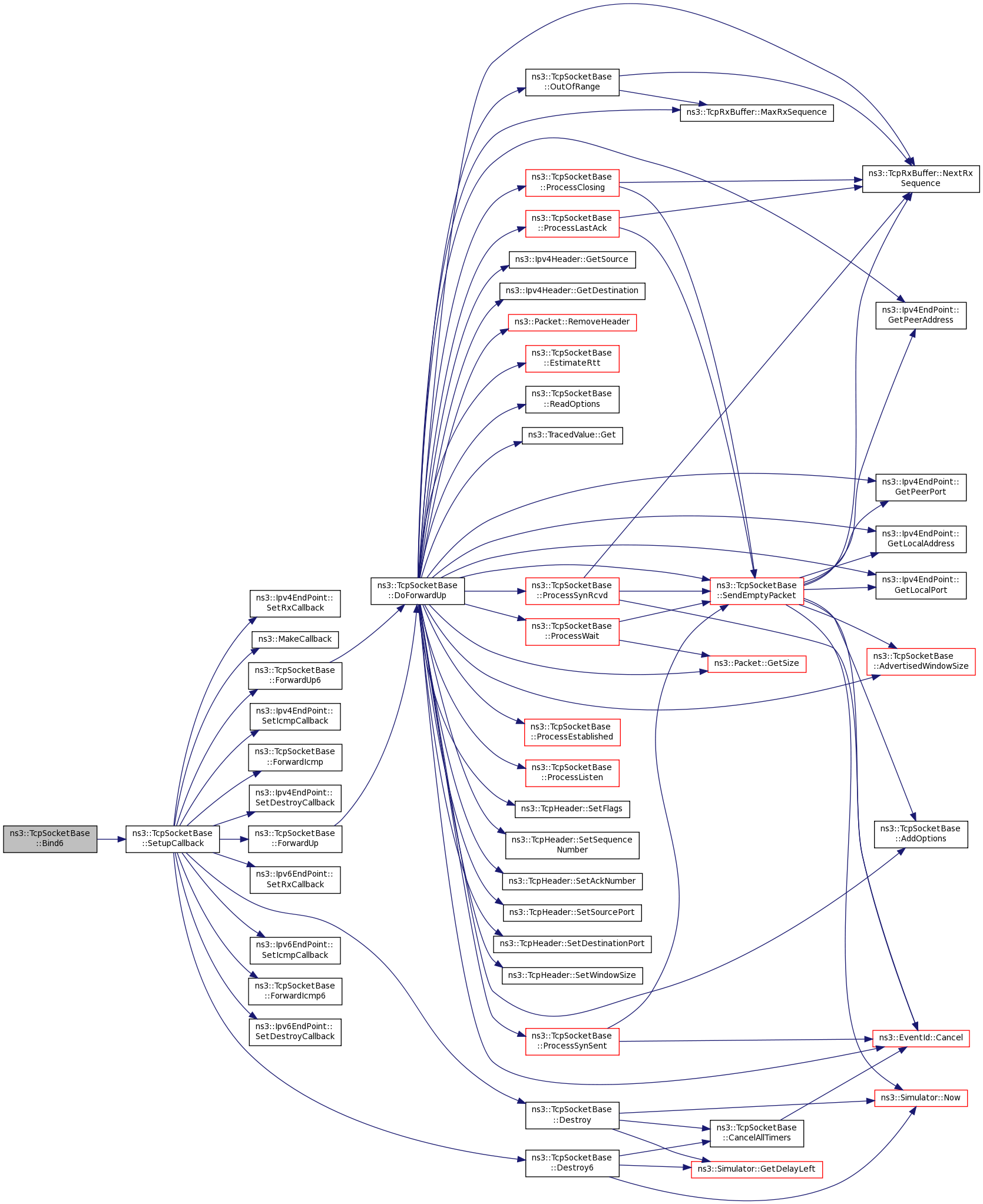

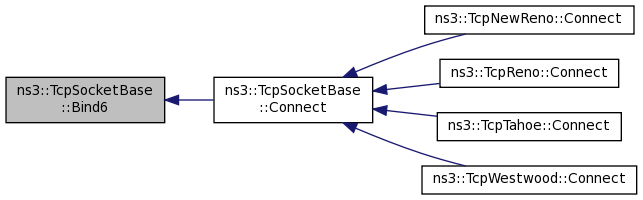

virtual int	Bind6 (void)
	Allocate a local IPv6 endpoint for this socket. More...

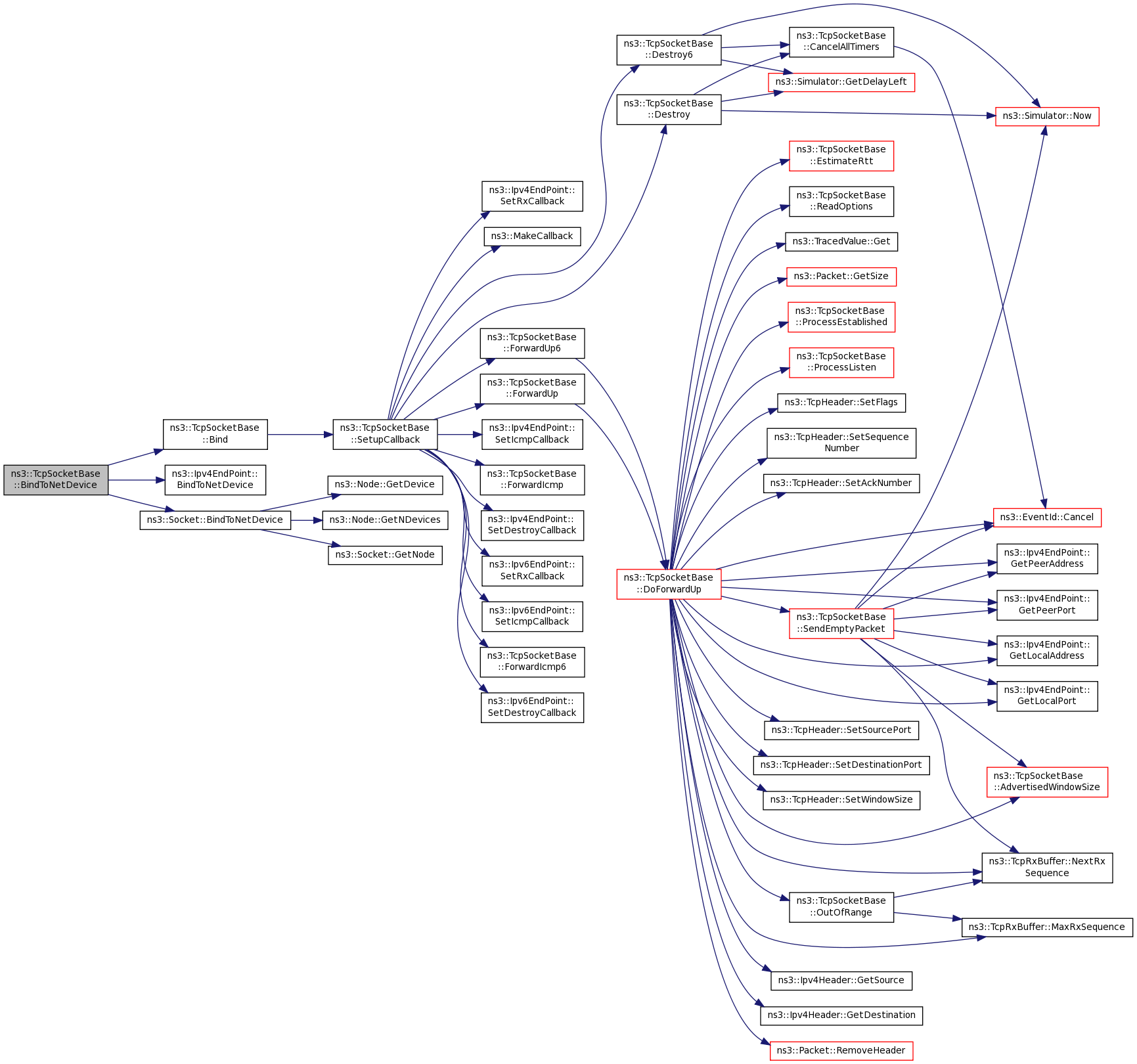

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)

virtual int	Close (void)

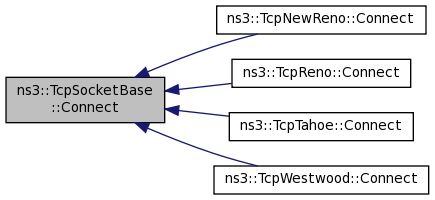

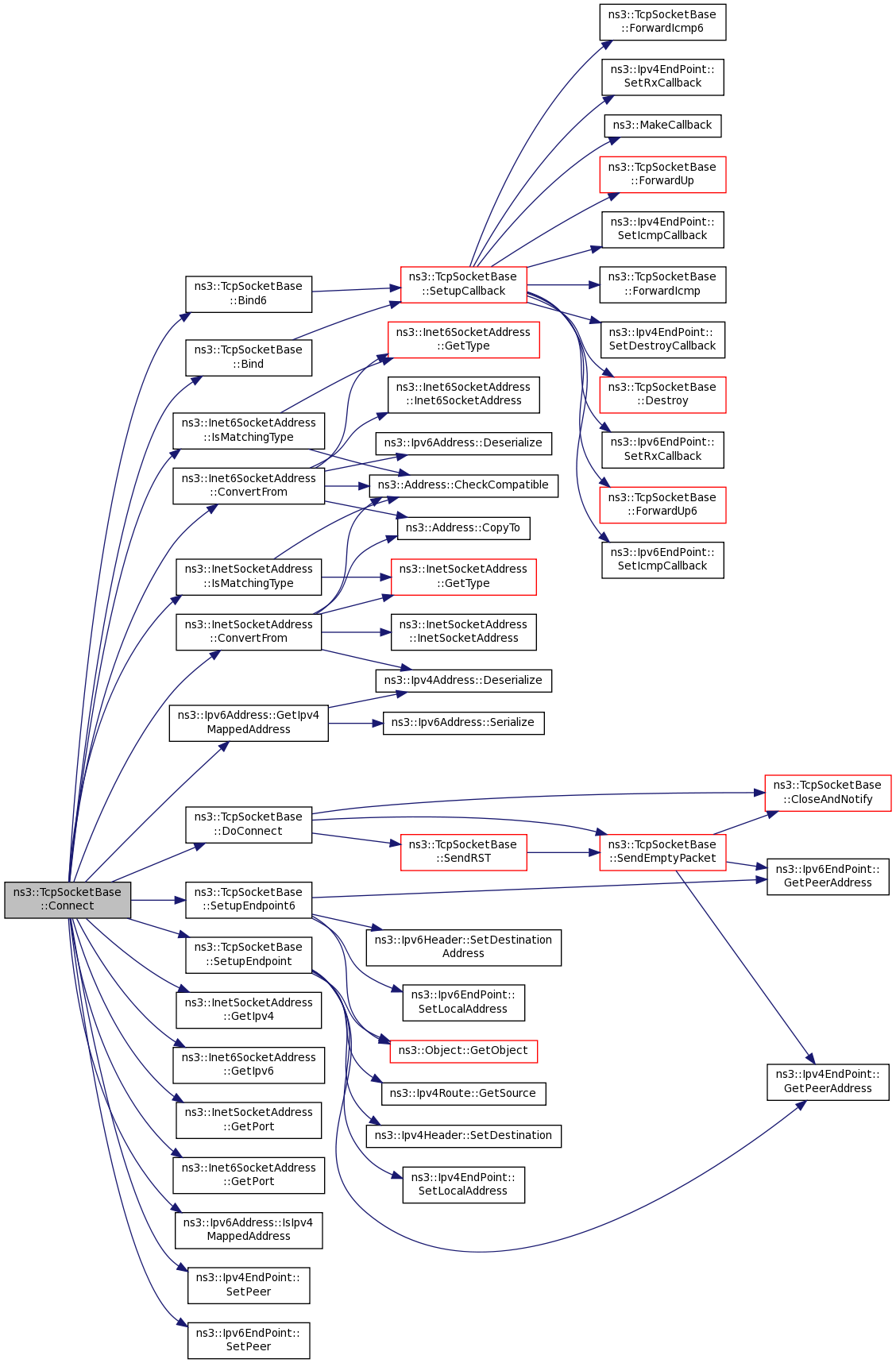

virtual int	Connect (const Address &address)

virtual enum SocketErrno	GetErrno (void) const

virtual Ptr< Node >	GetNode (void) const

virtual uint32_t	GetRxAvailable (void) const

virtual enum SocketType	GetSocketType (void) const

virtual int	GetSockName (Address &address) const

virtual uint32_t	GetTxAvailable (void) const

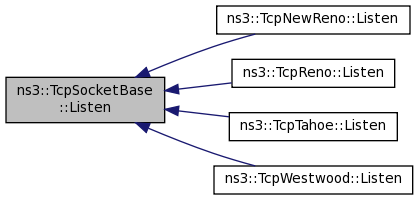

virtual int	Listen (void)

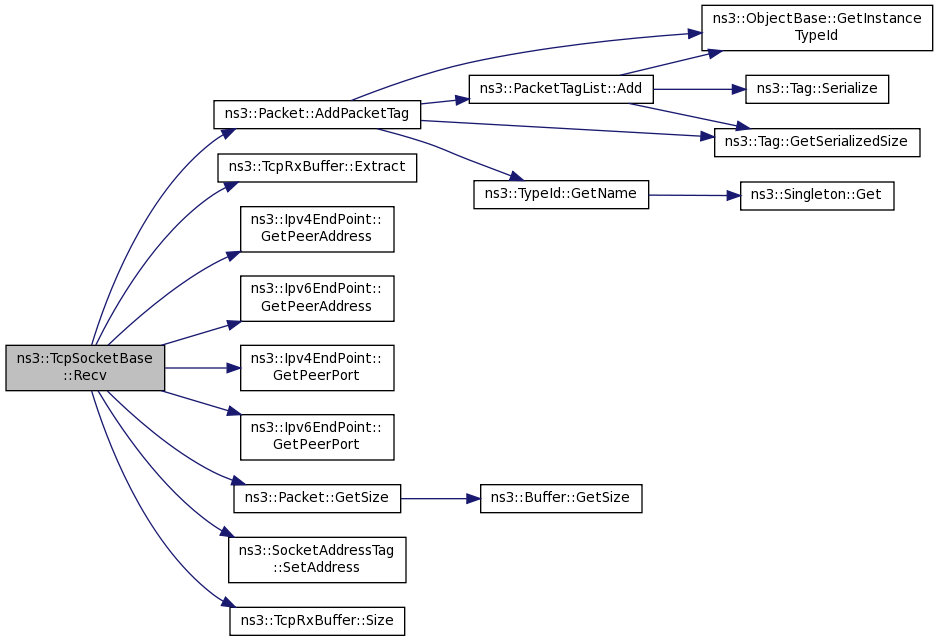

virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)

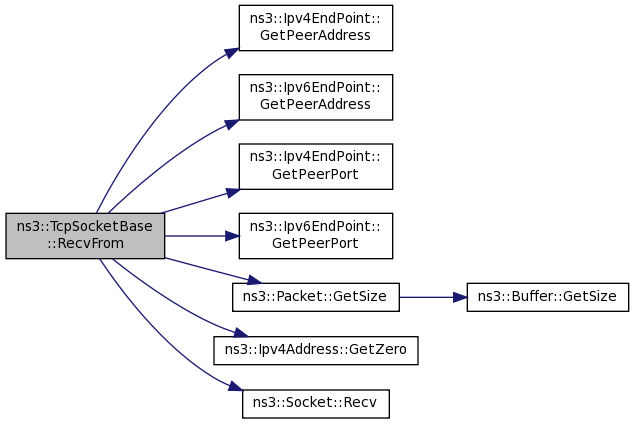

virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)

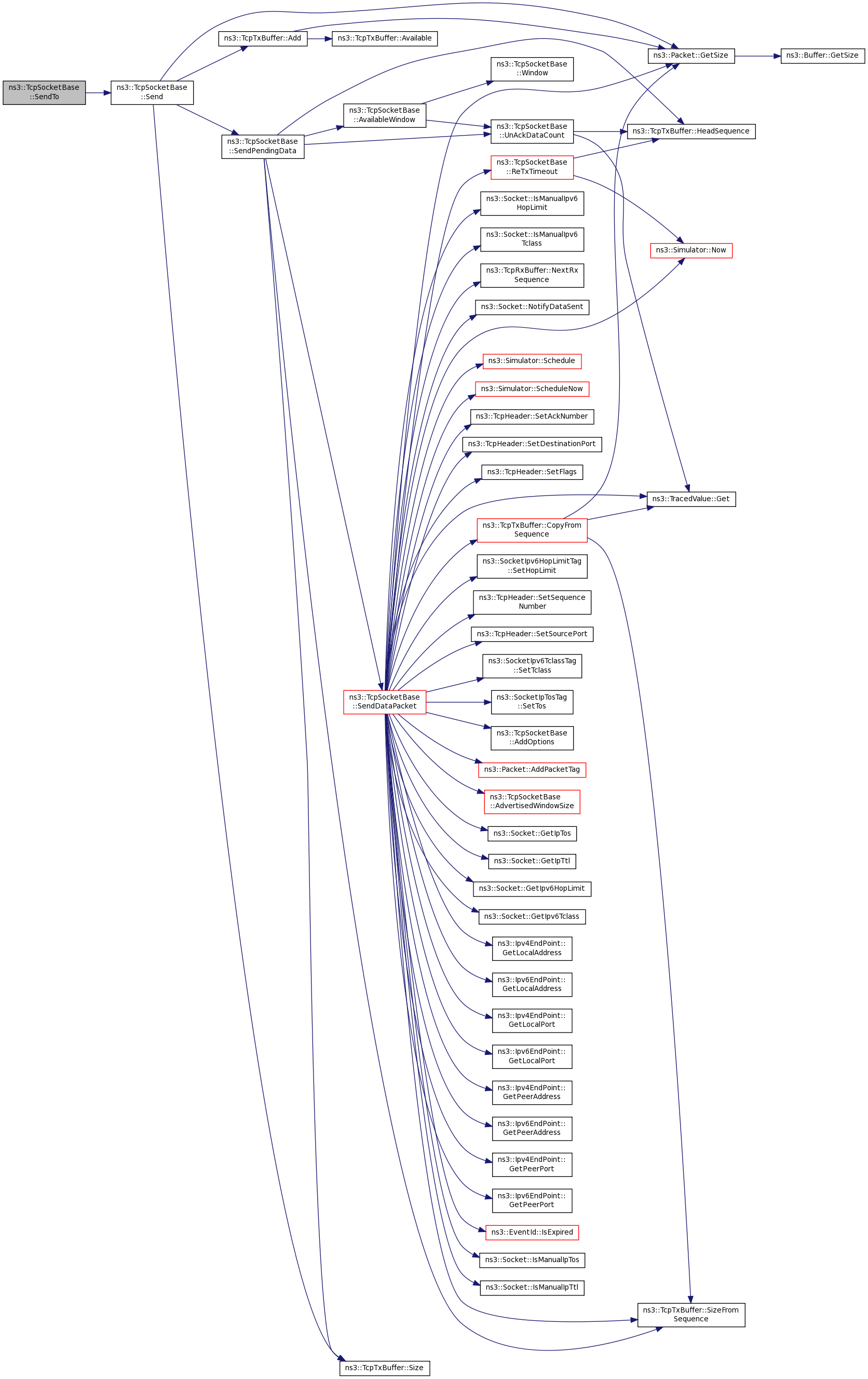

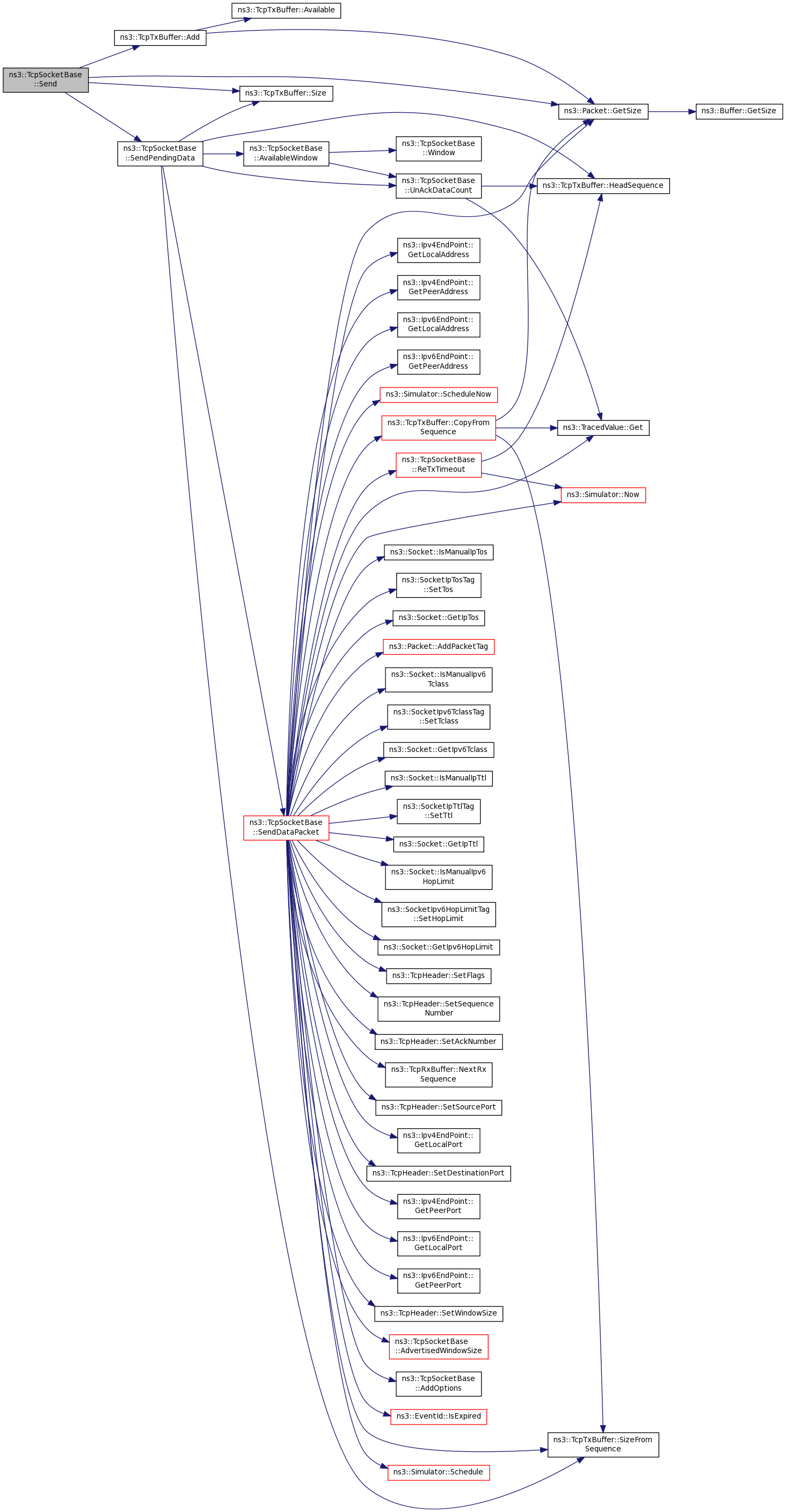

virtual int	Send (Ptr< Packet > p, uint32_t flags)

virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetRtt (Ptr< RttEstimator > rtt)

virtual void	SetTcp (Ptr< TcpL4Protocol > tcp)

virtual int	ShutdownRecv (void)

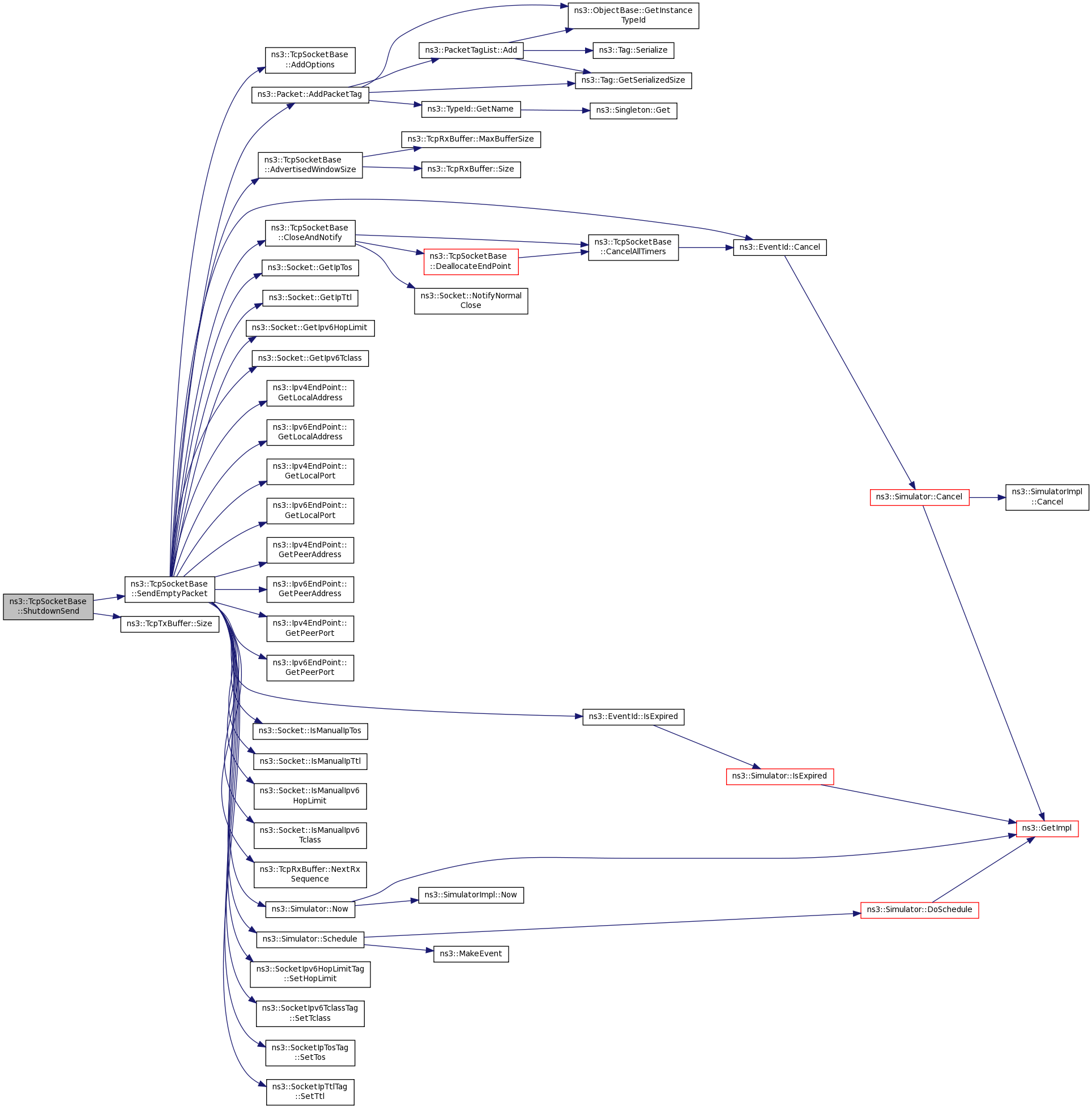

virtual int	ShutdownSend (void)

Public Member Functions inherited from ns3::TcpSocket
	TcpSocket (void)

virtual	~TcpSocket (void)

Public Member Functions inherited from ns3::Socket
	Socket (void)

virtual	~Socket (void)

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound netdevice, if any. More...

uint8_t	GetIpTos (void) const

virtual uint8_t	GetIpTtl (void) const

virtual uint8_t	GetIpv6HopLimit (void) const

uint8_t	GetIpv6Tclass (void) const

bool	IsIpRecvTos (void) const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl (void) const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool	IsIpv6RecvHopLimit (void) const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass (void) const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

Ptr< Packet >	Recv (void)
	Read a single packet from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

void	SetIpTos (uint8_t ipTos)

virtual void	SetIpTtl (uint8_t ipTtl)

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)

void	SetRecvCallback (Callback< void, Ptr< Socket > >)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

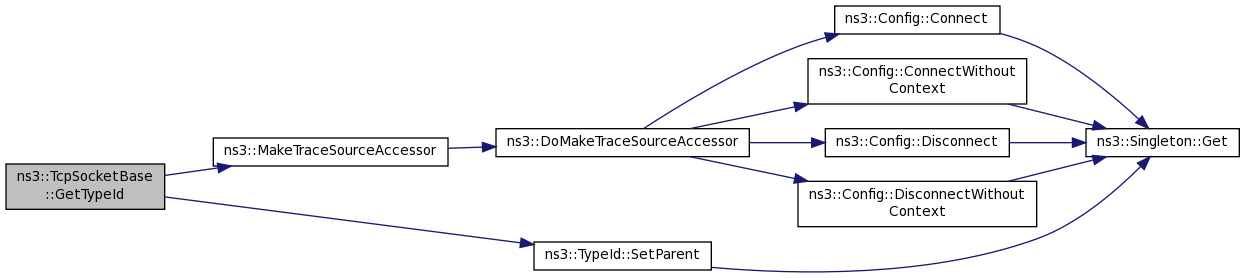

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::TcpSocket
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	AddOptions (TcpHeader &)

virtual uint16_t	AdvertisedWindowSize (void)

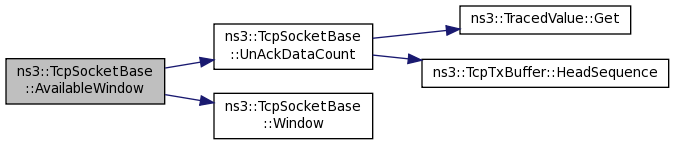

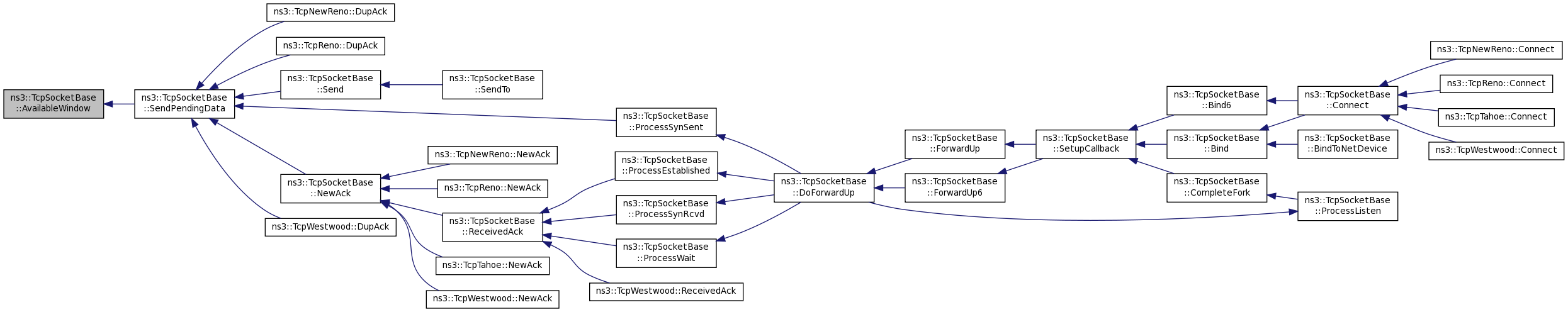

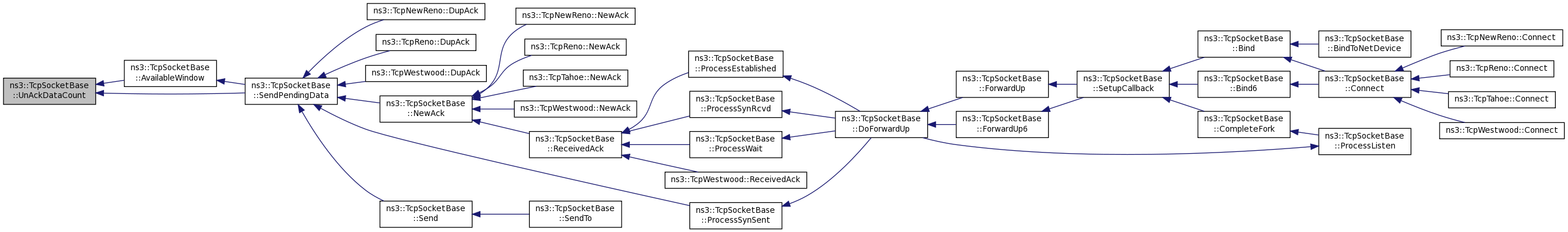

virtual uint32_t	AvailableWindow (void)

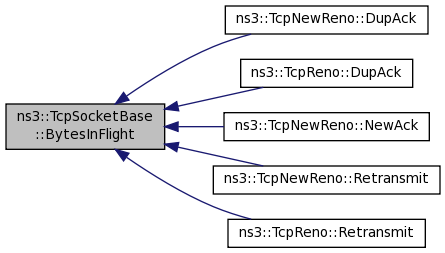

virtual uint32_t	BytesInFlight (void)

void	CancelAllTimers (void)

void	CloseAndNotify (void)

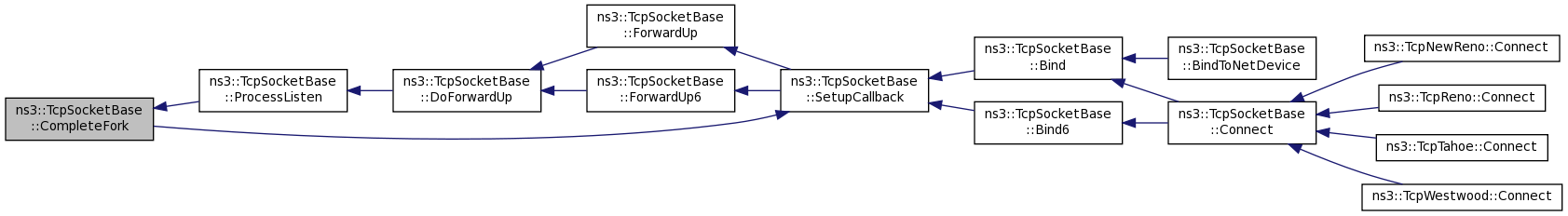

void	CompleteFork (Ptr< Packet >, const TcpHeader &, const Address &fromAddress, const Address &toAdress)

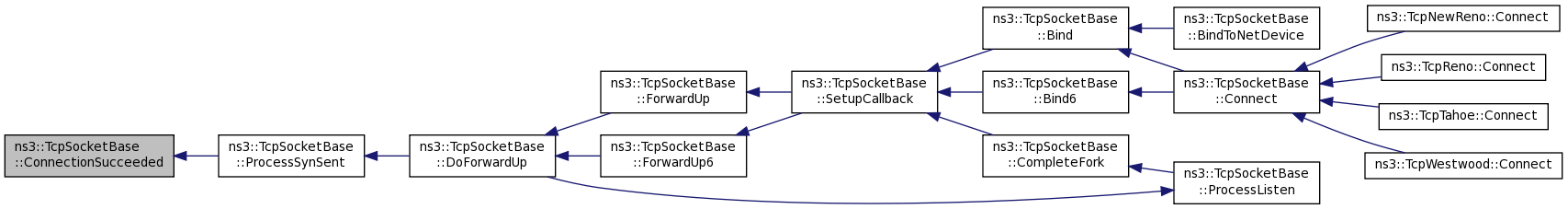

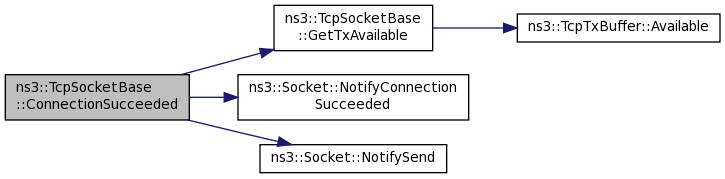

void	ConnectionSucceeded (void)

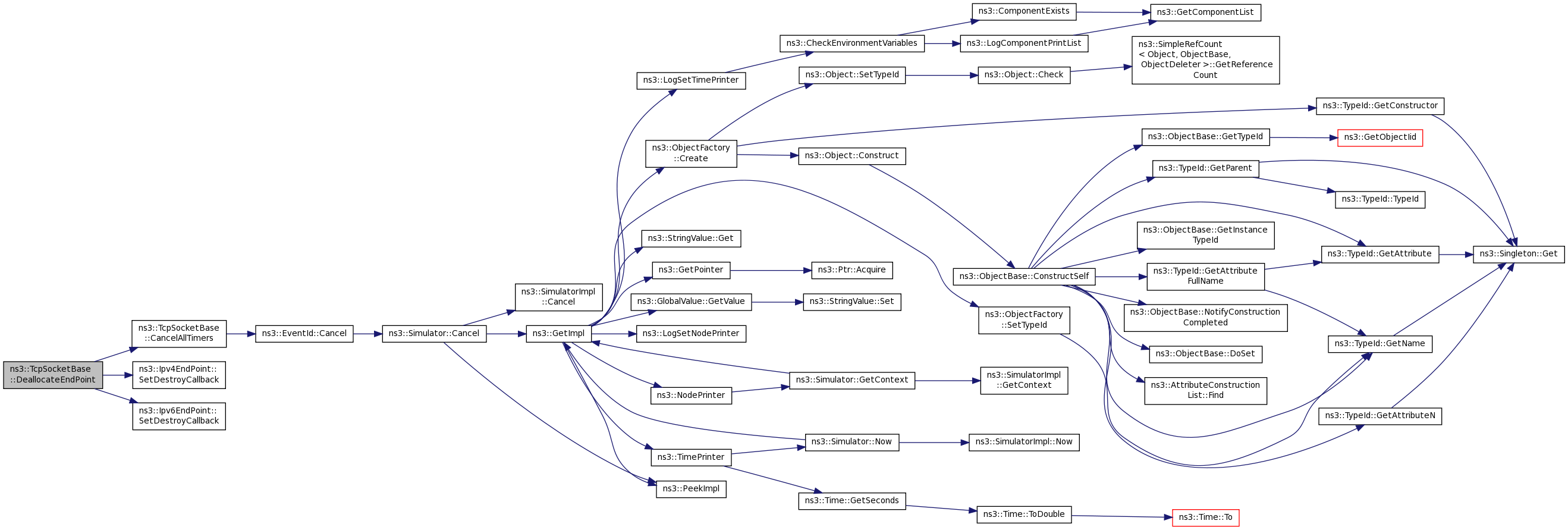

void	DeallocateEndPoint (void)

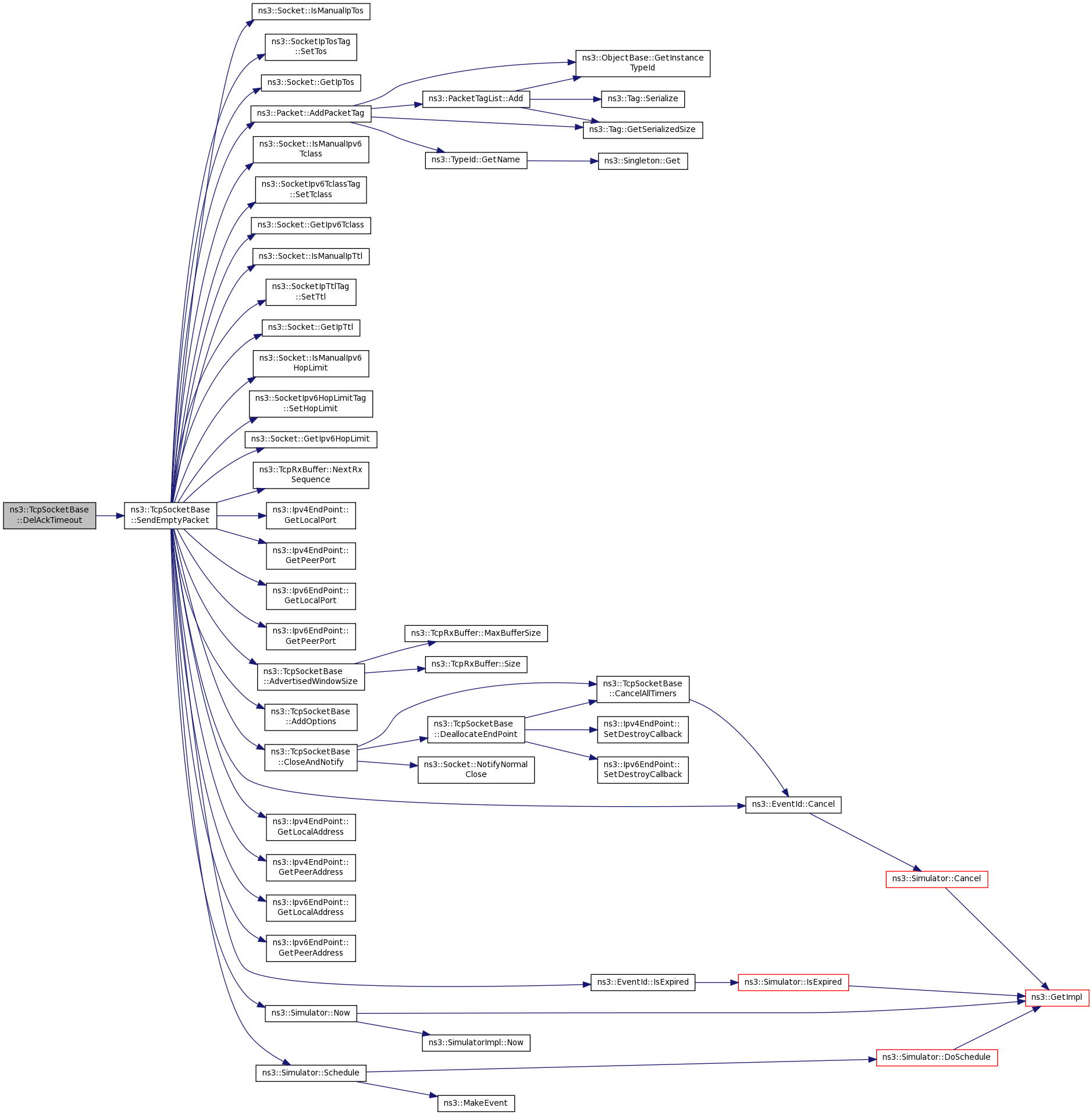

virtual void	DelAckTimeout (void)

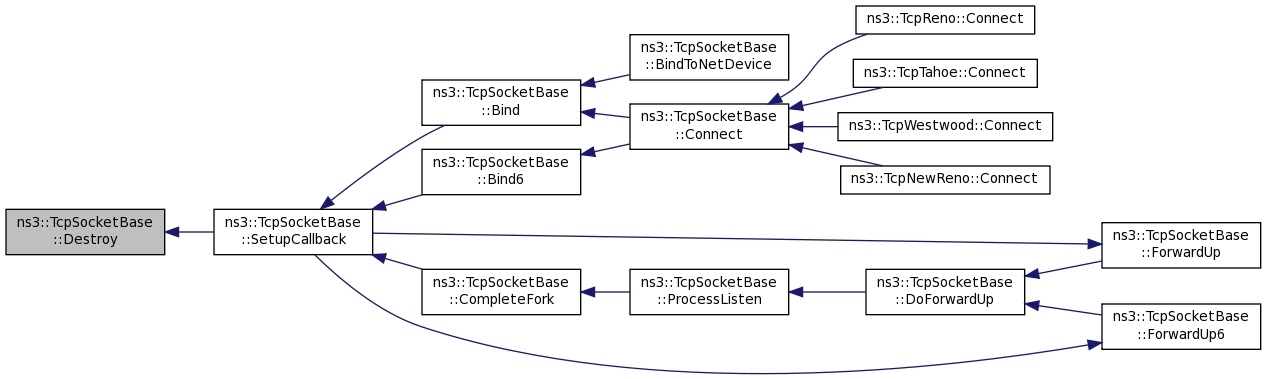

void	Destroy (void)

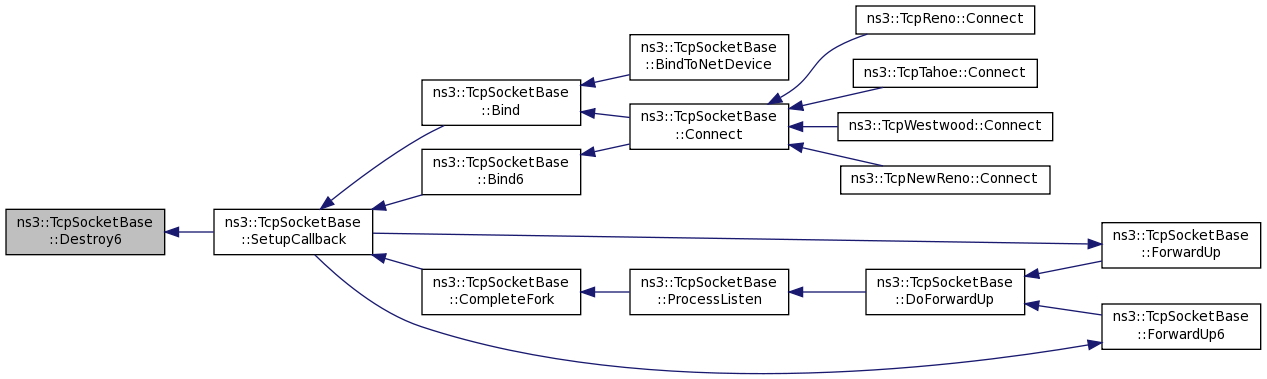

void	Destroy6 (void)

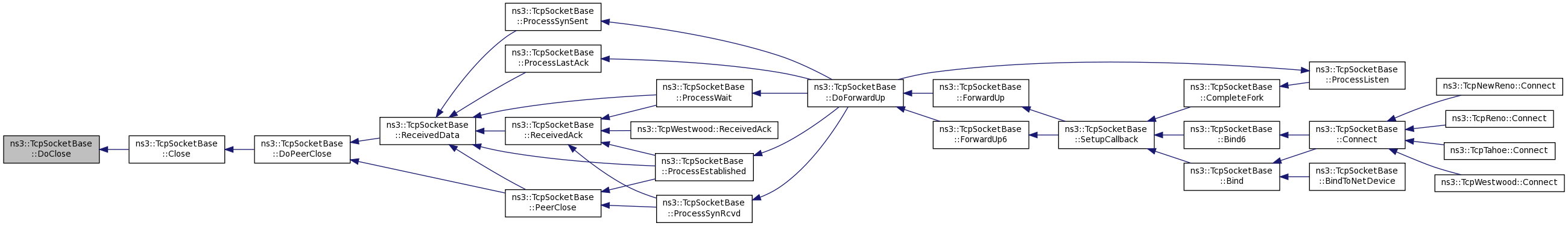

int	DoClose (void)

int	DoConnect (void)

virtual void	DoForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)

virtual void	DoForwardUp (Ptr< Packet > packet, Ipv6Header header, uint16_t port)

void	DoPeerClose (void)

virtual void	DoRetransmit (void)

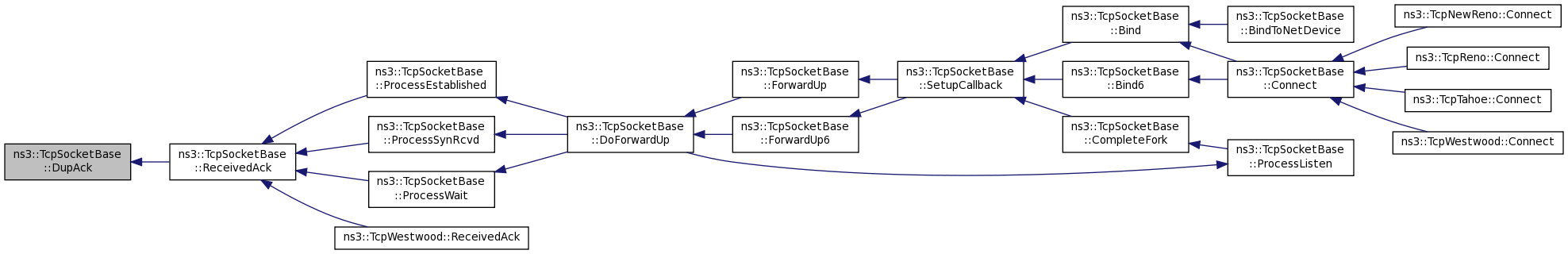

virtual void	DupAck (const TcpHeader &t, uint32_t count)=0

virtual void	EstimateRtt (const TcpHeader &)

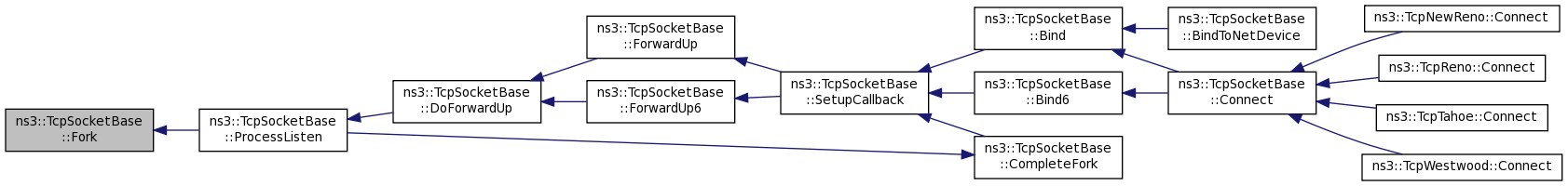

virtual Ptr< TcpSocketBase >	Fork (void)=0

void	ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

void	ForwardIcmp6 (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

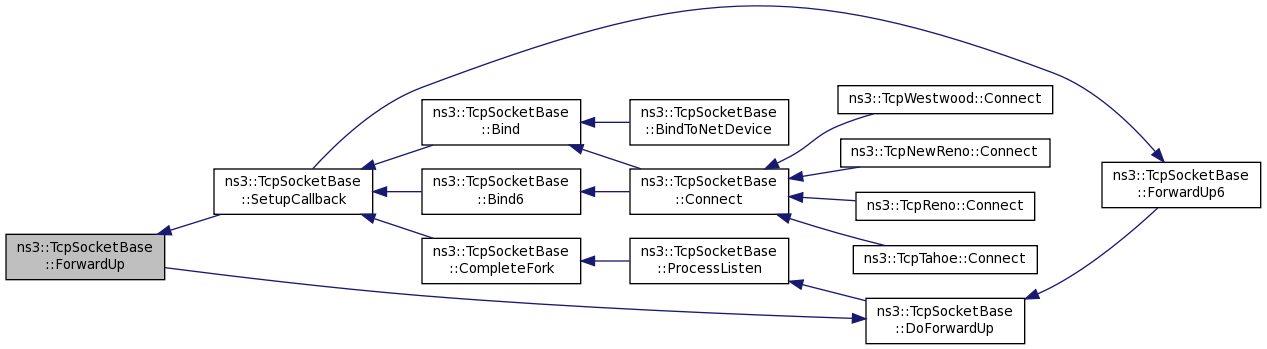

void	ForwardUp (Ptr< Packet > packet, Ipv4Header header, uint16_t port, Ptr< Ipv4Interface > incomingInterface)

void	ForwardUp6 (Ptr< Packet > packet, Ipv6Header header, uint16_t port)

virtual bool	GetAllowBroadcast (void) const
	Query whether broadcast datagram transmissions are allowed. More...

virtual uint32_t	GetConnCount (void) const

virtual Time	GetConnTimeout (void) const

virtual uint32_t	GetDelAckMaxCount (void) const

virtual Time	GetDelAckTimeout (void) const

virtual uint32_t	GetInitialCwnd (void) const =0

virtual Time	GetPersistTimeout (void) const

virtual uint32_t	GetRcvBufSize (void) const

virtual uint32_t	GetSegSize (void) const

virtual uint32_t	GetSndBufSize (void) const

virtual uint32_t	GetSSThresh (void) const =0

virtual bool	GetTcpNoDelay (void) const

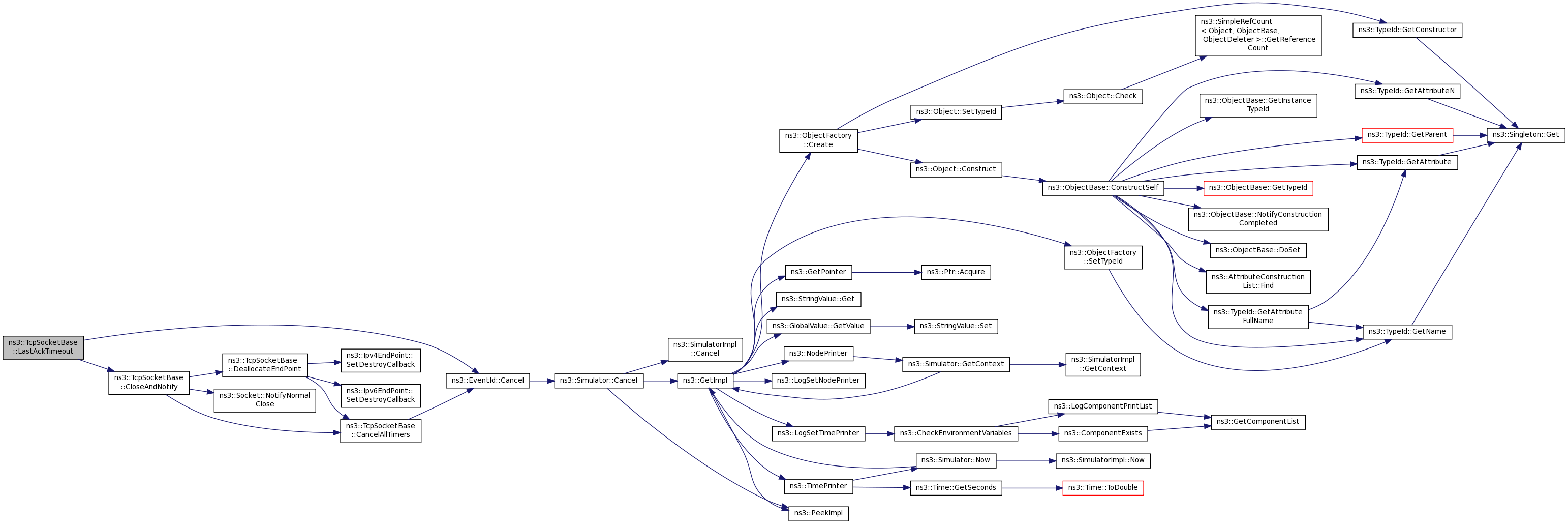

virtual void	LastAckTimeout (void)

virtual void	NewAck (SequenceNumber32 const &seq)

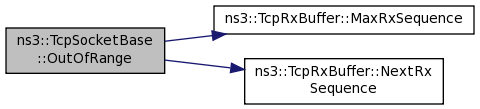

bool	OutOfRange (SequenceNumber32 head, SequenceNumber32 tail) const

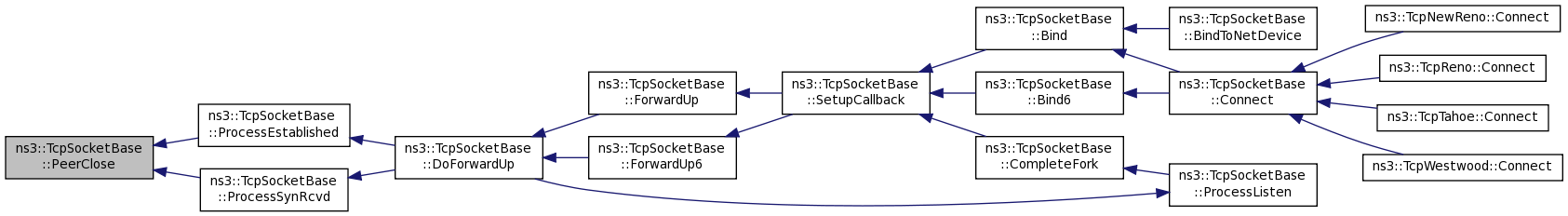

void	PeerClose (Ptr< Packet >, const TcpHeader &)

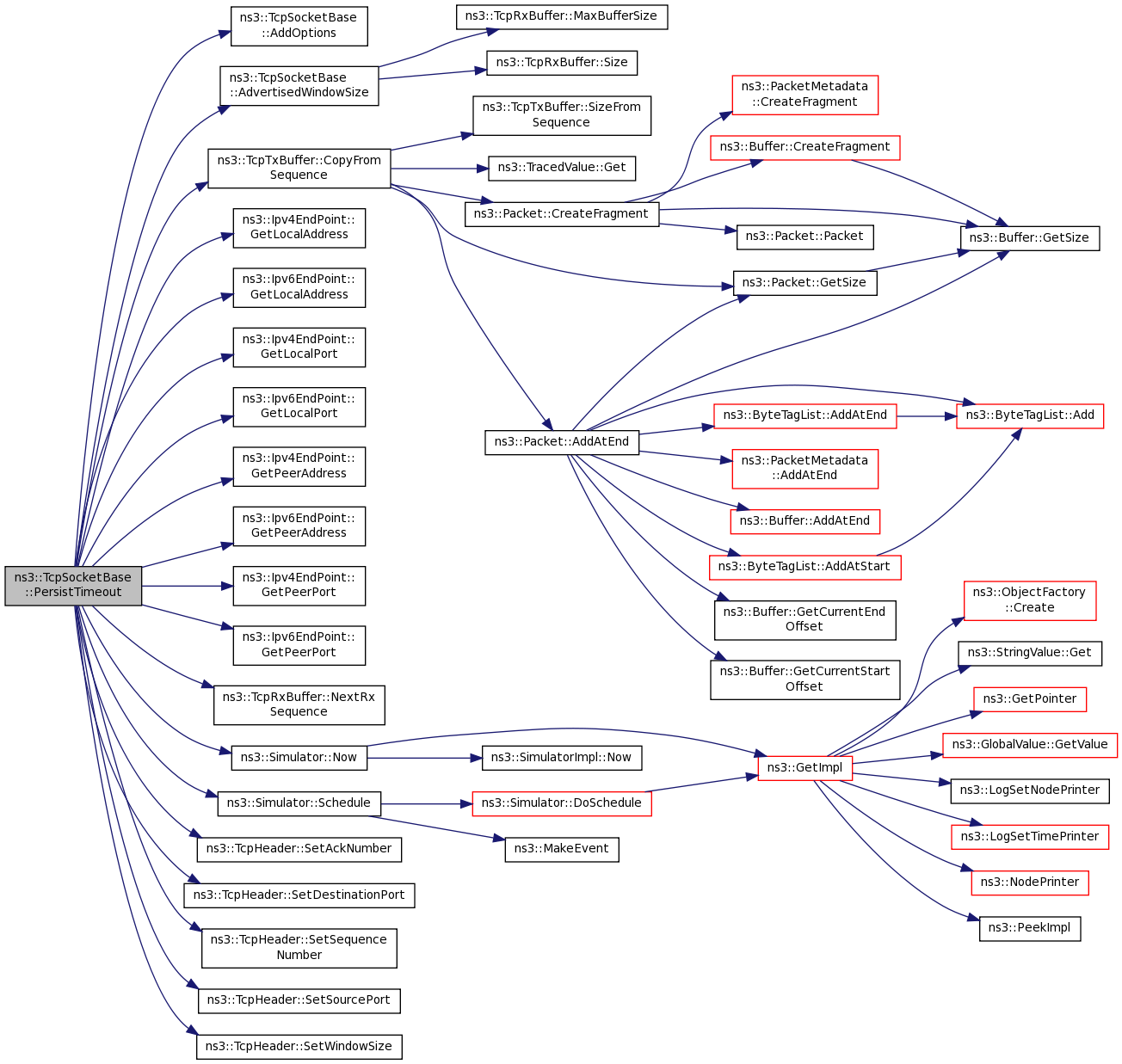

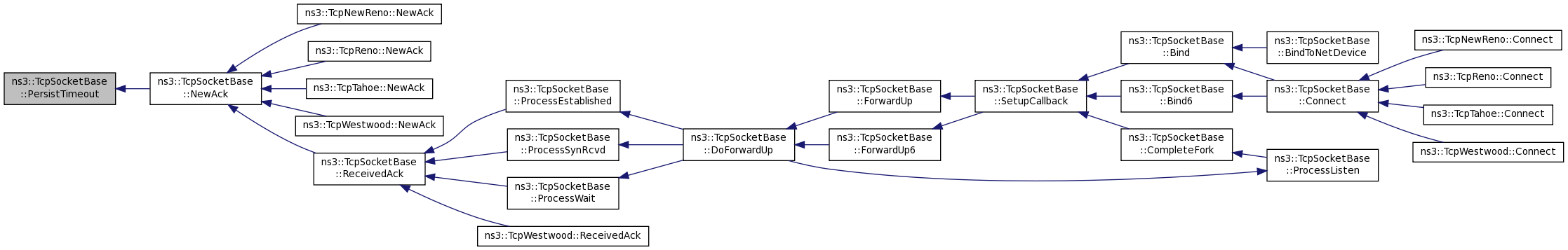

virtual void	PersistTimeout (void)

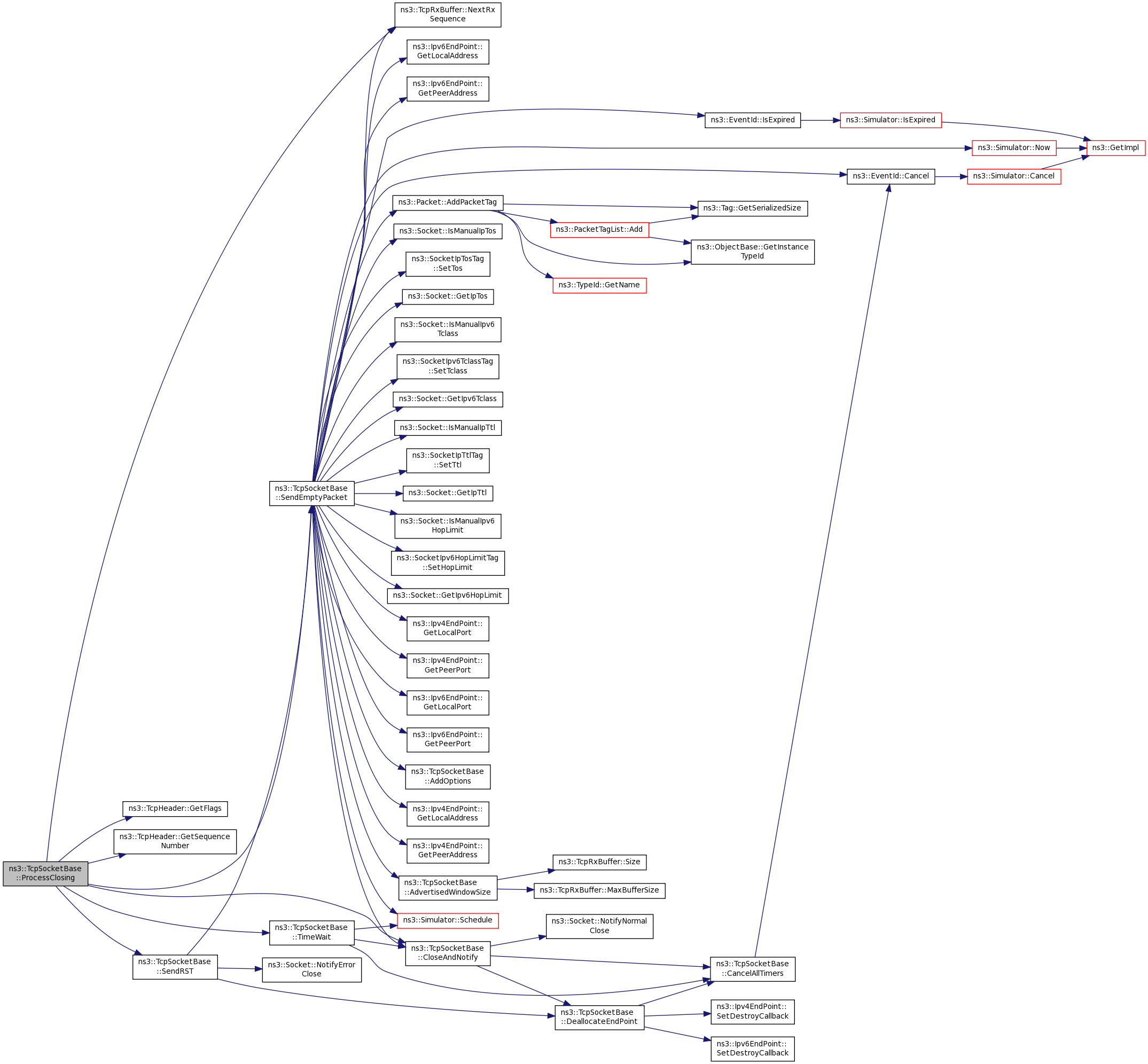

void	ProcessClosing (Ptr< Packet >, const TcpHeader &)

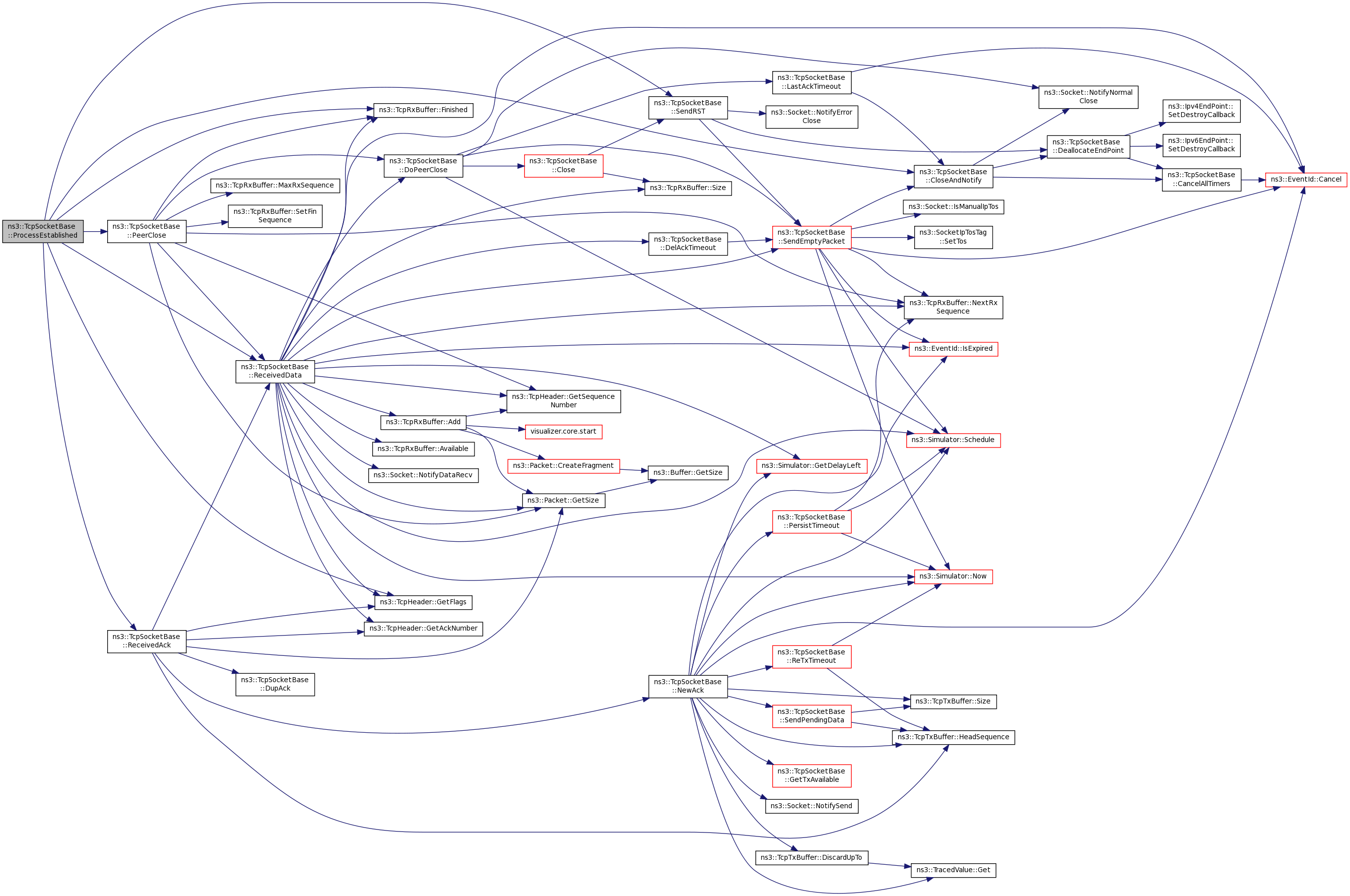

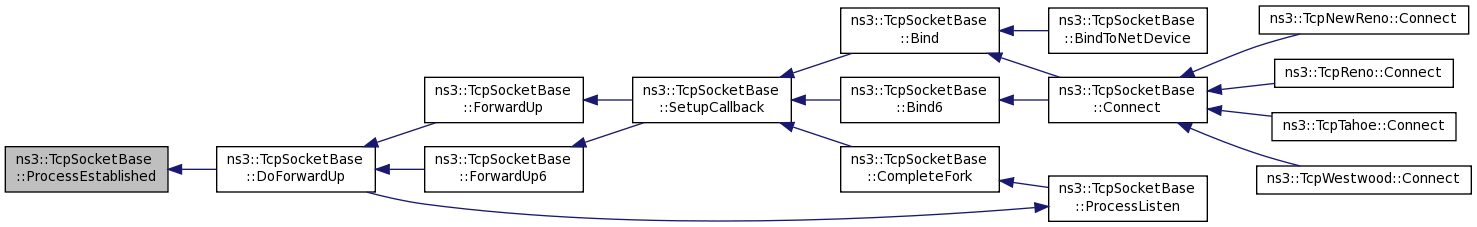

void	ProcessEstablished (Ptr< Packet >, const TcpHeader &)

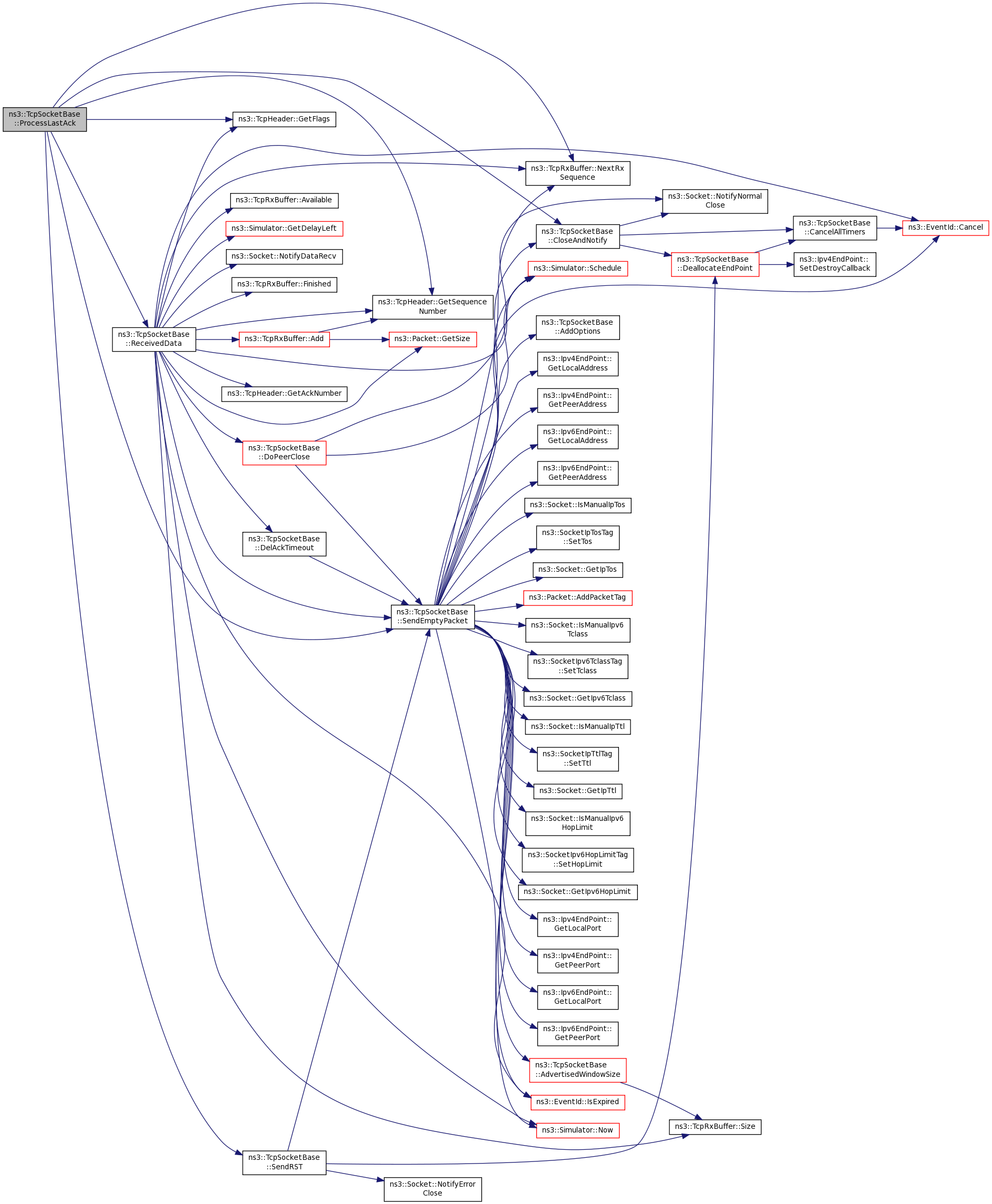

void	ProcessLastAck (Ptr< Packet >, const TcpHeader &)

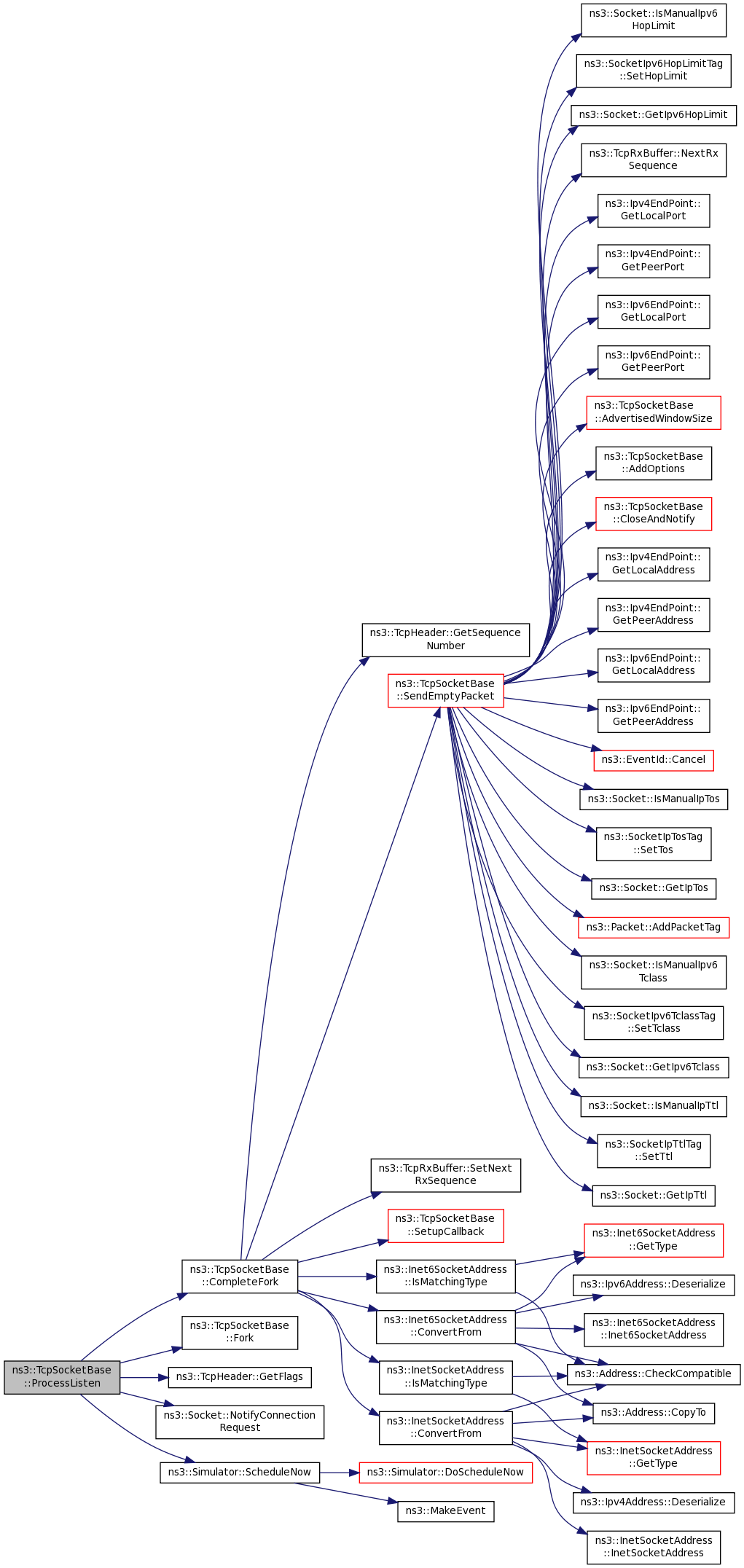

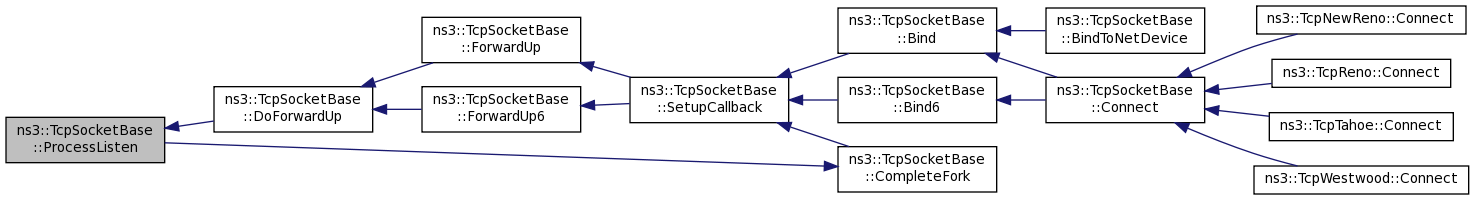

void	ProcessListen (Ptr< Packet >, const TcpHeader &, const Address &, const Address &)

void	ProcessSynRcvd (Ptr< Packet >, const TcpHeader &, const Address &, const Address &)

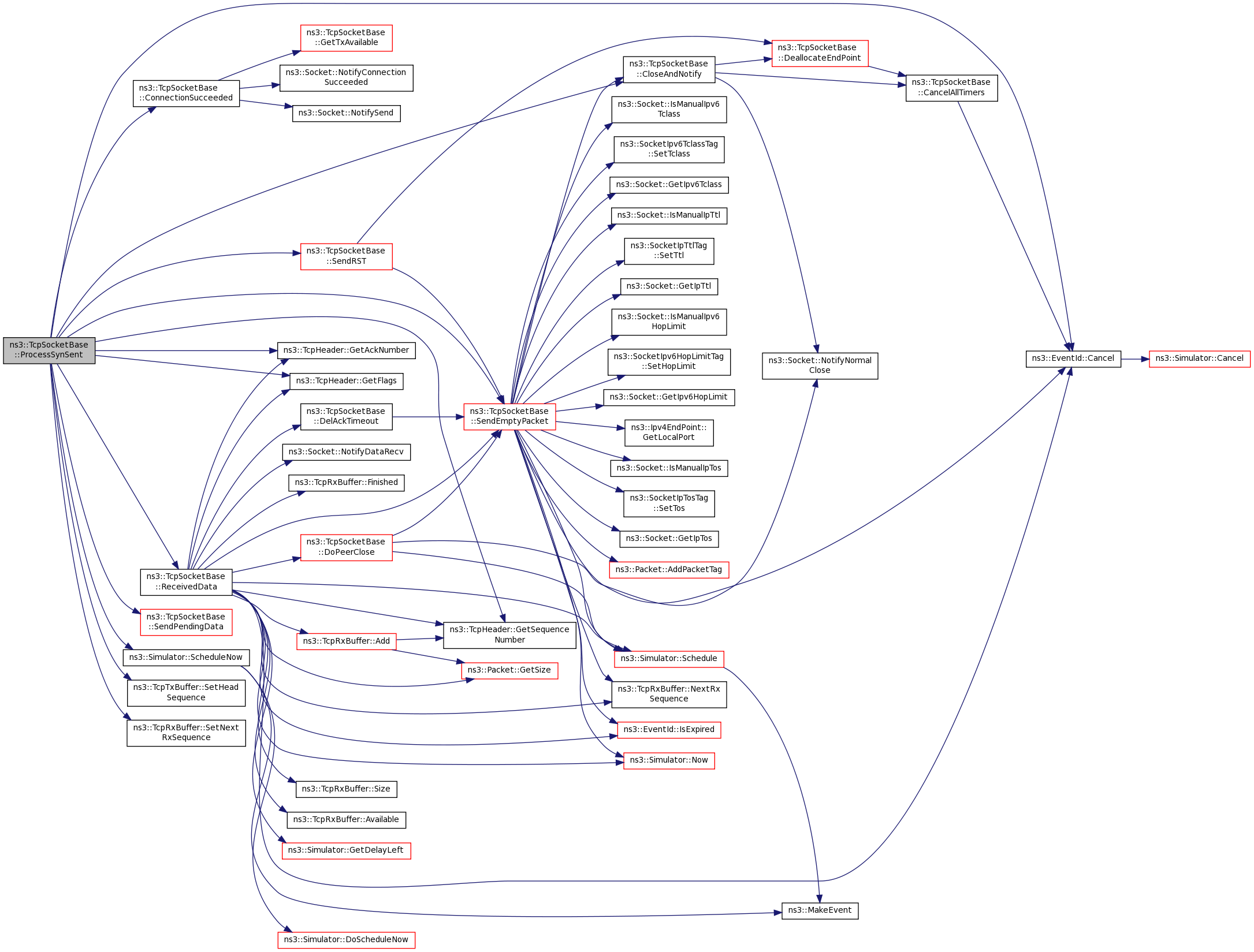

void	ProcessSynSent (Ptr< Packet >, const TcpHeader &)

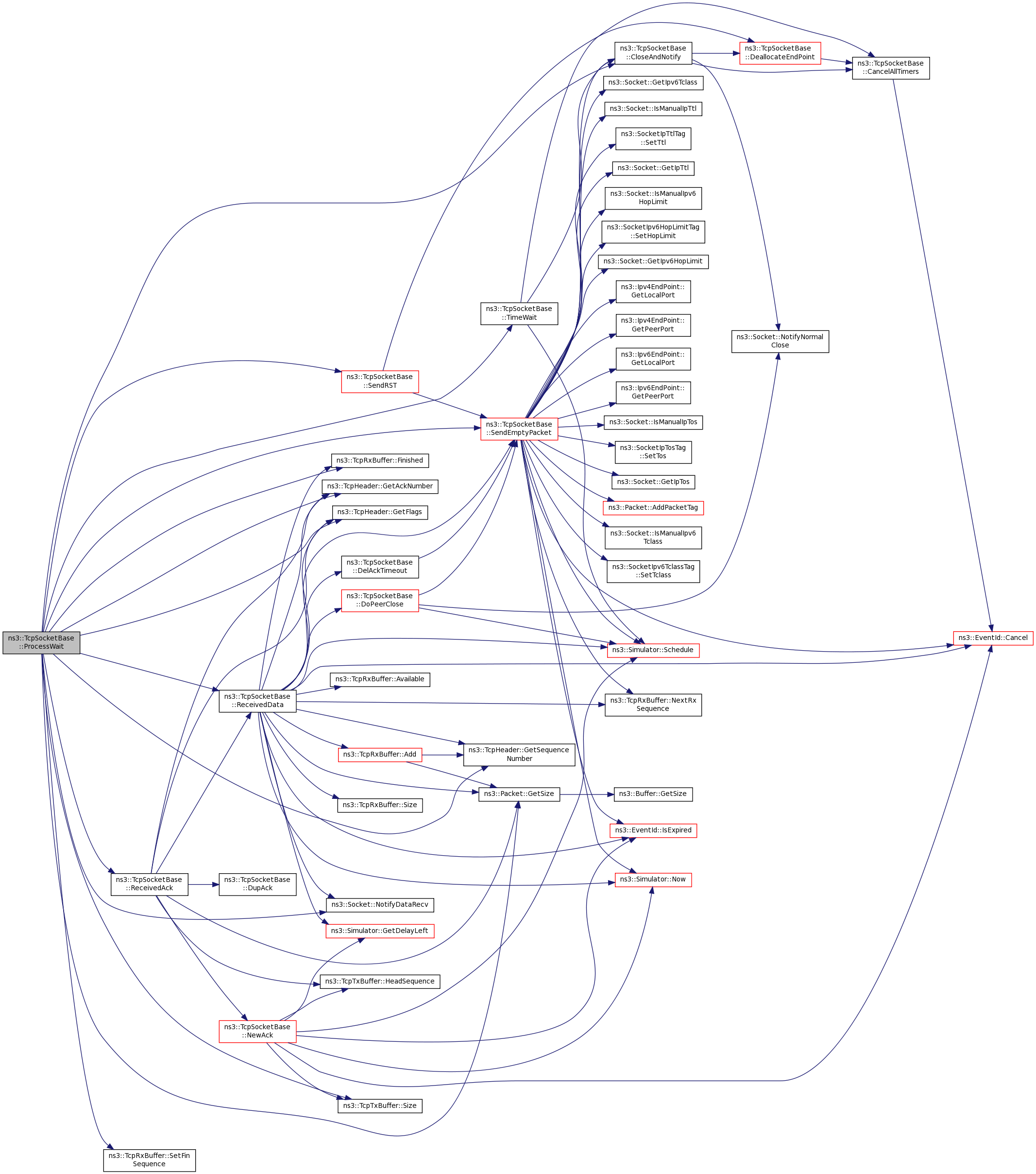

void	ProcessWait (Ptr< Packet >, const TcpHeader &)

virtual void	ReadOptions (const TcpHeader &)

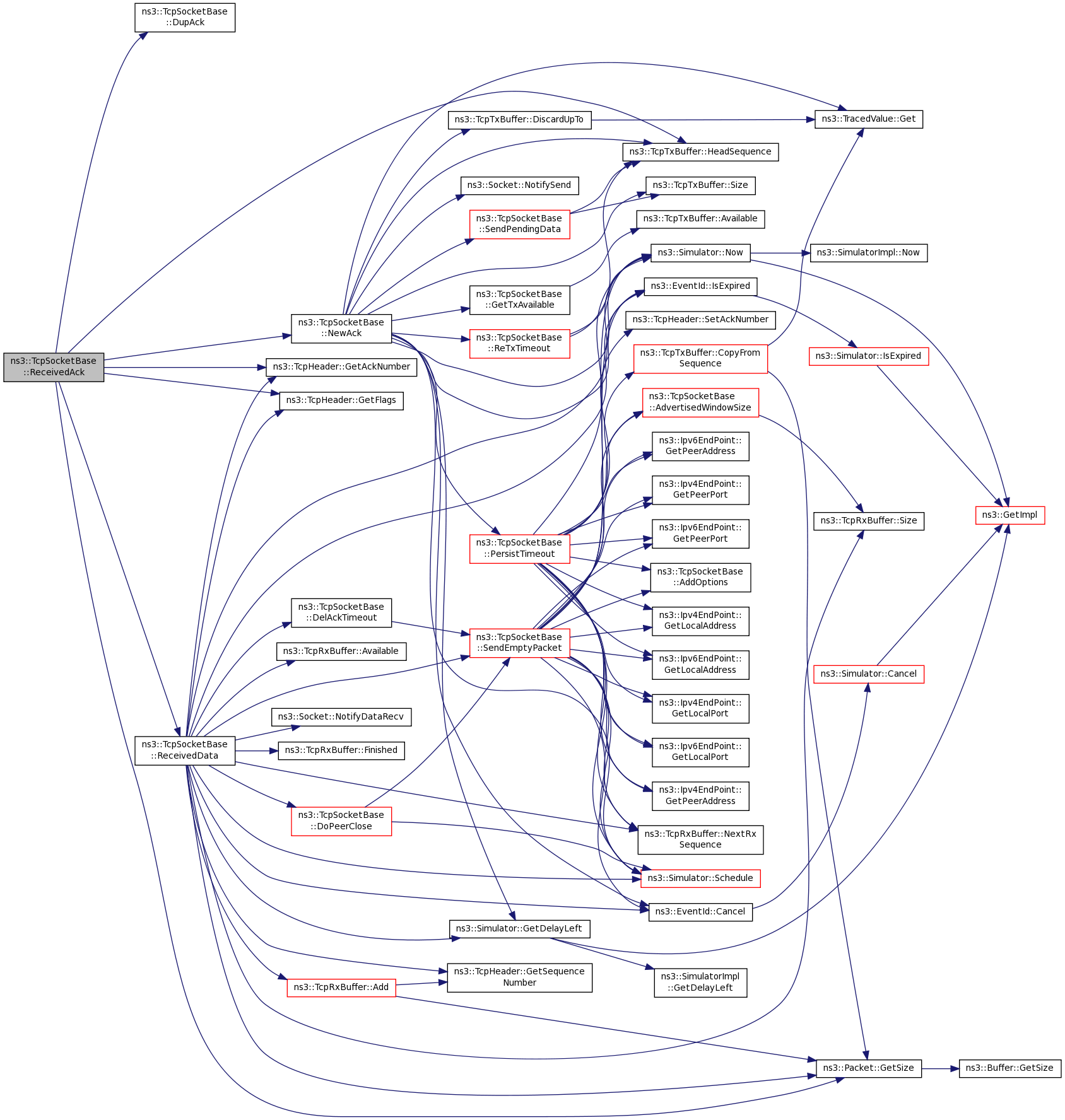

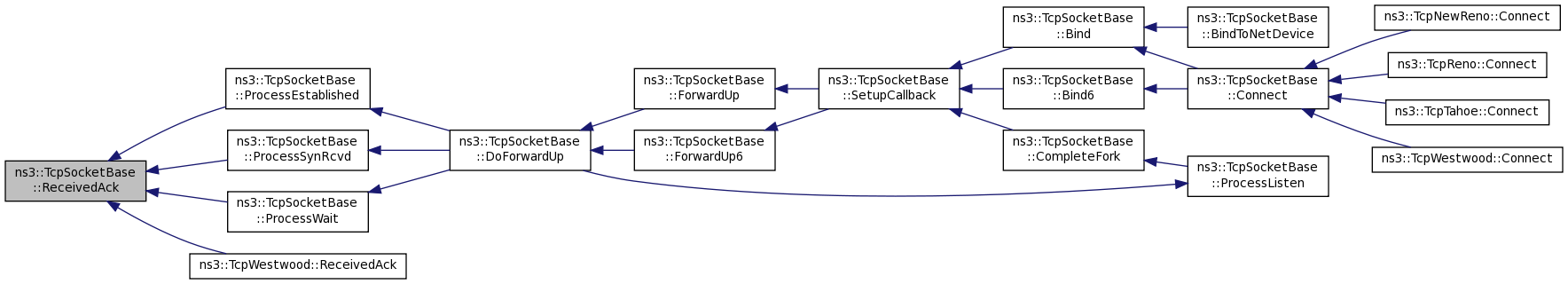

virtual void	ReceivedAck (Ptr< Packet >, const TcpHeader &)

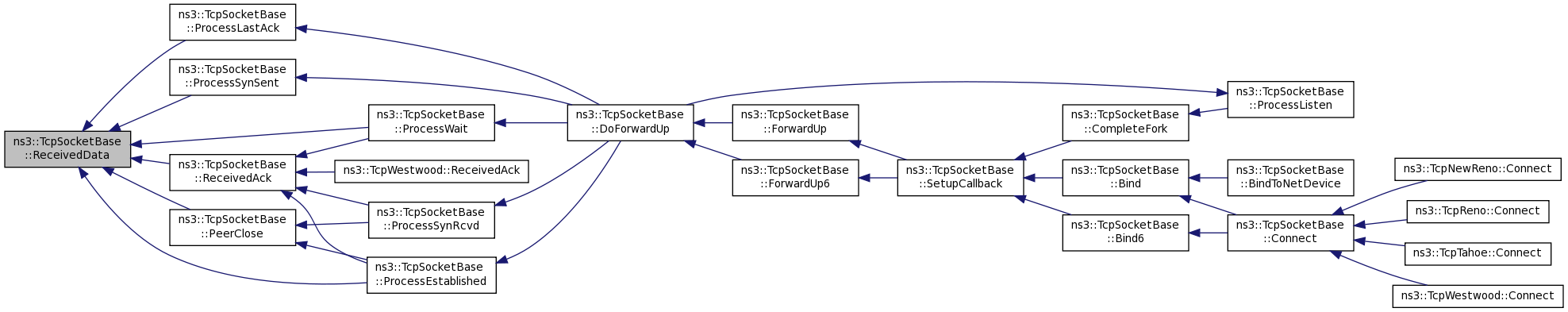

virtual void	ReceivedData (Ptr< Packet >, const TcpHeader &)

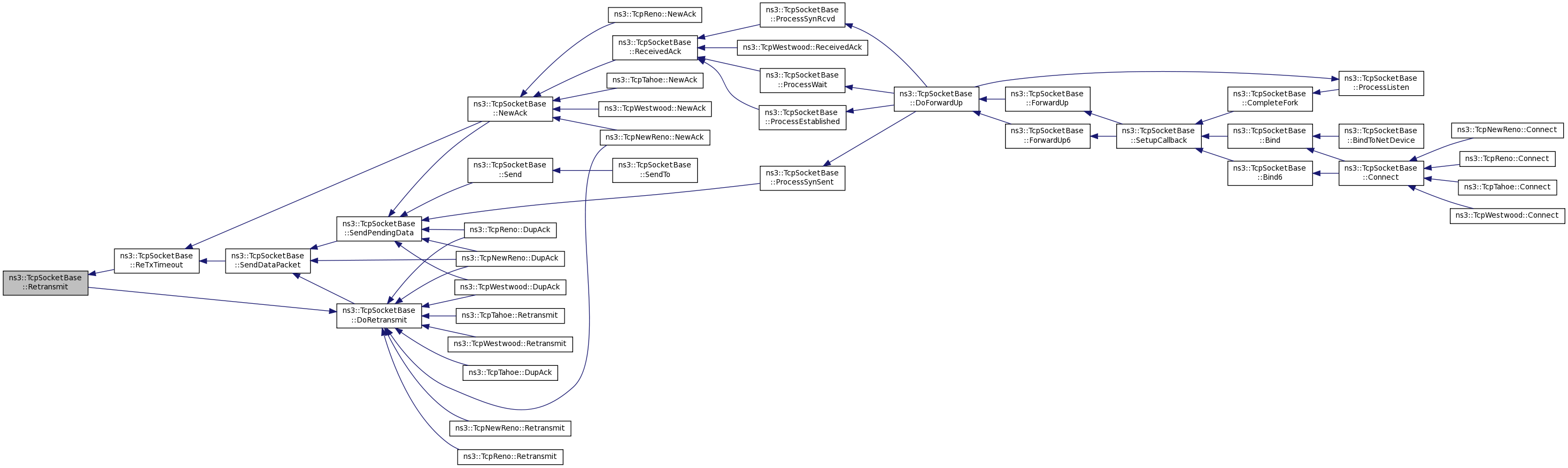

virtual void	Retransmit (void)

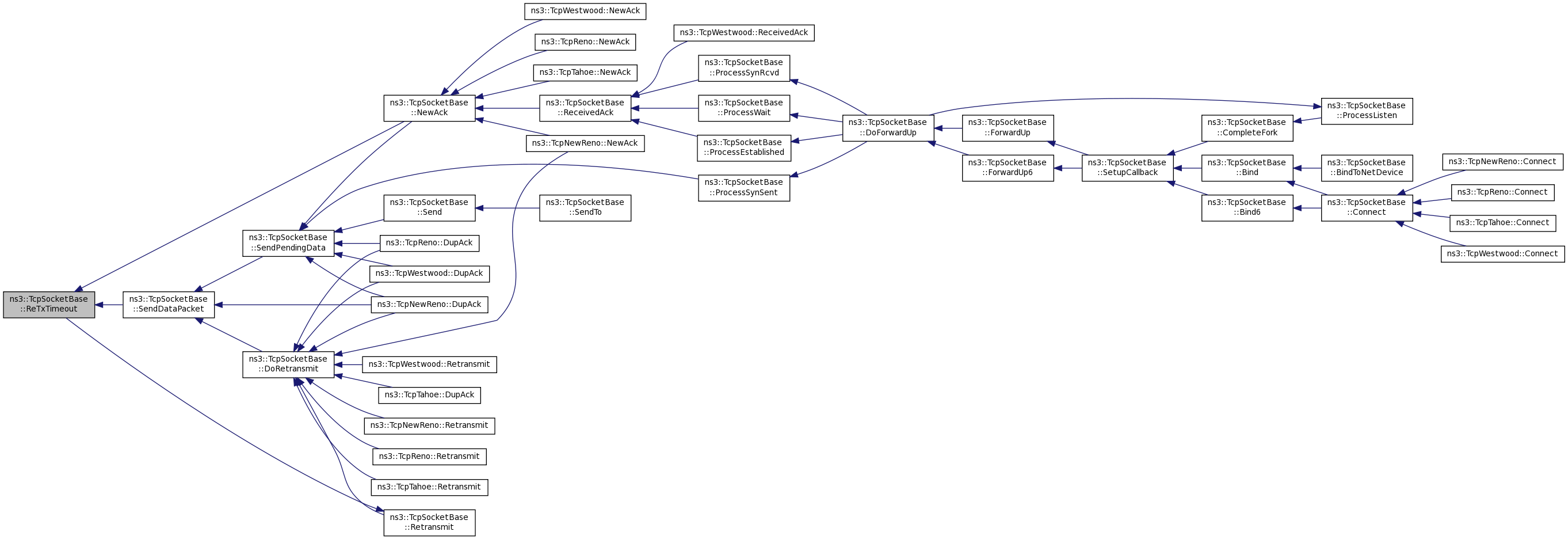

virtual void	ReTxTimeout (void)

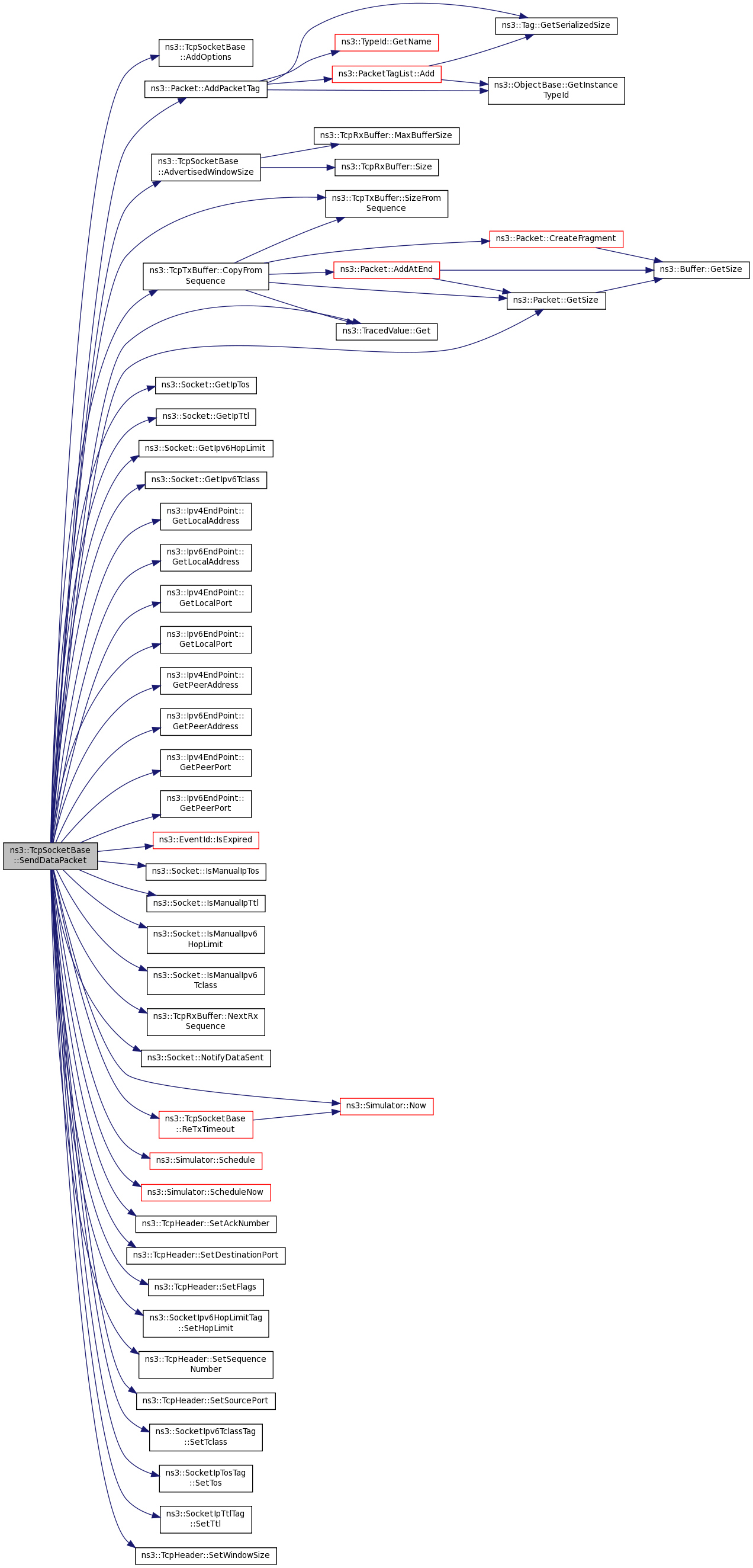

uint32_t	SendDataPacket (SequenceNumber32 seq, uint32_t maxSize, bool withAck)

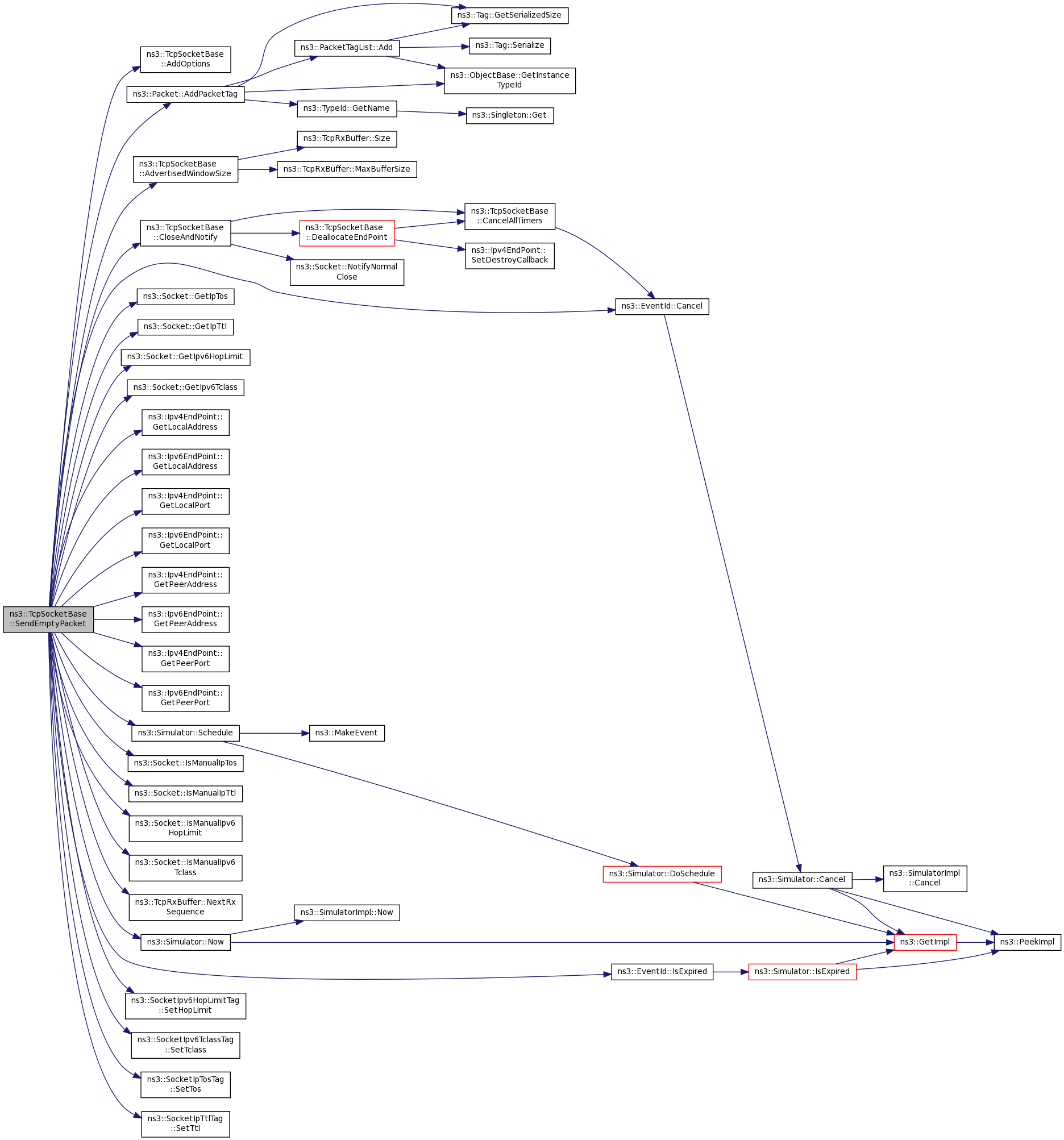

void	SendEmptyPacket (uint8_t flags)

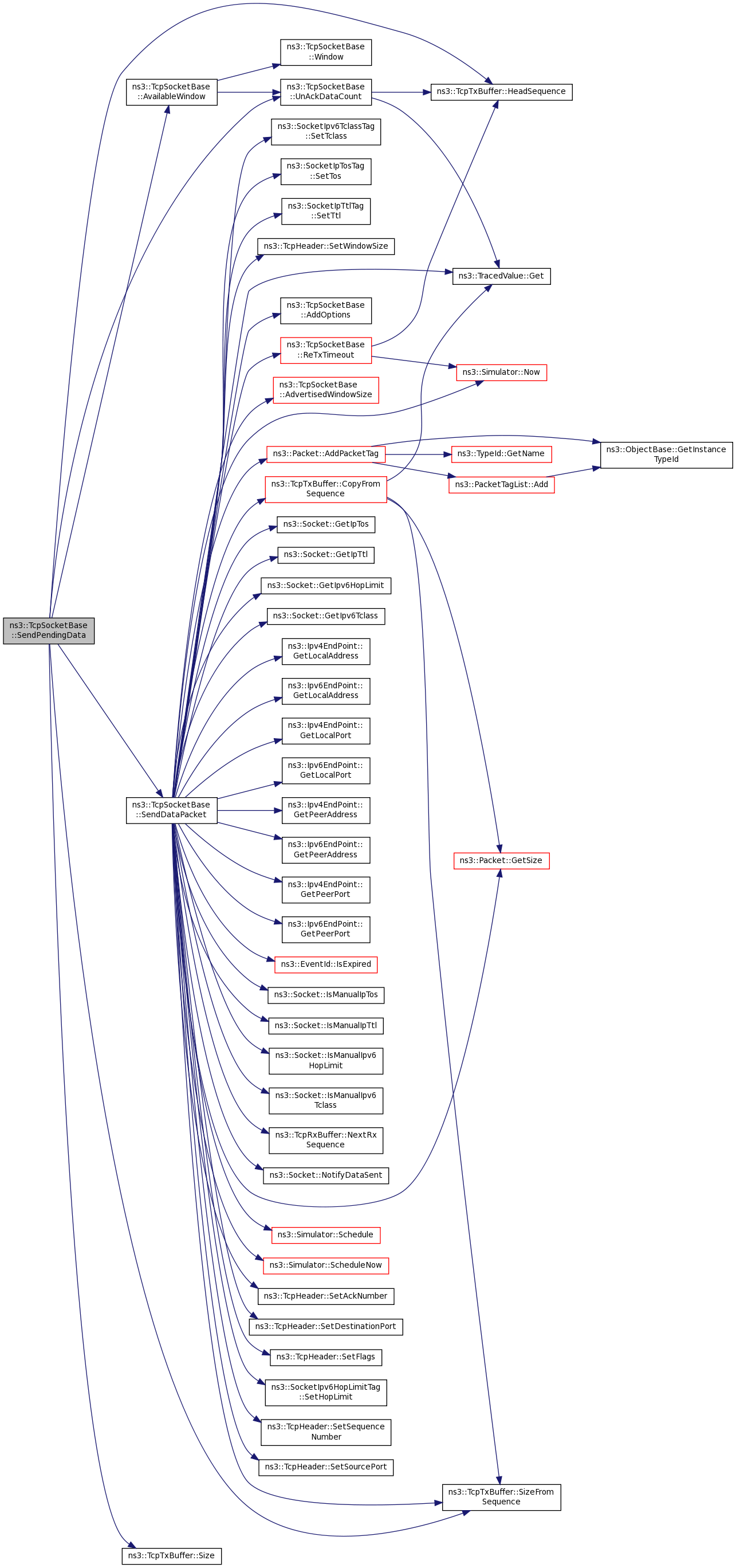

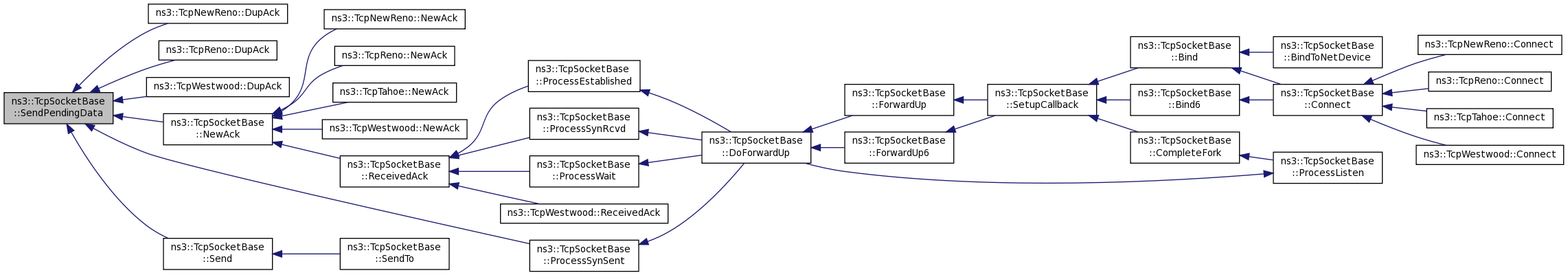

bool	SendPendingData (bool withAck=false)

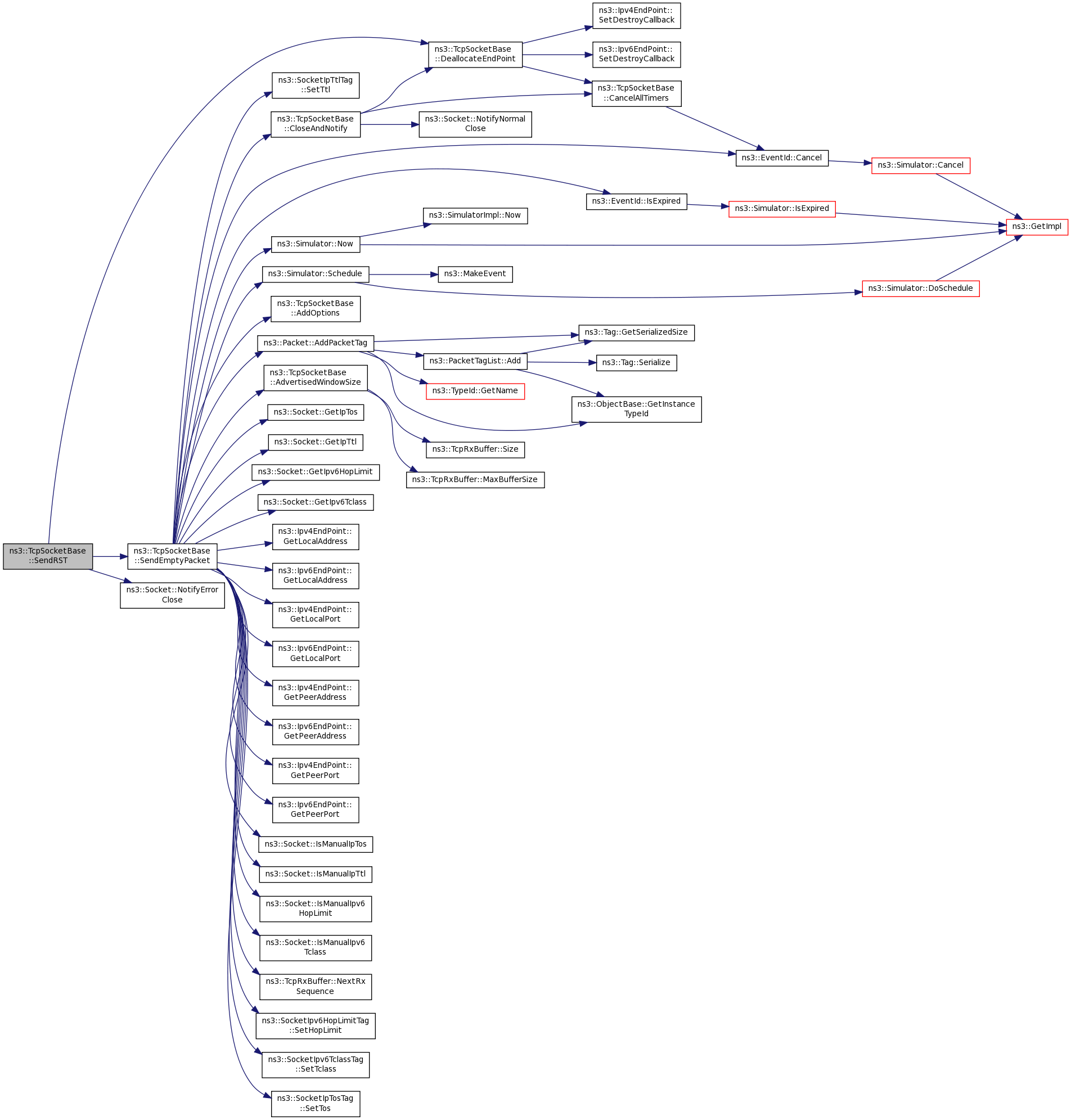

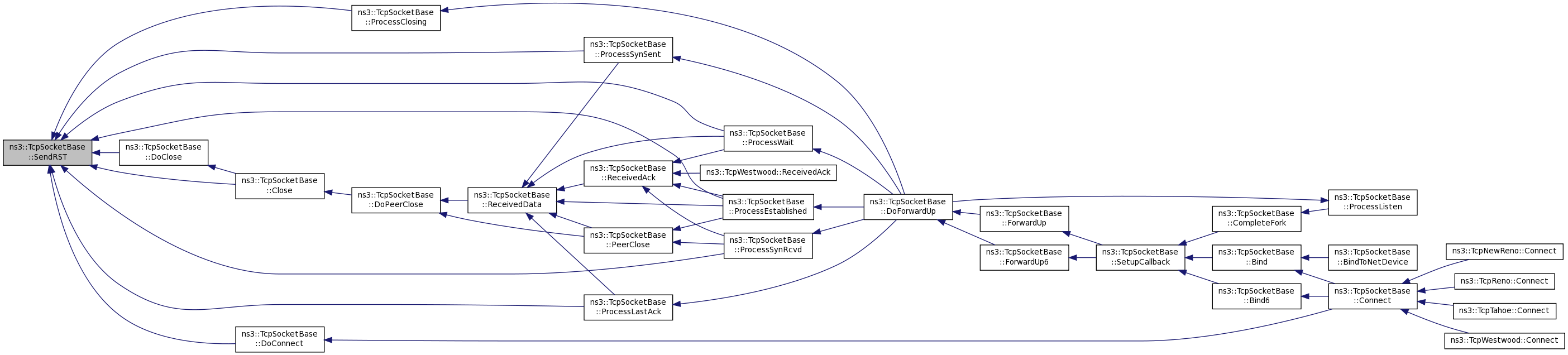

void	SendRST (void)

virtual bool	SetAllowBroadcast (bool allowBroadcast)
	Configure whether broadcast datagram transmissions are allowed. More...

virtual void	SetConnCount (uint32_t count)

virtual void	SetConnTimeout (Time timeout)

virtual void	SetDelAckMaxCount (uint32_t count)

virtual void	SetDelAckTimeout (Time timeout)

virtual void	SetInitialCwnd (uint32_t cwnd)=0

virtual void	SetPersistTimeout (Time timeout)

virtual void	SetRcvBufSize (uint32_t size)

virtual void	SetSegSize (uint32_t size)

virtual void	SetSndBufSize (uint32_t size)

virtual void	SetSSThresh (uint32_t threshold)=0

virtual void	SetTcpNoDelay (bool noDelay)

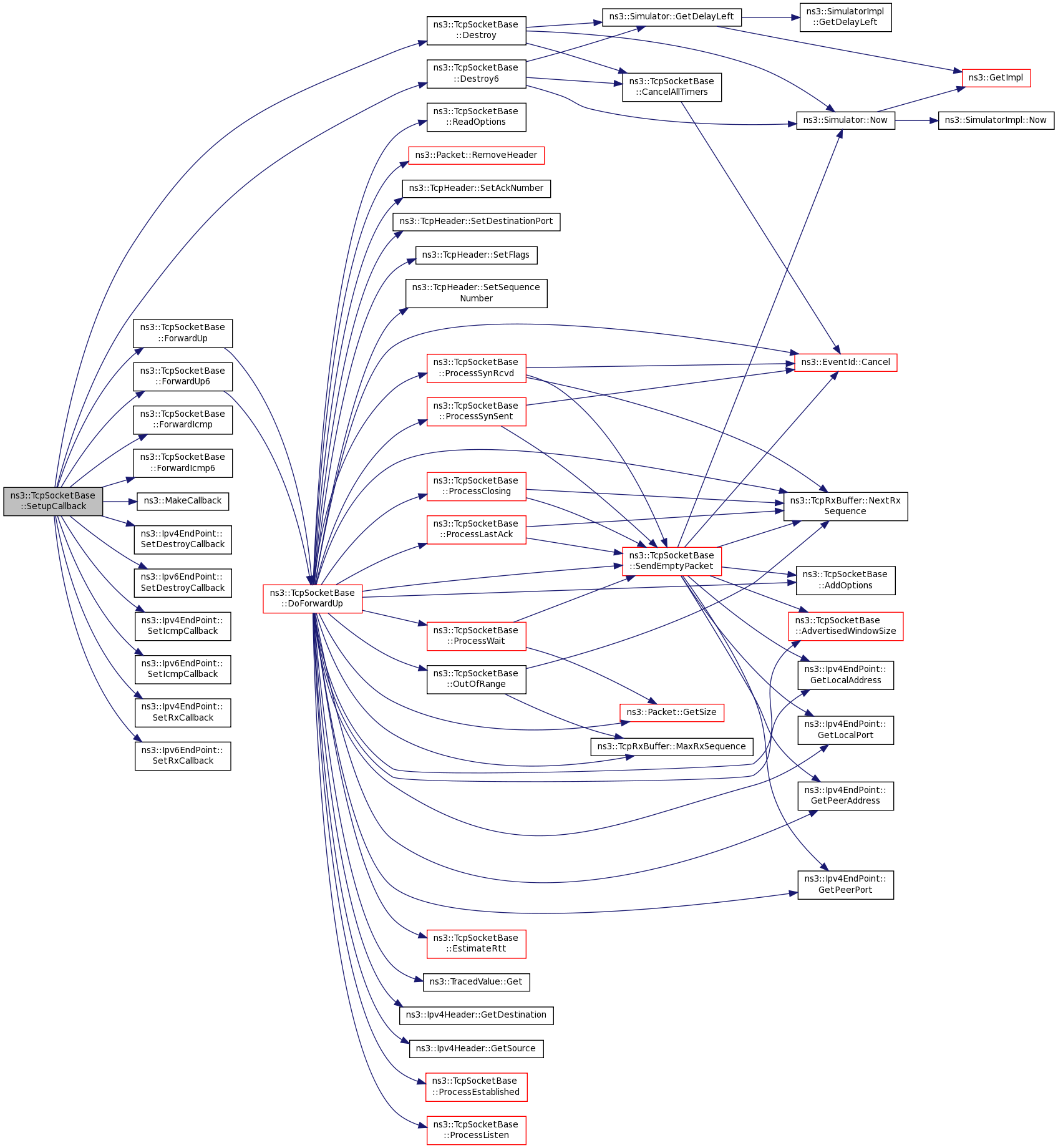

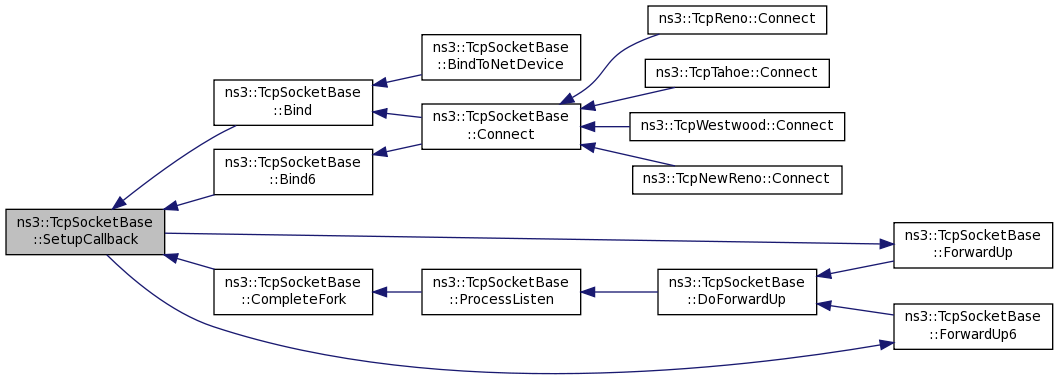

int	SetupCallback (void)

int	SetupEndpoint (void)

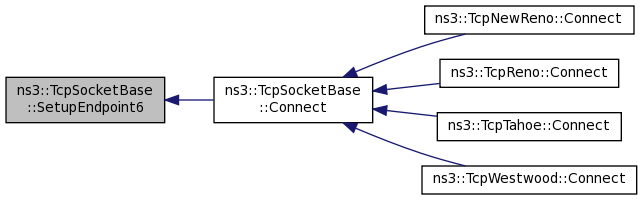

int	SetupEndpoint6 (void)

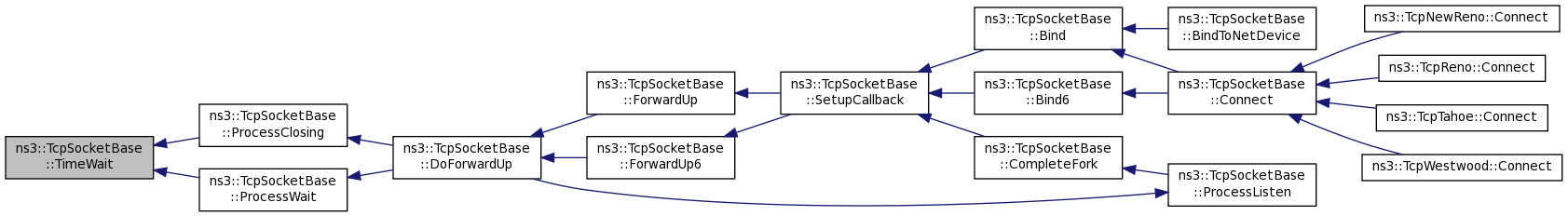

void	TimeWait (void)

virtual uint32_t	UnAckDataCount (void)

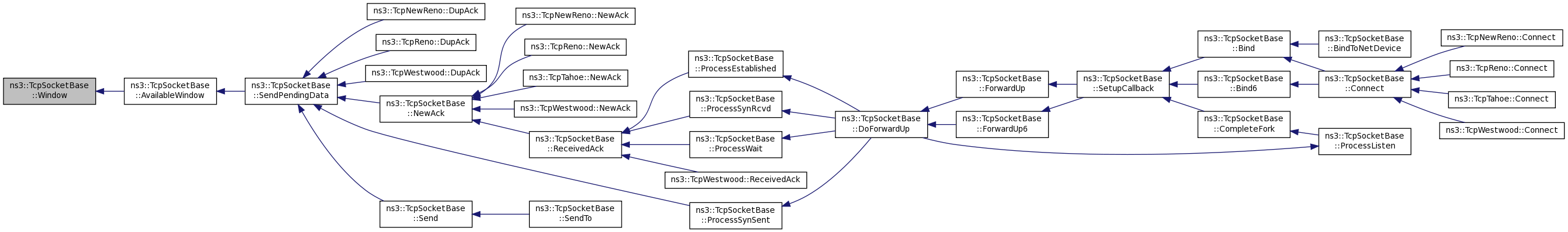

virtual uint32_t	Window (void)

Protected Member Functions inherited from ns3::Socket
virtual void	DoDispose (void)

bool	IsManualIpTos (void) const

bool	IsManualIpTtl (void) const

bool	IsManualIpv6HopLimit (void) const

bool	IsManualIpv6Tclass (void) const

void	NotifyConnectionFailed (void)

bool	NotifyConnectionRequest (const Address &from)

void	NotifyConnectionSucceeded (void)

void	NotifyDataRecv (void)

void	NotifyDataSent (uint32_t size)

void	NotifyErrorClose (void)

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)

void	NotifyNormalClose (void)

void	NotifySend (uint32_t spaceAvailable)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes
bool	m_closeNotified

bool	m_closeOnEmpty

uint32_t	m_cnCount

uint32_t	m_cnRetries

Time	m_cnTimeout

bool	m_connected

uint32_t	m_delAckCount

EventId	m_delAckEvent

uint32_t	m_delAckMaxCount

Time	m_delAckTimeout

uint32_t	m_dupAckCount

Ipv4EndPoint *	m_endPoint

Ipv6EndPoint *	m_endPoint6

enum SocketErrno	m_errno

TracedValue< SequenceNumber32 >	m_highTxMark

Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback

Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback6

EventId	m_lastAckEvent

TracedValue< Time >	m_lastRtt

uint16_t	m_maxWinSize

double	m_msl

TracedValue< SequenceNumber32 >	m_nextTxSequence

Ptr< Node >	m_node

bool	m_noDelay

EventId	m_persistEvent

Time	m_persistTimeout

EventId	m_retxEvent

TracedValue< Time >	m_rto

Ptr< RttEstimator >	m_rtt

TracedValue< uint32_t >	m_rWnd

TcpRxBuffer	m_rxBuffer

uint32_t	m_segmentSize

bool	m_shutdownRecv

bool	m_shutdownSend

TracedValue< TcpStates_t >	m_state

Ptr< TcpL4Protocol >	m_tcp

EventId	m_timewaitEvent

TcpTxBuffer	m_txBuffer

Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice

bool	m_recvPktInfo

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	SocketErrno { ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE, ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT, ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV, ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST }

enum	SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }

Static Public Attributes inherited from ns3::TcpSocket
static const char *const	TcpStateName [LAST_STATE] = { "CLOSED", "LISTEN", "SYN_SENT", "SYN_RCVD", "ESTABLISHED", "CLOSE_WAIT", "LAST_ACK", "FIN_WAIT_1", "FIN_WAIT_2", "CLOSING", "TIME_WAIT" }

Detailed Description

A base class for implementation of a stream socket using TCP.

This class contains the essential components of TCP, as well as a sockets interface for upper layers to call. This serves as a base for other TCP functions where the sliding window mechanism is handled here. This class provides connection orientation and sliding window flow control. Part of this class is modified from the original NS-3 TCP socket implementation (TcpSocketImpl) by Raj Bhattacharjea raj.b.nosp@m.@gat.nosp@m.ech.e.nosp@m.du of Georgia Tech.

Config Paths

ns3::TcpSocketBase is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::TcpL4Protocol/SocketList/[i]

Attributes

MaxSegLifetime: Maximum segment lifetime in seconds, use for TIME_WAIT state transition to CLOSED state
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 120
- Flags: construct write read
MaxWindowSize: Max size of advertised window
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 65535
- Flags: construct write read
IcmpCallback: Callback invoked whenever an icmp error is received on this socket.
- Set with class: CallbackValue
- Underlying type: Callback
- Initial value: 0
- Flags: construct write read
IcmpCallback6: Callback invoked whenever an icmpv6 error is received on this socket.
- Set with class: CallbackValue
- Underlying type: Callback
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::TcpSocket

SndBufSize: TcpSocket maximum transmit buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 131072
- Flags: construct write read
RcvBufSize: TcpSocket maximum receive buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 131072
- Flags: construct write read
SegmentSize: TCP maximum segment size in bytes (may be adjusted based on MTU discovery)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 536
- Flags: construct write read
SlowStartThreshold: TCP slow start threshold (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read
InitialCwnd: TCP initial congestion window size (segments)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
ConnTimeout: TCP retransmission timeout when opening connection (seconds)
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
ConnCount: Number of connection attempts (SYN retransmissions) before returning failure
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 6
- Flags: construct write read
DelAckTimeout: Timeout value for TCP delayed acks, in seconds
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
DelAckCount: Number of packets to wait before sending a TCP ack
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
TcpNoDelay: Set to true to disable Nagle's algorithm
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
PersistTimeout: Persist timeout to probe for rx window
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +6000000000.0ns
- Flags: construct write read

TraceSources

RTO: Retransmission timeout
RTT: Last RTT sample
NextTxSequence: Next sequence number to send (SND.NXT)
HighestSequence: Highest sequence number ever sent in socket's life time
State: TCP state
RWND: Remote side's flow control window

Definition at line 61 of file tcp-socket-base.h.

Constructor & Destructor Documentation

ns3::TcpSocketBase::TcpSocketBase ( void )

Create an unbound TCP socket

Definition at line 108 of file tcp-socket-base.cc.

References NS_LOG_FUNCTION.

ns3::TcpSocketBase::TcpSocketBase ( const TcpSocketBase & sock )

Clone a TCP socket, for use upon receiving a connection request in LISTEN state

Definition at line 135 of file tcp-socket-base.cc.

References m_rtt, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Socket::SetConnectCallback(), ns3::Socket::SetDataSentCallback(), ns3::Socket::SetRecvCallback(), and ns3::Socket::SetSendCallback().

Here is the call graph for this function:

ns3::TcpSocketBase::~TcpSocketBase ( void )

virtual

Definition at line 184 of file tcp-socket-base.cc.

References CancelAllTimers(), m_endPoint, m_endPoint6, m_node, m_tcp, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void ns3::TcpSocketBase::AddOptions ( TcpHeader & )

protectedvirtual

Placeholder function for future extension that changes the TCP header

Definition at line 2429 of file tcp-socket-base.cc.

Referenced by DoForwardUp(), PersistTimeout(), SendDataPacket(), and SendEmptyPacket().

Here is the caller graph for this function:

uint16_t ns3::TcpSocketBase::AdvertisedWindowSize ( void )

protectedvirtual

Definition at line 2012 of file tcp-socket-base.cc.

References m_maxWinSize, m_rxBuffer, ns3::TcpRxBuffer::MaxBufferSize(), and ns3::TcpRxBuffer::Size().

Referenced by DoForwardUp(), PersistTimeout(), SendDataPacket(), and SendEmptyPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::TcpSocketBase::AvailableWindow ( void )

protectedvirtual

Definition at line 2002 of file tcp-socket-base.cc.

References NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, UnAckDataCount(), and Window().

Referenced by SendPendingData().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Bind ( void )

virtual

Inherit from Socket class: Bind socket to an end-point in TcpL4Protocol

Implements ns3::Socket.

Definition at line 258 of file tcp-socket-base.cc.

References ns3::Socket::ERROR_ADDRNOTAVAIL, m_endPoint, m_errno, m_tcp, NS_LOG_FUNCTION, and SetupCallback().

Referenced by BindToNetDevice(), and Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Bind ( const Address & address )

virtual

Inherit from Socket class: Bind socket (with specific address) to an end-point in TcpL4Protocol

Implements ns3::Socket.

Definition at line 287 of file tcp-socket-base.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::Socket::ERROR_ADDRINUSE, ns3::Socket::ERROR_ADDRNOTAVAIL, ns3::Socket::ERROR_INVAL, ns3::Ipv4Address::GetAny(), ns3::Ipv6Address::GetAny(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), m_endPoint, m_endPoint6, m_errno, m_tcp, NS_LOG_FUNCTION, NS_LOG_LOGIC, port, and SetupCallback().

Here is the call graph for this function:

int ns3::TcpSocketBase::Bind6 ( void )

virtual

Allocate a local IPv6 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 272 of file tcp-socket-base.cc.

References ns3::Socket::ERROR_ADDRNOTAVAIL, m_endPoint6, m_errno, m_tcp, NS_LOG_FUNCTION, and SetupCallback().

Referenced by Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::BindToNetDevice ( Ptr< NetDevice > netdevice )

virtual

Inherit from Socket class: Bind this socket to the specified NetDevice

Reimplemented from ns3::Socket.

Definition at line 649 of file tcp-socket-base.cc.

References Bind(), ns3::Ipv4EndPoint::BindToNetDevice(), ns3::Socket::BindToNetDevice(), m_endPoint, m_endPoint6, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::TcpSocketBase::BytesInFlight ( void )

protectedvirtual

Definition at line 1988 of file tcp-socket-base.cc.

References ns3::TracedValue< T >::Get(), ns3::TcpTxBuffer::HeadSequence(), m_highTxMark, m_txBuffer, and NS_LOG_FUNCTION.

Referenced by ns3::TcpNewReno::DupAck(), ns3::TcpReno::DupAck(), ns3::TcpNewReno::NewAck(), ns3::TcpNewReno::Retransmit(), and ns3::TcpReno::Retransmit().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::CancelAllTimers ( void )

protected

Definition at line 2275 of file tcp-socket-base.cc.

References ns3::EventId::Cancel(), m_delAckEvent, m_lastAckEvent, m_persistEvent, m_retxEvent, and m_timewaitEvent.

Referenced by CloseAndNotify(), DeallocateEndPoint(), Destroy(), Destroy6(), TimeWait(), and ~TcpSocketBase().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Close ( void )

virtual

Inherit from Socket class: Kill this socket and signal the peer (if any)

Internal:: First we check to see if there is any unread rx data. Bug 426 claims we should send reset in this case.

Implements ns3::Socket.

Definition at line 446 of file tcp-socket-base.cc.

References DoClose(), m_closeOnEmpty, m_nextTxSequence, m_rxBuffer, m_state, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, SendRST(), ns3::TcpRxBuffer::Size(), ns3::TcpTxBuffer::SizeFromSequence(), and ns3::TcpSocket::TcpStateName.

Referenced by DoPeerClose().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::CloseAndNotify ( void )

protected

Peacefully close the socket by notifying the upper layer and deallocate end point

Definition at line 764 of file tcp-socket-base.cc.

References CancelAllTimers(), ns3::CLOSED, DeallocateEndPoint(), m_closeNotified, m_state, ns3::Socket::NotifyNormalClose(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::TcpSocket::TcpStateName, and ns3::TIME_WAIT.

Referenced by DoClose(), DoConnect(), LastAckTimeout(), ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), SendEmptyPacket(), and TimeWait().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::CompleteFork	(	Ptr< Packet >	p,
		const TcpHeader &	h,
		const Address &	fromAddress,
		const Address &	toAddress
	)

protected

This function is called only if a SYN received in LISTEN state. After TcpSocketBase cloned, allocate a new end point to handle the incoming connection and send a SYN+ACK to complete the handshake.

Definition at line 1777 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::TcpHeader::GetSequenceNumber(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), m_cnCount, m_cnRetries, m_endPoint, m_endPoint6, m_rxBuffer, m_state, m_tcp, NS_LOG_INFO, SendEmptyPacket(), ns3::TcpRxBuffer::SetNextRxSequence(), SetupCallback(), ns3::TcpHeader::SYN, and ns3::SYN_RCVD.

Referenced by ProcessListen().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Connect ( const Address & address )

virtual

Inherit from Socket class: Initiate connection to a remote address:port

Implements ns3::Socket.

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 357 of file tcp-socket-base.cc.

References Bind(), Bind6(), ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), DoConnect(), ns3::Socket::ERROR_INVAL, ns3::InetSocketAddress::GetIpv4(), ns3::Ipv6Address::GetIpv4MappedAddress(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::Ipv6Address::IsIpv4MappedAddress(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), m_cnCount, m_cnRetries, m_endPoint, m_endPoint6, m_errno, m_rtt, NS_ASSERT, NS_LOG_FUNCTION, ns3::Ipv4EndPoint::SetPeer(), ns3::Ipv6EndPoint::SetPeer(), SetupEndpoint(), and SetupEndpoint6().

Referenced by ns3::TcpNewReno::Connect(), ns3::TcpReno::Connect(), ns3::TcpTahoe::Connect(), and ns3::TcpWestwood::Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ConnectionSucceeded ( void )

protected

Definition at line 1810 of file tcp-socket-base.cc.

References GetTxAvailable(), ns3::Socket::NotifyConnectionSucceeded(), and ns3::Socket::NotifySend().

Referenced by ProcessSynSent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::DeallocateEndPoint ( void )

protected

Deallocate the end point and cancel all the timers

Definition at line 1682 of file tcp-socket-base.cc.

References CancelAllTimers(), m_endPoint, m_endPoint6, m_tcp, ns3::Ipv4EndPoint::SetDestroyCallback(), and ns3::Ipv6EndPoint::SetDestroyCallback().

Referenced by CloseAndNotify(), and SendRST().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::DelAckTimeout ( void )

protectedvirtual

Definition at line 2168 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, m_delAckCount, and SendEmptyPacket().

Referenced by ReceivedData().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::Destroy ( void )

protected

Kill this socket. This is a callback function configured to m_endpoint in SetupCallback(), invoked when the endpoint is destroyed.

Definition at line 1516 of file tcp-socket-base.cc.

References CancelAllTimers(), ns3::Simulator::GetDelayLeft(), m_endPoint, m_retxEvent, m_tcp, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by SetupCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::Destroy6 ( void )

protected

Kill this socket. This is a callback function configured to m_endpoint in SetupCallback(), invoked when the endpoint is destroyed.

Definition at line 1537 of file tcp-socket-base.cc.

References CancelAllTimers(), ns3::Simulator::GetDelayLeft(), m_endPoint6, m_retxEvent, m_tcp, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by SetupCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::DoClose ( void )

protected

Do the action to close the socket. Usually send a packet with appropriate flags depended on the current m_state.

Definition at line 722 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, ns3::CLOSE_WAIT, CloseAndNotify(), ns3::CLOSED, ns3::CLOSING, ns3::ESTABLISHED, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::FIN_WAIT_2, ns3::LAST_ACK, ns3::LISTEN, m_state, NS_LOG_FUNCTION, NS_LOG_INFO, SendEmptyPacket(), SendRST(), ns3::SYN_RCVD, ns3::SYN_SENT, and ns3::TIME_WAIT.

Referenced by Close().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::DoConnect ( void )

protected

Perform the real connection tasks: Send SYN if allowed, RST if invalid

Definition at line 699 of file tcp-socket-base.cc.

References ns3::CLOSE_WAIT, CloseAndNotify(), ns3::CLOSED, ns3::LAST_ACK, ns3::LISTEN, m_state, NS_LOG_FUNCTION, NS_LOG_INFO, SendEmptyPacket(), SendRST(), ns3::TcpHeader::SYN, ns3::SYN_SENT, ns3::TcpSocket::TcpStateName, and ns3::TIME_WAIT.

Referenced by Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::DoForwardUp	(	Ptr< Packet >	packet,
		Ipv4Header	header,
		uint16_t	port,
		Ptr< Ipv4Interface >	incomingInterface
	)

protectedvirtual

The real function to handle the incoming packet from lower layers. This is wrapped by ForwardUp() so that this function can be overloaded by daughter classes.

Definition at line 848 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, AddOptions(), AdvertisedWindowSize(), ns3::EventId::Cancel(), ns3::CLOSE_WAIT, ns3::CLOSED, ns3::CLOSING, ns3::ESTABLISHED, EstimateRtt(), ns3::FIN_WAIT_1, ns3::FIN_WAIT_2, ns3::TracedValue< T >::Get(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::LAST_ACK, ns3::LISTEN, ns3::Socket::m_boundnetdevice, m_endPoint, m_nextTxSequence, m_persistEvent, m_rWnd, m_rxBuffer, m_state, m_tcp, ns3::TcpRxBuffer::MaxRxSequence(), ns3::TcpRxBuffer::NextRxSequence(), NS_LOG_LOGIC, OutOfRange(), port, ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessListen(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ns3::TcpHeader::PSH, ReadOptions(), ns3::Packet::RemoveHeader(), ns3::TcpHeader::RST, SendEmptyPacket(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::TcpHeader::SetWindowSize(), ns3::SYN_RCVD, ns3::SYN_SENT, ns3::TcpSocket::TcpStateName, ns3::TIME_WAIT, and ns3::TcpHeader::URG.

Referenced by ForwardUp(), and ForwardUp6().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::DoForwardUp	(	Ptr< Packet >	packet,
		Ipv6Header	header,
		uint16_t	port
	)

protectedvirtual

Definition at line 944 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, AddOptions(), AdvertisedWindowSize(), ns3::EventId::Cancel(), ns3::CLOSE_WAIT, ns3::CLOSED, ns3::CLOSING, ns3::ESTABLISHED, EstimateRtt(), ns3::FIN_WAIT_1, ns3::FIN_WAIT_2, ns3::TracedValue< T >::Get(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6EndPoint::GetLocalAddress(), ns3::Ipv6EndPoint::GetLocalPort(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::Packet::GetSize(), ns3::Ipv6Header::GetSourceAddress(), ns3::LAST_ACK, ns3::LISTEN, ns3::Socket::m_boundnetdevice, m_endPoint6, m_nextTxSequence, m_persistEvent, m_rWnd, m_rxBuffer, m_state, m_tcp, ns3::TcpRxBuffer::MaxRxSequence(), ns3::TcpRxBuffer::NextRxSequence(), NS_LOG_LOGIC, OutOfRange(), port, ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessListen(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ns3::TcpHeader::PSH, ReadOptions(), ns3::Packet::RemoveHeader(), ns3::TcpHeader::RST, SendEmptyPacket(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::TcpHeader::SetWindowSize(), ns3::SYN_RCVD, ns3::SYN_SENT, ns3::TcpSocket::TcpStateName, ns3::TIME_WAIT, and ns3::TcpHeader::URG.

Here is the call graph for this function:

void ns3::TcpSocketBase::DoPeerClose ( void )

protected

Received a in-sequence FIN. Close down this socket.

Definition at line 1477 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, Close(), ns3::CLOSE_WAIT, ns3::ESTABLISHED, ns3::LAST_ACK, LastAckTimeout(), m_closeNotified, m_lastAckEvent, m_rtt, m_shutdownSend, m_state, ns3::Socket::NotifyNormalClose(), NS_ASSERT, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Simulator::Schedule(), SendEmptyPacket(), ns3::SYN_RCVD, and ns3::TcpSocket::TcpStateName.

Referenced by PeerClose(), and ReceivedData().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::DoRetransmit ( void )

protectedvirtual

Definition at line 2241 of file tcp-socket-base.cc.

References ns3::CLOSING, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::TcpTxBuffer::HeadSequence(), m_cnCount, m_nextTxSequence, m_segmentSize, m_state, m_txBuffer, ns3::Socket::NotifyConnectionFailed(), NS_LOG_FUNCTION, NS_LOG_LOGIC, SendDataPacket(), SendEmptyPacket(), ns3::TcpTxBuffer::Size(), ns3::TcpHeader::SYN, and ns3::SYN_SENT.

Referenced by ns3::TcpNewReno::DupAck(), ns3::TcpReno::DupAck(), ns3::TcpTahoe::DupAck(), ns3::TcpWestwood::DupAck(), ns3::TcpNewReno::NewAck(), ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), ns3::TcpWestwood::Retransmit(), and Retransmit().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void ns3::TcpSocketBase::DupAck	(	const TcpHeader &	t,
		uint32_t	count
	)

protectedpure virtual

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

Referenced by ReceivedAck().

Here is the caller graph for this function:

void ns3::TcpSocketBase::EstimateRtt ( const TcpHeader & tcpHeader )

protectedvirtual

Called by ForwardUp() to estimate RTT

Reimplemented in ns3::TcpWestwood.

Definition at line 2076 of file tcp-socket-base.cc.

References ns3::TcpHeader::GetAckNumber(), m_lastRtt, m_rtt, and NS_LOG_FUNCTION.

Referenced by DoForwardUp(), and ns3::TcpWestwood::EstimateRtt().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Ptr<TcpSocketBase> ns3::TcpSocketBase::Fork ( void )

protectedpure virtual

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

Referenced by ProcessListen().

Here is the caller graph for this function:

void ns3::TcpSocketBase::ForwardIcmp	(	Ipv4Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo
	)

protected

Definition at line 819 of file tcp-socket-base.cc.

References m_icmpCallback, and NS_LOG_FUNCTION.

Referenced by SetupCallback().

Here is the caller graph for this function:

void ns3::TcpSocketBase::ForwardIcmp6	(	Ipv6Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo
	)

protected

Definition at line 832 of file tcp-socket-base.cc.

References m_icmpCallback6, and NS_LOG_FUNCTION.

Referenced by SetupCallback().

Here is the caller graph for this function:

void ns3::TcpSocketBase::ForwardUp	(	Ptr< Packet >	packet,
		Ipv4Header	header,
		uint16_t	port,
		Ptr< Ipv4Interface >	incomingInterface
	)

protected

Function called by the L3 protocol when it received a packet to pass on to the TCP. This function is registered as the "RxCallback" function in SetupCallback(), which invoked by Bind(), and CompleteFork()

Definition at line 806 of file tcp-socket-base.cc.

References DoForwardUp().

Referenced by SetupCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ForwardUp6	(	Ptr< Packet >	packet,
		Ipv6Header	header,
		uint16_t	port
	)

protected

Definition at line 813 of file tcp-socket-base.cc.

References DoForwardUp().

Referenced by SetupCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::TcpSocketBase::GetAllowBroadcast ( void ) const

protectedvirtual

Query whether broadcast datagram transmissions are allowed.

This method corresponds to using getsockopt() SO_BROADCAST of real network or BSD sockets.

Returns: true if broadcast is allowed, false otherwise

Implements ns3::Socket.

Definition at line 2416 of file tcp-socket-base.cc.

uint32_t ns3::TcpSocketBase::GetConnCount ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2355 of file tcp-socket-base.cc.

References m_cnRetries.

Time ns3::TcpSocketBase::GetConnTimeout ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2343 of file tcp-socket-base.cc.

References m_cnTimeout.

uint32_t ns3::TcpSocketBase::GetDelAckMaxCount ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2379 of file tcp-socket-base.cc.

References m_delAckMaxCount.

Time ns3::TcpSocketBase::GetDelAckTimeout ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2367 of file tcp-socket-base.cc.

References m_delAckTimeout.

enum Socket::SocketErrno ns3::TcpSocketBase::GetErrno ( void ) const

virtual

Inherit from Socket class: Returns error code

Implements ns3::Socket.

Definition at line 236 of file tcp-socket-base.cc.

References m_errno.

virtual uint32_t ns3::TcpSocketBase::GetInitialCwnd ( void ) const

protectedpure virtual

Implements ns3::TcpSocket.

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

Ptr< Node > ns3::TcpSocketBase::GetNode ( void ) const

virtual

Inherit from Socket class: Returns associated node

Implements ns3::Socket.

Definition at line 250 of file tcp-socket-base.cc.

References m_node, and NS_LOG_FUNCTION_NOARGS.

Time ns3::TcpSocketBase::GetPersistTimeout ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2403 of file tcp-socket-base.cc.

References m_persistTimeout.

uint32_t ns3::TcpSocketBase::GetRcvBufSize ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2318 of file tcp-socket-base.cc.

References m_rxBuffer, and ns3::TcpRxBuffer::MaxBufferSize().

Here is the call graph for this function:

uint32_t ns3::TcpSocketBase::GetRxAvailable ( void ) const

virtual

Inherit from Socket class: Get the max number of bytes an app can read

Implements ns3::Socket.

Definition at line 619 of file tcp-socket-base.cc.

References ns3::TcpRxBuffer::Available(), m_rxBuffer, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::TcpSocketBase::GetSegSize ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2331 of file tcp-socket-base.cc.

References m_segmentSize.

uint32_t ns3::TcpSocketBase::GetSndBufSize ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2306 of file tcp-socket-base.cc.

References m_txBuffer, and ns3::TcpTxBuffer::MaxBufferSize().

Here is the call graph for this function:

enum Socket::SocketType ns3::TcpSocketBase::GetSocketType ( void ) const

virtual

Inherit from Socket class: Returns socket type, NS3_SOCK_STREAM

Implements ns3::Socket.

Definition at line 243 of file tcp-socket-base.cc.

References ns3::Socket::NS3_SOCK_STREAM.

int ns3::TcpSocketBase::GetSockName ( Address & address ) const

virtual

Inherit from Socket class: Return local address:port

Implements ns3::Socket.

Definition at line 627 of file tcp-socket-base.cc.

References ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv6EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv6EndPoint::GetLocalPort(), ns3::Ipv4Address::GetZero(), m_endPoint, m_endPoint6, and NS_LOG_FUNCTION.

Here is the call graph for this function:

virtual uint32_t ns3::TcpSocketBase::GetSSThresh ( void ) const

protectedpure virtual

Implements ns3::TcpSocket.

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

bool ns3::TcpSocketBase::GetTcpNoDelay ( void ) const

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2391 of file tcp-socket-base.cc.

References m_noDelay.

uint32_t ns3::TcpSocketBase::GetTxAvailable ( void ) const

virtual

Inherit from Socket class: Get the max number of bytes an app can send

Implements ns3::Socket.

Definition at line 611 of file tcp-socket-base.cc.

References ns3::TcpTxBuffer::Available(), m_txBuffer, and NS_LOG_FUNCTION.

Referenced by ConnectionSucceeded(), NewAck(), and ProcessSynRcvd().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::TcpSocketBase::GetTypeId ( void )

static

Definition at line 60 of file tcp-socket-base.cc.

References m_highTxMark, m_icmpCallback, m_icmpCallback6, m_lastRtt, m_maxWinSize, m_msl, m_nextTxSequence, m_rto, m_rWnd, m_state, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::TcpSocketBase::LastAckTimeout ( void )

protectedvirtual

Definition at line 2175 of file tcp-socket-base.cc.

References ns3::EventId::Cancel(), CloseAndNotify(), ns3::LAST_ACK, m_closeNotified, m_lastAckEvent, m_state, and NS_LOG_FUNCTION.

Referenced by DoPeerClose().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Listen ( void )

virtual

Inherit from Socket class: Listen on the endpoint for an incoming connection

Implements ns3::Socket.

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 429 of file tcp-socket-base.cc.

References ns3::CLOSED, ns3::Socket::ERROR_INVAL, ns3::LISTEN, m_errno, m_state, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::TcpNewReno::Listen(), ns3::TcpReno::Listen(), ns3::TcpTahoe::Listen(), and ns3::TcpWestwood::Listen().

Here is the caller graph for this function:

void ns3::TcpSocketBase::NewAck ( SequenceNumber32 const & seq )

protectedvirtual

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 2097 of file tcp-socket-base.cc.

References ns3::EventId::Cancel(), ns3::CLOSING, ns3::TcpTxBuffer::DiscardUpTo(), ns3::FIN_WAIT_1, ns3::TracedValue< T >::Get(), ns3::Simulator::GetDelayLeft(), GetTxAvailable(), ns3::TcpTxBuffer::HeadSequence(), ns3::EventId::IsExpired(), m_connected, m_nextTxSequence, m_persistEvent, m_persistTimeout, m_retxEvent, m_rto, m_rtt, m_rWnd, m_state, m_txBuffer, ns3::Socket::NotifySend(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, PersistTimeout(), ReTxTimeout(), ns3::Simulator::Schedule(), SendPendingData(), ns3::TcpTxBuffer::Size(), and ns3::SYN_RCVD.

Referenced by ns3::TcpNewReno::NewAck(), ns3::TcpReno::NewAck(), ns3::TcpTahoe::NewAck(), ns3::TcpWestwood::NewAck(), and ReceivedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::TcpSocketBase::OutOfRange	(	SequenceNumber32	head,
		SequenceNumber32	tail
	)		const

protected

Tell if a sequence number range is out side the range that my rx buffer can accpet

Definition at line 786 of file tcp-socket-base.cc.

References ns3::CLOSE_WAIT, ns3::CLOSING, ns3::LAST_ACK, ns3::LISTEN, m_rxBuffer, m_state, ns3::TcpRxBuffer::MaxRxSequence(), ns3::TcpRxBuffer::NextRxSequence(), ns3::SYN_RCVD, and ns3::SYN_SENT.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::PeerClose	(	Ptr< Packet >	p,
		const TcpHeader &	tcpHeader
	)

protected

Peer sent me a FIN. Remember its sequence in rx buffer.

Definition at line 1440 of file tcp-socket-base.cc.

References ns3::CLOSING, DoPeerClose(), ns3::FIN_WAIT_1, ns3::TcpRxBuffer::Finished(), ns3::TcpHeader::GetSequenceNumber(), ns3::Packet::GetSize(), m_rxBuffer, m_state, ns3::TcpRxBuffer::MaxRxSequence(), ns3::TcpRxBuffer::NextRxSequence(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ReceivedData(), and ns3::TcpRxBuffer::SetFinSequence().

Referenced by ProcessEstablished(), and ProcessSynRcvd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::PersistTimeout ( void )

protectedvirtual

Definition at line 2194 of file tcp-socket-base.cc.

References AddOptions(), AdvertisedWindowSize(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv6EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv6EndPoint::GetLocalPort(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::Socket::m_boundnetdevice, m_endPoint, m_endPoint6, m_nextTxSequence, m_persistEvent, m_persistTimeout, m_rxBuffer, m_tcp, m_txBuffer, ns3::TcpRxBuffer::NextRxSequence(), ns3::Simulator::Now(), NS_LOG_LOGIC, ns3::Simulator::Schedule(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), and ns3::TcpHeader::SetWindowSize().

Referenced by NewAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessClosing	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protected

Received a packet upon CLOSING

Definition at line 1372 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, CloseAndNotify(), ns3::TcpHeader::FIN, ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), m_rxBuffer, ns3::TcpRxBuffer::NextRxSequence(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::TcpHeader::PSH, ns3::TcpHeader::RST, SendEmptyPacket(), SendRST(), TimeWait(), and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessEstablished	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protected

Received a packet upon ESTABLISHED state. This function is mimicking the role of tcp_rcv_established() in tcp_input.c in Linux kernel.

Definition at line 1041 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, CloseAndNotify(), ns3::TcpHeader::FIN, ns3::TcpRxBuffer::Finished(), ns3::TcpHeader::GetFlags(), m_rxBuffer, NS_LOG_FUNCTION, NS_LOG_LOGIC, PeerClose(), ns3::TcpHeader::PSH, ReceivedAck(), ReceivedData(), ns3::TcpHeader::RST, SendRST(), ns3::TcpHeader::SYN, and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessLastAck	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protected

Received a packet upon LAST_ACK

Definition at line 1404 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, CloseAndNotify(), ns3::TcpHeader::FIN, ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), m_rxBuffer, ns3::TcpRxBuffer::NextRxSequence(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::TcpHeader::PSH, ReceivedData(), ns3::TcpHeader::RST, SendEmptyPacket(), SendRST(), and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessListen	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader,
		const Address &	fromAddress,
		const Address &	toAddress
	)

protected

Received a packet upon LISTEN state.

Definition at line 1123 of file tcp-socket-base.cc.

References CompleteFork(), Fork(), ns3::TcpHeader::GetFlags(), ns3::Socket::NotifyConnectionRequest(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::TcpHeader::PSH, ns3::Simulator::ScheduleNow(), ns3::TcpHeader::SYN, and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessSynRcvd	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader,
		const Address &	fromAddress,
		const Address &	toAddress
	)

protected

Received a packet upon SYN_RCVD

Definition at line 1211 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, ns3::EventId::Cancel(), CloseAndNotify(), ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::ESTABLISHED, ns3::TcpHeader::FIN, ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), GetTxAvailable(), m_connected, m_delAckCount, m_delAckMaxCount, m_endPoint, m_endPoint6, m_highTxMark, m_nextTxSequence, m_retxEvent, m_rxBuffer, m_state, m_txBuffer, ns3::TcpRxBuffer::NextRxSequence(), ns3::Socket::NotifyNewConnectionCreated(), ns3::Socket::NotifySend(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PeerClose(), ns3::TcpHeader::PSH, ReceivedAck(), ns3::TcpHeader::RST, SendEmptyPacket(), SendRST(), ns3::TcpTxBuffer::SetHeadSequence(), ns3::TcpRxBuffer::SetNextRxSequence(), ns3::Ipv4EndPoint::SetPeer(), ns3::Ipv6EndPoint::SetPeer(), ns3::TcpHeader::SYN, and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessSynSent	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protected

Received a packet upon SYN_SENT

Definition at line 1153 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, ns3::EventId::Cancel(), CloseAndNotify(), ConnectionSucceeded(), ns3::ESTABLISHED, ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), m_cnCount, m_cnRetries, m_connected, m_delAckCount, m_delAckMaxCount, m_highTxMark, m_nextTxSequence, m_retxEvent, m_rxBuffer, m_state, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::TcpHeader::PSH, ReceivedData(), ns3::TcpHeader::RST, ns3::Simulator::ScheduleNow(), SendEmptyPacket(), SendPendingData(), SendRST(), ns3::TcpTxBuffer::SetHeadSequence(), ns3::TcpRxBuffer::SetNextRxSequence(), ns3::TcpHeader::SYN, ns3::SYN_RCVD, and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ProcessWait	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protected

Received a packet upon CLOSE_WAIT, FIN_WAIT_1, or FIN_WAIT_2 states

Definition at line 1301 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, CloseAndNotify(), ns3::CLOSING, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::FIN_WAIT_2, ns3::TcpRxBuffer::Finished(), ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), ns3::Packet::GetSize(), m_highTxMark, m_rxBuffer, m_shutdownRecv, m_state, m_txBuffer, ns3::Socket::NotifyDataRecv(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::TcpHeader::PSH, ReceivedAck(), ReceivedData(), ns3::TcpHeader::RST, SendEmptyPacket(), SendRST(), ns3::TcpRxBuffer::SetFinSequence(), ns3::TcpTxBuffer::Size(), ns3::TcpHeader::SYN, TimeWait(), and ns3::TcpHeader::URG.

Referenced by DoForwardUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ReadOptions ( const TcpHeader & )

protectedvirtual

Placeholder function for future extension that reads more from the TCP header

Definition at line 2423 of file tcp-socket-base.cc.

Referenced by DoForwardUp().

Here is the caller graph for this function:

void ns3::TcpSocketBase::ReceivedAck	(	Ptr< Packet >	packet,
		const TcpHeader &	tcpHeader
	)

protectedvirtual

Process the newly received ACK

Reimplemented in ns3::TcpWestwood.

Definition at line 1086 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, DupAck(), ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetFlags(), ns3::Packet::GetSize(), ns3::TcpTxBuffer::HeadSequence(), m_dupAckCount, m_nextTxSequence, m_txBuffer, NewAck(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ReceivedData().

Referenced by ProcessEstablished(), ProcessSynRcvd(), ProcessWait(), and ns3::TcpWestwood::ReceivedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ReceivedData	(	Ptr< Packet >	p,
		const TcpHeader &	tcpHeader
	)

protectedvirtual

Definition at line 2019 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, ns3::TcpRxBuffer::Add(), ns3::TcpRxBuffer::Available(), ns3::EventId::Cancel(), DelAckTimeout(), DoPeerClose(), ns3::TcpHeader::FIN, ns3::TcpRxBuffer::Finished(), ns3::TcpHeader::GetAckNumber(), ns3::Simulator::GetDelayLeft(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::EventId::IsExpired(), m_closeNotified, m_delAckCount, m_delAckEvent, m_delAckMaxCount, m_delAckTimeout, m_rxBuffer, m_shutdownRecv, ns3::TcpRxBuffer::NextRxSequence(), ns3::Socket::NotifyDataRecv(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Simulator::Schedule(), SendEmptyPacket(), and ns3::TcpRxBuffer::Size().

Referenced by PeerClose(), ProcessEstablished(), ProcessLastAck(), ProcessSynSent(), ProcessWait(), and ReceivedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::TcpSocketBase::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)

virtual

Inherit from Socket class: Return data to upper-layer application. Parameter flags is not used. Data is returned as a packet of size no larger than maxSize

Implements ns3::Socket.

Definition at line 559 of file tcp-socket-base.cc.

References ns3::Packet::AddPacketTag(), ns3::CLOSE_WAIT, ns3::TcpRxBuffer::Extract(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::Packet::GetSize(), m_endPoint, m_endPoint6, m_rxBuffer, m_state, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::SocketAddressTag::SetAddress(), and ns3::TcpRxBuffer::Size().

Here is the call graph for this function:

Ptr< Packet > ns3::TcpSocketBase::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)

virtual

Inherit from Socket class: Recv and return the remote's address

Implements ns3::Socket.

Definition at line 586 of file tcp-socket-base.cc.

References ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::Packet::GetSize(), ns3::Ipv4Address::GetZero(), m_endPoint, m_endPoint6, NS_LOG_FUNCTION, and ns3::Socket::Recv().

Here is the call graph for this function:

void ns3::TcpSocketBase::Retransmit ( void )

protectedvirtual

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 2232 of file tcp-socket-base.cc.

References DoRetransmit(), ns3::TcpTxBuffer::HeadSequence(), m_dupAckCount, m_nextTxSequence, m_rtt, and m_txBuffer.

Referenced by ReTxTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::ReTxTimeout ( void )

protectedvirtual

Definition at line 2149 of file tcp-socket-base.cc.

References ns3::CLOSED, ns3::ESTABLISHED, ns3::TcpTxBuffer::HeadSequence(), m_highTxMark, m_state, m_txBuffer, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, Retransmit(), and ns3::TIME_WAIT.

Referenced by NewAck(), and SendDataPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)

virtual

Inherit from Socket class: Send a packet. Parameter flags is not used. Packet has no TCP header. Invoked by upper-layer application

Implements ns3::Socket.

Definition at line 517 of file tcp-socket-base.cc.

References ns3::TcpTxBuffer::Add(), ns3::CLOSE_WAIT, ns3::Socket::ERROR_MSGSIZE, ns3::Socket::ERROR_NOTCONN, ns3::Socket::ERROR_SHUTDOWN, ns3::ESTABLISHED, ns3::Packet::GetSize(), m_connected, m_errno, m_shutdownSend, m_state, m_txBuffer, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, NS_LOG_LOGIC, SendPendingData(), ns3::TcpTxBuffer::Size(), ns3::SYN_SENT, and ns3::TcpSocket::TcpStateName.

Referenced by SendTo().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::TcpSocketBase::SendDataPacket	(	SequenceNumber32	seq,
		uint32_t	maxSize,
		bool	withAck
	)

protected

Extract at most maxSize bytes from the TxBuffer at sequence seq, add the TCP header, and send to TcpL4Protocol

Definition at line 1826 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, AddOptions(), ns3::Packet::AddPacketTag(), AdvertisedWindowSize(), ns3::CLOSE_WAIT, ns3::TcpTxBuffer::CopyFromSequence(), ns3::ESTABLISHED, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::TracedValue< T >::Get(), ns3::Socket::GetIpTos(), ns3::Socket::GetIpTtl(), ns3::Socket::GetIpv6HopLimit(), ns3::Socket::GetIpv6Tclass(), ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv6EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv6EndPoint::GetLocalPort(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::Packet::GetSize(), ns3::EventId::IsExpired(), ns3::Socket::IsManualIpTos(), ns3::Socket::IsManualIpTtl(), ns3::Socket::IsManualIpv6HopLimit(), ns3::Socket::IsManualIpv6Tclass(), ns3::LAST_ACK, ns3::Socket::m_boundnetdevice, m_closeOnEmpty, m_endPoint, m_endPoint6, m_highTxMark, m_nextTxSequence, m_retxEvent, m_rto, m_rtt, m_rxBuffer, m_state, m_tcp, m_txBuffer, ns3::TcpRxBuffer::NextRxSequence(), ns3::Socket::NotifyDataSent(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ReTxTimeout(), ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::SocketIpv6TclassTag::SetTclass(), ns3::SocketIpTosTag::SetTos(), ns3::SocketIpTtlTag::SetTtl(), ns3::TcpHeader::SetWindowSize(), and ns3::TcpTxBuffer::SizeFromSequence().

Referenced by DoRetransmit(), ns3::TcpNewReno::DupAck(), and SendPendingData().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::SendEmptyPacket ( uint8_t flags )

protected

Send an empty packet with specified TCP flags

Definition at line 1557 of file tcp-socket-base.cc.

References ns3::TcpHeader::ACK, AddOptions(), ns3::Packet::AddPacketTag(), AdvertisedWindowSize(), ns3::EventId::Cancel(), CloseAndNotify(), ns3::CLOSING, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::Socket::GetIpTos(), ns3::Socket::GetIpTtl(), ns3::Socket::GetIpv6HopLimit(), ns3::Socket::GetIpv6Tclass(), ns3::Ipv4EndPoint::GetLocalAddress(), ns3::Ipv6EndPoint::GetLocalAddress(), ns3::Ipv4EndPoint::GetLocalPort(), ns3::Ipv6EndPoint::GetLocalPort(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Ipv4EndPoint::GetPeerPort(), ns3::Ipv6EndPoint::GetPeerPort(), ns3::EventId::IsExpired(), ns3::Socket::IsManualIpTos(), ns3::Socket::IsManualIpTtl(), ns3::Socket::IsManualIpv6HopLimit(), ns3::Socket::IsManualIpv6Tclass(), ns3::LAST_ACK, ns3::Socket::m_boundnetdevice, m_cnCount, m_cnRetries, m_cnTimeout, m_delAckCount, m_delAckEvent, m_endPoint, m_endPoint6, m_nextTxSequence, m_retxEvent, m_rto, m_rtt, m_rxBuffer, m_state, m_tcp, ns3::TcpRxBuffer::NextRxSequence(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, s, ns3::Simulator::Schedule(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), ns3::SocketIpv6TclassTag::SetTclass(), ns3::SocketIpTosTag::SetTos(), ns3::SocketIpTtlTag::SetTtl(), and ns3::TcpHeader::SYN.

Referenced by CompleteFork(), DelAckTimeout(), DoClose(), DoConnect(), DoForwardUp(), DoPeerClose(), DoRetransmit(), ProcessClosing(), ProcessLastAck(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ReceivedData(), SendRST(), and ShutdownSend().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::TcpSocketBase::SendPendingData ( bool withAck = false )

protected

Send as much pending data as possible according to the Tx window. Note that this function did not implement the PSH flag

Definition at line 1933 of file tcp-socket-base.cc.

References AvailableWindow(), ns3::TcpTxBuffer::HeadSequence(), m_endPoint, m_endPoint6, m_nextTxSequence, m_noDelay, m_rWnd, m_segmentSize, m_shutdownSend, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, s, SendDataPacket(), ns3::TcpTxBuffer::Size(), ns3::TcpTxBuffer::SizeFromSequence(), UnAckDataCount(), and visualizer.higcontainer::w.

Referenced by ns3::TcpNewReno::DupAck(), ns3::TcpReno::DupAck(), ns3::TcpWestwood::DupAck(), NewAck(), ProcessSynSent(), and Send().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpSocketBase::SendRST ( void )

protected

This function closes the endpoint completely. Called upon RST_TX action.

Definition at line 1672 of file tcp-socket-base.cc.

References DeallocateEndPoint(), ns3::Socket::NotifyErrorClose(), NS_LOG_FUNCTION, ns3::TcpHeader::RST, and SendEmptyPacket().

Referenced by Close(), DoClose(), DoConnect(), ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessSynRcvd(), ProcessSynSent(), and ProcessWait().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	address
	)

virtual

Inherit from Socket class: In TcpSocketBase, it is same as Send() call

Implements ns3::Socket.

Definition at line 551 of file tcp-socket-base.cc.

References Send().

Here is the call graph for this function:

bool ns3::TcpSocketBase::SetAllowBroadcast ( bool allowBroadcast )

protectedvirtual

Configure whether broadcast datagram transmissions are allowed.

This method corresponds to using setsockopt() SO_BROADCAST of real network or BSD sockets. If set on a socket, this option will enable or disable packets to be transmitted to broadcast destination addresses.

Parameters

allowBroadcast Whether broadcast is allowed

Returns: true if operation succeeds

Implements ns3::Socket.

Definition at line 2409 of file tcp-socket-base.cc.

void ns3::TcpSocketBase::SetConnCount ( uint32_t count )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2349 of file tcp-socket-base.cc.

References m_cnRetries.

void ns3::TcpSocketBase::SetConnTimeout ( Time timeout )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2337 of file tcp-socket-base.cc.

References m_cnTimeout, and timeout.

void ns3::TcpSocketBase::SetDelAckMaxCount ( uint32_t count )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2373 of file tcp-socket-base.cc.

References m_delAckMaxCount.

Referenced by ns3::TcpRfc793::TcpRfc793().

Here is the caller graph for this function:

void ns3::TcpSocketBase::SetDelAckTimeout ( Time timeout )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2361 of file tcp-socket-base.cc.

References m_delAckTimeout, and timeout.

virtual void ns3::TcpSocketBase::SetInitialCwnd ( uint32_t cwnd )

protectedpure virtual

Implements ns3::TcpSocket.

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

void ns3::TcpSocketBase::SetNode ( Ptr< Node > node )

virtual

Associate a node with this TCP socket

Definition at line 215 of file tcp-socket-base.cc.

References m_node.

Referenced by ns3::TcpL4Protocol::CreateSocket().

Here is the caller graph for this function:

void ns3::TcpSocketBase::SetPersistTimeout ( Time timeout )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2397 of file tcp-socket-base.cc.

References m_persistTimeout, and timeout.

void ns3::TcpSocketBase::SetRcvBufSize ( uint32_t size )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2312 of file tcp-socket-base.cc.

References m_rxBuffer, and ns3::TcpRxBuffer::SetMaxBufferSize().

Here is the call graph for this function:

void ns3::TcpSocketBase::SetRtt ( Ptr< RttEstimator > rtt )

virtual

Set an RTT estimator with this socket

Definition at line 229 of file tcp-socket-base.cc.

References m_rtt.

void ns3::TcpSocketBase::SetSegSize ( uint32_t size )

protectedvirtual

Implements ns3::TcpSocket.

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 2324 of file tcp-socket-base.cc.

References ns3::CLOSED, m_segmentSize, m_state, and NS_ABORT_MSG_UNLESS.

void ns3::TcpSocketBase::SetSndBufSize ( uint32_t size )

protectedvirtual

Below are the attribute get/set functions

Implements ns3::TcpSocket.

Definition at line 2300 of file tcp-socket-base.cc.

References m_txBuffer, and ns3::TcpTxBuffer::SetMaxBufferSize().

Here is the call graph for this function:

virtual void ns3::TcpSocketBase::SetSSThresh ( uint32_t threshold )

protectedpure virtual

Implements ns3::TcpSocket.

Implemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, ns3::TcpNewReno, and ns3::TcpRfc793.

void ns3::TcpSocketBase::SetTcp ( Ptr< TcpL4Protocol > tcp )

virtual

Associate the L4 protocol (e.g. mux/demux) with this socket

Definition at line 222 of file tcp-socket-base.cc.

References m_tcp.

void ns3::TcpSocketBase::SetTcpNoDelay ( bool noDelay )

protectedvirtual

Implements ns3::TcpSocket.

Definition at line 2385 of file tcp-socket-base.cc.

References m_noDelay.

int ns3::TcpSocketBase::SetupCallback ( void )

protected

Clean up after Bind. Set up callback functions in the end-point.

Definition at line 673 of file tcp-socket-base.cc.

References Destroy(), Destroy6(), ForwardIcmp(), ForwardIcmp6(), ForwardUp(), ForwardUp6(), m_endPoint, m_endPoint6, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::Ipv4EndPoint::SetDestroyCallback(), ns3::Ipv6EndPoint::SetDestroyCallback(), ns3::Ipv4EndPoint::SetIcmpCallback(), ns3::Ipv6EndPoint::SetIcmpCallback(), ns3::Ipv4EndPoint::SetRxCallback(), and ns3::Ipv6EndPoint::SetRxCallback().

Referenced by Bind(), Bind6(), and CompleteFork().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::SetupEndpoint ( void )

protected

Configure the endpoint to a local address. Called by Connect() if Bind() didn't specify one.

Definition at line 1714 of file tcp-socket-base.cc.

References ns3::Object::GetObject(), ns3::Ipv4EndPoint::GetPeerAddress(), ns3::Ipv4Route::GetSource(), ns3::Socket::m_boundnetdevice, m_endPoint, m_errno, m_node, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Ipv4Header::SetDestination(), and ns3::Ipv4EndPoint::SetLocalAddress().

Referenced by Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::SetupEndpoint6 ( void )

protected

Definition at line 1744 of file tcp-socket-base.cc.

References ns3::Object::GetObject(), ns3::Ipv6EndPoint::GetPeerAddress(), ns3::Socket::m_boundnetdevice, m_endPoint6, m_errno, m_node, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Ipv6Header::SetDestinationAddress(), and ns3::Ipv6EndPoint::SetLocalAddress().

Referenced by Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::TcpSocketBase::ShutdownRecv ( void )

virtual

Inherit from Socket class: Signal a termination of receive

Implements ns3::Socket.

Definition at line 507 of file tcp-socket-base.cc.

References m_shutdownRecv, and NS_LOG_FUNCTION.

int ns3::TcpSocketBase::ShutdownSend ( void )

virtual

Inherit from Socket class: Signal a termination of send

Implements ns3::Socket.

Definition at line 473 of file tcp-socket-base.cc.

References ns3::CLOSE_WAIT, ns3::ESTABLISHED, ns3::TcpHeader::FIN, ns3::FIN_WAIT_1, ns3::LAST_ACK, m_closeOnEmpty, m_shutdownSend, m_state, m_txBuffer, NS_LOG_FUNCTION, NS_LOG_INFO, SendEmptyPacket(), and ns3::TcpTxBuffer::Size().

Here is the call graph for this function:

void ns3::TcpSocketBase::TimeWait ( void )

protected

Move TCP to Time_Wait state and schedule a transition to Closed state

Definition at line 2286 of file tcp-socket-base.cc.

References CancelAllTimers(), CloseAndNotify(), m_msl, m_state, m_timewaitEvent, NS_LOG_INFO, ns3::Simulator::Schedule(), ns3::TcpSocket::TcpStateName, and ns3::TIME_WAIT.

Referenced by ProcessClosing(), and ProcessWait().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::TcpSocketBase::UnAckDataCount ( void )

protectedvirtual

Definition at line 1981 of file tcp-socket-base.cc.

References ns3::TracedValue< T >::Get(), ns3::TcpTxBuffer::HeadSequence(), m_nextTxSequence, m_txBuffer, and NS_LOG_FUNCTION.

Referenced by AvailableWindow(), and SendPendingData().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::TcpSocketBase::Window ( void )

protectedvirtual

Reimplemented in ns3::TcpWestwood, ns3::TcpTahoe, ns3::TcpReno, and ns3::TcpNewReno.

Definition at line 1995 of file tcp-socket-base.cc.

References m_rWnd, and NS_LOG_FUNCTION.

Referenced by AvailableWindow().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::TcpSocketBase::m_closeNotified

protected

Definition at line 232 of file tcp-socket-base.h.

Referenced by CloseAndNotify(), DoPeerClose(), LastAckTimeout(), and ReceivedData().

bool ns3::TcpSocketBase::m_closeOnEmpty

protected

Definition at line 233 of file tcp-socket-base.h.

Referenced by Close(), SendDataPacket(), and ShutdownSend().

uint32_t ns3::TcpSocketBase::m_cnCount

protected

Definition at line 204 of file tcp-socket-base.h.

Referenced by CompleteFork(), Connect(), DoRetransmit(), ProcessSynSent(), and SendEmptyPacket().

uint32_t ns3::TcpSocketBase::m_cnRetries

protected

Definition at line 205 of file tcp-socket-base.h.

Referenced by CompleteFork(), Connect(), GetConnCount(), ProcessSynSent(), SendEmptyPacket(), and SetConnCount().

Time ns3::TcpSocketBase::m_cnTimeout

protected

Definition at line 210 of file tcp-socket-base.h.

Referenced by GetConnTimeout(), SendEmptyPacket(), and SetConnTimeout().

bool ns3::TcpSocketBase::m_connected

protected

Definition at line 236 of file tcp-socket-base.h.

Referenced by ns3::TcpNewReno::DupAck(), ns3::TcpReno::DupAck(), ns3::TcpWestwood::DupAck(), NewAck(), ProcessSynRcvd(), ProcessSynSent(), and Send().

uint32_t ns3::TcpSocketBase::m_delAckCount

protected

Definition at line 201 of file tcp-socket-base.h.

Referenced by DelAckTimeout(), ProcessSynRcvd(), ProcessSynSent(), ReceivedData(), and SendEmptyPacket().

EventId ns3::TcpSocketBase::m_delAckEvent

protected

Definition at line 197 of file tcp-socket-base.h.

Referenced by CancelAllTimers(), ReceivedData(), and SendEmptyPacket().

uint32_t ns3::TcpSocketBase::m_delAckMaxCount

protected

Definition at line 202 of file tcp-socket-base.h.

Referenced by GetDelAckMaxCount(), ProcessSynRcvd(), ProcessSynSent(), ReceivedData(), and SetDelAckMaxCount().

Time ns3::TcpSocketBase::m_delAckTimeout

protected

Definition at line 208 of file tcp-socket-base.h.

Referenced by GetDelAckTimeout(), ReceivedData(), and SetDelAckTimeout().

uint32_t ns3::TcpSocketBase::m_dupAckCount

protected

Definition at line 200 of file tcp-socket-base.h.

Referenced by ReceivedAck(), and Retransmit().

Ipv4EndPoint* ns3::TcpSocketBase::m_endPoint

protected

Definition at line 213 of file tcp-socket-base.h.

Referenced by Bind(), BindToNetDevice(), CompleteFork(), Connect(), DeallocateEndPoint(), Destroy(), DoForwardUp(), GetSockName(), PersistTimeout(), ProcessSynRcvd(), Recv(), RecvFrom(), SendDataPacket(), SendEmptyPacket(), SendPendingData(), SetupCallback(), SetupEndpoint(), and ~TcpSocketBase().

Ipv6EndPoint* ns3::TcpSocketBase::m_endPoint6

protected

Definition at line 214 of file tcp-socket-base.h.

Referenced by Bind(), Bind6(), BindToNetDevice(), CompleteFork(), Connect(), DeallocateEndPoint(), Destroy6(), DoForwardUp(), GetSockName(), PersistTimeout(), ProcessSynRcvd(), Recv(), RecvFrom(), SendDataPacket(), SendEmptyPacket(), SendPendingData(), SetupCallback(), SetupEndpoint6(), and ~TcpSocketBase().

enum SocketErrno ns3::TcpSocketBase::m_errno

protected

Definition at line 231 of file tcp-socket-base.h.

Referenced by Bind(), Bind6(), Connect(), GetErrno(), Listen(), Send(), SetupEndpoint(), and SetupEndpoint6().

TracedValue<SequenceNumber32> ns3::TcpSocketBase::m_highTxMark

protected

Definition at line 225 of file tcp-socket-base.h.

Referenced by BytesInFlight(), ns3::TcpNewReno::DupAck(), GetTypeId(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), ReTxTimeout(), and SendDataPacket().

Callback<void, Ipv4Address,uint8_t,uint8_t,uint8_t,uint32_t> ns3::TcpSocketBase::m_icmpCallback

protected

Definition at line 217 of file tcp-socket-base.h.

Referenced by ForwardIcmp(), and GetTypeId().

Callback<void, Ipv6Address,uint8_t,uint8_t,uint8_t,uint32_t> ns3::TcpSocketBase::m_icmpCallback6

protected

Definition at line 218 of file tcp-socket-base.h.

Referenced by ForwardIcmp6(), and GetTypeId().

EventId ns3::TcpSocketBase::m_lastAckEvent

protected

Definition at line 196 of file tcp-socket-base.h.

Referenced by CancelAllTimers(), DoPeerClose(), and LastAckTimeout().

TracedValue<Time> ns3::TcpSocketBase::m_lastRtt

protected

Definition at line 207 of file tcp-socket-base.h.

Referenced by ns3::TcpWestwood::EstimateRtt(), EstimateRtt(), and GetTypeId().

uint16_t ns3::TcpSocketBase::m_maxWinSize

protected

Definition at line 241 of file tcp-socket-base.h.

Referenced by AdvertisedWindowSize(), and GetTypeId().

double ns3::TcpSocketBase::m_msl

protected

Definition at line 237 of file tcp-socket-base.h.

Referenced by GetTypeId(), and TimeWait().

TracedValue<SequenceNumber32> ns3::TcpSocketBase::m_nextTxSequence

protected

Ptr<Node> ns3::TcpSocketBase::m_node

protected

Definition at line 215 of file tcp-socket-base.h.

Referenced by GetNode(), SetNode(), SetupEndpoint(), SetupEndpoint6(), and ~TcpSocketBase().

bool ns3::TcpSocketBase::m_noDelay

protected

Definition at line 203 of file tcp-socket-base.h.

Referenced by GetTcpNoDelay(), SendPendingData(), and SetTcpNoDelay().

EventId ns3::TcpSocketBase::m_persistEvent

protected

Definition at line 198 of file tcp-socket-base.h.

Referenced by CancelAllTimers(), DoForwardUp(), NewAck(), and PersistTimeout().

Time ns3::TcpSocketBase::m_persistTimeout

protected

Definition at line 209 of file tcp-socket-base.h.

Referenced by GetPersistTimeout(), NewAck(), PersistTimeout(), and SetPersistTimeout().

EventId ns3::TcpSocketBase::m_retxEvent

protected

Definition at line 195 of file tcp-socket-base.h.

Referenced by CancelAllTimers(), Destroy(), Destroy6(), NewAck(), ProcessSynRcvd(), ProcessSynSent(), SendDataPacket(), and SendEmptyPacket().

TracedValue<Time> ns3::TcpSocketBase::m_rto

protected

Definition at line 206 of file tcp-socket-base.h.

Referenced by GetTypeId(), NewAck(), SendDataPacket(), and SendEmptyPacket().

Ptr<RttEstimator> ns3::TcpSocketBase::m_rtt

protected

Definition at line 221 of file tcp-socket-base.h.

Referenced by Connect(), DoPeerClose(), EstimateRtt(), NewAck(), ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), ns3::TcpWestwood::Retransmit(), Retransmit(), SendDataPacket(), SendEmptyPacket(), SetRtt(), and TcpSocketBase().

TracedValue<uint32_t> ns3::TcpSocketBase::m_rWnd

protected

Definition at line 242 of file tcp-socket-base.h.

Referenced by DoForwardUp(), GetTypeId(), NewAck(), SendPendingData(), ns3::TcpNewReno::Window(), ns3::TcpReno::Window(), ns3::TcpTahoe::Window(), ns3::TcpWestwood::Window(), and Window().

TcpRxBuffer ns3::TcpSocketBase::m_rxBuffer

protected

Definition at line 226 of file tcp-socket-base.h.

Referenced by AdvertisedWindowSize(), Close(), CompleteFork(), DoForwardUp(), GetRcvBufSize(), GetRxAvailable(), OutOfRange(), PeerClose(), PersistTimeout(), ProcessClosing(), ProcessEstablished(), ProcessLastAck(), ProcessSynRcvd(), ProcessSynSent(), ProcessWait(), ReceivedData(), Recv(), SendDataPacket(), SendEmptyPacket(), and SetRcvBufSize().

uint32_t ns3::TcpSocketBase::m_segmentSize

protected

bool ns3::TcpSocketBase::m_shutdownRecv

protected

Definition at line 235 of file tcp-socket-base.h.

Referenced by ProcessWait(), ReceivedData(), and ShutdownRecv().

bool ns3::TcpSocketBase::m_shutdownSend

protected

Definition at line 234 of file tcp-socket-base.h.

Referenced by DoPeerClose(), Send(), SendPendingData(), and ShutdownSend().

TracedValue<TcpStates_t> ns3::TcpSocketBase::m_state

protected

Ptr<TcpL4Protocol> ns3::TcpSocketBase::m_tcp

protected

Definition at line 216 of file tcp-socket-base.h.

Referenced by Bind(), Bind6(), CompleteFork(), DeallocateEndPoint(), Destroy(), Destroy6(), DoForwardUp(), PersistTimeout(), SendDataPacket(), SendEmptyPacket(), SetTcp(), and ~TcpSocketBase().

EventId ns3::TcpSocketBase::m_timewaitEvent

protected

Definition at line 199 of file tcp-socket-base.h.

Referenced by CancelAllTimers(), and TimeWait().

TcpTxBuffer ns3::TcpSocketBase::m_txBuffer

protected

The documentation for this class was generated from the following files:

src/internet/model/tcp-socket-base.h
src/internet/model/tcp-socket-base.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::TcpSocket

TraceSources

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
