Determine which bursts of packets are errored corresponding to an underlying distribution, burst rate, and burst size. More...

#include <error-model.h>

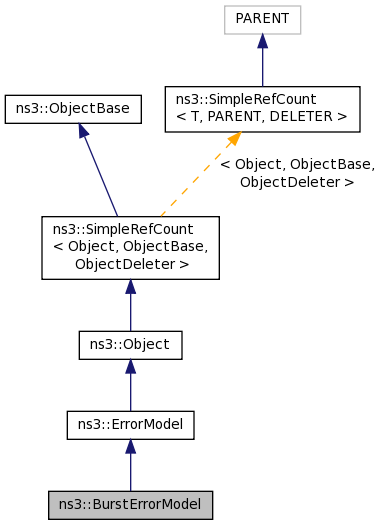

Inheritance diagram for ns3::BurstErrorModel:

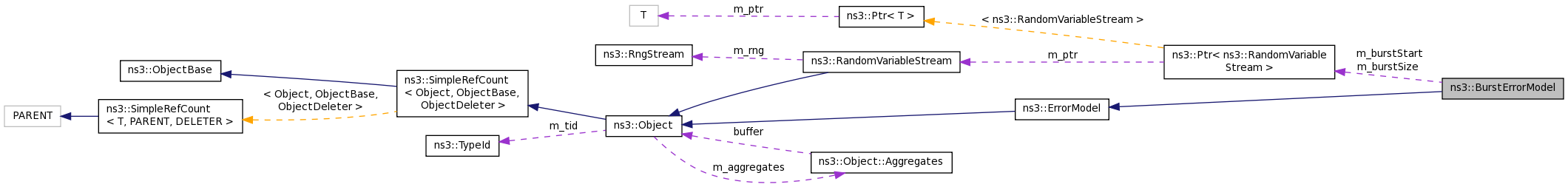

Collaboration diagram for ns3::BurstErrorModel:

Public Member Functions
	BurstErrorModel ()

virtual	~BurstErrorModel ()

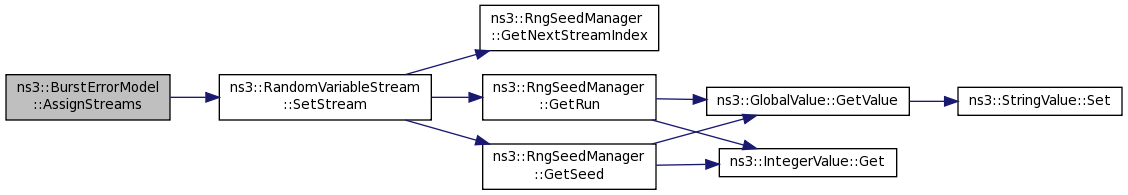

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetBurstRate (void) const

void	SetBurstRate (double rate)

void	SetRandomBurstSize (Ptr< RandomVariableStream > burstSz)

void	SetRandomVariable (Ptr< RandomVariableStream > ranVar)

Public Member Functions inherited from ns3::ErrorModel
	ErrorModel ()

virtual	~ErrorModel ()

void	Disable (void)
	Disable the error model. More...

void	Enable (void)
	Enable the error model. More...

bool	IsCorrupt (Ptr< Packet > pkt)
	Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true. More...

bool	IsEnabled (void) const

void	Reset (void)
	Reset any state associated with the error model. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ErrorModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

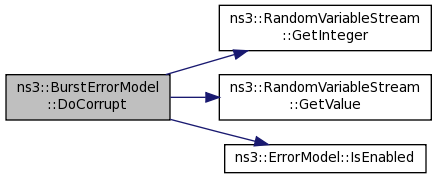

virtual bool	DoCorrupt (Ptr< Packet > p)

virtual void	DoReset (void)

Private Attributes
double	m_burstRate

Ptr< RandomVariableStream >	m_burstSize

Ptr< RandomVariableStream >	m_burstStart

uint32_t	m_counter

uint32_t	m_currentBurstSz

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Determine which bursts of packets are errored corresponding to an underlying distribution, burst rate, and burst size.

This object is used to flag packets as being lost/errored or not. The two parameters that govern the behavior are the burst rate (or equivalently, the mean duration/spacing between between error events), and the burst size (or equivalently, the number of packets being flagged as errored at each error event).

Users can optionally provide RandomVariableStream objects; the default for the decision variable is to use a Uniform(0,1) distribution; the default for the burst size (number of packets) is to use a discrete Uniform[1,4] distribution.

For every packet, the model generates a random number based on the decision variable, and compares it with the burst error rate to determine if a burst error event should occur. If a new error event occurs, the model to will generate a new burst size to determine how many packets should be dropped in this particular burst error event in addition to the current packet.

When a second packet arrives, the model again determines if a new error event should occur based on a newly generated decision variable and the burst error rate. If a new error event is determined to occur, the model will restart with a new burst size. Otherwise, the model will resume the last error event and drop the packet provided that the total number of packets that has been dropped does not exceed the burst size.

IsCorrupt() will not modify the packet data buffer

Config Paths

ns3::BurstErrorModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel

Attributes

ErrorRate: The burst error event.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
BurstStart: The decision variable attached to this error model.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
BurstSize: The number of packets being corrupted at one drop.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=1|Max=4]
- Flags: construct write read

Attributes defined in parent class ns3::ErrorModel

IsEnabled: Whether this ErrorModel is enabled or not.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
