Doxygen introspection did not find any typical Config paths. More...

#include <config-store.h>

Inheritance diagram for ns3::ConfigStore:

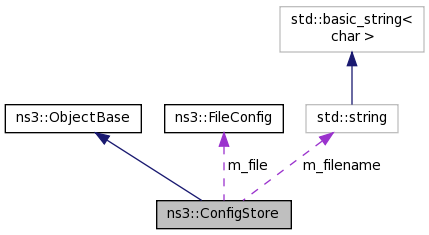

Collaboration diagram for ns3::ConfigStore:

Public Types
enum	FileFormat { XML, RAW_TEXT }

enum	Mode { LOAD, SAVE, NONE }

Public Member Functions
	ConfigStore ()

	~ConfigStore ()

void	ConfigureAttributes (void)

void	ConfigureDefaults (void)

virtual TypeId	GetInstanceTypeId (void) const

void	SetFileFormat (enum FileFormat format)

void	SetFilename (std::string filename)

void	SetMode (enum Mode mode)

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
FileConfig *	m_file

enum FileFormat	m_fileFormat

std::string	m_filename

enum Mode	m_mode

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Attributes

Mode: Configuration mode
- Set with class: ns3::EnumValue
- Underlying type: None|Load|Save
- Initial value: None
- Flags: construct write
Filename: The file where the configuration should be saved to or loaded from.
- Set with class: StringValue
- Underlying type: std::string
- Initial value:
- Flags: construct write
FileFormat: Type of file format
- Set with class: ns3::EnumValue
- Underlying type: RawText|Xml
- Initial value: RawText
- Flags: construct write

No TraceSources are defined for this type.

Definition at line 34 of file config-store.h.

Member Enumeration Documentation

enum ns3::ConfigStore::FileFormat

Enumerator
XML
RAW_TEXT

Definition at line 42 of file config-store.h.

enum ns3::ConfigStore::Mode

Enumerator
LOAD
SAVE
NONE

Definition at line 37 of file config-store.h.

Constructor & Destructor Documentation

ns3::ConfigStore::ConfigStore ( )

Definition at line 62 of file config-store.cc.

References ns3::ObjectBase::ConstructSelf(), LOAD, m_file, m_fileFormat, m_filename, m_mode, NS_ABORT_MSG, RAW_TEXT, SAVE, ns3::FileConfig::SetFilename(), and XML.

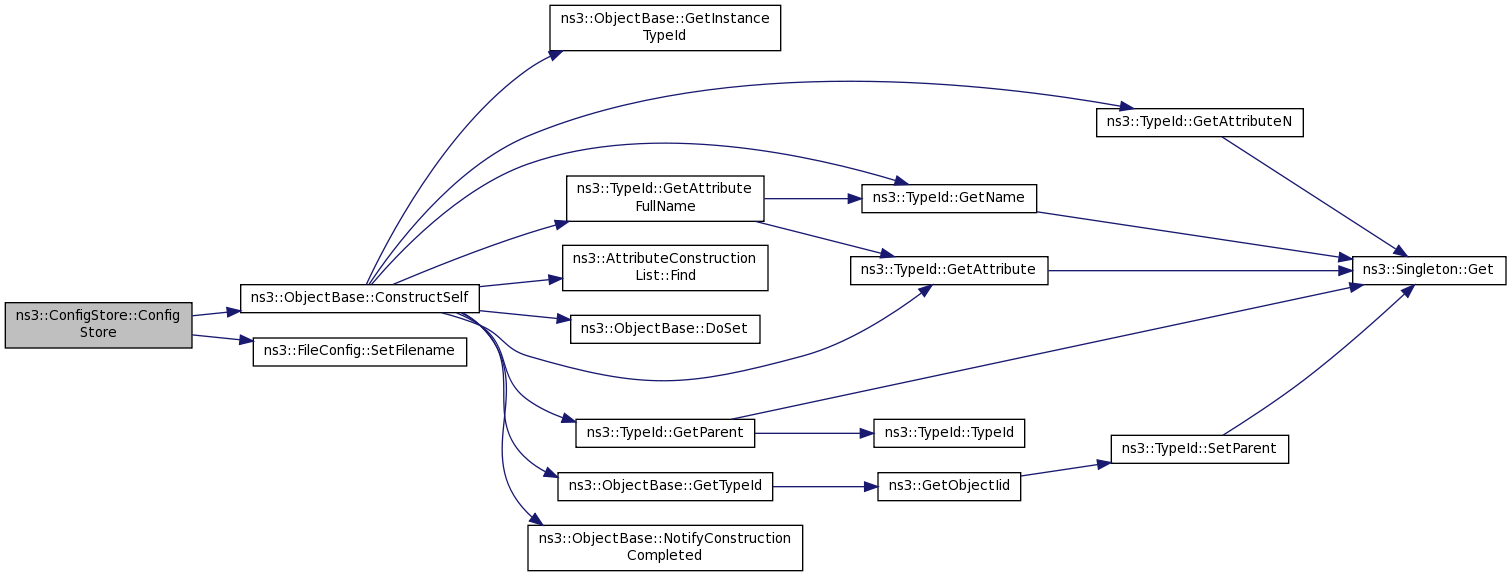

Here is the call graph for this function:

ns3::ConfigStore::~ConfigStore ( )

Definition at line 114 of file config-store.cc.

References m_file.

Member Function Documentation

void ns3::ConfigStore::ConfigureAttributes ( void )

Definition at line 137 of file config-store.cc.

References ns3::FileConfig::Attributes(), and m_file.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ConfigStore::ConfigureDefaults ( void )

Definition at line 143 of file config-store.cc.

References ns3::FileConfig::Default(), ns3::FileConfig::Global(), and m_file.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::ConfigStore::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 56 of file config-store.cc.

References GetTypeId().

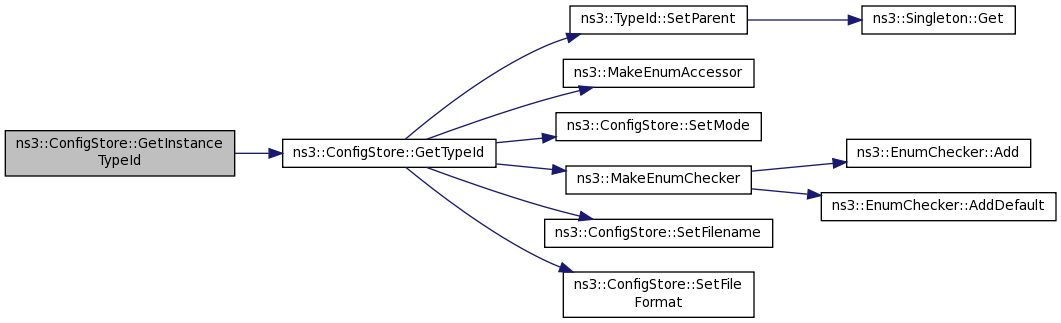

Here is the call graph for this function:
