Doxygen introspection did not find any typical Config paths. More...

#include <epc-x2-header.h>

Inheritance diagram for ns3::EpcX2HandoverRequestHeader:

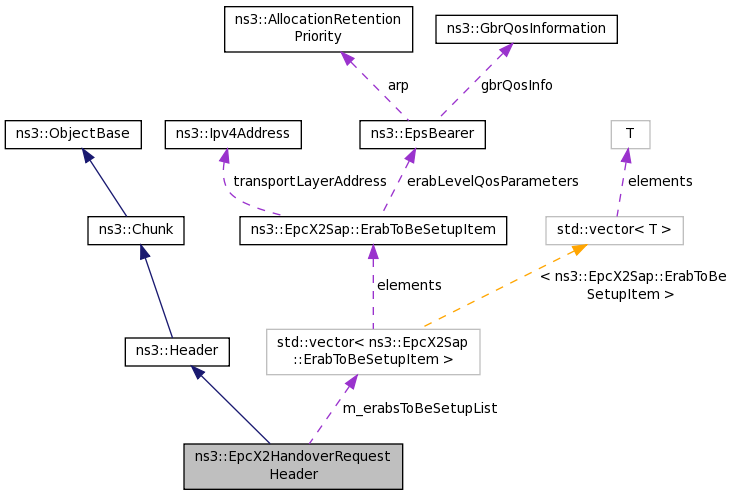

Collaboration diagram for ns3::EpcX2HandoverRequestHeader:

Public Member Functions
	EpcX2HandoverRequestHeader ()

virtual	~EpcX2HandoverRequestHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

std::vector < EpcX2Sap::ErabToBeSetupItem >	GetBearers () const

uint16_t	GetCause () const

virtual TypeId	GetInstanceTypeId (void) const

uint32_t	GetLengthOfIes () const

uint32_t	GetMmeUeS1apId () const

uint32_t	GetNumberOfIes () const

uint16_t	GetOldEnbUeX2apId () const

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetTargetCellId () const

uint64_t	GetUeAggregateMaxBitRateDownlink () const

uint64_t	GetUeAggregateMaxBitRateUplink () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetBearers (std::vector< EpcX2Sap::ErabToBeSetupItem > bearers)

void	SetCause (uint16_t cause)

void	SetMmeUeS1apId (uint32_t mmeUeS1apId)

void	SetOldEnbUeX2apId (uint16_t x2apId)

void	SetTargetCellId (uint16_t targetCellId)

void	SetUeAggregateMaxBitRateDownlink (uint64_t bitRate)

void	SetUeAggregateMaxBitRateUplink (uint64_t bitRate)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_cause

std::vector < EpcX2Sap::ErabToBeSetupItem >	m_erabsToBeSetupList

uint32_t	m_headerLength

uint32_t	m_mmeUeS1apId

uint32_t	m_numberOfIes

uint16_t	m_oldEnbUeX2apId

uint16_t	m_targetCellId

uint64_t	m_ueAggregateMaxBitRateDownlink

uint64_t	m_ueAggregateMaxBitRateUplink

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 80 of file epc-x2-header.h.

Constructor & Destructor Documentation

ns3::EpcX2HandoverRequestHeader::EpcX2HandoverRequestHeader ( )

Definition at line 152 of file epc-x2-header.cc.

References m_erabsToBeSetupList.

ns3::EpcX2HandoverRequestHeader::~EpcX2HandoverRequestHeader ( )

virtual

Definition at line 163 of file epc-x2-header.cc.

References m_cause, m_erabsToBeSetupList, m_headerLength, m_mmeUeS1apId, m_numberOfIes, m_oldEnbUeX2apId, and m_targetCellId.

Member Function Documentation

uint32_t ns3::EpcX2HandoverRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 245 of file epc-x2-header.cc.

References ns3::EpsBearer::arp, ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding, ns3::EpcX2Sap::ErabToBeSetupItem::erabId, ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters, ns3::GbrQosInformation::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, GetSerializedSize(), ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid, m_cause, m_erabsToBeSetupList, m_headerLength, m_mmeUeS1apId, m_numberOfIes, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, m_ueAggregateMaxBitRateUplink, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::AllocationRetentionPriority::preemptionCapability, ns3::AllocationRetentionPriority::preemptionVulnerability, ns3::AllocationRetentionPriority::priorityLevel, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress.

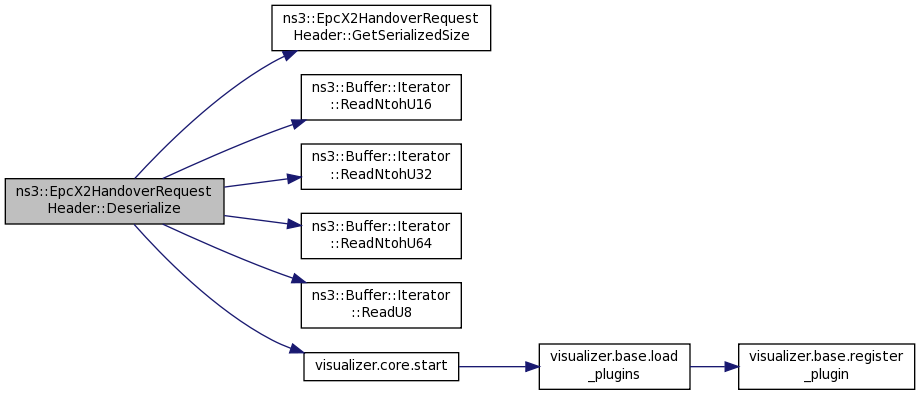

Here is the call graph for this function:

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::EpcX2HandoverRequestHeader::GetBearers ( ) const

Definition at line 388 of file epc-x2-header.cc.

References m_erabsToBeSetupList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint16_t ns3::EpcX2HandoverRequestHeader::GetCause ( ) const

Definition at line 352 of file epc-x2-header.cc.

References m_cause.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

TypeId ns3::EpcX2HandoverRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 185 of file epc-x2-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::EpcX2HandoverRequestHeader::GetLengthOfIes ( ) const

Definition at line 425 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

Here is the caller graph for this function:

uint32_t ns3::EpcX2HandoverRequestHeader::GetMmeUeS1apId ( ) const

Definition at line 376 of file epc-x2-header.cc.

References m_mmeUeS1apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint32_t ns3::EpcX2HandoverRequestHeader::GetNumberOfIes ( ) const

Definition at line 431 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendHandoverRequest().

Here is the caller graph for this function:

uint16_t ns3::EpcX2HandoverRequestHeader::GetOldEnbUeX2apId ( ) const

Definition at line 340 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint32_t ns3::EpcX2HandoverRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 191 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

Here is the caller graph for this function:

uint16_t ns3::EpcX2HandoverRequestHeader::GetTargetCellId ( ) const

Definition at line 364 of file epc-x2-header.cc.

References m_targetCellId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

TypeId ns3::EpcX2HandoverRequestHeader::GetTypeId ( void )

static

Definition at line 175 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::EpcX2HandoverRequestHeader::GetUeAggregateMaxBitRateDownlink ( ) const

Definition at line 401 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateDownlink.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint64_t ns3::EpcX2HandoverRequestHeader::GetUeAggregateMaxBitRateUplink ( ) const

Definition at line 413 of file epc-x2-header.cc.

References m_ueAggregateMaxBitRateUplink.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

void ns3::EpcX2HandoverRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 310 of file epc-x2-header.cc.

References m_cause, m_erabsToBeSetupList, m_mmeUeS1apId, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, and m_ueAggregateMaxBitRateUplink.

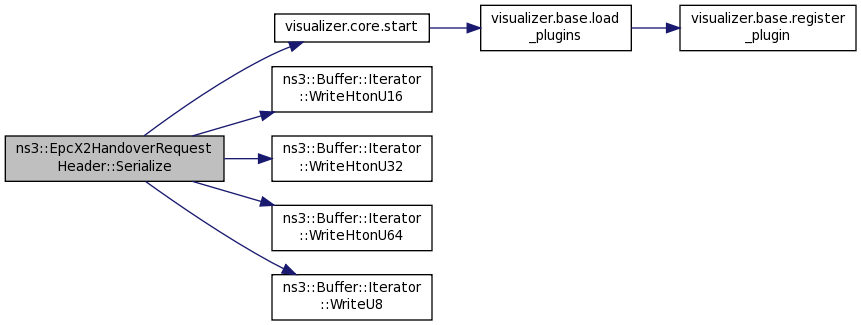

void ns3::EpcX2HandoverRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 197 of file epc-x2-header.cc.

References m_cause, m_erabsToBeSetupList, m_mmeUeS1apId, m_oldEnbUeX2apId, m_targetCellId, m_ueAggregateMaxBitRateDownlink, m_ueAggregateMaxBitRateUplink, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteHtonU64(), and ns3::Buffer::Iterator::WriteU8().
