ns3::EpsBearerTag Class Reference

Tag used to define the RNTI and EPS bearer ID for packets interchanged between the EpcEnbApplication and the LteEnbNetDevice. More...

#include <eps-bearer-tag.h>

+ Inheritance diagram for ns3::EpsBearerTag:
+ Collaboration diagram for ns3::EpsBearerTag:

Public Member Functions

 EpsBearerTag ()
 Create an empty EpsBearerTag. More...

 EpsBearerTag (uint16_t rnti, uint8_t bid)
 Create a EpsBearerTag with the given RNTI and bearer id. More...

virtual void Deserialize (TagBuffer i)

uint8_t GetBid (void) const

virtual TypeId GetInstanceTypeId (void) const

uint16_t GetRnti (void) const

virtual uint32_t GetSerializedSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetBid (uint8_t bid)
 Set the bearer id to the given value. More...

void SetRnti (uint16_t rnti)
 Set the RNTI to the given value. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_bid

uint16_t m_rnti


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Tag used to define the RNTI and EPS bearer ID for packets interchanged between the EpcEnbApplication and the LteEnbNetDevice.

Doxygen introspection did not find any typical Config paths.


Attributes

  • rnti: The rnti that indicates the UE which packet belongs
  • bid: The EPS bearer id within the UE to which the packet belongs

No TraceSources are defined for this type.

Definition at line 36 of file eps-bearer-tag.h.

Constructor & Destructor Documentation

ns3::EpsBearerTag::EpsBearerTag ( )

Create an empty EpsBearerTag.

Definition at line 56 of file eps-bearer-tag.cc.

ns3::EpsBearerTag::EpsBearerTag ( uint16_t  rnti,
uint8_t  bid
)

Create a EpsBearerTag with the given RNTI and bearer id.

Definition at line 61 of file eps-bearer-tag.cc.

Member Function Documentation

void ns3::EpsBearerTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 93 of file eps-bearer-tag.cc.

References m_bid, m_rnti, ns3::TagBuffer::ReadU16(), and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

uint8_t ns3::EpsBearerTag::GetBid ( void  ) const

Definition at line 106 of file eps-bearer-tag.cc.

References m_bid.

Referenced by GetTypeId(), ns3::EpcEnbApplication::RecvFromLteSocket(), and ns3::LteEnbRrc::SendData().

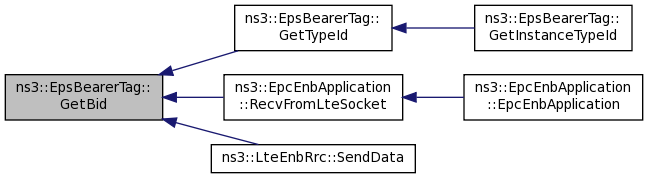

+ Here is the caller graph for this function:

TypeId ns3::EpsBearerTag::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 51 of file eps-bearer-tag.cc.

References GetTypeId().

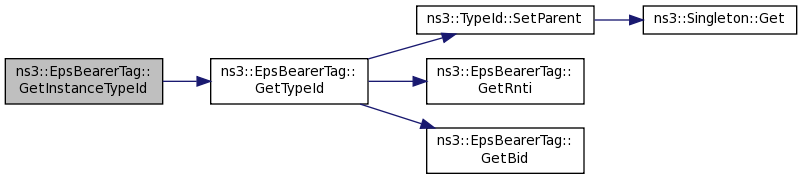

+ Here is the call graph for this function:

uint16_t ns3::EpsBearerTag::GetRnti ( void  ) const

Definition at line 100 of file eps-bearer-tag.cc.

References m_rnti.

Referenced by GetTypeId(), ns3::EpcEnbApplication::RecvFromLteSocket(), and ns3::LteEnbRrc::SendData().

+ Here is the caller graph for this function:

uint32_t ns3::EpsBearerTag::GetSerializedSize ( ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 80 of file eps-bearer-tag.cc.

TypeId ns3::EpsBearerTag::GetTypeId ( void  )
static

Definition at line 33 of file eps-bearer-tag.cc.

References GetBid(), GetRnti(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

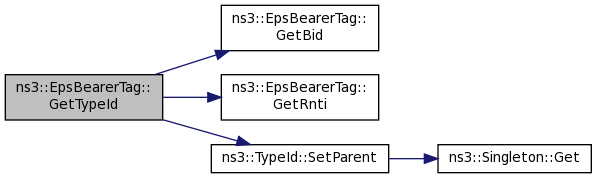

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EpsBearerTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 112 of file eps-bearer-tag.cc.

References m_bid, and m_rnti.

void ns3::EpsBearerTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 86 of file eps-bearer-tag.cc.

References m_bid, m_rnti, ns3::TagBuffer::WriteU16(), and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

void ns3::EpsBearerTag::SetBid ( uint8_t  bid)

Set the bearer id to the given value.

Parameters
bidthe value of the RNTI to set

Definition at line 74 of file eps-bearer-tag.cc.

References m_bid.

Referenced by ns3::UeManager::DoReceivePdcpSdu().

+ Here is the caller graph for this function:

void ns3::EpsBearerTag::SetRnti ( uint16_t  rnti)

Set the RNTI to the given value.

Parameters
rntithe value of the RNTI to set

Definition at line 68 of file eps-bearer-tag.cc.

References m_rnti.

Referenced by ns3::UeManager::DoReceivePdcpSdu().

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::EpsBearerTag::m_bid
private

Definition at line 76 of file eps-bearer-tag.h.

Referenced by Deserialize(), GetBid(), Print(), Serialize(), and SetBid().

uint16_t ns3::EpsBearerTag::m_rnti
private

Definition at line 75 of file eps-bearer-tag.h.

Referenced by Deserialize(), GetRnti(), Print(), Serialize(), and SetRnti().

The documentation for this class was generated from the following files:
