ns3::HighLatencyCtsToSelfTxVectorTag Class Reference

Inheritance diagram for ns3::HighLatencyCtsToSelfTxVectorTag:

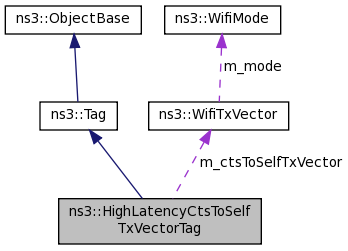

Collaboration diagram for ns3::HighLatencyCtsToSelfTxVectorTag:

Public Member Functions
	HighLatencyCtsToSelfTxVectorTag ()
	HighLatencyCtsToSelfTxVectorTag (WifiTxVector ctsToSelfTxVector)
virtual void	Deserialize (TagBuffer i)
WifiTxVector	GetCtsToSelfTxVector (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
WifiTxVector	m_ctsToSelfTxVector

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 180 of file wifi-remote-station-manager.cc.

Constructor & Destructor Documentation

ns3::HighLatencyCtsToSelfTxVectorTag::HighLatencyCtsToSelfTxVectorTag

(

)

Definition at line 200 of file wifi-remote-station-manager.cc.

ns3::HighLatencyCtsToSelfTxVectorTag::HighLatencyCtsToSelfTxVectorTag

(

WifiTxVector

ctsToSelfTxVector

)

Definition at line 203 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::HighLatencyCtsToSelfTxVectorTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 238 of file wifi-remote-station-manager.cc.

References m_ctsToSelfTxVector, and ns3::TagBuffer::Read().

Here is the call graph for this function:

WifiTxVector ns3::HighLatencyCtsToSelfTxVectorTag::GetCtsToSelfTxVector

(

void

)

const

Returns

the transmission mode to use for the CTS-to-self.

Definition at line 209 of file wifi-remote-station-manager.cc.

References m_ctsToSelfTxVector.

Referenced by ns3::WifiRemoteStationManager::GetCtsToSelfTxVector().

Here is the caller graph for this function:

TypeId ns3::HighLatencyCtsToSelfTxVectorTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 223 of file wifi-remote-station-manager.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::HighLatencyCtsToSelfTxVectorTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 228 of file wifi-remote-station-manager.cc.

TypeId ns3::HighLatencyCtsToSelfTxVectorTag::GetTypeId ( void  )

static

Definition at line 214 of file wifi-remote-station-manager.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::HighLatencyCtsToSelfTxVectorTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 243 of file wifi-remote-station-manager.cc.

References m_ctsToSelfTxVector.

void ns3::HighLatencyCtsToSelfTxVectorTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 233 of file wifi-remote-station-manager.cc.

References m_ctsToSelfTxVector, and ns3::TagBuffer::Write().

Here is the call graph for this function:

Member Data Documentation

WifiTxVector ns3::HighLatencyCtsToSelfTxVectorTag::m_ctsToSelfTxVector

private

Definition at line 197 of file wifi-remote-station-manager.cc.

Referenced by Deserialize(), GetCtsToSelfTxVector(), Print(), and Serialize().

---

The documentation for this class was generated from the following file:

• src/wifi/model/wifi-remote-station-manager.cc
