ns3::HigherDataTxVectorTag Class Reference

This tag will be used to support higher layer control data rate and tx power level. More...

#include <higher-tx-tag.h>

Inheritance diagram for ns3::HigherDataTxVectorTag:

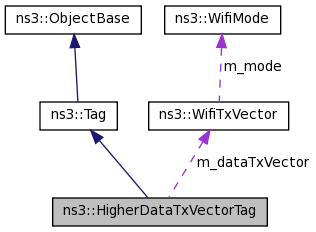

Collaboration diagram for ns3::HigherDataTxVectorTag:

Public Member Functions
	HigherDataTxVectorTag (void)
	HigherDataTxVectorTag (WifiTxVector dataTxVector, bool adapter)
virtual	~HigherDataTxVectorTag (void)
virtual void	Deserialize (TagBuffer i)
WifiTxVector	GetDataTxVector (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
bool	IsAdapter (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_adapter
WifiTxVector	m_dataTxVector

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This tag will be used to support higher layer control data rate and tx power level.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 35 of file higher-tx-tag.h.

Constructor & Destructor Documentation

ns3::HigherDataTxVectorTag::HigherDataTxVectorTag

(

void

)

Definition at line 42 of file higher-tx-tag.cc.

References NS_LOG_FUNCTION.

ns3::HigherDataTxVectorTag::HigherDataTxVectorTag	(	WifiTxVector	dataTxVector,
		bool	adapter
	)

Definition at line 47 of file higher-tx-tag.cc.

References NS_LOG_FUNCTION.

ns3::HigherDataTxVectorTag::~HigherDataTxVectorTag ( void  )

virtual

Definition at line 53 of file higher-tx-tag.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::HigherDataTxVectorTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 91 of file higher-tx-tag.cc.

References m_adapter, m_dataTxVector, NS_LOG_FUNCTION, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

WifiTxVector ns3::HigherDataTxVectorTag::GetDataTxVector

(

void

)

const

Definition at line 65 of file higher-tx-tag.cc.

References m_dataTxVector, and NS_LOG_FUNCTION.

Referenced by ns3::WaveMacLow::GetDataTxVector().

Here is the caller graph for this function:

TypeId ns3::HigherDataTxVectorTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 58 of file higher-tx-tag.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::HigherDataTxVectorTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 78 of file higher-tx-tag.cc.

References NS_LOG_FUNCTION.

TypeId ns3::HigherDataTxVectorTag::GetTypeId ( void  )

static

Definition at line 34 of file higher-tx-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::HigherDataTxVectorTag::IsAdapter

(

void

)

const

Definition at line 71 of file higher-tx-tag.cc.

References m_adapter, and NS_LOG_FUNCTION.

Referenced by ns3::WaveMacLow::GetDataTxVector().

Here is the caller graph for this function:

void ns3::HigherDataTxVectorTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 98 of file higher-tx-tag.cc.

References m_adapter, m_dataTxVector, and NS_LOG_FUNCTION.

void ns3::HigherDataTxVectorTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 84 of file higher-tx-tag.cc.

References m_adapter, m_dataTxVector, NS_LOG_FUNCTION, ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

Member Data Documentation

bool ns3::HigherDataTxVectorTag::m_adapter

private

Definition at line 54 of file higher-tx-tag.h.

Referenced by Deserialize(), IsAdapter(), Print(), and Serialize().

WifiTxVector ns3::HigherDataTxVectorTag::m_dataTxVector

private

Definition at line 53 of file higher-tx-tag.h.

Referenced by Deserialize(), GetDataTxVector(), Print(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/wave/model/higher-tx-tag.h
• src/wave/model/higher-tx-tag.cc
