ns3::InterferenceHelperSequenceTest Class Reference

Inheritance diagram for ns3::InterferenceHelperSequenceTest:

Collaboration diagram for ns3::InterferenceHelperSequenceTest:

Public Member Functions
	InterferenceHelperSequenceTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Private Member Functions
Ptr< Node >	CreateOne (Vector pos, Ptr< YansWifiChannel > channel)
void	SendOnePacket (Ptr< WifiNetDevice > dev)
void	SwitchCh (Ptr< WifiNetDevice > dev)

Private Attributes
ObjectFactory	m_mac
ObjectFactory	m_manager
ObjectFactory	m_propDelay

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Internal:

See Bug 991

Definition at line 220 of file wifi-test.cc.

Constructor & Destructor Documentation

ns3::InterferenceHelperSequenceTest::InterferenceHelperSequenceTest

(

)

Definition at line 236 of file wifi-test.cc.

Member Function Documentation

Ptr< Node > ns3::InterferenceHelperSequenceTest::CreateOne ( Vector  pos, Ptr< YansWifiChannel >  channel  )

private

Definition at line 256 of file wifi-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ns3::Mac48Address::Allocate(), ns3::WifiMac::ConfigureStandard(), ns3::ObjectFactory::Create(), m_mac, m_manager, and ns3::WIFI_PHY_STANDARD_80211a.

Referenced by DoRun().

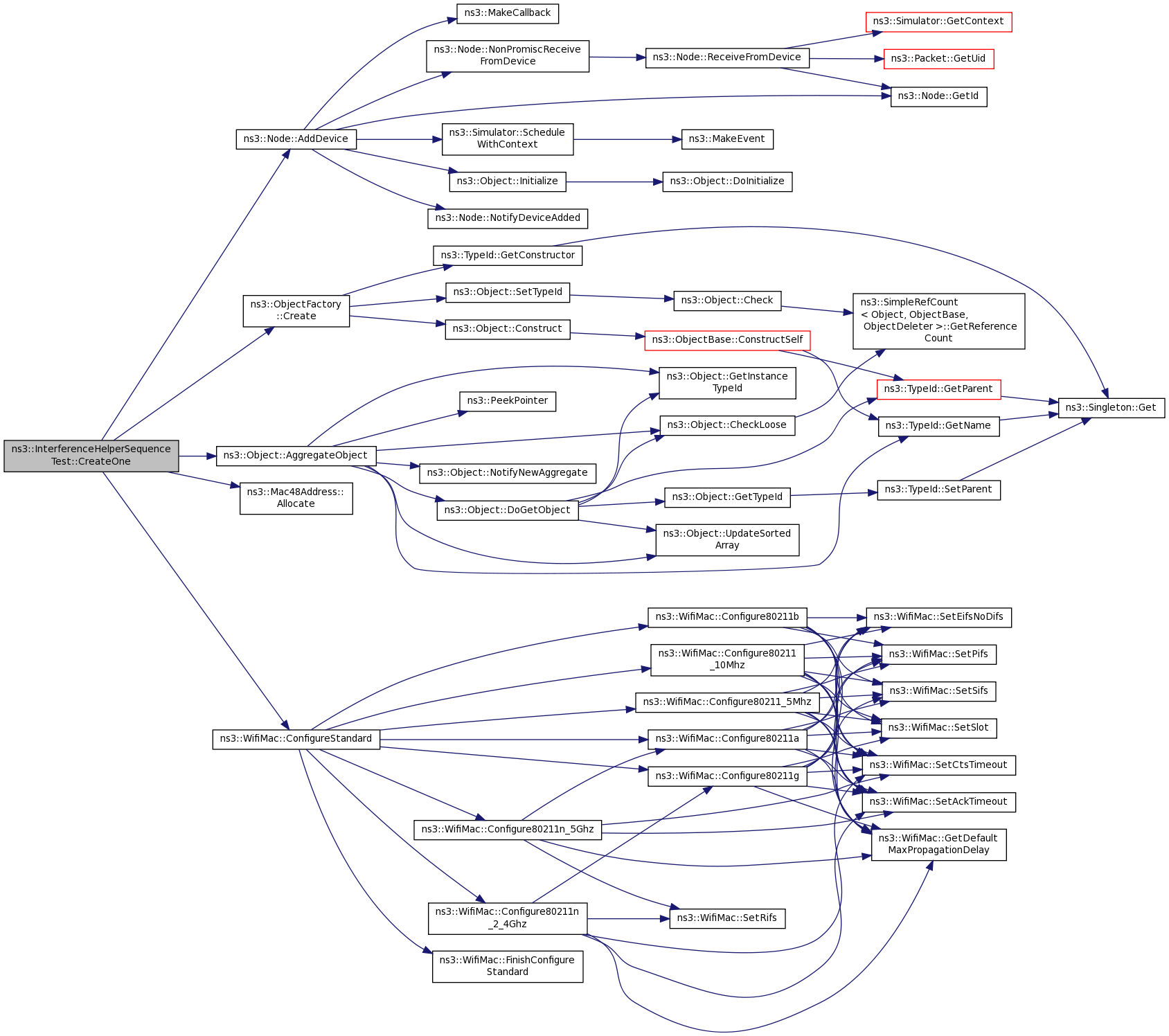

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelperSequenceTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 285 of file wifi-test.cc.

References ns3::ObjectFactory::Create(), CreateOne(), ns3::Simulator::Destroy(), ns3::Node::GetDevice(), ns3::Object::GetObject(), m_mac, m_manager, m_propDelay, ns3::Simulator::Run(), ns3::Simulator::Schedule(), SendOnePacket(), ns3::ObjectFactory::SetTypeId(), ns3::Simulator::Stop(), and SwitchCh().

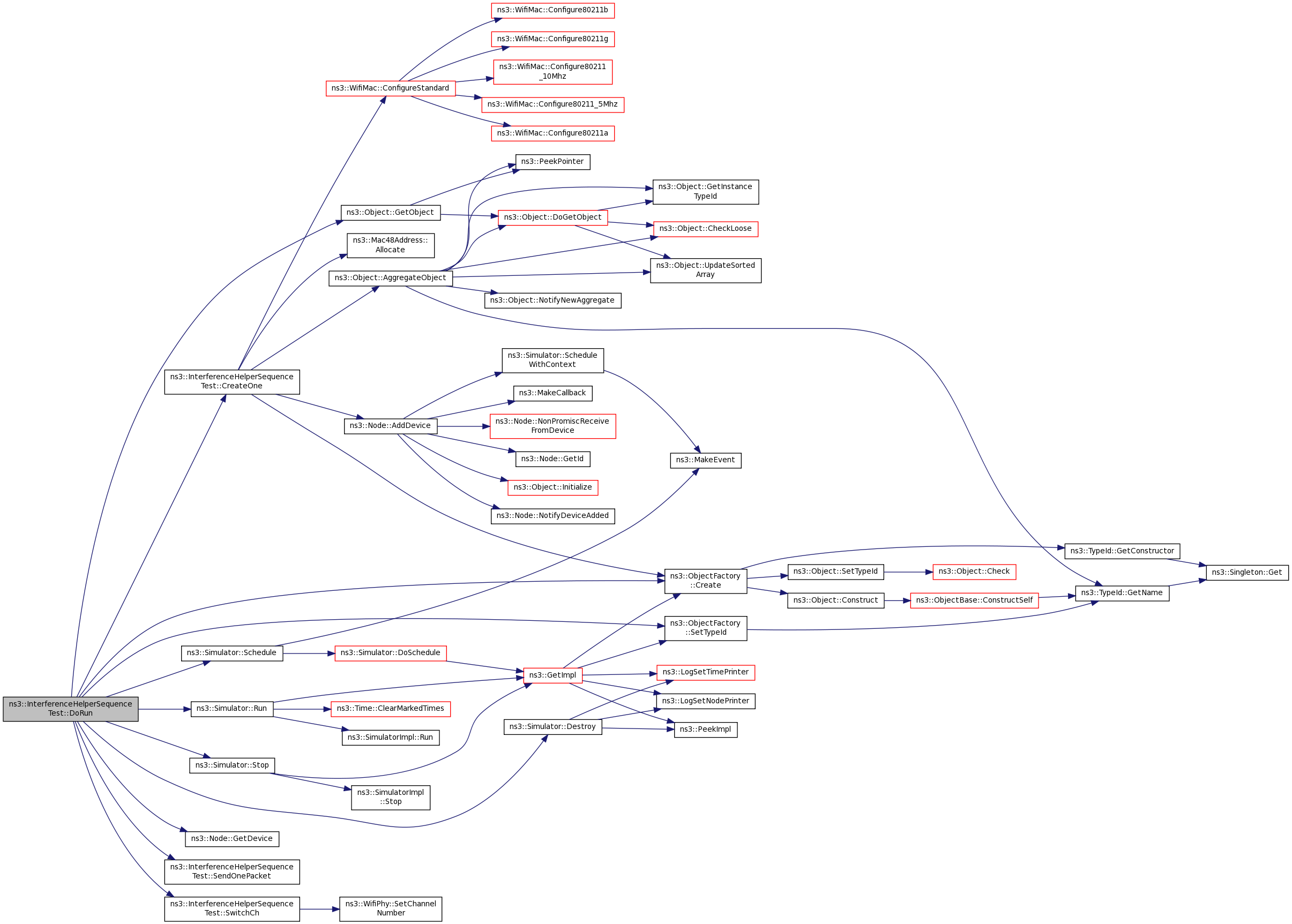

Here is the call graph for this function:

void ns3::InterferenceHelperSequenceTest::SendOnePacket ( Ptr< WifiNetDevice >  dev )

private

Definition at line 242 of file wifi-test.cc.

Referenced by DoRun().

Here is the caller graph for this function:

void ns3::InterferenceHelperSequenceTest::SwitchCh ( Ptr< WifiNetDevice >  dev )

private

Definition at line 249 of file wifi-test.cc.

References ns3::WifiPhy::SetChannelNumber().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::InterferenceHelperSequenceTest::m_mac

private

Definition at line 232 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

ObjectFactory ns3::InterferenceHelperSequenceTest::m_manager

private

Definition at line 231 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

ObjectFactory ns3::InterferenceHelperSequenceTest::m_propDelay

private

Definition at line 233 of file wifi-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/wifi/test/wifi-test.cc
