This class implements Linux struct pktinfo in order to deliver ancillary information to the socket interface. More...

#include <ipv4-packet-info-tag.h>

Inheritance diagram for ns3::Ipv4PacketInfoTag:

Collaboration diagram for ns3::Ipv4PacketInfoTag:

Public Member Functions
	Ipv4PacketInfoTag ()

virtual void	Deserialize (TagBuffer i)

Ipv4Address	GetAddress (void) const
	Get the tag's address. More...

virtual TypeId	GetInstanceTypeId (void) const

Ipv4Address	GetLocalAddress (void) const
	Get the tag's local address. More...

uint32_t	GetRecvIf (void) const
	Get the tag's receiving interface. More...

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetTtl (void) const
	Get the tag's Time to Live Implemented, but not used in the stack yet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

void	SetAddress (Ipv4Address addr)
	Set the tag's address. More...

void	SetLocalAddress (Ipv4Address addr)
	Set the tag's local address. More...

void	SetRecvIf (uint32_t ifindex)
	Set the tag's receiving interface. More...

void	SetTtl (uint8_t ttl)
	Set the tag's Time to Live Implemented, but not used in the stack yet. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4Address	m_addr
	Header destination address. More...

uint32_t	m_ifindex
	interface index More...

Ipv4Address	m_spec_dst
	Local address. More...

uint8_t	m_ttl
	Time to Live. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements Linux struct pktinfo in order to deliver ancillary information to the socket interface.

This is used with socket option such as IP_PKTINFO, IP_RECVTTL, IP_RECVTOS. See linux manpage ip(7).

This tag in the send direction is presently not enabled but we would accept a patch along those lines in the future.

Definition at line 42 of file ipv4-packet-info-tag.h.

Constructor & Destructor Documentation

ns3::Ipv4PacketInfoTag::Ipv4PacketInfoTag ( )

Definition at line 31 of file ipv4-packet-info-tag.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Ipv4PacketInfoTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 135 of file ipv4-packet-info-tag.cc.

References ns3::Ipv4Address::Deserialize(), m_addr, m_ifindex, m_spec_dst, m_ttl, NS_LOG_FUNCTION, ns3::TagBuffer::Read(), ns3::TagBuffer::ReadU32(), and ns3::TagBuffer::ReadU8().

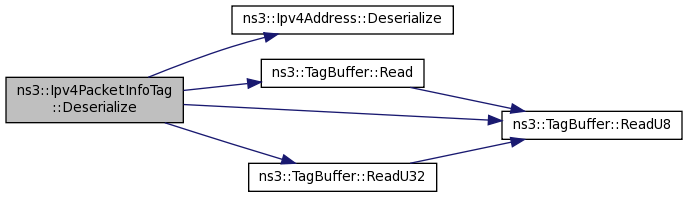

Here is the call graph for this function:

Ipv4Address ns3::Ipv4PacketInfoTag::GetAddress ( void ) const

Get the tag's address.

Returns: the address

Definition at line 48 of file ipv4-packet-info-tag.cc.

References m_addr, and NS_LOG_FUNCTION.

TypeId ns3::Ipv4PacketInfoTag::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 108 of file ipv4-packet-info-tag.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:
