ns3::Ipv4PacketProbe Class Reference

This class is designed to probe an underlying ns3 TraceSource exporting a packet, an IPv4 object, and an interface. More...

#include <ipv4-packet-probe.h>

+ Inheritance diagram for ns3::Ipv4PacketProbe:
+ Collaboration diagram for ns3::Ipv4PacketProbe:

Public Member Functions

 Ipv4PacketProbe ()

virtual ~Ipv4PacketProbe ()

virtual bool ConnectByObject (std::string traceSource, Ptr< Object > obj)
 connect to a trace source attribute provided by a given object More...

virtual void ConnectByPath (std::string path)
 connect to a trace source provided by a config path More...

void SetValue (Ptr< const Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)
 Set a probe value. More...

- Public Member Functions inherited from ns3::Probe
 Probe ()

virtual ~Probe ()

virtual bool IsEnabled (void) const

- Public Member Functions inherited from ns3::DataCollectionObject
 DataCollectionObject ()

virtual ~DataCollectionObject ()

void Disable (void)
 Unset the status of an individual object. More...

void Enable (void)
 Set the status of an individual object. More...

std::string GetName (void) const
 Get the object's name. More...

void SetName (std::string name)
 Set the object's name. All spaces are replaced by underscores. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

static void SetValueByPath (std::string path, Ptr< const Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)
 Set a probe value by its name in the Config system. More...

- Static Public Member Functions inherited from ns3::Probe
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void TraceSink (Ptr< const Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)
 Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet>, Ptr<Ipv4>, and uint32_t. More...


Private Attributes

uint32_t m_interface
 The IPv4 interface for the traced packet. More...

Ptr< Ipv4m_ipv4
 The IPv4 object for the traced packet. More...

TracedCallback< Ptr< const
Packet >, Ptr< Ipv4 >
, uint32_t >
m_output
 Traced Callback: the packet, the Ipv4 object and the interface. More...

TracedCallback< uint32_t,
uint32_t >
m_outputBytes
 Traced Callback: the previous packet's size and the actual packet's size. More...

Ptr< const Packetm_packet
 The traced packet. More...

uint32_t m_packetSizeOld
 The size of the traced packet. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::Probe
Time m_start
 Time when logging starts. More...

Time m_stop
 Time when logging stops. More...

- Protected Attributes inherited from ns3::DataCollectionObject
bool m_enabled
 Object's activation state. More...

std::string m_name
 Name of the object within the data collection framework. More...


Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting a packet, an IPv4 object, and an interface.

Doxygen introspection did not find any typical Config paths.

This probe exports a trace source "Output" with arguments of type Ptr<const Packet>, Ptr<Ipv4>, and uint32_t. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.


No Attributes are defined for this type.

TraceSources

  • Output: The packet plus its IPv4 object and interface that serve as the output for this probe
  • OutputBytes: The number of bytes in the packet

Definition at line 47 of file ipv4-packet-probe.h.

Constructor & Destructor Documentation

ns3::Ipv4PacketProbe::Ipv4PacketProbe ( )

Definition at line 54 of file ipv4-packet-probe.cc.

References m_interface, m_ipv4, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

ns3::Ipv4PacketProbe::~Ipv4PacketProbe ( )
virtual

Definition at line 63 of file ipv4-packet-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::Ipv4PacketProbe::ConnectByObject ( std::string  traceSource,
Ptr< Object obj
)
virtual

connect to a trace source attribute provided by a given object

Parameters
traceSourcethe name of the attribute TraceSource to connect to
objns3::Object to connect to
Returns
true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 92 of file ipv4-packet-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and TraceSink().

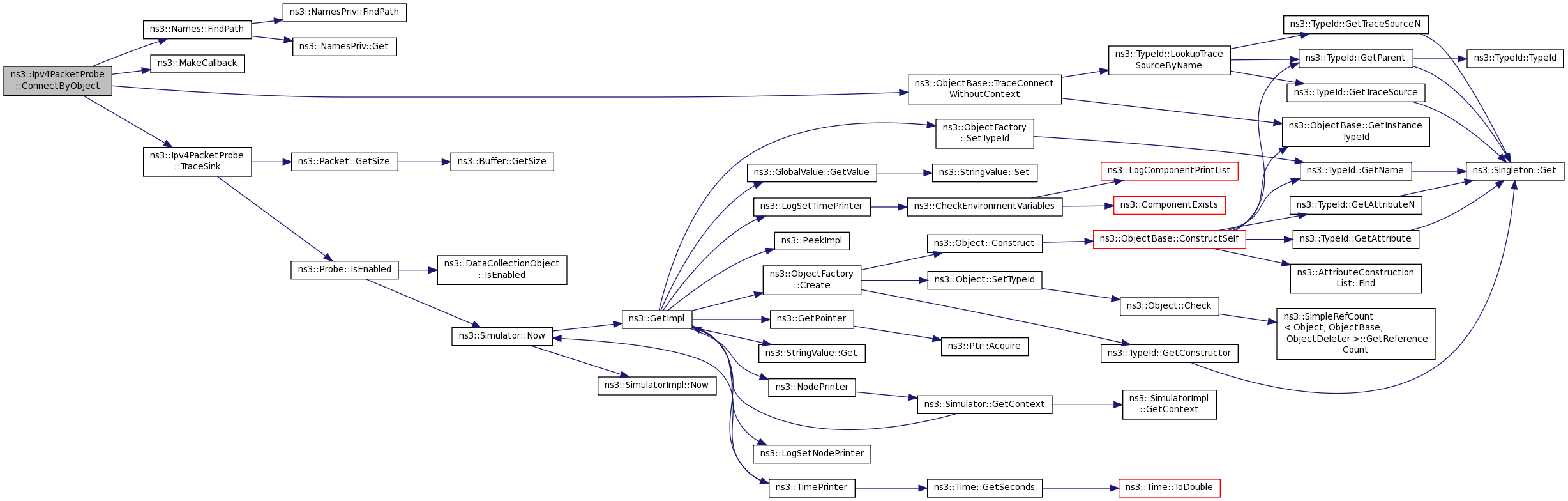

+ Here is the call graph for this function:

void ns3::Ipv4PacketProbe::ConnectByPath ( std::string  path)
virtual

connect to a trace source provided by a config path

Parameters
pathConfig path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 101 of file ipv4-packet-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

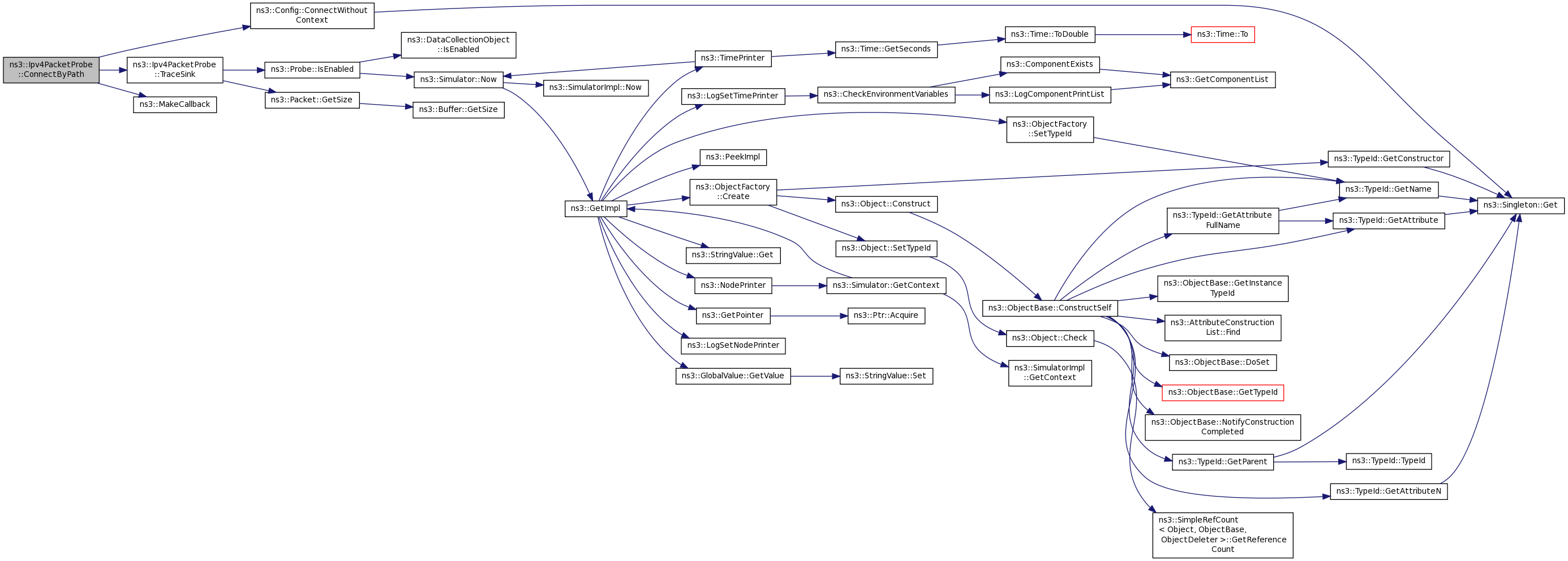

+ Here is the call graph for this function:

TypeId ns3::Ipv4PacketProbe::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 39 of file ipv4-packet-probe.cc.

References m_output, m_outputBytes, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

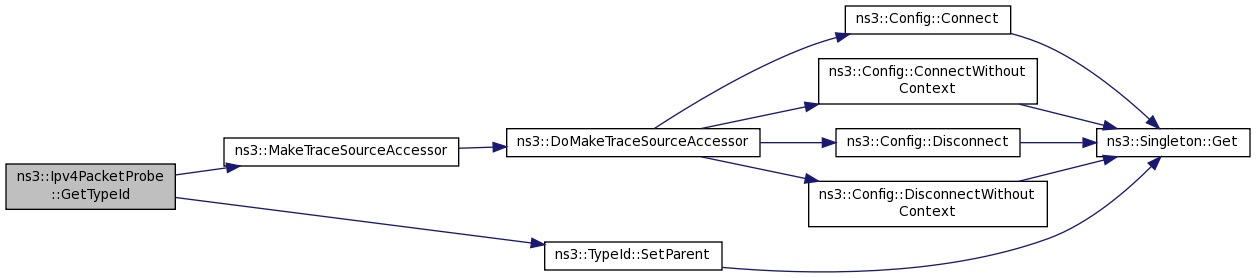

+ Here is the call graph for this function:

void ns3::Ipv4PacketProbe::SetValue ( Ptr< const Packet packet,
Ptr< Ipv4 ipv4,
uint32_t  interface
)

Set a probe value.

Parameters
packetset the traced packet equal to this
ipv4set the IPv4 object for the traced packet equal to this
interfaceset the IPv4 interface for the traced packet equal to this

Definition at line 69 of file ipv4-packet-probe.cc.

References ns3::Packet::GetSize(), m_interface, m_ipv4, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::Ipv4PacketProbe::SetValueByPath ( std::string  path,
Ptr< const Packet packet,
Ptr< Ipv4 ipv4,
uint32_t  interface
)
static

Set a probe value by its name in the Config system.

Parameters
pathconfig path to access the probe
packetset the traced packet equal to this
ipv4set the IPv4 object for the traced packet equal to this
interfaceset the IPv4 interface for the traced packet equal to this

Definition at line 83 of file ipv4-packet-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::Ipv4PacketProbe::TraceSink ( Ptr< const Packet packet,
Ptr< Ipv4 ipv4,
uint32_t  interface
)
private

Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet>, Ptr<Ipv4>, and uint32_t.

Parameters
packetthe traced packet
ipv4the IPv4 object for the traced packet
interfacethe IPv4 interface for the traced packet
Internal:

Definition at line 109 of file ipv4-packet-probe.cc.

References ns3::Packet::GetSize(), ns3::Probe::IsEnabled(), m_interface, m_ipv4, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

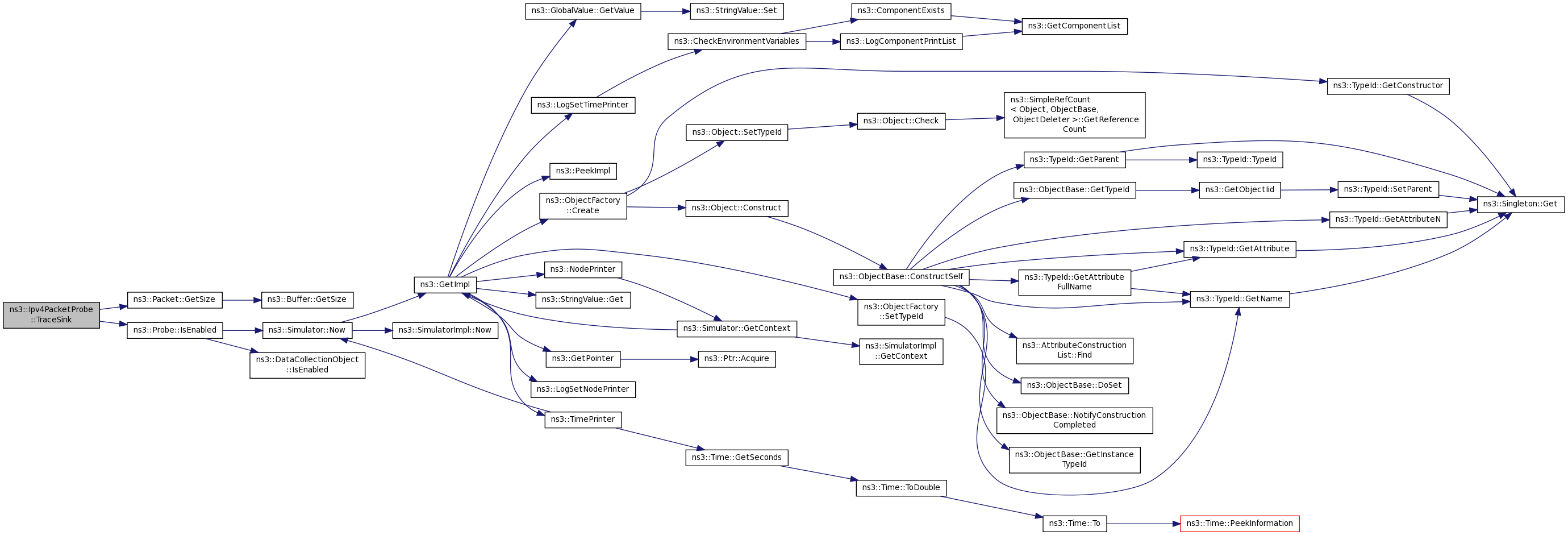

+ Here is the call graph for this function:

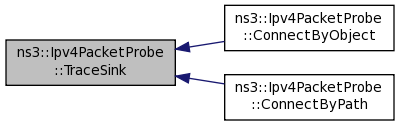

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Ipv4PacketProbe::m_interface
private

The IPv4 interface for the traced packet.

Definition at line 121 of file ipv4-packet-probe.h.

Referenced by Ipv4PacketProbe(), SetValue(), and TraceSink().

Ptr<Ipv4> ns3::Ipv4PacketProbe::m_ipv4
private

The IPv4 object for the traced packet.

Definition at line 118 of file ipv4-packet-probe.h.

Referenced by Ipv4PacketProbe(), SetValue(), and TraceSink().

TracedCallback<Ptr<const Packet>, Ptr<Ipv4>, uint32_t> ns3::Ipv4PacketProbe::m_output
private

Traced Callback: the packet, the Ipv4 object and the interface.

Definition at line 110 of file ipv4-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

TracedCallback<uint32_t, uint32_t> ns3::Ipv4PacketProbe::m_outputBytes
private

Traced Callback: the previous packet's size and the actual packet's size.

Definition at line 112 of file ipv4-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

Ptr<const Packet> ns3::Ipv4PacketProbe::m_packet
private

The traced packet.

Definition at line 115 of file ipv4-packet-probe.h.

Referenced by Ipv4PacketProbe(), SetValue(), and TraceSink().

uint32_t ns3::Ipv4PacketProbe::m_packetSizeOld
private

The size of the traced packet.

Definition at line 124 of file ipv4-packet-probe.h.

Referenced by Ipv4PacketProbe(), SetValue(), and TraceSink().


The documentation for this class was generated from the following files:
