Tag used to define the RNTI and LC id for each MAC packet trasmitted. More...

#include <lte-radio-bearer-tag.h>

Inheritance diagram for ns3::LteRadioBearerTag:

Collaboration diagram for ns3::LteRadioBearerTag:

Public Member Functions
	LteRadioBearerTag ()
	Create an empty LteRadioBearerTag. More...

	LteRadioBearerTag (uint16_t rnti, uint8_t lcId)
	Create a LteRadioBearerTag with the given RNTI and LC id. More...

	LteRadioBearerTag (uint16_t rnti, uint8_t lcId, uint8_t layer)
	Create a LteRadioBearerTag with the given RNTI, LC id and layer. More...

virtual void	Deserialize (TagBuffer i)

virtual TypeId	GetInstanceTypeId (void) const

uint8_t	GetLayer (void) const

uint8_t	GetLcid (void) const

uint16_t	GetRnti (void) const

virtual uint32_t	GetSerializedSize () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

void	SetLayer (uint8_t layer)
	Set the layer id to the given value. More...

void	SetLcid (uint8_t lcid)
	Set the LC id to the given value. More...

void	SetRnti (uint16_t rnti)
	Set the RNTI to the given value. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_layer

uint8_t	m_lcid

uint16_t	m_rnti

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Tag used to define the RNTI and LC id for each MAC packet trasmitted.

Doxygen introspection did not find any typical Config paths.

Attributes

rnti: The rnti that indicates the UE to which packet belongs
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read
lcid: The id whithin the UE identifying the logical channel to which the packet belongs
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources are defined for this type.

Definition at line 34 of file lte-radio-bearer-tag.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerTag::LteRadioBearerTag ( )

Create an empty LteRadioBearerTag.

Definition at line 55 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag	(	uint16_t	rnti,
		uint8_t	lcId
	)

Create a LteRadioBearerTag with the given RNTI and LC id.

Definition at line 61 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag	(	uint16_t	rnti,
		uint8_t	lcId,
		uint8_t	layer
	)

Create a LteRadioBearerTag with the given RNTI, LC id and layer.

Definition at line 67 of file lte-radio-bearer-tag.cc.

Member Function Documentation

void ns3::LteRadioBearerTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 107 of file lte-radio-bearer-tag.cc.

References m_layer, m_lcid, m_rnti, ns3::TagBuffer::ReadU16(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId ns3::LteRadioBearerTag::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 50 of file lte-radio-bearer-tag.cc.

References GetTypeId().

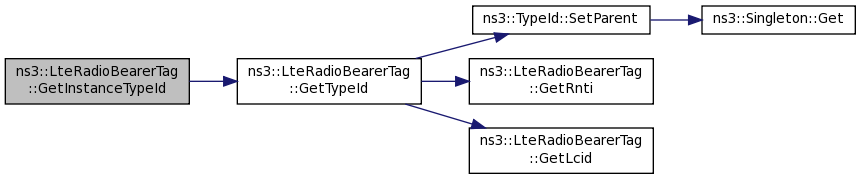

Here is the call graph for this function:
