Allocate random positions within a 3D box according to a set of three random variables. More...

#include <position-allocator.h>

Inheritance diagram for ns3::RandomBoxPositionAllocator:

Collaboration diagram for ns3::RandomBoxPositionAllocator:

Public Member Functions
	RandomBoxPositionAllocator ()

virtual	~RandomBoxPositionAllocator ()

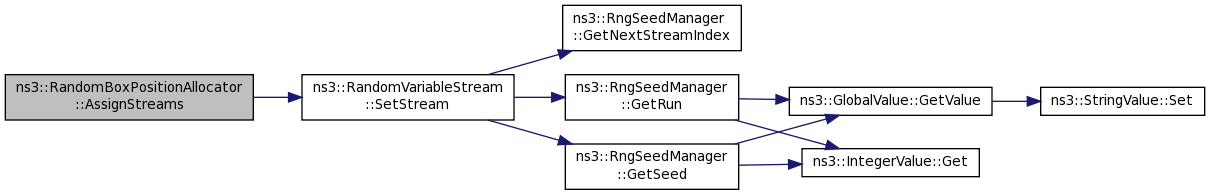

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual Vector	GetNext (void) const

void	SetX (Ptr< RandomVariableStream > x)

void	SetY (Ptr< RandomVariableStream > y)

void	SetZ (Ptr< RandomVariableStream > z)

Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()

virtual	~PositionAllocator ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< RandomVariableStream >	m_x

Ptr< RandomVariableStream >	m_y

Ptr< RandomVariableStream >	m_z

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Allocate random positions within a 3D box according to a set of three random variables.

Config Paths

ns3::RandomBoxPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator

Attributes

X: A random variable which represents the x coordinate of a position in a random box.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
Y: A random variable which represents the y coordinate of a position in a random box.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
Z: A random variable which represents the z coordinate of a position in a random box.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
