Header for the Transmission Control Protocol. More...

#include <tcp-header.h>

Inheritance diagram for ns3::TcpHeader:

Collaboration diagram for ns3::TcpHeader:

Public Types
enum	Flags_t { NONE = 0, FIN = 1, SYN = 2, RST = 4, PSH = 8, ACK = 16, URG = 32, ECE = 64, CWR = 128 }
	TCP flag field values. More...

Public Member Functions
	TcpHeader ()

virtual	~TcpHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

void	EnableChecksums (void)
	Enable checksum calculation for TCP. More...

SequenceNumber32	GetAckNumber () const

uint16_t	GetDestinationPort () const

uint8_t	GetFlags () const

virtual TypeId	GetInstanceTypeId (void) const

uint8_t	GetLength () const

SequenceNumber32	GetSequenceNumber () const

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetSourcePort () const

uint16_t	GetUrgentPointer () const

uint16_t	GetWindowSize () const

void	InitializeChecksum (Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	Initialize the TCP checksum. More...

void	InitializeChecksum (Ipv6Address source, Ipv6Address destination, uint8_t protocol)
	Initialize the TCP checksum. More...

void	InitializeChecksum (Address source, Address destination, uint8_t protocol)
	Initialize the TCP checksum. More...

bool	IsChecksumOk (void) const
	Is the TCP checksum correct ? More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetAckNumber (SequenceNumber32 ackNumber)

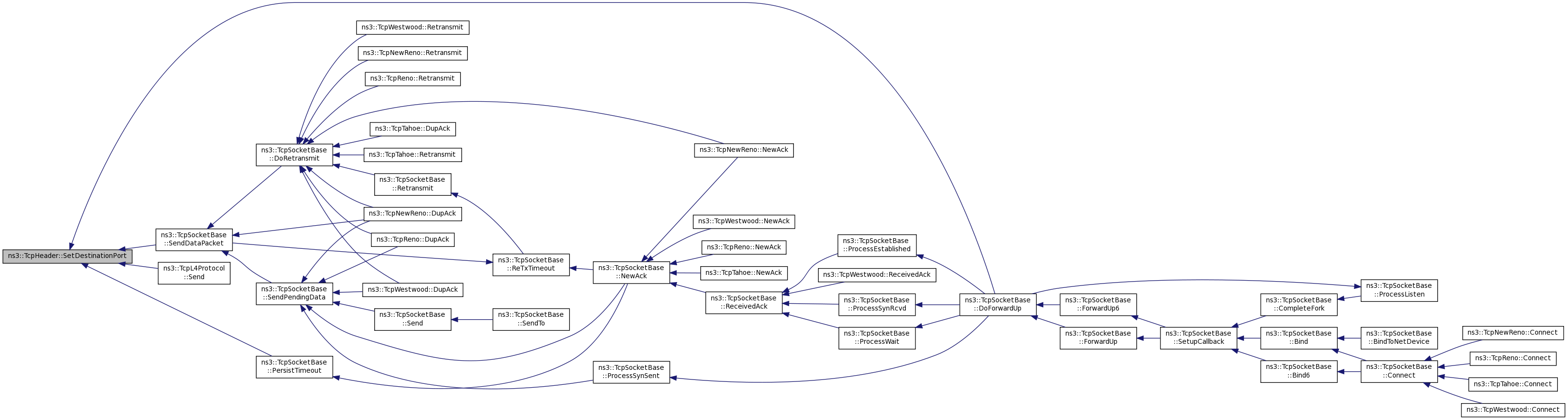

void	SetDestinationPort (uint16_t port)

void	SetFlags (uint8_t flags)

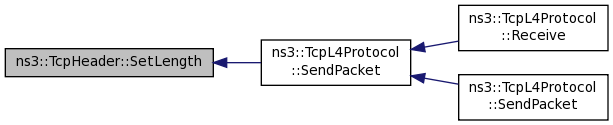

void	SetLength (uint8_t length)

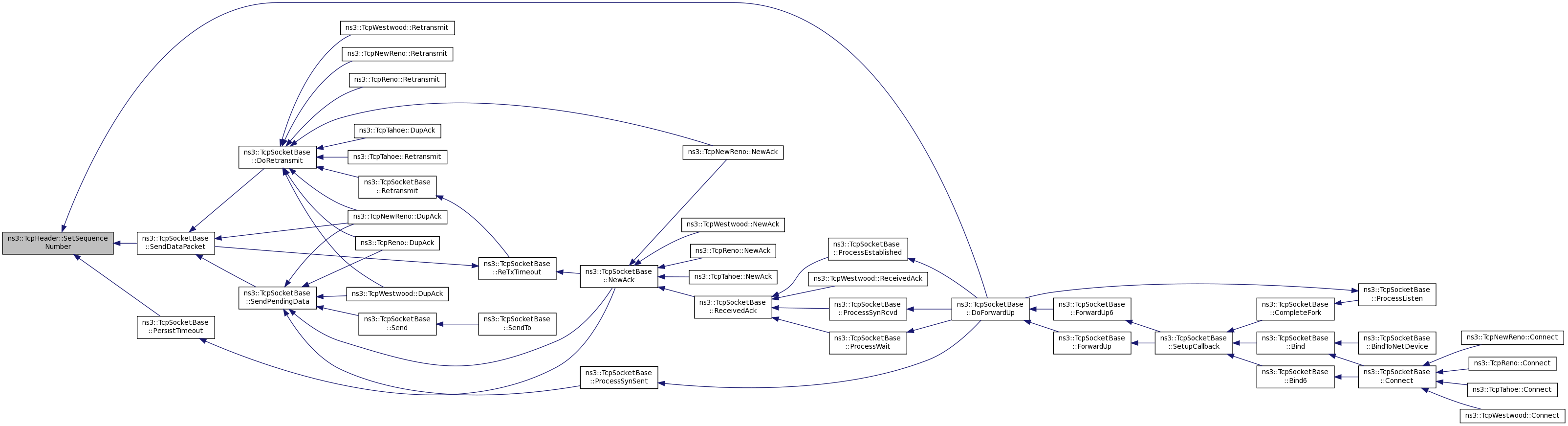

void	SetSequenceNumber (SequenceNumber32 sequenceNumber)

void	SetSourcePort (uint16_t port)

void	SetUrgentPointer (uint16_t urgentPointer)

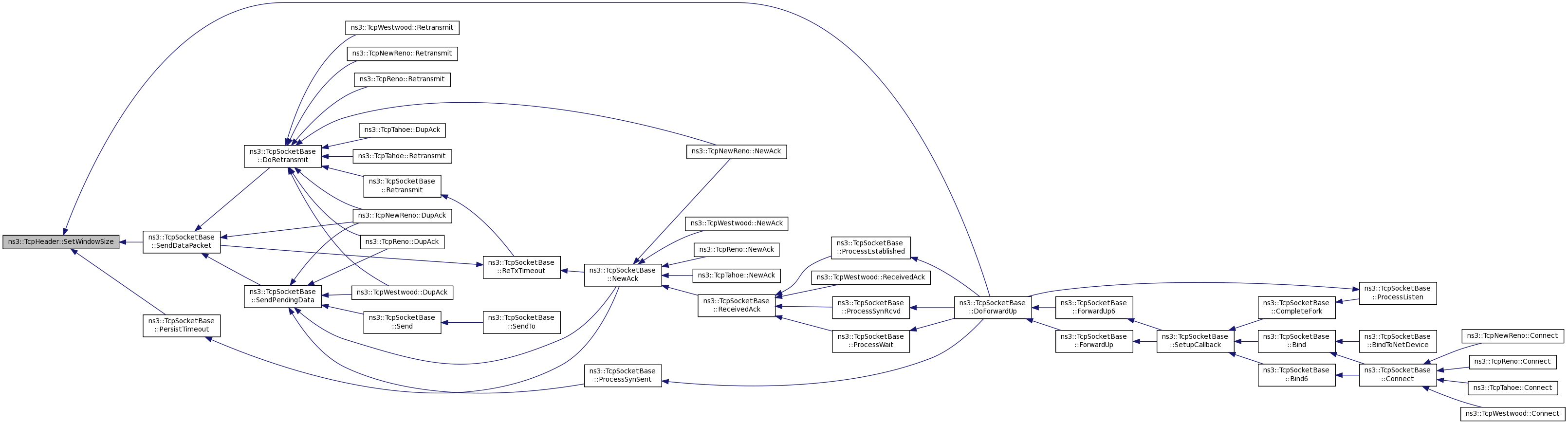

void	SetWindowSize (uint16_t windowSize)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint16_t	CalculateHeaderChecksum (uint16_t size) const
	Calculate the header checksum. More...

Private Attributes
SequenceNumber32	m_ackNumber
	ACK number. More...

bool	m_calcChecksum
	Flag to calculate checksum. More...

Address	m_destination
	Destination IP address. More...

uint16_t	m_destinationPort
	Destination port. More...

uint8_t	m_flags
	Flags (really a uint6_t) More...

bool	m_goodChecksum
	Flag to indicate that checksum is correct. More...

uint8_t	m_length
	Length (really a uint4_t) More...

uint8_t	m_protocol
	Protocol number. More...

SequenceNumber32	m_sequenceNumber
	Sequence number. More...

Address	m_source
	Source IP address. More...

uint16_t	m_sourcePort
	Source port. More...

uint16_t	m_urgentPointer
	Urgent pointer. More...

uint16_t	m_windowSize
	Window size. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Header for the Transmission Control Protocol.

Doxygen introspection did not find any typical Config paths.

This class has fields corresponding to those in a network TCP header (port numbers, sequence and acknowledgement numbers, flags, etc) as well as methods for serialization to and deserialization from a byte buffer.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file tcp-header.h.

Member Enumeration Documentation

enum ns3::TcpHeader::Flags_t

TCP flag field values.

Enumerator
NONE
FIN
SYN
RST
PSH
ACK
URG
ECE
CWR

Definition at line 181 of file tcp-header.h.

Constructor & Destructor Documentation

ns3::TcpHeader::TcpHeader ( )

Definition at line 32 of file tcp-header.cc.

ns3::TcpHeader::~TcpHeader ( )

virtual

Definition at line 46 of file tcp-header.cc.

Member Function Documentation

uint16_t ns3::TcpHeader::CalculateHeaderChecksum ( uint16_t size ) const

private

Calculate the header checksum.

Parameters

size	packet size

Returns: the checksum

Definition at line 153 of file tcp-header.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Ipv4Address::IsMatchingType(), m_destination, m_protocol, m_source, ns3::Address::MAX_SIZE, ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by Deserialize(), and Serialize().

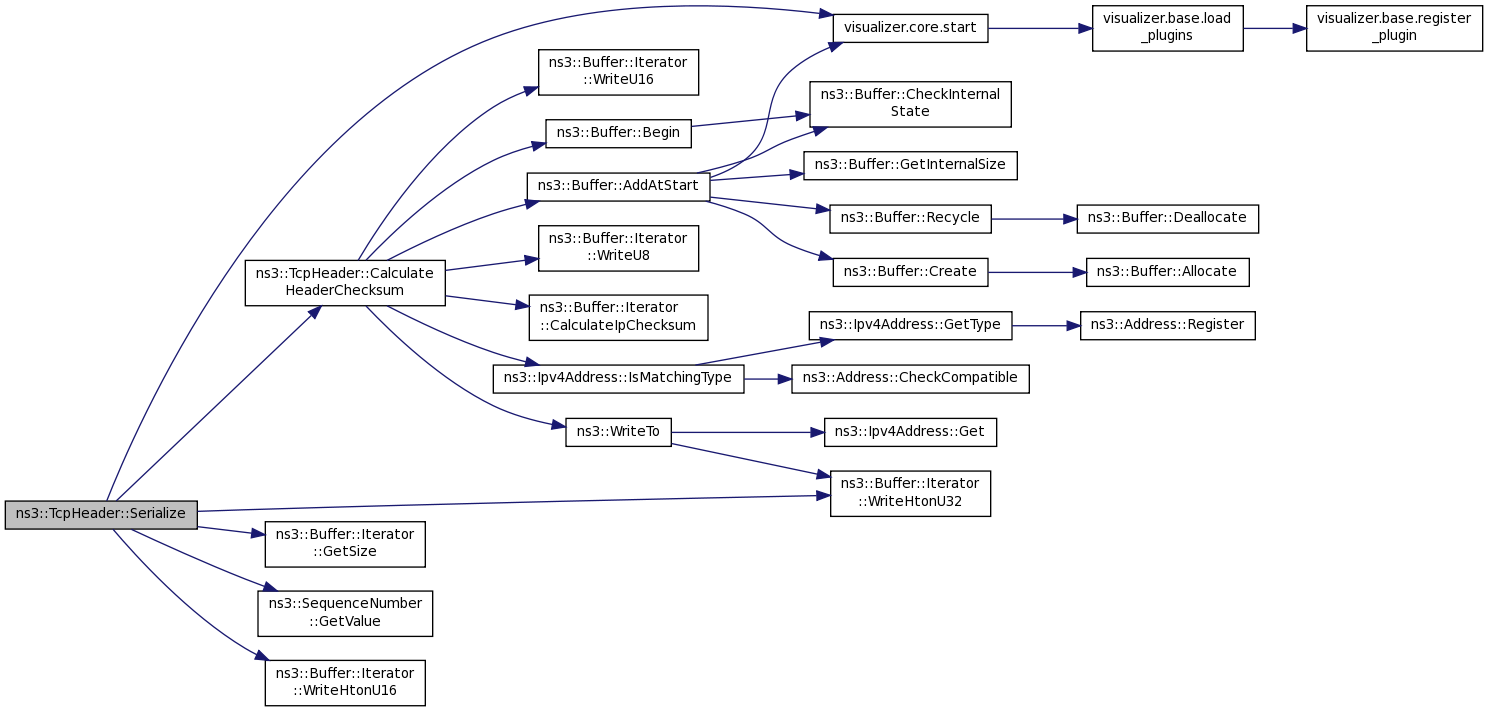

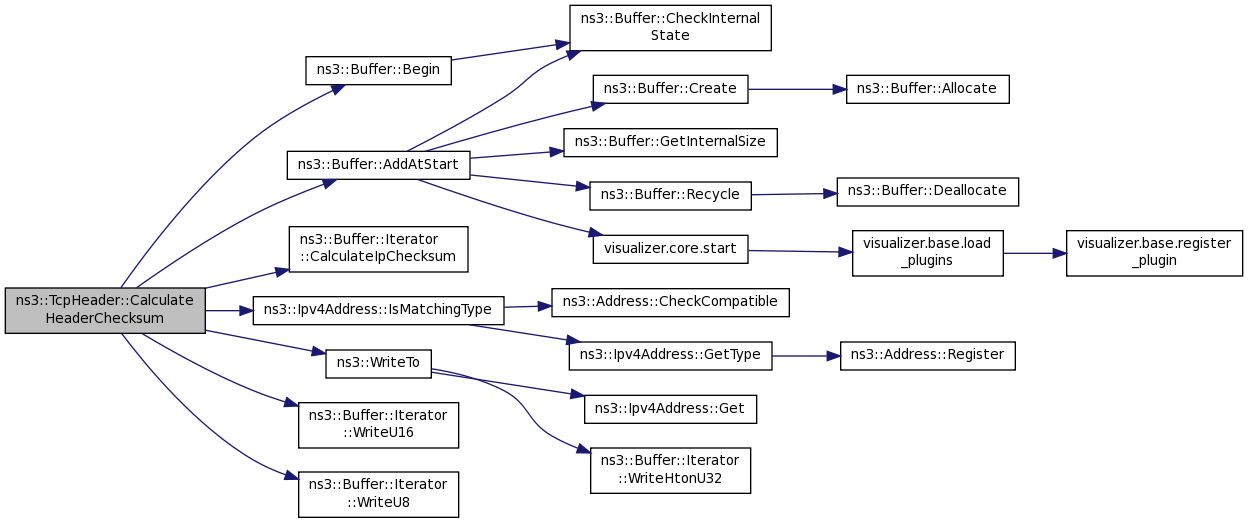

Here is the call graph for this function:

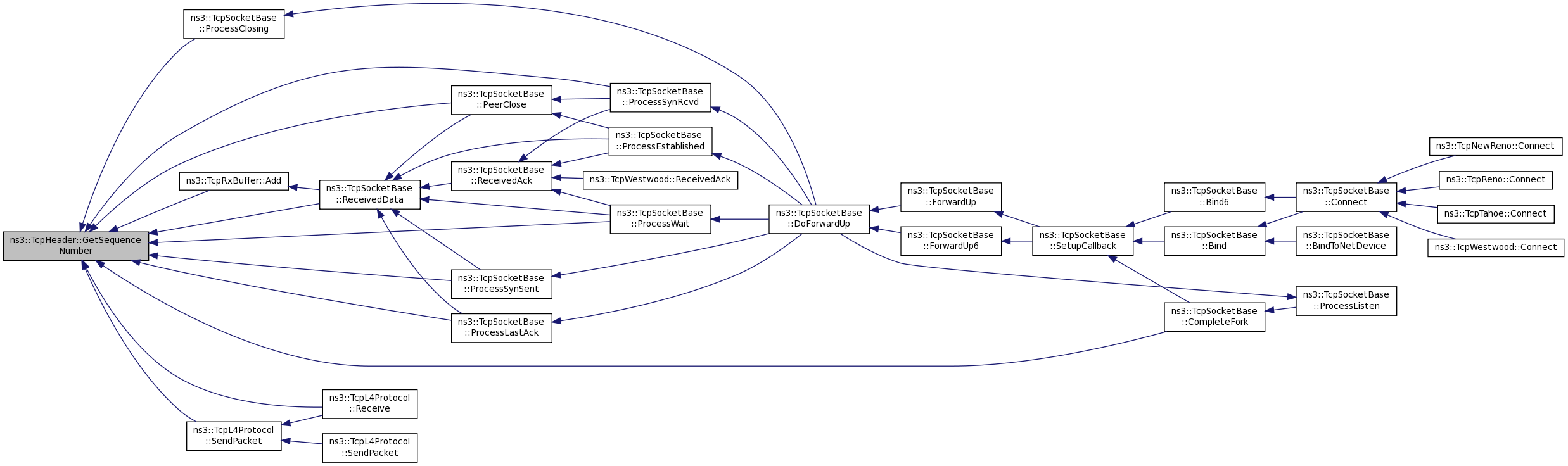

Here is the caller graph for this function:

uint32_t ns3::TcpHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 284 of file tcp-header.cc.

References CalculateHeaderChecksum(), GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), m_ackNumber, m_calcChecksum, m_destinationPort, m_flags, m_goodChecksum, m_length, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), and visualizer.core::start().

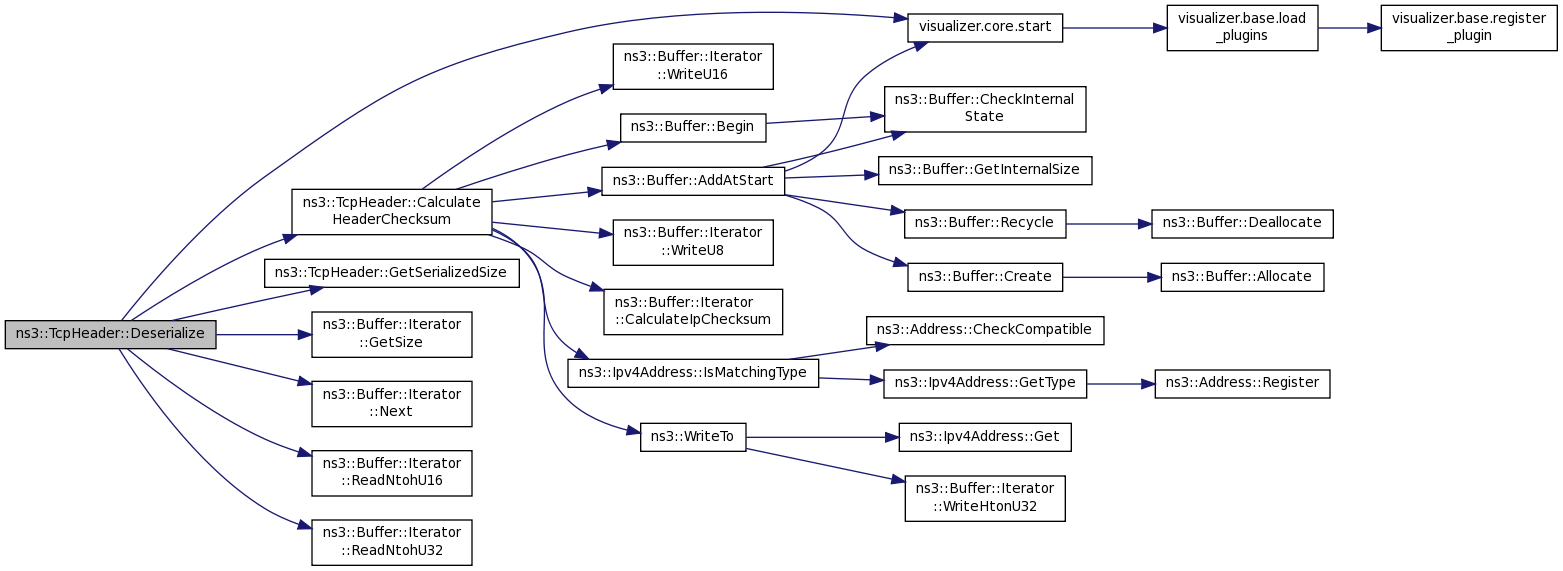

Here is the call graph for this function:

void ns3::TcpHeader::EnableChecksums ( void )

Enable checksum calculation for TCP.

Todo:: currently has no effect

Definition at line 51 of file tcp-header.cc.

References m_calcChecksum.

Referenced by ns3::TcpL4Protocol::Receive(), ns3::TcpL4Protocol::Send(), and ns3::TcpL4Protocol::SendPacket().

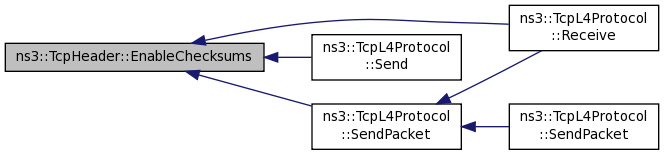

Here is the caller graph for this function:

SequenceNumber32 ns3::TcpHeader::GetAckNumber ( ) const

Returns: the ACK number for this TcpHeader

Definition at line 101 of file tcp-header.cc.

References m_ackNumber.

Referenced by ns3::TcpWestwood::CountAck(), ns3::TcpSocketBase::EstimateRtt(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::TcpSocketBase::ProcessSynSent(), ns3::TcpSocketBase::ProcessWait(), ns3::TcpL4Protocol::Receive(), ns3::TcpWestwood::ReceivedAck(), ns3::TcpSocketBase::ReceivedAck(), ns3::TcpSocketBase::ReceivedData(), and ns3::TcpL4Protocol::SendPacket().

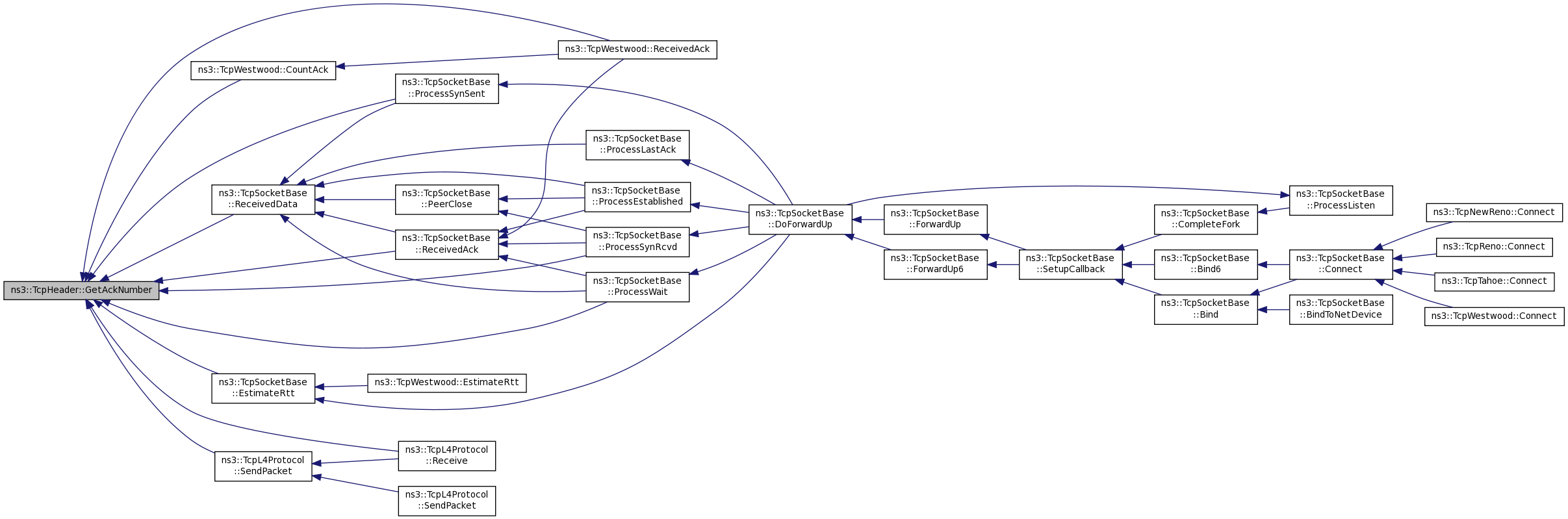

Here is the caller graph for this function:

uint16_t ns3::TcpHeader::GetDestinationPort ( ) const

Returns: the destination port for this TcpHeader

Definition at line 93 of file tcp-header.cc.

References m_destinationPort.

Referenced by ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), and ns3::TcpL4Protocol::Receive().

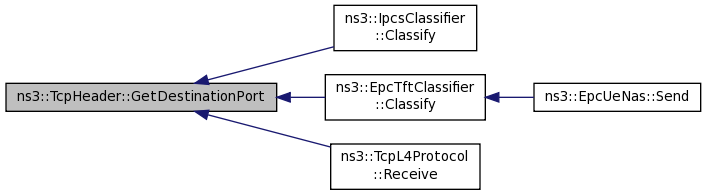

Here is the caller graph for this function:

uint8_t ns3::TcpHeader::GetFlags ( ) const

Returns: the flags for this TcpHeader

Definition at line 109 of file tcp-header.cc.

References m_flags.

Referenced by ns3::TcpSocketBase::ProcessClosing(), ns3::TcpSocketBase::ProcessEstablished(), ns3::TcpSocketBase::ProcessLastAck(), ns3::TcpSocketBase::ProcessListen(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::TcpSocketBase::ProcessSynSent(), ns3::TcpSocketBase::ProcessWait(), ns3::TcpL4Protocol::Receive(), ns3::TcpWestwood::ReceivedAck(), ns3::TcpSocketBase::ReceivedAck(), ns3::TcpSocketBase::ReceivedData(), and ns3::TcpL4Protocol::SendPacket().

Here is the caller graph for this function:

TypeId ns3::TcpHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 211 of file tcp-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::TcpHeader::GetLength ( ) const

Returns: the length of this TcpHeader

Definition at line 105 of file tcp-header.cc.

References m_length.

SequenceNumber32 ns3::TcpHeader::GetSequenceNumber ( void ) const

Returns: the sequence number for this TcpHeader

Definition at line 97 of file tcp-header.cc.

References m_sequenceNumber.

Referenced by ns3::TcpRxBuffer::Add(), ns3::TcpSocketBase::CompleteFork(), ns3::TcpSocketBase::PeerClose(), ns3::TcpSocketBase::ProcessClosing(), ns3::TcpSocketBase::ProcessLastAck(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::TcpSocketBase::ProcessSynSent(), ns3::TcpSocketBase::ProcessWait(), ns3::TcpL4Protocol::Receive(), ns3::TcpSocketBase::ReceivedData(), and ns3::TcpL4Protocol::SendPacket().

Here is the caller graph for this function:

uint32_t ns3::TcpHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 257 of file tcp-header.cc.

References m_length.

Referenced by Deserialize().

Here is the caller graph for this function:

uint16_t ns3::TcpHeader::GetSourcePort ( ) const

Returns: The source port for this TcpHeader

Definition at line 89 of file tcp-header.cc.

References m_sourcePort.

Referenced by ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), and ns3::TcpL4Protocol::Receive().

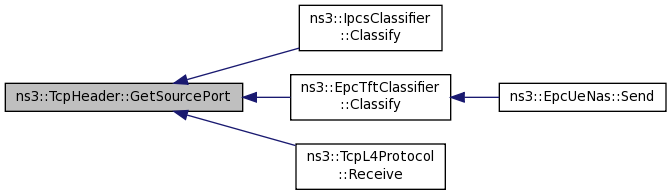

Here is the caller graph for this function:

TypeId ns3::TcpHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 202 of file tcp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::TcpHeader::GetUrgentPointer ( ) const

Returns: the urgent pointer for this TcpHeader

Definition at line 117 of file tcp-header.cc.

References m_urgentPointer.

uint16_t ns3::TcpHeader::GetWindowSize ( ) const

Returns: the window size for this TcpHeader

Definition at line 113 of file tcp-header.cc.

References m_windowSize.

void ns3::TcpHeader::InitializeChecksum	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

Initialize the TCP checksum.

If you want to use tcp checksums, you should call this method prior to adding the header to a packet.

Parameters

source	the IP source to use in the underlying IP packet.
destination	the IP destination to use in the underlying IP packet.
protocol	the protocol number to use in the underlying IP packet.

Definition at line 123 of file tcp-header.cc.

References m_destination, m_protocol, and m_source.

Referenced by ns3::TcpL4Protocol::Receive(), ns3::TcpL4Protocol::Send(), and ns3::TcpL4Protocol::SendPacket().

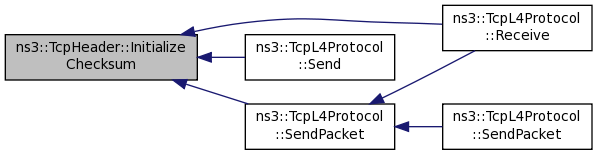

Here is the caller graph for this function:

void ns3::TcpHeader::InitializeChecksum	(	Ipv6Address	source,
		Ipv6Address	destination,
		uint8_t	protocol
	)

Initialize the TCP checksum.

If you want to use tcp checksums, you should call this method prior to adding the header to a packet.

Parameters

source	the IP source to use in the underlying IP packet.
destination	the IP destination to use in the underlying IP packet.
protocol	the protocol number to use in the underlying IP packet.

Definition at line 133 of file tcp-header.cc.

References m_destination, m_protocol, and m_source.

void ns3::TcpHeader::InitializeChecksum	(	Address	source,
		Address	destination,
		uint8_t	protocol
	)

Initialize the TCP checksum.

If you want to use tcp checksums, you should call this method prior to adding the header to a packet.

Parameters

source	the IP source to use in the underlying IP packet.
destination	the IP destination to use in the underlying IP packet.
protocol	the protocol number to use in the underlying IP packet.

Definition at line 143 of file tcp-header.cc.

References m_destination, m_protocol, and m_source.

bool ns3::TcpHeader::IsChecksumOk ( void ) const

Is the TCP checksum correct ?

Returns: true if the checksum is correct, false otherwise.

Definition at line 196 of file tcp-header.cc.

References m_goodChecksum.

Referenced by ns3::TcpL4Protocol::Receive().

Here is the caller graph for this function:

void ns3::TcpHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 215 of file tcp-header.cc.

References ACK, CWR, ECE, FIN, m_ackNumber, m_destinationPort, m_flags, m_sequenceNumber, m_sourcePort, m_windowSize, PSH, RST, SYN, and URG.

void ns3::TcpHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 261 of file tcp-header.cc.

References CalculateHeaderChecksum(), ns3::Buffer::Iterator::GetSize(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), m_ackNumber, m_calcChecksum, m_destinationPort, m_flags, m_length, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteHtonU32().
