Allocate the positions uniformely (with constant density) randomly within a disc. More...

#include <position-allocator.h>

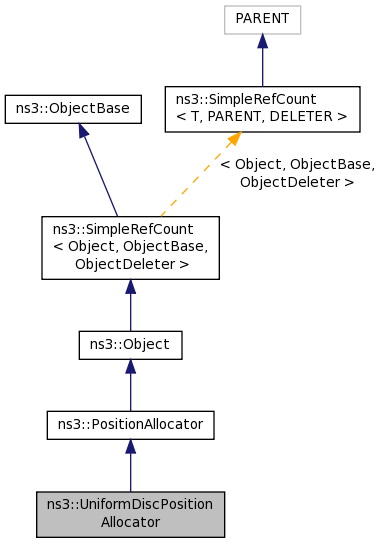

Inheritance diagram for ns3::UniformDiscPositionAllocator:

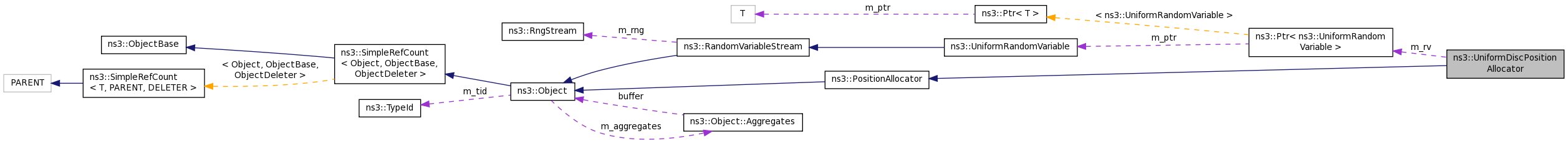

Collaboration diagram for ns3::UniformDiscPositionAllocator:

Public Member Functions
	UniformDiscPositionAllocator ()

virtual	~UniformDiscPositionAllocator ()

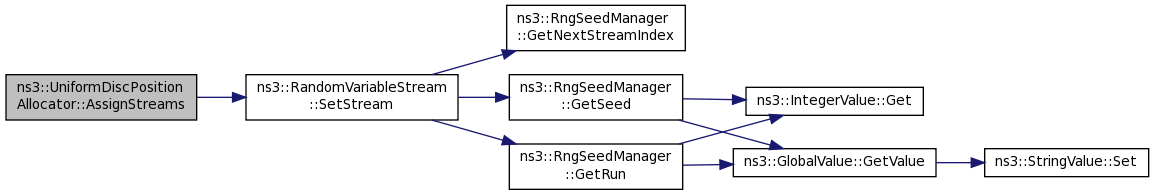

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

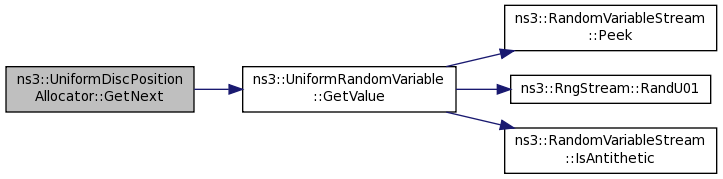

virtual Vector	GetNext (void) const

void	SetRho (double rho)

void	SetX (double x)

void	SetY (double y)

Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()

virtual	~PositionAllocator ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_rho

Ptr< UniformRandomVariable >	m_rv

double	m_x

double	m_y

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Allocate the positions uniformely (with constant density) randomly within a disc.

UniformDiscPositionAllocator allocates the positions randomly within a disc $ D $ lying on the plane $ z=0 $ and having center at coordinates $ (x,y,0) $ and radius $\rho$ . The random positions are chosen such that, for any subset $S \subset D$ , the expected value of the fraction of points which fall into $S \subset D$ corresponds to $\frac{|S|}{|D|}$ , i.e., to the ratio of the area of the subset to the area of the whole disc.

Note: using UniformDiscPositionAllocator is not equivalent to using a RandomDiscPositionAllocator with a uniformly-distributed radius, since doing that would results in a point distribution which is more dense towards the center of the disc.

Config Paths

ns3::UniformDiscPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::UniformDiscPositionAllocator

Attributes

rho: The radius of the disc
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
X: The x coordinate of the center of the disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Y: The y coordinate of the center of the disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
