ns3::WeibullRandomVariable Class Reference

The Weibull distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...

#include <random-variable-stream.h>

+ Inheritance diagram for ns3::WeibullRandomVariable:
+ Collaboration diagram for ns3::WeibullRandomVariable:

Public Member Functions

 WeibullRandomVariable ()
 Creates a Weibull distribution RNG with the default values for the scale, shape, and upper bound. More...

double GetBound (void) const
 Returns the upper bound on values that can be returned by this RNG stream. More...

uint32_t GetInteger (uint32_t scale, uint32_t shape, uint32_t bound)
 Returns a random unsigned integer from a Weibull distribution with the specified scale, shape, and upper bound. More...

virtual uint32_t GetInteger (void)
 Returns a random unsigned integer from a Weibull distribution with the current scale, shape, and upper bound. More...

double GetScale (void) const
 Returns the scale parameter for the Weibull distribution returned by this RNG stream. More...

double GetShape (void) const
 Returns the shape parameter for the Weibull distribution returned by this RNG stream. More...

double GetValue (double scale, double shape, double bound)
 Returns a random double from a Weibull distribution with the specified scale, shape, and upper bound. More...

virtual double GetValue (void)
 Returns a random double from a Weibull distribution with the current scale, shape, and upper bound. More...

- Public Member Functions inherited from ns3::RandomVariableStream
 RandomVariableStream ()

virtual ~RandomVariableStream ()

int64_t GetStream (void) const
 Returns the stream number for this RNG stream. More...

bool IsAntithetic (void) const
 Returns true if antithetic values should be generated. More...

void SetAntithetic (bool isAntithetic)
 Specifies whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for this RNG stream. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

double m_bound
 The upper bound on values that can be returned by this RNG stream. More...

double m_scale
 The scale parameter for the Weibull distribution returned by this RNG stream. More...

double m_shape
 The shape parameter for the Weibull distribution returned by this RNG stream. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::RandomVariableStream
RngStreamPeek (void) const
 Returns a pointer to the underlying RNG stream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

The Weibull distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically.

This class supports the creation of objects that return random numbers from a fixed Weibull distribution. It also supports the generation of single random numbers from various Weibull distributions.

The probability density function is defined over the interval [0, $+\infty$] as: $ \frac{k}{\lambda}\left(\frac{x}{\lambda}\right)^{k-1}e^{-\left(\frac{x}{\lambda}\right)^k} $ where $ k > 0$ is the shape parameter and $ \lambda > 0$ is the scale parameter. The specified mean is related to the scale and shape parameters by the following relation: $ mean = \lambda\Gamma\left(1+\frac{1}{k}\right) $ where $ \Gamma $ is the Gamma function.

Since Weibull distributions can theoretically return unbounded values, it is sometimes useful to specify a fixed upper limit. Note however when the upper limit is specified, the true mean of the distribution is slightly smaller than the mean value specified.

Here is an example of how to use this class:

double scale = 5.0;
double shape = 1.0;
Ptr<WeibullRandomVariable> x = CreateObject<WeibullRandomVariable> ();
x->SetAttribute ("Scale", DoubleValue (scale));
x->SetAttribute ("Shape", DoubleValue (shape));
// The expected value for the mean of the values returned by a
// Weibull distributed random variable is
//
// E[value] = scale * Gamma(1 + 1 / shape) ,
//
// where Gamma() is the Gamma function. Note that
//
// Gamma(n) = (n - 1)!
//
// if n is a positive integer.
//
// For this example,
//
// Gamma(1 + 1 / shape) = Gamma(1 + 1 / 1)
// = Gamma(2)
// = (2 - 1)!
// = 1
//
// which means
//
// E[value] = scale .
//
double value = x->GetValue ();

Config Paths

ns3::WeibullRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::WeibullRandomVariable
  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::WeibullRandomVariable
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::WeibullRandomVariable
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::WeibullRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::WeibullRandomVariable
  • /NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::WeibullRandomVariable
  • /NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::WeibullRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::WeibullRandomVariable

Attributes

  • Scale: The scale parameter for the Weibull distribution returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • Shape: The shape parameter for the Weibull distribution returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • Bound: The upper bound on the values returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: construct write read

Attributes defined in parent class ns3::RandomVariableStream

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 874 of file random-variable-stream.h.

Constructor & Destructor Documentation

ns3::WeibullRandomVariable::WeibullRandomVariable ( )

Creates a Weibull distribution RNG with the default values for the scale, shape, and upper bound.

Definition at line 562 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

double ns3::WeibullRandomVariable::GetBound ( void  ) const

Returns the upper bound on values that can be returned by this RNG stream.

Returns
The upper bound on values that can be returned by this RNG stream.

Definition at line 582 of file random-variable-stream.cc.

References m_bound, and NS_LOG_FUNCTION.

uint32_t ns3::WeibullRandomVariable::GetInteger ( uint32_t  scale,
uint32_t  shape,
uint32_t  bound
)

Returns a random unsigned integer from a Weibull distribution with the specified scale, shape, and upper bound.

Parameters
scaleScale parameter for the Weibull distribution.
shapeShape parameter for the Weibull distribution.
boundUpper bound on values returned.
Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = scale * {(-\log(u))}^{\frac{1}{shape}} \]

is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = scale * {(-\log(1 - u))}^{\frac{1}{shape}} , \]

which now involves the log of the distance $u$ is from 1.

Definition at line 613 of file random-variable-stream.cc.

References GetValue(), and NS_LOG_FUNCTION.

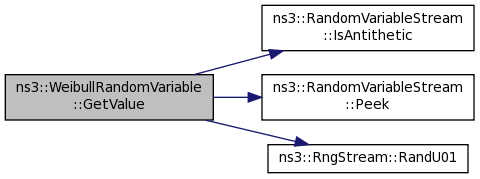

+ Here is the call graph for this function:

uint32_t ns3::WeibullRandomVariable::GetInteger ( void  )
virtual

Returns a random unsigned integer from a Weibull distribution with the current scale, shape, and upper bound.

Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = scale * {(-\log(u))}^{\frac{1}{shape}} \]

is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = scale * {(-\log(1 - u))}^{\frac{1}{shape}} , \]

which now involves the log of the distance $u$ is from 1.

Implements ns3::RandomVariableStream.

Definition at line 626 of file random-variable-stream.cc.

References GetValue(), m_bound, m_scale, m_shape, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

double ns3::WeibullRandomVariable::GetScale ( void  ) const

Returns the scale parameter for the Weibull distribution returned by this RNG stream.

Returns
The scale parameter for the Weibull distribution returned by this RNG stream.

Definition at line 570 of file random-variable-stream.cc.

References m_scale, and NS_LOG_FUNCTION.

double ns3::WeibullRandomVariable::GetShape ( void  ) const

Returns the shape parameter for the Weibull distribution returned by this RNG stream.

Returns
The shape parameter for the Weibull distribution returned by this RNG stream.

Definition at line 576 of file random-variable-stream.cc.

References m_shape, and NS_LOG_FUNCTION.

TypeId ns3::WeibullRandomVariable::GetTypeId ( void  )
static

Definition at line 542 of file random-variable-stream.cc.

References m_bound, m_scale, m_shape, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

double ns3::WeibullRandomVariable::GetValue ( double  scale,
double  shape,
double  bound
)

Returns a random double from a Weibull distribution with the specified scale, shape, and upper bound.

Parameters
scaleScale parameter for the Weibull distribution.
shapeShape parameter for the Weibull distribution.
boundUpper bound on values returned.
Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = scale * {(-\log(u))}^{\frac{1}{shape}} \]

is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = scale * {(-\log(1 - u))}^{\frac{1}{shape}} , \]

which now involves the log of the distance $u$ is from 1.

Definition at line 589 of file random-variable-stream.cc.

References ns3::RandomVariableStream::IsAntithetic(), NS_LOG_FUNCTION, ns3::RandomVariableStream::Peek(), and ns3::RngStream::RandU01().

Referenced by RandomVariableStreamWeibullTestCase::ChiSquaredTest(), RandomVariableStreamWeibullAntitheticTestCase::ChiSquaredTest(), RandomVariableStreamWeibullTestCase::DoRun(), and RandomVariableStreamWeibullAntitheticTestCase::DoRun().

+ Here is the call graph for this function:

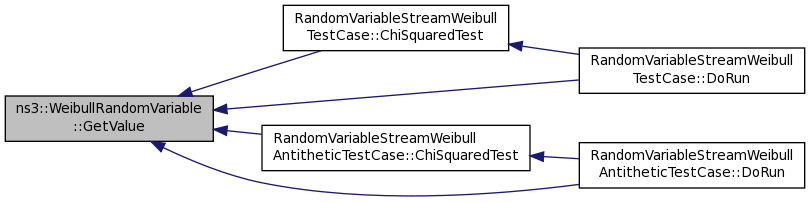

+ Here is the caller graph for this function:

double ns3::WeibullRandomVariable::GetValue ( void  )
virtual

Returns a random double from a Weibull distribution with the current scale, shape, and upper bound.

Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = scale * {(-\log(u))}^{\frac{1}{shape}} \]

is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = scale * {(-\log(1 - u))}^{\frac{1}{shape}} , \]

which now involves the log of the distance $u$ is from 1.

Note that we have to re-implement this method here because the method is overloaded above for the three-argument variant and the c++ name resolution rules don't work well with overloads split between parent and child classes.

Implements ns3::RandomVariableStream.

Definition at line 620 of file random-variable-stream.cc.

References m_bound, m_scale, m_shape, and NS_LOG_FUNCTION.

Referenced by GetInteger().

+ Here is the caller graph for this function:

Member Data Documentation

double ns3::WeibullRandomVariable::m_bound
private

The upper bound on values that can be returned by this RNG stream.

Definition at line 1018 of file random-variable-stream.h.

Referenced by GetBound(), GetInteger(), GetTypeId(), and GetValue().

double ns3::WeibullRandomVariable::m_scale
private

The scale parameter for the Weibull distribution returned by this RNG stream.

Definition at line 1012 of file random-variable-stream.h.

Referenced by GetInteger(), GetScale(), GetTypeId(), and GetValue().

double ns3::WeibullRandomVariable::m_shape
private

The shape parameter for the Weibull distribution returned by this RNG stream.

Definition at line 1015 of file random-variable-stream.h.

Referenced by GetInteger(), GetShape(), GetTypeId(), and GetValue().


The documentation for this class was generated from the following files:
