Information element vectorImplements a vector of WifiInformationElements. More...

#include <wifi-information-element-vector.h>

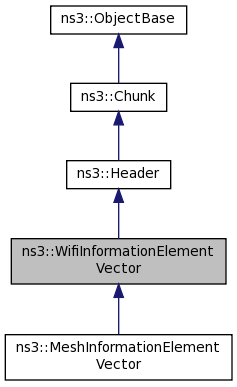

Inheritance diagram for ns3::WifiInformationElementVector:

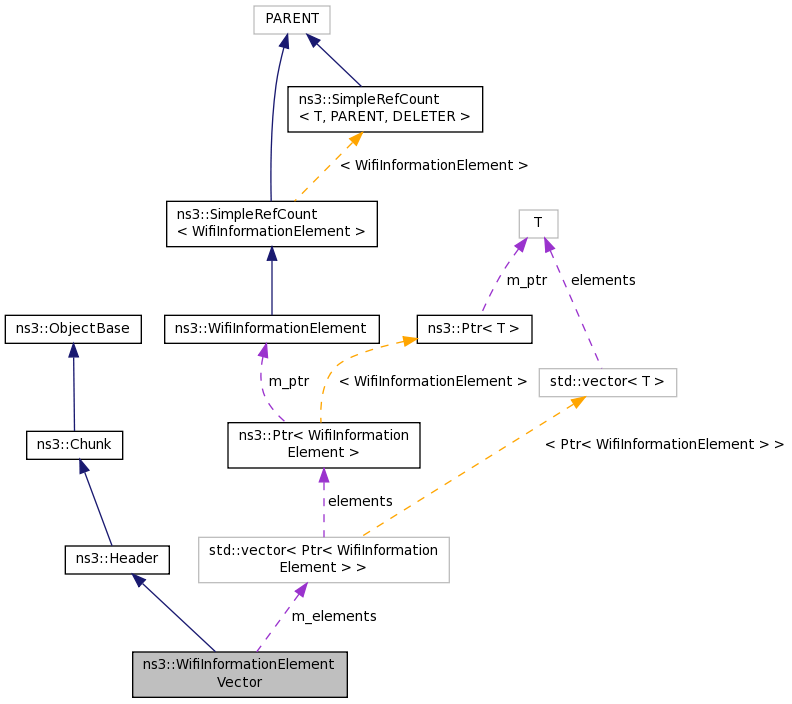

Collaboration diagram for ns3::WifiInformationElementVector:

Public Types
typedef std::vector< Ptr < WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator. More...

Public Member Functions
	WifiInformationElementVector ()

	~WifiInformationElementVector ()

bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false More...

Iterator	Begin ()
	Returns Begin of the vector. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header. More...

Iterator	End ()
	Returns End of the vector. More...

Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector More...

TypeId	GetInstanceTypeId () const

virtual uint32_t	GetSerializedSize () const

virtual bool	operator== (const WifiInformationElementVector &a) const
	Check if the given WifiInformationElementVectors are equivalent. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::vector< Ptr < WifiInformationElement > >	IE_VECTOR
	typedef for a vector of WifiInformationElements. More...

Protected Member Functions
uint32_t	GetSize () const
	Current number of bytes. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes
IE_VECTOR	m_elements
	Information element vector. More...

uint16_t	m_maxSize
	Size in bytes (actually, max packet length) More...

Detailed Description

Information element vector

Implements a vector of WifiInformationElements.

Doxygen introspection did not find any typical Config paths.

Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file wifi-information-element-vector.h.

Member Typedef Documentation

typedef std::vector<Ptr<WifiInformationElement> > ns3::WifiInformationElementVector::IE_VECTOR

protected

typedef for a vector of WifiInformationElements.

Definition at line 93 of file wifi-information-element-vector.h.

typedef std::vector<Ptr<WifiInformationElement> >::iterator ns3::WifiInformationElementVector::Iterator

As soon as this is a vector, we define an Iterator.

Definition at line 71 of file wifi-information-element-vector.h.

Constructor & Destructor Documentation

ns3::WifiInformationElementVector::WifiInformationElementVector ( )

Definition at line 30 of file wifi-information-element-vector.cc.

ns3::WifiInformationElementVector::~WifiInformationElementVector ( )

Definition at line 34 of file wifi-information-element-vector.cc.

References m_elements.

Member Function Documentation

bool ns3::WifiInformationElementVector::AddInformationElement ( Ptr< WifiInformationElement > element )

add an IE, if maxSize has exceeded, returns false

Definition at line 128 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::GetInformationFieldSize(), GetSize(), m_elements, and m_maxSize.

Referenced by ns3::MeshWifiBeacon::AddInformationElement(), ns3::MeshInformationElementVectorBist::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

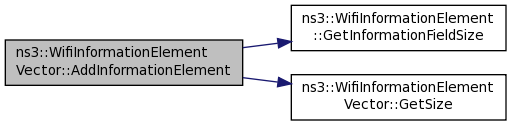

Here is the call graph for this function:

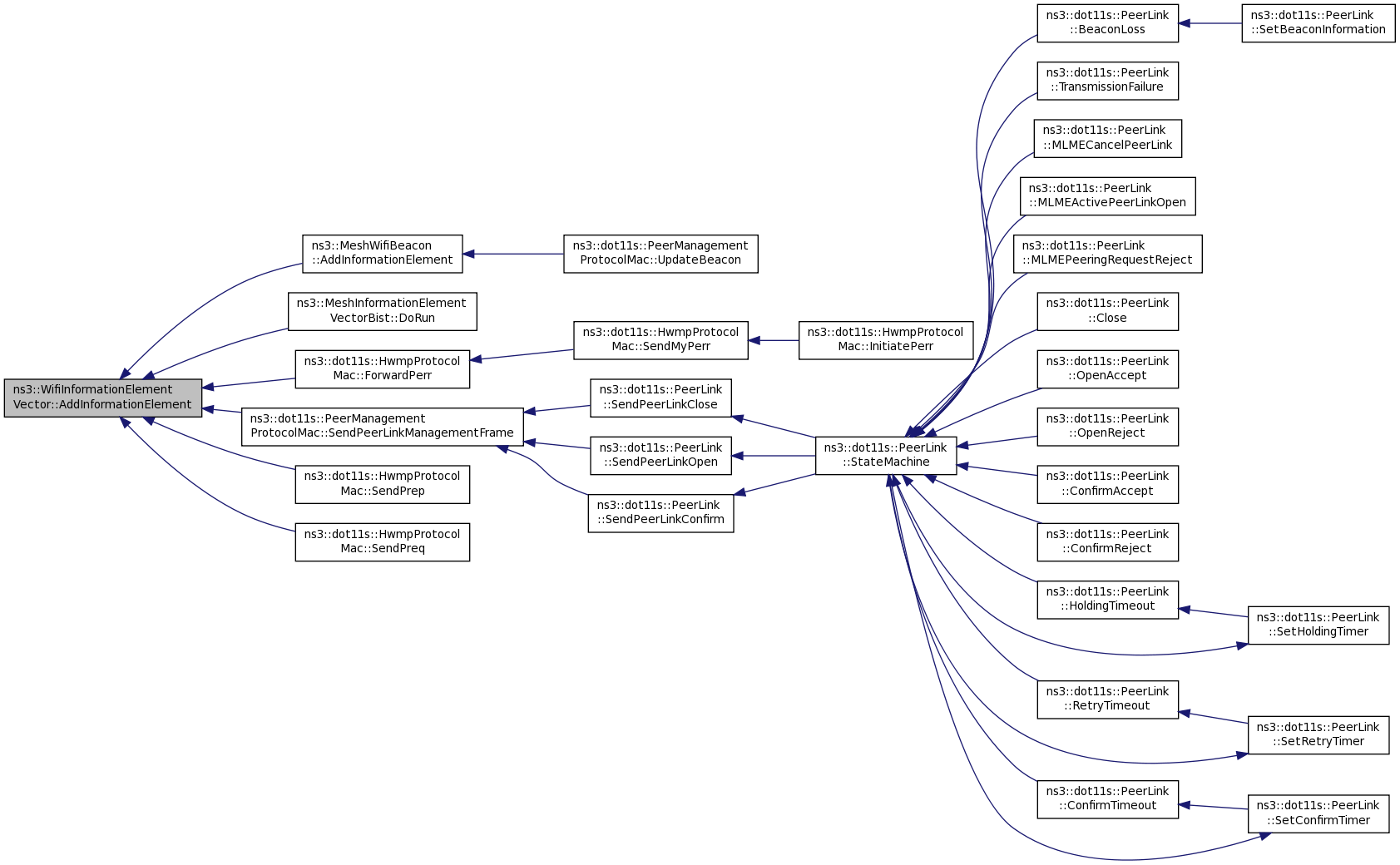

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::Begin ( void )

Returns Begin of the vector.

Definition at line 118 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

uint32_t ns3::WifiInformationElementVector::Deserialize ( Buffer::Iterator start )

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::Header.

Definition at line 69 of file wifi-information-element-vector.cc.

References DeserializeSingleIe(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::GetSize(), ns3::Buffer::Iterator::Next(), and visualizer.core::start().

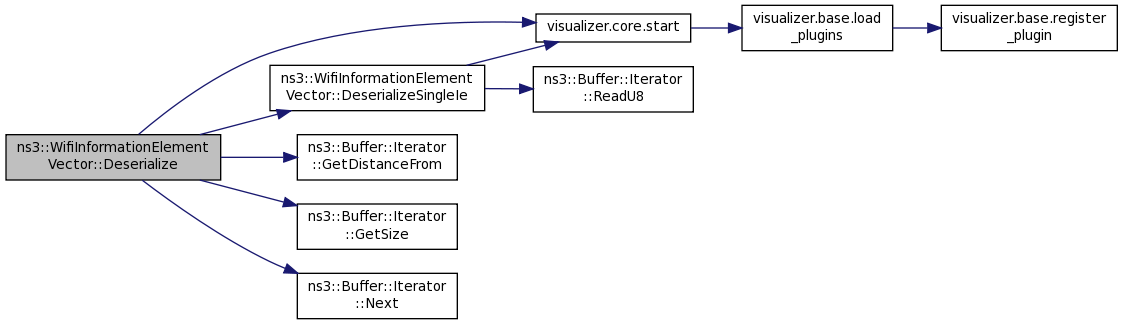

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented in ns3::MeshInformationElementVector.

Definition at line 82 of file wifi-information-element-vector.cc.

References NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by Deserialize(), and ns3::MeshInformationElementVector::DeserializeSingleIe().

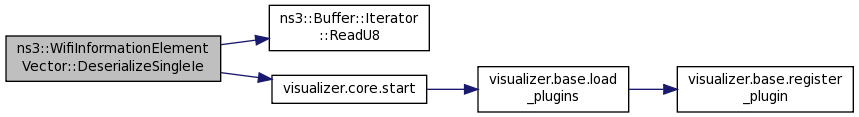

Here is the call graph for this function:

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::End ( void )

Returns End of the vector.

Definition at line 123 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

Ptr< WifiInformationElement > ns3::WifiInformationElementVector::FindFirst ( WifiInformationElementId id ) const

vector of pointers to information elements is the body of IeVector

Definition at line 138 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 51 of file wifi-information-element-vector.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 56 of file wifi-information-element-vector.cc.

References GetSize().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSize ( void ) const

protected

Current number of bytes.

Definition at line 160 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by AddInformationElement(), ns3::MeshInformationElementVector::DeserializeSingleIe(), and GetSerializedSize().

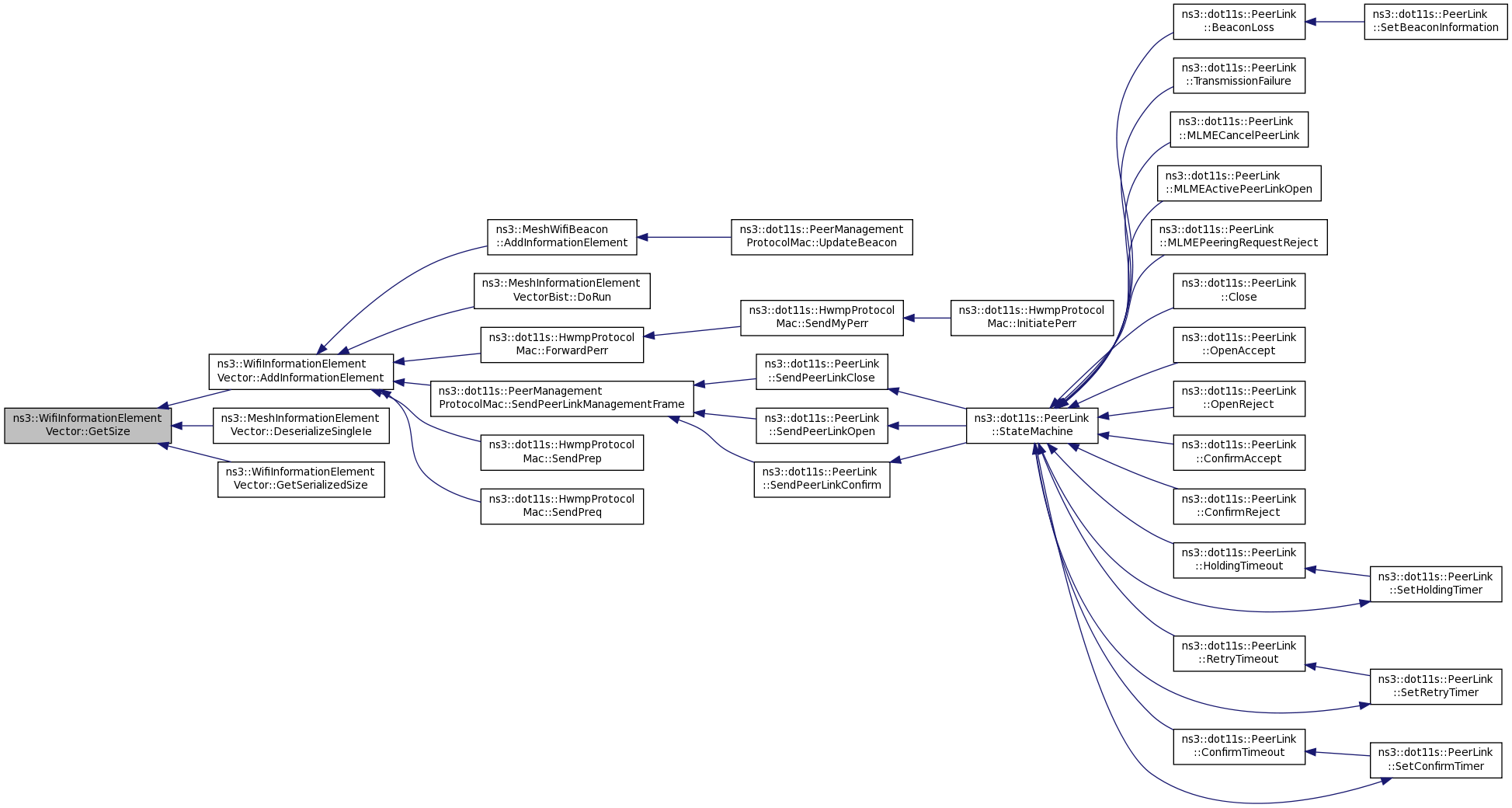

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetTypeId ( void )

static

Definition at line 43 of file wifi-information-element-vector.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiInformationElementVector::operator== ( const WifiInformationElementVector & a ) const

virtual

Check if the given WifiInformationElementVectors are equivalent.

Parameters

a	another WifiInformationElementVector

Returns: true if the given WifiInformationElementVectors are equivalent, false otherwise

Definition at line 171 of file wifi-information-element-vector.cc.

References m_elements, and NS_ASSERT.

void ns3::WifiInformationElementVector::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Todo:

Implements ns3::Header.

Definition at line 108 of file wifi-information-element-vector.cc.

void ns3::WifiInformationElementVector::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 61 of file wifi-information-element-vector.cc.

References m_elements.

void ns3::WifiInformationElementVector::SetMaxSize ( uint16_t size )

Set maximum size to control overflow of the max packet length.

Definition at line 113 of file wifi-information-element-vector.cc.

References m_maxSize.
