ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters Struct Reference

Parameters of the SCHED_UL_CQI_INFO_REQ primitive. More...

#include <ff-mac-sched-sap.h>

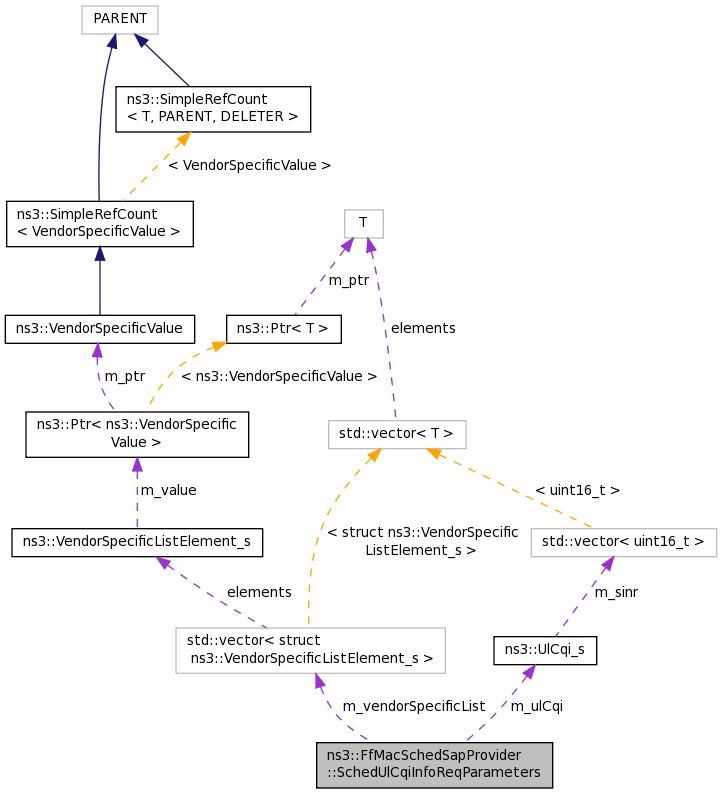

Collaboration diagram for ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters:

Public Attributes
uint16_t	m_sfnSf
struct UlCqi_s	m_ulCqi
std::vector< struct VendorSpecificListElement_s >	m_vendorSpecificList

Detailed Description

Parameters of the SCHED_UL_CQI_INFO_REQ primitive.

See section 4.2.12 for a detailed description of the parameters.

Definition at line 185 of file ff-mac-sched-sap.h.

Member Data Documentation

uint16_t ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf

Definition at line 187 of file ff-mac-sched-sap.h.

Referenced by ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PfFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), and ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq().

struct UlCqi_s ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi

Definition at line 188 of file ff-mac-sched-sap.h.

Referenced by ns3::LteEnbPhy::CreatePuschCqiReport(), ns3::LteEnbPhy::CreateSrsCqiReport(), ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PfFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq(), and ns3::LteEnbMac::DoUlCqiReport().

std::vector<struct VendorSpecificListElement_s> ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList

Definition at line 190 of file ff-mac-sched-sap.h.

Referenced by ns3::LteEnbPhy::CreateSrsCqiReport(), ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PfFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), and ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq().

---

The documentation for this struct was generated from the following file:

• src/lte/model/ff-mac-sched-sap.h
