ns3::AnimationInterface Class Reference

Interface to network animator. More...

#include <animation-interface.h>

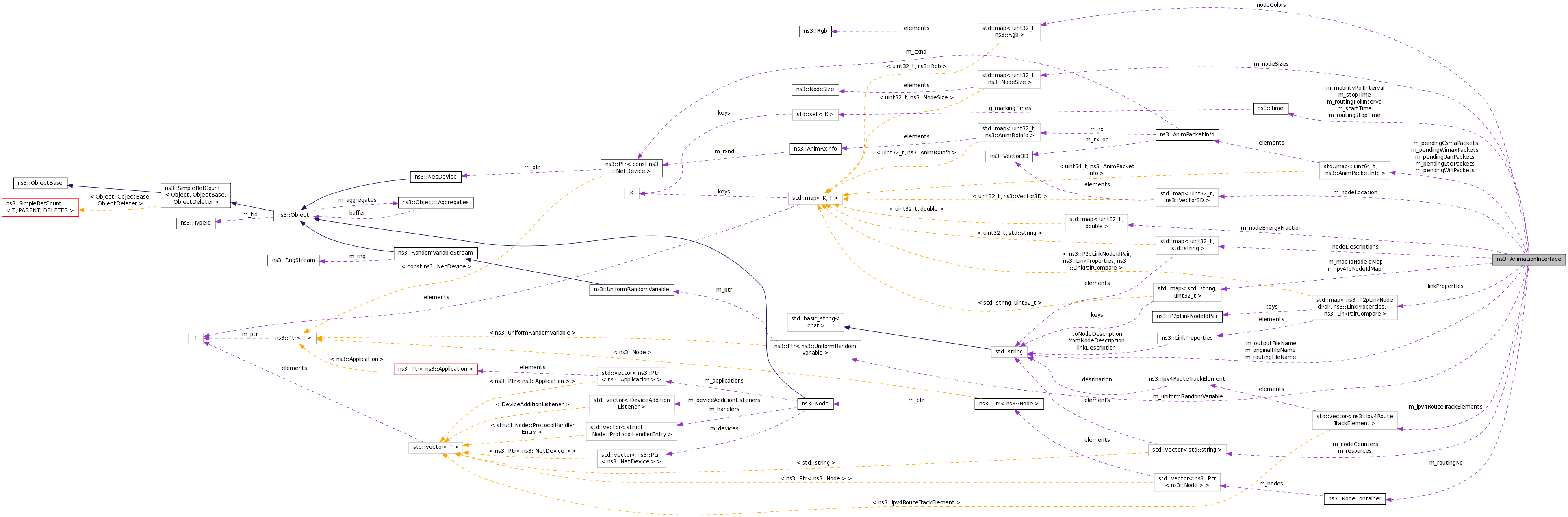

+ Collaboration diagram for ns3::AnimationInterface:

Public Types

typedef void(* AnimWriteCallback )(const char *str)
 typedef for WriteCallBack used for listening to AnimationInterface write messages More...

enum  CounterType { UINT32_COUNTER, DOUBLE_COUNTER }
 Counter Types. More...


Public Member Functions

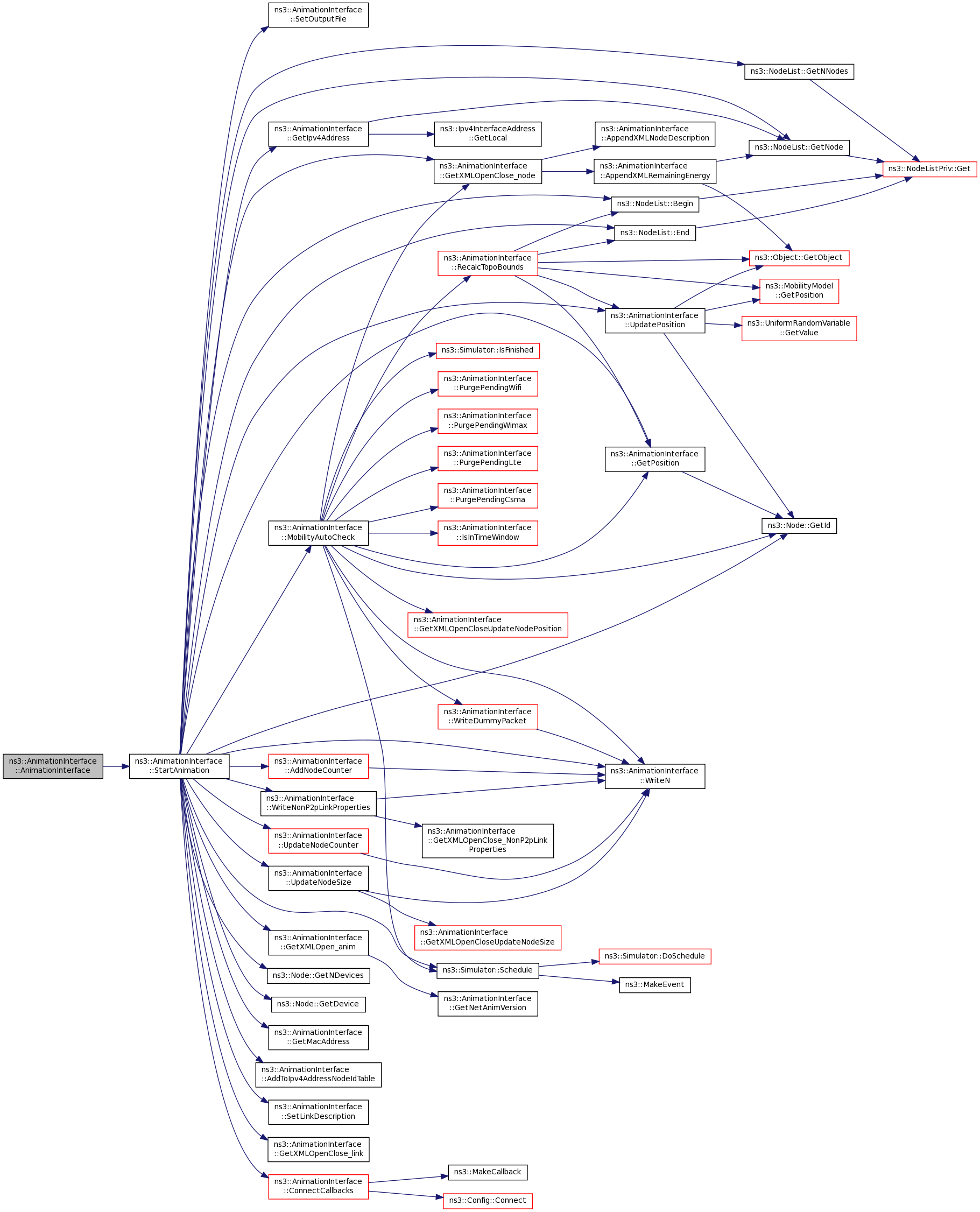

 AnimationInterface (const std::string filename, bool enable3105=true, uint64_t maxPktsPerFile=MAX_PKTS_PER_TRACE_FILE)
 Constructor. More...

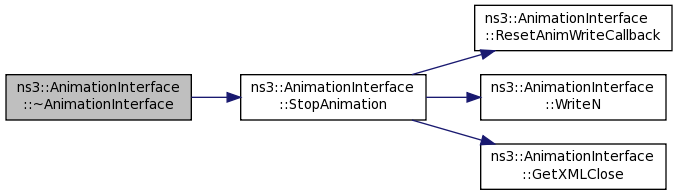

 ~AnimationInterface ()
 Destructor for the animator interface. More...

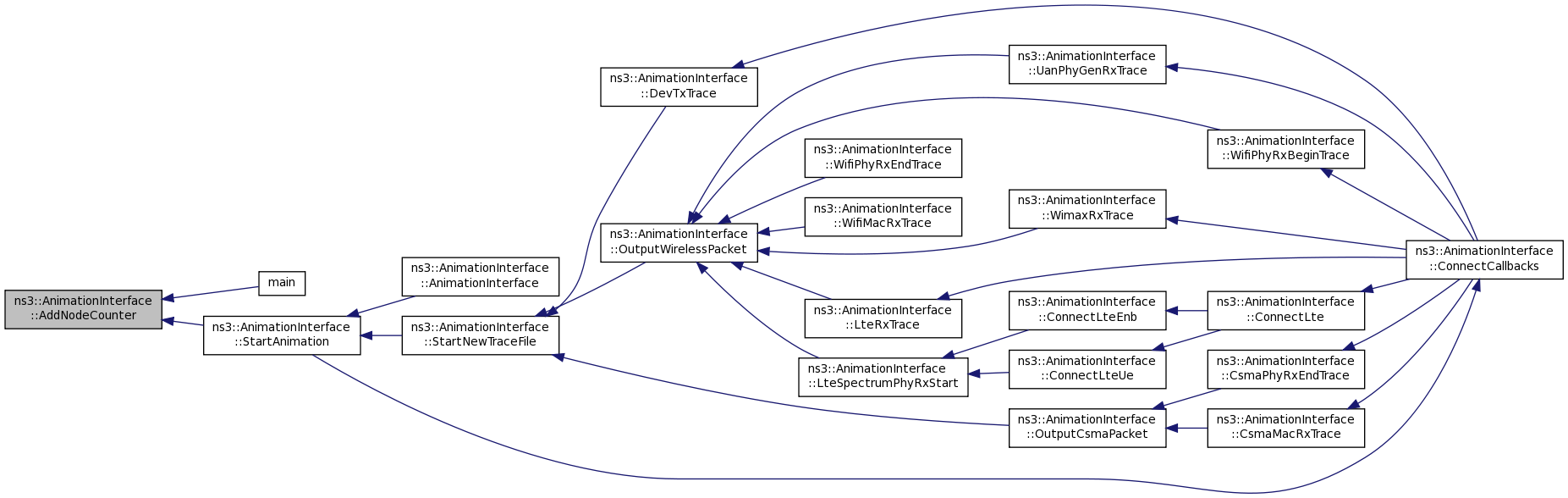

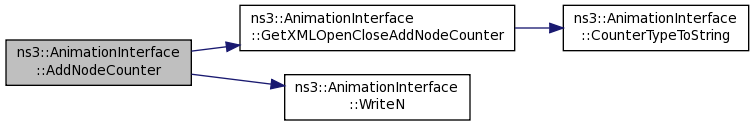

uint32_t AddNodeCounter (std::string counterName, CounterType counterType)
 Setup a node counter. More...

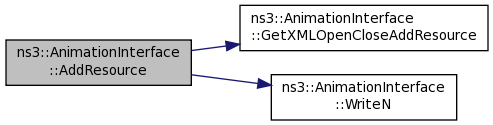

uint32_t AddResource (std::string resourcePath)
 Add a resource such as the path to an image file. More...

AnimationInterfaceAddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
 Helper function to print the routing path from a source node to destination IP. More...

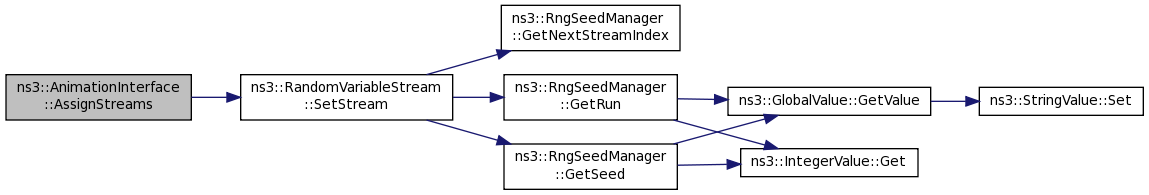

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

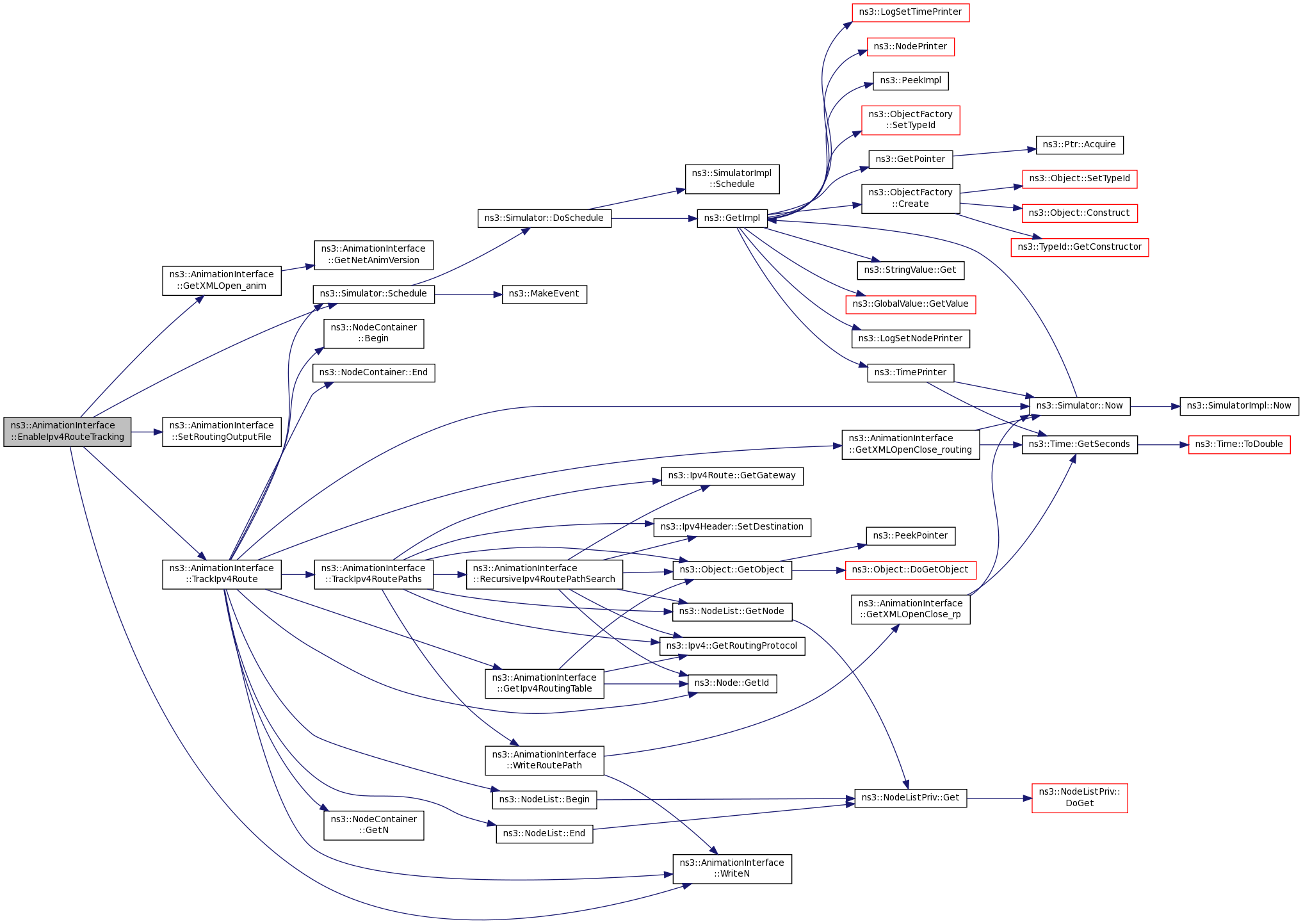

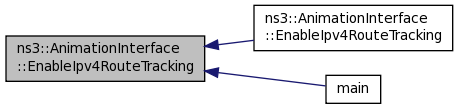

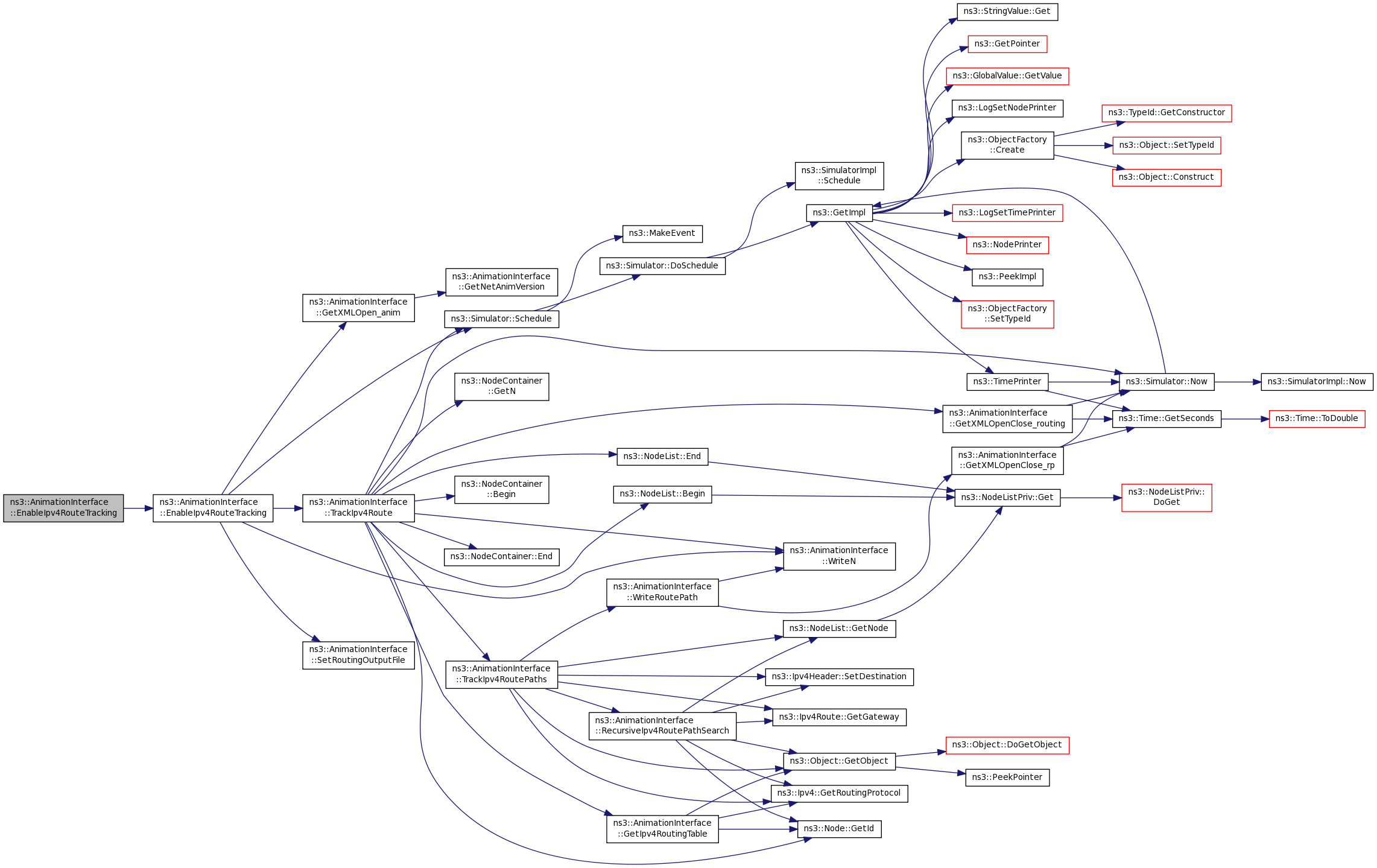

AnimationInterfaceEnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
 Enable tracking of the Ipv4 routing table for all Nodes. More...

AnimationInterfaceEnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
 Enable tracking of the Ipv4 routing table for a set of Nodes. More...

void EnablePacketMetadata (bool enable=true)
 Enable Packet metadata. More...

double GetNodeEnergyFraction (Ptr< const Node > node) const
 Get node's energy fraction (This used only for testing) More...

uint64_t GetTracePktCount ()
 Get trace file packet count (This used only for testing) More...

bool IsStarted (void)
 Is AnimationInterface started. More...

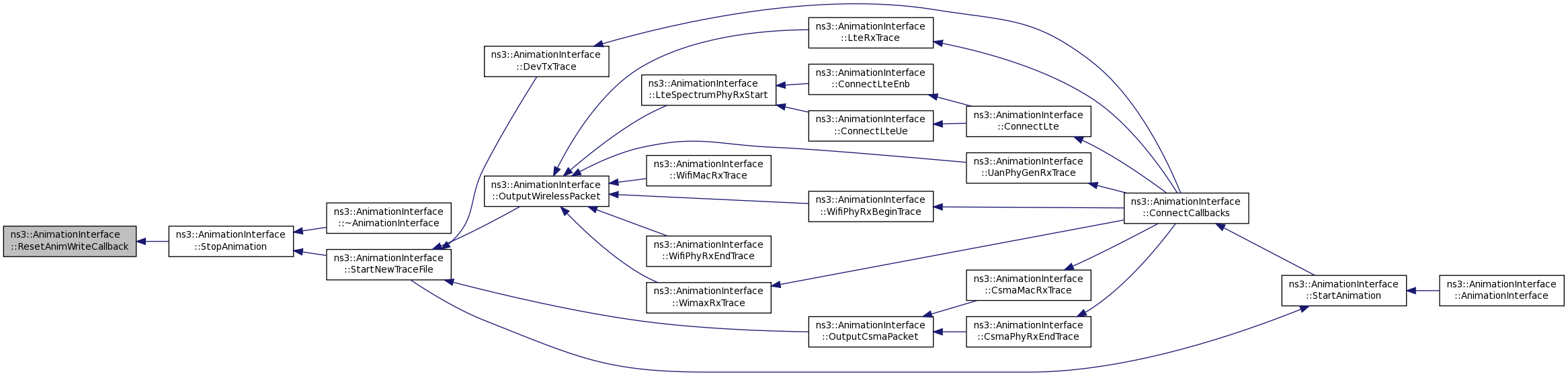

void ResetAnimWriteCallback ()
 Reset the write callback function. More...

void SetAnimWriteCallback (AnimWriteCallback cb)
 Set a callback function to listen to AnimationInterface write events. More...

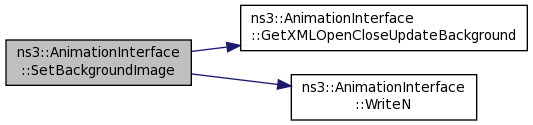

void SetBackgroundImage (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
 Helper function to set the background image. More...

void SetMobilityPollInterval (Time t)
 Set mobility poll interval:WARNING: setting a low interval can cause slowness. More...

void SetRandomPosition (bool setRandPos)
 Set random position if a Mobility Model does not exists for the node. More...

void SetStartTime (Time t)
 Specify the time at which capture should start. More...

void SetStopTime (Time t)
 Specify the time at which capture should stop. More...

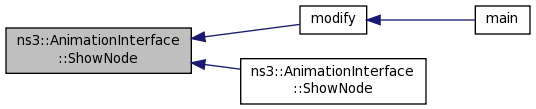

void ShowNode (uint32_t nodeId, bool show=true)
 Helper function to show/hide a node. More...

void ShowNode (Ptr< Node > n, bool show=true)
 Helper function to show/hide a node. More...

void SkipPacketTracing ()
 Do not trace packets. More...

void UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
 Helper function to update the description for a link. More...

void UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
 Helper function to update the description for a link. More...

void UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
 Helper function to update the node color. More...

void UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
 Helper function to update the node color. More...

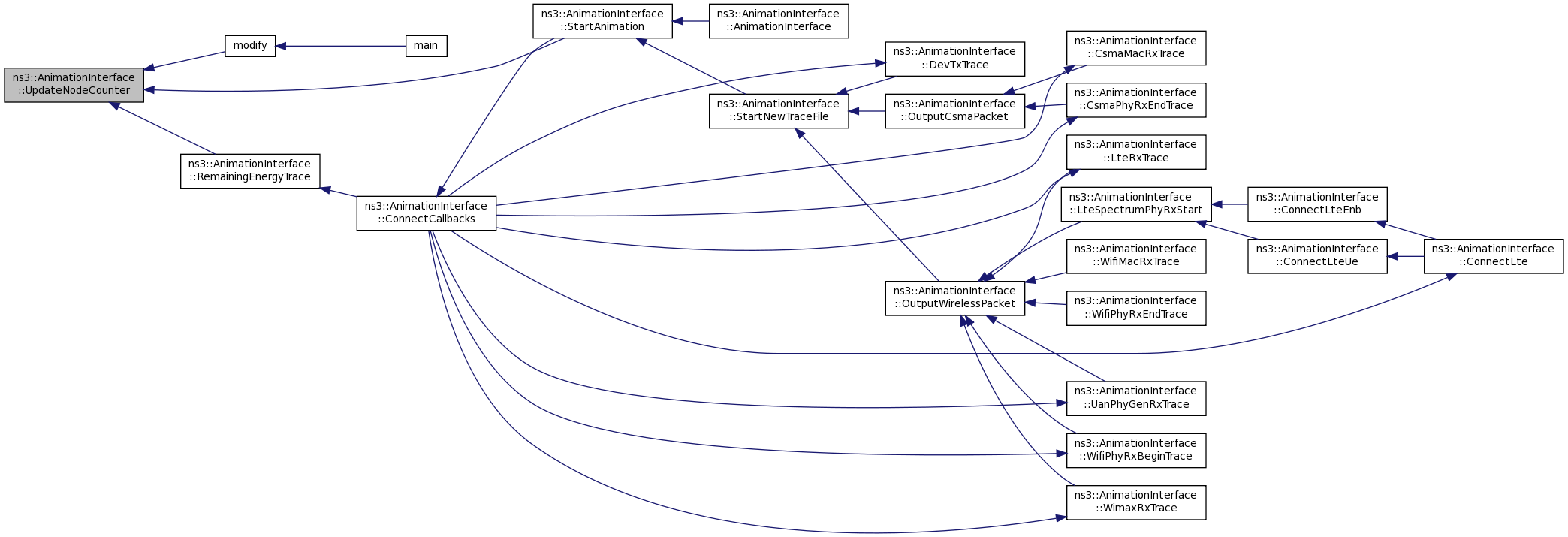

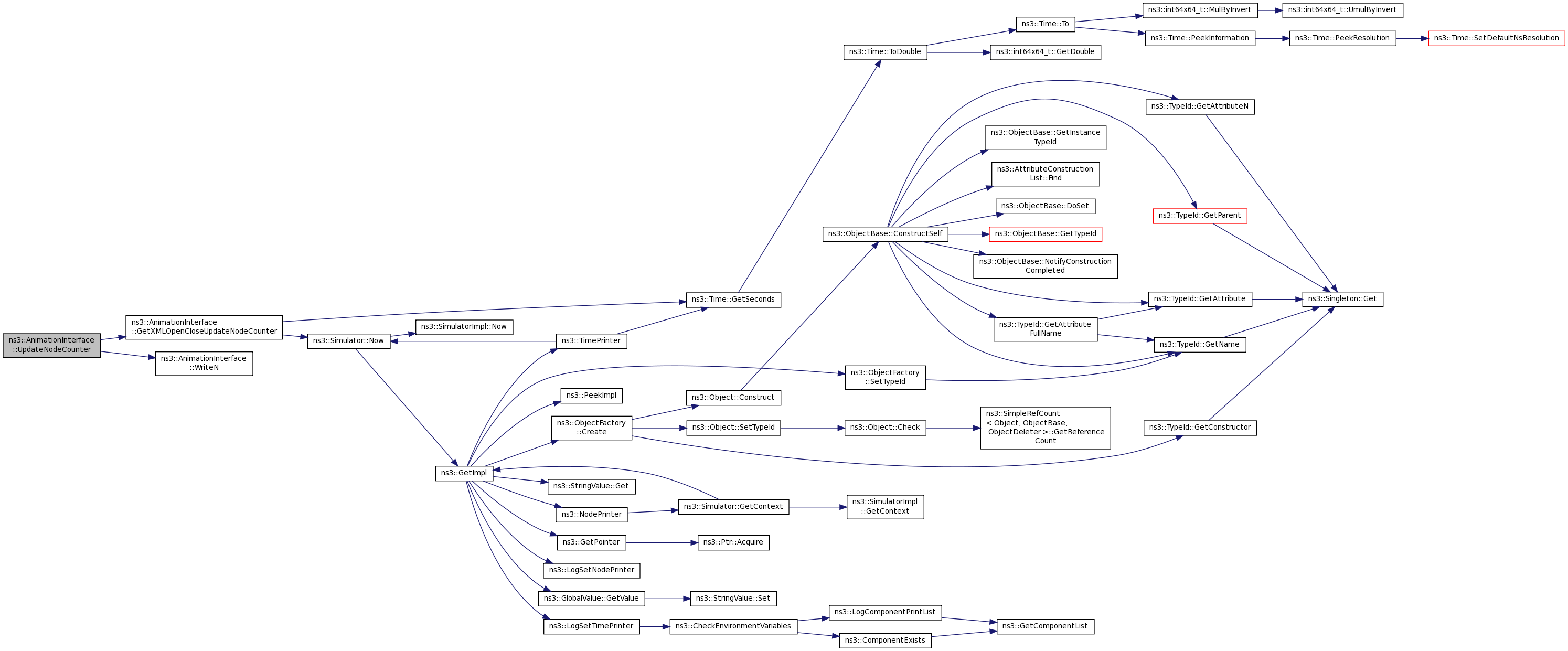

void UpdateNodeCounter (uint32_t nodeCounterId, uint32_t nodeId, double counter)
 Helper function to update a node's counter referenced by the nodeCounterId. More...

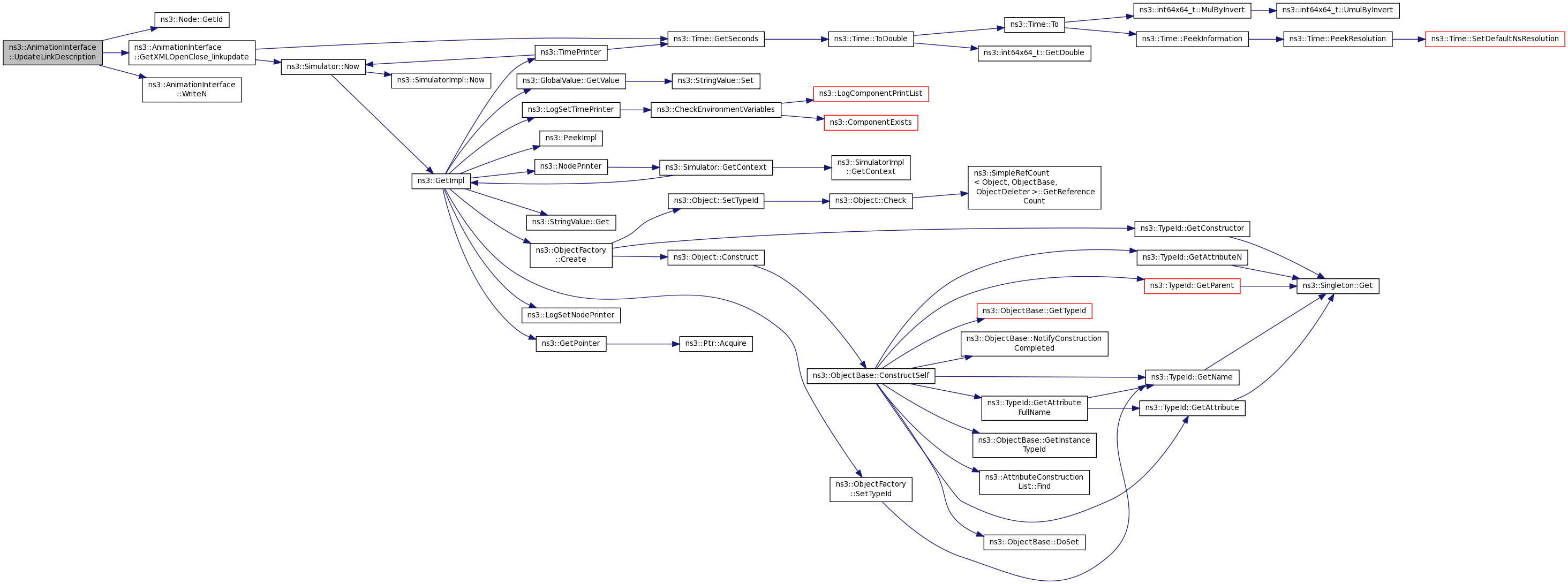

void UpdateNodeDescription (Ptr< Node > n, std::string descr)
 Helper function to update the description for a given node. More...

void UpdateNodeDescription (uint32_t nodeId, std::string descr)
 Helper function to update the description for a given node. More...

void UpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
 Helper function to update the image of a node. More...

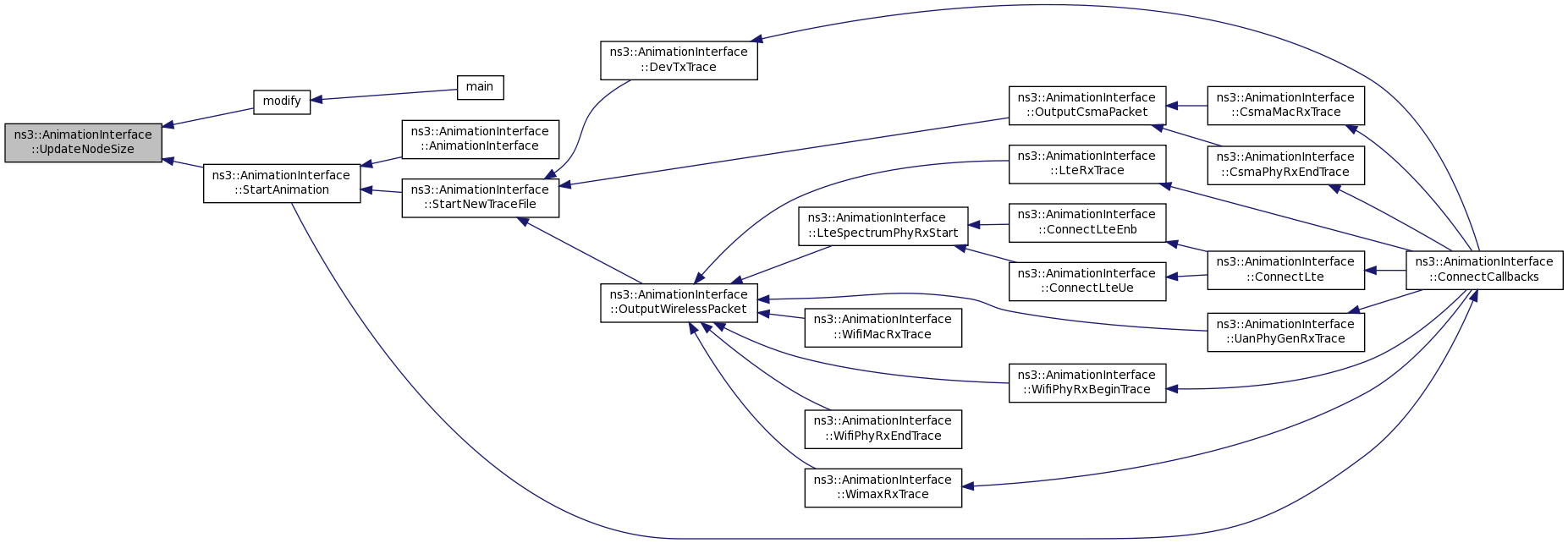

void UpdateNodeSize (uint32_t nodeId, double width, double height)
 Helper function to update the size of a node. More...


Static Public Member Functions

static bool IsInitialized (void)
 Check if AnimationInterface is initialized. More...

static void SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
 Helper function to set Constant Position for a given node. More...

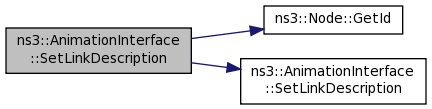

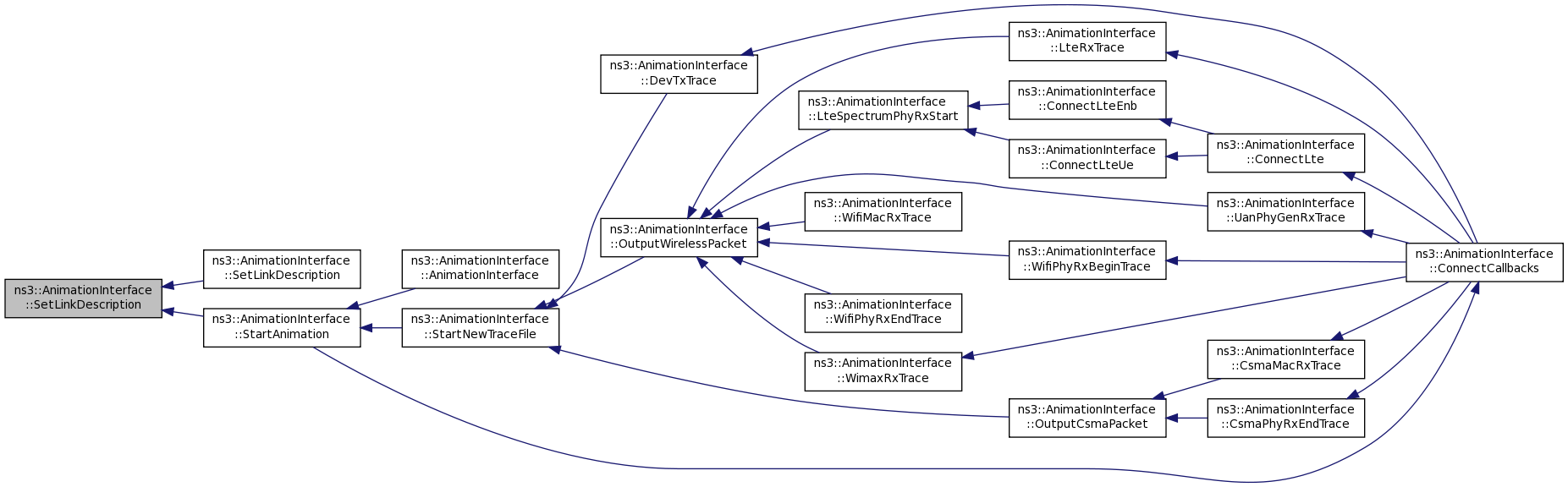

static void SetLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
 Helper function to set the description for a link. More...

static void SetLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
 Helper function to set the description for a link. More...

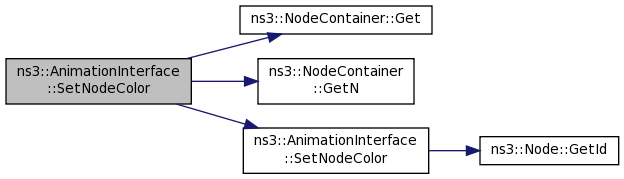

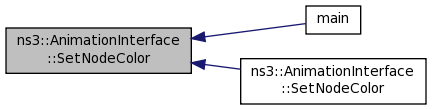

static void SetNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
 Helper function to set the node color. More...

static void SetNodeColor (NodeContainer nc, uint8_t r, uint8_t g, uint8_t b)
 Helper function to set the color of nodes in a container. More...

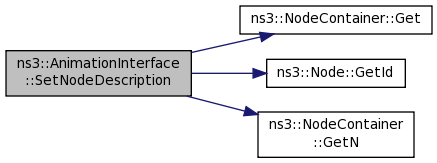

static void SetNodeDescription (Ptr< Node > n, std::string descr)
 Helper function to set a brief description for a given node. More...

static void SetNodeDescription (NodeContainer nc, std::string descr)
 Helper function to set a brief description for nodes in a Node Container. More...


Private Types

typedef std::map< uint32_t,
double >
EnergyFractionMap

typedef std::vector
< Ipv4RoutePathElement
Ipv4RoutePathElements


Private Member Functions

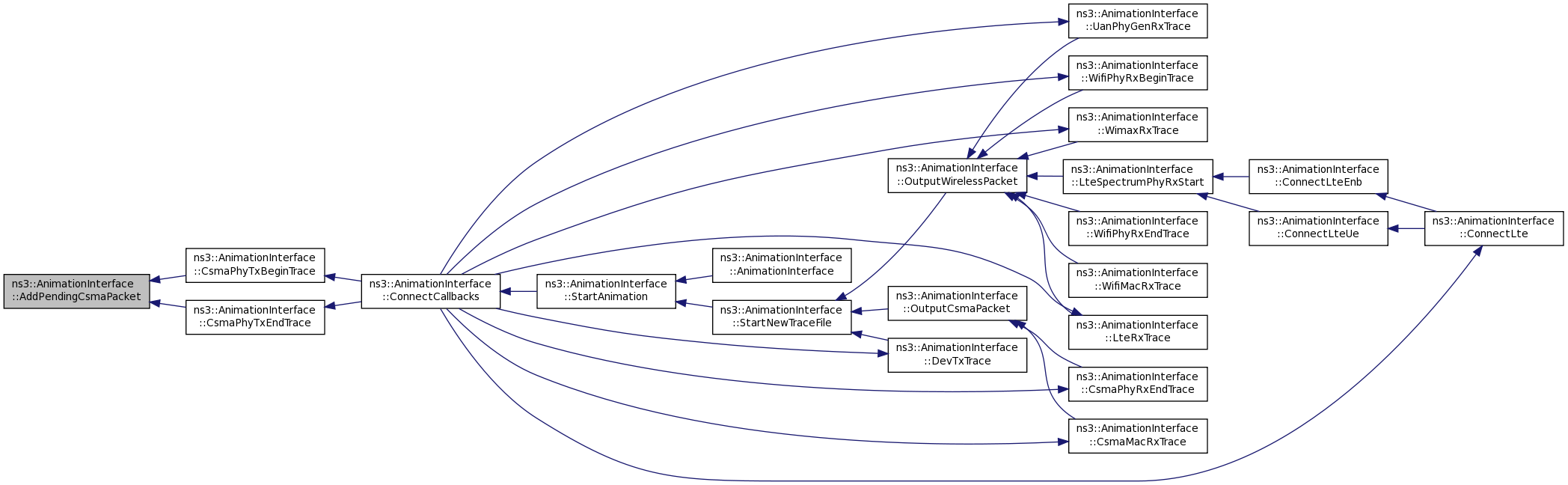

void AddPendingCsmaPacket (uint64_t AnimUid, AnimPacketInfo &)

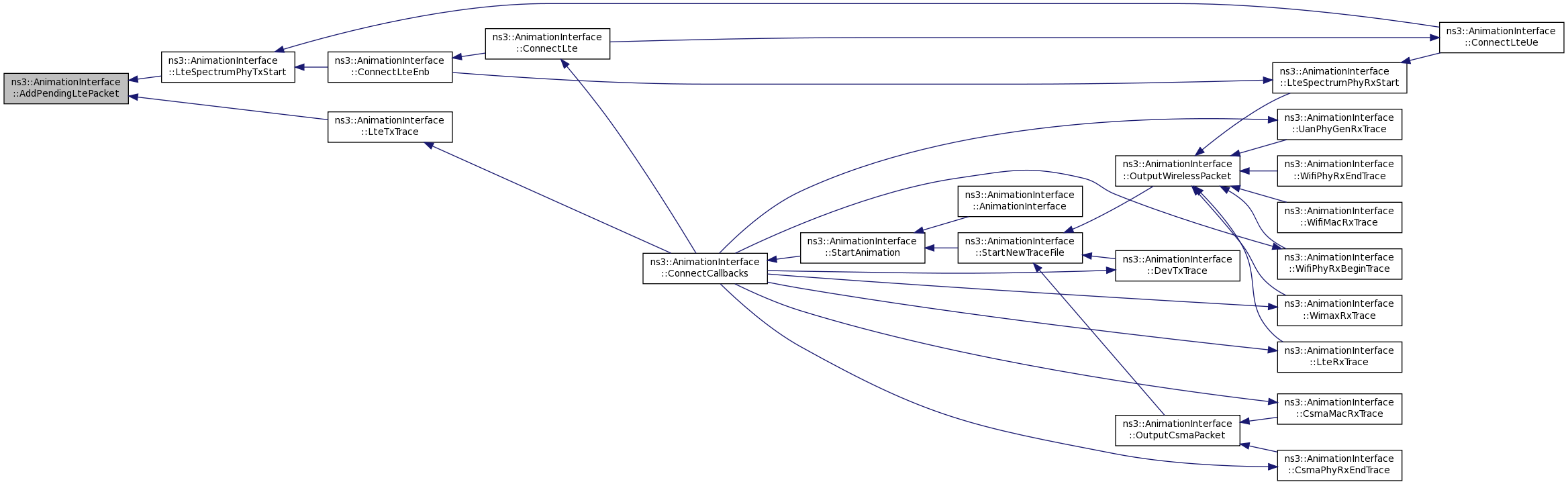

void AddPendingLtePacket (uint64_t AnimUid, AnimPacketInfo &)

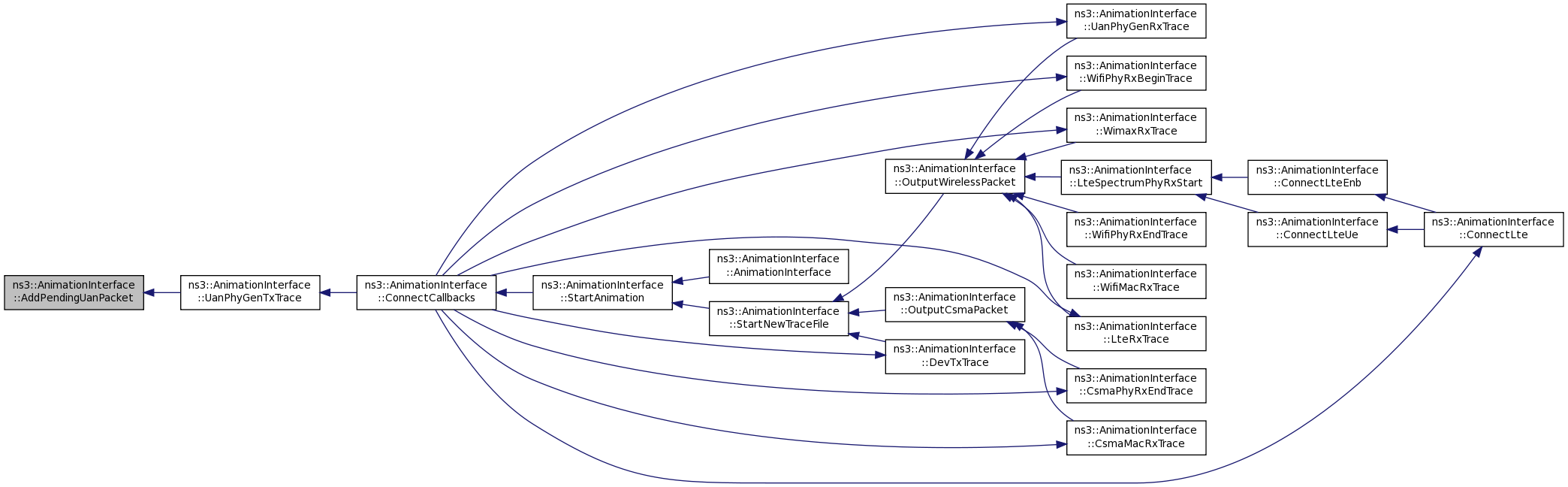

void AddPendingUanPacket (uint64_t AnimUid, AnimPacketInfo &)

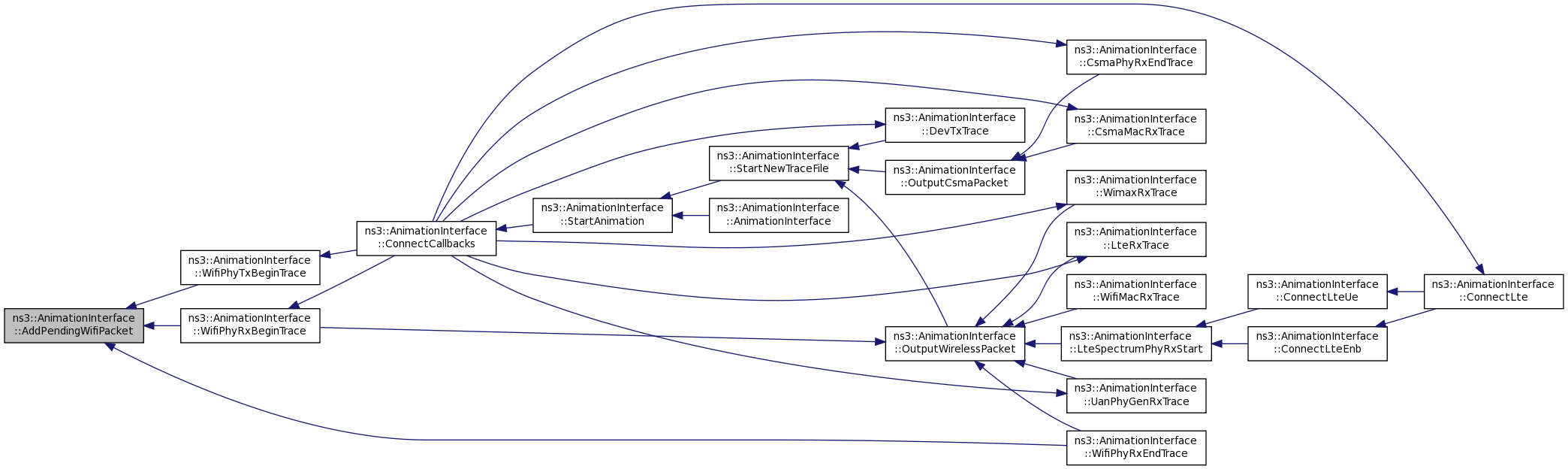

void AddPendingWifiPacket (uint64_t AnimUid, AnimPacketInfo &)

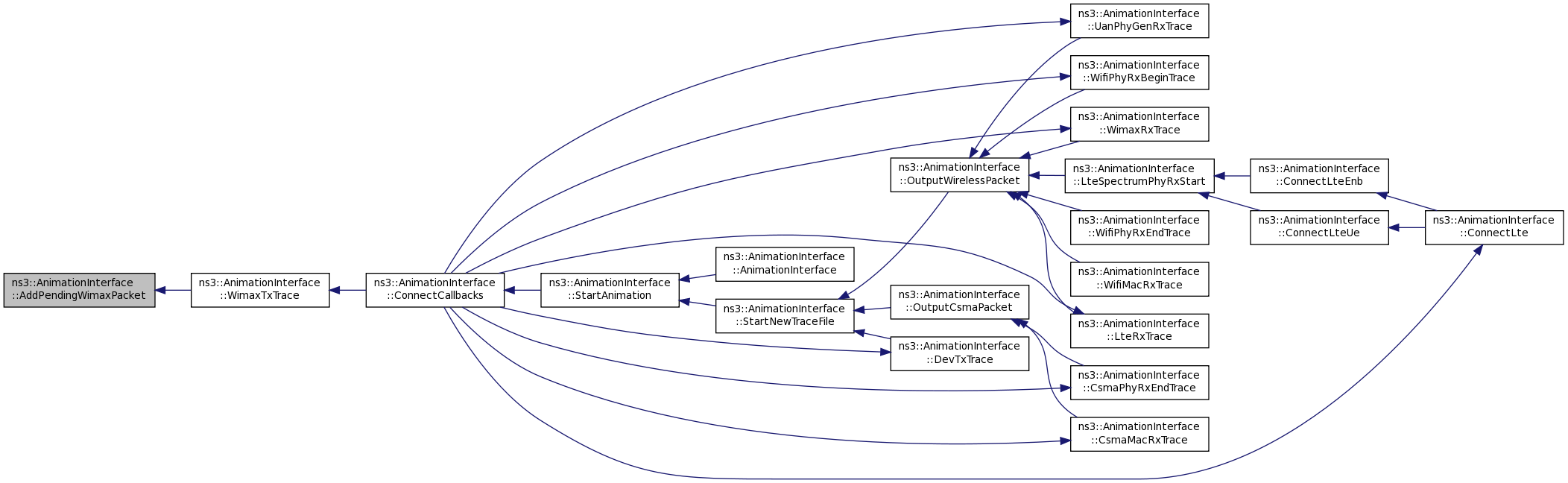

void AddPendingWimaxPacket (uint64_t AnimUid, AnimPacketInfo &)

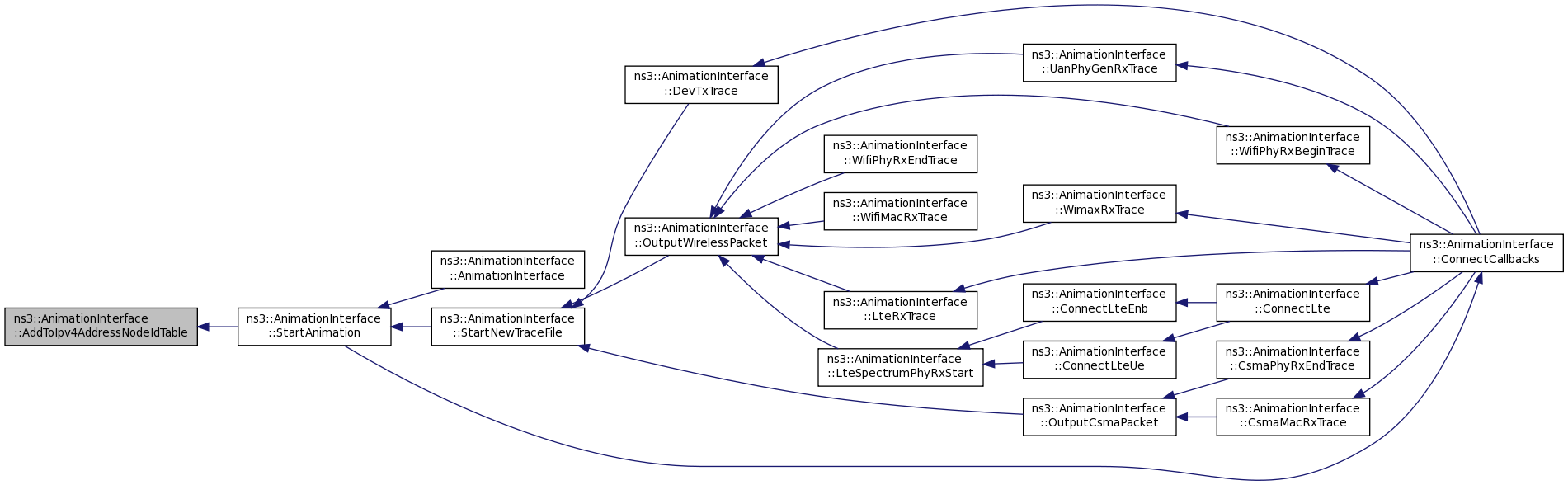

void AddToIpv4AddressNodeIdTable (std::string, uint32_t)

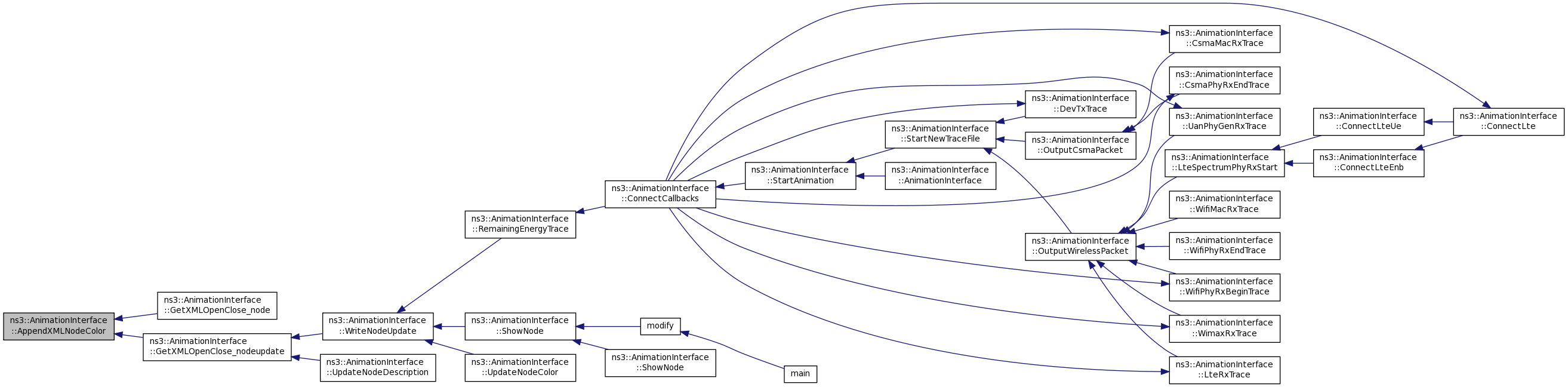

void AppendXMLNodeColor (std::ostream &ostream, const Rgb &color) const

void AppendXMLNodeDescription (std::ostream &ostream, uint32_t id) const

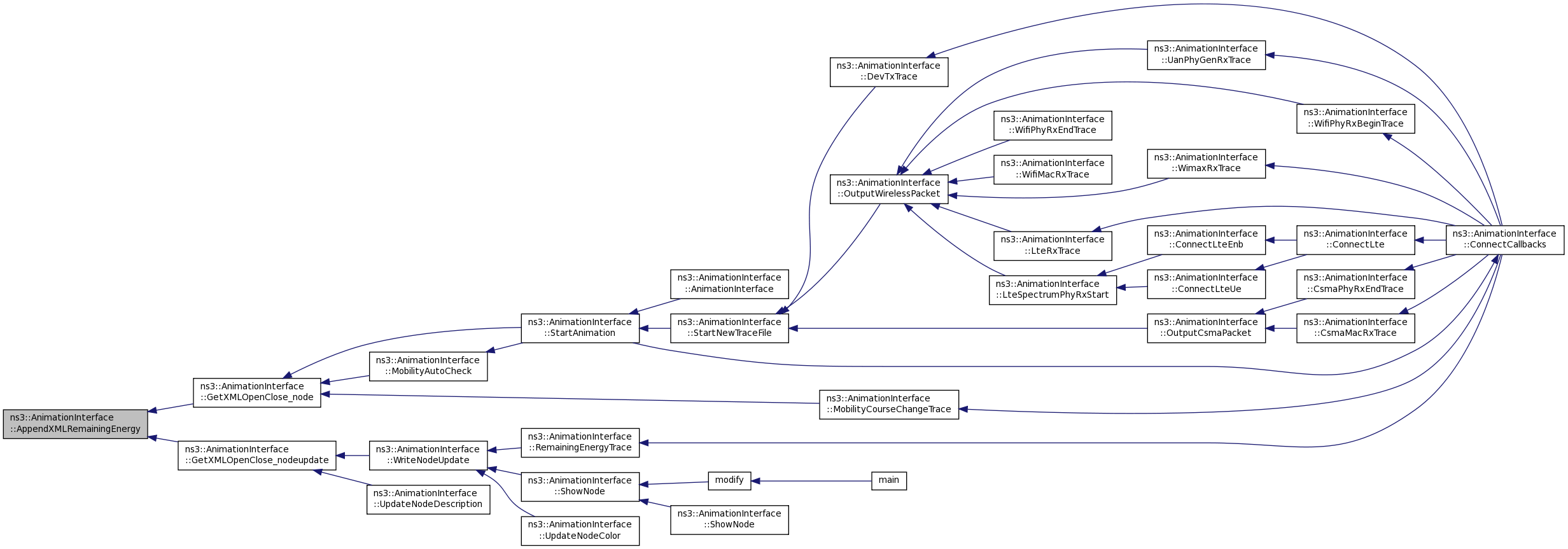

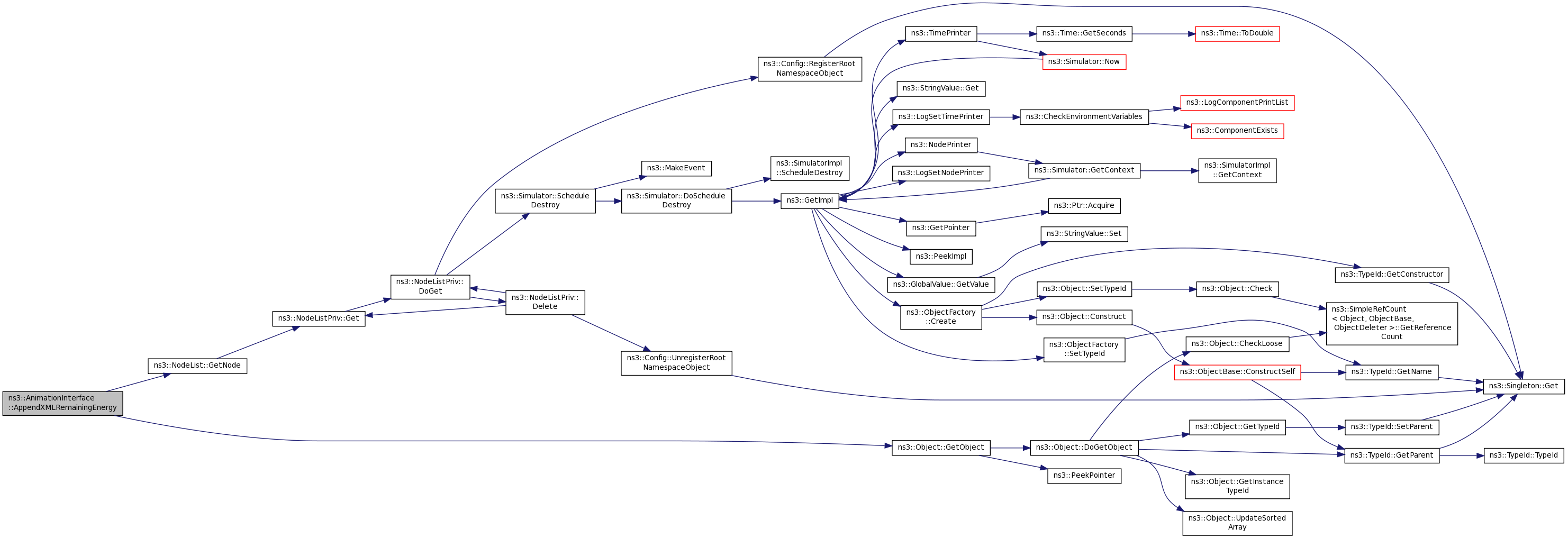

void AppendXMLRemainingEnergy (std::ostream &ostream, uint32_t id) const

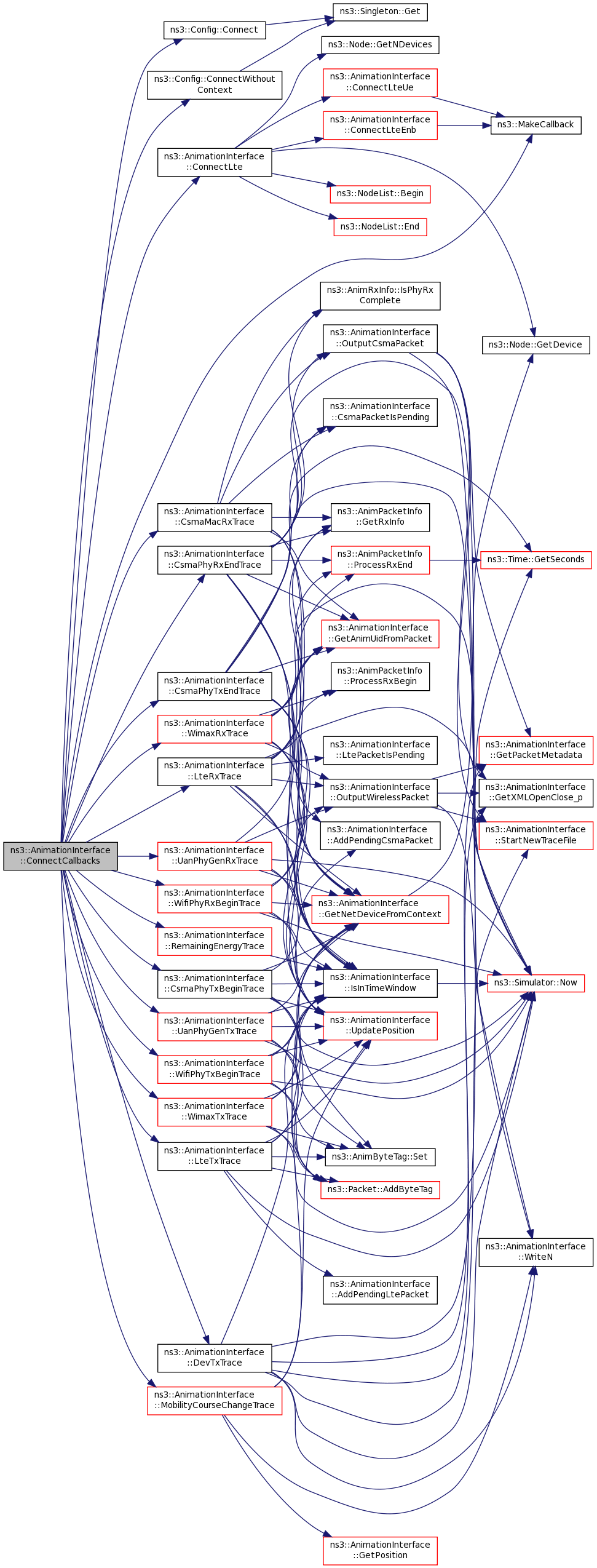

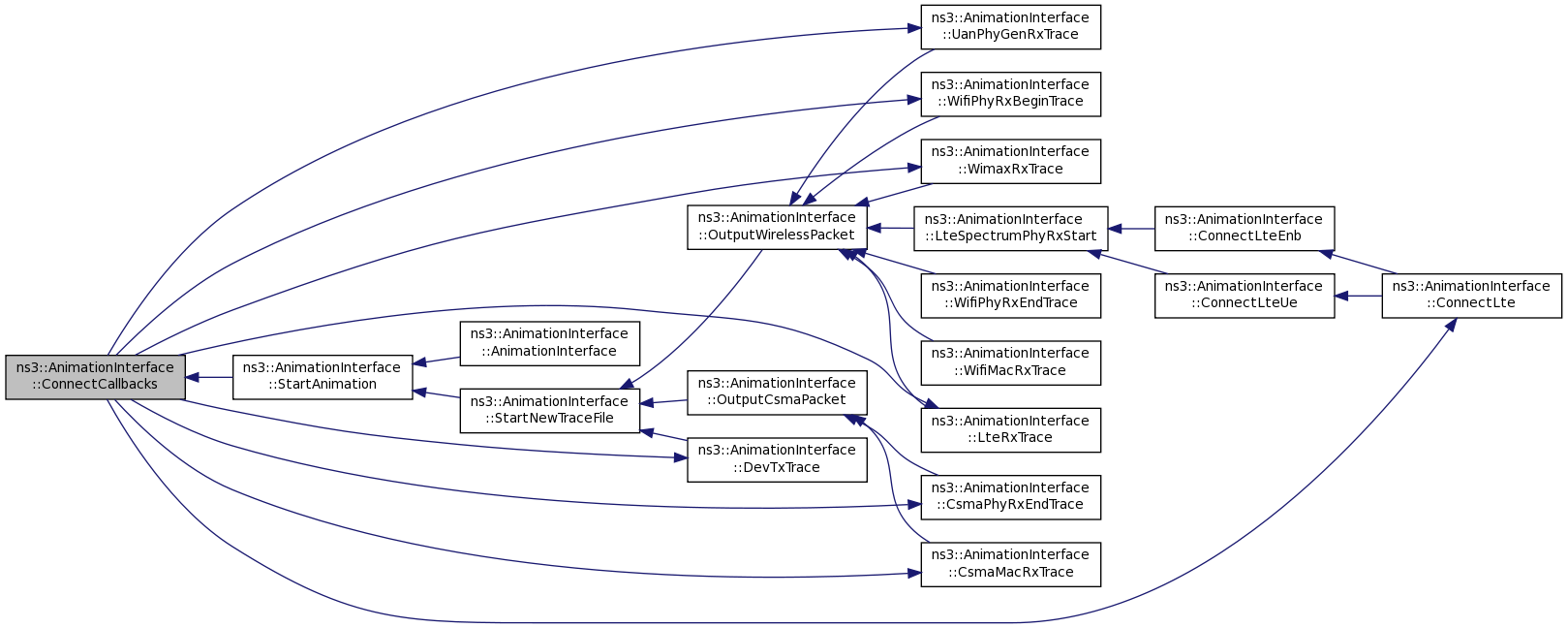

void ConnectCallbacks ()

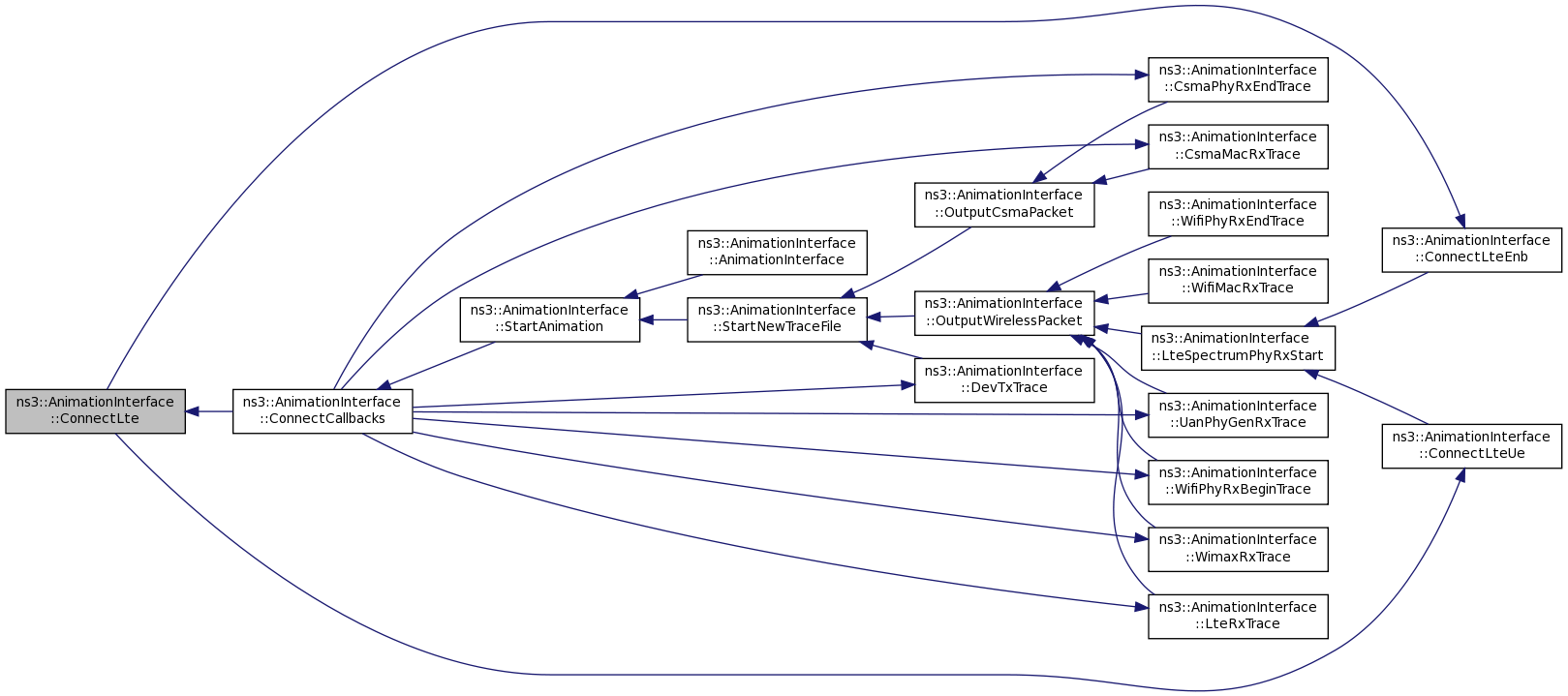

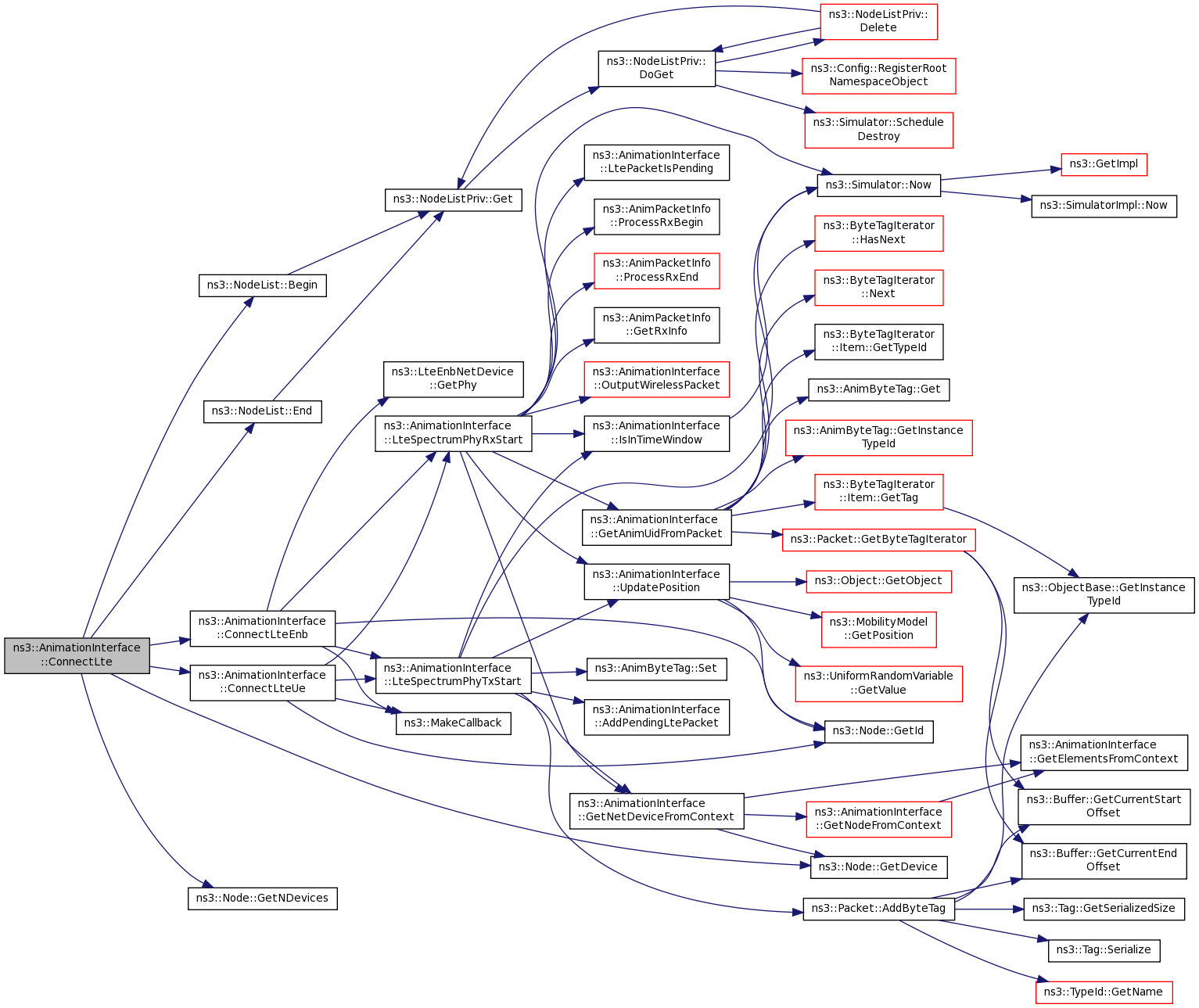

void ConnectLte ()

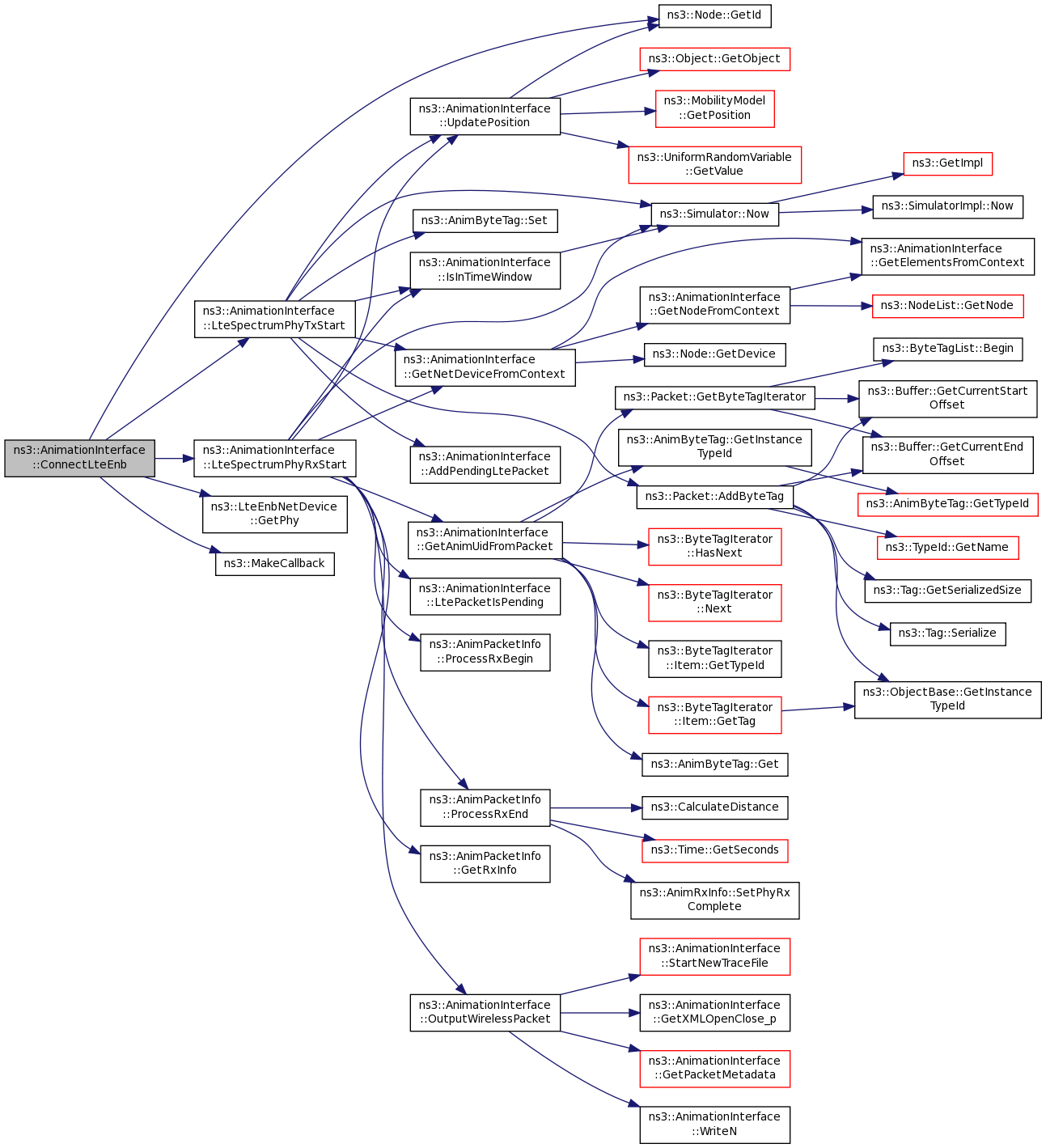

void ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)

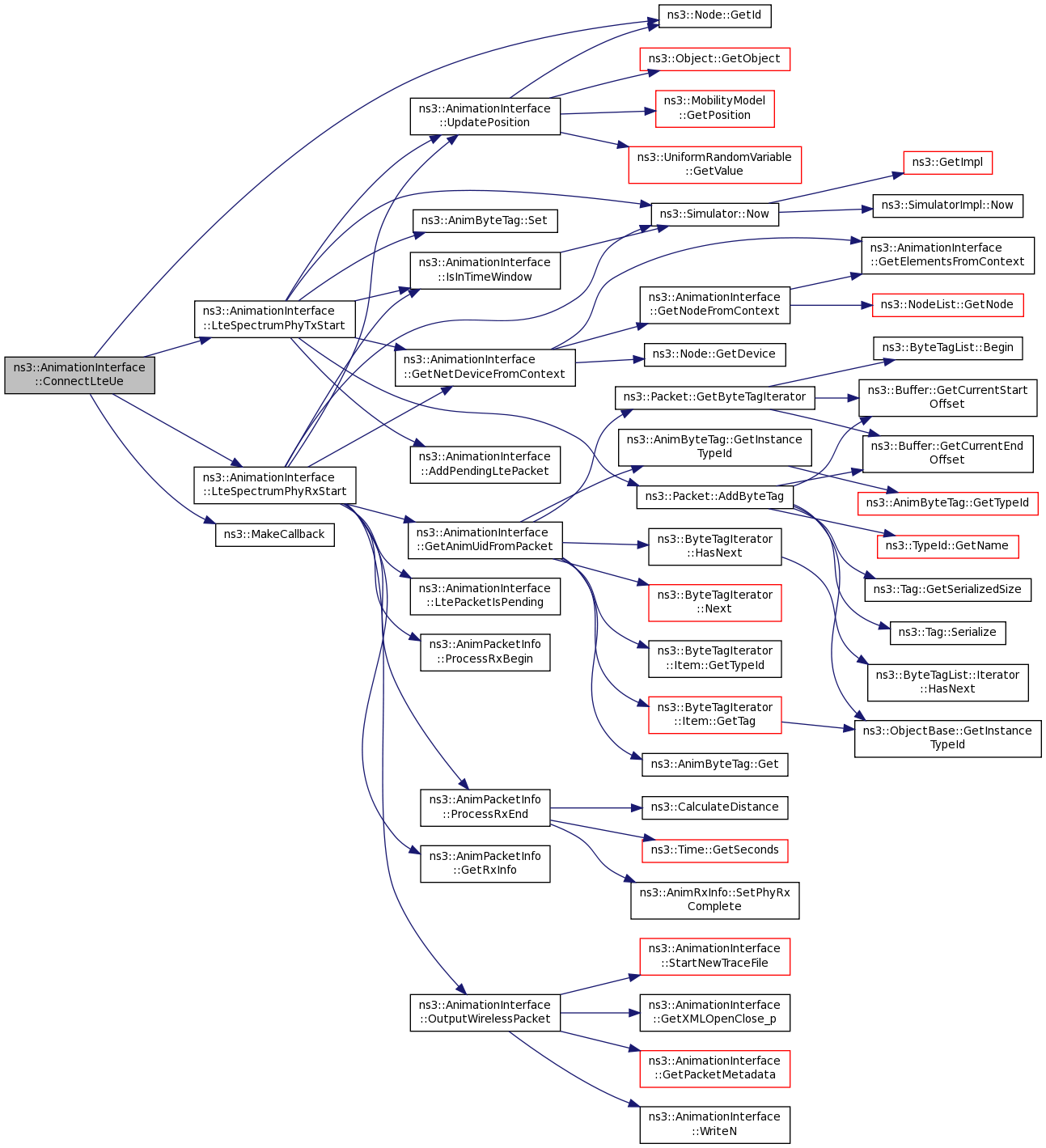

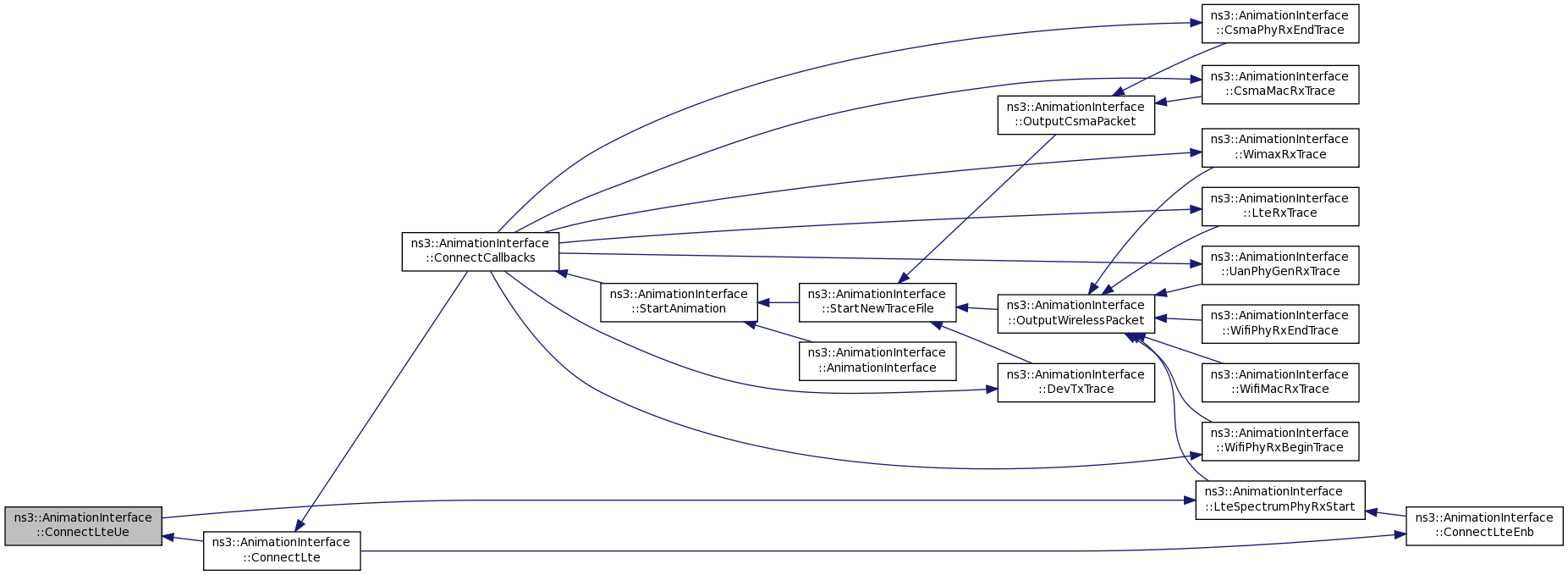

void ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)

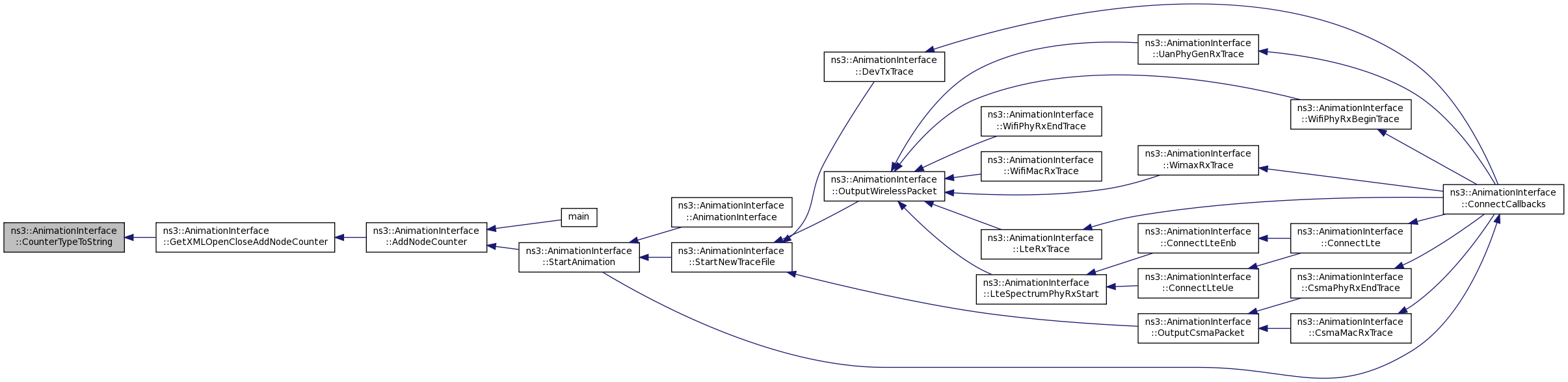

std::string CounterTypeToString (CounterType counterType)

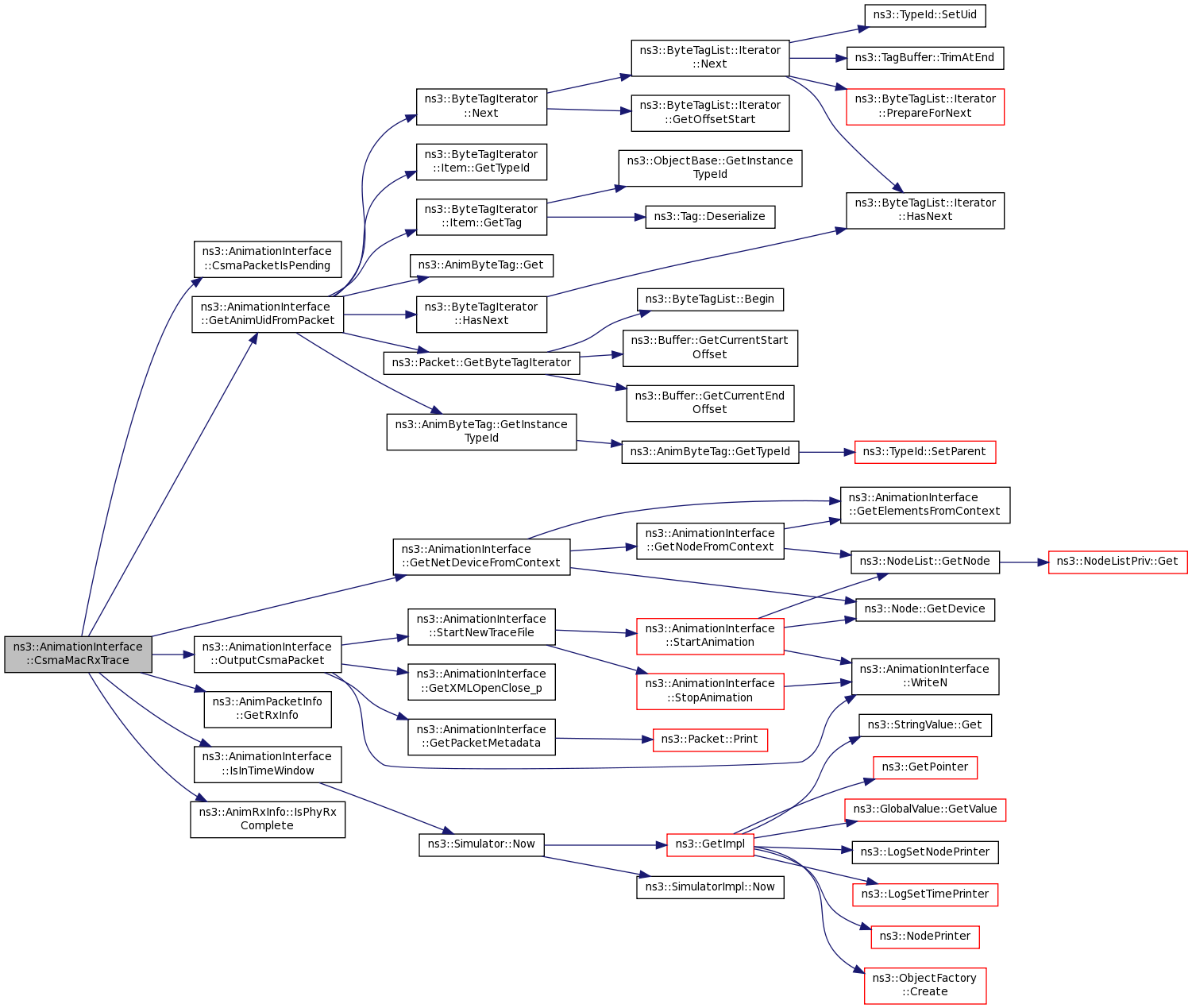

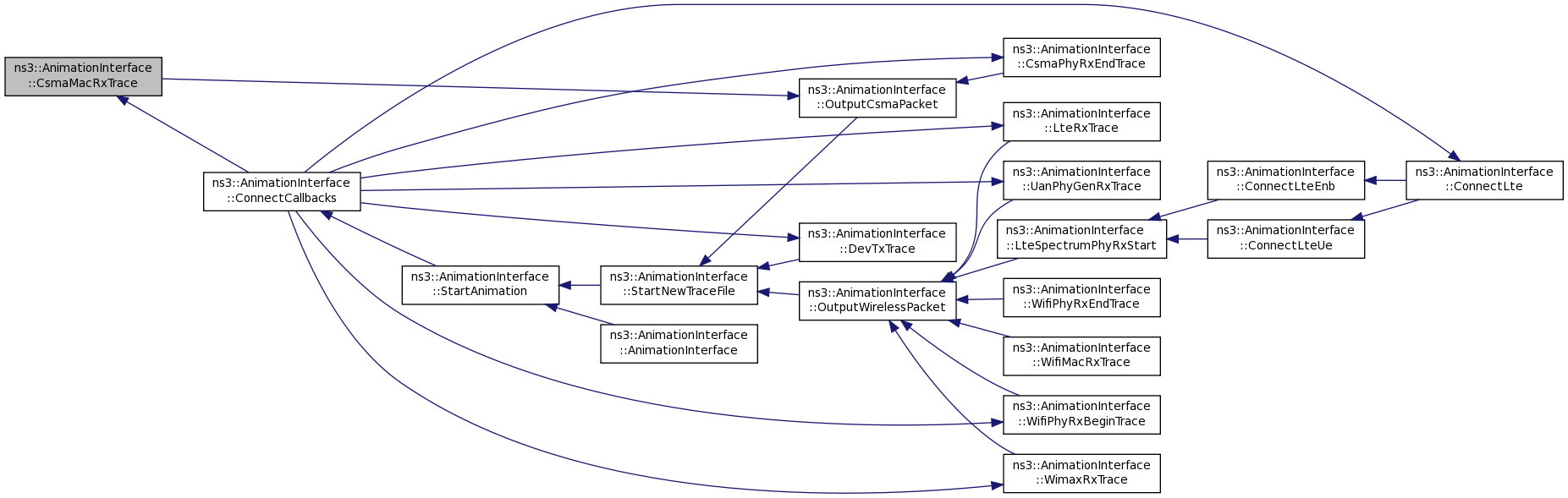

void CsmaMacRxTrace (std::string context, Ptr< const Packet > p)

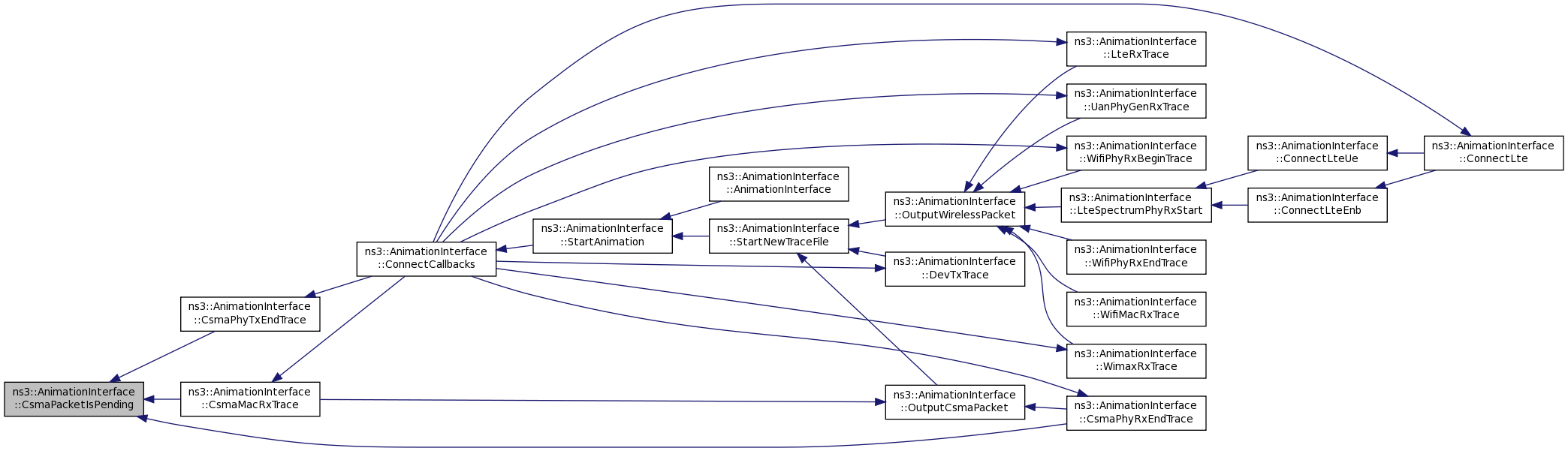

bool CsmaPacketIsPending (uint64_t AnimUid)

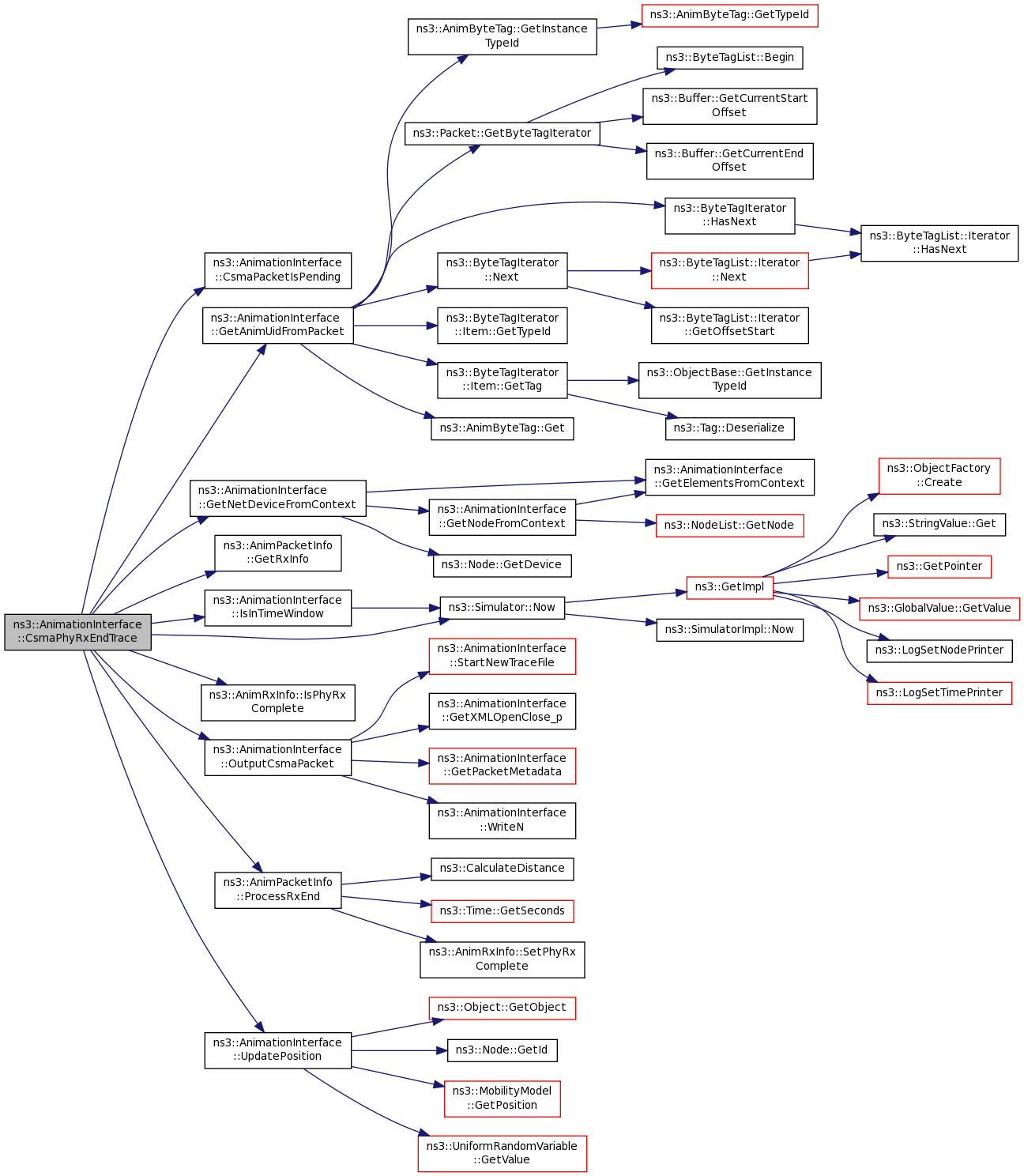

void CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)

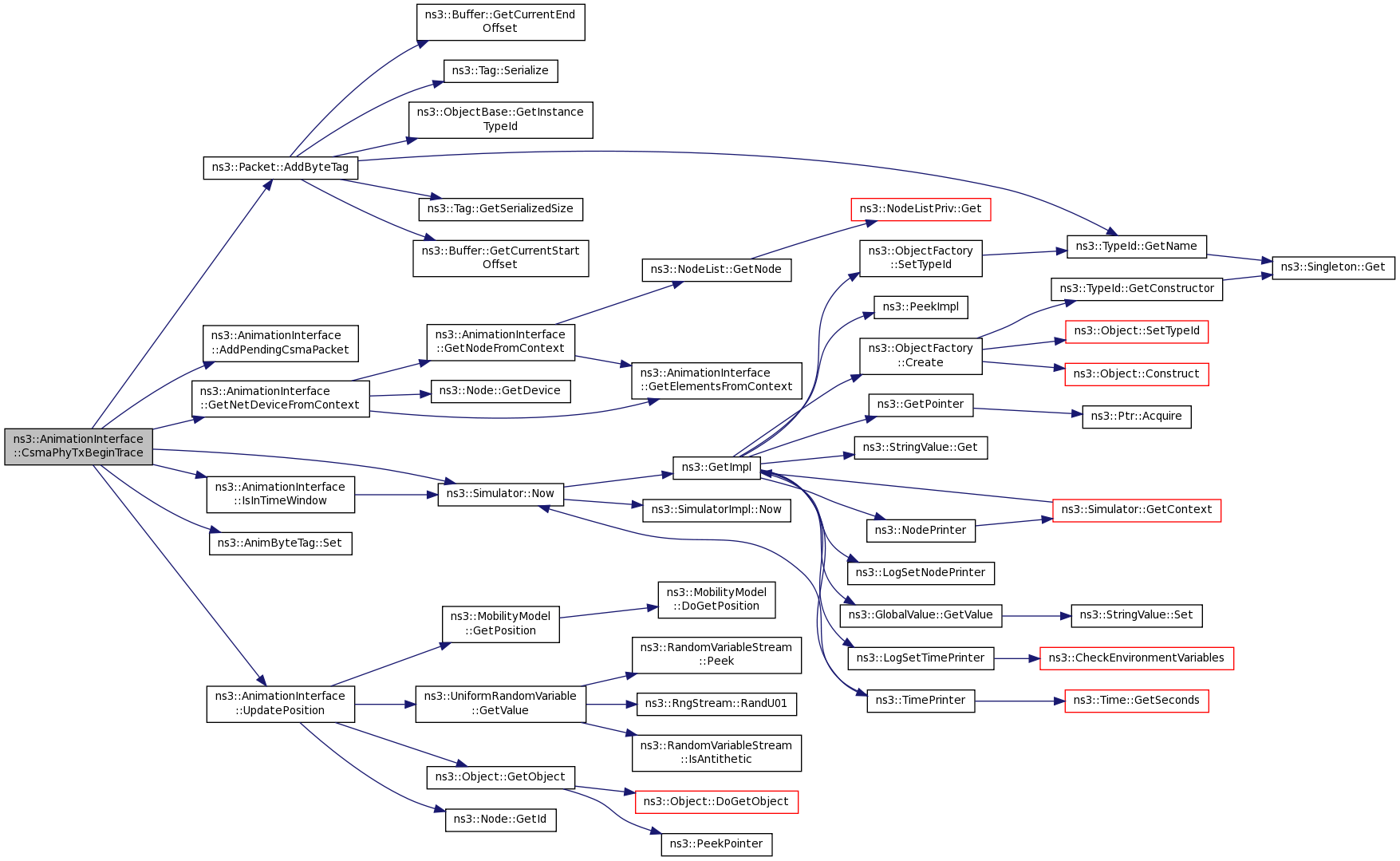

void CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

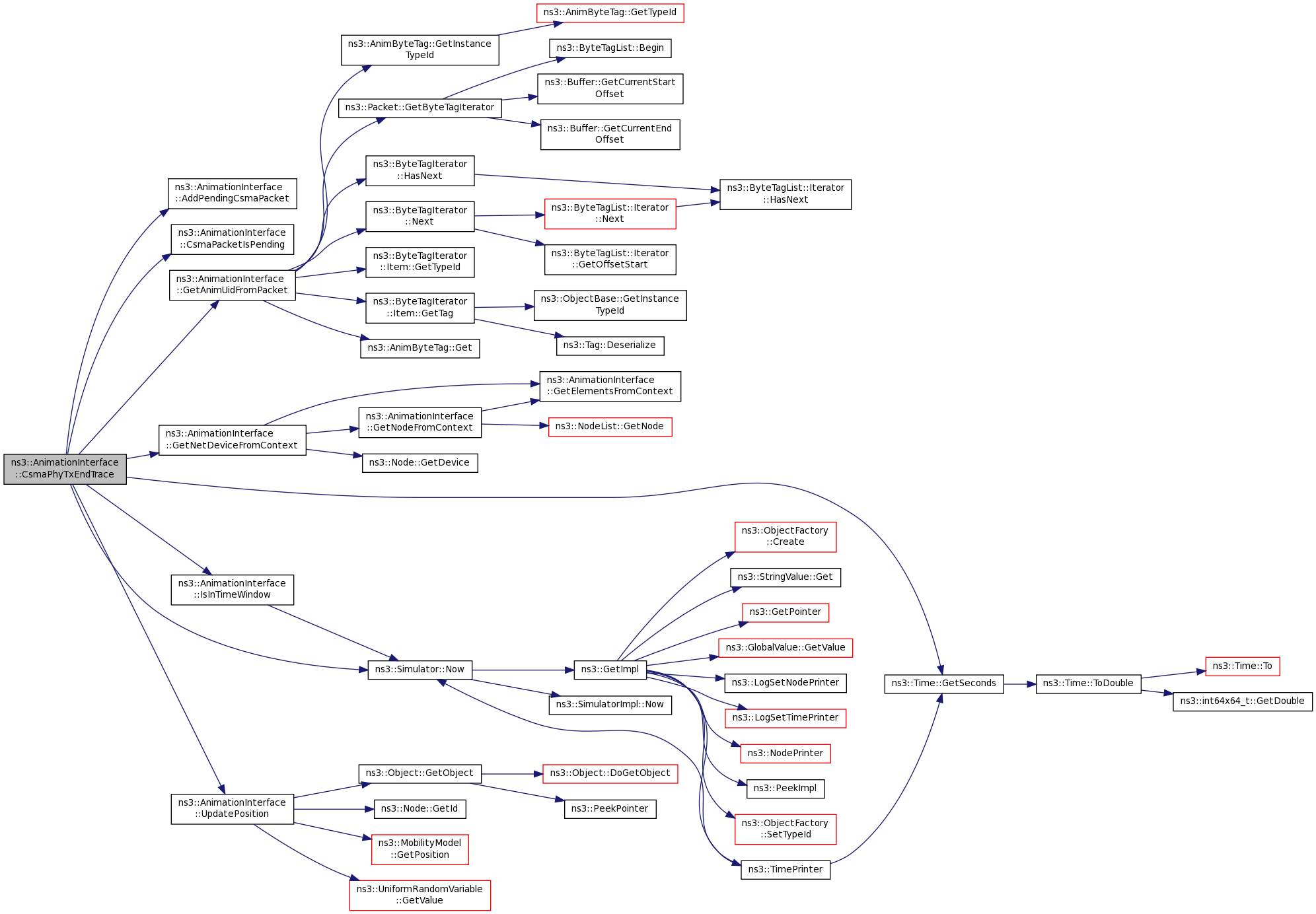

void CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)

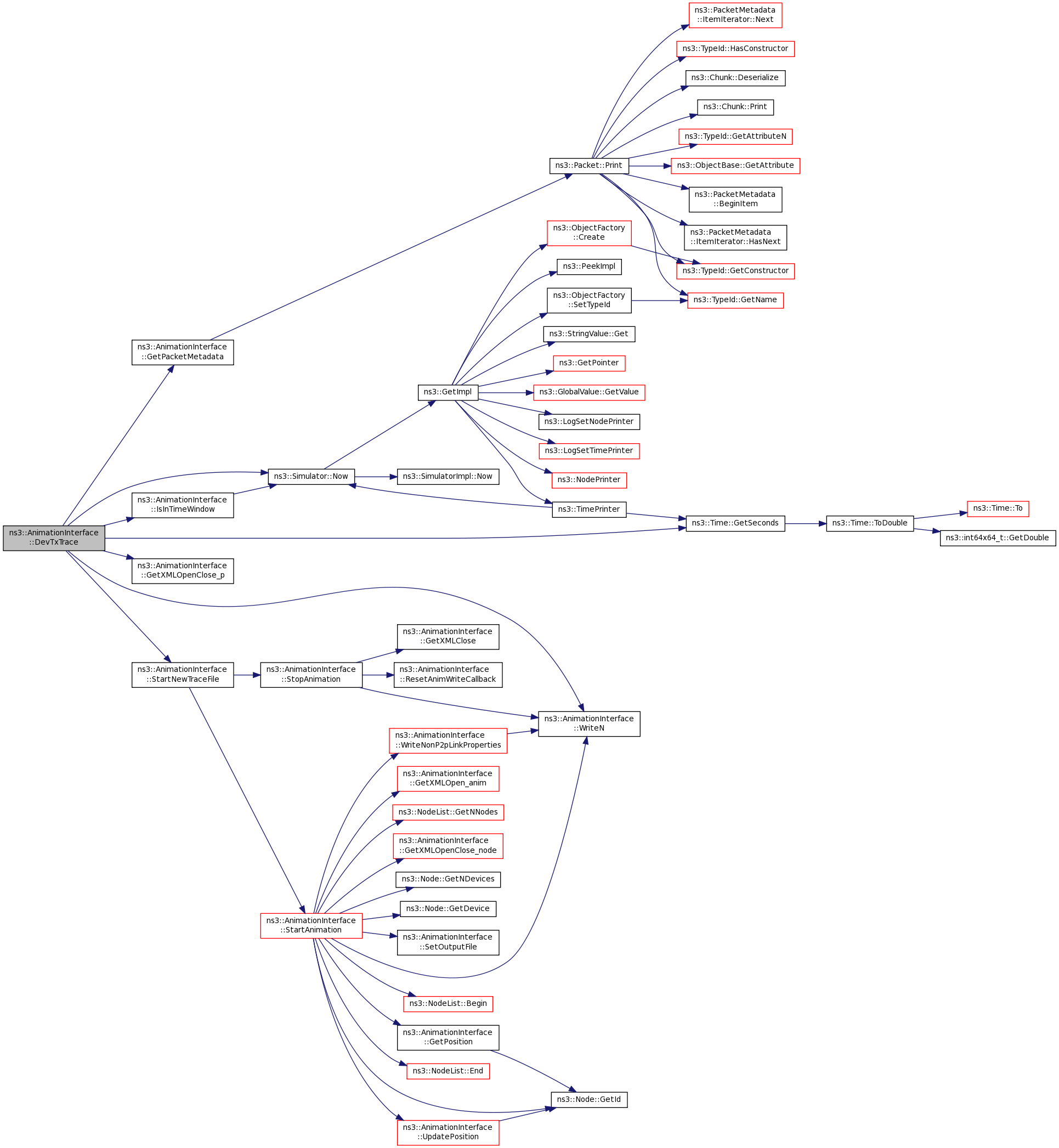

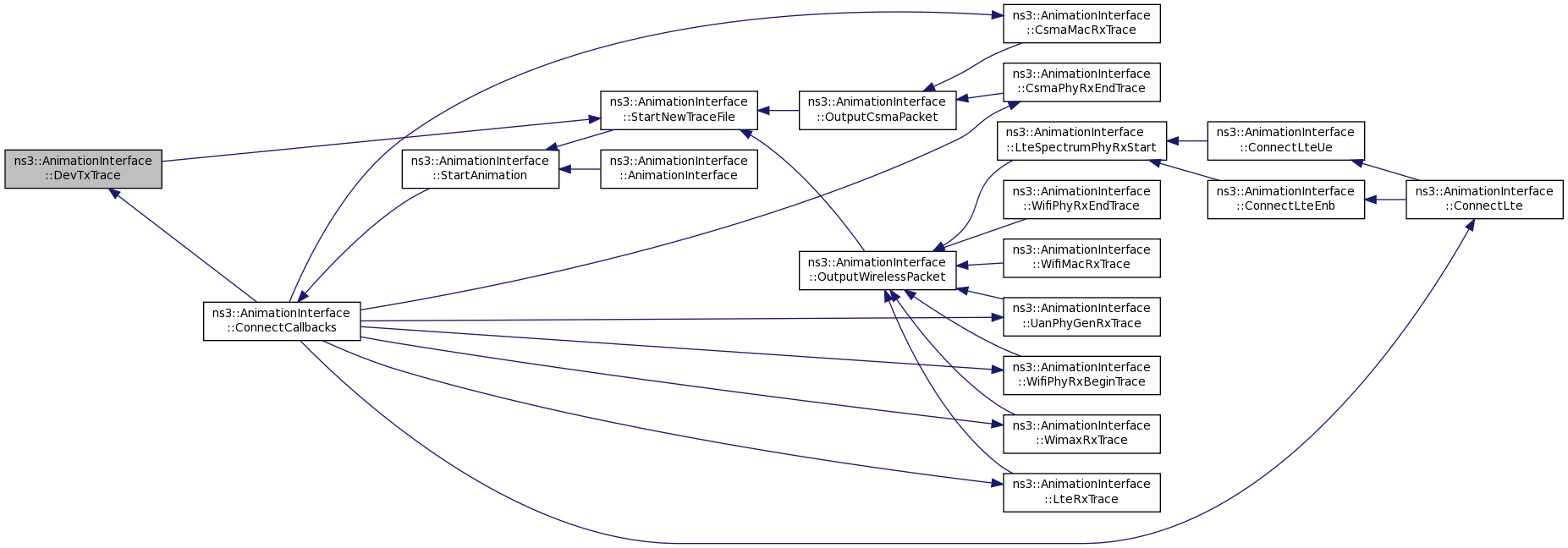

void DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)

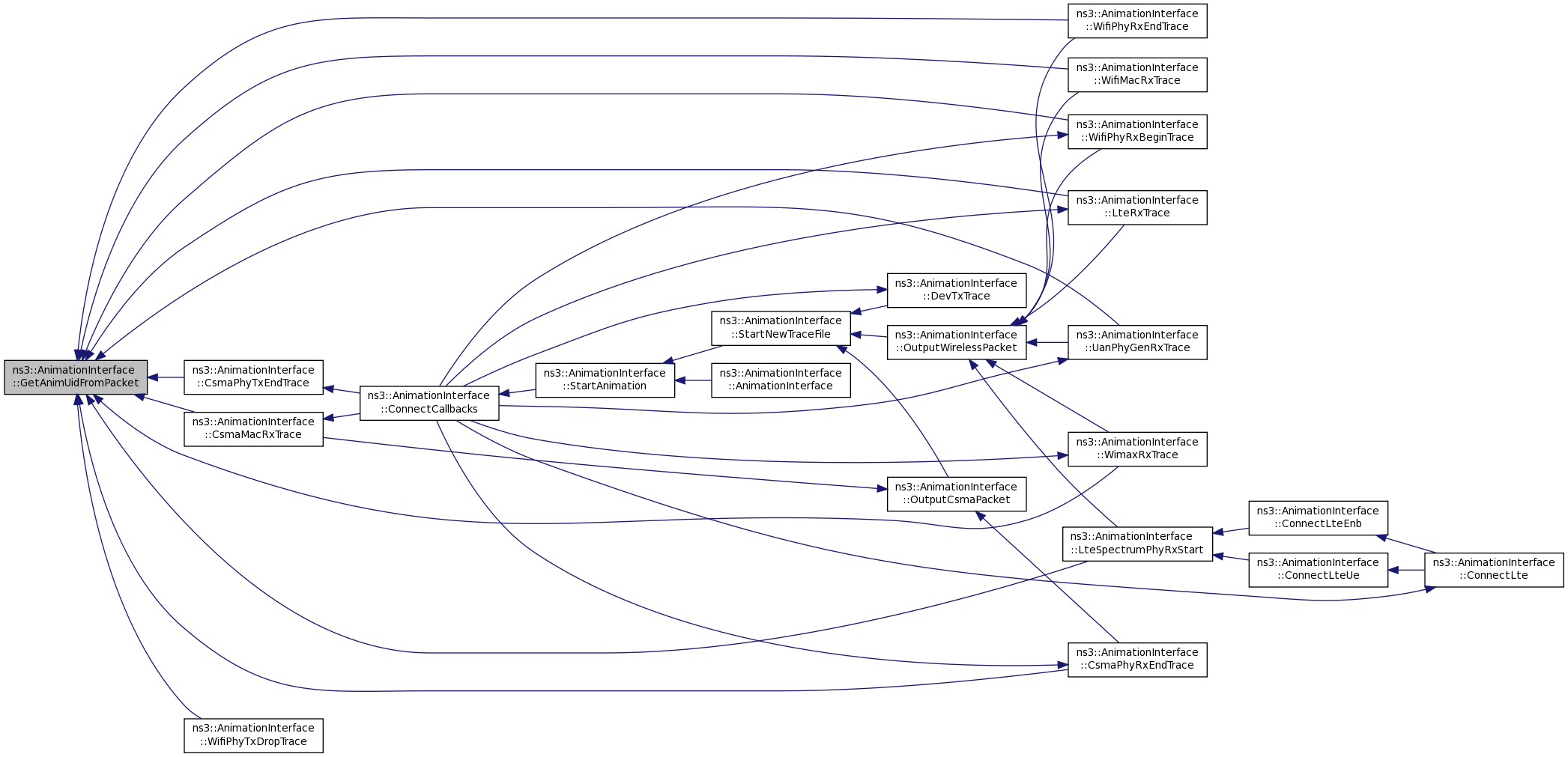

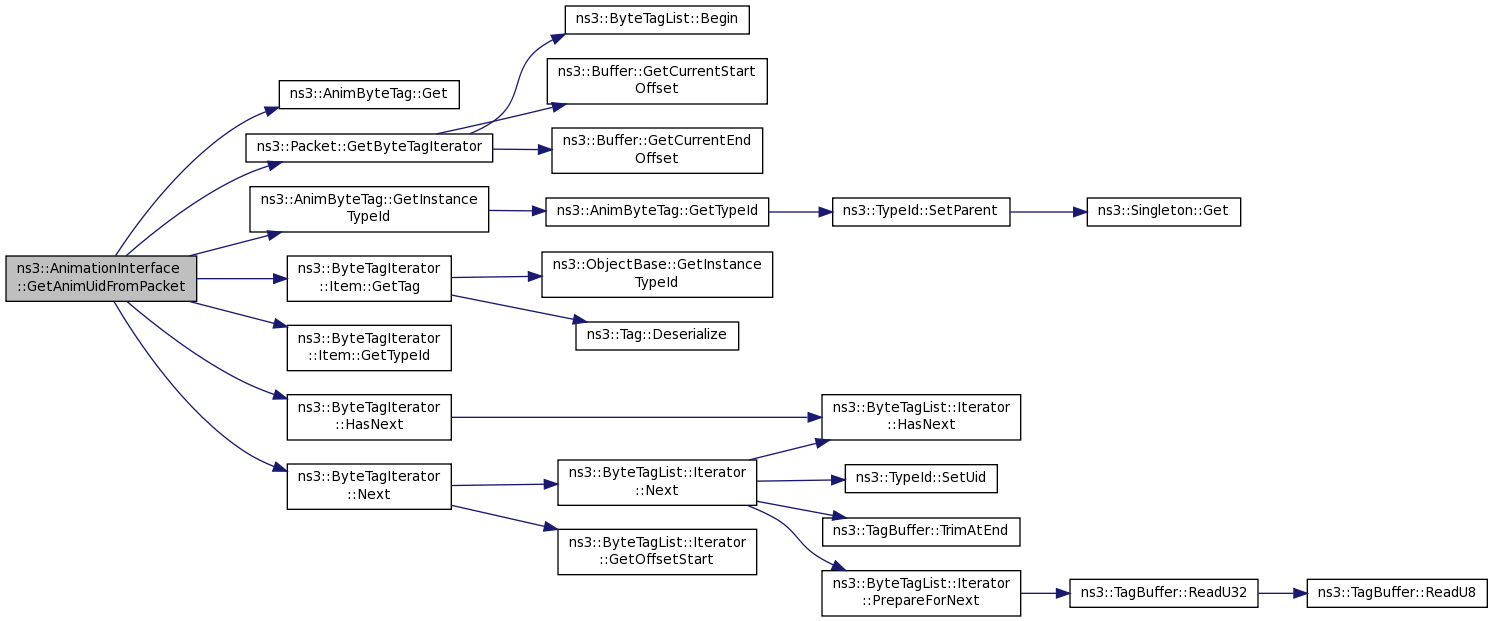

uint64_t GetAnimUidFromPacket (Ptr< const Packet >)

const std::vector< std::string > GetElementsFromContext (const std::string &context) const

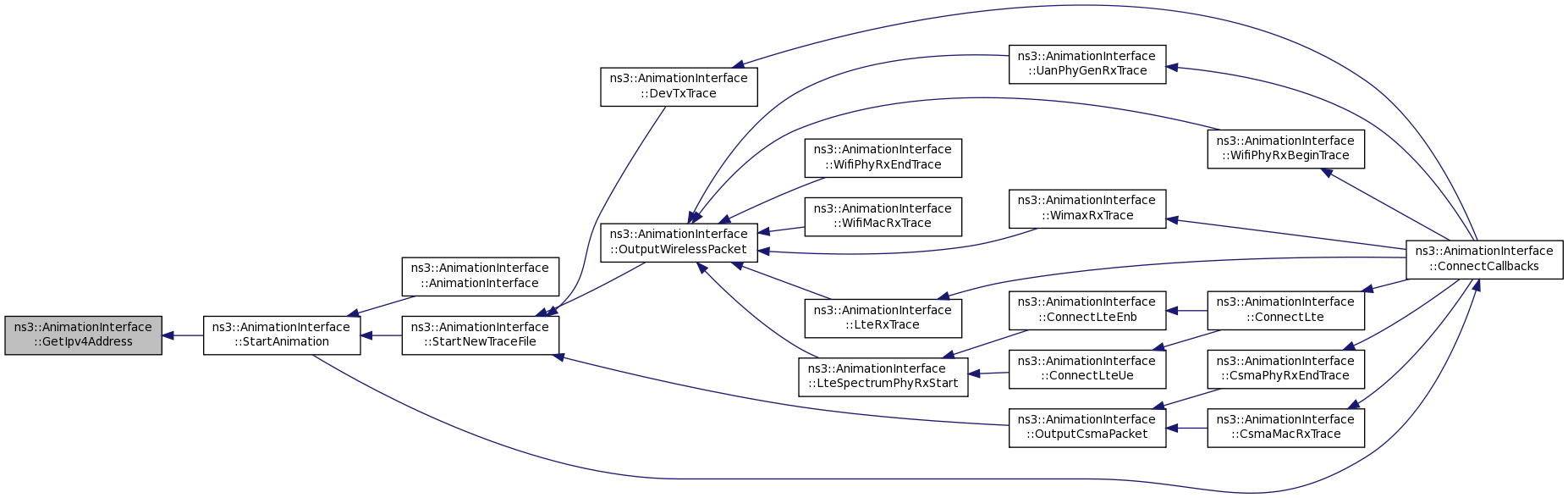

std::string GetIpv4Address (Ptr< NetDevice > nd)

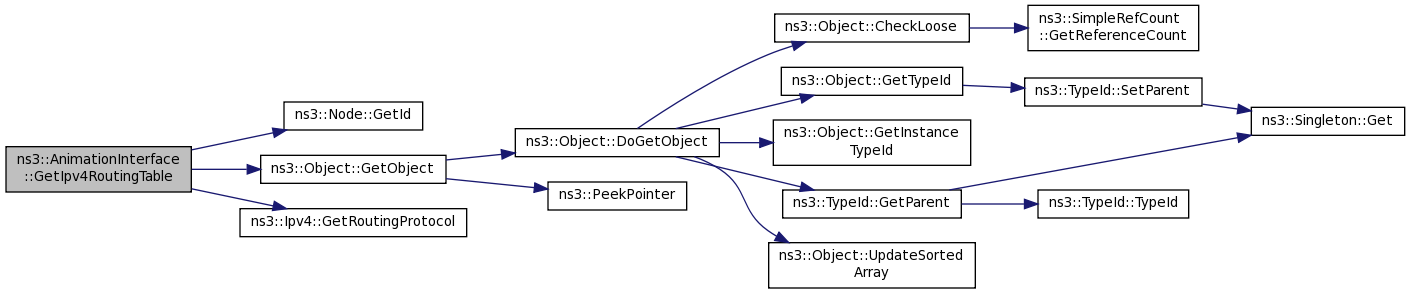

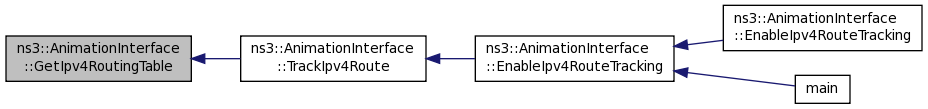

std::string GetIpv4RoutingTable (Ptr< Node > n)

std::string GetMacAddress (Ptr< NetDevice > nd)

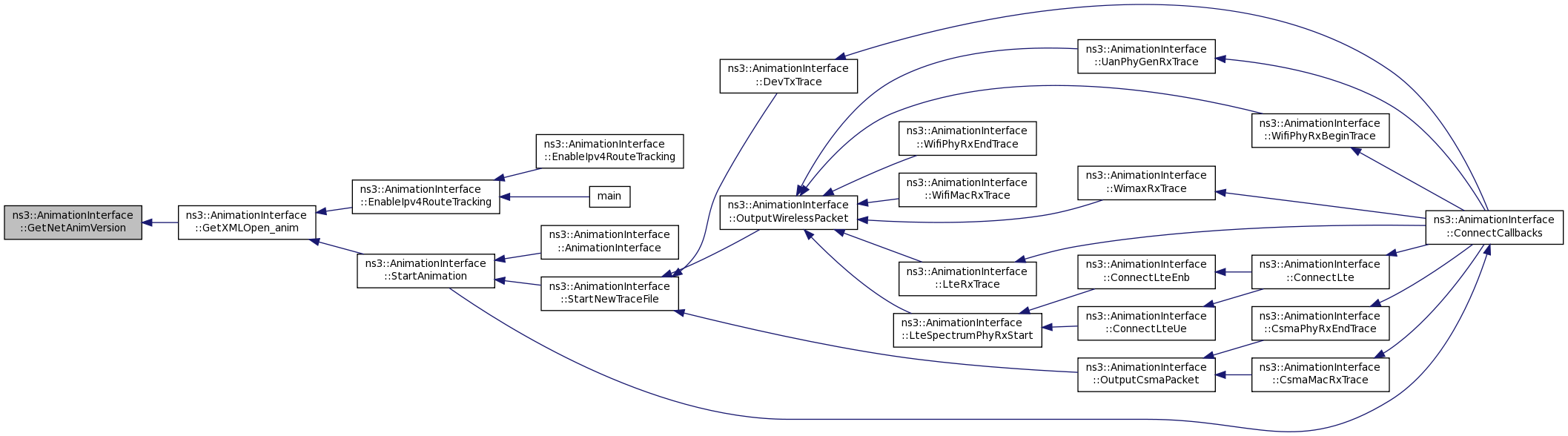

std::string GetNetAnimVersion ()

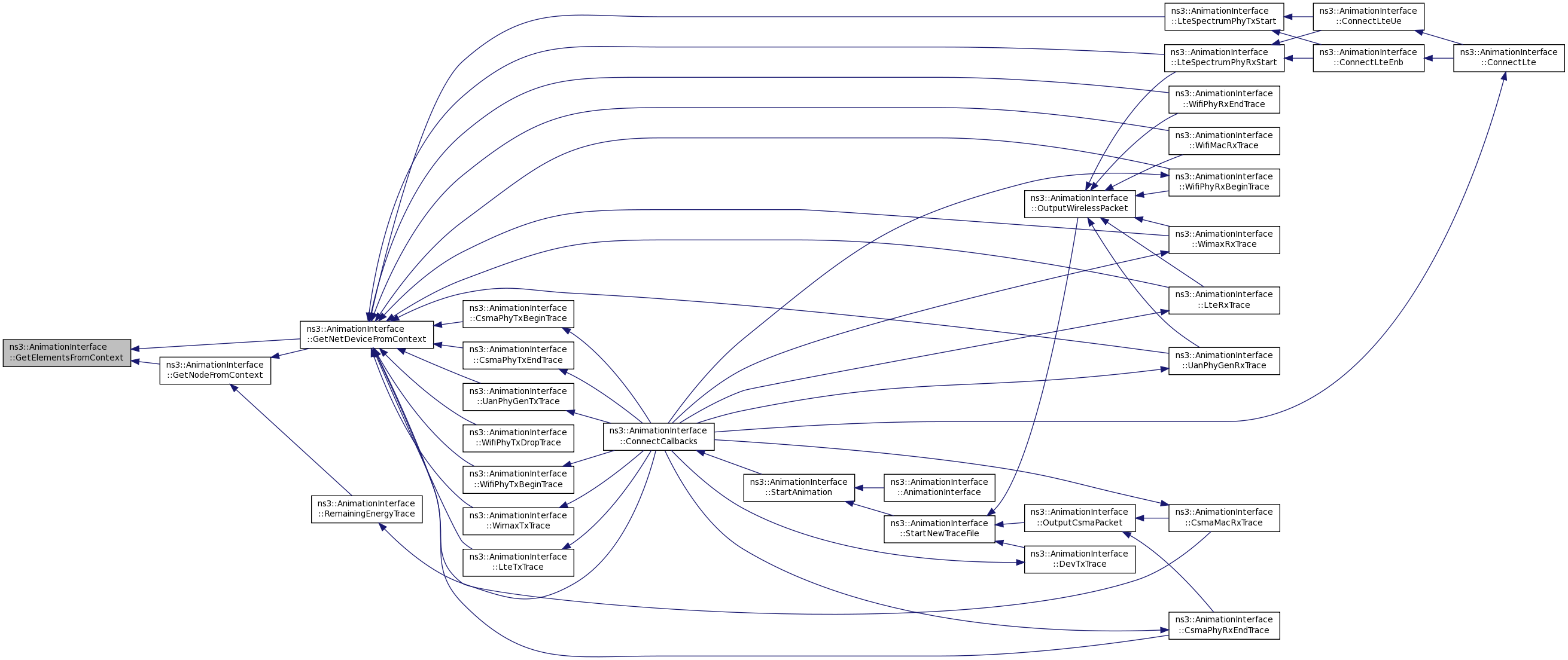

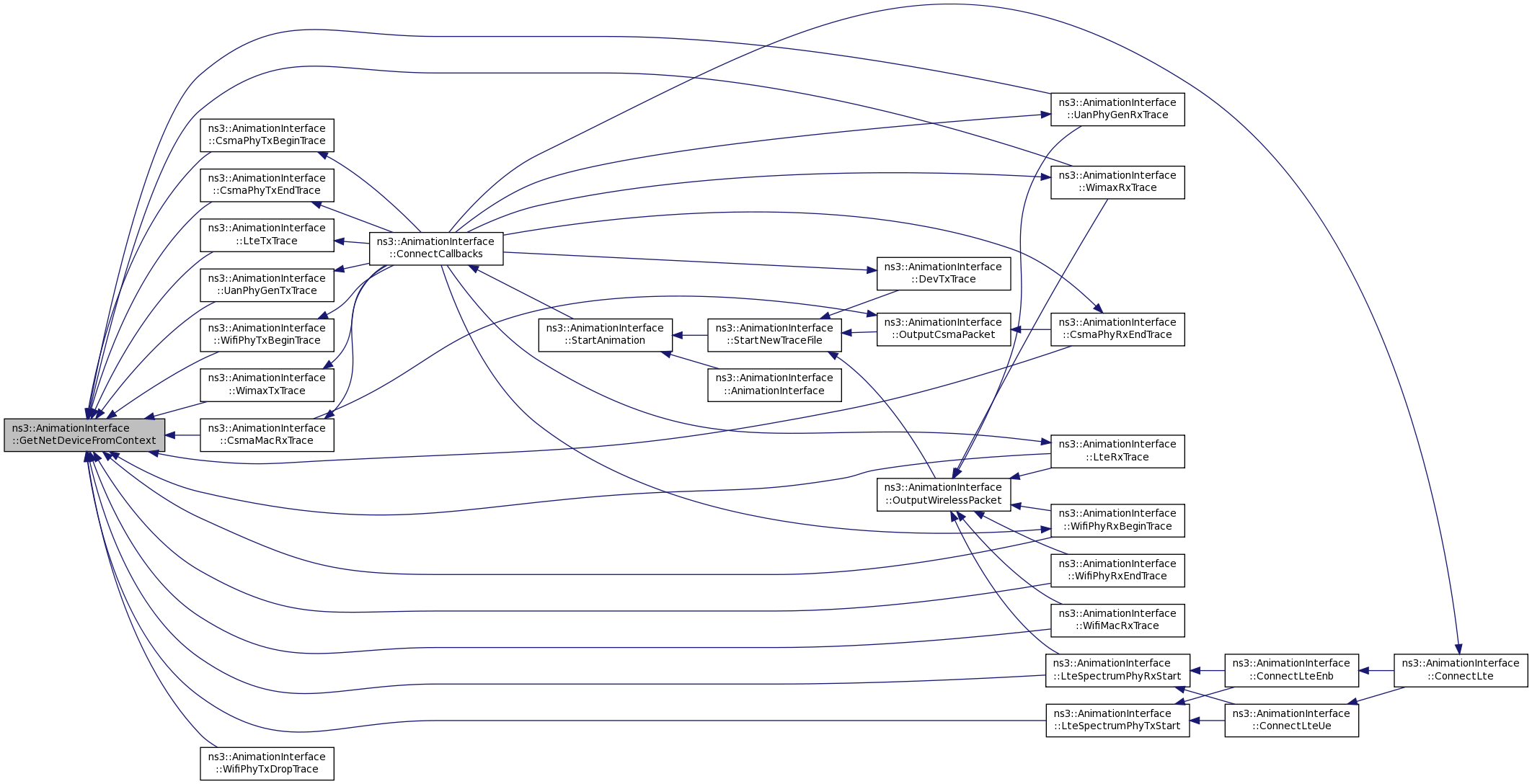

Ptr< NetDeviceGetNetDeviceFromContext (std::string context)

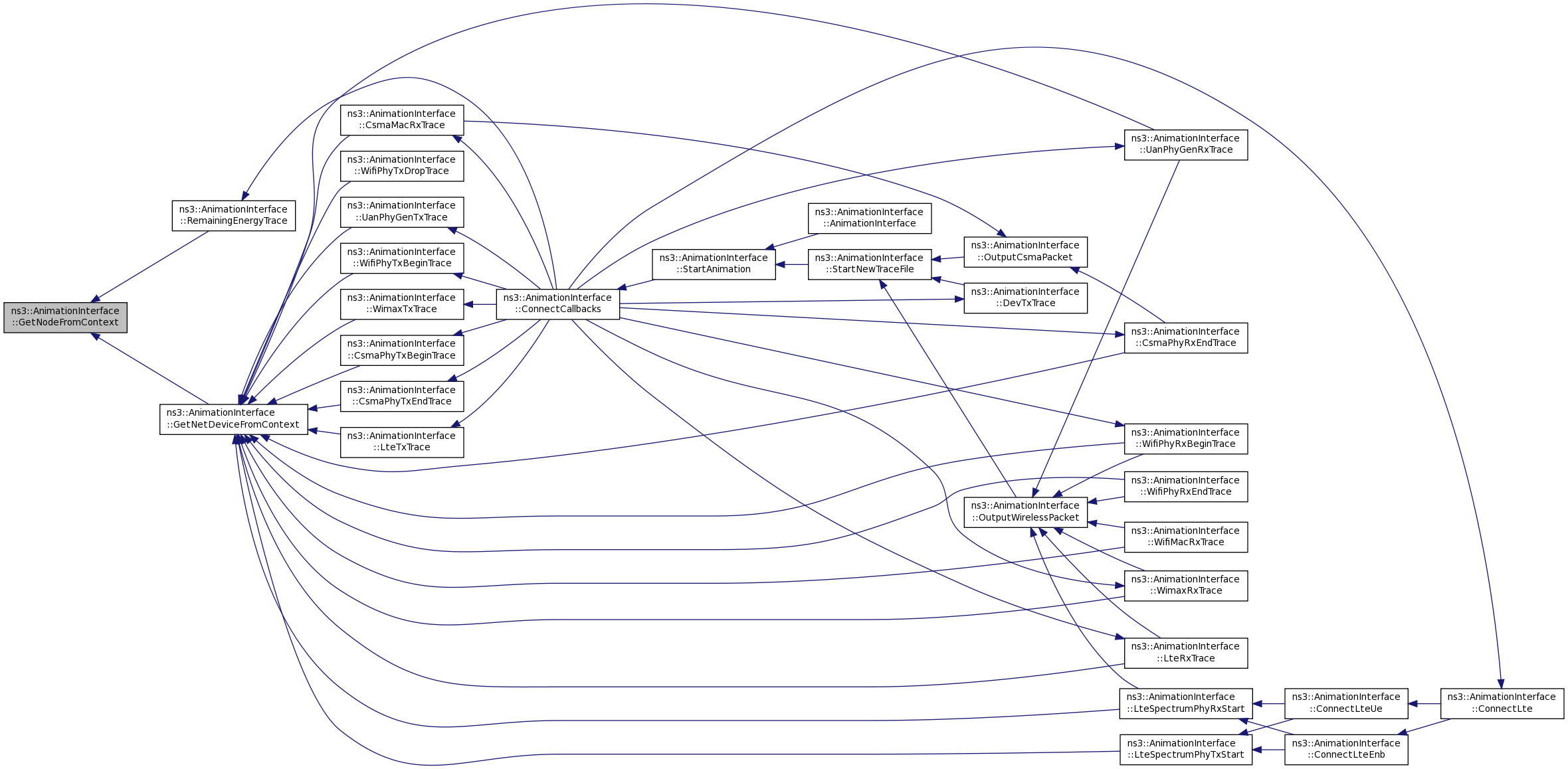

Ptr< NodeGetNodeFromContext (const std::string &context) const

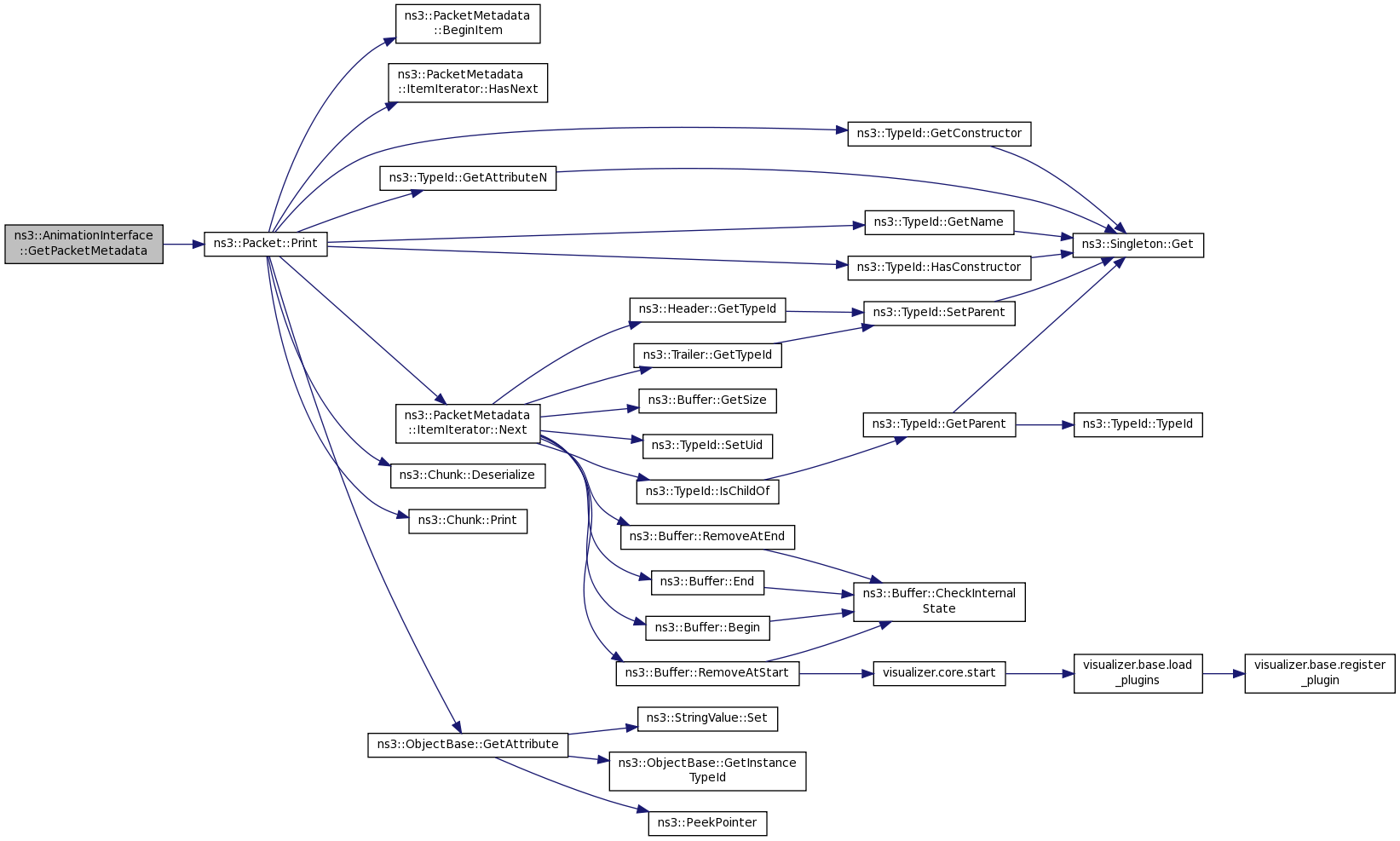

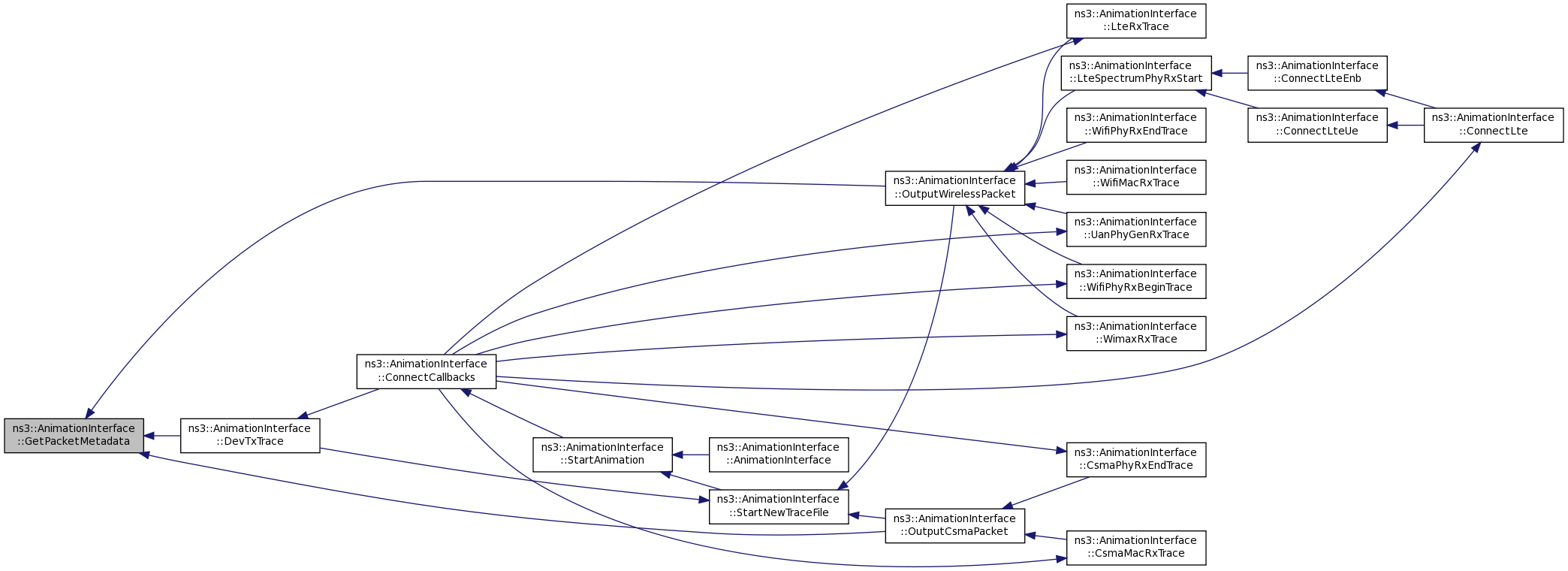

std::string GetPacketMetadata (Ptr< const Packet > p)

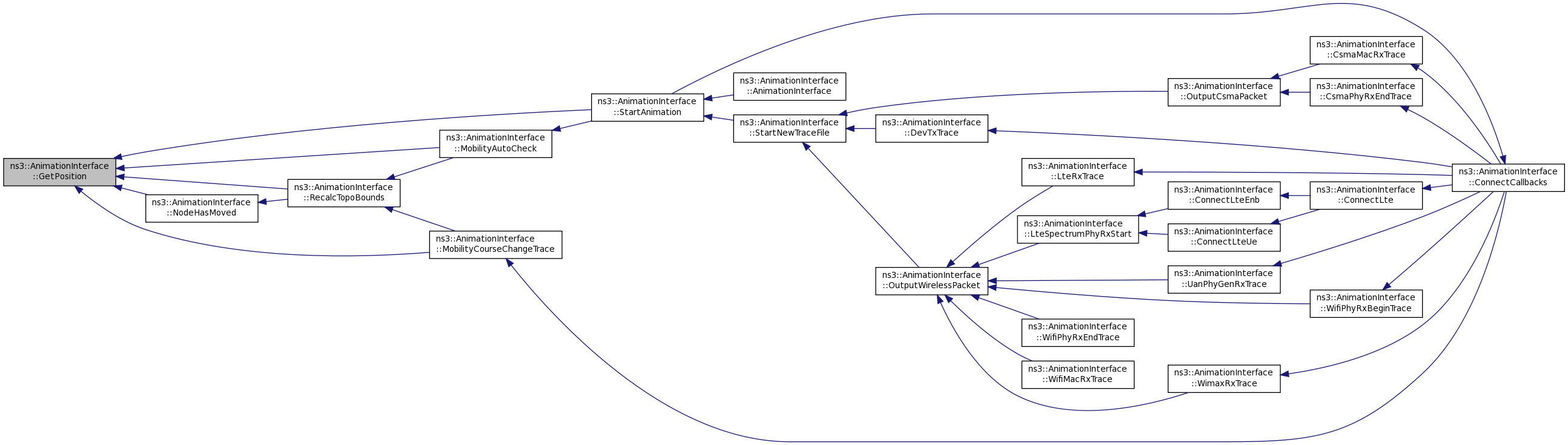

Vector GetPosition (Ptr< Node > n)

std::string GetPreamble (void)

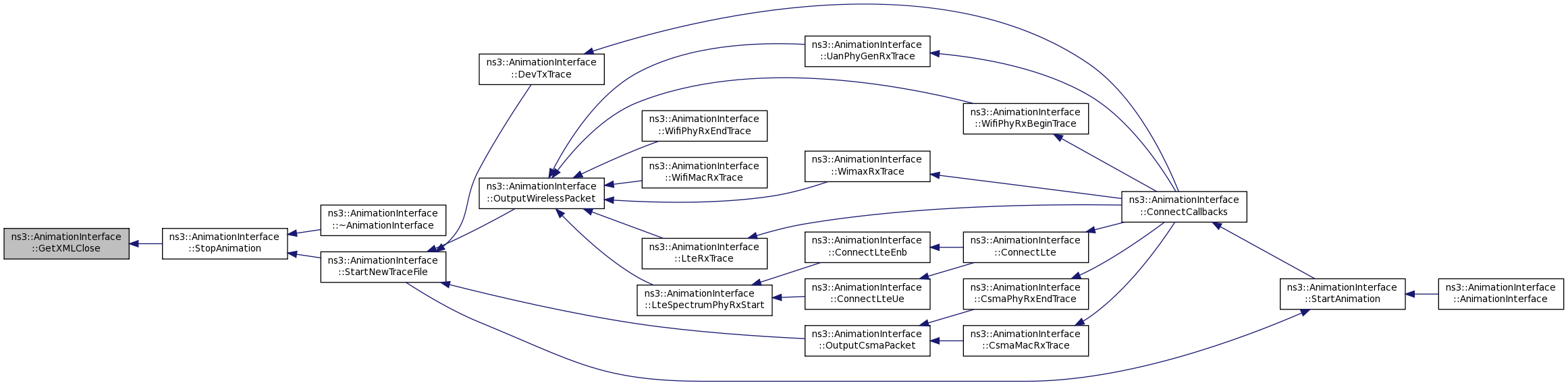

std::string GetXMLClose (std::string name)

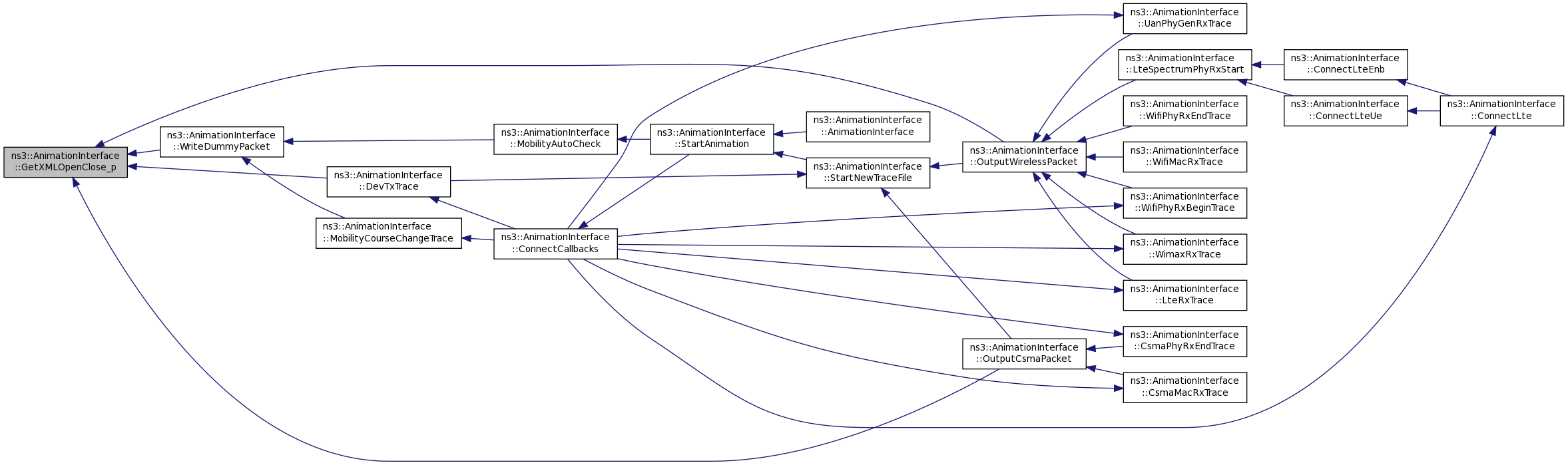

std::string GetXMLOpen_anim (uint32_t lp)

std::string GetXMLOpen_packet (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, std::string auxInfo="")

std::string GetXMLOpen_topology (double minX, double minY, double maxX, double maxY)

std::string GetXMLOpen_wpacket (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, double range)

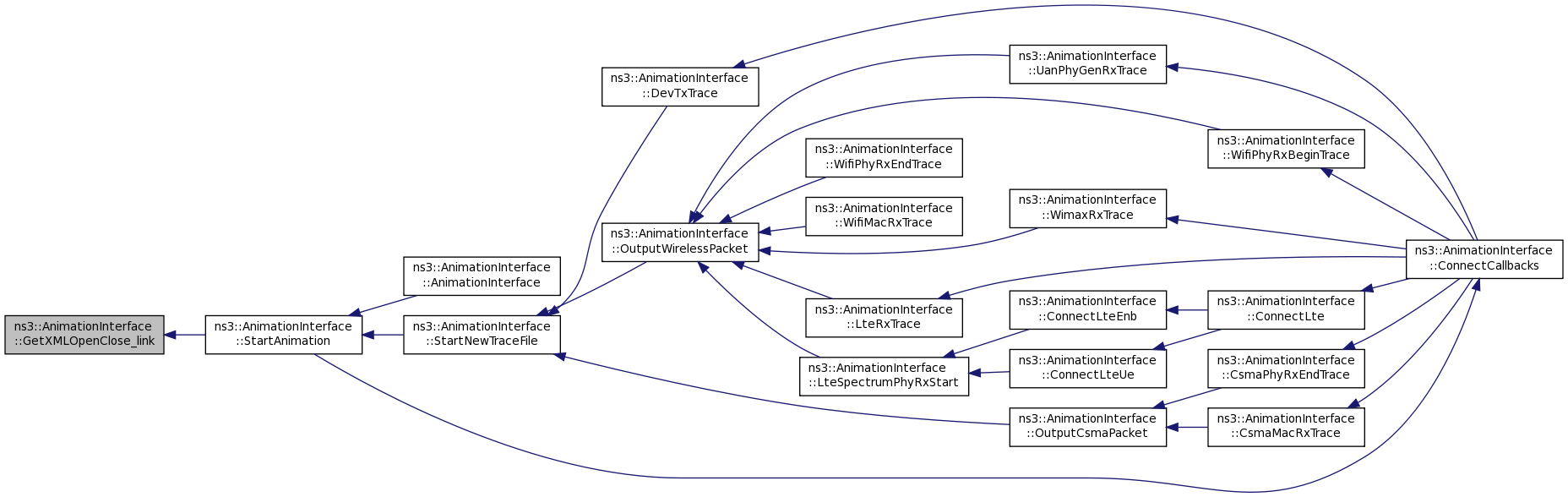

std::string GetXMLOpenClose_link (uint32_t fromLp, uint32_t fromId, uint32_t toLp, uint32_t toId)

std::string GetXMLOpenClose_linkupdate (uint32_t fromId, uint32_t toId, std::string)

std::string GetXMLOpenClose_meta (std::string metaInfo)

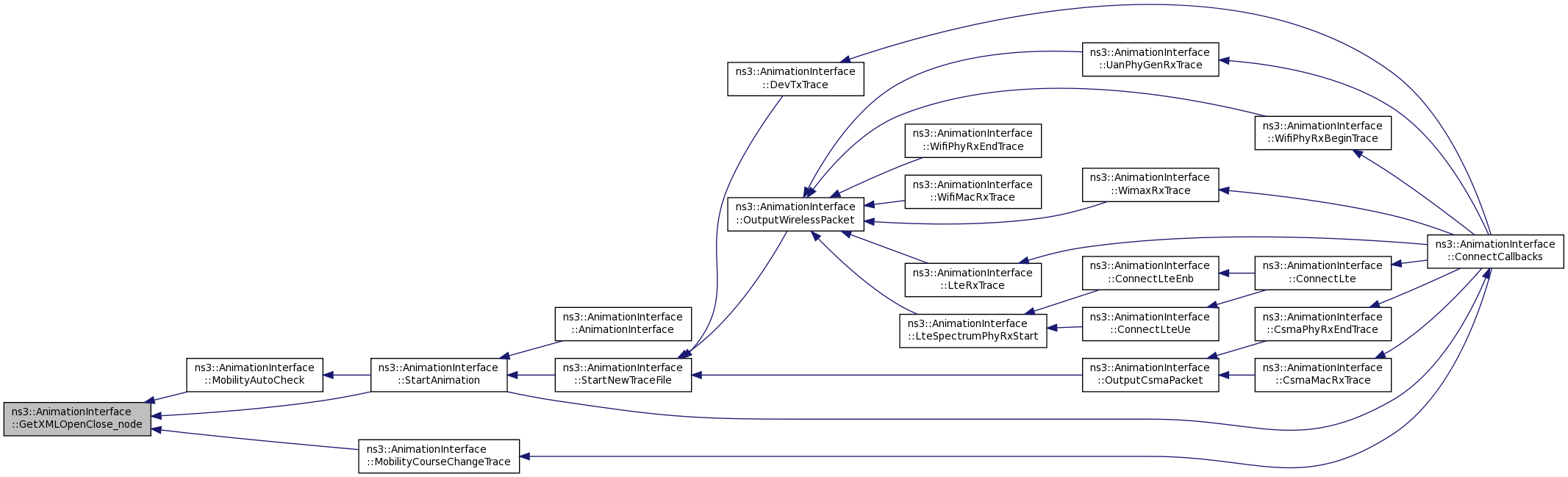

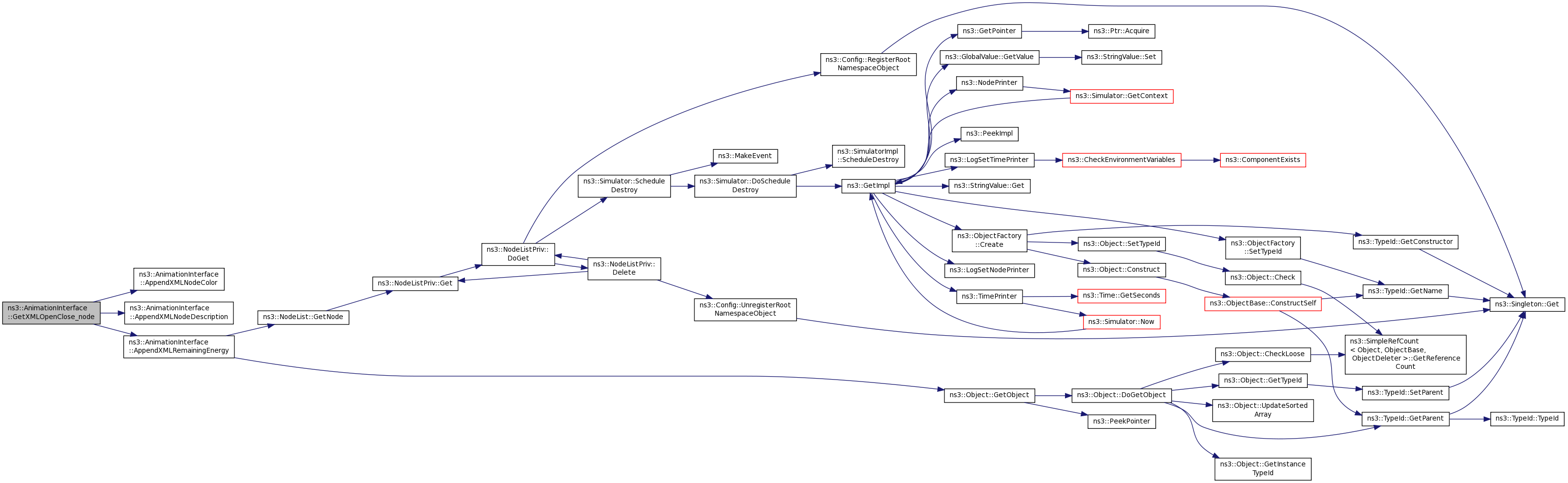

std::string GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY)

std::string GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY, struct Rgb rgb)

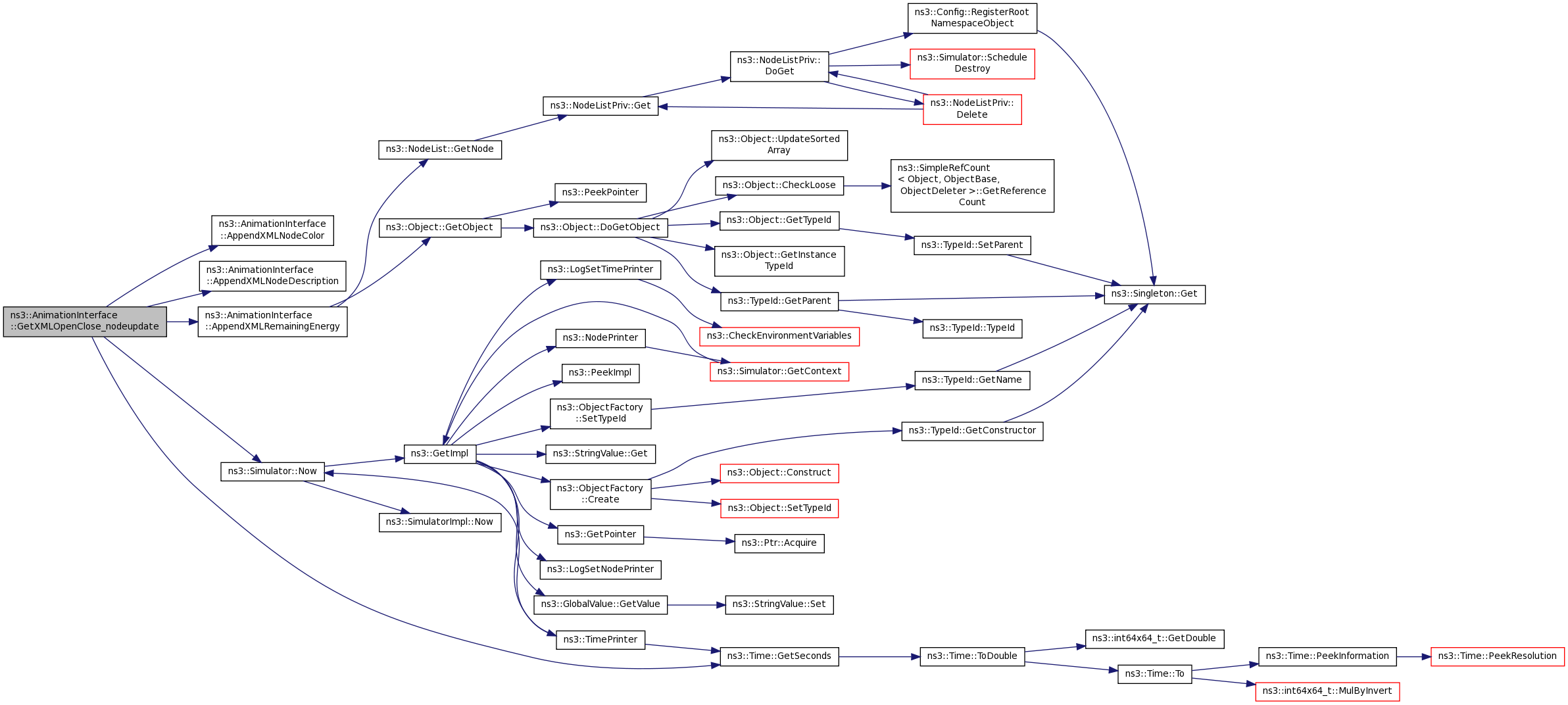

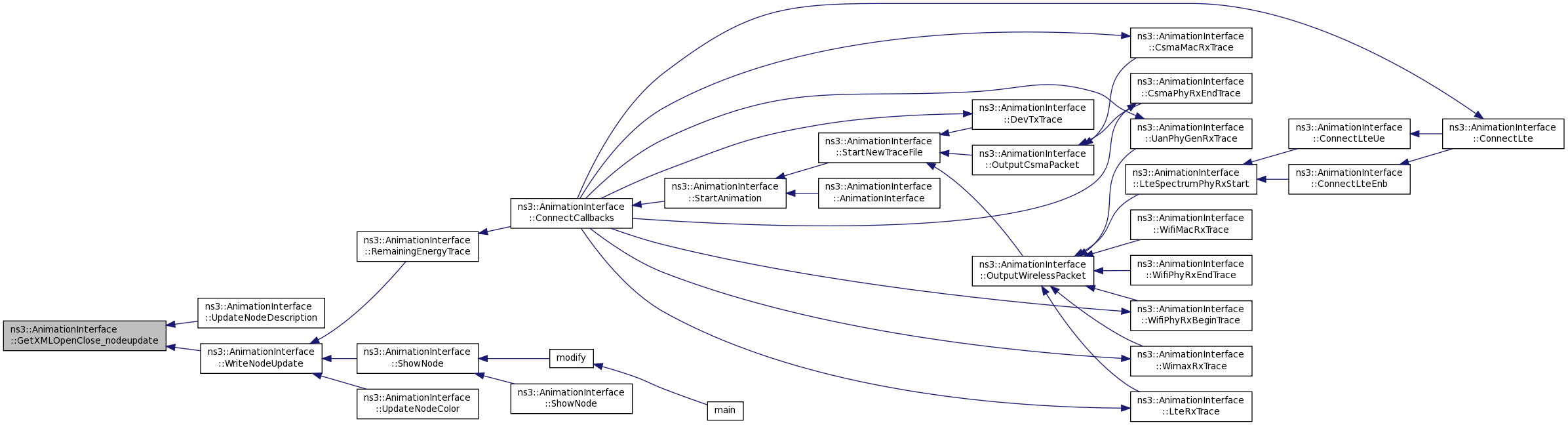

std::string GetXMLOpenClose_nodeupdate (uint32_t id, bool visible=true)

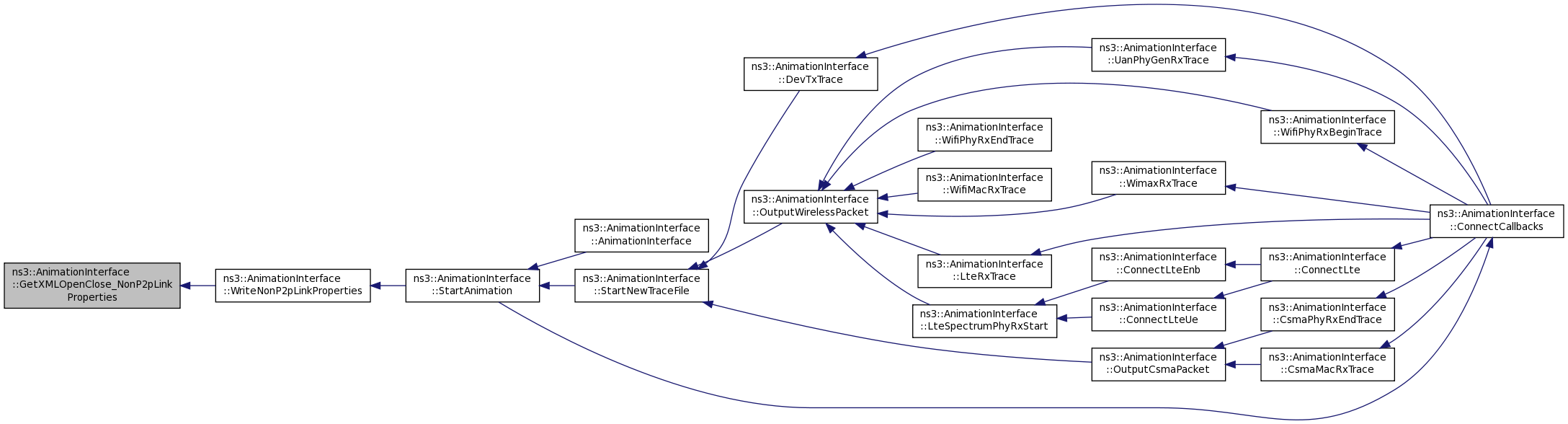

std::string GetXMLOpenClose_NonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

std::string GetXMLOpenClose_p (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="", std::string auxInfo="")

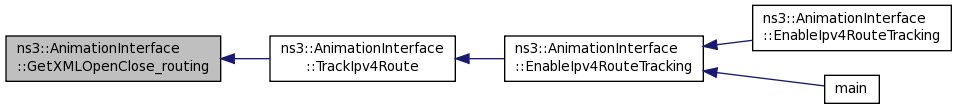

std::string GetXMLOpenClose_routing (uint32_t id, std::string routingInfo)

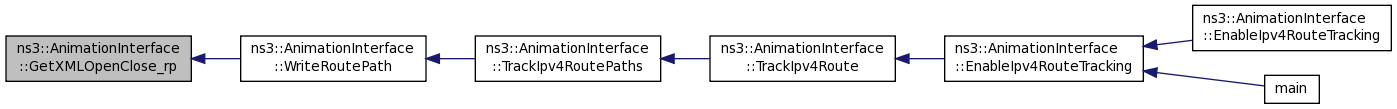

std::string GetXMLOpenClose_rp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

std::string GetXMLOpenClose_rx (uint32_t toLp, uint32_t toId, double fbRx, double lbRx)

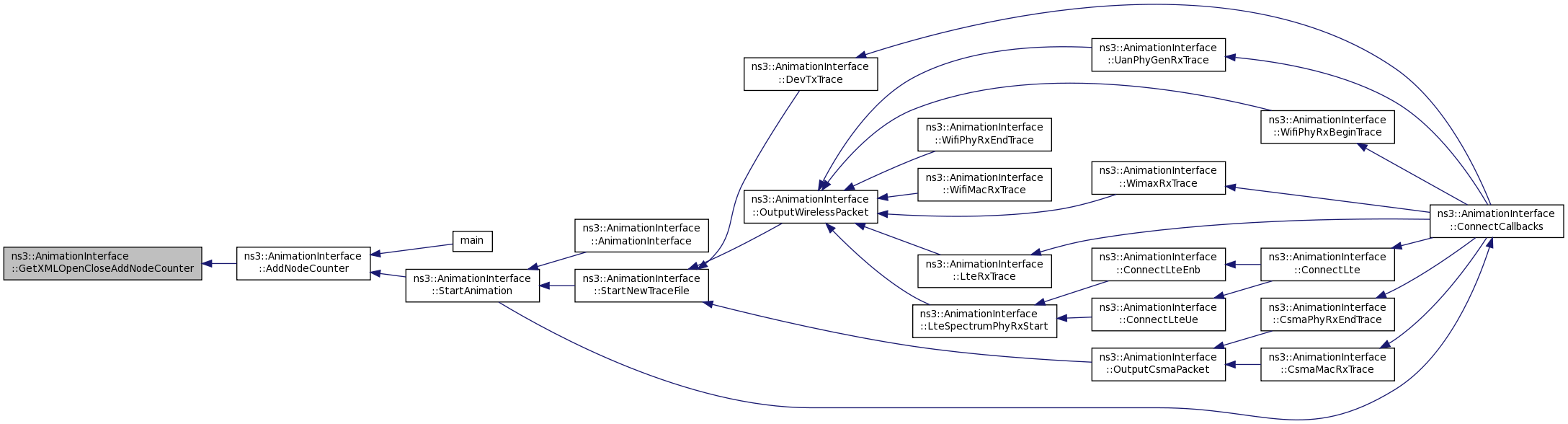

std::string GetXMLOpenCloseAddNodeCounter (uint32_t counterId, std::string counterName, CounterType counterType)

std::string GetXMLOpenCloseAddResource (uint32_t resourceId, std::string resourcePath)

std::string GetXMLOpenCloseUpdateBackground (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)

std::string GetXMLOpenCloseUpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)

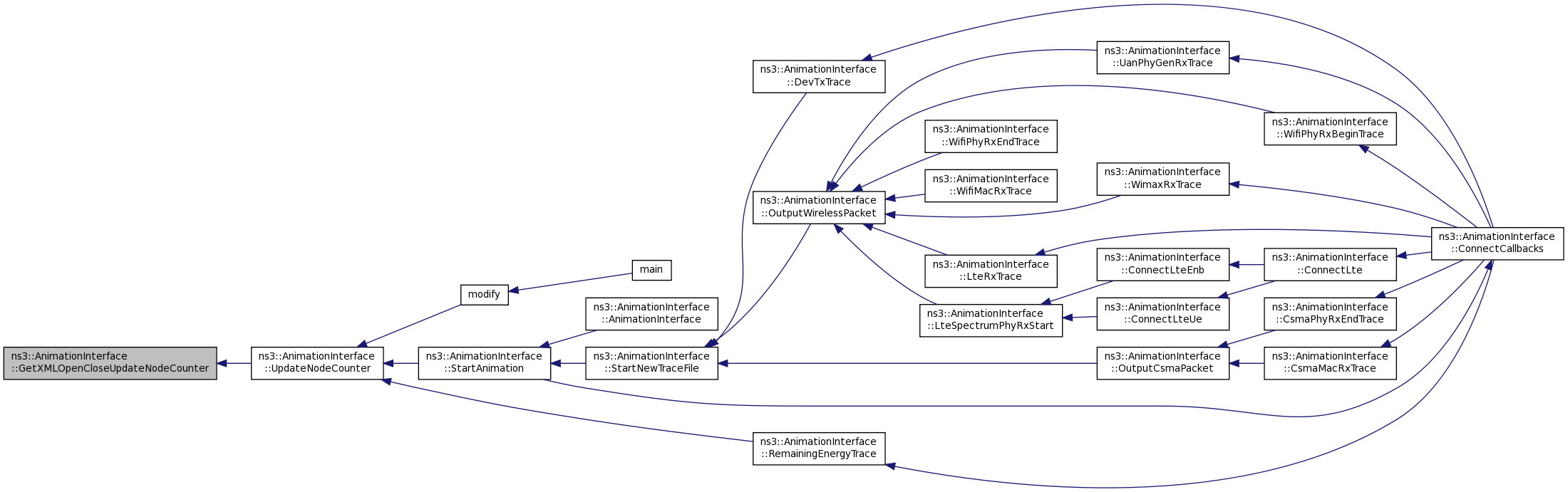

std::string GetXMLOpenCloseUpdateNodeCounter (uint32_t counterId, uint32_t nodeId, double value)

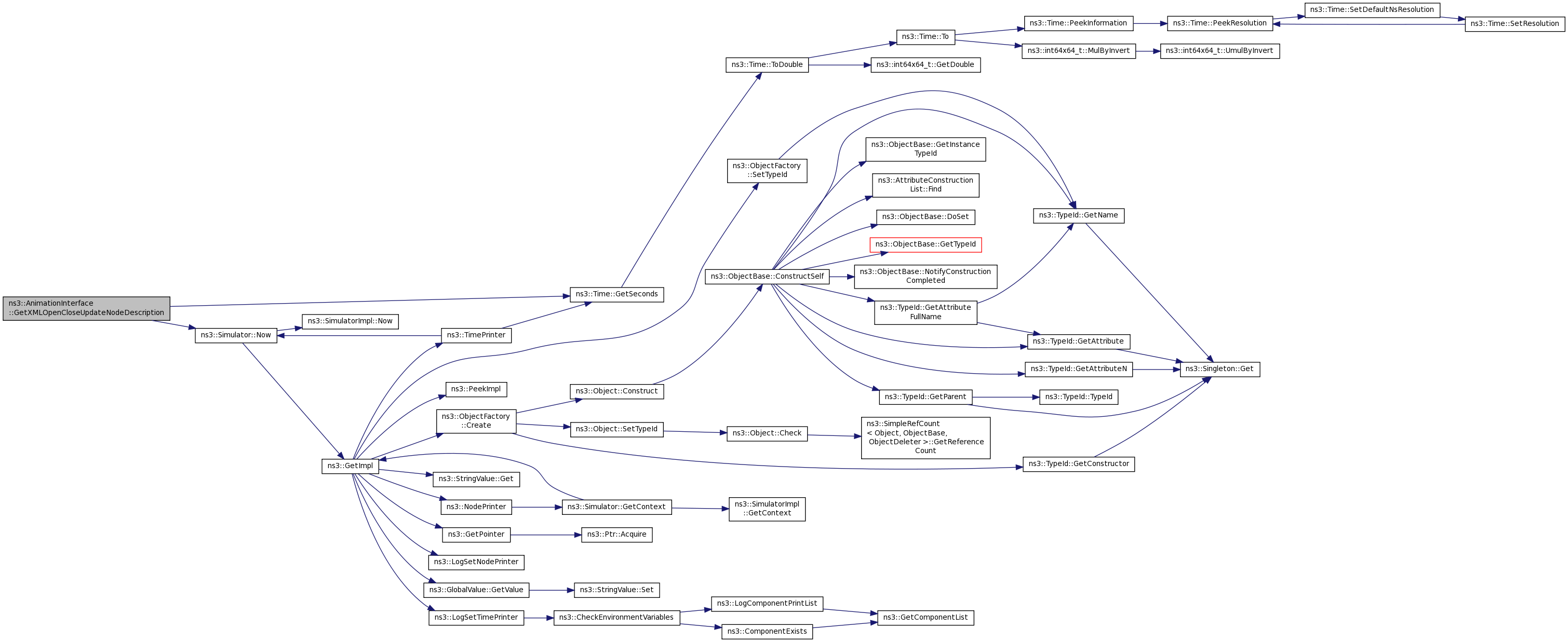

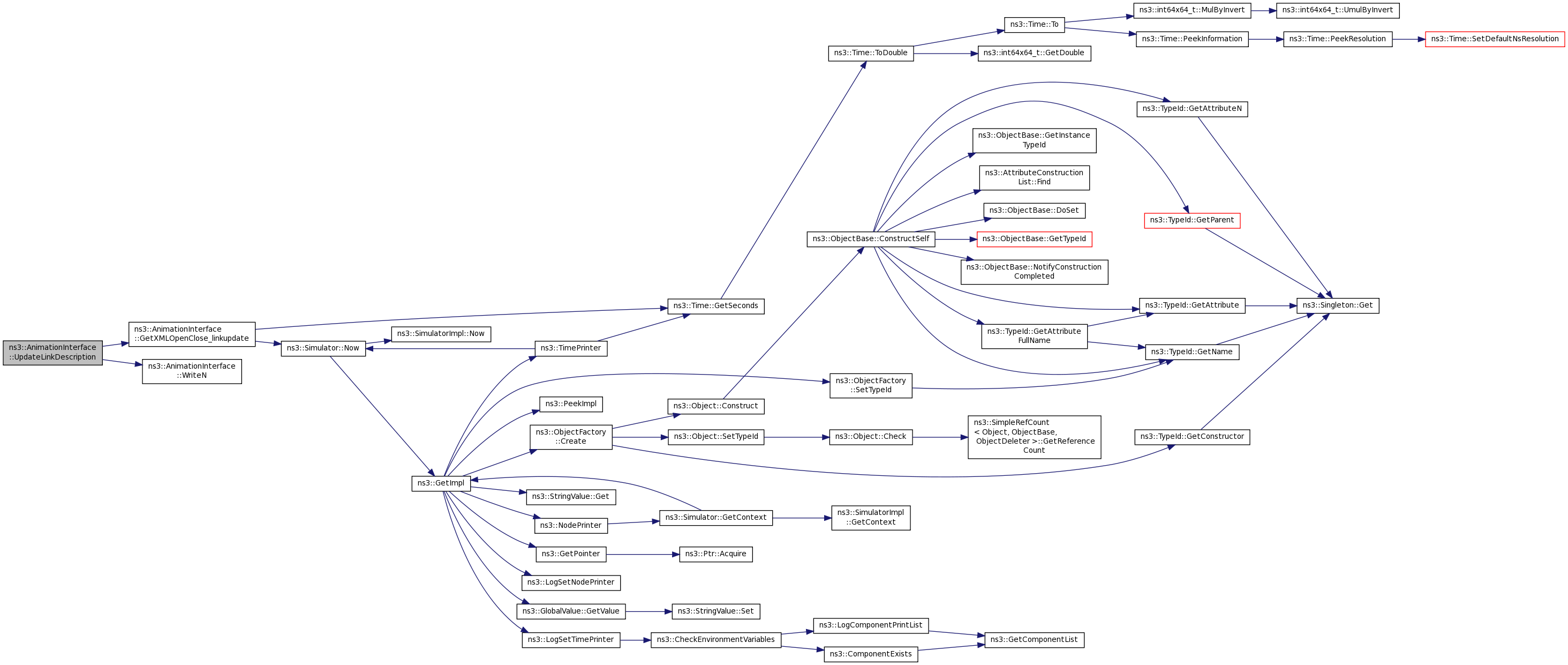

std::string GetXMLOpenCloseUpdateNodeDescription (uint32_t nodeId)

std::string GetXMLOpenCloseUpdateNodeImage (uint32_t nodeId, uint32_t resourceId)

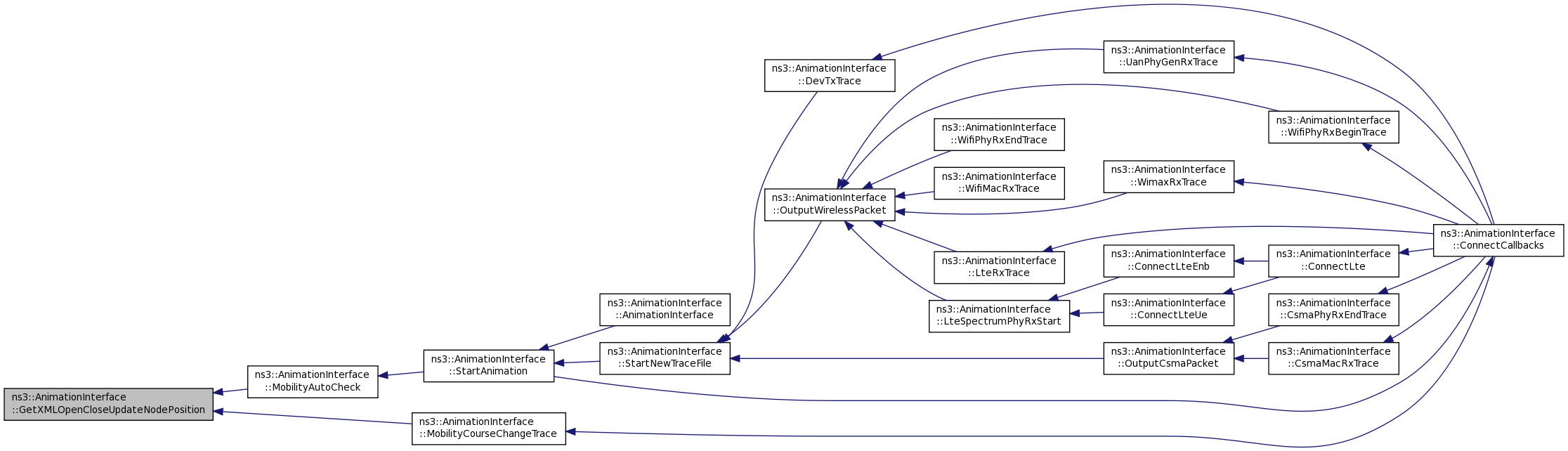

std::string GetXMLOpenCloseUpdateNodePosition (uint32_t nodeId, double x, double y)

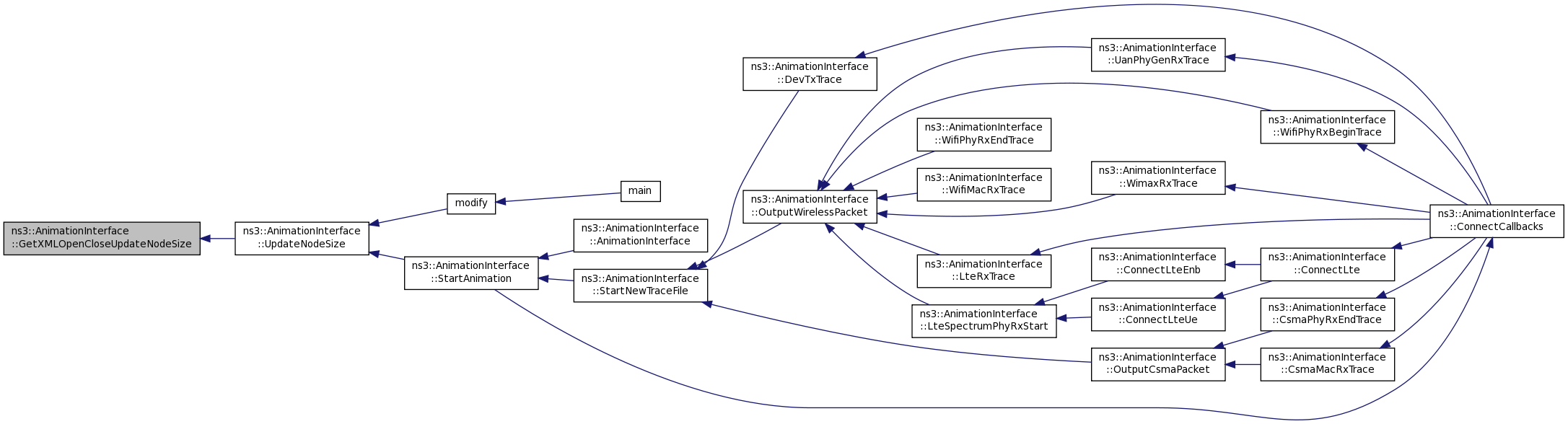

std::string GetXMLOpenCloseUpdateNodeSize (uint32_t nodeId, double width, double height)

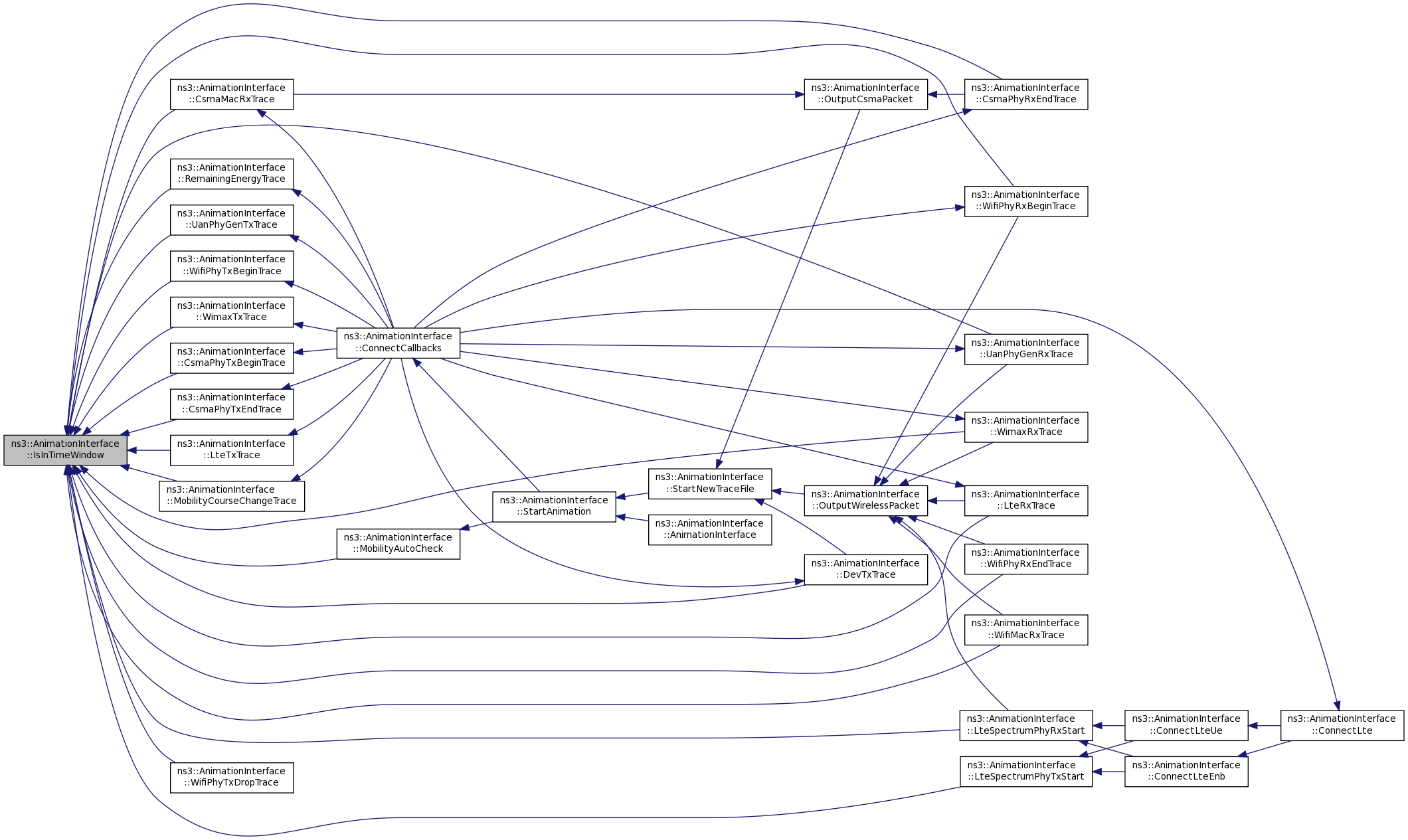

bool IsInTimeWindow ()

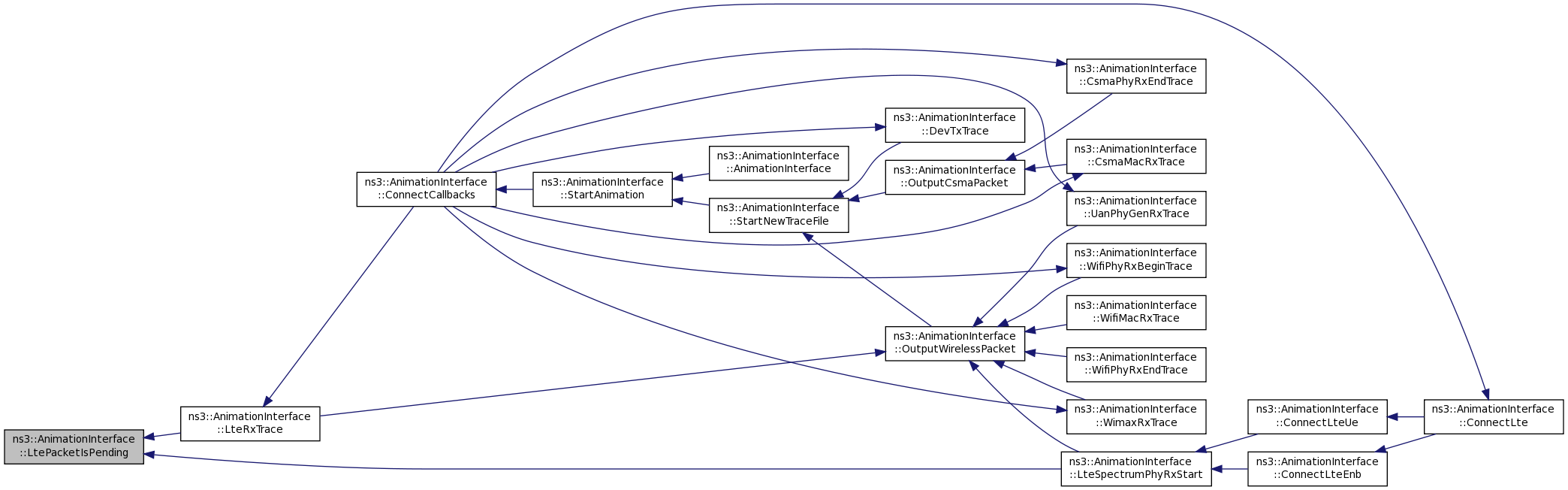

bool LtePacketIsPending (uint64_t AnimUid)

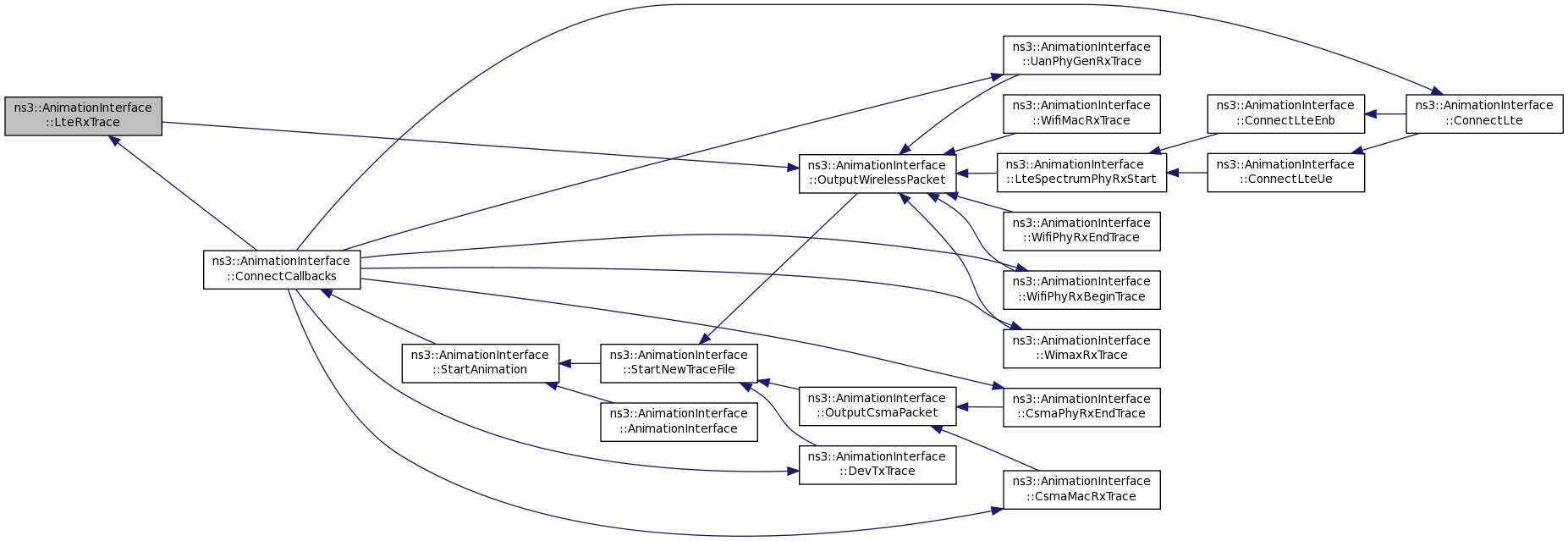

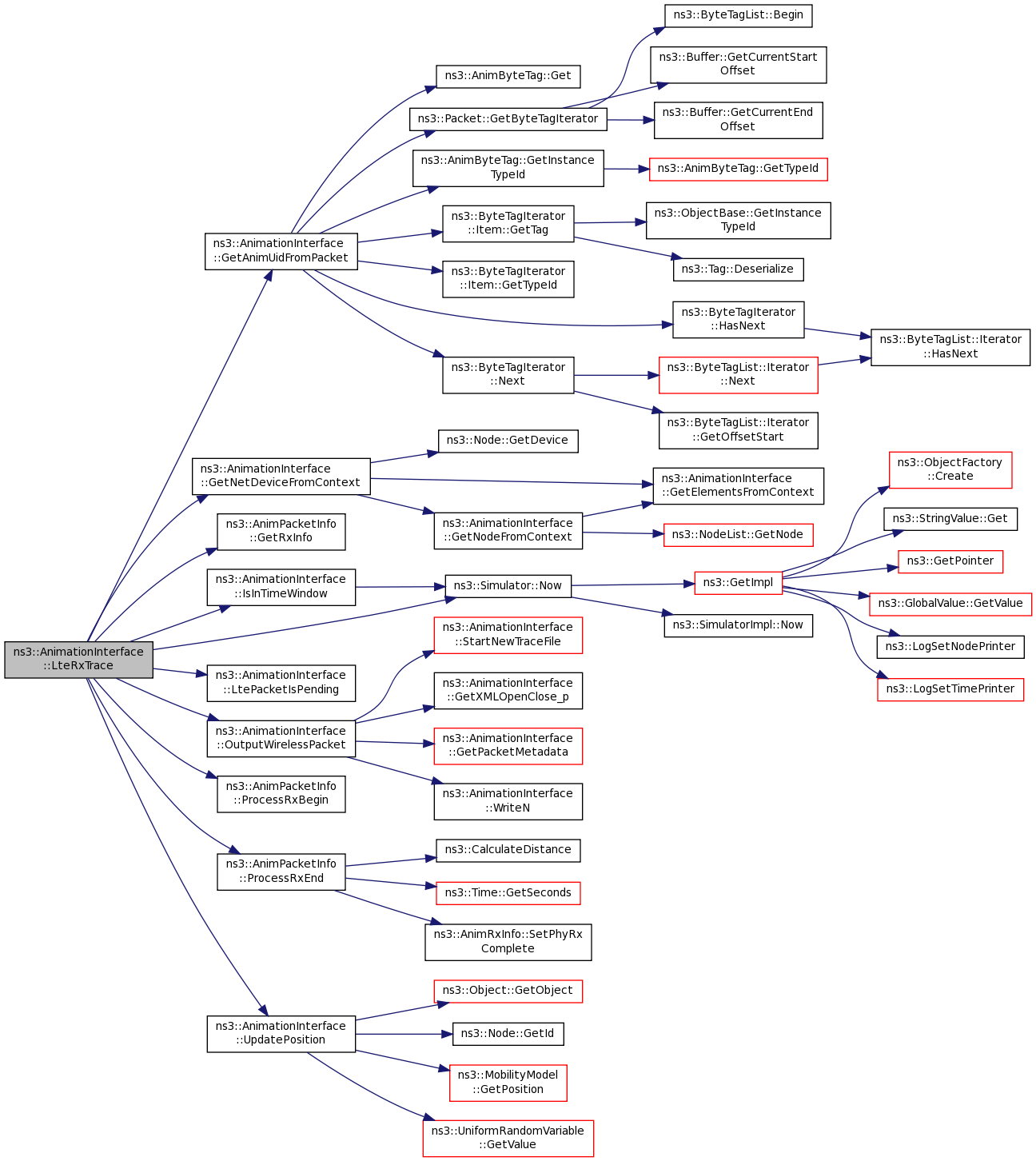

void LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

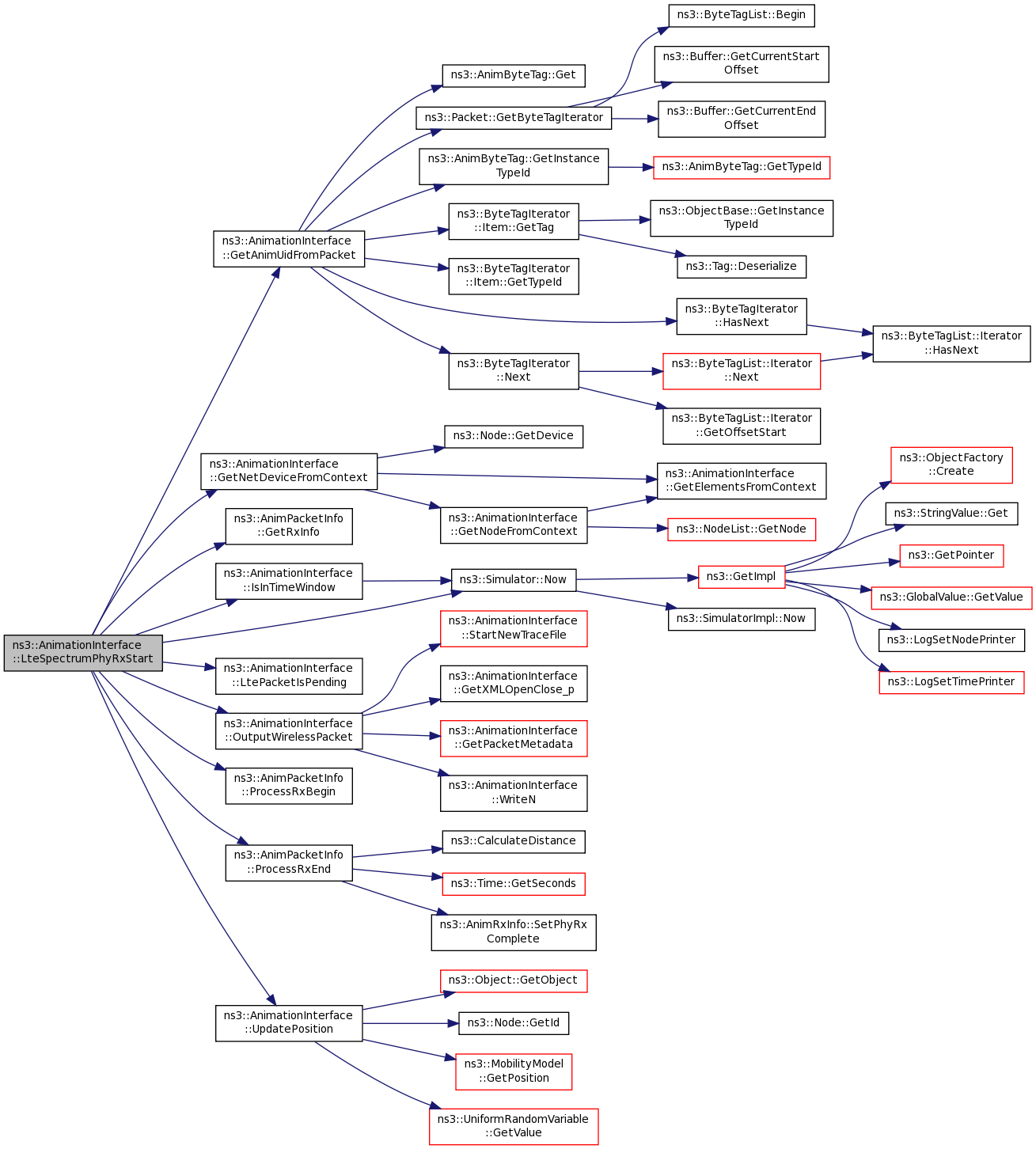

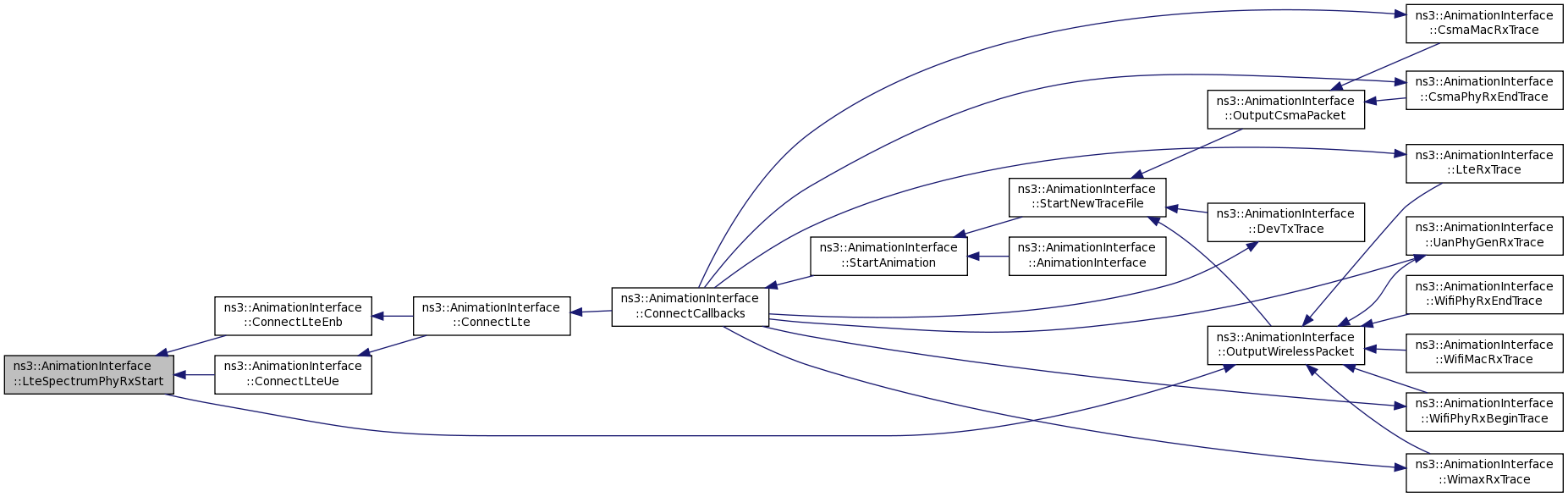

void LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)

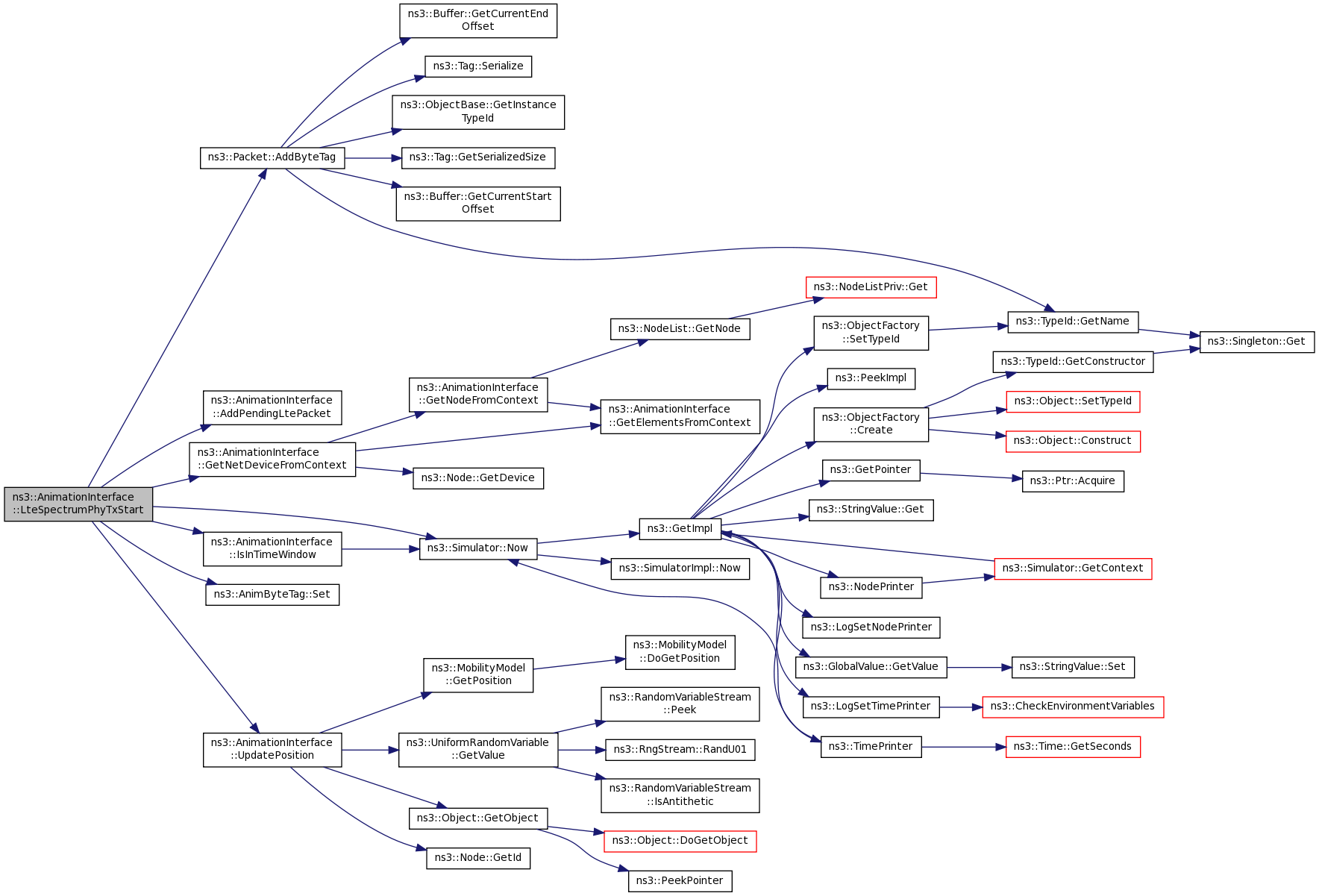

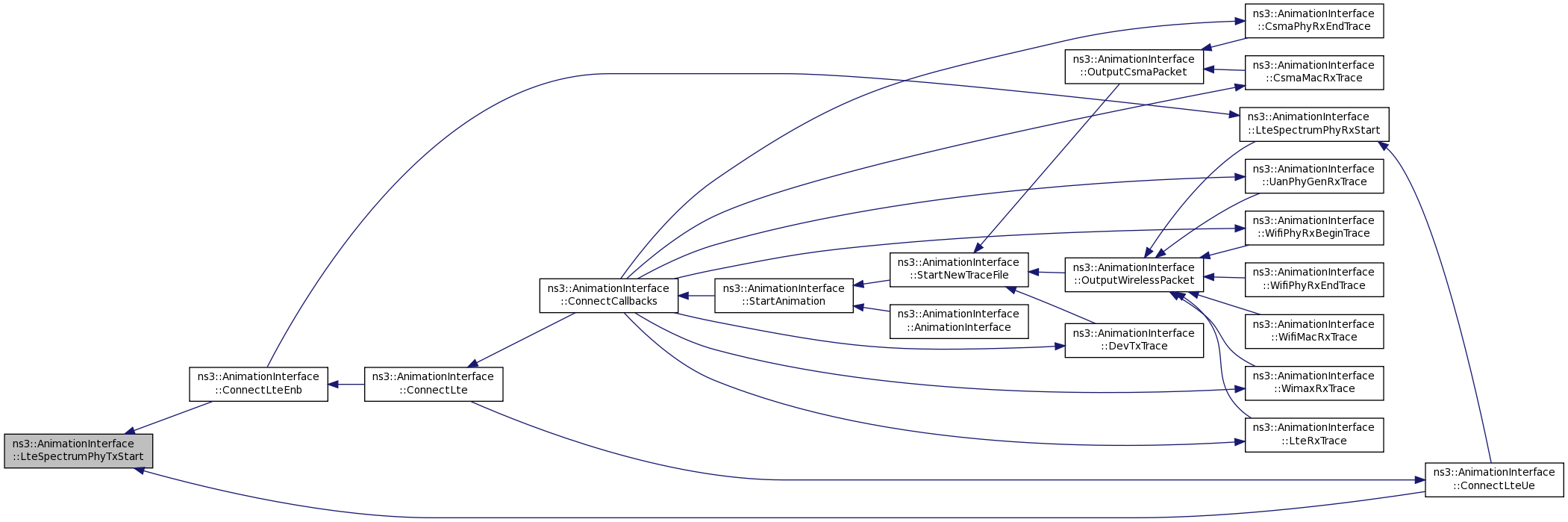

void LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)

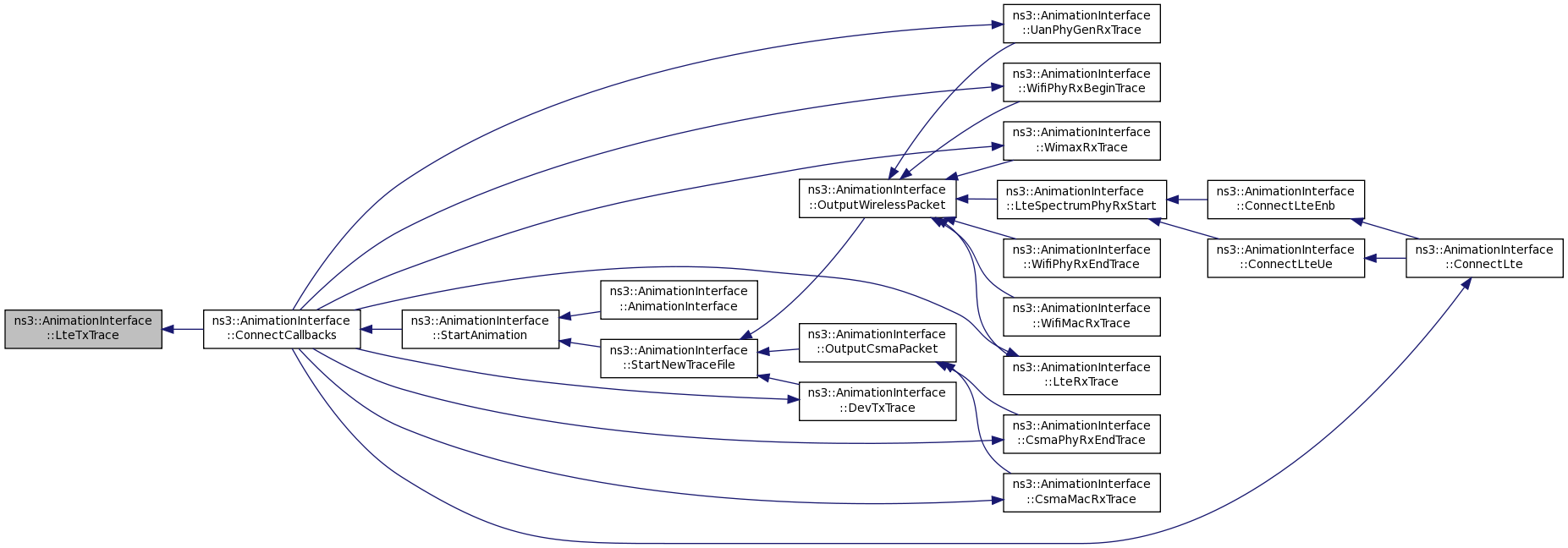

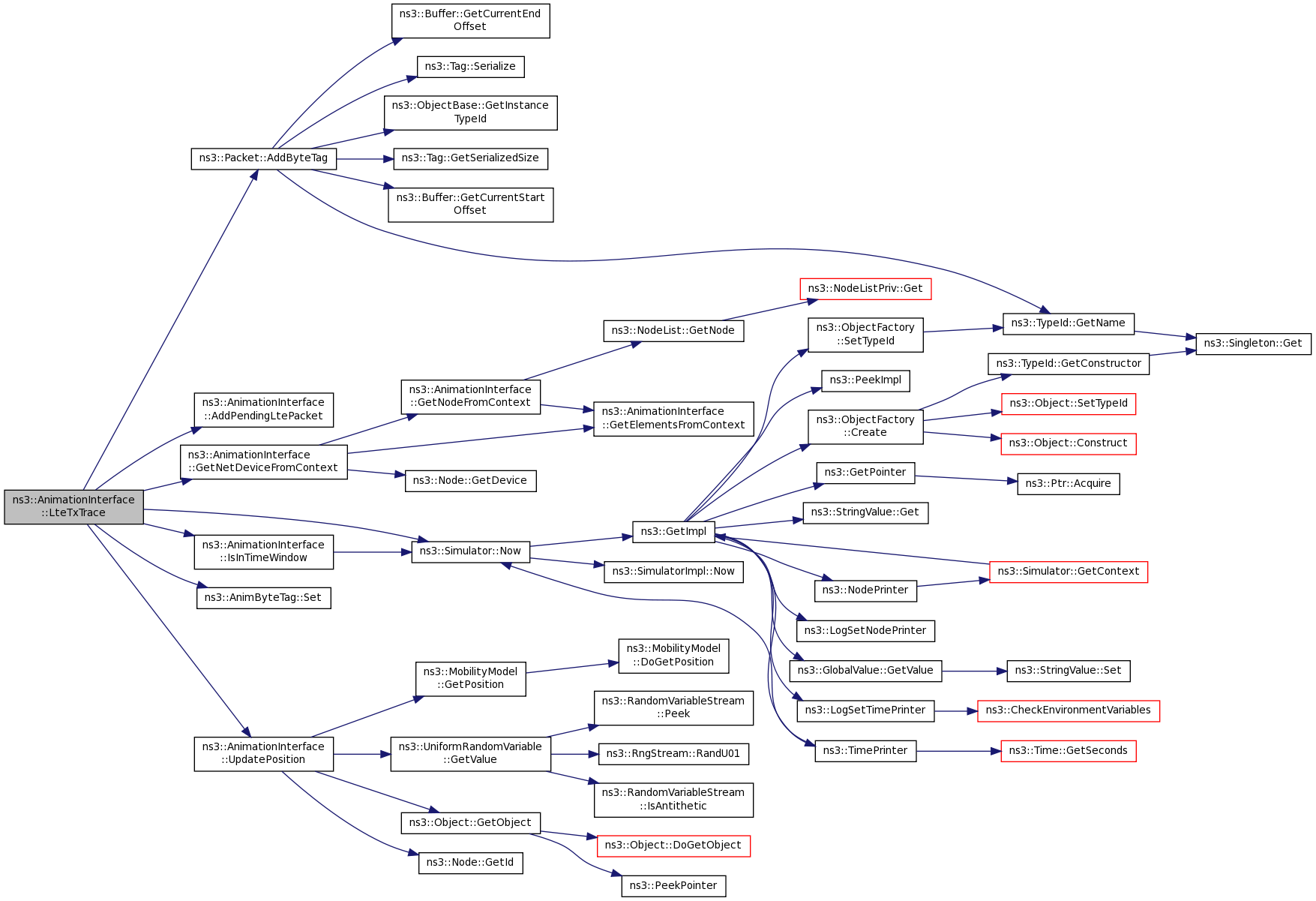

void LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

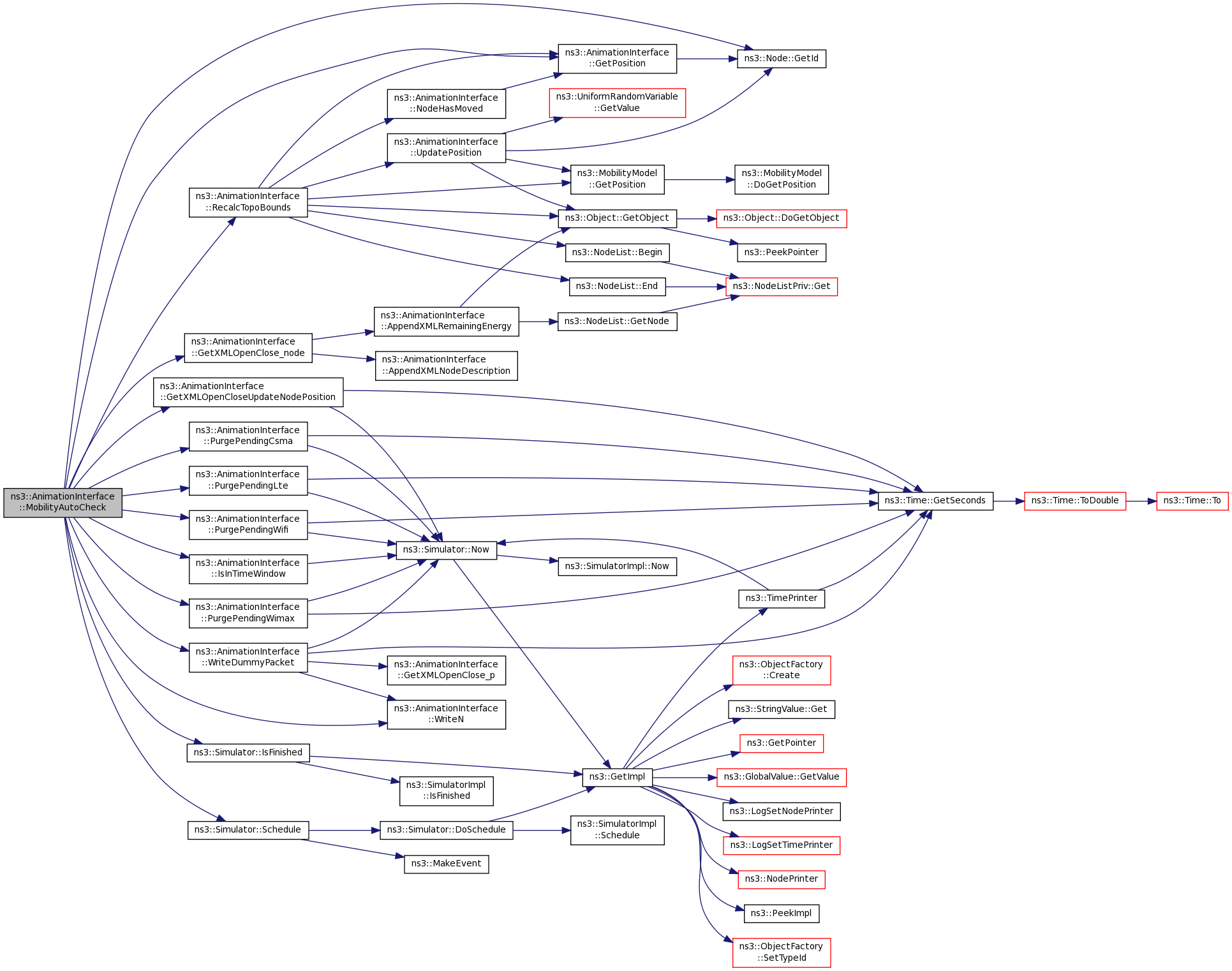

void MobilityAutoCheck ()

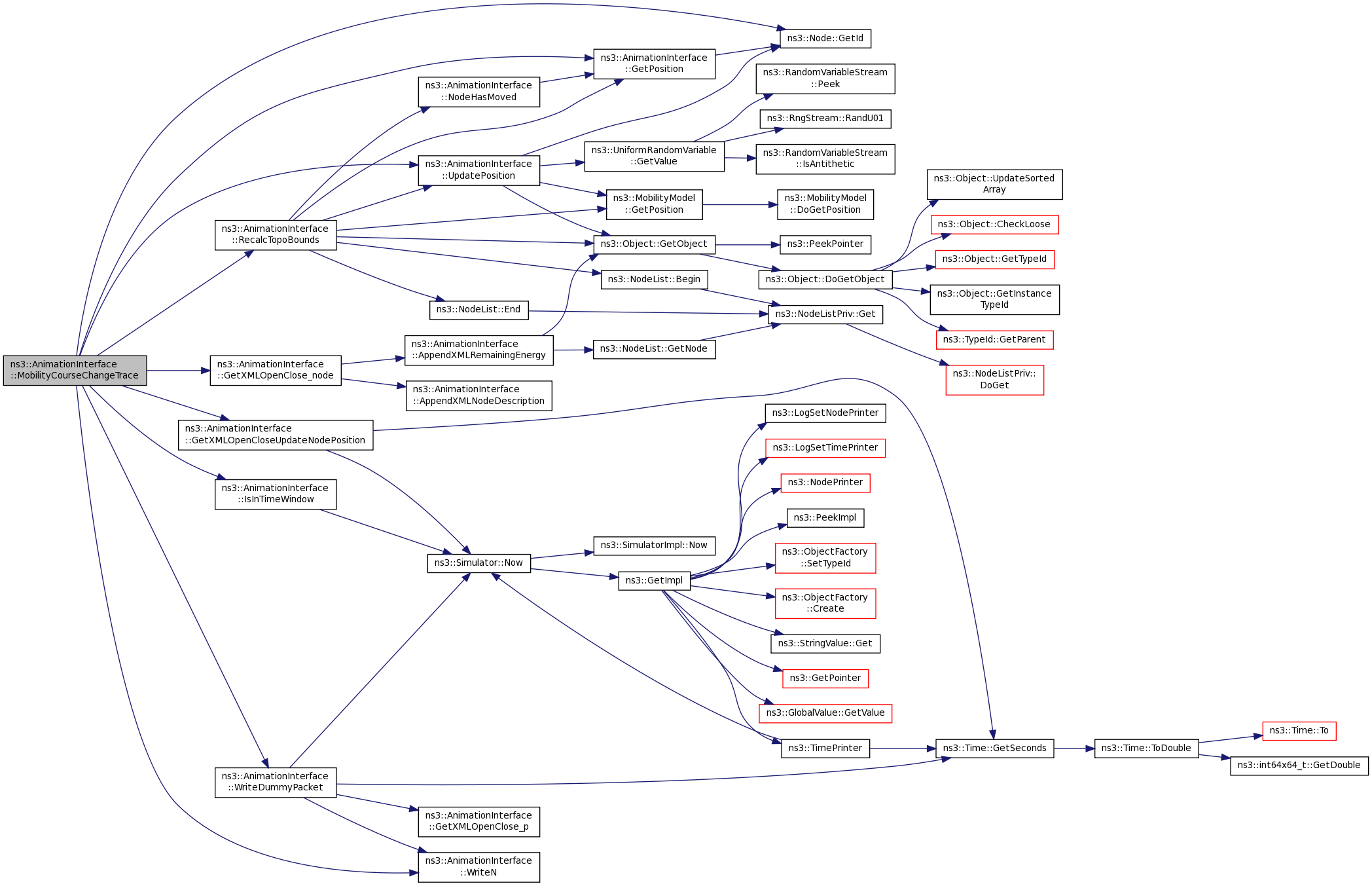

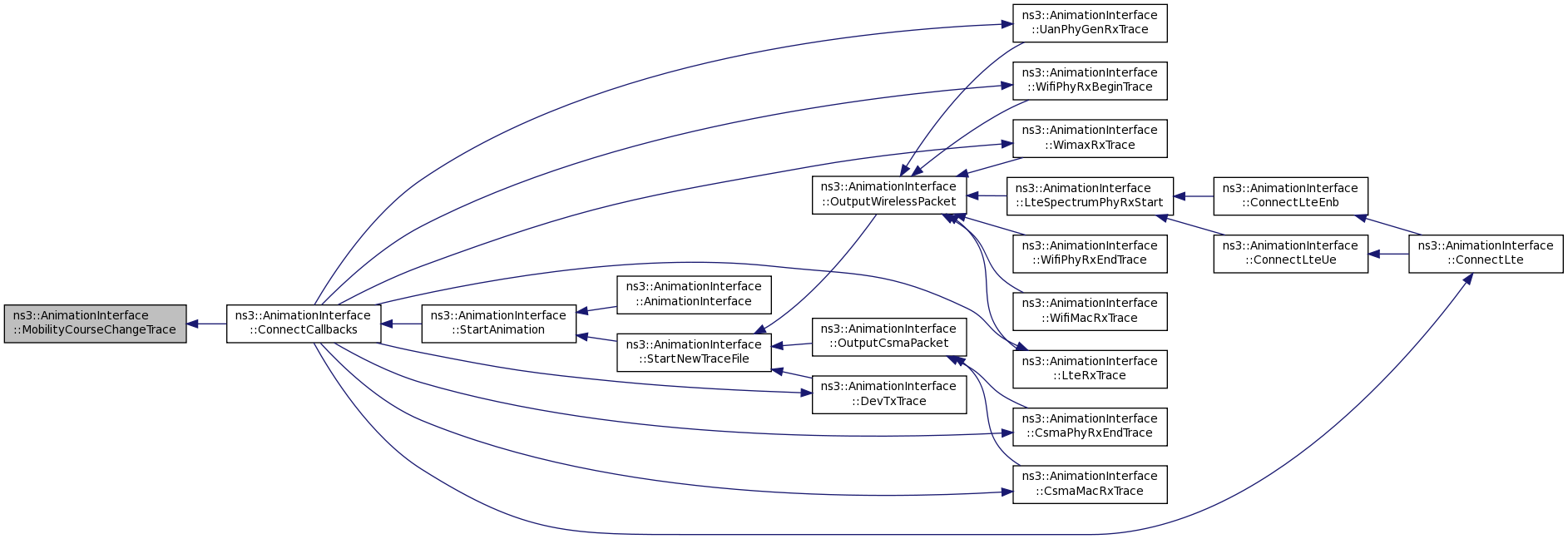

void MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)

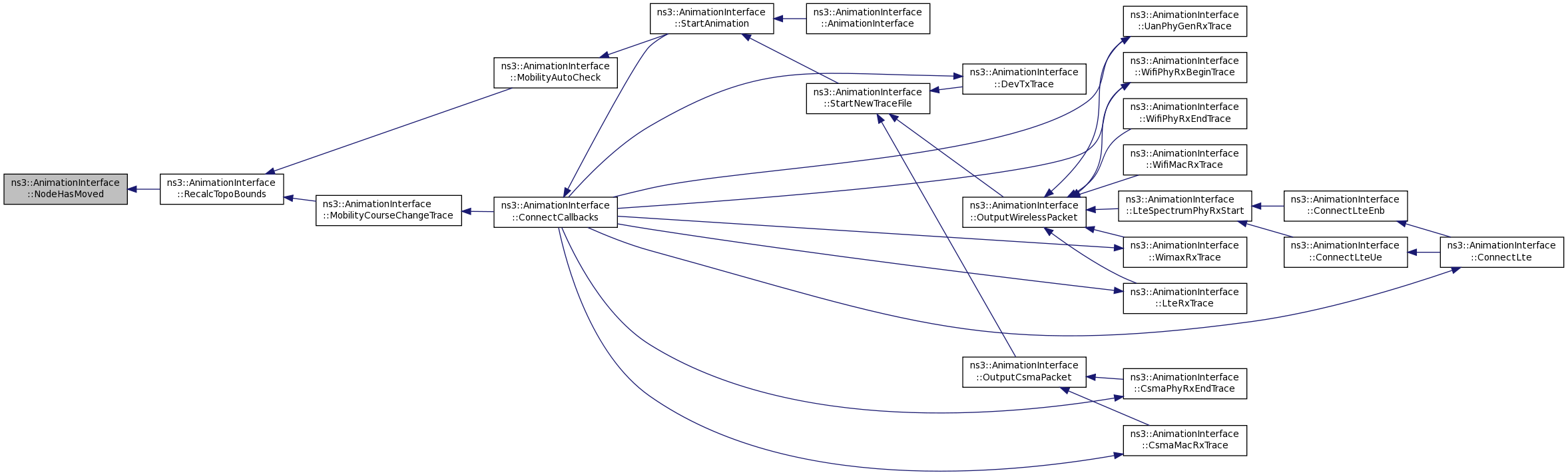

bool NodeHasMoved (Ptr< Node > n, Vector newLocation)

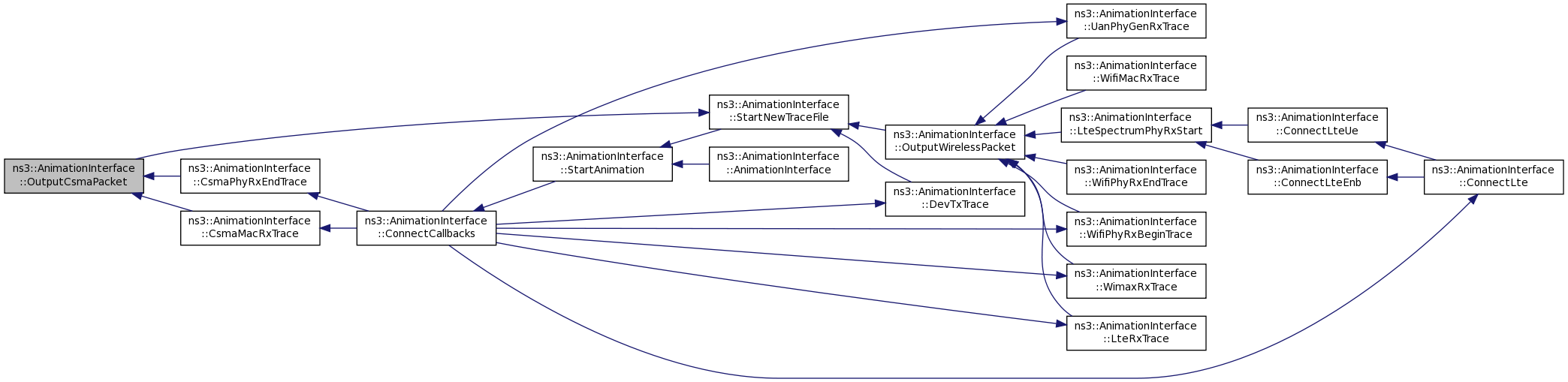

void OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)

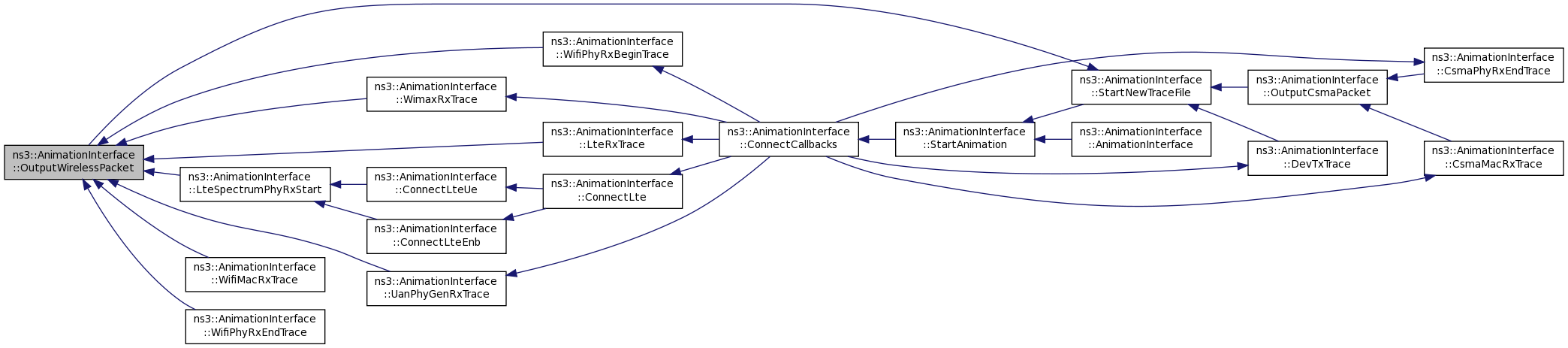

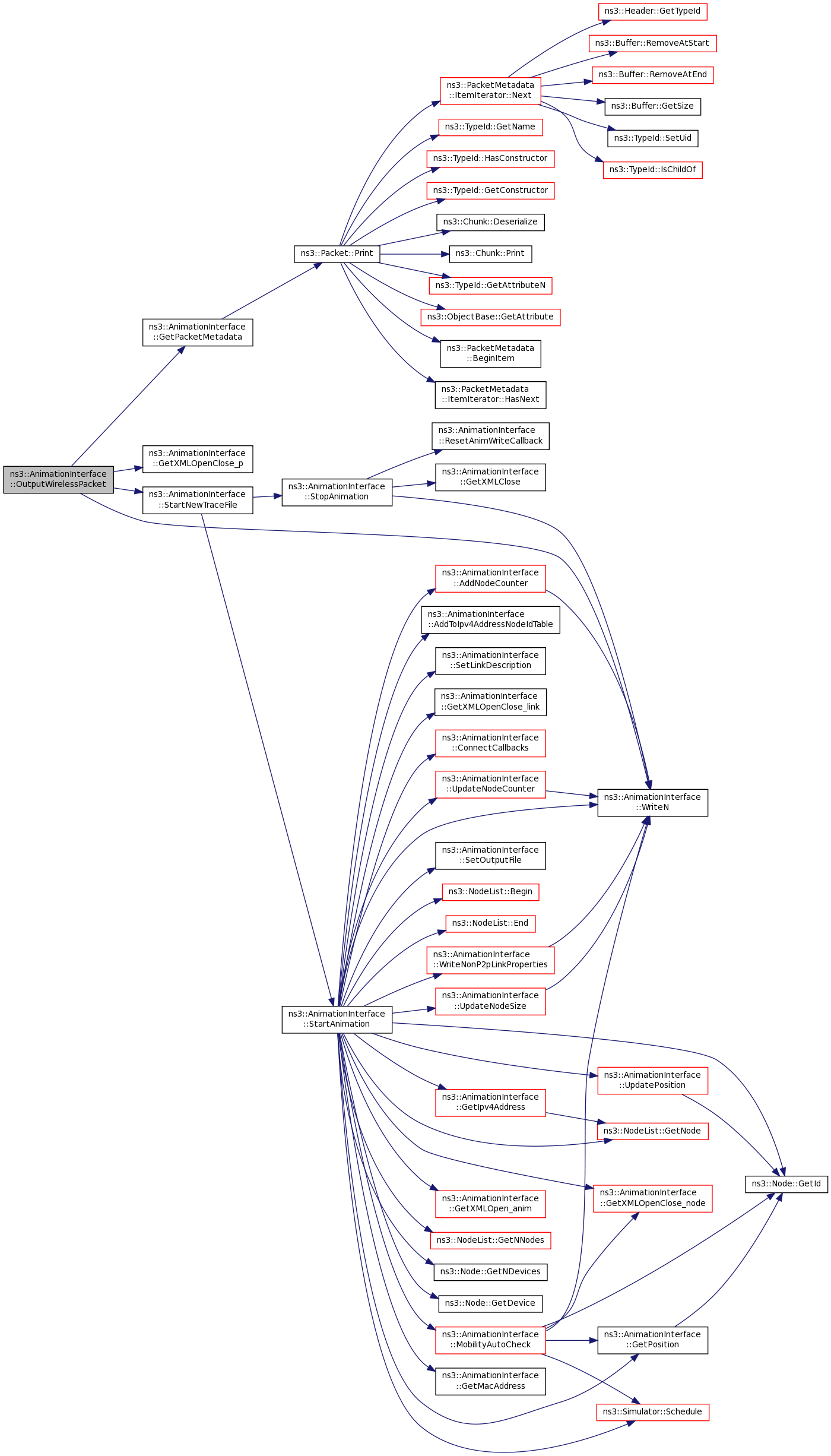

void OutputWirelessPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)

void PurgePendingCsma ()

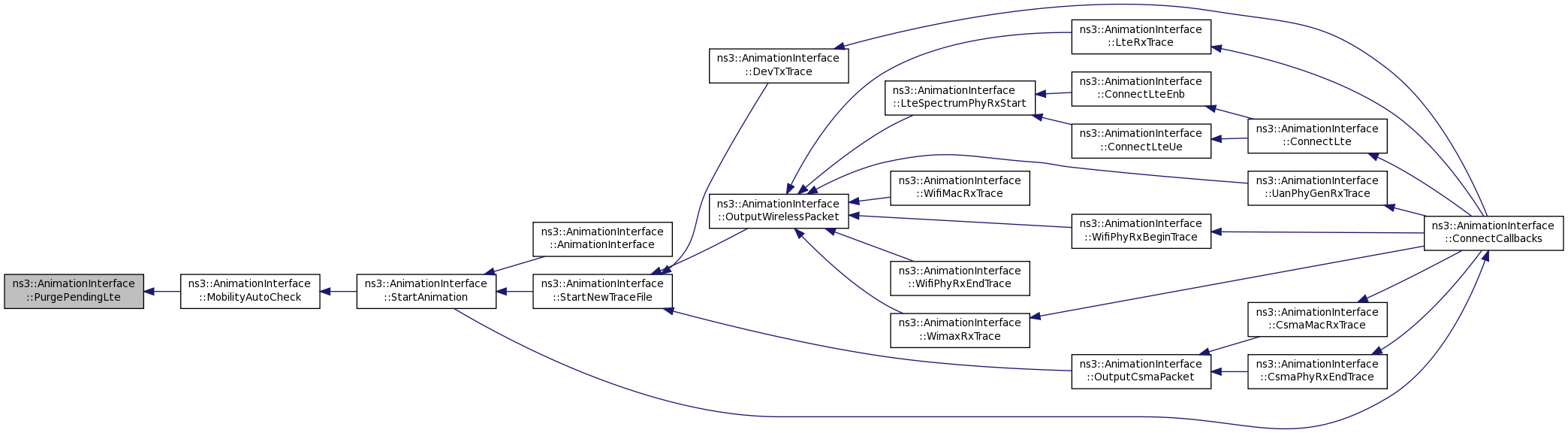

void PurgePendingLte ()

void PurgePendingWifi ()

void PurgePendingWimax ()

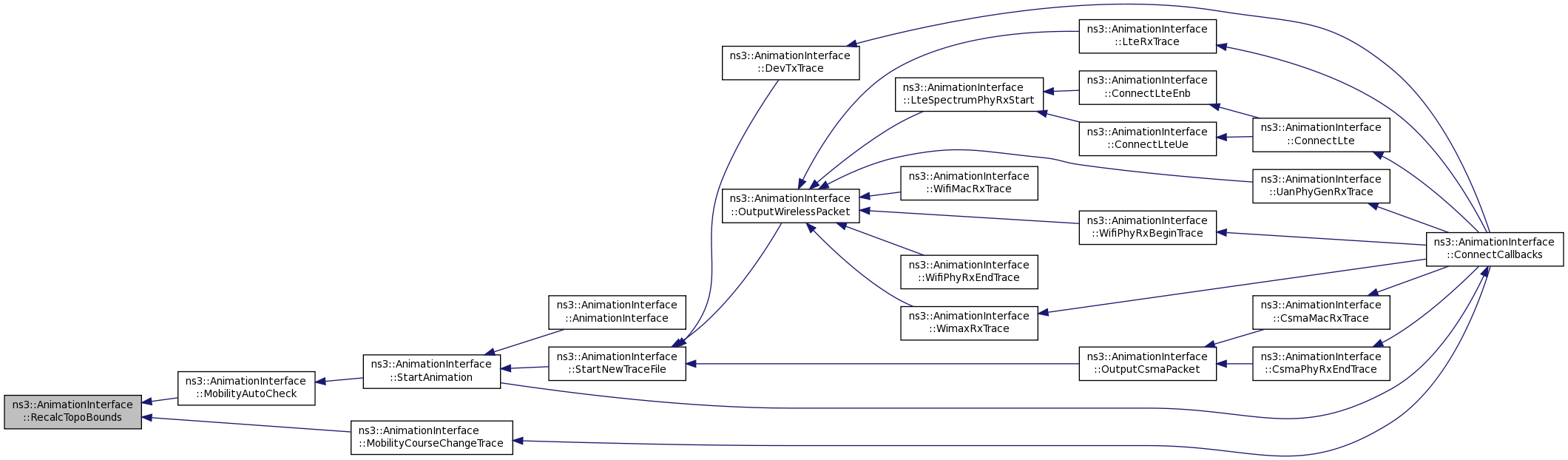

void RecalcTopoBounds (Vector v)

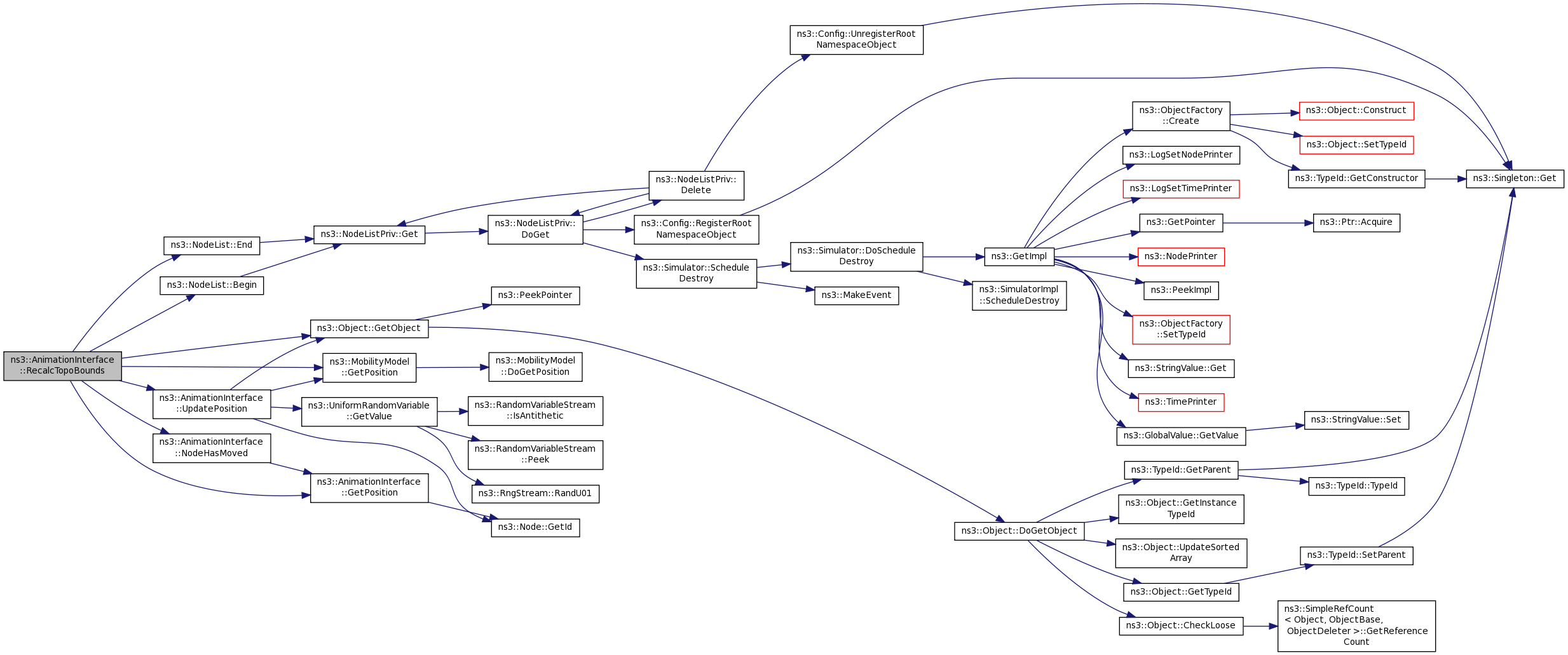

std::vector< Ptr< Node > > RecalcTopoBounds ()

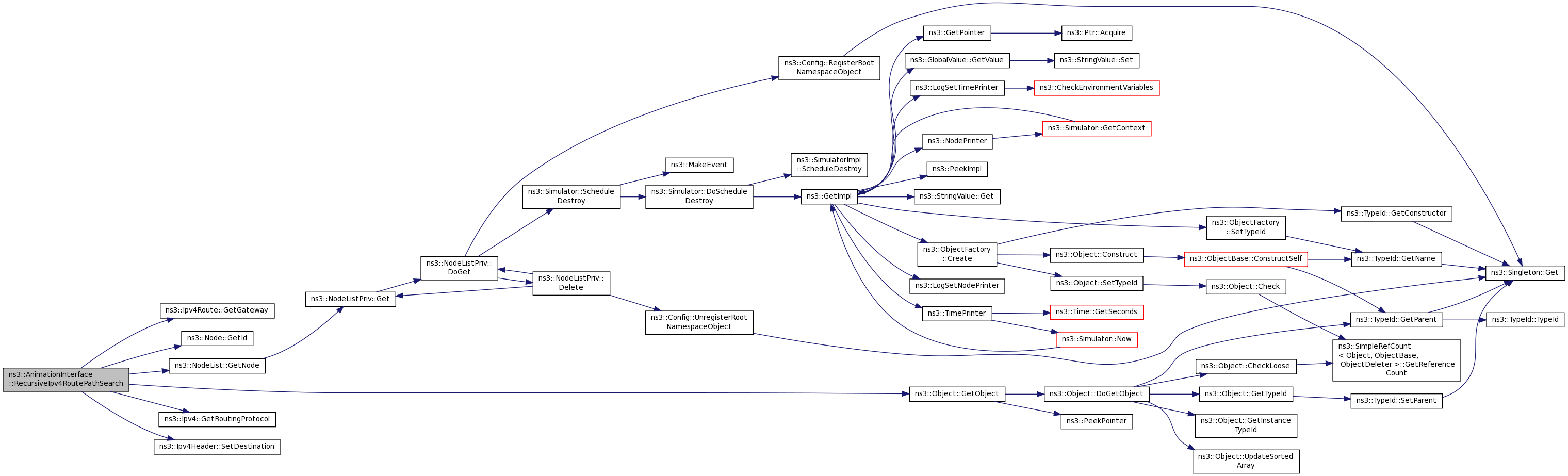

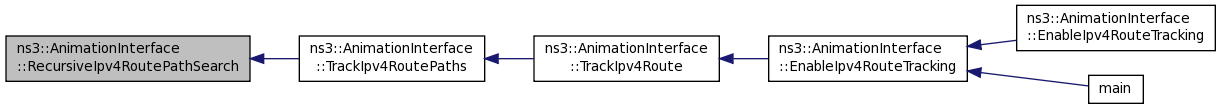

void RecursiveIpv4RoutePathSearch (std::string fromIpv4, std::string toIpv4, Ipv4RoutePathElements &)

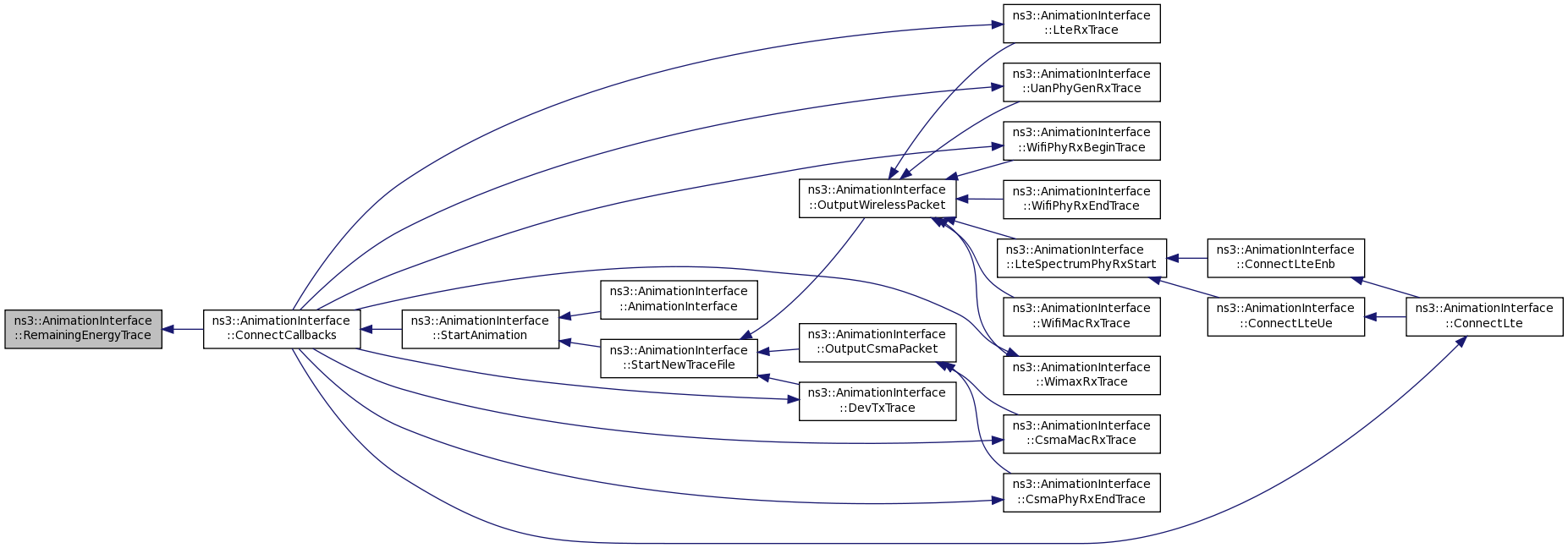

void RemainingEnergyTrace (std::string context, double previousEnergy, double currentEnergy)

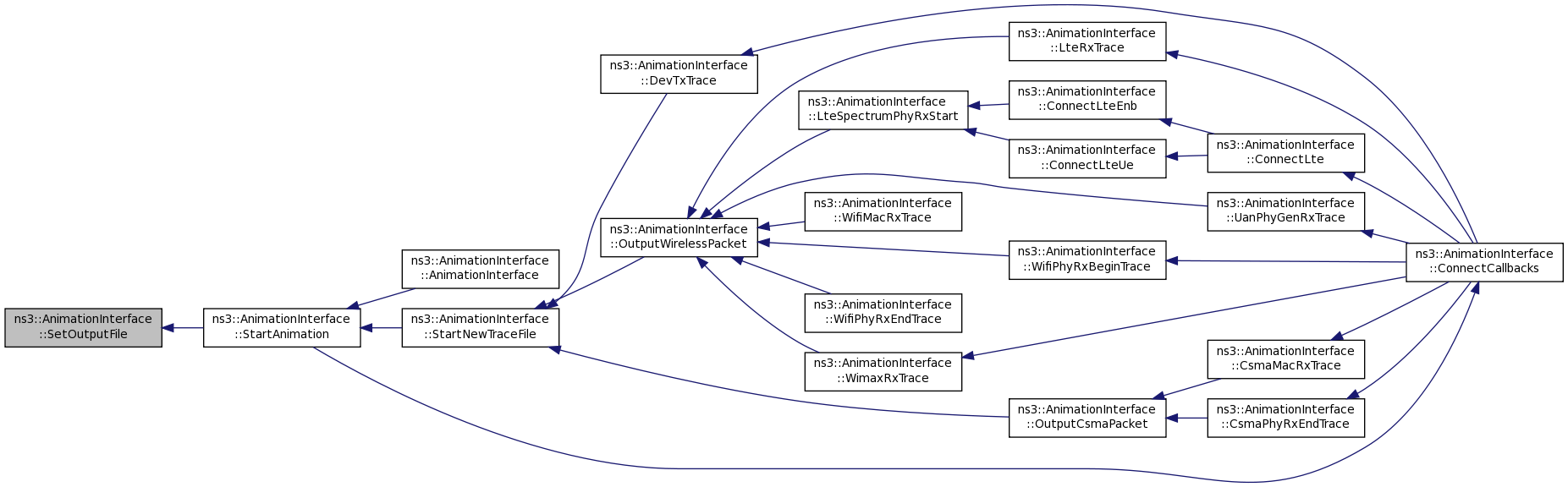

bool SetOutputFile (const std::string &fn)
 Specify that animation commands are to be written to the specified output file. More...

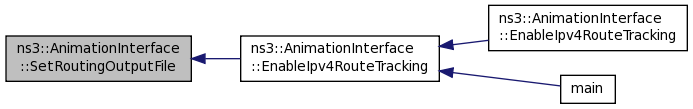

bool SetRoutingOutputFile (const std::string &fn)

void SetXMLOutput ()
 Specify that animation commands are to be written in XML format. More...

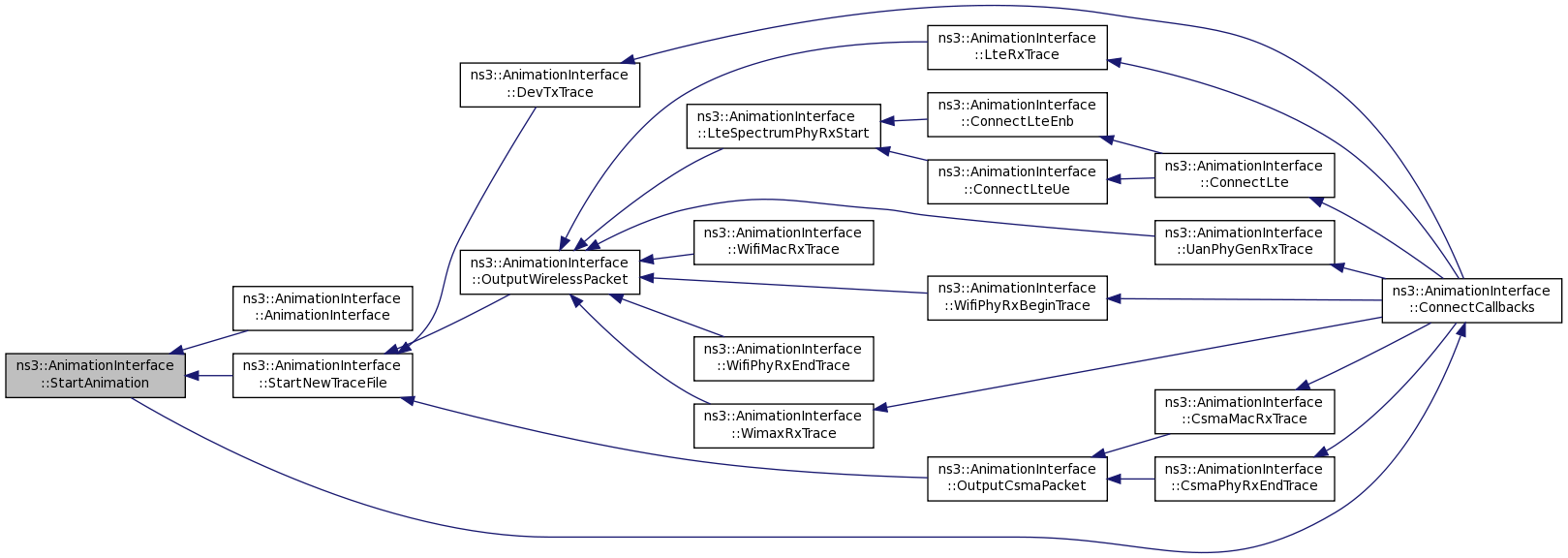

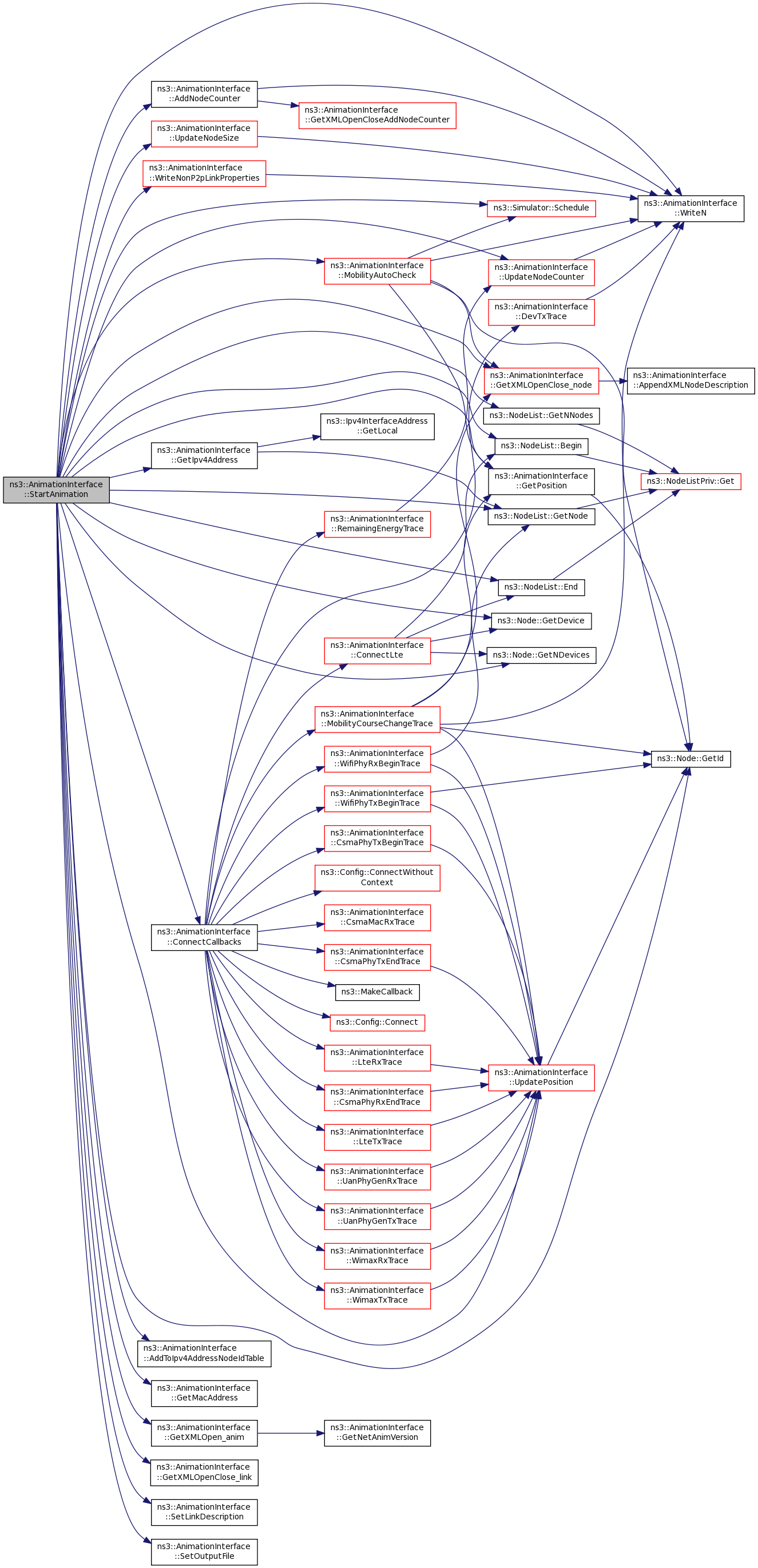

void StartAnimation (bool restart=false)
 Writes the topology information and sets up the appropriate animation packet tx callback. More...

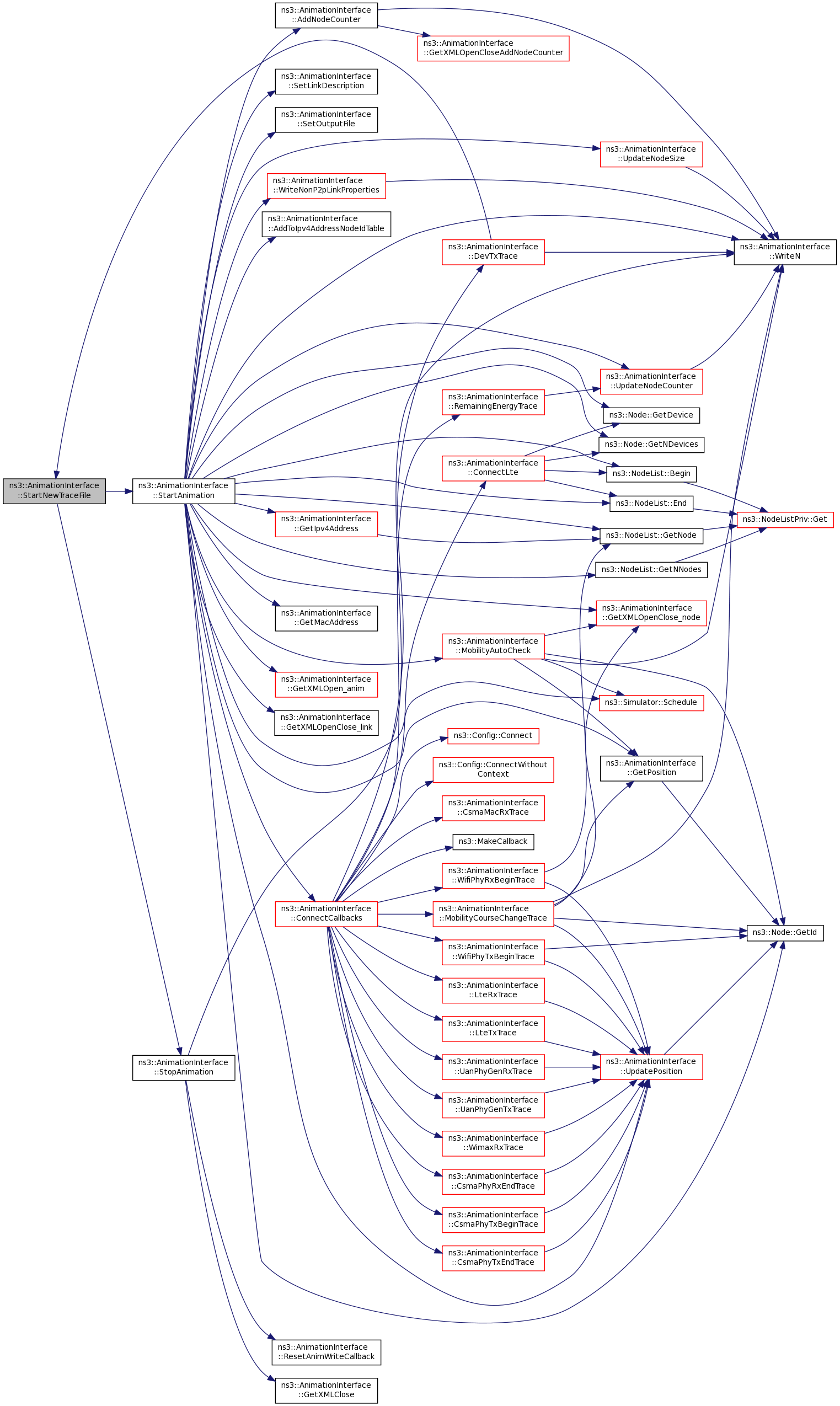

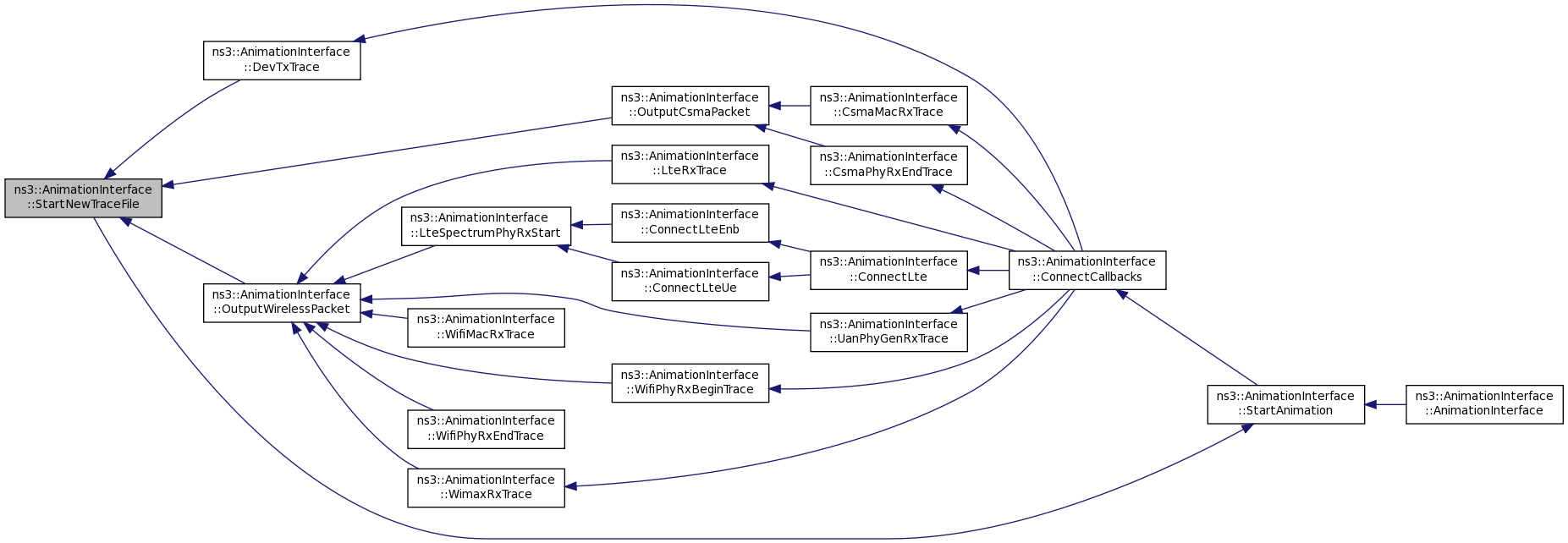

void StartNewTraceFile ()

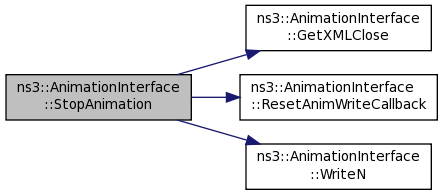

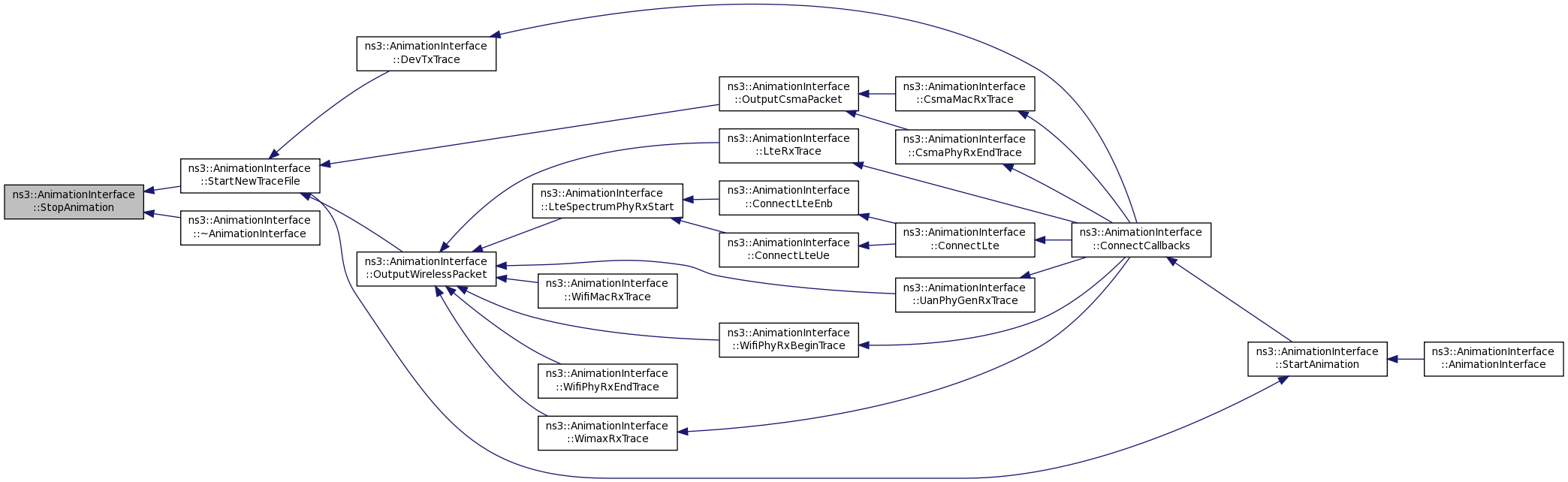

void StopAnimation (bool onlyAnimation=false)
 Closes the interface to the animator. More...

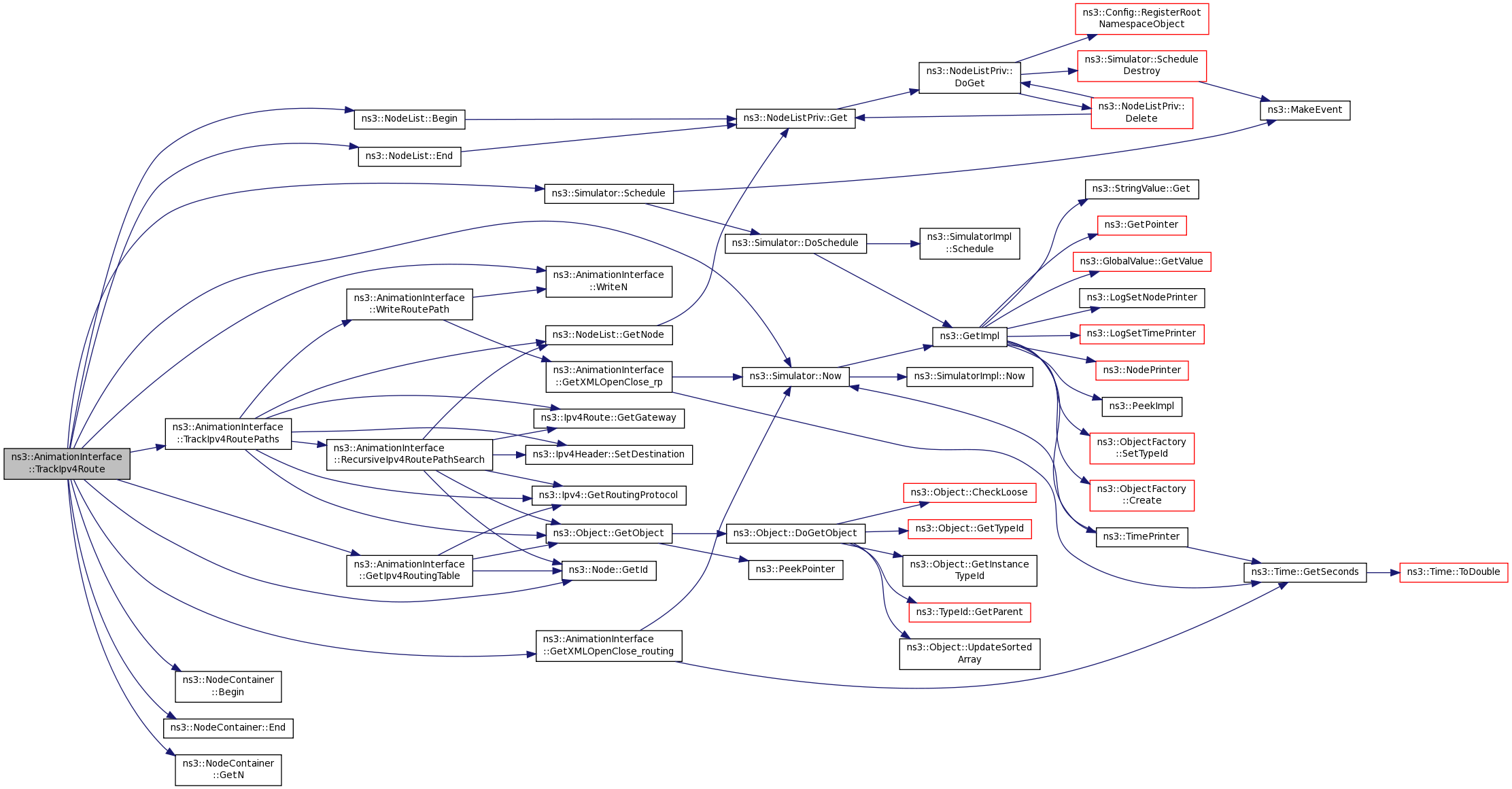

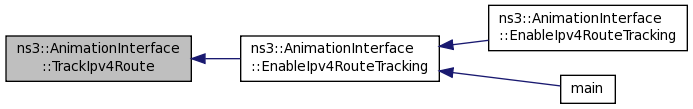

void TrackIpv4Route ()

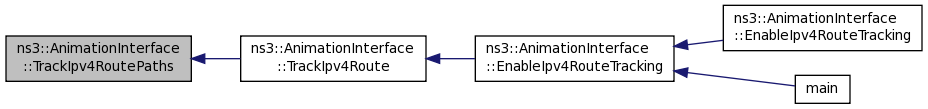

void TrackIpv4RoutePaths ()

bool UanPacketIsPending (uint64_t AnimUid)

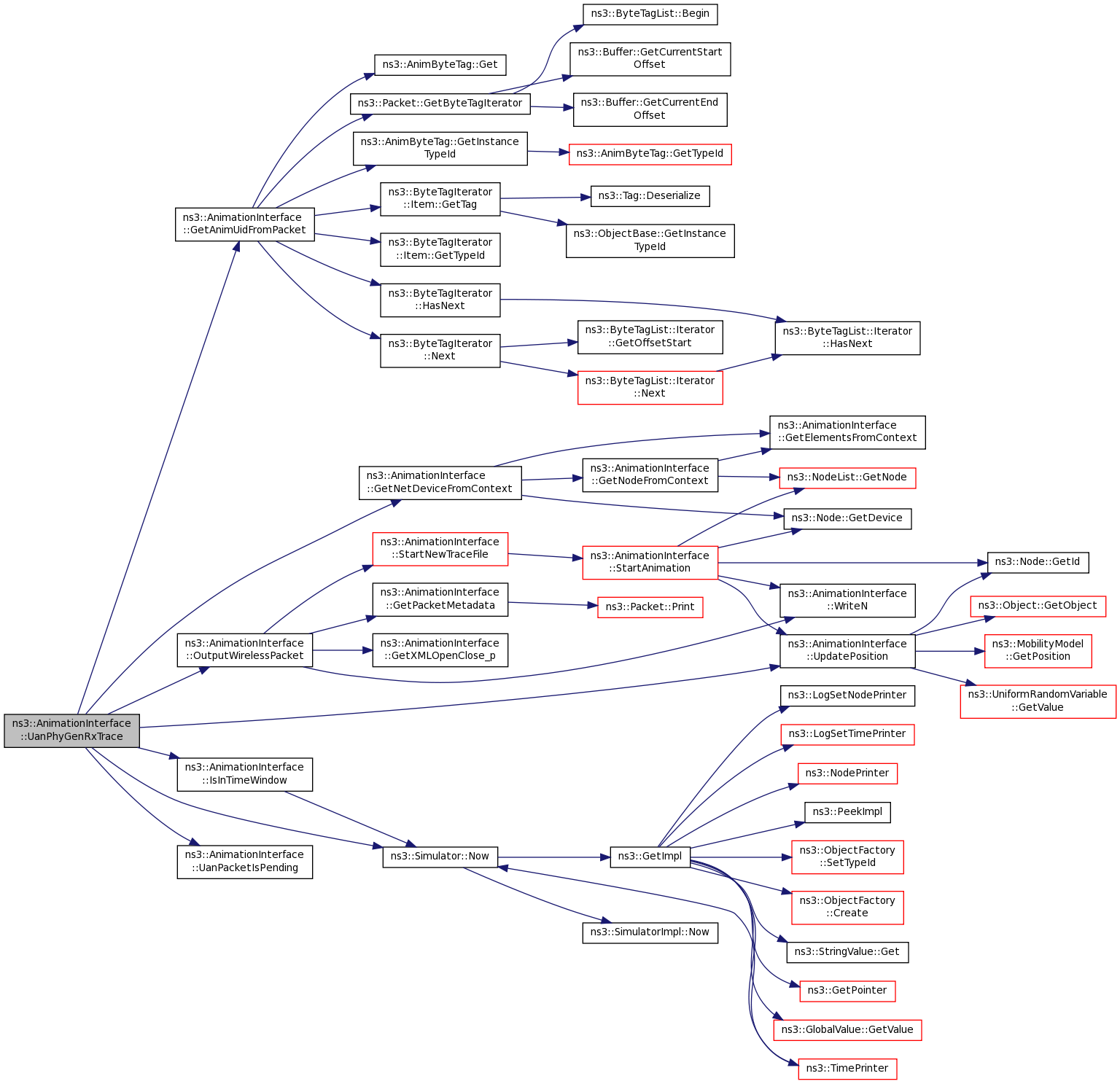

void UanPhyGenRxTrace (std::string context, Ptr< const Packet >)

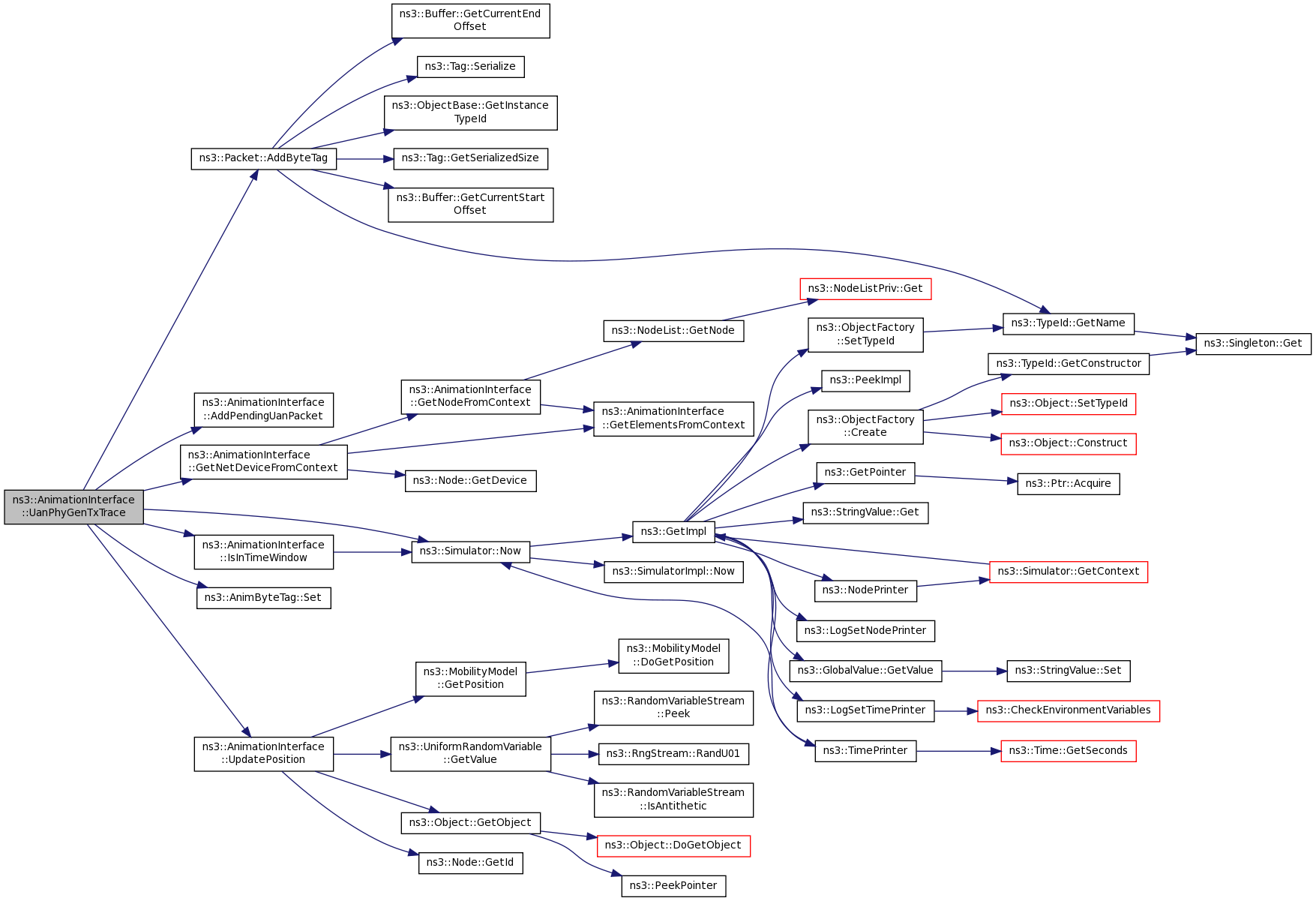

void UanPhyGenTxTrace (std::string context, Ptr< const Packet >)

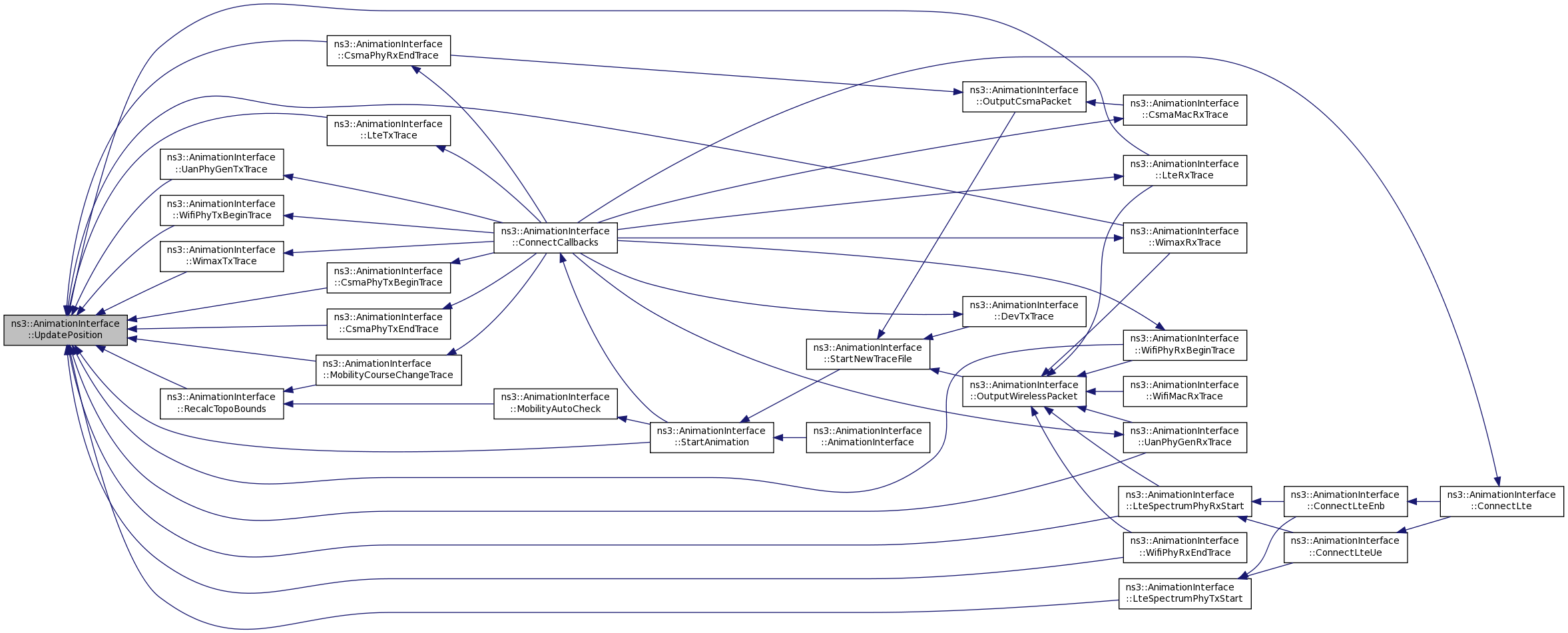

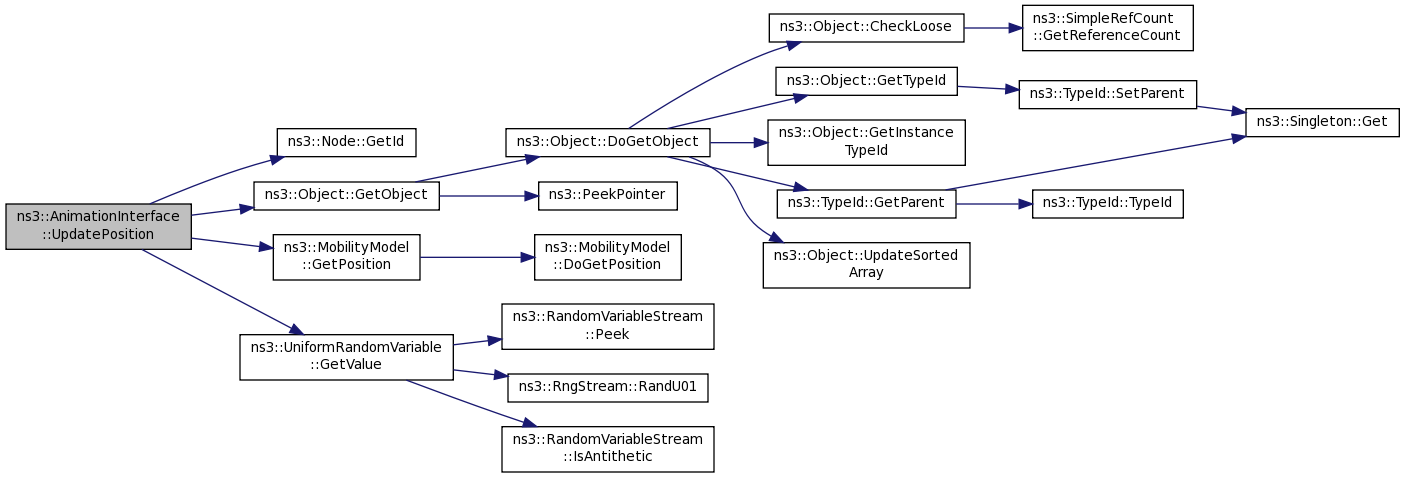

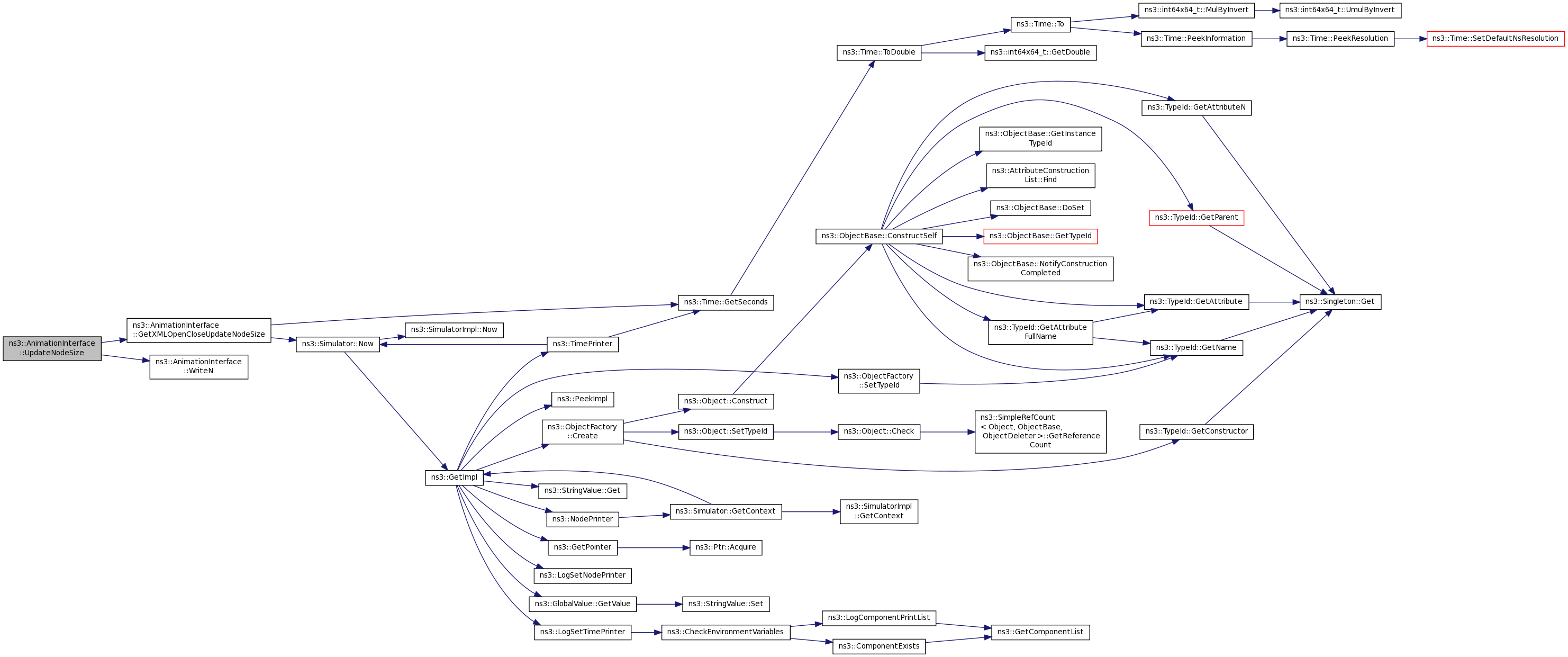

Vector UpdatePosition (Ptr< Node > n)

Vector UpdatePosition (Ptr< Node > n, Vector v)

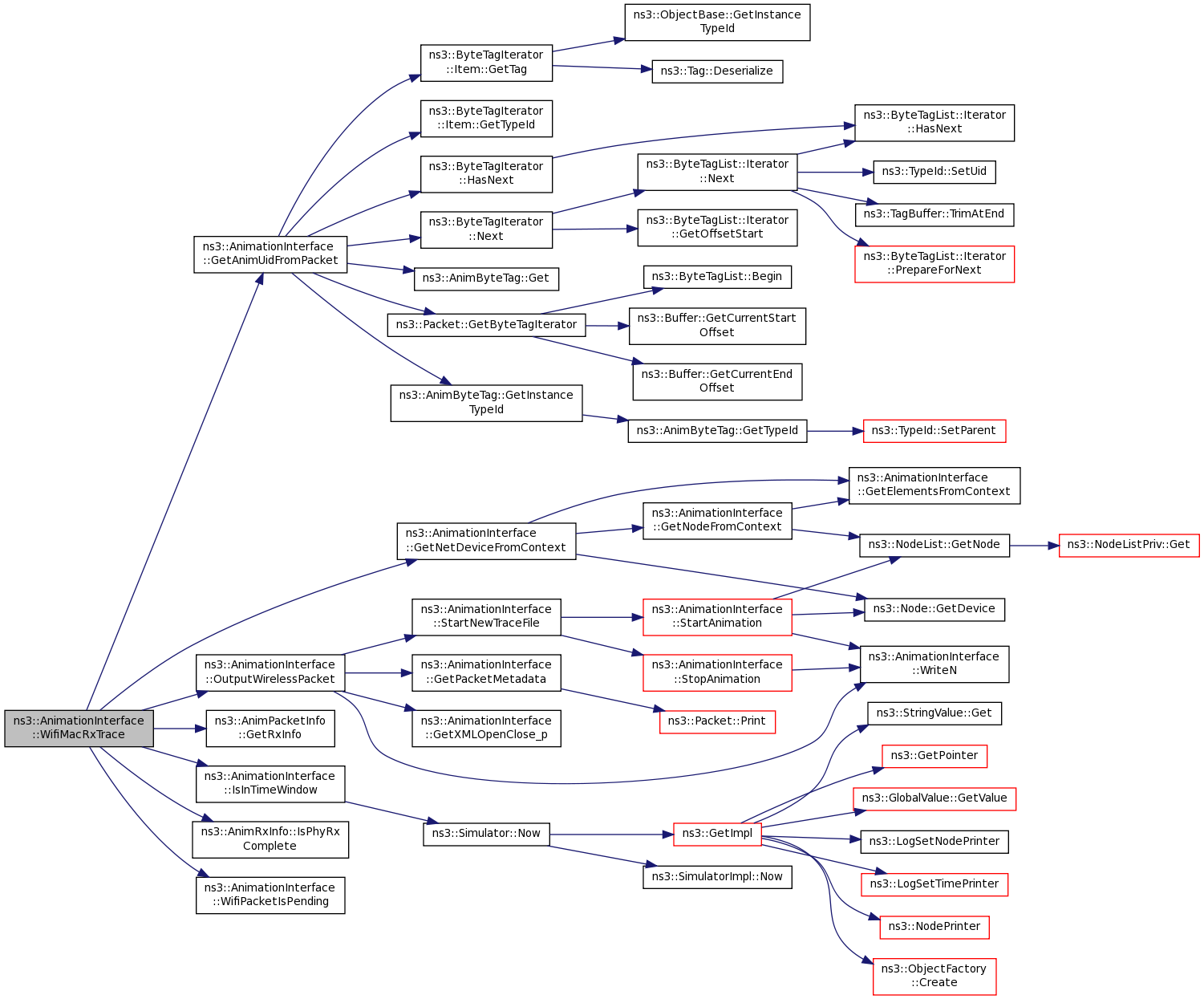

void WifiMacRxTrace (std::string context, Ptr< const Packet > p)

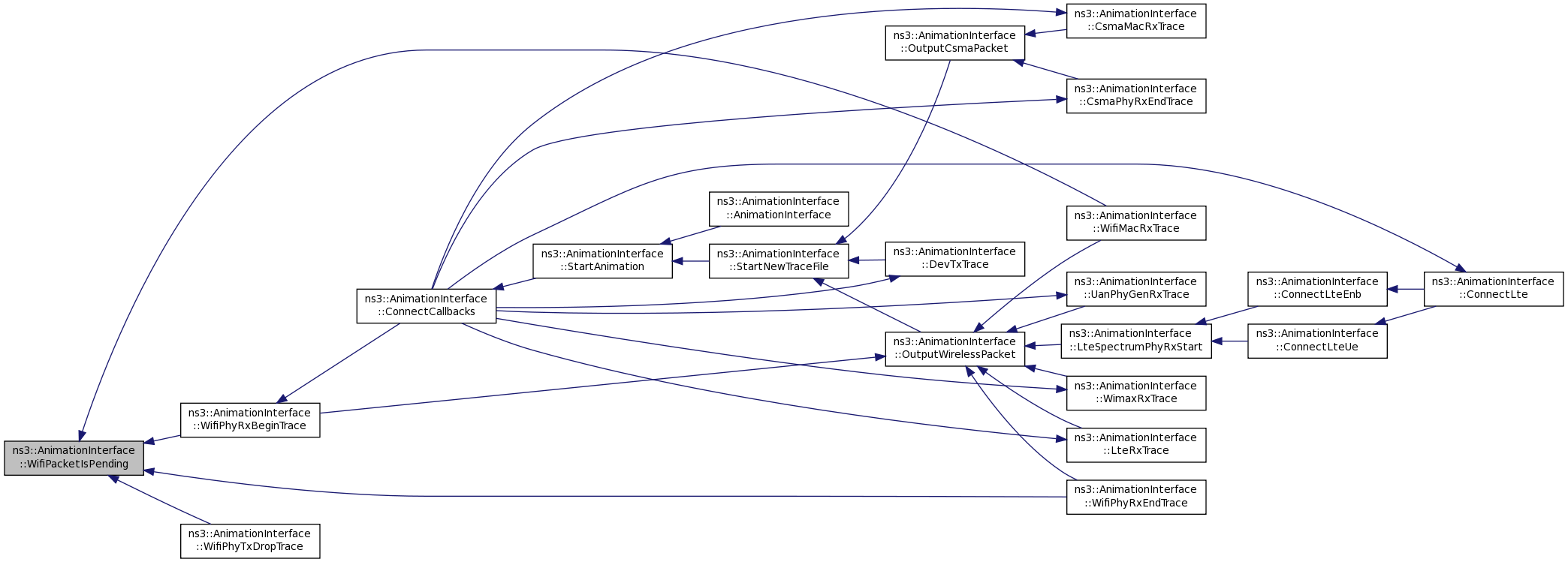

bool WifiPacketIsPending (uint64_t AnimUid)

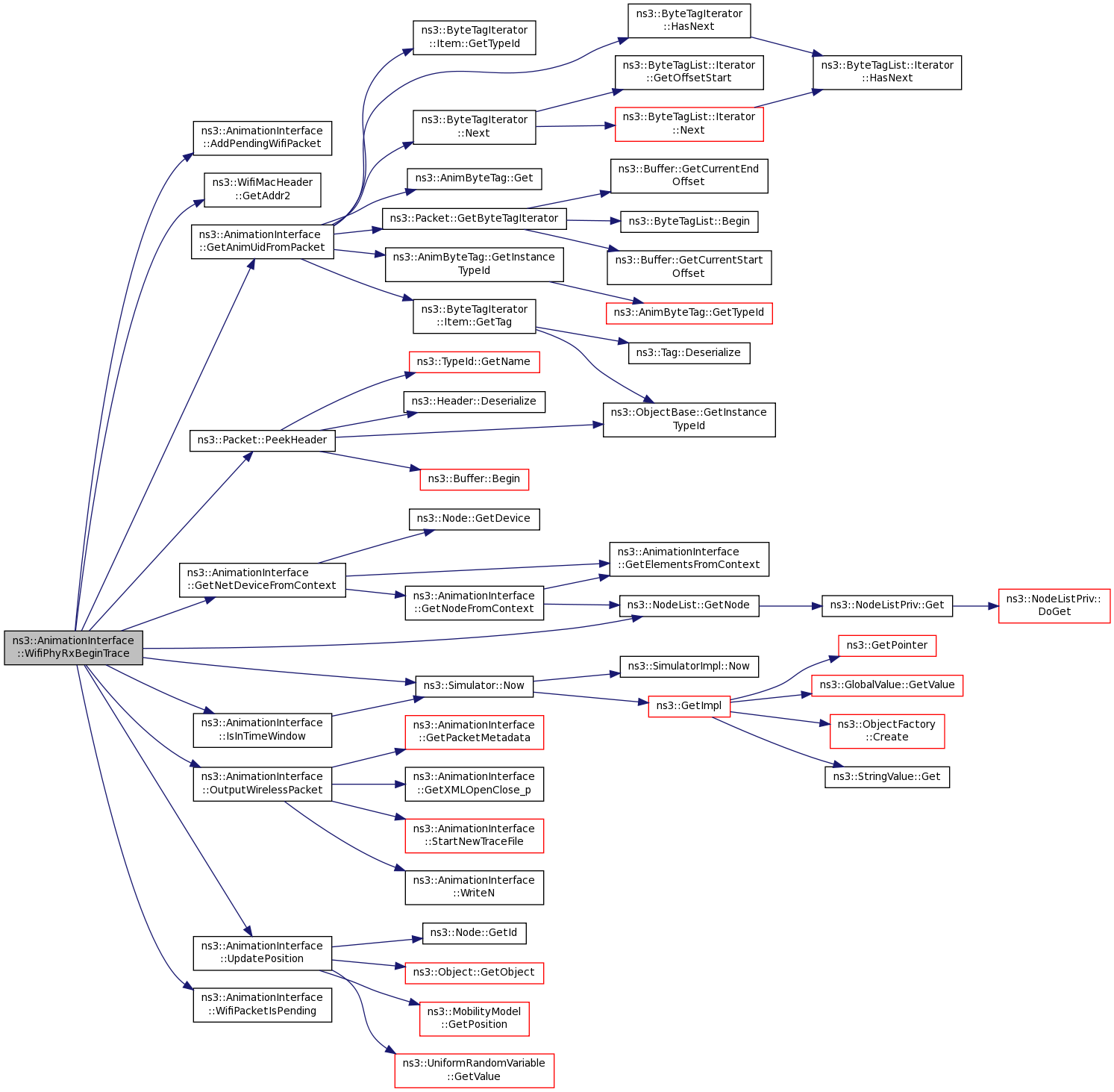

void WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p)

void WifiPhyRxDropTrace (std::string context, Ptr< const Packet > p)

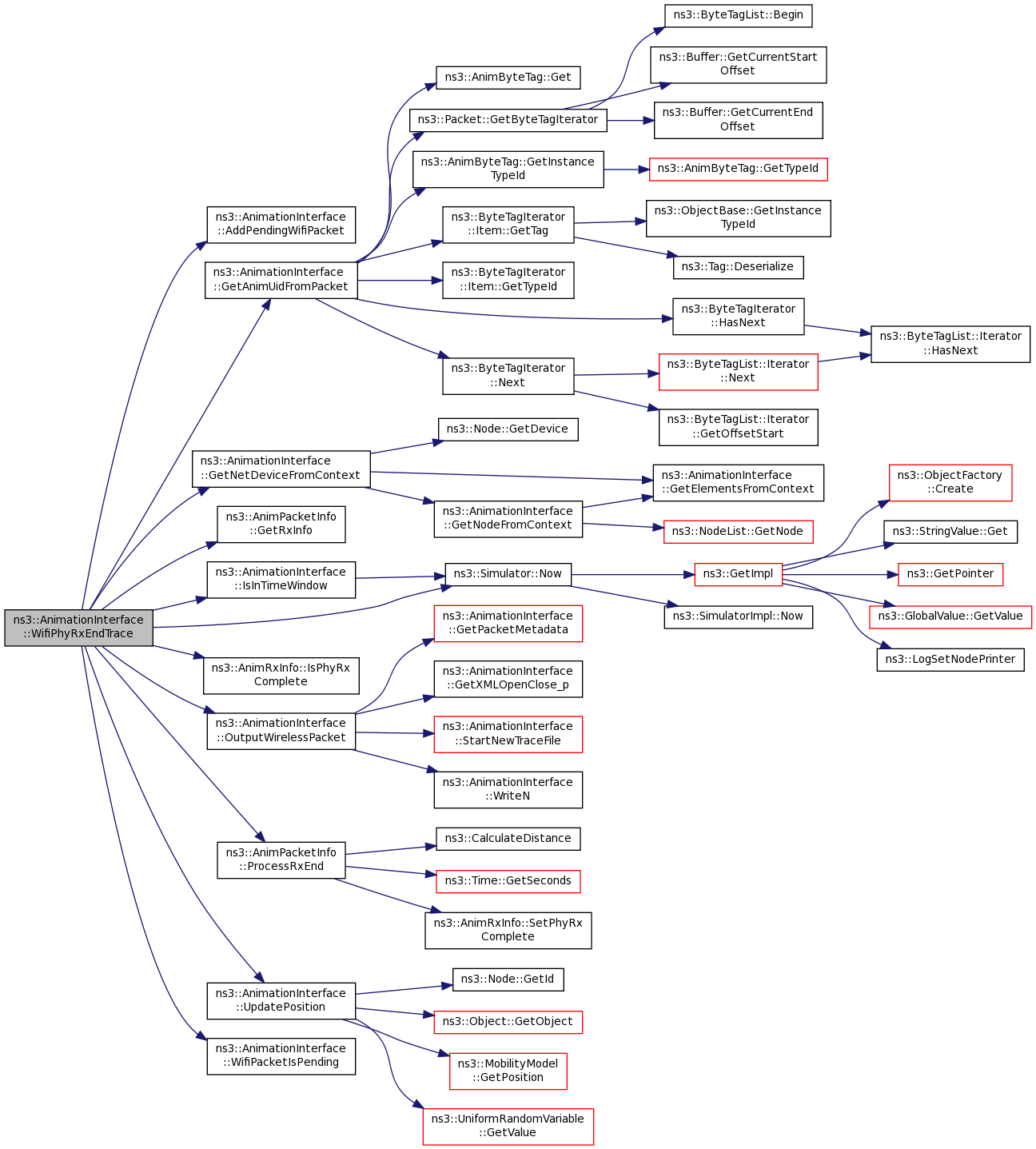

void WifiPhyRxEndTrace (std::string context, Ptr< const Packet > p)

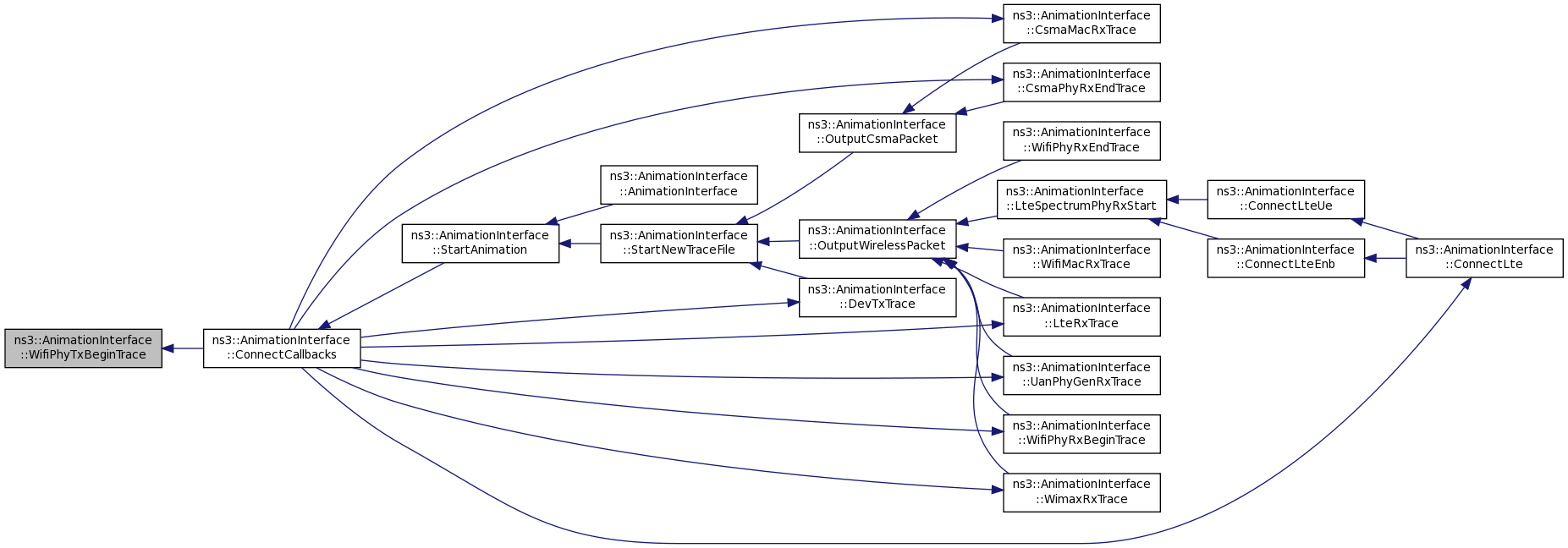

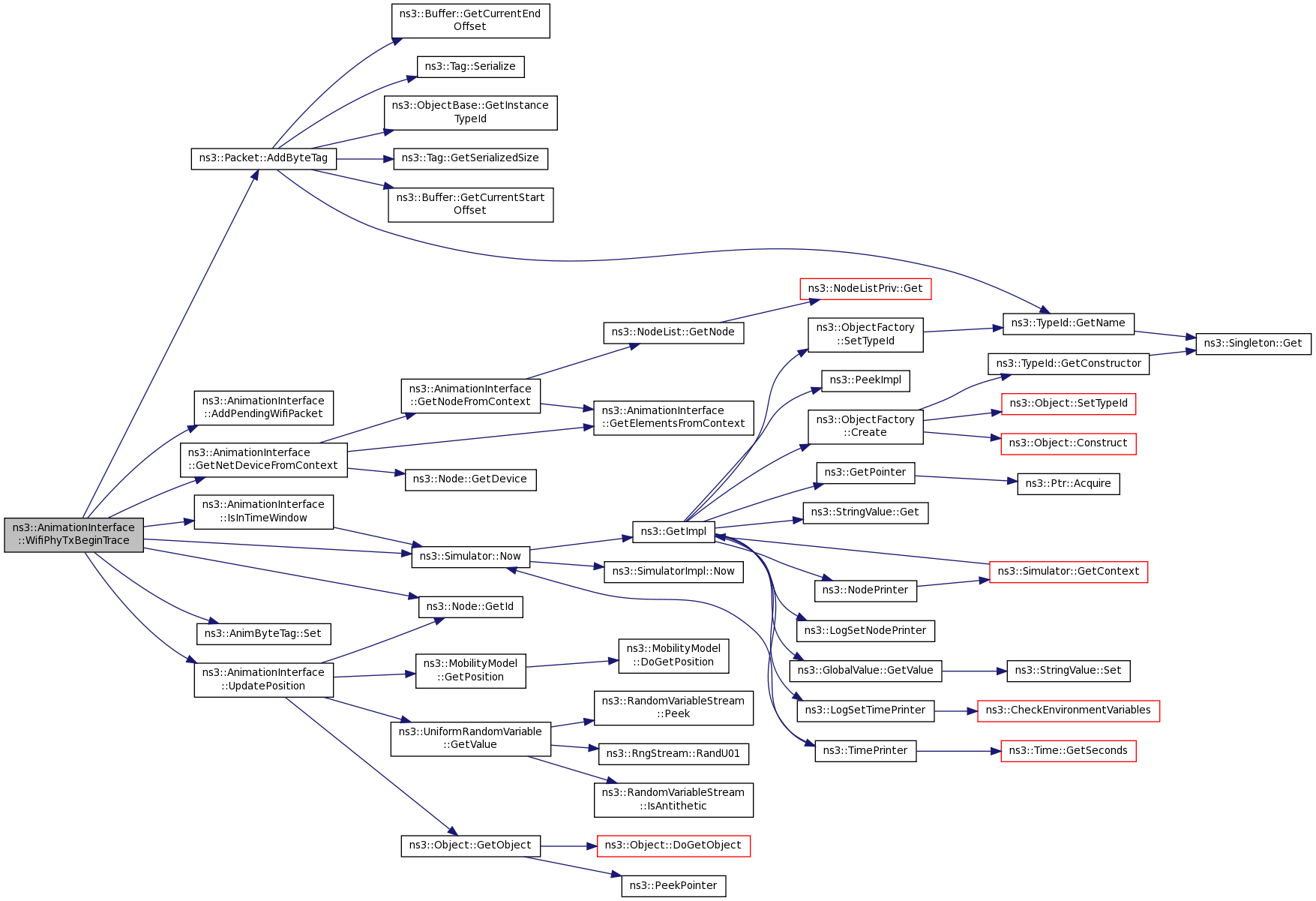

void WifiPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

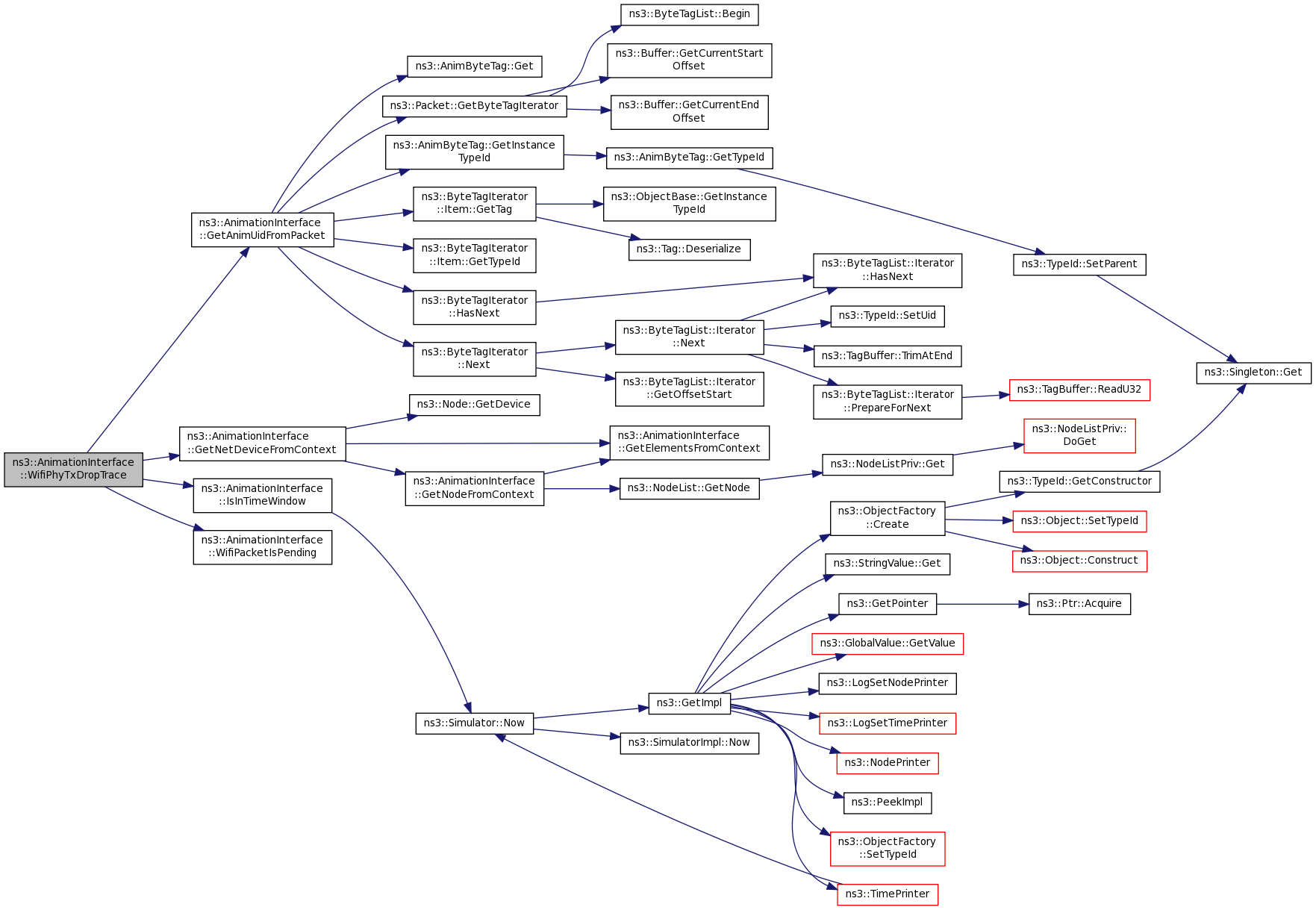

void WifiPhyTxDropTrace (std::string context, Ptr< const Packet > p)

void WifiPhyTxEndTrace (std::string context, Ptr< const Packet > p)

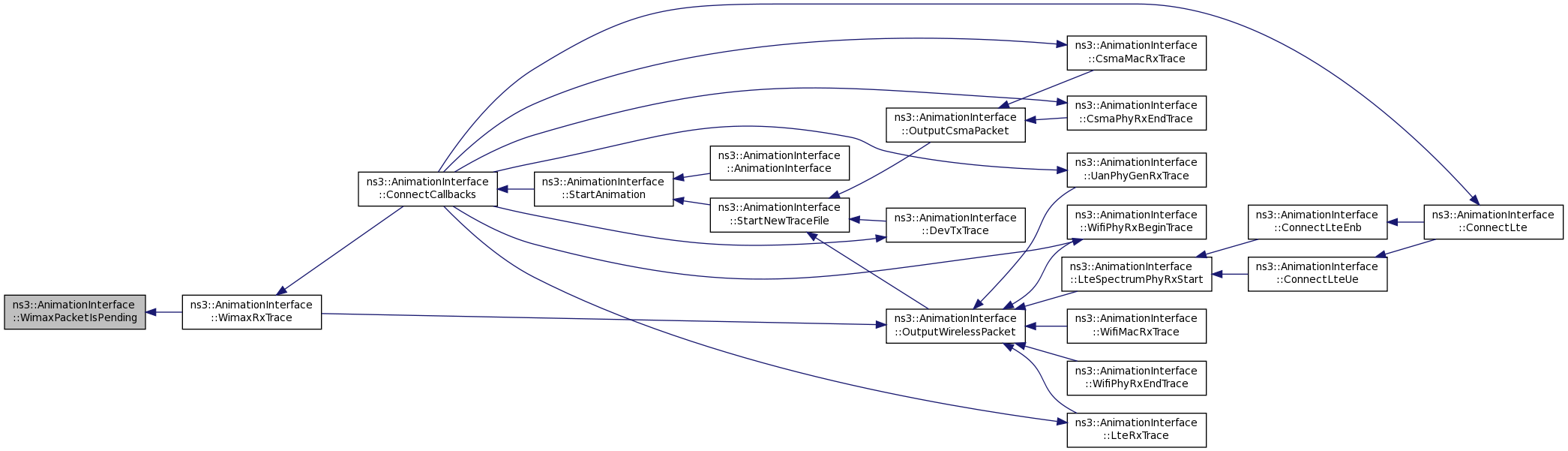

bool WimaxPacketIsPending (uint64_t AnimUid)

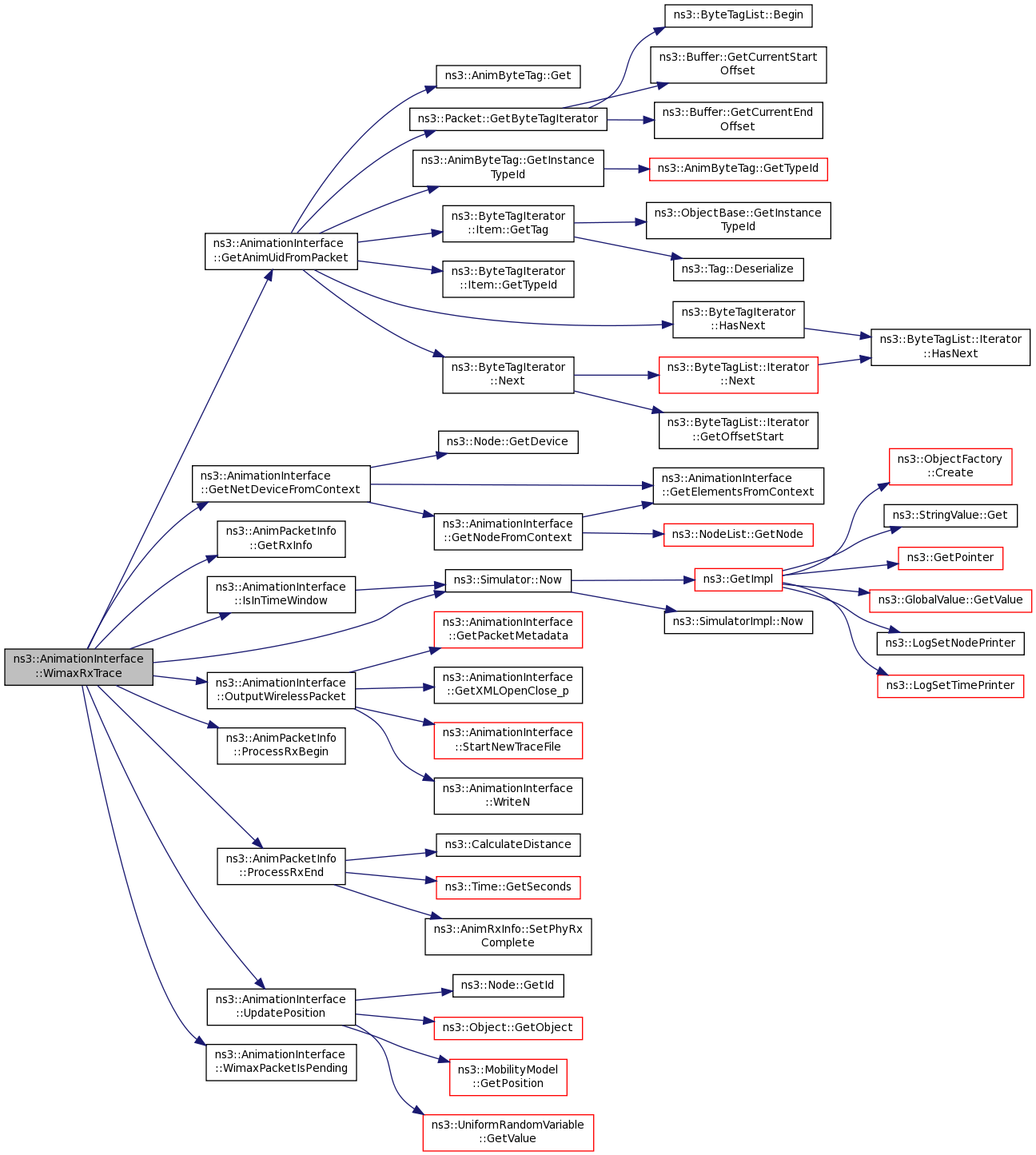

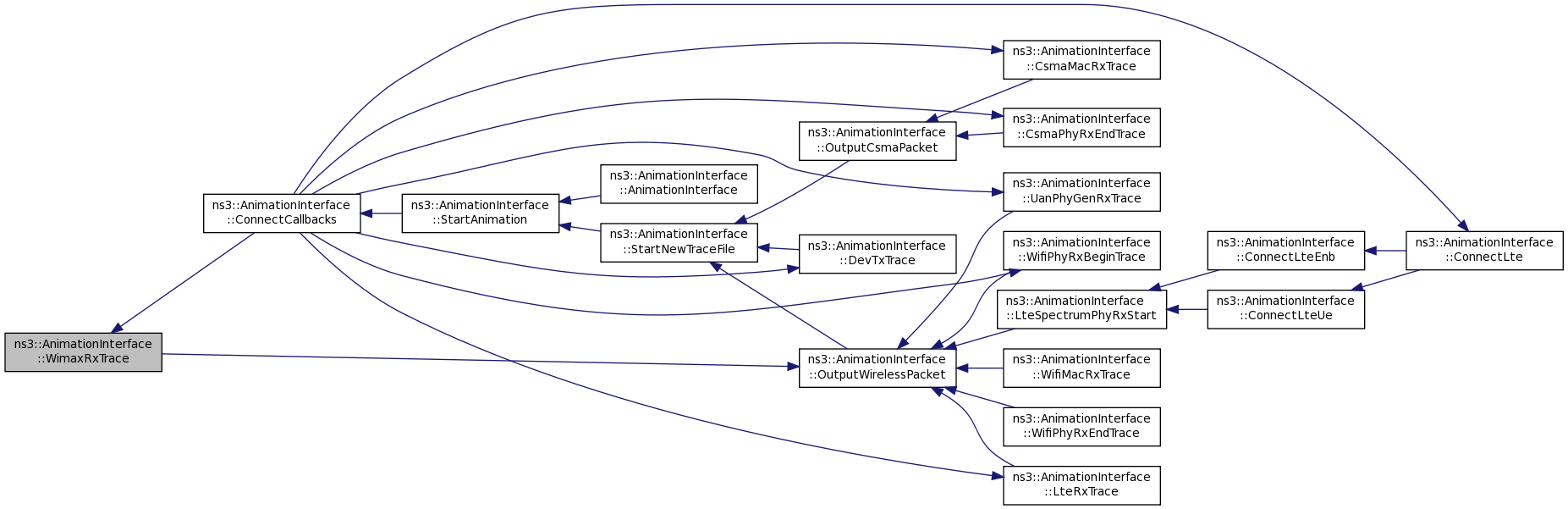

void WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

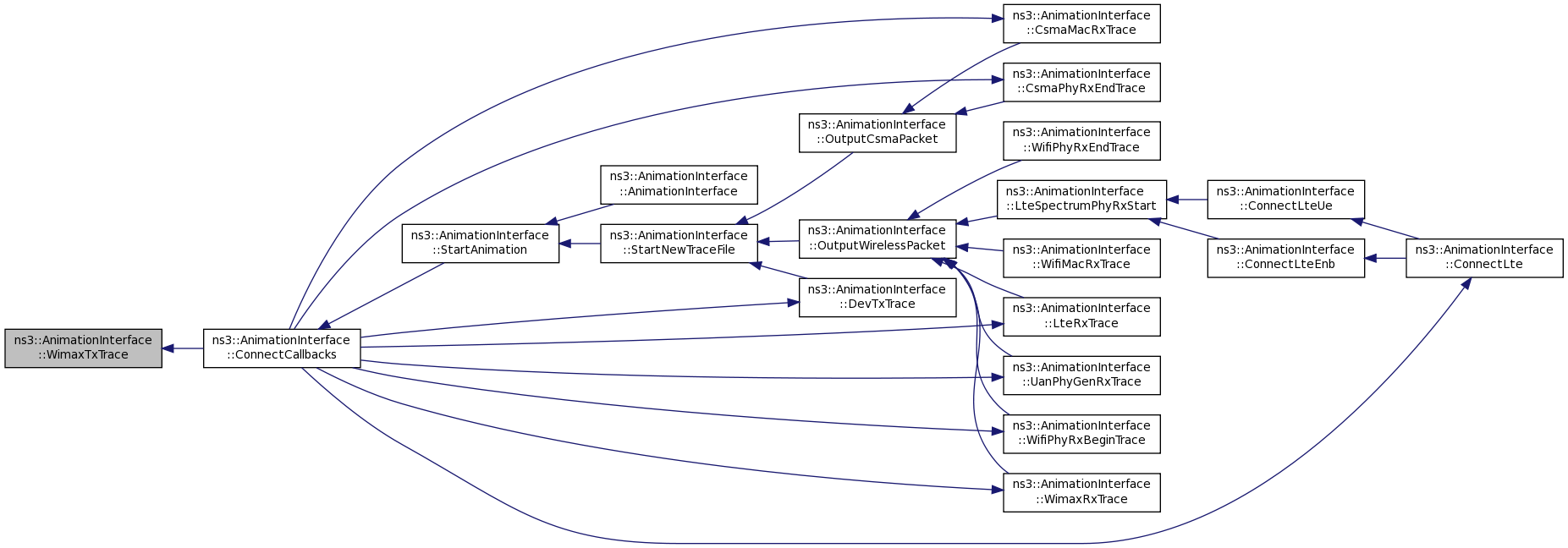

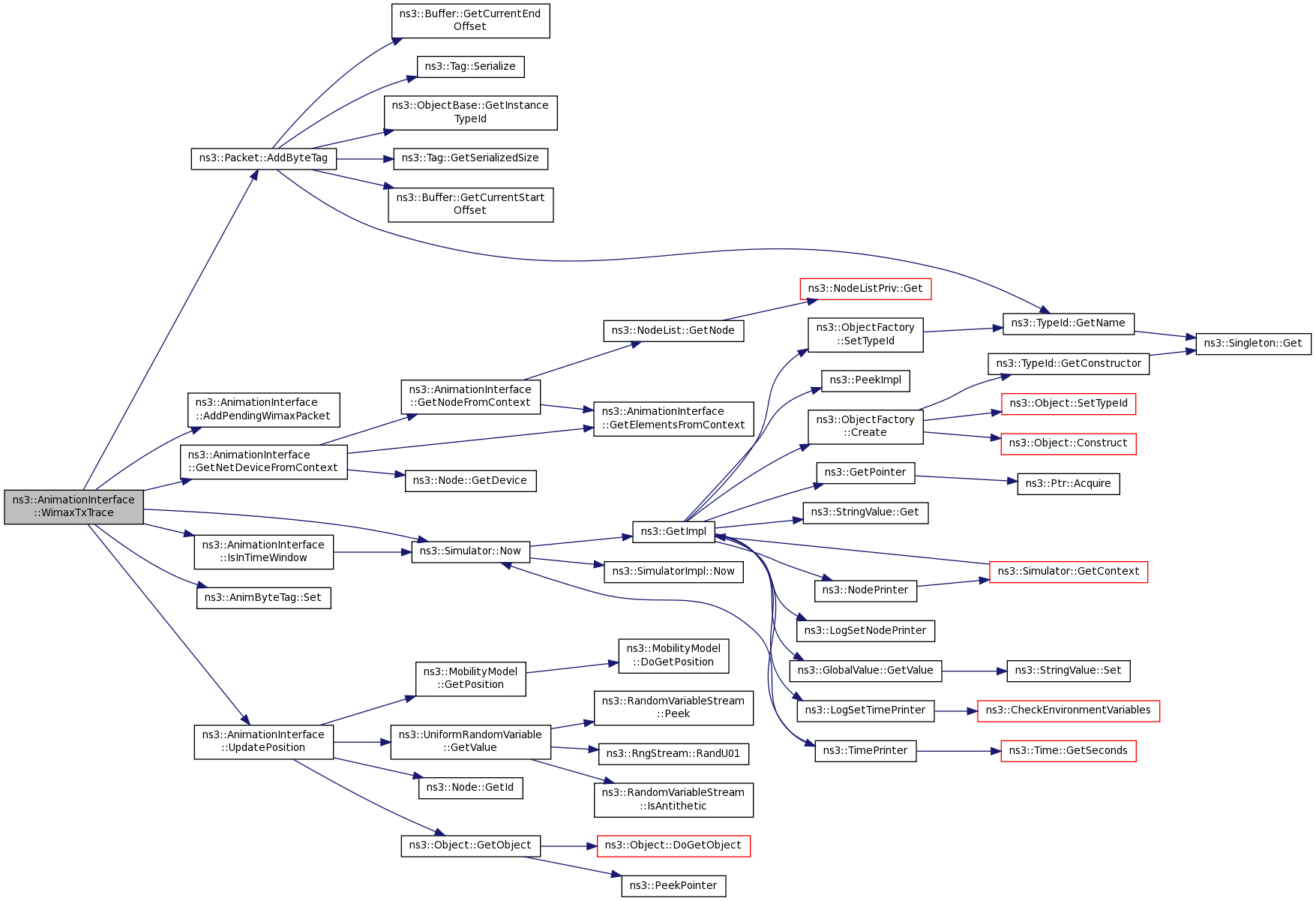

void WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

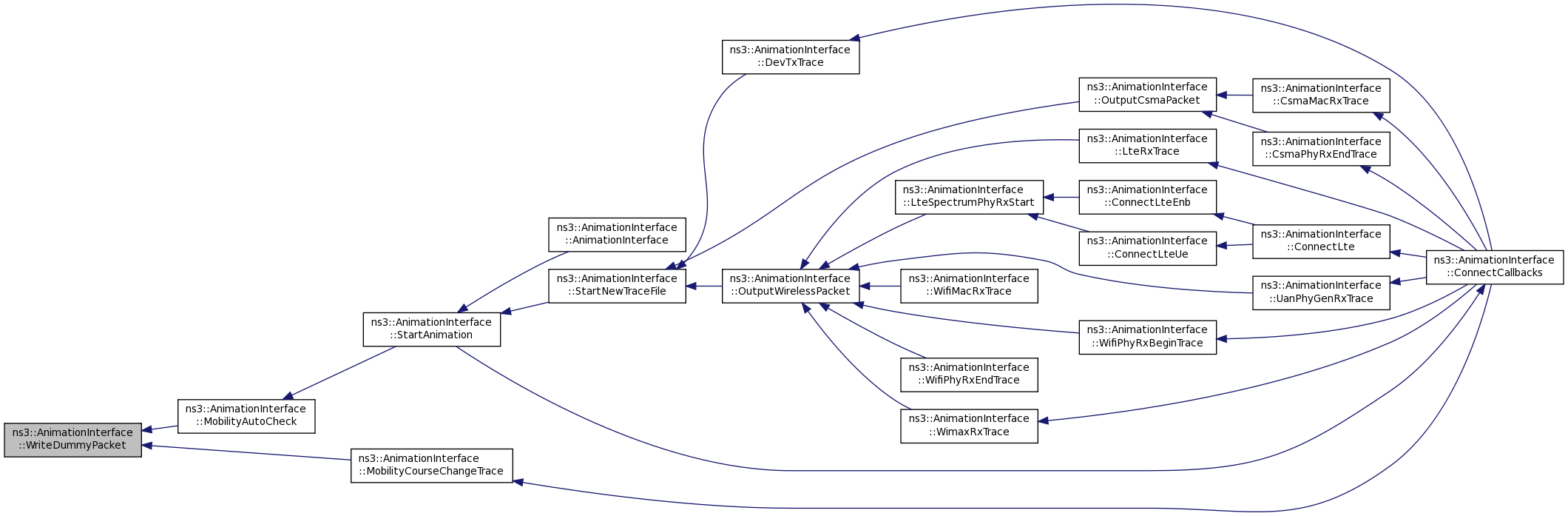

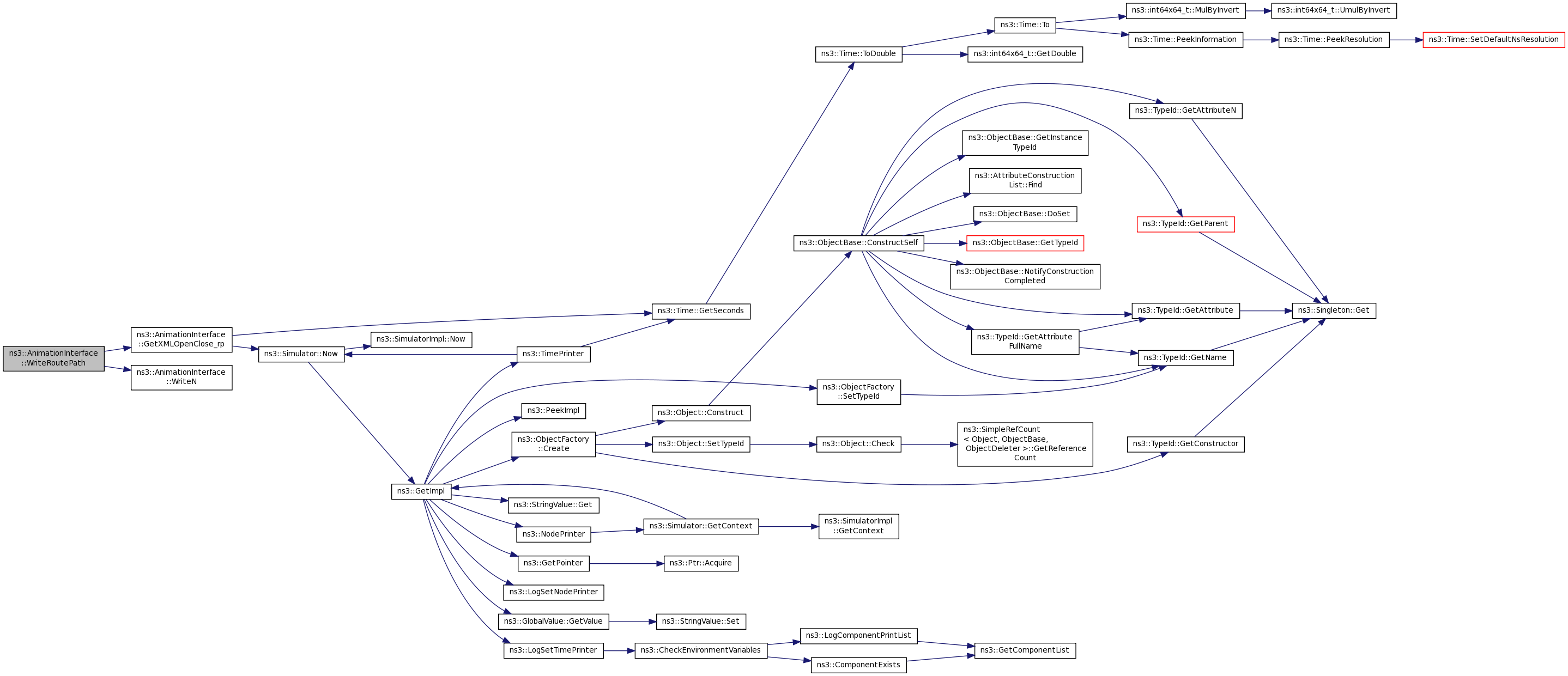

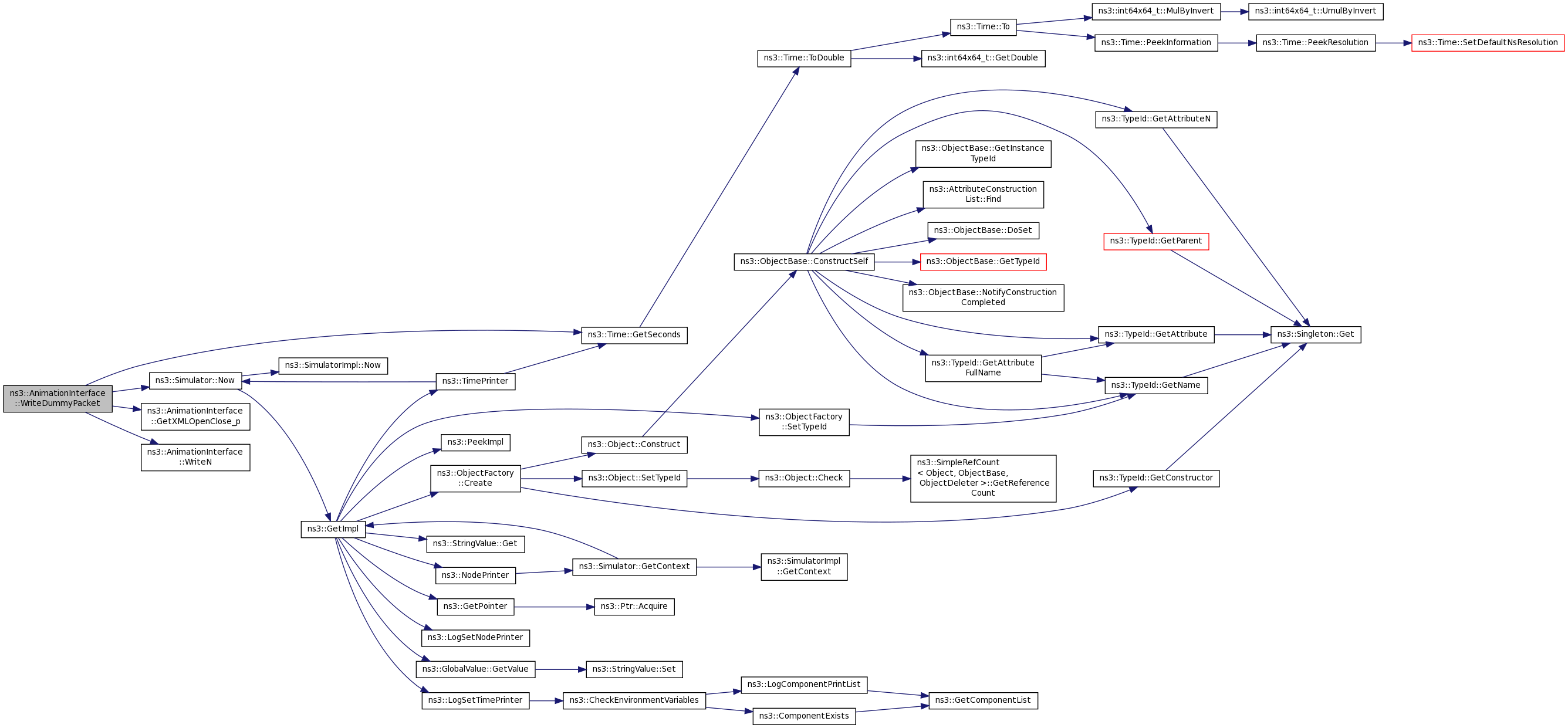

void WriteDummyPacket ()

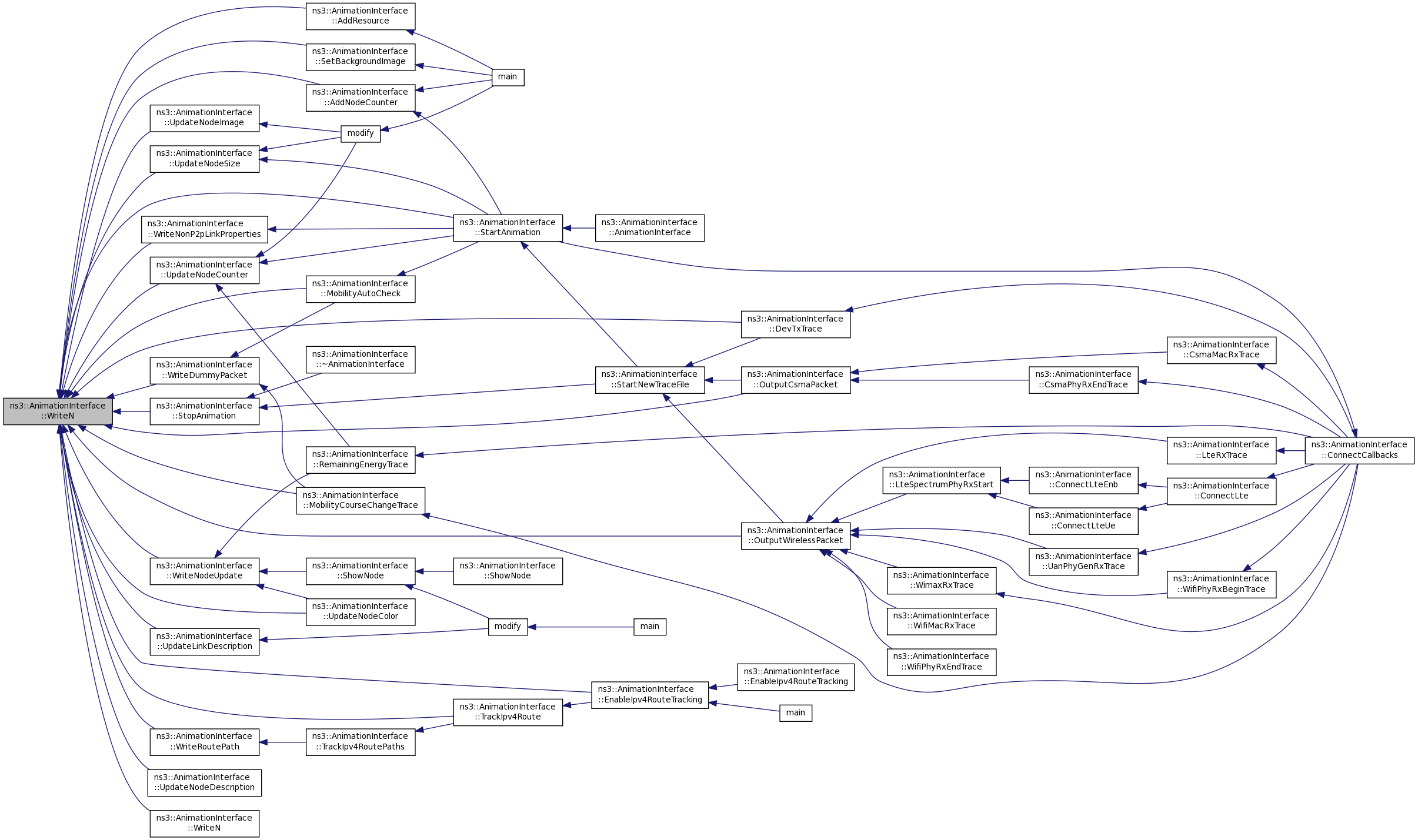

int WriteN (const char *, uint32_t, FILE *f)

int WriteN (const std::string &, FILE *f)

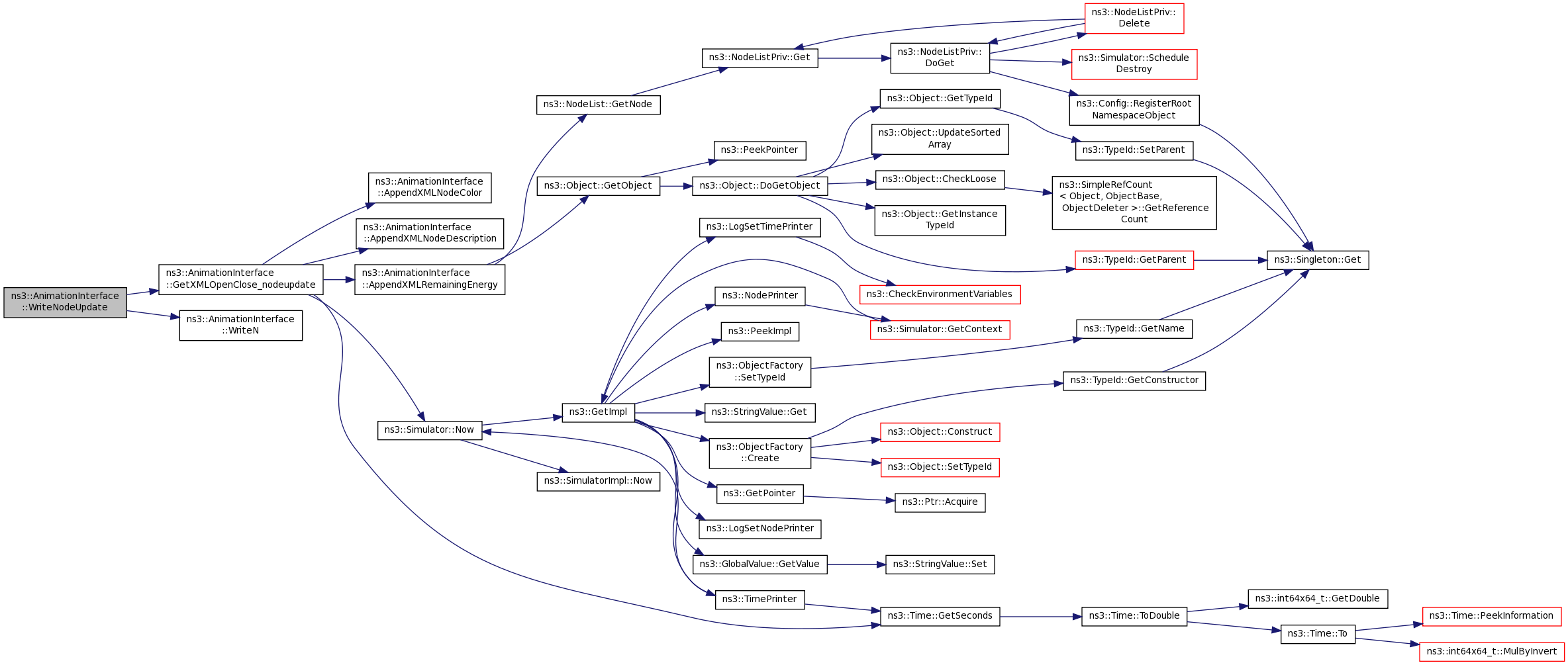

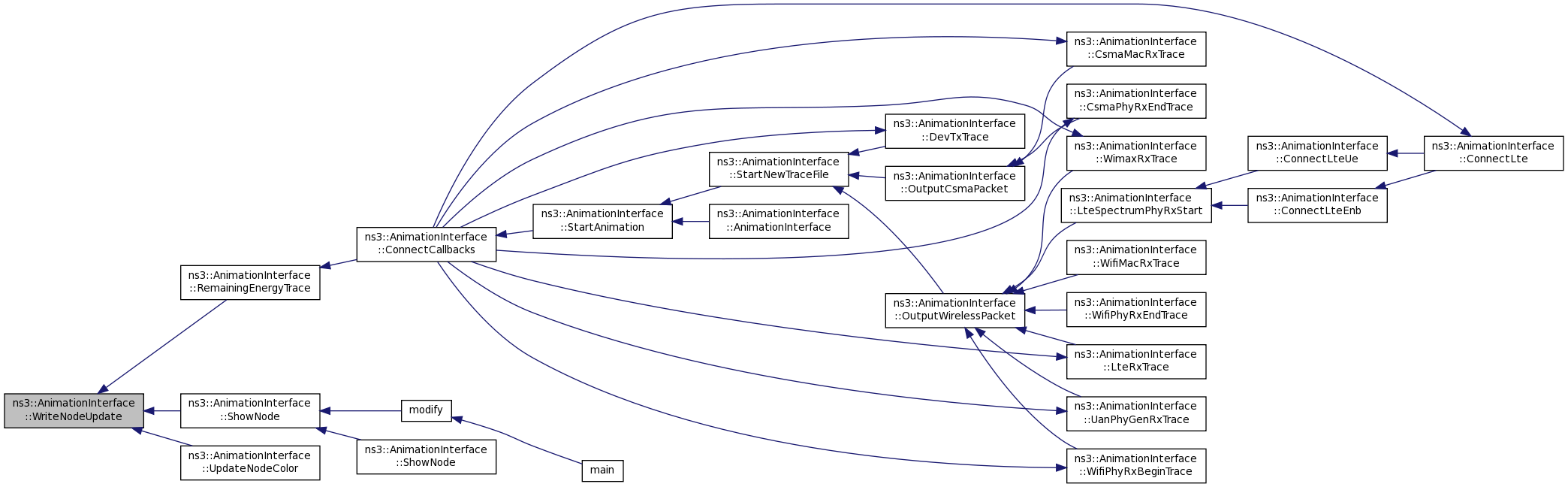

void WriteNodeUpdate (uint32_t nodeId)

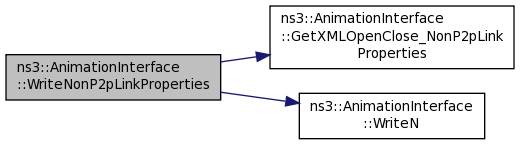

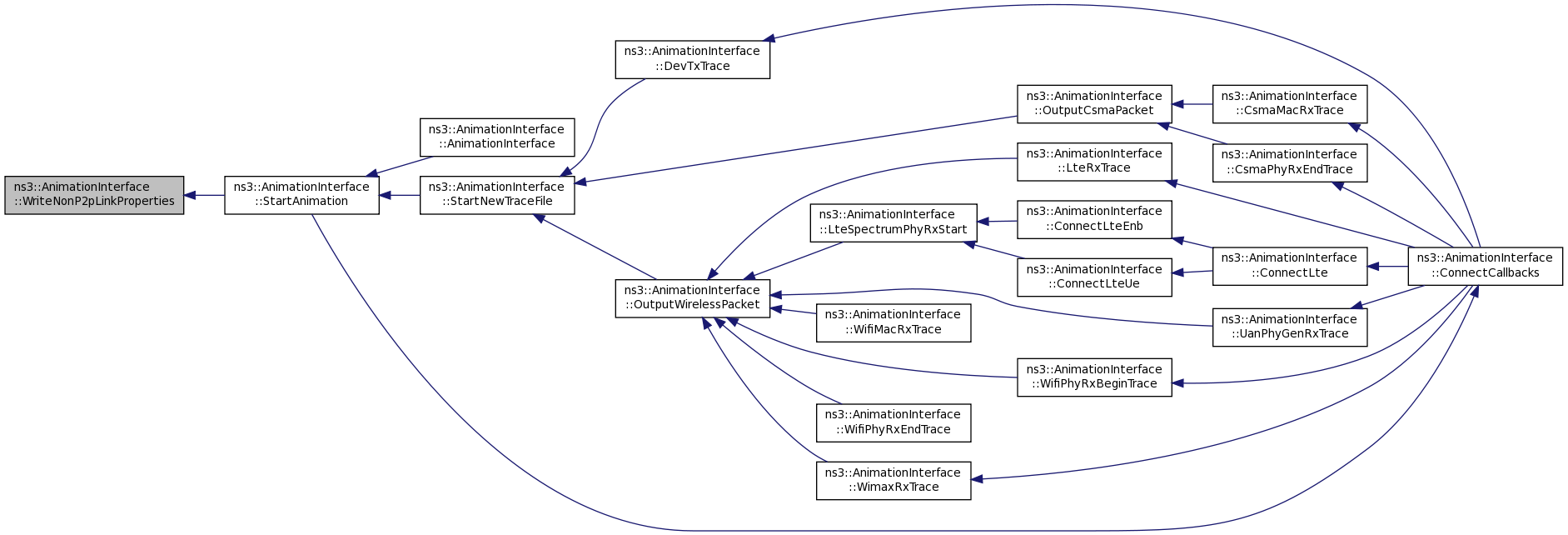

void WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

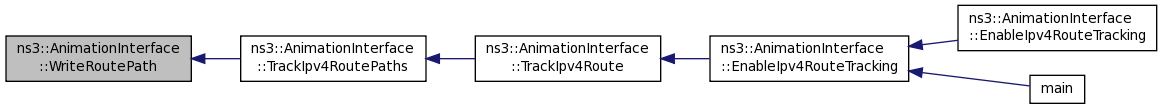

void WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)


Private Attributes

uint64_t gAnimUid

uint64_t m_currentPktCount

bool m_enable3105

bool m_enablePacketMetadata

FILE * m_f

std::vector
< Ipv4RouteTrackElement
m_ipv4RouteTrackElements

std::map< std::string, uint32_t > m_ipv4ToNodeIdMap

std::map< std::string, uint32_t > m_macToNodeIdMap

uint64_t m_maxPktsPerFile

Time m_mobilityPollInterval

std::vector< std::string > m_nodeCounters

EnergyFractionMap m_nodeEnergyFraction

std::map< uint32_t, Vectorm_nodeLocation

std::map< uint32_t, NodeSizem_nodeSizes

std::string m_originalFileName

std::string m_outputFileName

bool m_outputFileSet

std::map< uint64_t,
AnimPacketInfo
m_pendingCsmaPackets

std::map< uint64_t,
AnimPacketInfo
m_pendingLtePackets

std::map< uint64_t,
AnimPacketInfo
m_pendingUanPackets

std::map< uint64_t,
AnimPacketInfo
m_pendingWifiPackets

std::map< uint64_t,
AnimPacketInfo
m_pendingWimaxPackets

bool m_randomPosition

uint32_t m_remainingEnergyCounterId

std::vector< std::string > m_resources

FILE * m_routingF

std::string m_routingFileName

NodeContainer m_routingNc

Time m_routingPollInterval

Time m_routingStopTime

bool m_started

Time m_startTime

Time m_stopTime

double m_topoMaxX

double m_topoMaxY

double m_topoMinX

double m_topoMinY

bool m_trackPackets

Ptr< UniformRandomVariablem_uniformRandomVariable
 Provides uniform random variables. More...

AnimWriteCallback m_writeCallback


Static Private Attributes

static std::map
< P2pLinkNodeIdPair,
LinkProperties,
LinkPairCompare
linkProperties

static std::map< uint32_t, RgbnodeColors

static std::map< uint32_t,
std::string >
nodeDescriptions


Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 108 of file animation-interface.h.

Member Typedef Documentation

typedef void(* ns3::AnimationInterface::AnimWriteCallback)(const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 217 of file animation-interface.h.

typedef std::map<uint32_t, double> ns3::AnimationInterface::EnergyFractionMap
private

Definition at line 688 of file animation-interface.h.

Definition at line 678 of file animation-interface.h.

Member Enumeration Documentation

Counter Types.

Enumerator
UINT32_COUNTER
DOUBLE_COUNTER

Definition at line 129 of file animation-interface.h.

Constructor & Destructor Documentation

ns3::AnimationInterface::AnimationInterface ( const std::string  filename,
bool  enable3105 = true,
uint64_t  maxPktsPerFile = MAX_PKTS_PER_TRACE_FILE
)

Constructor.

Parameters
filenameThe Filename for the trace file used by the Animator
enable3105Enables 3.105 behavior. This flag will be made obsolete after the transition period
maxPktsPerFileThe maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktPerFile' number of packets

Definition at line 66 of file animation-interface.cc.

References ns3::initialized, m_uniformRandomVariable, and StartAnimation().

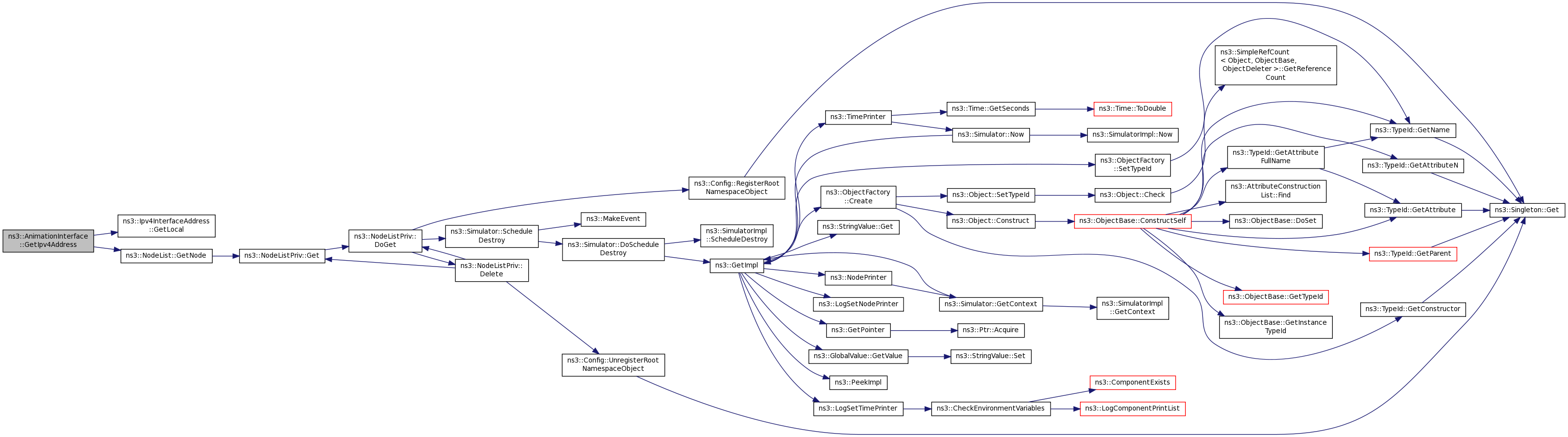

+ Here is the call graph for this function:

ns3::AnimationInterface::~AnimationInterface ( )

Destructor for the animator interface.

Definition at line 82 of file animation-interface.cc.

References StopAnimation().

+ Here is the call graph for this function:

Member Function Documentation

uint32_t ns3::AnimationInterface::AddNodeCounter ( std::string  counterName,
CounterType  counterType
)

Setup a node counter.

Parameters
counterNameA string to identify the counter
counterTypeThe type of the counter, such as uint32, double etc

returns The id of the counter to be used as a reference for future

Definition at line 328 of file animation-interface.cc.

References GetXMLOpenCloseAddNodeCounter(), m_f, m_nodeCounters, and WriteN().

Referenced by main(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingCsmaPacket ( uint64_t  AnimUid,
AnimPacketInfo pktinfo
)
private

Definition at line 1085 of file animation-interface.cc.

References m_pendingCsmaPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by CsmaPhyTxBeginTrace(), and CsmaPhyTxEndTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingLtePacket ( uint64_t  AnimUid,
AnimPacketInfo pktinfo
)
private

Definition at line 1079 of file animation-interface.cc.

References m_pendingLtePackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by LteSpectrumPhyTxStart(), and LteTxTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingUanPacket ( uint64_t  AnimUid,
AnimPacketInfo pktinfo
)
private

Definition at line 1062 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenTxTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWifiPacket ( uint64_t  AnimUid,
AnimPacketInfo pktinfo
)
private

Definition at line 1068 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxBeginTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWimaxPacket ( uint64_t  AnimUid,
AnimPacketInfo pktinfo
)
private

Definition at line 1073 of file animation-interface.cc.

References m_pendingWimaxPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by WimaxTxTrace().

+ Here is the caller graph for this function:

uint32_t ns3::AnimationInterface::AddResource ( std::string  resourcePath)

Add a resource such as the path to an image file.

Parameters
resourcePathAbsolute Path to an image/resource

returns a number identifying the resource

Definition at line 338 of file animation-interface.cc.

References GetXMLOpenCloseAddResource(), m_f, m_resources, and WriteN().

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::AddSourceDestination ( uint32_t  fromNodeId,
std::string  destinationIpv4Address
)

Helper function to print the routing path from a source node to destination IP.

Parameters
fromNodeIdThe source node
destinationIpv4AddressThe destination Ipv4 Address
Returns
reference to this AnimationInterface object

Definition at line 767 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable ( std::string  ipv4Address,
uint32_t  nodeId
)
private

Definition at line 762 of file animation-interface.cc.

References m_ipv4ToNodeIdMap.

Referenced by StartAnimation().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AppendXMLNodeColor ( std::ostream &  ostream,
const Rgb color
) const
private

Definition at line 2361 of file animation-interface.cc.

References ns3::Rgb::b, ns3::Rgb::g, and ns3::Rgb::r.

Referenced by GetXMLOpenClose_node(), and GetXMLOpenClose_nodeupdate().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AppendXMLNodeDescription ( std::ostream &  ostream,
uint32_t  id
) const
private

Definition at line 2349 of file animation-interface.cc.

References nodeDescriptions.

Referenced by GetXMLOpenClose_node(), and GetXMLOpenClose_nodeupdate().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::AppendXMLRemainingEnergy ( std::ostream &  ostream,
uint32_t  id
) const
private

Definition at line 2372 of file animation-interface.cc.

References ns3::NodeList::GetNode(), ns3::Object::GetObject(), and m_nodeEnergyFraction.

Referenced by GetXMLOpenClose_node(), and GetXMLOpenClose_nodeupdate().

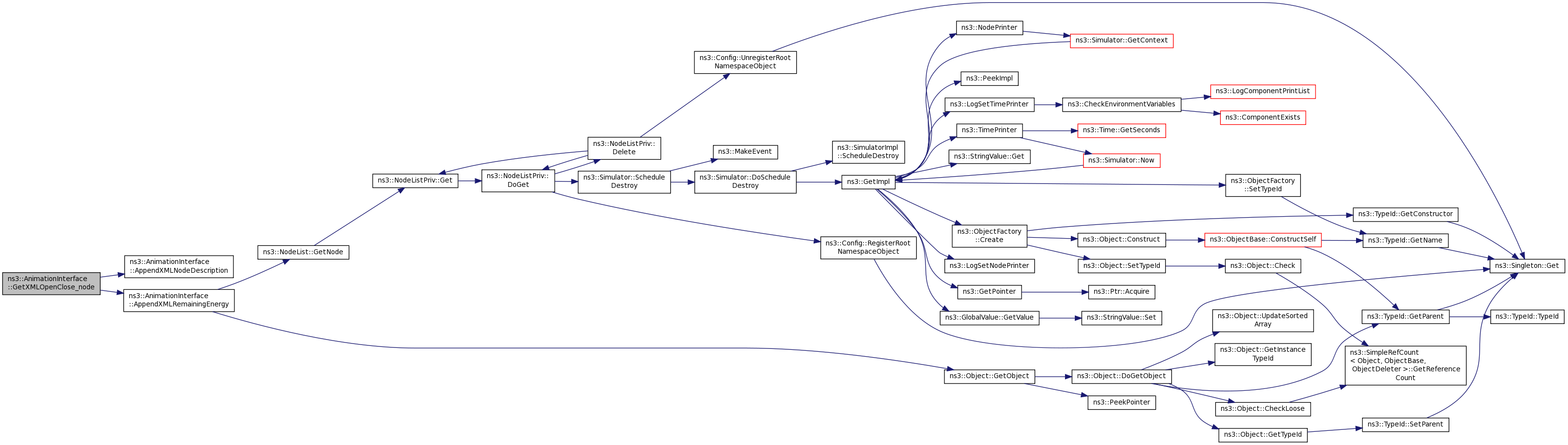

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

int64_t ns3::AnimationInterface::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 1688 of file animation-interface.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

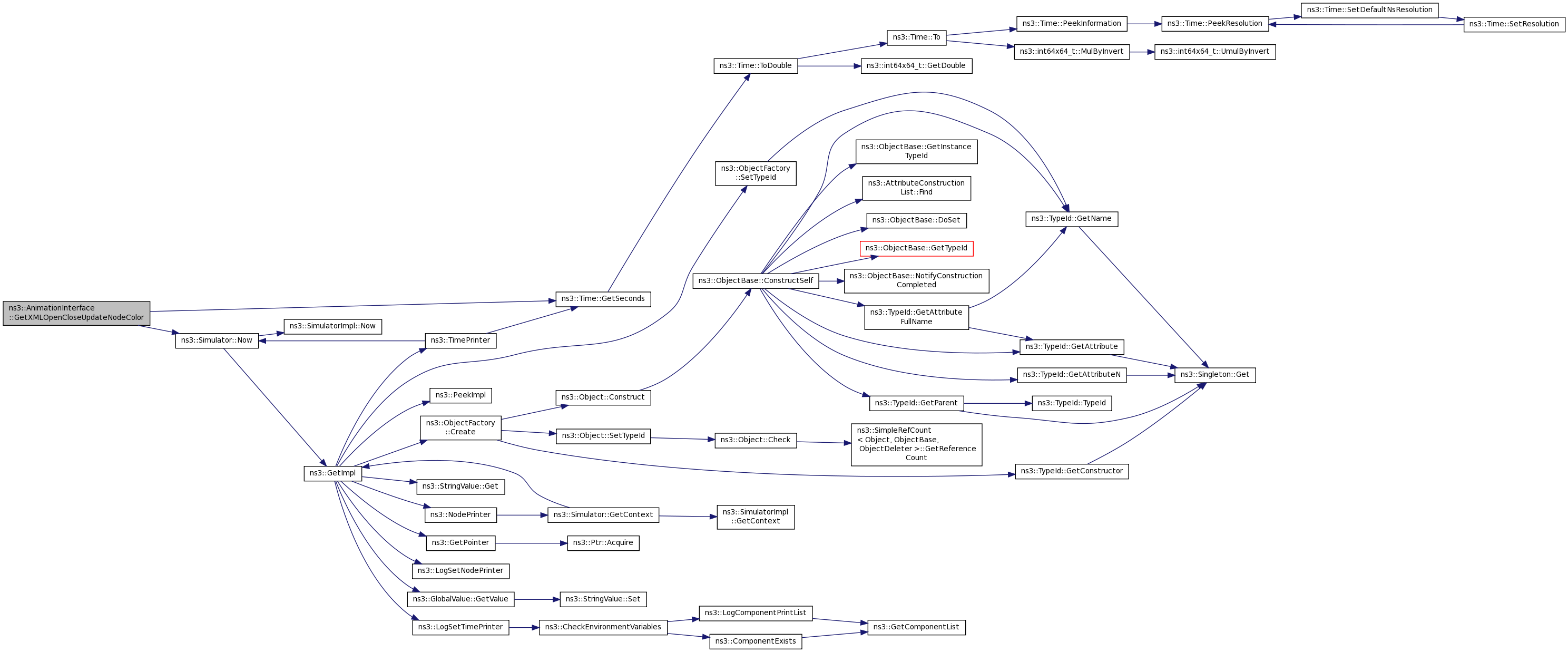

+ Here is the call graph for this function:

void ns3::AnimationInterface::ConnectLte ( )
private

Definition at line 819 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), and NS_ASSERT.

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteEnb ( Ptr< Node n,
Ptr< LteEnbNetDevice nd,
uint32_t  devIndex
)
private

Definition at line 775 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::LteEnbNetDevice::GetPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

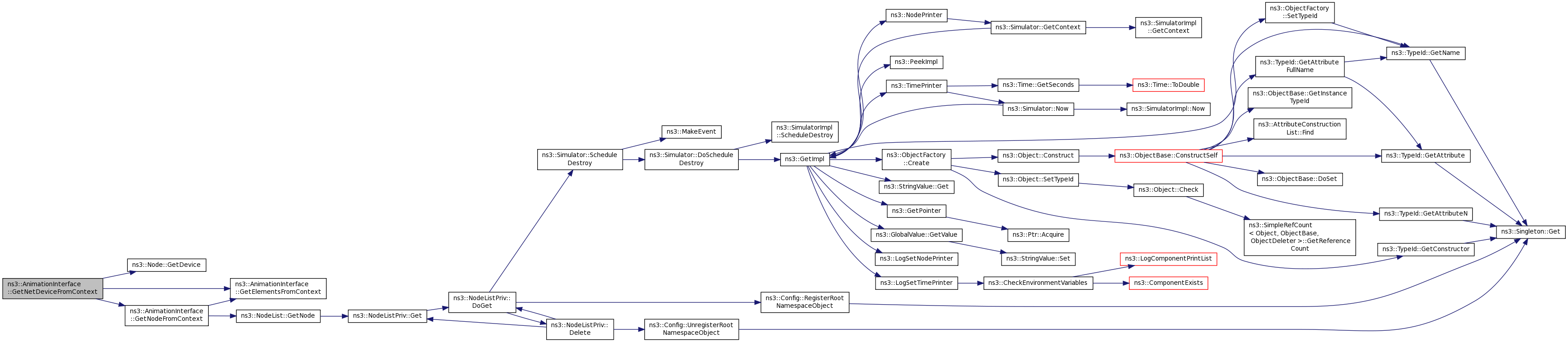

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteUe ( Ptr< Node n,
Ptr< LteUeNetDevice nd,
uint32_t  devIndex
)
private

Definition at line 798 of file animation-interface.cc.

References ns3::Node::GetId(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::CounterTypeToString ( CounterType  counterType)
private

Definition at line 1697 of file animation-interface.cc.

References DOUBLE_COUNTER, and UINT32_COUNTER.

Referenced by GetXMLOpenCloseAddNodeCounter().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaMacRxTrace ( std::string  context,
Ptr< const Packet p
)
private
Todo:
NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1543 of file animation-interface.cc.

References CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, m_trackPackets, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::AnimationInterface::CsmaPacketIsPending ( uint64_t  AnimUid)
private

Definition at line 429 of file animation-interface.cc.

References m_pendingCsmaPackets.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), and CsmaPhyTxEndTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyRxEndTrace ( std::string  context,
Ptr< const Packet p
)
private
void ns3::AnimationInterface::CsmaPhyTxBeginTrace ( std::string  context,
Ptr< const Packet p
)
private

Definition at line 1475 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingCsmaPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

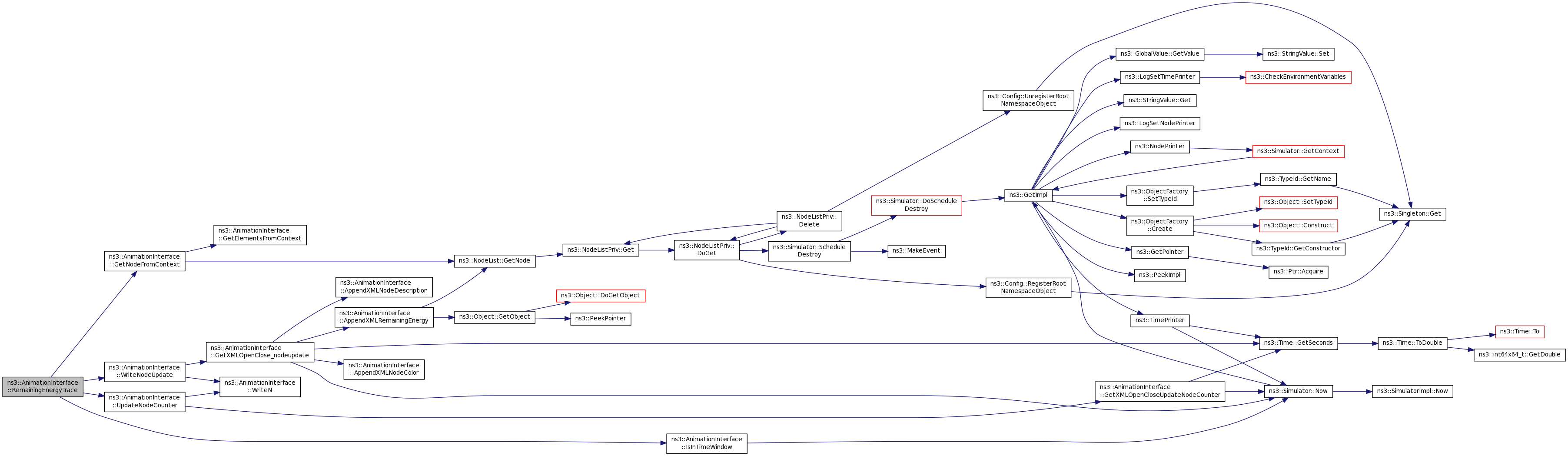

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxEndTrace ( std::string  context,
Ptr< const Packet p
)
private
Todo:
NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1493 of file animation-interface.cc.

References AddPendingCsmaPacket(), CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsInTimeWindow(), ns3::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::DevTxTrace ( std::string  context,
Ptr< const Packet p,
Ptr< NetDevice tx,
Ptr< NetDevice rx,
Time  txTime,
Time  rxTime
)
private

Definition at line 1014 of file animation-interface.cc.

References GetPacketMetadata(), ns3::Time::GetSeconds(), GetXMLOpenClose_p(), IsInTimeWindow(), m_currentPktCount, m_enablePacketMetadata, m_f, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking ( std::string  fileName,
Time  startTime,
Time  stopTime,
Time  pollInterval = Seconds (5)
)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters
fileNameTrace file for storing routing table information
startTimeStart time for capture
stopTimeEnd time for capture
pollIntervalThe periodic interval at which routing table information is polled Default: 5s
Returns
reference to this AnimationInterface object

Definition at line 92 of file animation-interface.cc.

References GetXMLOpen_anim(), m_routingF, m_routingFileName, m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetRoutingOutputFile(), stopTime, TrackIpv4Route(), and WriteN().

Referenced by EnableIpv4RouteTracking(), and main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking ( std::string  fileName,
Time  startTime,
Time  stopTime,
NodeContainer  nc,
Time  pollInterval = Seconds (5)
)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters
fileNameTrace file for storing routing table information
startTimeStart time for capture
stopTimeEnd time for capture
ncA NodeContainer containing nodes for which Routing table has to be tracked
pollIntervalThe periodic interval at which routing table information is polled Default: 5s
Returns
reference to this AnimationInterface object

Definition at line 103 of file animation-interface.cc.

References EnableIpv4RouteTracking(), and m_routingNc.

+ Here is the call graph for this function:

void ns3::AnimationInterface::EnablePacketMetadata ( bool  enable = true)

Enable Packet metadata.

Parameters
enableif true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Definition at line 382 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

const std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( const std::string &  context) const
private

Definition at line 2334 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext(), and GetNodeFromContext().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice nd)
private

Definition at line 612 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node n)
private

Definition at line 109 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice nd)
private

Definition at line 604 of file animation-interface.cc.

Referenced by StartAnimation().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetNetAnimVersion ( )
private

Definition at line 313 of file animation-interface.cc.

Referenced by GetXMLOpen_anim().

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string  context)
private
double ns3::AnimationInterface::GetNodeEnergyFraction ( Ptr< const Node node) const

Get node's energy fraction (This used only for testing)

returns current node's remaining energy (between [0, 1])

Definition at line 1679 of file animation-interface.cc.

References m_nodeEnergyFraction, and NS_ASSERT.

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

+ Here is the caller graph for this function:

Ptr< Node > ns3::AnimationInterface::GetNodeFromContext ( const std::string &  context) const
private

Definition at line 1037 of file animation-interface.cc.

References GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by GetNetDeviceFromContext(), and RemainingEnergyTrace().

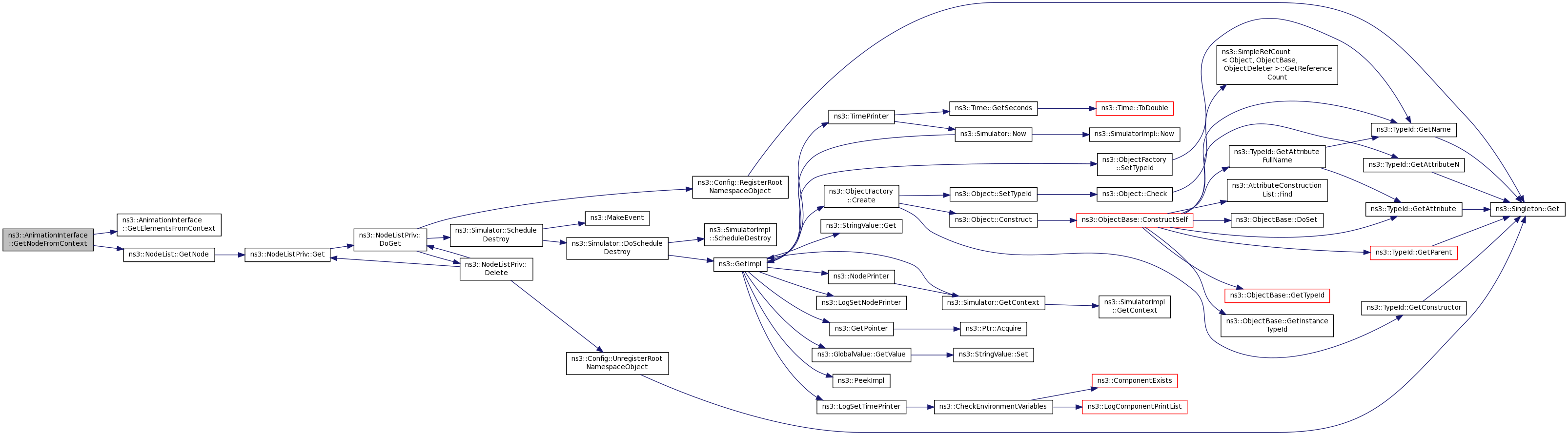

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet p)
private

Definition at line 1667 of file animation-interface.cc.

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node n)
private

Definition at line 485 of file animation-interface.cc.

References ns3::Node::GetId(), m_nodeLocation, and NS_FATAL_ERROR.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), NodeHasMoved(), RecalcTopoBounds(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPreamble ( void  )
private

Definition at line 1717 of file animation-interface.cc.

References s.

uint64_t ns3::AnimationInterface::GetTracePktCount ( )

Get trace file packet count (This used only for testing)

returns Number of packets recorded in the current trace file

Definition at line 1674 of file animation-interface.cc.

References m_currentPktCount.

Referenced by AnimationInterfaceTestCase::CheckLogic().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLClose ( std::string  name)
inlineprivate

Definition at line 743 of file animation-interface.h.

Referenced by StopAnimation().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_anim ( uint32_t  lp)
private

Definition at line 2018 of file animation-interface.cc.

References GetNetAnimVersion().

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_packet ( uint32_t  fromLp,
uint32_t  fromId,
double  fbTx,
double  lbTx,
std::string  auxInfo = ""
)
private

Definition at line 2116 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpen_topology ( double  minX,
double  minY,
double  maxX,
double  maxY
)
private
std::string ns3::AnimationInterface::GetXMLOpen_wpacket ( uint32_t  fromLp,
uint32_t  fromId,
double  fbTx,
double  lbTx,
double  range
)
private

Definition at line 2178 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpenClose_link ( uint32_t  fromLp,
uint32_t  fromId,
uint32_t  toLp,
uint32_t  toId
)
private

Definition at line 2085 of file animation-interface.cc.

References ns3::LinkProperties::fromNodeDescription, ns3::LinkProperties::linkDescription, linkProperties, and ns3::LinkProperties::toNodeDescription.

Referenced by StartAnimation().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_linkupdate ( uint32_t  fromId,
uint32_t  toId,
std::string  linkDescription
)
private

Definition at line 2071 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateLinkDescription().

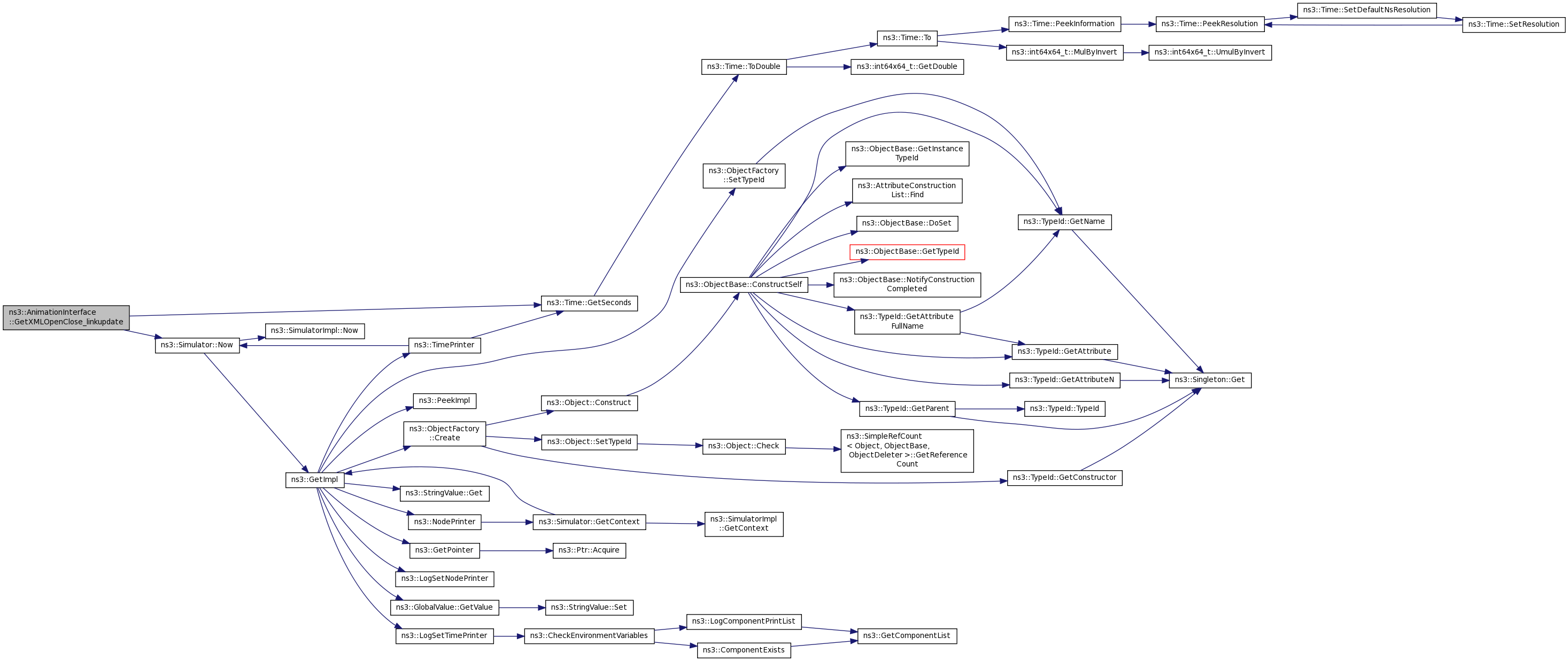

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_meta ( std::string  metaInfo)
private

Definition at line 2201 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpenClose_node ( uint32_t  lp,
uint32_t  id,
double  locX,
double  locY
)
private

Definition at line 2044 of file animation-interface.cc.

References AppendXMLNodeDescription(), and AppendXMLRemainingEnergy().

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_node ( uint32_t  lp,
uint32_t  id,
double  locX,
double  locY,
struct Rgb  rgb
)
private

Definition at line 2057 of file animation-interface.cc.

References AppendXMLNodeColor(), AppendXMLNodeDescription(), and AppendXMLRemainingEnergy().

+ Here is the call graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_nodeupdate ( uint32_t  id,
bool  visible = true
)
private

Definition at line 2025 of file animation-interface.cc.

References AppendXMLNodeColor(), AppendXMLNodeDescription(), AppendXMLRemainingEnergy(), ns3::Time::GetSeconds(), nodeColors, and ns3::Simulator::Now().

Referenced by UpdateNodeDescription(), and WriteNodeUpdate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_NonP2pLinkProperties ( uint32_t  id,
std::string  ipv4Address,
std::string  channelType
)
private

Definition at line 2322 of file animation-interface.cc.

Referenced by WriteNonP2pLinkProperties().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_p ( std::string  pktType,
uint32_t  fId,
double  fbTx,
double  lbTx,
uint32_t  tId,
double  fbRx,
double  lbRx,
std::string  metaInfo = "",
std::string  auxInfo = ""
)
private

Definition at line 2155 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacket(), and WriteDummyPacket().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_routing ( uint32_t  id,
std::string  routingInfo
)
private

Definition at line 2127 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by TrackIpv4Route().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_rp ( uint32_t  nodeId,
std::string  destination,
Ipv4RoutePathElements  rpElements
)
private

Definition at line 2137 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::Ipv4RoutePathElement::nextHop, ns3::Ipv4RoutePathElement::nodeId, and ns3::Simulator::Now().

Referenced by WriteRoutePath().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_rx ( uint32_t  toLp,
uint32_t  toId,
double  fbRx,
double  lbRx
)
private

Definition at line 2190 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpenCloseAddNodeCounter ( uint32_t  counterId,
std::string  counterName,
CounterType  counterType
)
private

Definition at line 2209 of file animation-interface.cc.

References CounterTypeToString().

Referenced by AddNodeCounter().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseAddResource ( uint32_t  resourceId,
std::string  resourcePath
)
private

Definition at line 2219 of file animation-interface.cc.

Referenced by AddResource().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateBackground ( std::string  fileName,
double  x,
double  y,
double  scaleX,
double  scaleY,
double  opacity
)
private

Definition at line 2308 of file animation-interface.cc.

Referenced by SetBackgroundImage().

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodeColor ( uint32_t  nodeId,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
private

Definition at line 2264 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateNodeColor().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodeCounter ( uint32_t  counterId,
uint32_t  nodeId,
double  value
)
private

Definition at line 2297 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateNodeCounter().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodeDescription ( uint32_t  nodeId)
private

Definition at line 2277 of file animation-interface.cc.

References ns3::Time::GetSeconds(), nodeDescriptions, and ns3::Simulator::Now().

Referenced by UpdateNodeDescription().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodeImage ( uint32_t  nodeId,
uint32_t  resourceId
)
private

Definition at line 2228 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateNodeImage().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodePosition ( uint32_t  nodeId,
double  x,
double  y
)
private

Definition at line 2252 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenCloseUpdateNodeSize ( uint32_t  nodeId,
double  width,
double  height
)
private

Definition at line 2239 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateNodeSize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::AnimationInterface::IsInitialized ( void  )
static

Check if AnimationInterface is initialized.

Returns
true if AnimationInterface was already initialized

Definition at line 389 of file animation-interface.cc.

References ns3::initialized.

bool ns3::AnimationInterface::IsStarted ( void  )

Is AnimationInterface started.

Returns
true if AnimationInterface was started

Definition at line 394 of file animation-interface.cc.

References m_started.

bool ns3::AnimationInterface::LtePacketIsPending ( uint64_t  AnimUid)
private

Definition at line 440 of file animation-interface.cc.

References m_pendingLtePackets.

Referenced by LteRxTrace(), and LteSpectrumPhyRxStart().

+ Here is the caller graph for this function:

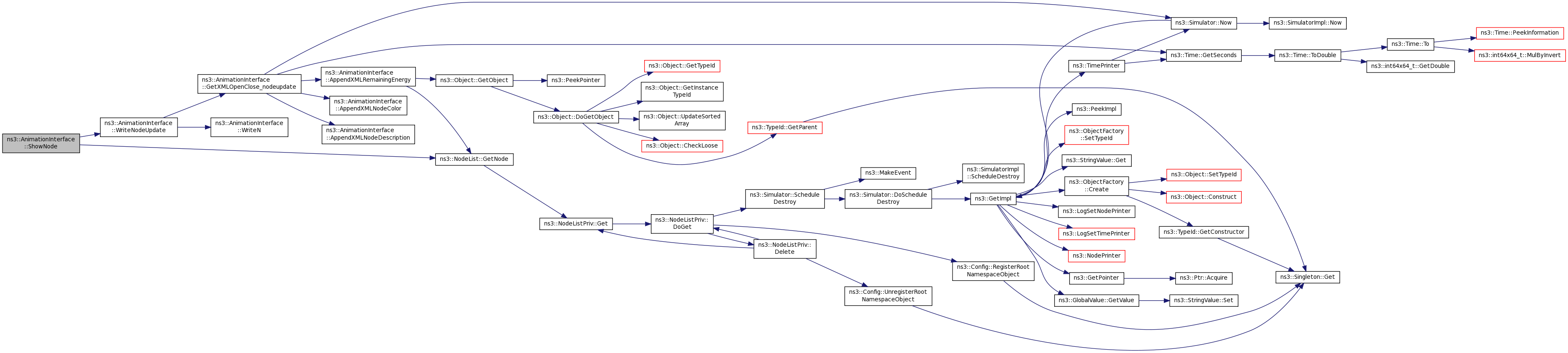

void ns3::AnimationInterface::LteRxTrace ( std::string  context,
Ptr< const Packet p,
const Mac48Address m
)
private

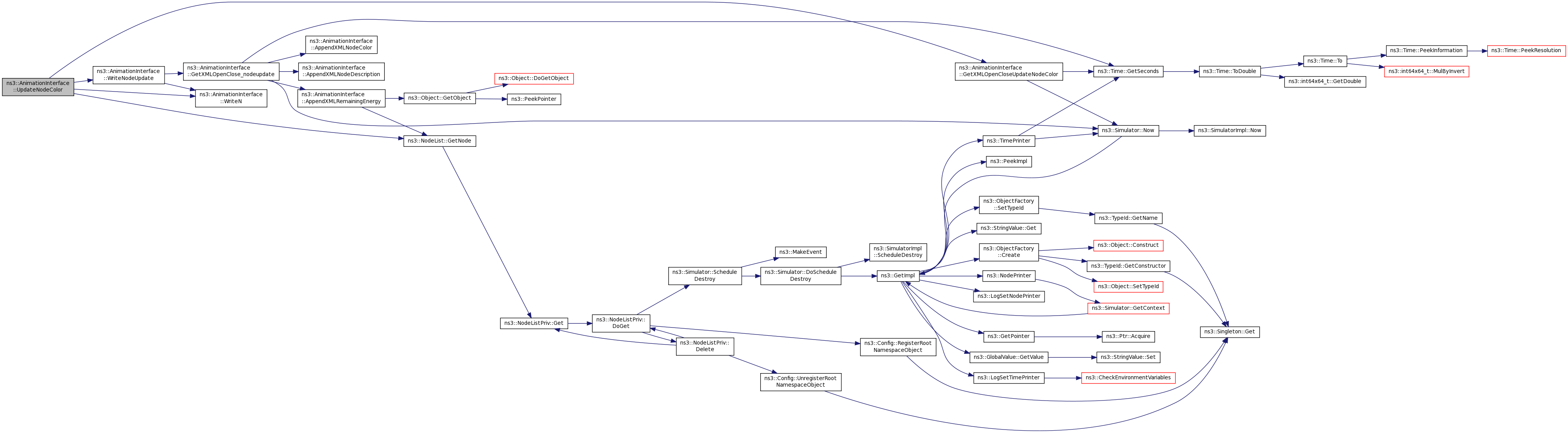

void ns3::AnimationInterface::LteSpectrumPhyRxStart ( std::string  context,
Ptr< const PacketBurst pb
)
private
void ns3::AnimationInterface::LteSpectrumPhyTxStart ( std::string  context,
Ptr< const PacketBurst pb
)
private
Todo:
0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 1406 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), list, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::LteTxTrace ( std::string  context,
Ptr< const Packet p,
const Mac48Address m
)
private
Todo:
0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 1364 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

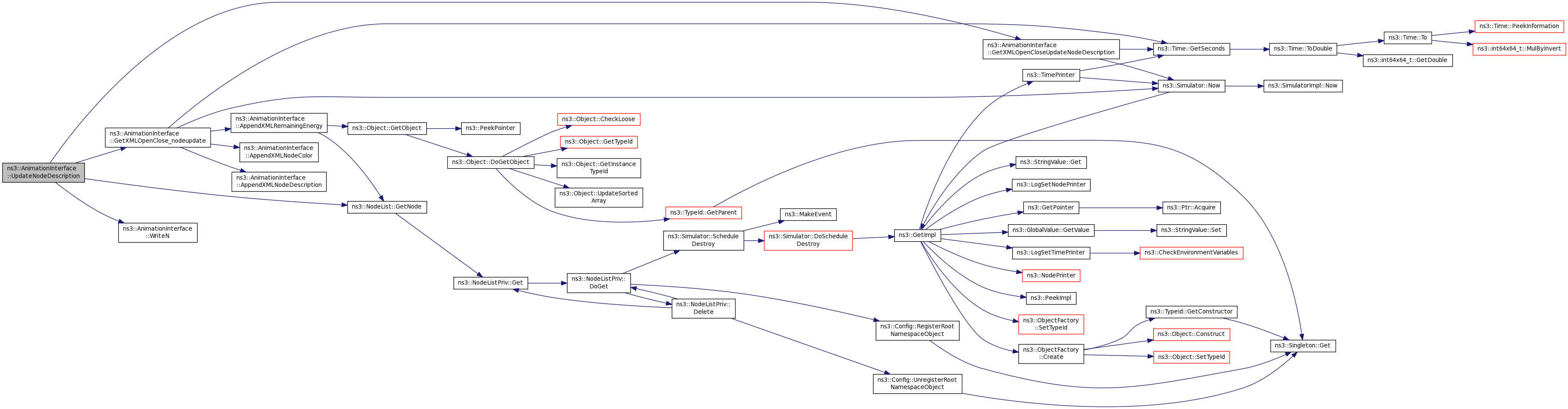

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel mob)
private
bool ns3::AnimationInterface::NodeHasMoved ( Ptr< Node n,
Vector  newLocation
)
private

Definition at line 1601 of file animation-interface.cc.

References GetPosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by RecalcTopoBounds().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::OutputCsmaPacket ( Ptr< const Packet p,
AnimPacketInfo pktInfo,
AnimRxInfo  pktrxInfo
)
private
void ns3::AnimationInterface::PurgePendingCsma ( )
private

Definition at line 577 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingCsmaPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingLte ( )
private

Definition at line 551 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingLtePackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

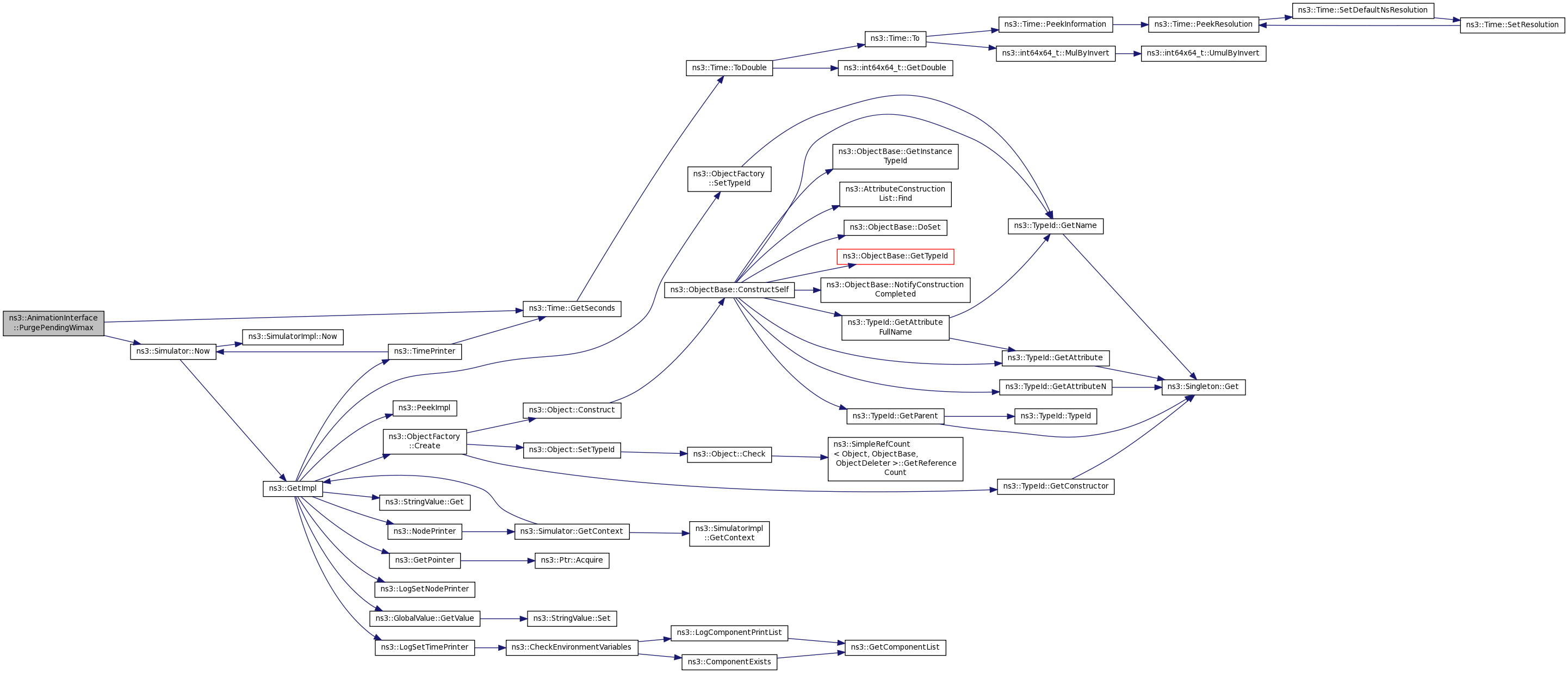

void ns3::AnimationInterface::PurgePendingWifi ( )
private

Definition at line 496 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWifiPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingWimax ( )
private

Definition at line 523 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWimaxPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::RecalcTopoBounds ( Vector  v)
private
std::vector< Ptr< Node > > ns3::AnimationInterface::RecalcTopoBounds ( )
private

Definition at line 917 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

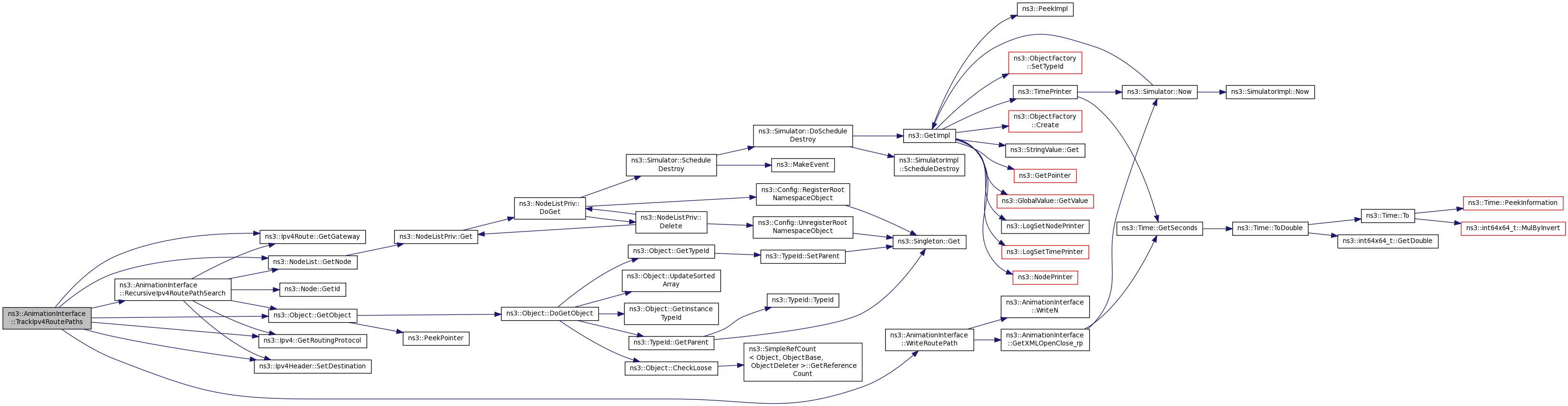

void ns3::AnimationInterface::RecursiveIpv4RoutePathSearch ( std::string  fromIpv4,
std::string  toIpv4,
Ipv4RoutePathElements rpElements
)
private
void ns3::AnimationInterface::RemainingEnergyTrace ( std::string  context,
double  previousEnergy,
double  currentEnergy
)
private

Definition at line 1156 of file animation-interface.cc.

References GetNodeFromContext(), IsInTimeWindow(), m_enable3105, m_nodeEnergyFraction, m_remainingEnergyCounterId, m_started, NS_ASSERT, NS_LOG_INFO, UpdateNodeCounter(), and WriteNodeUpdate().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::ResetAnimWriteCallback ( )

Reset the write callback function.

Definition at line 405 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetAnimWriteCallback ( AnimWriteCallback  cb)

Set a callback function to listen to AnimationInterface write events.

Parameters
cbAddress of callback function

Definition at line 400 of file animation-interface.cc.

References m_writeCallback.

void ns3::AnimationInterface::SetBackgroundImage ( std::string  fileName,
double  x,
double  y,
double  scaleX,
double  scaleY,
double  opacity
)

Helper function to set the background image.

Parameters
fileNameFile name of the background image
xX co-ordinate of the image
yY co-ordinate of the image
scaleXX scale of the image
scaleYY scale of the image
opacityOpacity of the background: A value between 0.0 and 1.0. 0.0 is transparent, 1.0 is opaque

Definition at line 1832 of file animation-interface.cc.

References GetXMLOpenCloseUpdateBackground(), m_f, NS_FATAL_ERROR, and WriteN().

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetConstantPosition ( Ptr< Node n,
double  x,
double  y,
double  z = 0
)
static

Helper function to set Constant Position for a given node.

Parameters
nPtr to the node
xX co-ordinate of the node
yY co-ordinate of the node
zZ co-ordinate of the node

Definition at line 1806 of file animation-interface.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_INFO.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription ( uint32_t  fromNode,
uint32_t  toNode,
std::string  linkDescription,
std::string  fromNodeDescription = "",
std::string  toNodeDescription = ""
)
static

Helper function to set the description for a link.

Parameters
fromNodeNode Id of the "from Node" of the p2p link
toNodeNode Id of the "to Node" of the p2p link
linkDescriptionDescription of the link such as link bandwidth
fromNodeDescriptionDescription at the "from Node" end such as IP address
toNodeDescriptionDescription at the "to Node" end such as Ip address

Definition at line 1937 of file animation-interface.cc.

References ns3::P2pLinkNodeIdPair::fromNode, linkProperties, and ns3::P2pLinkNodeIdPair::toNode.

Referenced by SetLinkDescription(), and StartAnimation().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription ( Ptr< Node fromNode,
Ptr< Node toNode,
std::string  linkDescription,
std::string  fromNodeDescription = "",
std::string  toNodeDescription = ""
)
static

Helper function to set the description for a link.

Parameters
fromNodePtr to the "from Node" of the p2p link
toNodePtr the "to Node" of the p2p link
linkDescriptionDescription of the link such as link bandwidth
fromNodeDescriptionDescription at the "from Node" end such as IP address
toNodeDescriptionDescription at the "to Node" end such as Ip address

Definition at line 1961 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and SetLinkDescription().

+ Here is the call graph for this function:

void ns3::AnimationInterface::SetMobilityPollInterval ( Time  t)

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters
tTime interval between fetching mobility/position information Default: 0.25s

Definition at line 445 of file animation-interface.cc.

References m_mobilityPollInterval.

void ns3::AnimationInterface::SetNodeColor ( Ptr< Node n,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
static

Helper function to set the node color.

Parameters
nPtr to the node
rRed component value (0-255)
gGreen component value (0-255)
bBlue component value (0-255)

Definition at line 1844 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::initialized, nodeColors, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by main(), and SetNodeColor().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeColor ( NodeContainer  nc,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
static

Helper function to set the color of nodes in a container.

Parameters
ncA Node Container of Nodes
rRed component value (0-255)
gGreen component value (0-255)
bBlue component value (0-255)

Definition at line 1908 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), NS_ASSERT, and SetNodeColor().

+ Here is the call graph for this function:

void ns3::AnimationInterface::SetNodeDescription ( Ptr< Node n,
std::string  descr
)
static

Helper function to set a brief description for a given node.

Parameters
nPtr to the node
descrA string to briefly describe the node

Definition at line 1972 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeDescription ( NodeContainer  nc,
std::string  descr
)
static

Helper function to set a brief description for nodes in a Node Container.

Parameters
ncNodeContainer containing the nodes
descrA string to briefly describe the nodes

Definition at line 2003 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::NodeContainer::GetN(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

+ Here is the call graph for this function:

bool ns3::AnimationInterface::SetOutputFile ( const std::string &  fn)
private

Specify that animation commands are to be written to the specified output file.

This call is used to write the animation information to a text file that can later be used as input to the network animator tool.

Parameters
fnThe name of the output file.
Returns
true if successful open.

Definition at line 348 of file animation-interface.cc.

References m_f, m_outputFileName, m_outputFileSet, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by StartAnimation().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetRandomPosition ( bool  setRandPos)

Set random position if a Mobility Model does not exists for the node.

Parameters
setRandPosTrue if a random position can be set for a node without a Mobililty model

Definition at line 450 of file animation-interface.cc.

References m_randomPosition.

bool ns3::AnimationInterface::SetRoutingOutputFile ( const std::string &  fn)
private

Definition at line 366 of file animation-interface.cc.

References m_routingF, and NS_FATAL_ERROR.

Referenced by EnableIpv4RouteTracking().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::SetStartTime ( Time  t)

Specify the time at which capture should start.

Parameters
tThe time at which AnimationInterface should begin capture of traffic info
Returns
none

Definition at line 318 of file animation-interface.cc.

References m_startTime.

void ns3::AnimationInterface::SetStopTime ( Time  t)

Specify the time at which capture should stop.

Parameters
tThe time at which AnimationInterface should stop capture of traffic info
Returns
none

Definition at line 323 of file animation-interface.cc.

References m_stopTime.

void ns3::AnimationInterface::SetXMLOutput ( )
private

Specify that animation commands are to be written in XML format.

Returns
none
void ns3::AnimationInterface::ShowNode ( uint32_t  nodeId,
bool  show = true
)

Helper function to show/hide a node.

Parameters
nodeIdId of the node
showSet to true to show node, set to false to hide

Definition at line 1854 of file animation-interface.cc.

References ns3::NodeList::GetNode(), NS_ASSERT, NS_LOG_INFO, and WriteNodeUpdate().

Referenced by modify(), and ShowNode().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::ShowNode ( Ptr< Node n,
bool  show = true
)

Helper function to show/hide a node.

Parameters
nPtr to the node
showSet to true to show node, set to false to hide

Definition at line 1861 of file animation-interface.cc.

References ShowNode().

+ Here is the call graph for this function:

void ns3::AnimationInterface::SkipPacketTracing ( )

Do not trace packets.

This helps reduce the trace file size if AnimationInterface is solely used for tracking mobility, routing paths and counters

Definition at line 87 of file animation-interface.cc.

References m_trackPackets.

void ns3::AnimationInterface::StartAnimation ( bool  restart = false)
private

Writes the topology information and sets up the appropriate animation packet tx callback.

Writes the topology information to the appropriate output, depending on prior calls to SetOutputFile, SetServerPort, or SetInternalAnimation. Then creates the callbacks needed for the animator to start processing packets.

Parameters
restartTrue when restarting animation

Definition at line 632 of file animation-interface.cc.

References AddNodeCounter(), AddToIpv4AddressNodeIdTable(), ns3::NodeList::Begin(), ConnectCallbacks(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetId(), GetIpv4Address(), GetMacAddress(), ns3::Node::GetNDevices(), ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), GetPosition(), GetXMLOpen_anim(), GetXMLOpenClose_link(), GetXMLOpenClose_node(), ns3::NodeSize::height, linkProperties, m_currentPktCount, m_enable3105, m_f, m_mobilityPollInterval, m_nodeSizes, m_outputFileName, m_remainingEnergyCounterId, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, MobilityAutoCheck(), nodeColors, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, s, ns3::Simulator::Schedule(), SetLinkDescription(), SetOutputFile(), UpdateNodeCounter(), UpdateNodeSize(), UpdatePosition(), ns3::NodeSize::width, WriteN(), WriteNonP2pLinkProperties(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by AnimationInterface(), and StartNewTraceFile().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::StartNewTraceFile ( )
private

Definition at line 296 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, m_originalFileName, m_outputFileName, StartAnimation(), and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::StopAnimation ( bool  onlyAnimation = false)
private

Closes the interface to the animator.

Definition at line 885 of file animation-interface.cc.

References GetXMLClose(), m_f, m_outputFileSet, m_routingF, m_started, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteN().

Referenced by StartNewTraceFile(), and ~AnimationInterface().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::AnimationInterface::UanPacketIsPending ( uint64_t  AnimUid)
private

Definition at line 419 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenRxTrace().

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenRxTrace ( std::string  context,
Ptr< const Packet p
)
private

Definition at line 1135 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingUanPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), UanPacketIsPending(), and UpdatePosition().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenTxTrace ( std::string  context,
Ptr< const Packet p
)
private

Definition at line 1116 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingUanPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription ( uint32_t  fromNode,
uint32_t  toNode,
std::string  linkDescription
)

Helper function to update the description for a link.

Parameters
fromNodeNode Id of the "from Node" of the p2p link
toNodeNode Id of the "to Node" of the p2p link
linkDescriptionDescription of the link such as link bandwidth

Definition at line 1919 of file animation-interface.cc.

References GetXMLOpenClose_linkupdate(), m_f, and WriteN().

Referenced by modify().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription ( Ptr< Node fromNode,
Ptr< Node toNode,
std::string  linkDescription
)

Helper function to update the description for a link.

Parameters
fromNodePtr to the "from Node" of the p2p link
toNodePtr to the "to Node" of the p2p link
linkDescriptionDescription of the link such as link bandwidth

Definition at line 1927 of file animation-interface.cc.

References ns3::Node::GetId(), GetXMLOpenClose_linkupdate(), m_f, NS_ASSERT, and WriteN().

+ Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeColor ( Ptr< Node n,
uint8_t  r,
uint8_t  g,
uint8_t  b
)

Helper function to update the node color.

Parameters
nPtr to the node
rRed component value (0-255)
gGreen component value (0-255)
bBlue component value (0-255)

Definition at line 1883 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeColor ( uint32_t  nodeId,
uint8_t  r,
uint8_t  g,
uint8_t  b
)

Helper function to update the node color.

Parameters
nodeIdId of the node
rRed component value (0-255)
gGreen component value (0-255)
bBlue component value (0-255)

Definition at line 1888 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenCloseUpdateNodeColor(), m_enable3105, m_f, nodeColors, NS_ASSERT, NS_LOG_INFO, WriteN(), and WriteNodeUpdate().

+ Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeCounter ( uint32_t  nodeCounterId,
uint32_t  nodeId,
double  counter
)

Helper function to update a node's counter referenced by the nodeCounterId.

Parameters
nodeCounterIdThe counter Id obtained from AddNodeCounter
nodeIdNode Id of the node
counterCurrent value of the counter

Definition at line 1821 of file animation-interface.cc.

References GetXMLOpenCloseUpdateNodeCounter(), m_f, m_nodeCounters, NS_FATAL_ERROR, and WriteN().

Referenced by modify(), RemainingEnergyTrace(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription ( Ptr< Node n,
std::string  descr
)

Helper function to update the description for a given node.

Parameters
nPtr to the node
descrA string to briefly describe the node

Definition at line 1980 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription ( uint32_t  nodeId,
std::string  descr
)

Helper function to update the description for a given node.

Parameters
nodeIdId of the node
descrA string to briefly describe the node

Definition at line 1985 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), GetXMLOpenCloseUpdateNodeDescription(), m_enable3105, m_f, nodeDescriptions, NS_ASSERT, and WriteN().

+ Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeImage ( uint32_t  nodeId,
uint32_t  resourceId
)

Helper function to update the image of a node.

Parameters
nodeIdId of the node
resourceIdId of the image resource that was previously added

Definition at line 1654 of file animation-interface.cc.

References GetXMLOpenCloseUpdateNodeImage(), m_f, m_resources, NS_FATAL_ERROR, NS_LOG_INFO, and WriteN().

Referenced by modify().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeSize ( uint32_t  nodeId,
double  width,
double  height
)

Helper function to update the size of a node.

Parameters
nodeIdId of the node
widthWidth of the node
heightHeight of the node

Definition at line 1873 of file animation-interface.cc.

References GetXMLOpenCloseUpdateNodeSize(), ns3::NodeSize::height, m_f, m_nodeSizes, s, ns3::NodeSize::width, and WriteN().

Referenced by modify(), and StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node n,
Vector  v
)
private

Definition at line 479 of file animation-interface.cc.

References ns3::Node::GetId(), and m_nodeLocation.

+ Here is the call graph for this function:

void ns3::AnimationInterface::WifiMacRxTrace ( std::string  context,
Ptr< const Packet p
)
private
bool ns3::AnimationInterface::WifiPacketIsPending ( uint64_t  AnimUid)
private

Definition at line 424 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxDropTrace().

+ Here is the caller graph for this function:

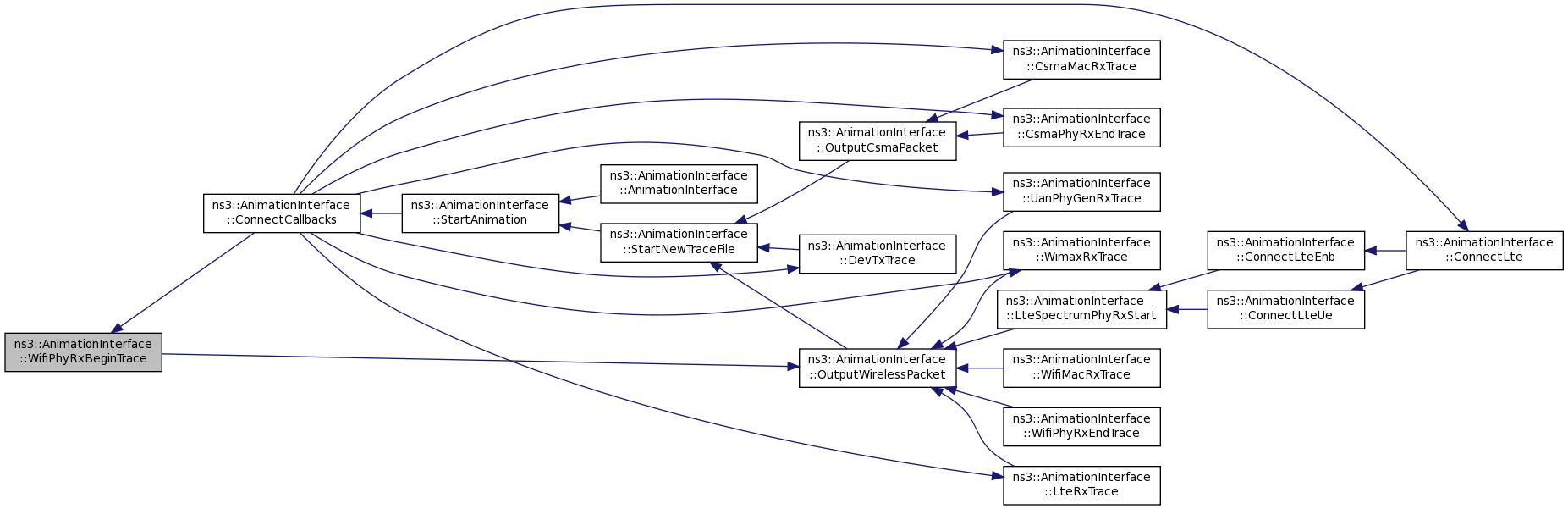

void ns3::AnimationInterface::WifiPhyRxBeginTrace ( std::string  context,
Ptr< const Packet p
)
private
void ns3::AnimationInterface::WifiPhyRxDropTrace ( std::string  context,
Ptr< const Packet p
)
private

Definition at line 1321 of file animation-interface.cc.

void ns3::AnimationInterface::WifiPhyRxEndTrace ( std::string  context,
Ptr< const Packet p
)
private
void ns3::AnimationInterface::WifiPhyTxBeginTrace ( std::string  context,
Ptr< const Packet p
)
private
void ns3::AnimationInterface::WifiPhyTxDropTrace ( std::string  context,
Ptr< const Packet p
)
private
void ns3::AnimationInterface::WifiPhyTxEndTrace ( std::string  context,
Ptr< const Packet p
)
private

Definition at line 1210 of file animation-interface.cc.

bool ns3::AnimationInterface::WimaxPacketIsPending ( uint64_t  AnimUid)
private

Definition at line 435 of file animation-interface.cc.

References m_pendingWimaxPackets.

Referenced by WimaxRxTrace().

+ Here is the caller graph for this function:

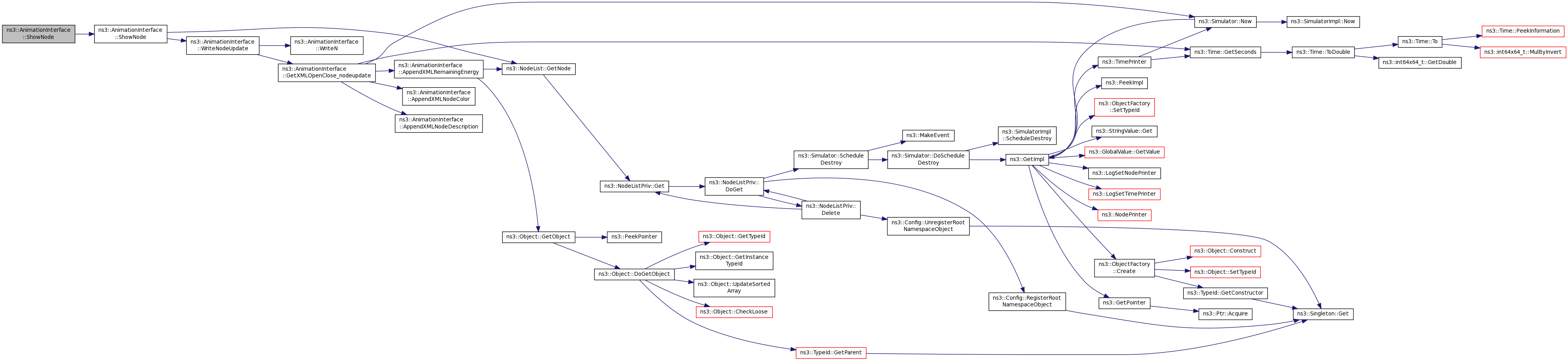

void ns3::AnimationInterface::WimaxRxTrace ( std::string  context,
Ptr< const Packet p,
const Mac48Address m
)
private
void ns3::AnimationInterface::WimaxTxTrace ( std::string  context,
Ptr< const Packet p,
const Mac48Address m
)
private
Todo:
0.0001 is used until Wimax implements TxBegin and TxEnd traces

Definition at line 1326 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingWimaxPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::WriteDummyPacket ( )
private

Definition at line 977 of file animation-interface.cc.

References ns3::Time::GetSeconds(), GetXMLOpenClose_p(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN ( const std::string &  st,
FILE *  f
)
private

Definition at line 908 of file animation-interface.cc.

References m_writeCallback, and WriteN().

+ Here is the call graph for this function:

void ns3::AnimationInterface::WriteNodeUpdate ( uint32_t  nodeId)
private

Definition at line 1866 of file animation-interface.cc.

References GetXMLOpenClose_nodeupdate(), m_f, and WriteN().

Referenced by RemainingEnergyTrace(), ShowNode(), and UpdateNodeColor().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNonP2pLinkProperties ( uint32_t  id,
std::string  ipv4Address,
std::string  channelType
)
private

Definition at line 1007 of file animation-interface.cc.

References GetXMLOpenClose_NonP2pLinkProperties(), m_f, and WriteN().

Referenced by StartAnimation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AnimationInterface::WriteRoutePath ( uint32_t  nodeId,
std::string  destination,
Ipv4RoutePathElements  rpElements
)
private

Definition at line 991 of file animation-interface.cc.

References GetXMLOpenClose_rp(), m_routingF, NS_LOG_INFO, and WriteN().

Referenced by TrackIpv4RoutePaths().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

uint64_t ns3::AnimationInterface::gAnimUid
private
std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare > ns3::AnimationInterface::linkProperties
staticprivate

Definition at line 692 of file animation-interface.h.

Referenced by GetXMLOpenClose_link(), SetLinkDescription(), and StartAnimation().

uint64_t ns3::AnimationInterface::m_currentPktCount
private
bool ns3::AnimationInterface::m_enable3105
private
bool ns3::AnimationInterface::m_enablePacketMetadata
private
std::vector<Ipv4RouteTrackElement> ns3::AnimationInterface::m_ipv4RouteTrackElements
private

Definition at line 677 of file animation-interface.h.

Referenced by AddSourceDestination(), and TrackIpv4RoutePaths().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv4ToNodeIdMap
private
std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap
private

Definition at line 674 of file animation-interface.h.

Referenced by WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

uint64_t ns3::AnimationInterface::m_maxPktsPerFile
private

Definition at line 512 of file animation-interface.h.

Referenced by StartNewTraceFile().

Time ns3::AnimationInterface::m_mobilityPollInterval
private
std::vector<std::string> ns3::AnimationInterface::m_nodeCounters
private

Definition at line 698 of file animation-interface.h.

Referenced by AddNodeCounter(), and UpdateNodeCounter().

EnergyFractionMap ns3::AnimationInterface::m_nodeEnergyFraction
private
std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation
private

Definition at line 652 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

std::map<uint32_t, NodeSize> ns3::AnimationInterface::m_nodeSizes
private

Definition at line 696 of file animation-interface.h.

Referenced by StartAnimation(), and UpdateNodeSize().

std::string ns3::AnimationInterface::m_originalFileName
private

Definition at line 513 of file animation-interface.h.

Referenced by StartNewTraceFile().

std::string ns3::AnimationInterface::m_outputFileName
private

Definition at line 503 of file animation-interface.h.

Referenced by SetOutputFile(), StartAnimation(), and StartNewTraceFile().

bool ns3::AnimationInterface::m_outputFileSet
private

Definition at line 504 of file animation-interface.h.

Referenced by SetOutputFile(), and StopAnimation().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingCsmaPackets
private
std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingLtePackets
private
std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingUanPackets
private
std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWifiPackets
private
std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWimaxPackets
private
bool ns3::AnimationInterface::m_randomPosition
private

Definition at line 506 of file animation-interface.h.

Referenced by SetRandomPosition(), and UpdatePosition().

uint32_t ns3::AnimationInterface::m_remainingEnergyCounterId
private

Definition at line 720 of file animation-interface.h.

Referenced by RemainingEnergyTrace(), and StartAnimation().

std::vector<std::string> ns3::AnimationInterface::m_resources
private

Definition at line 697 of file animation-interface.h.

Referenced by AddResource(), and UpdateNodeImage().

FILE* ns3::AnimationInterface::m_routingF
private
std::string ns3::AnimationInterface::m_routingFileName
private

Definition at line 515 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking().

NodeContainer ns3::AnimationInterface::m_routingNc
private

Definition at line 517 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingPollInterval
private

Definition at line 516 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingStopTime
private

Definition at line 514 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_startTime
private

Definition at line 510 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

Time ns3::AnimationInterface::m_stopTime
private

Definition at line 511 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

double ns3::AnimationInterface::m_topoMaxX
private

Definition at line 715 of file animation-interface.h.

Referenced by RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMaxY
private

Definition at line 716 of file animation-interface.h.

Referenced by RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinX
private

Definition at line 713 of file animation-interface.h.

Referenced by RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinY
private

Definition at line 714 of file animation-interface.h.

Referenced by RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

Ptr<UniformRandomVariable> ns3::AnimationInterface::m_uniformRandomVariable
private

Provides uniform random variables.

Definition at line 755 of file animation-interface.h.

Referenced by AnimationInterface(), AssignStreams(), and UpdatePosition().

AnimWriteCallback ns3::AnimationInterface::m_writeCallback
private

Definition at line 507 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

std::map< uint32_t, Rgb > ns3::AnimationInterface::nodeColors
staticprivate
std::map< uint32_t, std::string > ns3::AnimationInterface::nodeDescriptions
staticprivate

The documentation for this class was generated from the following files:
