ns3::LteUeNetDevice Class Reference

The LteUeNetDevice class implements the UE net device. More...

#include <lte-ue-net-device.h>

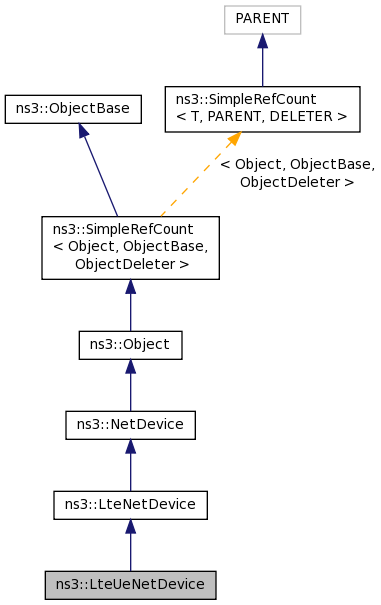

+ Inheritance diagram for ns3::LteUeNetDevice:

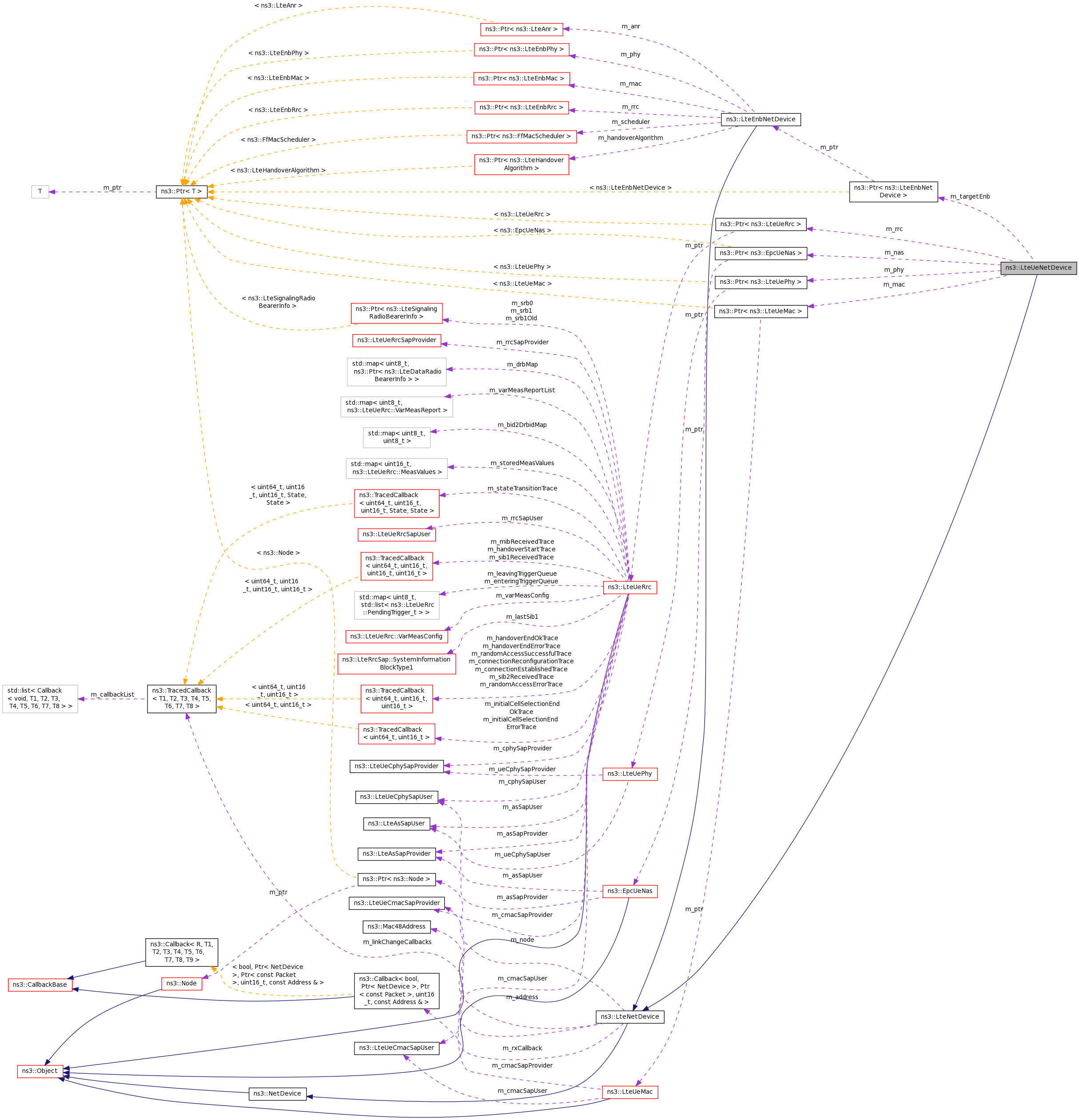

+ Collaboration diagram for ns3::LteUeNetDevice:

Public Member Functions

 LteUeNetDevice (void)

virtual ~LteUeNetDevice (void)

virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

uint32_t GetCsgId () const
 Returns the CSG ID the UE is currently a member of. More...

uint16_t GetDlEarfcn () const

uint64_t GetImsi () const

Ptr< LteUeMacGetMac (void) const

Ptr< EpcUeNasGetNas (void) const

Ptr< LteUePhyGetPhy (void) const

Ptr< LteUeRrcGetRrc () const

Ptr< LteEnbNetDeviceGetTargetEnb (void)
 Get the targer eNB where the UE is registered. More...

virtual bool Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

void SetCsgId (uint32_t csgId)
 Enlist the UE device as a member of a particular CSG. More...

void SetDlEarfcn (uint16_t earfcn)

void SetTargetEnb (Ptr< LteEnbNetDevice > enb)
 Set the targer eNB where the UE is registered. More...

- Public Member Functions inherited from ns3::LteNetDevice
 LteNetDevice (void)

virtual ~LteNetDevice (void)

virtual void AddLinkChangeCallback (Callback< void > callback)

virtual Address GetAddress (void) const

virtual Address GetBroadcast (void) const

virtual Ptr< ChannelGetChannel (void) const

virtual uint32_t GetIfIndex (void) const

virtual uint16_t GetMtu (void) const

virtual Address GetMulticast (Ipv4Address addr) const
 Make and return a MAC multicast address using the provided multicast group. More...

virtual Address GetMulticast (Ipv6Address addr) const
 Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< NodeGetNode (void) const

virtual bool IsBridge (void) const
 Return true if the net device is acting as a bridge. More...

virtual bool IsBroadcast (void) const

virtual bool IsLinkUp (void) const

virtual bool IsMulticast (void) const

virtual bool IsPointToPoint (void) const
 Return true if the net device is on a point-to-point link. More...

virtual bool NeedsArp (void) const

void Receive (Ptr< Packet > p)
 receive a packet from the lower layers in order to forward it to the upper layers More...

virtual bool SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void SetAddress (Address address)
 Set the address of this interface. More...

virtual void SetIfIndex (const uint32_t index)

virtual bool SetMtu (const uint16_t mtu)

virtual void SetNode (Ptr< Node > node)

virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void SetReceiveCallback (NetDevice::ReceiveCallback cb)

virtual bool SupportsSendFrom (void) const

- Public Member Functions inherited from ns3::NetDevice
virtual ~NetDevice ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::LteNetDevice
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::NetDevice
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Member Functions

void UpdateConfig ()
 Propagate attributes and configuration to sub-modules. More...


Private Attributes

uint32_t m_csgId

uint16_t m_dlEarfcn
 downlink carrier frequency More...

uint64_t m_imsi

bool m_isConstructed

Ptr< LteUeMacm_mac

Ptr< EpcUeNasm_nas

Ptr< LteUePhym_phy

Ptr< LteUeRrcm_rrc

Ptr< LteEnbNetDevicem_targetEnb


Additional Inherited Members

- Public Types inherited from ns3::NetDevice
enum  PacketType {
  PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST,
  PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST
}
 Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr
< NetDevice >, Ptr< const
Packet >, uint16_t, const
Address &, const Address
&, enum PacketType
PromiscReceiveCallback

typedef Callback< bool, Ptr
< NetDevice >, Ptr< const
Packet >, uint16_t, const
Address & >
ReceiveCallback

- Protected Attributes inherited from ns3::LteNetDevice
NetDevice::ReceiveCallback m_rxCallback


Detailed Description

The LteUeNetDevice class implements the UE net device.

Config Paths

ns3::LteUeNetDevice is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice

Attributes

  • EpcUeNas: The NAS associated to this UeNetDevice
  • LteUeRrc: The RRC associated to this UeNetDevice
  • LteUeMac: The MAC associated to this UeNetDevice
  • LteUePhy: The PHY associated to this UeNetDevice
  • Imsi: International Mobile Subscriber Identity assigned to this UE
    • Set with class: ns3::UintegerValue
    • Underlying type: uint64_t 0:18446744073709551615
    • Initial value: 0
    • Flags: construct write read
  • DlEarfcn: Downlink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
  • CsgId: The Closed Subscriber Group (CSG) identity that this UE is associated with, i.e., giving the UE access to cells which belong to this particular CSG. This restriction only applies to initial cell selection and EPC-enabled simulation. This does not revoke the UE's access to non-CSG cells.

Attributes defined in parent class ns3::LteNetDevice

  • Mtu: The MAC-level Maximum Transmission Unit

No TraceSources are defined for this type.

Definition at line 51 of file lte-ue-net-device.h.

Constructor & Destructor Documentation

ns3::LteUeNetDevice::LteUeNetDevice ( void  )

Definition at line 108 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

ns3::LteUeNetDevice::~LteUeNetDevice ( void  )
virtual

Definition at line 114 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUeNetDevice::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteNetDevice.

Definition at line 120 of file lte-ue-net-device.cc.

References ns3::LteNetDevice::DoDispose(), m_mac, m_nas, m_phy, m_rrc, m_targetEnb, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteUeNetDevice::DoInitialize ( void  )
protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 241 of file lte-ue-net-device.cc.

References m_isConstructed, m_mac, m_phy, m_rrc, NS_LOG_FUNCTION, and UpdateConfig().

+ Here is the call graph for this function:

uint32_t ns3::LteUeNetDevice::GetCsgId ( ) const

Returns the CSG ID the UE is currently a member of.

Returns
the Closed Subscriber Group identity

Definition at line 211 of file lte-ue-net-device.cc.

References m_csgId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

uint16_t ns3::LteUeNetDevice::GetDlEarfcn ( ) const
Returns
the downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 197 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Ptr< LteUeMac > ns3::LteUeNetDevice::GetMac ( void  ) const

Definition at line 160 of file lte-ue-net-device.cc.

References m_mac, and NS_LOG_FUNCTION.

Ptr< EpcUeNas > ns3::LteUeNetDevice::GetNas ( void  ) const

Definition at line 183 of file lte-ue-net-device.cc.

References m_nas, and NS_LOG_FUNCTION.

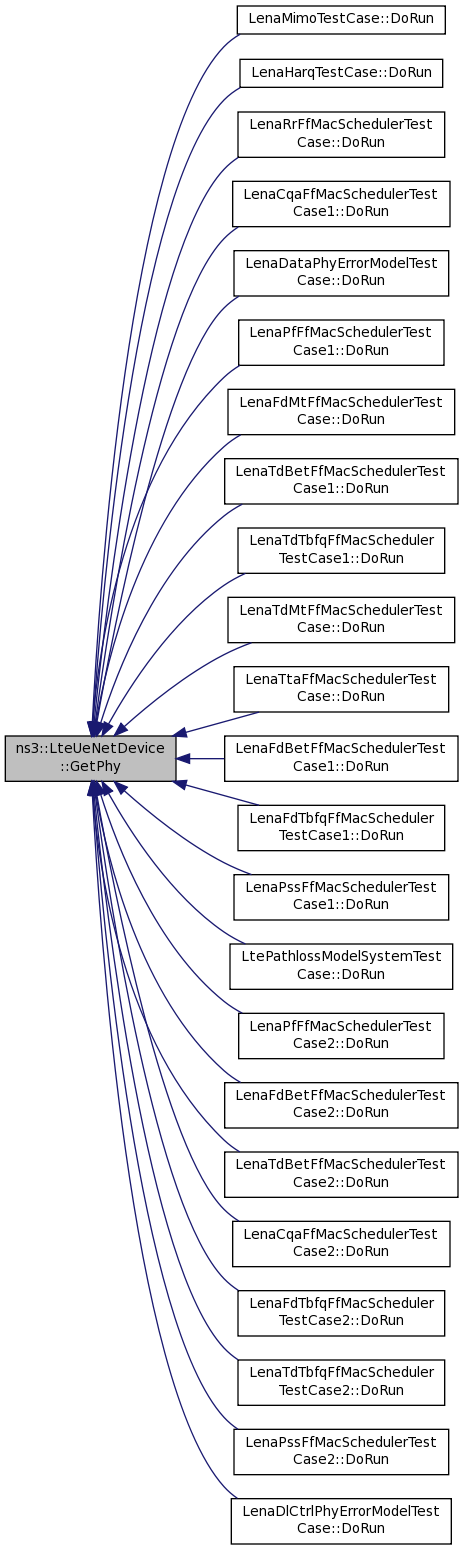

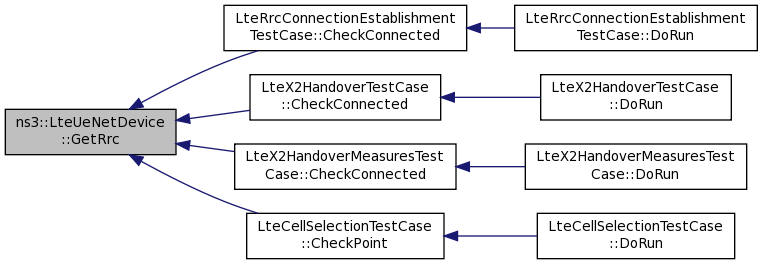

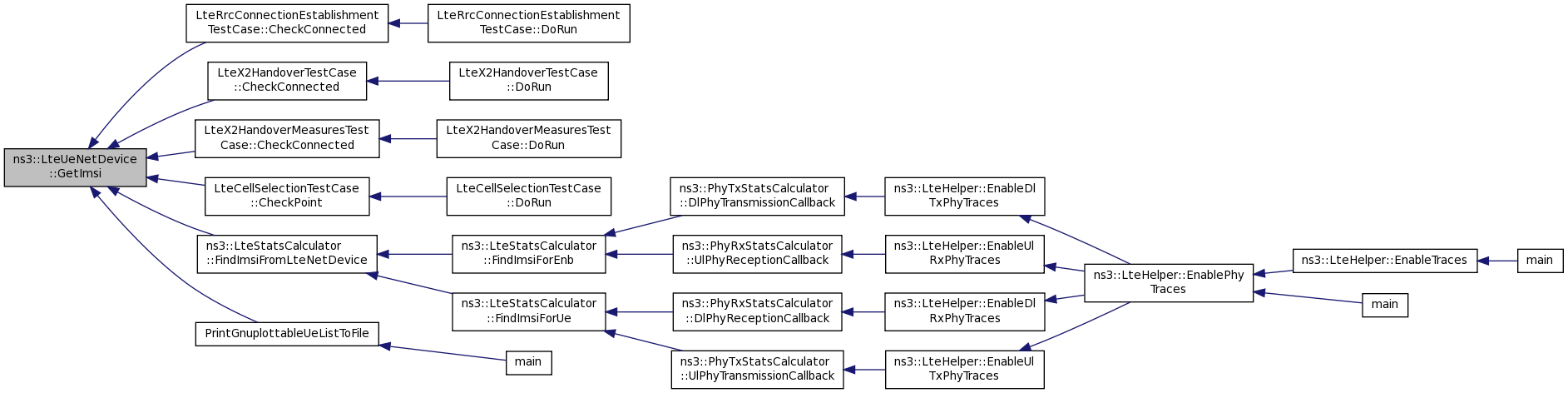

Ptr< LteUeRrc > ns3::LteUeNetDevice::GetRrc ( void  ) const
Ptr< LteEnbNetDevice > ns3::LteUeNetDevice::GetTargetEnb ( void  )

Get the targer eNB where the UE is registered.

Returns
the pointer to the enb

Definition at line 234 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

TypeId ns3::LteUeNetDevice::GetTypeId ( void  )
static

Definition at line 54 of file lte-ue-net-device.cc.

References GetCsgId(), GetDlEarfcn(), m_imsi, m_mac, m_nas, m_phy, m_rrc, SetCsgId(), SetDlEarfcn(), and ns3::TypeId::SetParent().

Referenced by ns3::LteHelper::LteHelper().

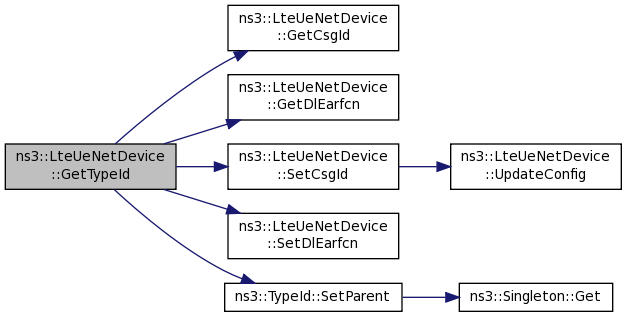

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::LteUeNetDevice::Send ( Ptr< Packet packet,
const Address dest,
uint16_t  protocolNumber
)
virtual
Parameters
packetpacket sent from above down to Network Device
destmac address of the destination (already resolved)
protocolNumberidentifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns
whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 252 of file lte-ue-net-device.cc.

References m_nas, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Ipv4L3Protocol::PROT_NUMBER.

void ns3::LteUeNetDevice::SetCsgId ( uint32_t  csgId)

Enlist the UE device as a member of a particular CSG.

Parameters
csgIdthe intended Closed Subscriber Group identity

UE is associated with a single CSG identity, and thus becoming a member of this particular CSG. As a result, the UE may gain access to cells which belong to this CSG. This does not revoke the UE's access to non-CSG cells.

Note
This restriction only applies to initial cell selection and EPC-enabled simulation.

Definition at line 218 of file lte-ue-net-device.cc.

References m_csgId, NS_LOG_FUNCTION, and UpdateConfig().

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteUeNetDevice::SetDlEarfcn ( uint16_t  earfcn)
Parameters
earfcnthe downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 204 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::LteUeNetDevice::SetTargetEnb ( Ptr< LteEnbNetDevice enb)

Set the targer eNB where the UE is registered.

Parameters
enb

Definition at line 226 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

void ns3::LteUeNetDevice::UpdateConfig ( void  )
private

Propagate attributes and configuration to sub-modules.

Several attributes (e.g., the IMSI) are exported as the attributes of the LteUeNetDevice from a user perspective, but are actually used also in other sub-modules (the RRC, the PHY, etc.). This method takes care of updating the configuration of all these sub-modules so that their copy of attribute values are in sync with the one in the LteUeNetDevice.

Definition at line 136 of file lte-ue-net-device.cc.

References m_csgId, m_imsi, m_isConstructed, m_nas, m_rrc, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoInitialize(), and SetCsgId().

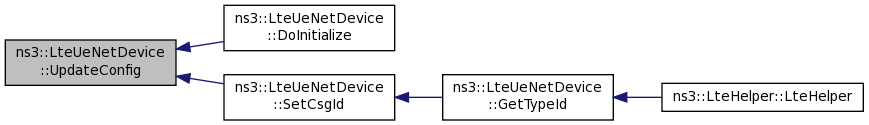

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::LteUeNetDevice::m_csgId
private

Definition at line 154 of file lte-ue-net-device.h.

Referenced by GetCsgId(), SetCsgId(), and UpdateConfig().

uint16_t ns3::LteUeNetDevice::m_dlEarfcn
private

downlink carrier frequency

Definition at line 152 of file lte-ue-net-device.h.

Referenced by GetDlEarfcn(), and SetDlEarfcn().

uint64_t ns3::LteUeNetDevice::m_imsi
private

Definition at line 150 of file lte-ue-net-device.h.

Referenced by GetImsi(), GetTypeId(), and UpdateConfig().

bool ns3::LteUeNetDevice::m_isConstructed
private

Definition at line 130 of file lte-ue-net-device.h.

Referenced by DoInitialize(), and UpdateConfig().

Ptr<LteUeMac> ns3::LteUeNetDevice::m_mac
private

Definition at line 145 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetMac(), and GetTypeId().

Ptr<EpcUeNas> ns3::LteUeNetDevice::m_nas
private

Definition at line 148 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetNas(), GetTypeId(), Send(), and UpdateConfig().

Ptr<LteUePhy> ns3::LteUeNetDevice::m_phy
private

Definition at line 146 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetPhy(), and GetTypeId().

Ptr<LteUeRrc> ns3::LteUeNetDevice::m_rrc
private

Definition at line 147 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetRrc(), GetTypeId(), and UpdateConfig().

Ptr<LteEnbNetDevice> ns3::LteUeNetDevice::m_targetEnb
private

Definition at line 143 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetTargetEnb(), and SetTargetEnb().


The documentation for this class was generated from the following files:
