#include <bs-scheduler.h>

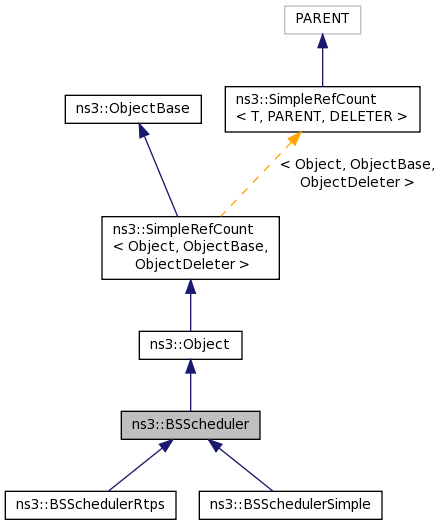

Inheritance diagram for ns3::BSScheduler:

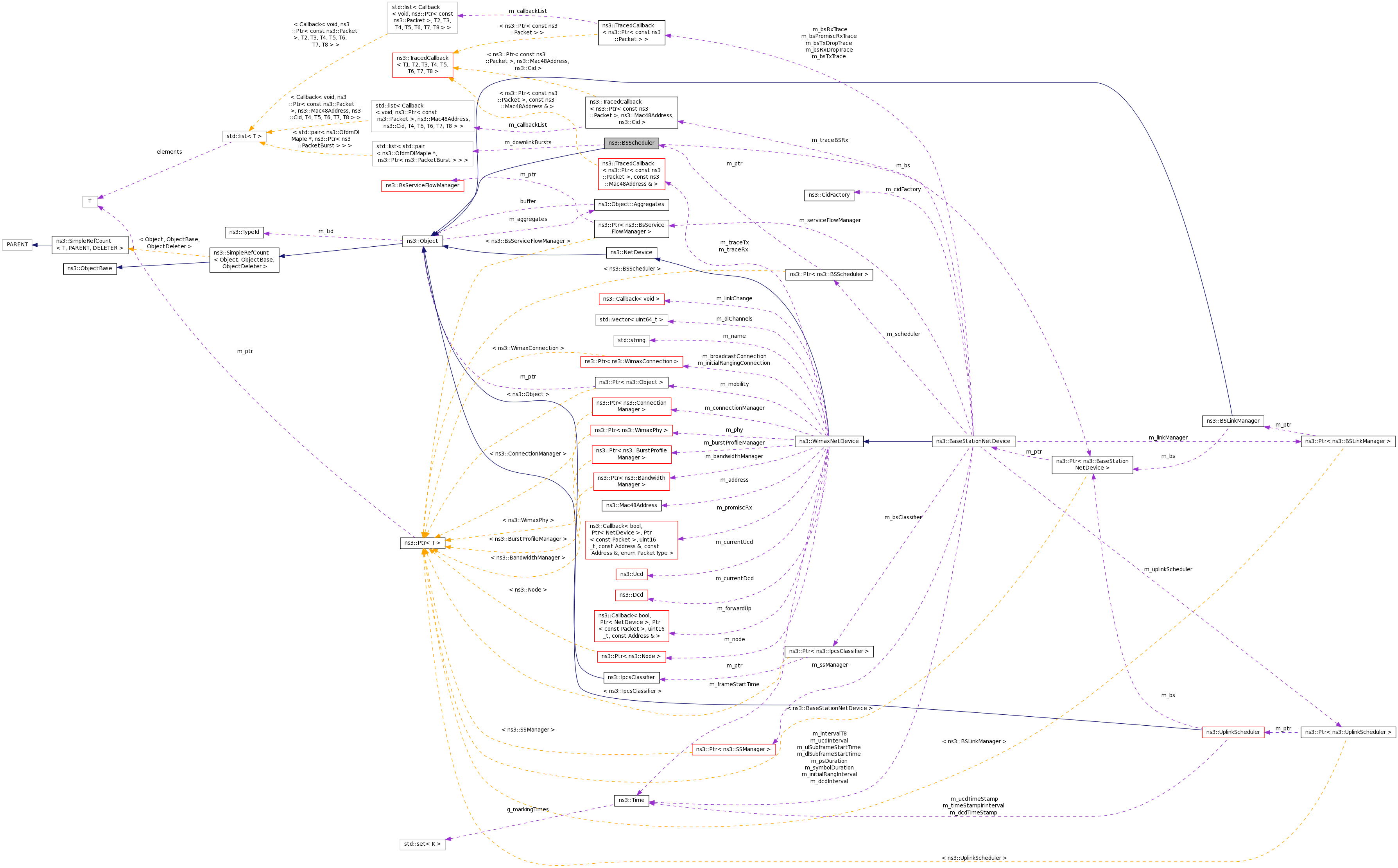

Collaboration diagram for ns3::BSScheduler:

Public Member Functions
	BSScheduler ()

	BSScheduler (Ptr< BaseStationNetDevice > bs)

	~BSScheduler (void)

virtual void	AddDownlinkBurst (Ptr< const WimaxConnection > connection, uint8_t diuc, WimaxPhy::ModulationType modulationType, Ptr< PacketBurst > burst)=0

bool	CheckForFragmentation (Ptr< WimaxConnection > connection, int availableSymbols, WimaxPhy::ModulationType modulationType)

virtual Ptr< PacketBurst >	CreateUgsBurst (ServiceFlow *serviceFlow, WimaxPhy::ModulationType modulationType, uint32_t availableSymbols)=0

virtual Ptr< BaseStationNetDevice >	GetBs (void)

virtual std::list< std::pair < OfdmDlMapIe , Ptr < PacketBurst > > >	GetDownlinkBursts (void) const =0

virtual void	Schedule (void)=0

virtual bool	SelectConnection (Ptr< WimaxConnection > &connection)=0

virtual void	SetBs (Ptr< BaseStationNetDevice > bs)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< BaseStationNetDevice >	m_bs

std::list< std::pair < OfdmDlMapIe , Ptr < PacketBurst > > >	m_downlinkBursts

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::BSScheduler is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BSScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/Scheduler
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BSScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/Scheduler

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file bs-scheduler.h.

Constructor & Destructor Documentation

ns3::BSScheduler::BSScheduler ( )

Definition at line 50 of file bs-scheduler.cc.

ns3::BSScheduler::BSScheduler ( Ptr< BaseStationNetDevice > bs )

Definition at line 57 of file bs-scheduler.cc.

ns3::BSScheduler::~BSScheduler ( void )

Definition at line 63 of file bs-scheduler.cc.

References m_downlinkBursts, and SetBs().

Here is the call graph for this function:

Member Function Documentation

virtual void ns3::BSScheduler::AddDownlinkBurst	(	Ptr< const WimaxConnection >	connection,
		uint8_t	diuc,
		WimaxPhy::ModulationType	modulationType,
		Ptr< PacketBurst >	burst
	)

pure virtual

Implemented in ns3::BSSchedulerRtps, and ns3::BSSchedulerSimple.

bool ns3::BSScheduler::CheckForFragmentation	(	Ptr< WimaxConnection >	connection,
		int	availableSymbols,
		WimaxPhy::ModulationType	modulationType
	)

Definition at line 90 of file bs-scheduler.cc.

References GetBs(), ns3::MacHeaderType::HEADER_TYPE_GENERIC, NS_LOG_INFO, and ns3::Cid::TRANSPORT.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), and ns3::BSSchedulerSimple::Schedule().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Ptr<PacketBurst> ns3::BSScheduler::CreateUgsBurst	(	ServiceFlow *	serviceFlow,
		WimaxPhy::ModulationType	modulationType,
		uint32_t	availableSymbols
	)
