Doxygen introspection did not find any typical Config paths. More...

#include <bs-scheduler-simple.h>

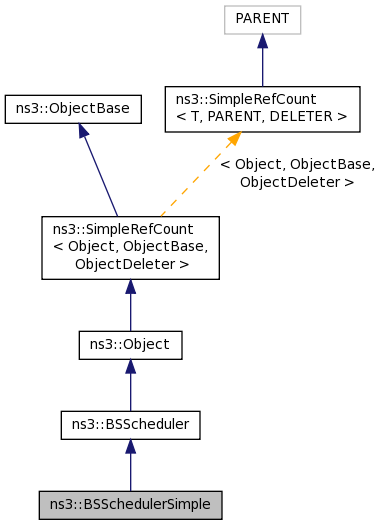

Inheritance diagram for ns3::BSSchedulerSimple:

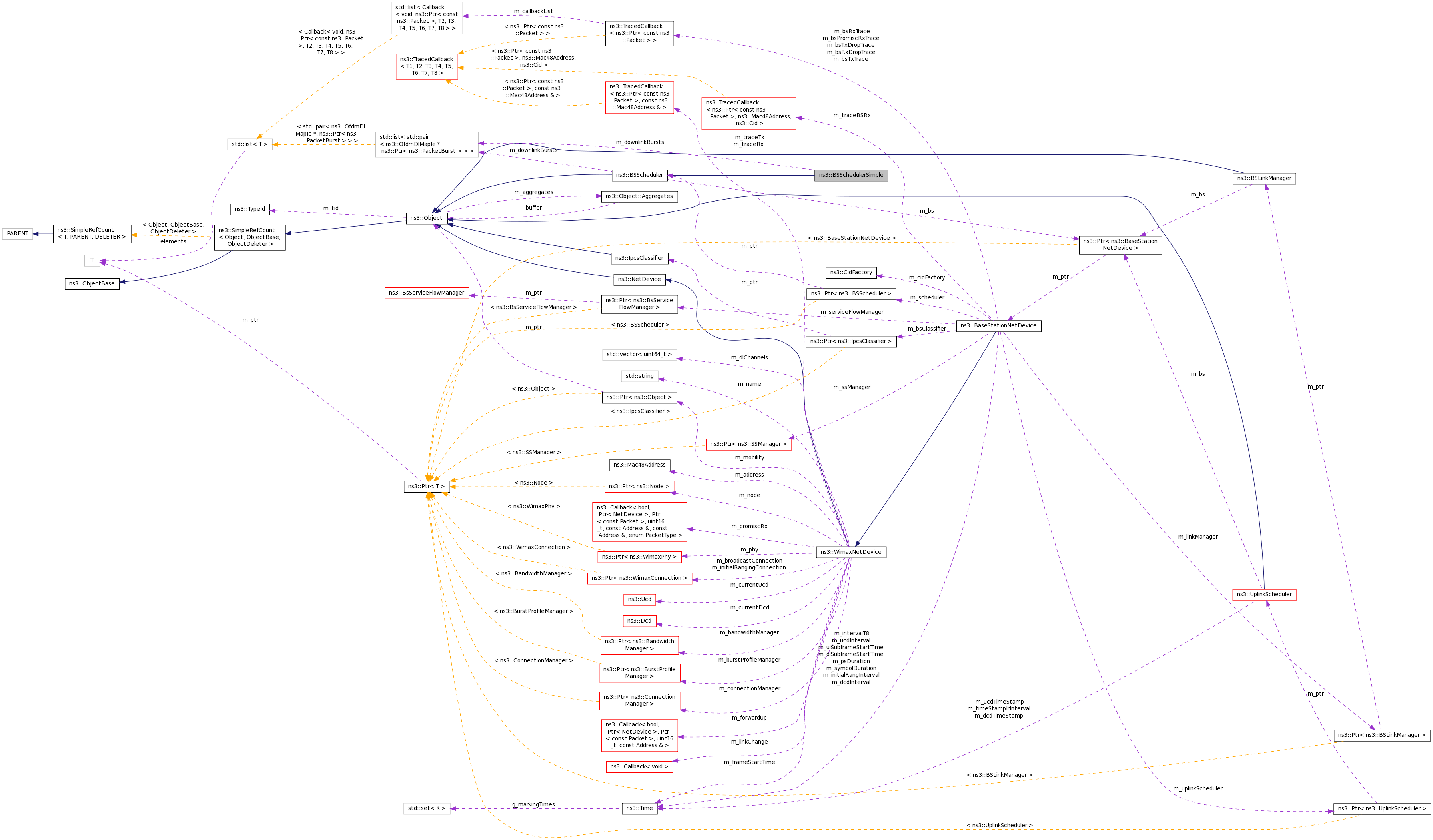

Collaboration diagram for ns3::BSSchedulerSimple:

Public Member Functions
	BSSchedulerSimple ()

	BSSchedulerSimple (Ptr< BaseStationNetDevice > bs)

	~BSSchedulerSimple (void)

void	AddDownlinkBurst (Ptr< const WimaxConnection > connection, uint8_t diuc, WimaxPhy::ModulationType modulationType, Ptr< PacketBurst > burst)

Ptr< PacketBurst >	CreateUgsBurst (ServiceFlow *serviceFlow, WimaxPhy::ModulationType modulationType, uint32_t availableSymbols)

std::list< std::pair < OfdmDlMapIe , Ptr < PacketBurst > > >	GetDownlinkBursts (void) const

void	Schedule (void)

bool	SelectConnection (Ptr< WimaxConnection > &connection)

Public Member Functions inherited from ns3::BSScheduler
	BSScheduler ()

	BSScheduler (Ptr< BaseStationNetDevice > bs)

	~BSScheduler (void)

bool	CheckForFragmentation (Ptr< WimaxConnection > connection, int availableSymbols, WimaxPhy::ModulationType modulationType)

virtual Ptr< BaseStationNetDevice >	GetBs (void)

virtual void	SetBs (Ptr< BaseStationNetDevice > bs)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::BSScheduler
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::list< std::pair < OfdmDlMapIe , Ptr < PacketBurst > > >	m_downlinkBursts

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file bs-scheduler-simple.h.

Constructor & Destructor Documentation

ns3::BSSchedulerSimple::BSSchedulerSimple ( )

Definition at line 50 of file bs-scheduler-simple.cc.

References ns3::BSScheduler::SetBs().

Here is the call graph for this function:

ns3::BSSchedulerSimple::BSSchedulerSimple ( Ptr< BaseStationNetDevice > bs )

Definition at line 56 of file bs-scheduler-simple.cc.

References ns3::BSScheduler::SetBs().

Here is the call graph for this function:

ns3::BSSchedulerSimple::~BSSchedulerSimple ( void )

Definition at line 64 of file bs-scheduler-simple.cc.

References m_downlinkBursts, and ns3::BSScheduler::SetBs().

Here is the call graph for this function:

Member Function Documentation

void ns3::BSSchedulerSimple::AddDownlinkBurst	(	Ptr< const WimaxConnection >	connection,
		uint8_t	diuc,
		WimaxPhy::ModulationType	modulationType,
		Ptr< PacketBurst >	burst
	)

virtual

Implements ns3::BSScheduler.

Definition at line 85 of file bs-scheduler-simple.cc.

References m_downlinkBursts, NS_LOG_INFO, ns3::OfdmDlMapIe::SetCid(), ns3::OfdmDlMapIe::SetDiuc(), and ns3::Cid::TRANSPORT.

Referenced by Schedule().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< PacketBurst > ns3::BSSchedulerSimple::CreateUgsBurst	(	ServiceFlow *	serviceFlow,
		WimaxPhy::ModulationType	modulationType,
		uint32_t	availableSymbols
	)
