ns3::FdMtFfMacScheduler Class Reference
FF MAC Schedulers

Implements the SCHED SAP and CSCHED SAP for a Frequency Domain Maximize Throughput scheduler. More...

#include <fdmt-ff-mac-scheduler.h>

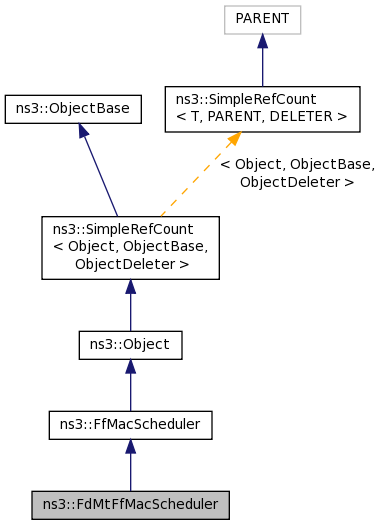

+ Inheritance diagram for ns3::FdMtFfMacScheduler:

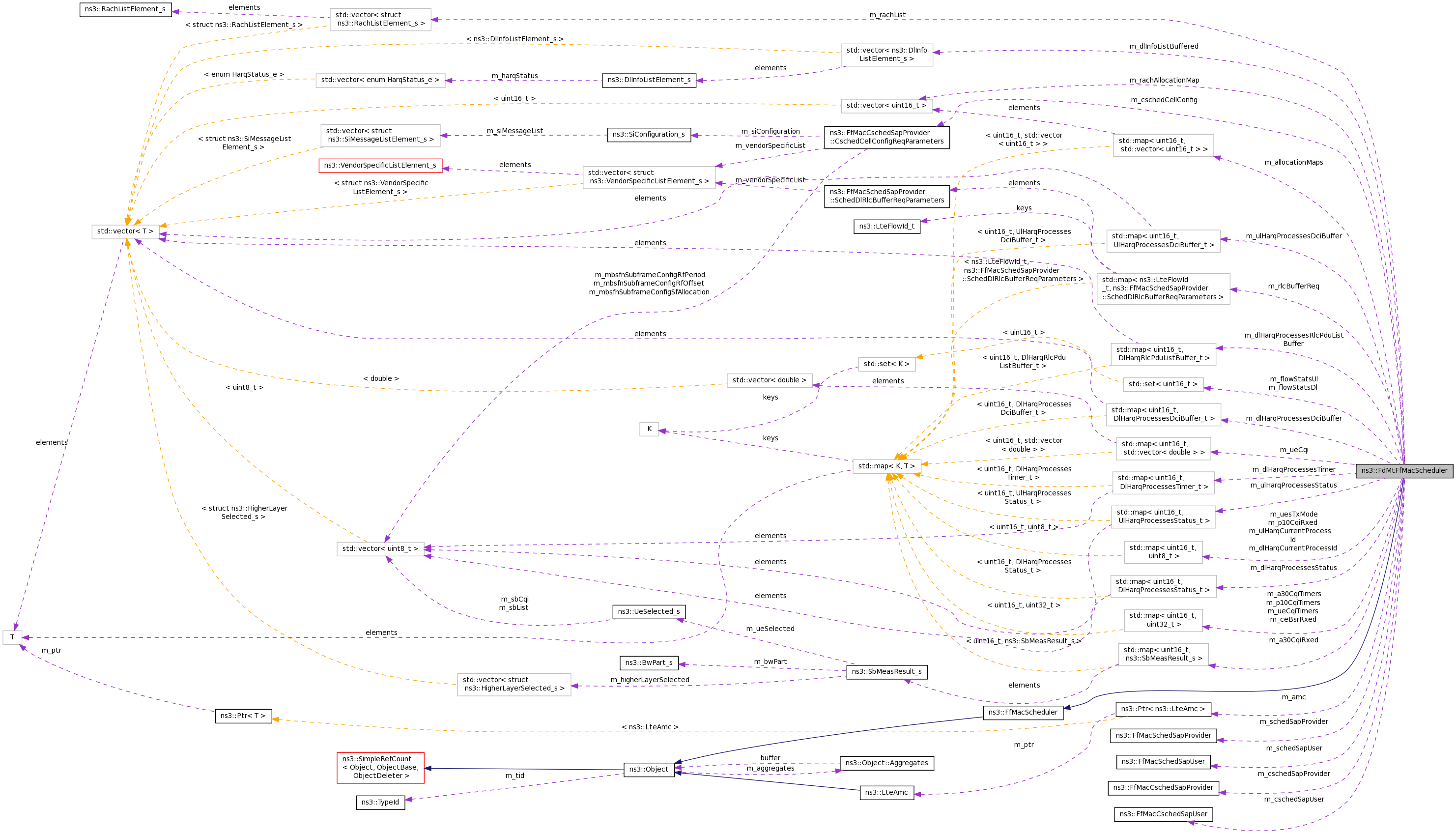

+ Collaboration diagram for ns3::FdMtFfMacScheduler:

Public Member Functions

 FdMtFfMacScheduler ()
 Constructor. More...

virtual ~FdMtFfMacScheduler ()
 Destructor. More...

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual FfMacCschedSapProvider * GetFfMacCschedSapProvider ()

virtual FfMacSchedSapProvider * GetFfMacSchedSapProvider ()

virtual void SetFfMacCschedSapUser (FfMacCschedSapUser *s)
 set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void SetFfMacSchedSapUser (FfMacSchedSapUser *s)
 set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

void TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)

- Public Member Functions inherited from ns3::FfMacScheduler
 FfMacScheduler ()
 constructor More...

virtual ~FfMacScheduler ()
 destructor More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)

void DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)

void DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)

void DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)

void DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)

void DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)

void DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)

void DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)

void DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)

void DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)

void DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)

void DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)

void DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)

void DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)

void DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)

void DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)

double EstimateUlSinr (uint16_t rnti, uint16_t rb)

int GetRbgSize (int dlbandwidth)

uint8_t HarqProcessAvailability (uint16_t rnti)
 Return the availability of free process for the RNTI specified. More...

int LcActivePerFlow (uint16_t rnti)

void RefreshDlCqiMaps (void)

void RefreshHarqProcesses ()
 Refresh HARQ processes according to the timers. More...

void RefreshUlCqiMaps (void)

void UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)

uint8_t UpdateHarqProcessId (uint16_t rnti)
 Update and return a new process Id for the RNTI specified. More...

void UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)


Private Attributes

std::map< uint16_t,
SbMeasResult_s > 		m_a30CqiRxed

std::map< uint16_t, uint32_t > m_a30CqiTimers

std::map< uint16_t,
std::vector< uint16_t > > 		m_allocationMaps

Ptr< LteAmc > m_amc

std::map< uint16_t, uint32_t > m_ceBsrRxed

uint32_t m_cqiTimersThreshold

FfMacCschedSapProvider::CschedCellConfigReqParameters m_cschedCellConfig

FfMacCschedSapProvider * m_cschedSapProvider

FfMacCschedSapUser * m_cschedSapUser

std::map< uint16_t, uint8_t > m_dlHarqCurrentProcessId

std::map< uint16_t,
DlHarqProcessesDciBuffer_t > 		m_dlHarqProcessesDciBuffer

std::map< uint16_t,
DlHarqRlcPduListBuffer_t > 		m_dlHarqProcessesRlcPduListBuffer

std::map< uint16_t,
DlHarqProcessesStatus_t > 		m_dlHarqProcessesStatus

std::map< uint16_t,
DlHarqProcessesTimer_t > 		m_dlHarqProcessesTimer

std::vector< DlInfoListElement_s > m_dlInfoListBuffered

std::set< uint16_t > m_flowStatsDl

std::set< uint16_t > m_flowStatsUl

bool m_harqOn
 m_harqOn when false inhibit te HARQ mechanisms (by default active) More...

uint16_t m_nextRntiUl

std::map< uint16_t, uint8_t > m_p10CqiRxed

std::map< uint16_t, uint32_t > m_p10CqiTimers

std::vector< uint16_t > m_rachAllocationMap

std::vector< struct
RachListElement_s > 		m_rachList

std::map< LteFlowId_t,
FfMacSchedSapProvider::SchedDlRlcBufferReqParameters > 		m_rlcBufferReq

FfMacSchedSapProvider * m_schedSapProvider

FfMacSchedSapUser * m_schedSapUser

std::map< uint16_t,
std::vector< double > > 		m_ueCqi

std::map< uint16_t, uint32_t > m_ueCqiTimers

std::map< uint16_t, uint8_t > m_uesTxMode

uint8_t m_ulGrantMcs

std::map< uint16_t, uint8_t > m_ulHarqCurrentProcessId

std::map< uint16_t,
UlHarqProcessesDciBuffer_t > 		m_ulHarqProcessesDciBuffer

std::map< uint16_t,
UlHarqProcessesStatus_t > 		m_ulHarqProcessesStatus


Friends

class FdMtSchedulerMemberCschedSapProvider

class FdMtSchedulerMemberSchedSapProvider


Additional Inherited Members

- Public Types inherited from ns3::FfMacScheduler
enum  UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
 The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t m_ulCqiFilter


Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Frequency Domain Maximize Throughput scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::FdMtFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::FdMtFfMacScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::FdMtFfMacScheduler

Attributes

  • CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
  • HarqEnabled: Activate/Deactivate the HARQ [by default is active].
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)

Attributes defined in parent class ns3::FfMacScheduler

  • UlCqiFilter: The filter to apply on UL CQIs received
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: ALL_UL_CQI
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 64 of file fdmt-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::FdMtFfMacScheduler::FdMtFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 216 of file fdmt-ff-mac-scheduler.cc.

References FdMtSchedulerMemberCschedSapProvider, FdMtSchedulerMemberSchedSapProvider, m_amc, m_cschedSapProvider, and m_schedSapProvider.

ns3::FdMtFfMacScheduler::~FdMtFfMacScheduler ( )
virtual

Destructor.

Definition at line 226 of file fdmt-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::FdMtFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &  params)
private

Definition at line 298 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.

Referenced by ns3::FdMtSchedulerMemberCschedSapProvider::CschedCellConfigReq().

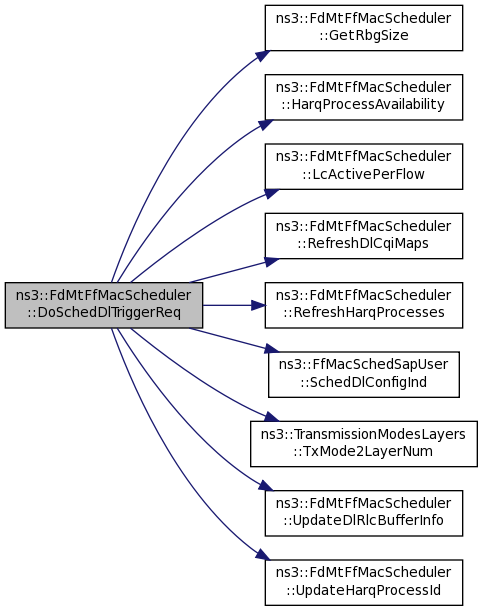

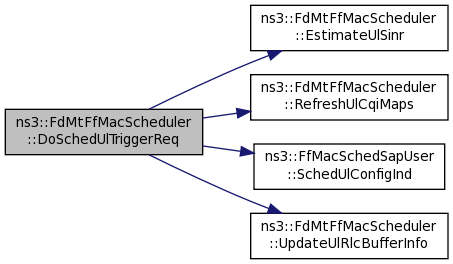

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &  params)
private

Definition at line 350 of file fdmt-ff-mac-scheduler.cc.

References m_flowStatsDl, m_flowStatsUl, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_logicalChannelConfigList, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberCschedSapProvider::CschedLcConfigReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &  params)
private

Definition at line 370 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberCschedSapProvider::CschedLcReleaseReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &  params)
private

Definition at line 311 of file fdmt-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberCschedSapProvider::CschedUeConfigReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &  params)
private

Definition at line 395 of file fdmt-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedUeReleaseReqParameters::m_rnti, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberCschedSapProvider::CschedUeReleaseReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 232 of file fdmt-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

void ns3::FdMtFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &  params)
private

Definition at line 1294 of file fdmt-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::CqiListElement_s::P10.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &  params)
private

Definition at line 468 of file fdmt-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlMacBufferReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &  params)
private

Definition at line 460 of file fdmt-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &  params)
private

Definition at line 1284 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlRachInfoReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &  params)
private

Definition at line 436 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &  params)
private
Todo:
check correct value according the DCIs txed

Definition at line 621 of file fdmt-ff-mac-scheduler.cc.

References GetRbgSize(), HARQ_PROC_NUM, HarqProcessAvailability(), LcActivePerFlow(), m_a30CqiRxed, ns3::UlDciListElement_s::m_aggrLevel, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, ns3::UlDciListElement_s::m_cceIndex, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_dlInfoList, m_dlInfoListBuffered, m_flowStatsDl, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::UlDciListElement_s::m_hopping, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::DlDciListElement_s::m_ndi, ns3::UlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_sfnSf, ns3::RlcPduListElement_s::m_size, ns3::UlDciListElement_s::m_tbSize, ns3::DlDciListElement_s::m_tbsSize, ns3::UlDciListElement_s::m_tpc, m_uesTxMode, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulGrantMcs, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, ns3::UlDciListElement_s::m_ulIndex, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedDlTriggerReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &  params)
private

Definition at line 1797 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacScheduler::ALL_UL_CQI, ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &  params)
private

Definition at line 1753 of file fdmt-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &  params)
private

Definition at line 1739 of file fdmt-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &  params)
private

Definition at line 1746 of file fdmt-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedUlSrInfoReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &  params)
private

Definition at line 1386 of file fdmt-ff-mac-scheduler.cc.

References EstimateUlSinr(), HARQ_PERIOD, HARQ_PROC_NUM, ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_sfnSf, ns3::UlDciListElement_s::m_tbSize, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, ns3::UlDciListElement_s::m_ulIndex, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_ulInfoList, NO_SINR, ns3::UlInfoListElement_s::NotOk, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshUlCqiMaps(), s, ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().

Referenced by ns3::FdMtSchedulerMemberSchedSapProvider::SchedUlTriggerReq().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::FdMtFfMacScheduler::EstimateUlSinr ( uint16_t  rnti,
uint16_t  rb
)
private

Definition at line 1355 of file fdmt-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::FdMtFfMacScheduler::GetFfMacCschedSapProvider ( )
virtual
Returns
the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 286 of file fdmt-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::FdMtFfMacScheduler::GetFfMacSchedSapProvider ( )
virtual
Returns
the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 292 of file fdmt-ff-mac-scheduler.cc.

References m_schedSapProvider.

int ns3::FdMtFfMacScheduler::GetRbgSize ( int  dlbandwidth)
private

Definition at line 476 of file fdmt-ff-mac-scheduler.cc.

References ns3::FdMtType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

TypeId ns3::FdMtFfMacScheduler::GetTypeId ( void  )
static

Definition at line 247 of file fdmt-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_harqOn, m_ulGrantMcs, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

uint8_t ns3::FdMtFfMacScheduler::HarqProcessAvailability ( uint16_t  rnti)
private

Return the availability of free process for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 514 of file fdmt-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

int ns3::FdMtFfMacScheduler::LcActivePerFlow ( uint16_t  rnti)
private

Definition at line 491 of file fdmt-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::RefreshDlCqiMaps ( void  )
private

Definition at line 1945 of file fdmt-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::RefreshHarqProcesses ( )
private

Refresh HARQ processes according to the timers.

Definition at line 588 of file fdmt-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::RefreshUlCqiMaps ( void  )
private

Definition at line 1998 of file fdmt-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser *  s)
virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 274 of file fdmt-ff-mac-scheduler.cc.

References m_cschedSapUser, and s.

void ns3::FdMtFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser *  s)
virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 280 of file fdmt-ff-mac-scheduler.cc.

References m_schedSapUser, and s.

void ns3::FdMtFfMacScheduler::TransmissionModeConfigurationUpdate ( uint16_t  rnti,
uint8_t  txMode
)

Definition at line 2105 of file fdmt-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::FdMtFfMacScheduler::UpdateDlRlcBufferInfo ( uint16_t  rnti,
uint8_t  lcid,
uint16_t  size
)
private

Definition at line 2028 of file fdmt-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

uint8_t ns3::FdMtFfMacScheduler::UpdateHarqProcessId ( uint16_t  rnti)
private

Update and return a new process Id for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 547 of file fdmt-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::FdMtFfMacScheduler::UpdateUlRlcBufferInfo ( uint16_t  rnti,
uint16_t  size
)
private

Definition at line 2080 of file fdmt-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class FdMtSchedulerMemberCschedSapProvider
friend

Definition at line 89 of file fdmt-ff-mac-scheduler.h.

Referenced by FdMtFfMacScheduler().

friend class FdMtSchedulerMemberSchedSapProvider
friend

Definition at line 90 of file fdmt-ff-mac-scheduler.h.

Referenced by FdMtFfMacScheduler().

Member Data Documentation

std::map<uint16_t,SbMeasResult_s> ns3::FdMtFfMacScheduler::m_a30CqiRxed
private

Definition at line 203 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::FdMtFfMacScheduler::m_a30CqiTimers
private

Definition at line 207 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t, std::vector <uint16_t> > ns3::FdMtFfMacScheduler::m_allocationMaps
private

Definition at line 213 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::FdMtFfMacScheduler::m_amc
private

Definition at line 172 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and FdMtFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::FdMtFfMacScheduler::m_ceBsrRxed
private

Definition at line 227 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::FdMtFfMacScheduler::m_cqiTimersThreshold
private

Definition at line 242 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::FdMtFfMacScheduler::m_cschedCellConfig
private

Definition at line 237 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

FfMacCschedSapProvider* ns3::FdMtFfMacScheduler::m_cschedSapProvider
private

Definition at line 232 of file fdmt-ff-mac-scheduler.h.

Referenced by DoDispose(), FdMtFfMacScheduler(), and GetFfMacCschedSapProvider().

FfMacCschedSapUser* ns3::FdMtFfMacScheduler::m_cschedSapUser
private

Definition at line 230 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

std::map<uint16_t, uint8_t> ns3::FdMtFfMacScheduler::m_dlHarqCurrentProcessId
private

Definition at line 251 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::FdMtFfMacScheduler::m_dlHarqProcessesDciBuffer
private

Definition at line 257 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::FdMtFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer
private

Definition at line 258 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::FdMtFfMacScheduler::m_dlHarqProcessesStatus
private

Definition at line 255 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::FdMtFfMacScheduler::m_dlHarqProcessesTimer
private

Definition at line 256 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

std::vector<DlInfoListElement_s> ns3::FdMtFfMacScheduler::m_dlInfoListBuffered
private

Definition at line 259 of file fdmt-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

std::set<uint16_t> ns3::FdMtFfMacScheduler::m_flowStatsDl
private

Definition at line 183 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

std::set<uint16_t> ns3::FdMtFfMacScheduler::m_flowStatsUl
private

Definition at line 188 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

bool ns3::FdMtFfMacScheduler::m_harqOn
private

m_harqOn when false inhibit te HARQ mechanisms (by default active)

Definition at line 250 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

uint16_t ns3::FdMtFfMacScheduler::m_nextRntiUl
private

Definition at line 240 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

std::map<uint16_t,uint8_t> ns3::FdMtFfMacScheduler::m_p10CqiRxed
private

Definition at line 194 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::FdMtFfMacScheduler::m_p10CqiTimers
private

Definition at line 198 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::vector<uint16_t> ns3::FdMtFfMacScheduler::m_rachAllocationMap
private

Definition at line 271 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::vector<struct RachListElement_s> ns3::FdMtFfMacScheduler::m_rachList
private

Definition at line 270 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::FdMtFfMacScheduler::m_rlcBufferReq
private

Definition at line 177 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

FfMacSchedSapProvider* ns3::FdMtFfMacScheduler::m_schedSapProvider
private

Definition at line 233 of file fdmt-ff-mac-scheduler.h.

Referenced by DoDispose(), FdMtFfMacScheduler(), and GetFfMacSchedSapProvider().

FfMacSchedSapUser* ns3::FdMtFfMacScheduler::m_schedSapUser
private

Definition at line 231 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

std::map<uint16_t, std::vector <double> > ns3::FdMtFfMacScheduler::m_ueCqi
private

Definition at line 218 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::FdMtFfMacScheduler::m_ueCqiTimers
private

Definition at line 222 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::FdMtFfMacScheduler::m_uesTxMode
private

Definition at line 244 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

uint8_t ns3::FdMtFfMacScheduler::m_ulGrantMcs
private

Definition at line 272 of file fdmt-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, uint8_t> ns3::FdMtFfMacScheduler::m_ulHarqCurrentProcessId
private

Definition at line 261 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::FdMtFfMacScheduler::m_ulHarqProcessesDciBuffer
private

Definition at line 266 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::FdMtFfMacScheduler::m_ulHarqProcessesStatus
private

Definition at line 265 of file fdmt-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:
