#include <icmpv4-l4-protocol.h>

Inheritance diagram for ns3::Icmpv4L4Protocol:

Collaboration diagram for ns3::Icmpv4L4Protocol:

Public Member Functions
	Icmpv4L4Protocol ()

virtual	~Icmpv4L4Protocol ()

virtual IpL4Protocol::DownTargetCallback	GetDownTarget (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual IpL4Protocol::DownTargetCallback6	GetDownTarget6 (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

virtual int	GetProtocolNumber (void) const
	Get the protocol number. More...

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > incomingInterface)
	Receive method. More...

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)
	Receive method. More...

void	SendDestUnreachFragNeeded (Ipv4Header header, Ptr< const Packet > orgData, uint16_t nextHopMtu)
	Send a Destination Unreachable - Fragmentation needed ICMP error. More...

void	SendDestUnreachPort (Ipv4Header header, Ptr< const Packet > orgData)
	Send a Time Exceeded ICMP error. More...

void	SendTimeExceededTtl (Ipv4Header header, Ptr< const Packet > orgData)
	Send a Time Exceeded ICMP error. More...

virtual void	SetDownTarget (IpL4Protocol::DownTargetCallback cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

void	SetNode (Ptr< Node > node)
	Set the node the protocol is associated with. More...

Public Member Functions inherited from ns3::IpL4Protocol
virtual	~IpL4Protocol ()

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static uint16_t	GetStaticProtocolNumber (void)
	Get the protocol number. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 1
	ICMP protocol number (0x1) More...

Protected Member Functions
virtual void	NotifyNewAggregate ()
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void	Forward (Ipv4Address source, Icmpv4Header icmp, uint32_t info, Ipv4Header ipHeader, const uint8_t payload[8])
	Forward the message to an L4 protocol. More...

void	HandleDestUnreach (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination)
	Handles an incoming ICMP Destination Unreachable packet. More...

void	HandleEcho (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination)
	Handles an incoming ICMP Echo packet. More...

void	HandleTimeExceeded (Ptr< Packet > p, Icmpv4Header icmp, Ipv4Address source, Ipv4Address destination)
	Handles an incoming ICMP Time Exceeded packet. More...

void	SendDestUnreach (Ipv4Header header, Ptr< const Packet > orgData, uint8_t code, uint16_t nextHopMtu)
	Send an ICMP Destination Unreachable packet. More...

void	SendMessage (Ptr< Packet > packet, Ipv4Address dest, uint8_t type, uint8_t code)
	Send a generic ICMP packet. More...

void	SendMessage (Ptr< Packet > packet, Ipv4Address source, Ipv4Address dest, uint8_t type, uint8_t code, Ptr< Ipv4Route > route)
	Send a generic ICMP packet. More...

Private Attributes
IpL4Protocol::DownTargetCallback	m_downTarget
	callback to Ipv4::Send More...

Ptr< Node >	m_node
	the node this protocol is associated with More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr < Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr < Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr < Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr < Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Detailed Description

Config Paths

ns3::Icmpv4L4Protocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::Icmpv4L4Protocol

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 14 of file icmpv4-l4-protocol.h.

Constructor & Destructor Documentation

ns3::Icmpv4L4Protocol::Icmpv4L4Protocol ( )

Definition at line 31 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

ns3::Icmpv4L4Protocol::~Icmpv4L4Protocol ( )

virtual

Definition at line 36 of file icmpv4-l4-protocol.cc.

References m_node, NS_ASSERT, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Icmpv4L4Protocol::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 266 of file icmpv4-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_node, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

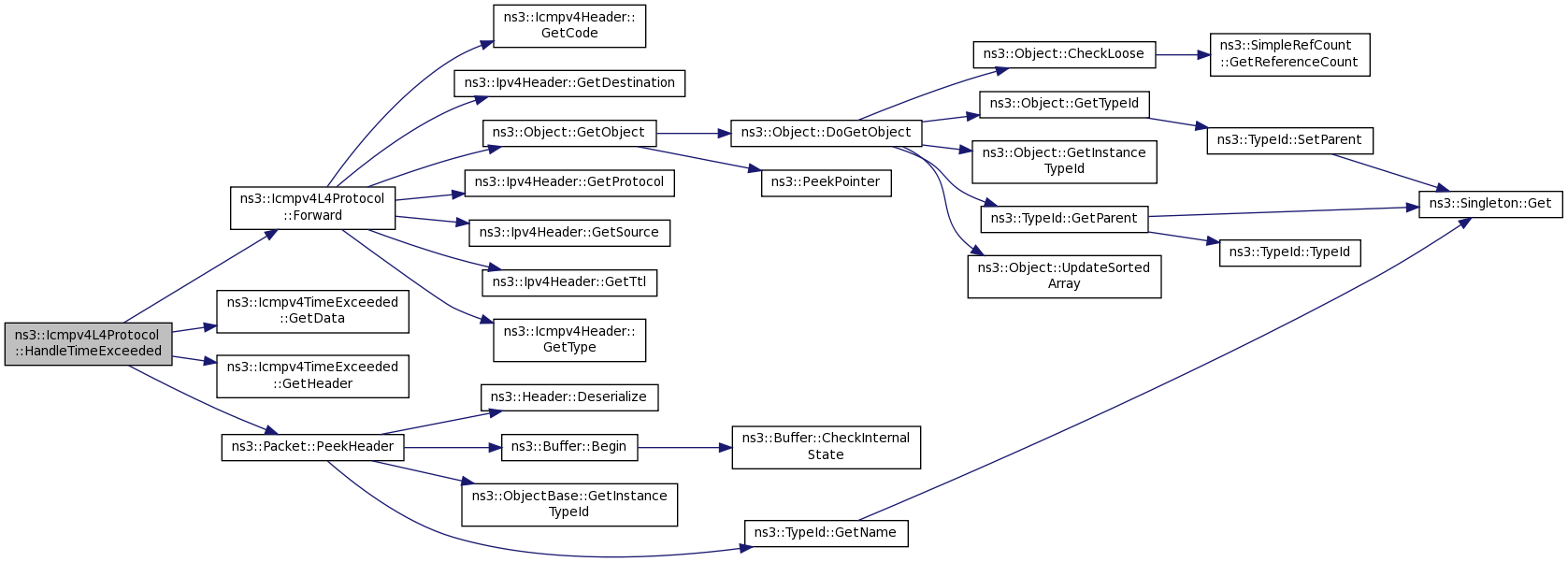

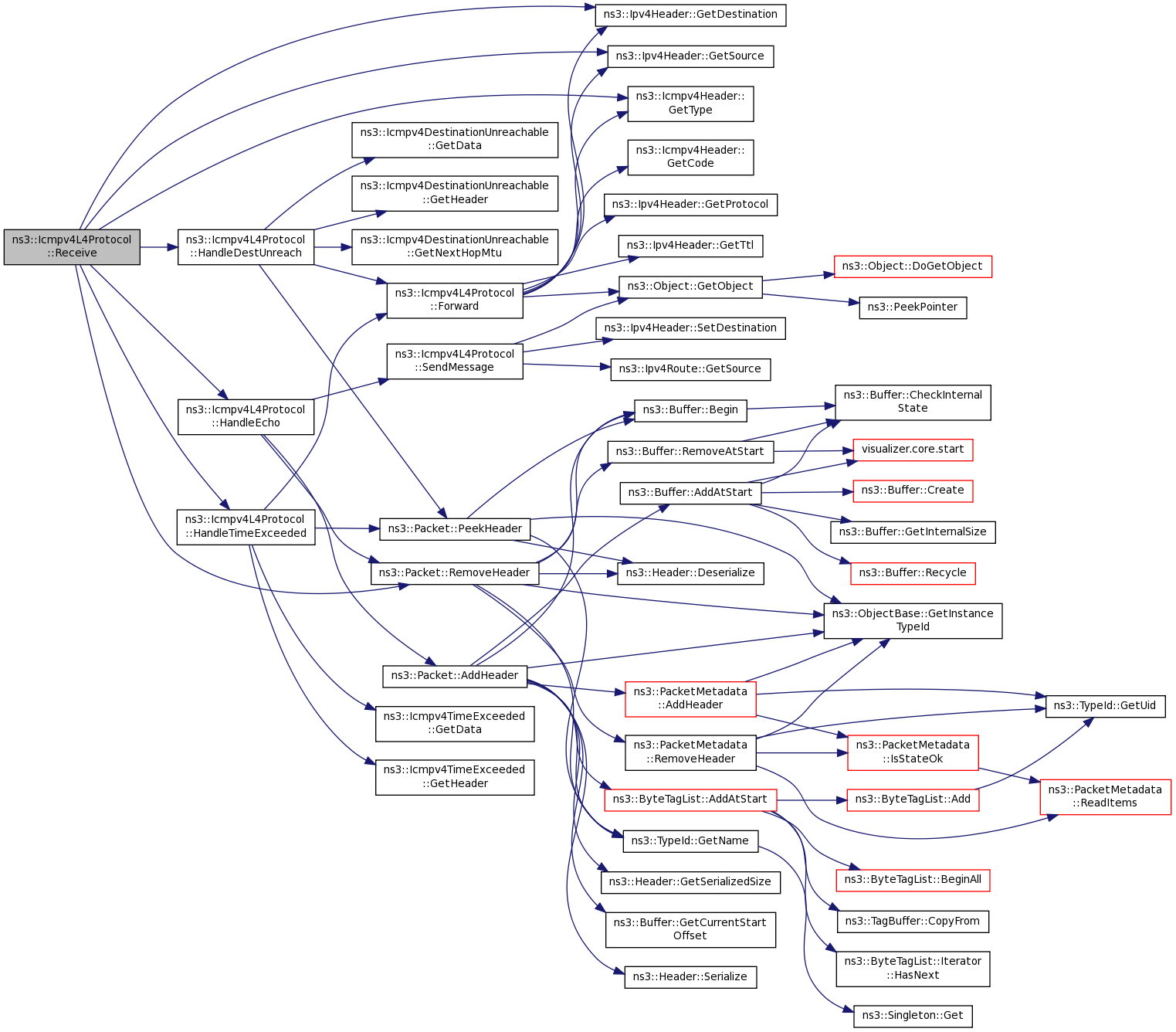

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::Forward	(	Ipv4Address	source,
		Icmpv4Header	icmp,
		uint32_t	info,
		Ipv4Header	ipHeader,
		const uint8_t	payload[8]
	)

private

Forward the message to an L4 protocol.

Parameters

source	the source
icmp	the ICMP header
info	info data (e.g., the target MTU)
ipHeader	the IP header carried by ICMP
payload	payload chunk carried by ICMP

Definition at line 186 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4Header::GetCode(), ns3::Ipv4Header::GetDestination(), ns3::Object::GetObject(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::Icmpv4Header::GetType(), m_node, and NS_LOG_FUNCTION.

Referenced by HandleDestUnreach(), and HandleTimeExceeded().

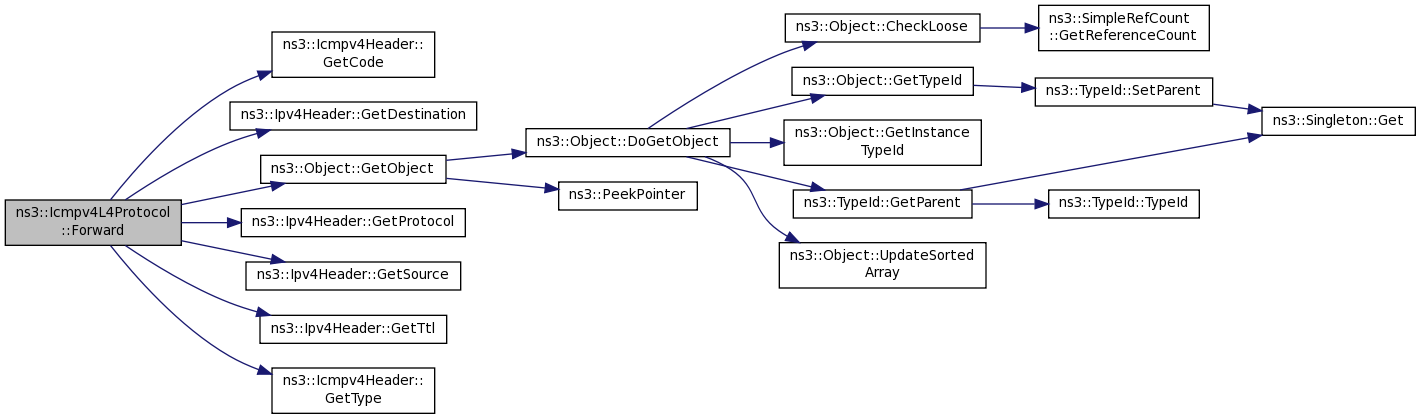

Here is the call graph for this function:

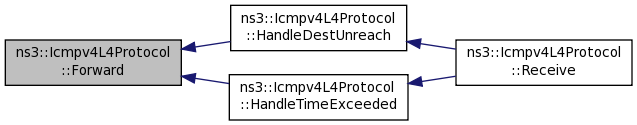

Here is the caller graph for this function:

IpL4Protocol::DownTargetCallback ns3::Icmpv4L4Protocol::GetDownTarget ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 288 of file icmpv4-l4-protocol.cc.

References m_downTarget, and NS_LOG_FUNCTION.

IpL4Protocol::DownTargetCallback6 ns3::Icmpv4L4Protocol::GetDownTarget6 ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 295 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

int ns3::Icmpv4L4Protocol::GetProtocolNumber ( void ) const

virtual

Get the protocol number.

Returns: the protocol number

Implements ns3::IpL4Protocol.

Definition at line 85 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION, and PROT_NUMBER.

uint16_t ns3::Icmpv4L4Protocol::GetStaticProtocolNumber ( void )

static

Get the protocol number.

Returns: the protocol number

Definition at line 78 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS, and PROT_NUMBER.

Referenced by ns3::Ipv4L3Protocol::GetIcmp().

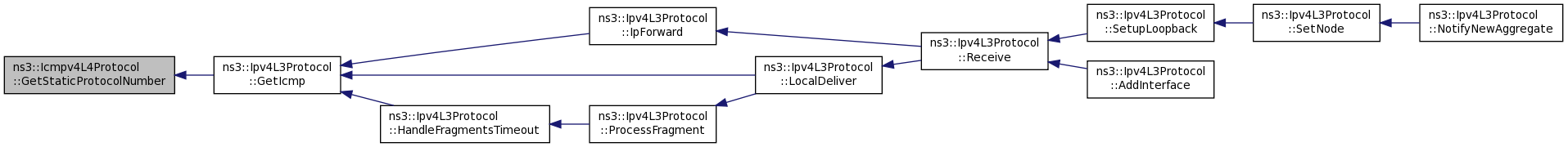

Here is the caller graph for this function:

TypeId ns3::Icmpv4L4Protocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 22 of file icmpv4-l4-protocol.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::HandleDestUnreach	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Handles an incoming ICMP Destination Unreachable packet.

Parameters

p	the packet
header	the IP header
source	the source address
destination	the destination address

Definition at line 201 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4DestinationUnreachable::GetData(), ns3::Icmpv4DestinationUnreachable::GetHeader(), ns3::Icmpv4DestinationUnreachable::GetNextHopMtu(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

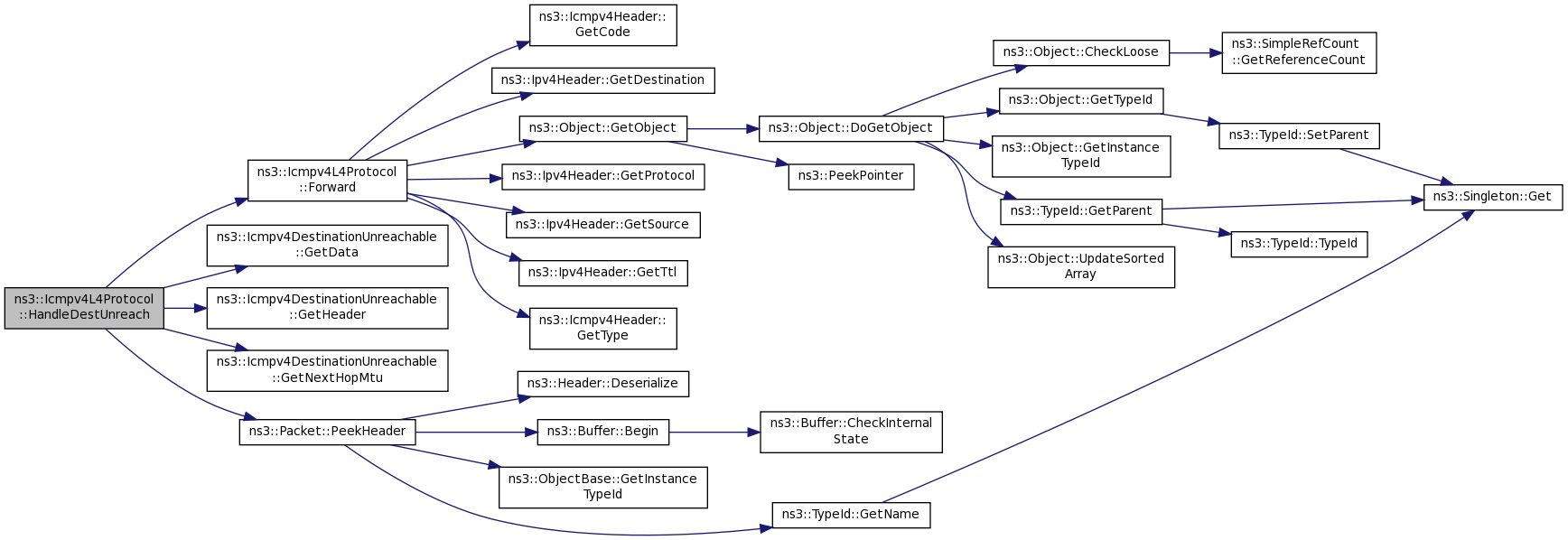

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::HandleEcho	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Handles an incoming ICMP Echo packet.

Parameters

p	the packet
header	the IP header
source	the source address
destination	the destination address

Definition at line 172 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::ECHO_REPLY, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and SendMessage().

Referenced by Receive().

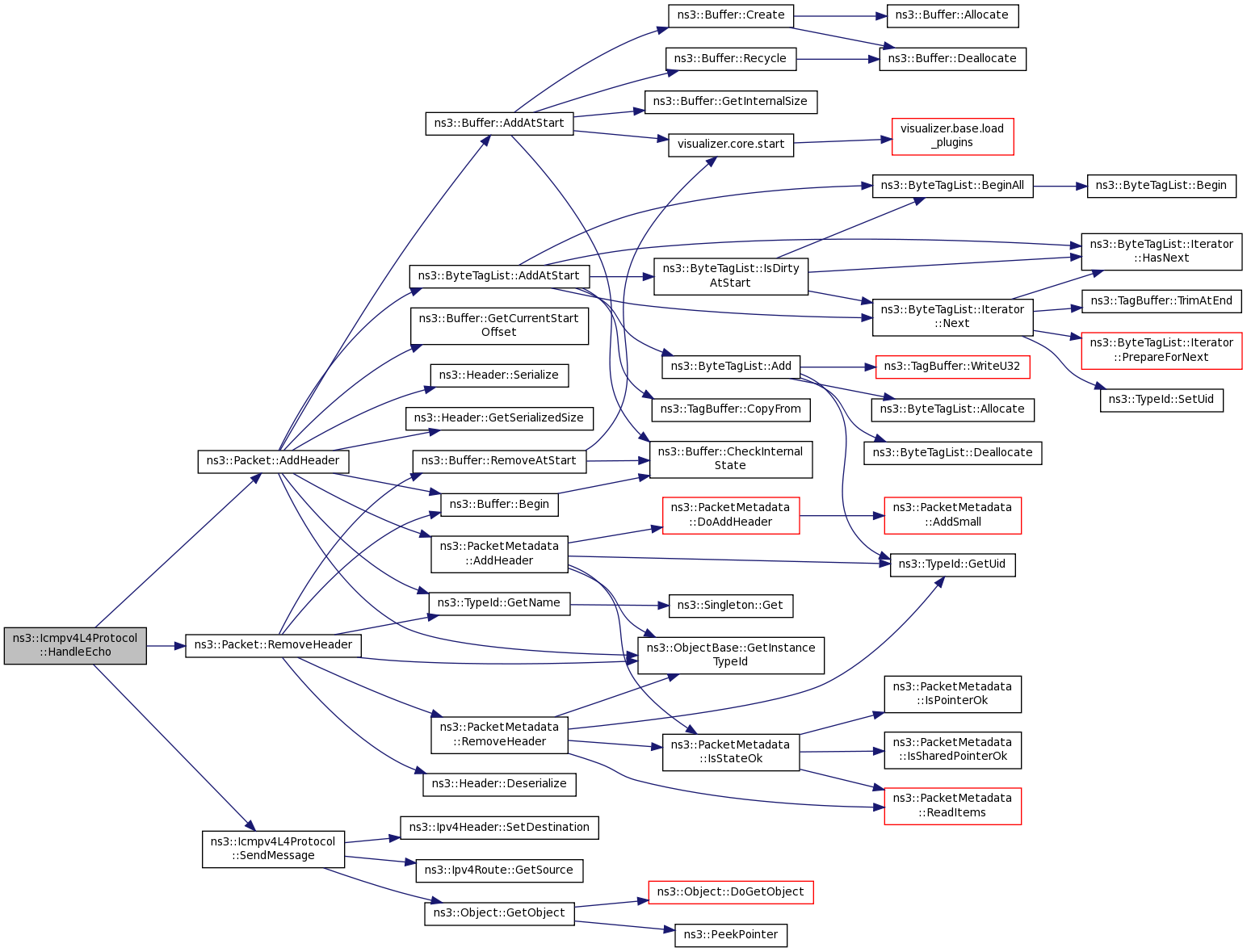

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::HandleTimeExceeded	(	Ptr< Packet >	p,
		Icmpv4Header	icmp,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Handles an incoming ICMP Time Exceeded packet.

Parameters

p	the packet
icmp	the ICMP header
source	the source address
destination	the destination address

Definition at line 216 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4TimeExceeded::GetData(), ns3::Icmpv4TimeExceeded::GetHeader(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::NotifyNewAggregate ( void )

protectedvirtual

This method is invoked whenever two sets of objects are aggregated together.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 55 of file icmpv4-l4-protocol.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv4::Send(), SetDownTarget(), and SetNode().

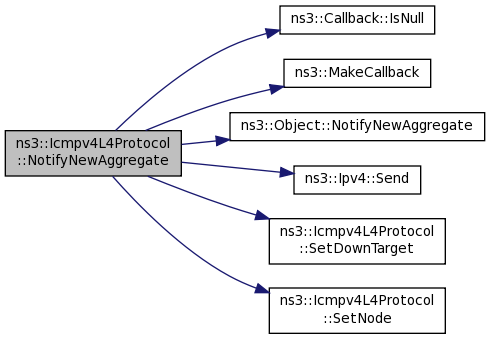

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv4Header const &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

virtual

Receive method.

Parameters

p	the packet
header	the IPv4 header
incomingInterface	the interface from which the packet is coming

Returns: the receive status

Implements ns3::IpL4Protocol.

Definition at line 233 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4Header::DEST_UNREACH, ns3::Icmpv4Header::ECHO, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Icmpv4Header::GetType(), HandleDestUnreach(), HandleEcho(), HandleTimeExceeded(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_OK, and ns3::Icmpv4Header::TIME_EXCEEDED.

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv6Header const &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

virtual

Receive method.

Parameters

p	the packet
header	the IPv6 header
incomingInterface	the interface from which the packet is coming

Returns: the receive status

Implements ns3::IpL4Protocol.

Definition at line 258 of file icmpv4-l4-protocol.cc.

References ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

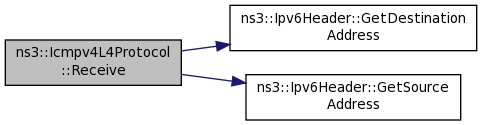

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::SendDestUnreach	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint8_t	code,
		uint16_t	nextHopMtu
	)

private

Send an ICMP Destination Unreachable packet.

Parameters

header	the original IP header
orgData	the original packet
code	the ICMP code
nextHopMtu	the next hop MTU

Definition at line 146 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::DEST_UNREACH, ns3::Ipv4Header::GetSource(), NS_LOG_FUNCTION, SendMessage(), and ns3::Icmpv4DestinationUnreachable::SetNextHopMtu().

Referenced by SendDestUnreachFragNeeded(), and SendDestUnreachPort().

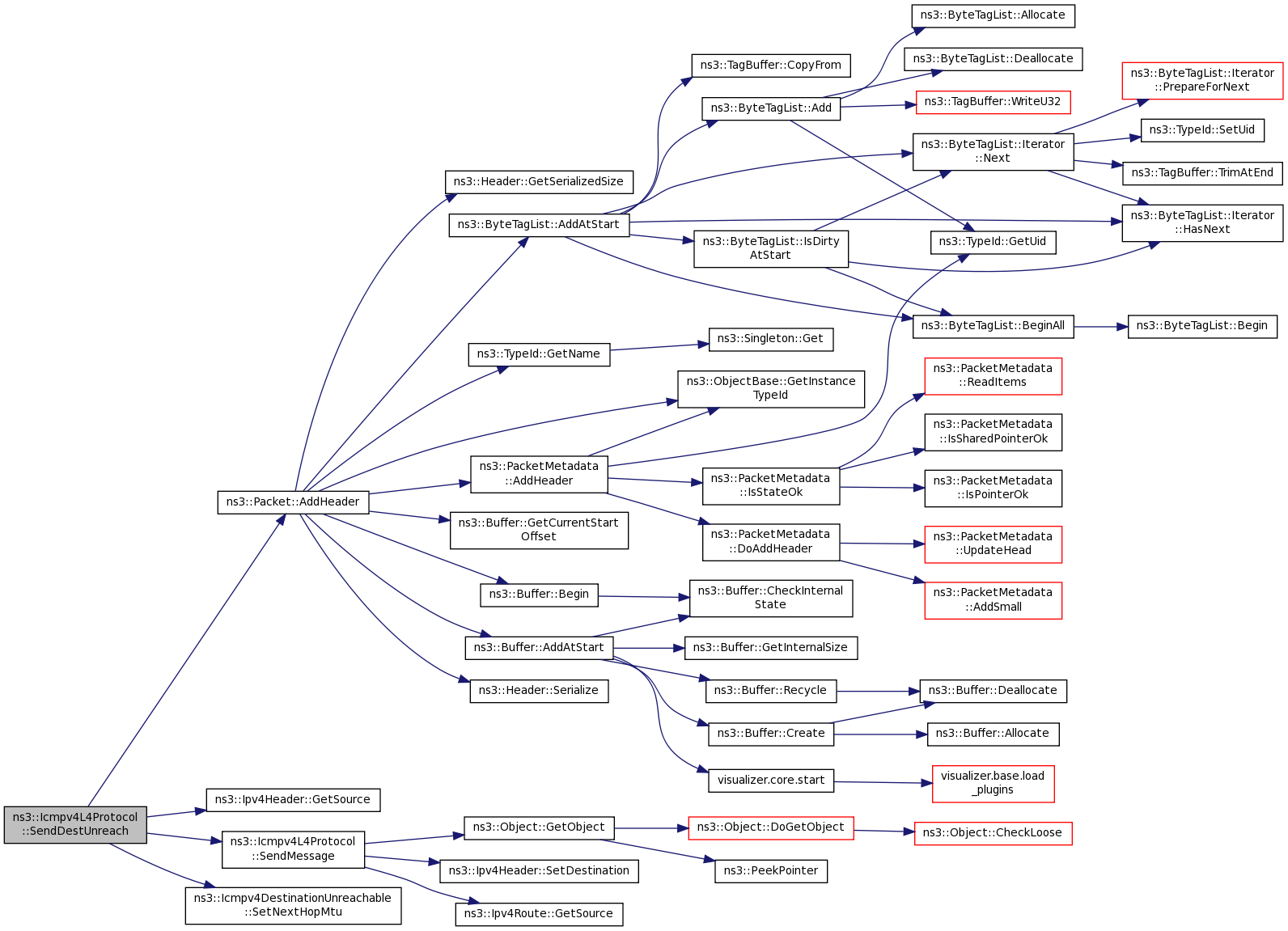

Here is the call graph for this function:

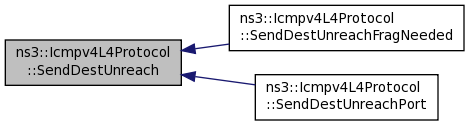

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::SendDestUnreachFragNeeded	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint16_t	nextHopMtu
	)

Send a Destination Unreachable - Fragmentation needed ICMP error.

Parameters

header	the original IP header
orgData	the original packet
nextHopMtu	the next hop MTU

Definition at line 131 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4DestinationUnreachable::FRAG_NEEDED, NS_LOG_FUNCTION, and SendDestUnreach().

Here is the call graph for this function:

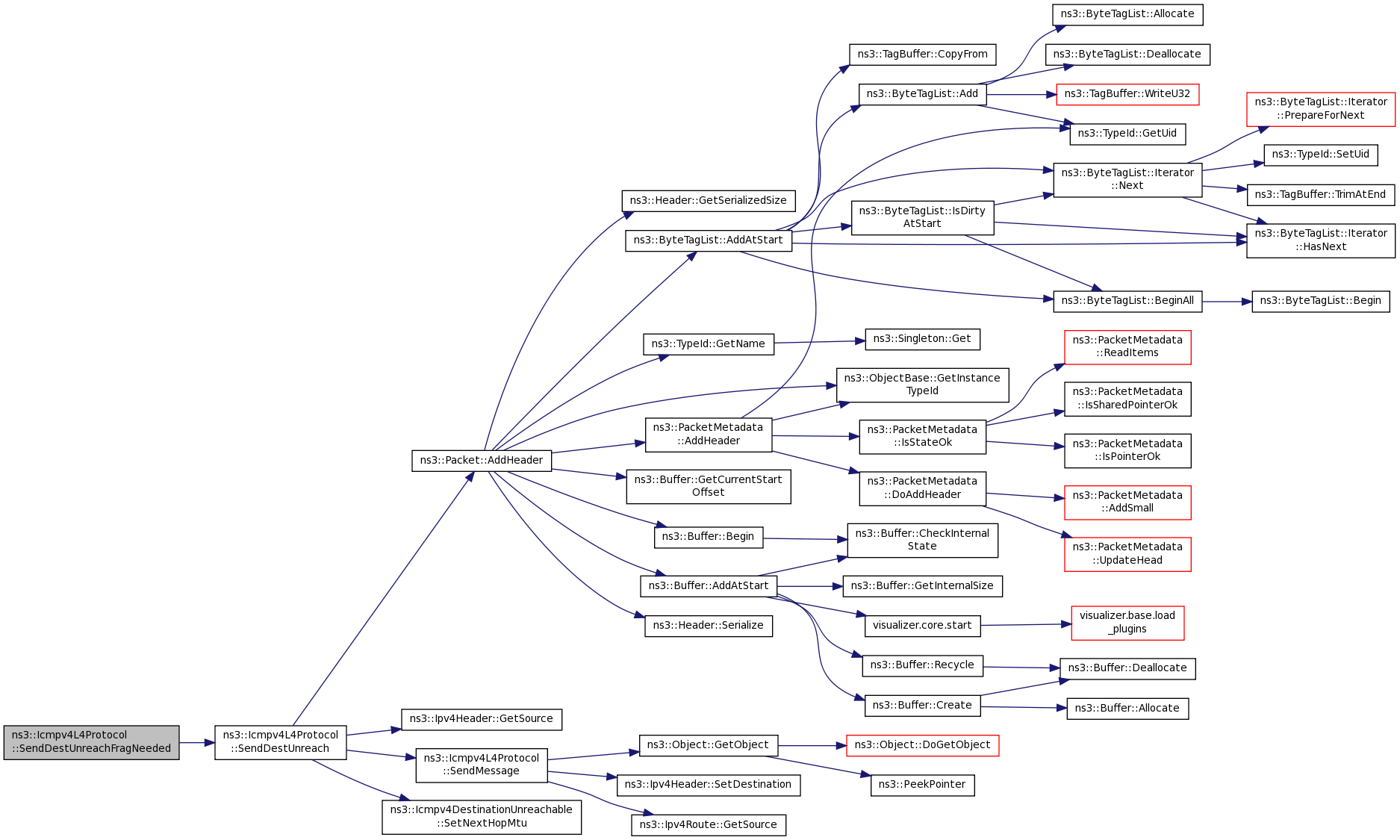

void ns3::Icmpv4L4Protocol::SendDestUnreachPort	(	Ipv4Header	header,
		Ptr< const Packet >	orgData
	)

Send a Time Exceeded ICMP error.

Parameters

header	the original IP header
orgData	the original packet

Definition at line 139 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION, ns3::Icmpv4DestinationUnreachable::PORT_UNREACHABLE, and SendDestUnreach().

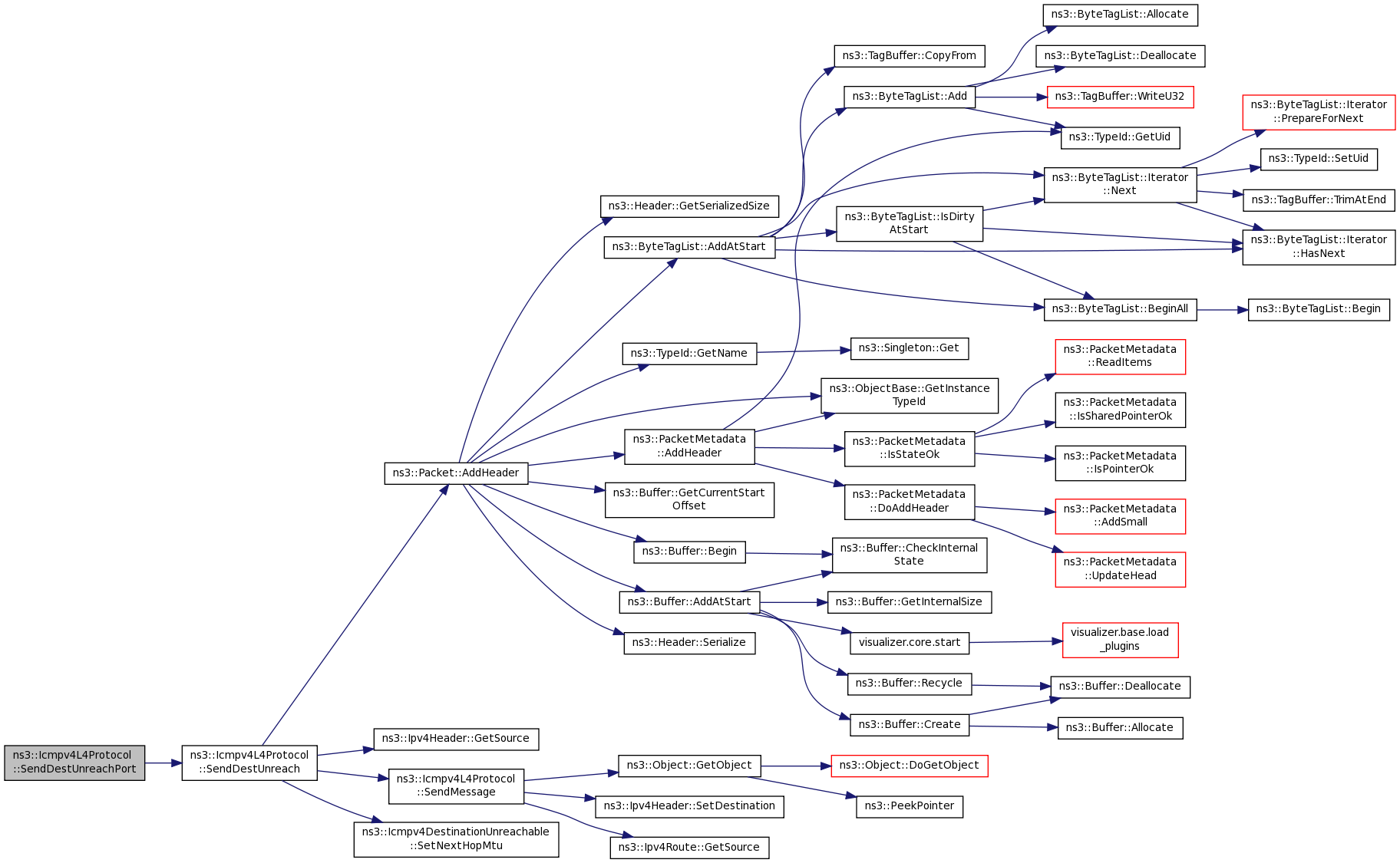

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code
	)

private

Send a generic ICMP packet.

Parameters

packet	the packet
dest	the destination
type	the ICMP type
code	the ICMP code

Definition at line 91 of file icmpv4-l4-protocol.cc.

References ns3::Object::GetObject(), ns3::Ipv4Route::GetSource(), m_node, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, PROT_NUMBER, and ns3::Ipv4Header::SetDestination().

Referenced by HandleEcho(), SendDestUnreach(), and SendTimeExceededTtl().

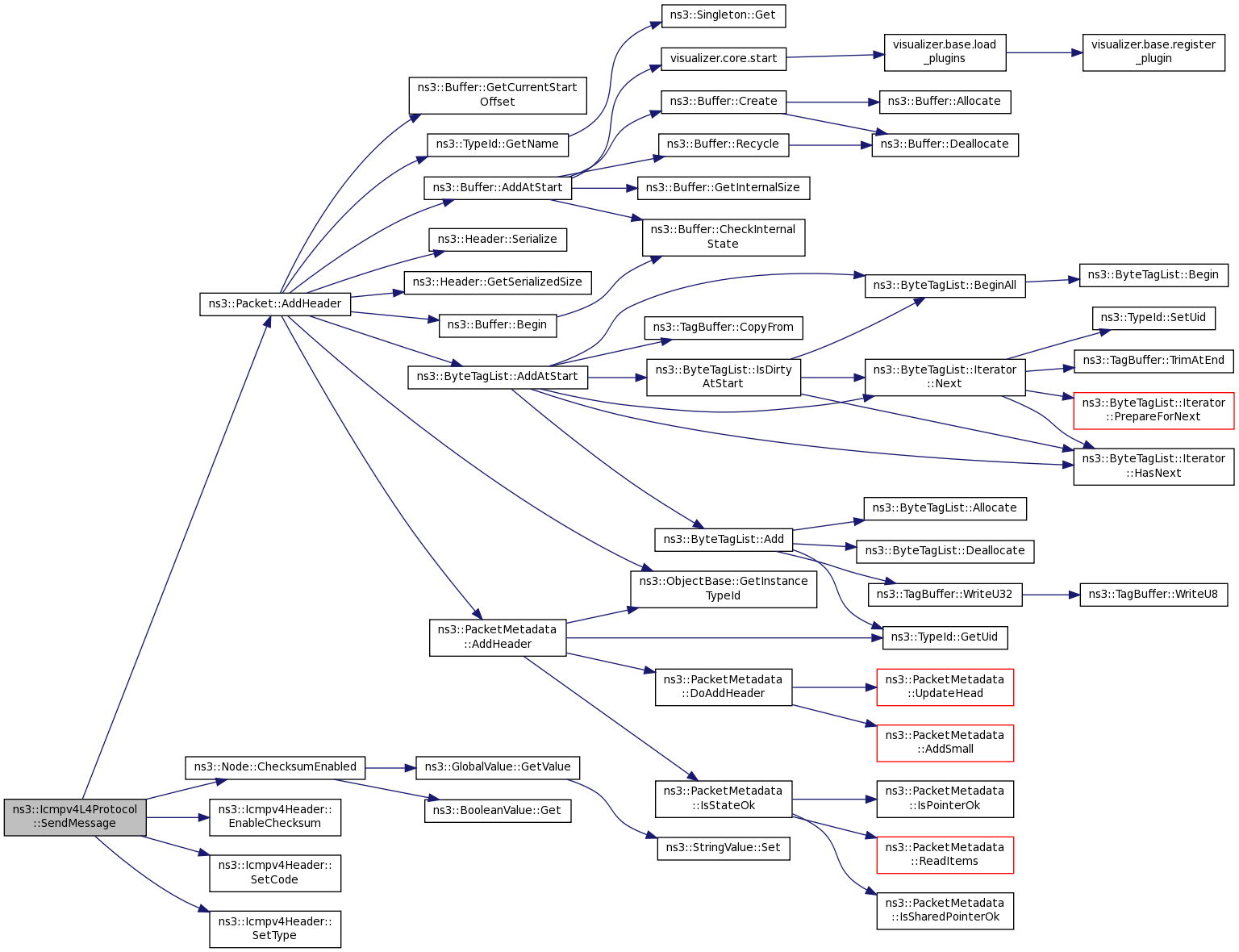

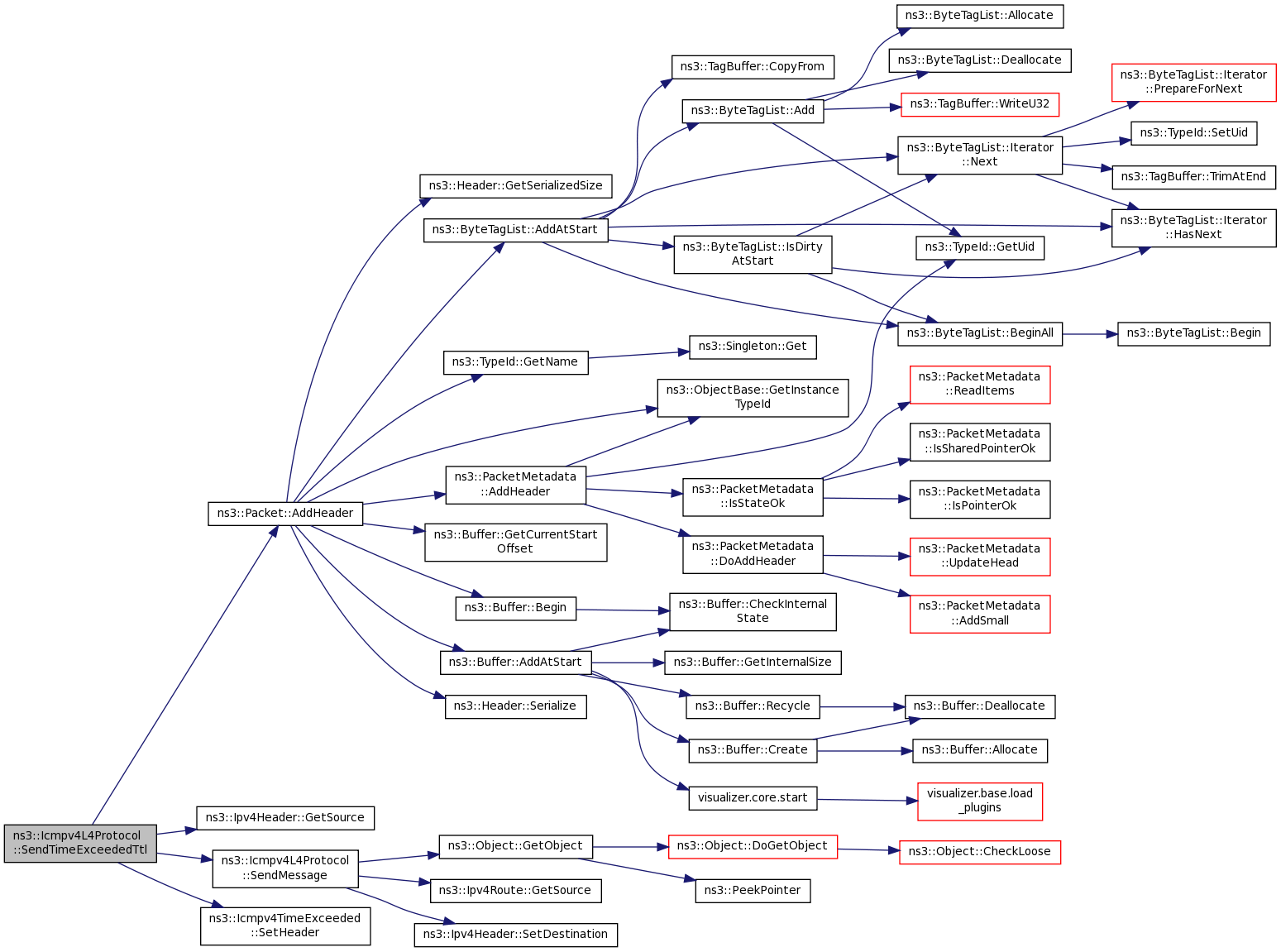

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code,
		Ptr< Ipv4Route >	route
	)
