ns3::SpectrumPhyHelper Class Reference

create and configure several SpectrumPhy instances and connect them to a channel. More...

#include <spectrum-helper.h>

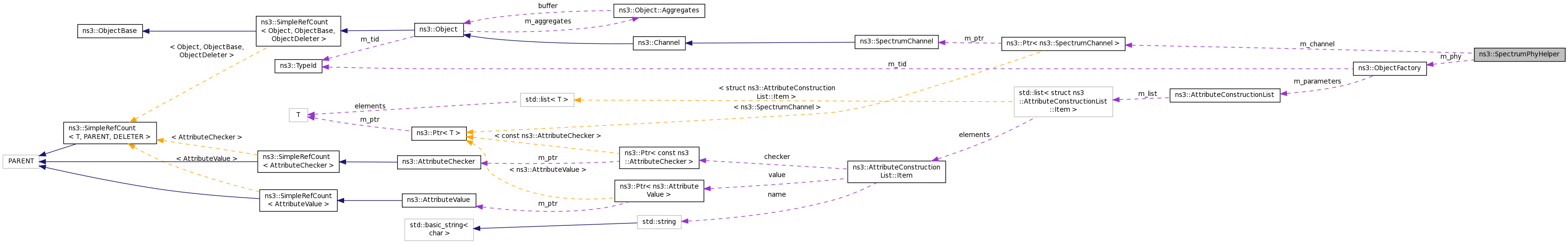

+ Collaboration diagram for ns3::SpectrumPhyHelper:

Public Member Functions

Ptr< SpectrumPhyCreate (Ptr< Node > node, Ptr< NetDevice > device) const

void SetChannel (Ptr< SpectrumChannel > channel)
 set the channel that will be used by SpectrumPhy instances created by this helper More...

void SetChannel (std::string channelName)
 set the channel that will be used by SpectrumPhy instances created by this helper More...

void SetPhy (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void SetPhyAttribute (std::string name, const AttributeValue &v)


Private Attributes

Ptr< SpectrumChannelm_channel

ObjectFactory m_phy


Detailed Description

create and configure several SpectrumPhy instances and connect them to a channel.

Definition at line 206 of file spectrum-helper.h.

Member Function Documentation

Ptr< SpectrumPhy > ns3::SpectrumPhyHelper::Create ( Ptr< Node node,
Ptr< NetDevice device
) const
Parameters
node
device
Returns
a newly created SpectrumPhy instance

Definition at line 213 of file spectrum-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_channel, m_phy, NS_ASSERT, ns3::SpectrumPhy::SetChannel(), ns3::SpectrumPhy::SetDevice(), and ns3::SpectrumPhy::SetMobility().

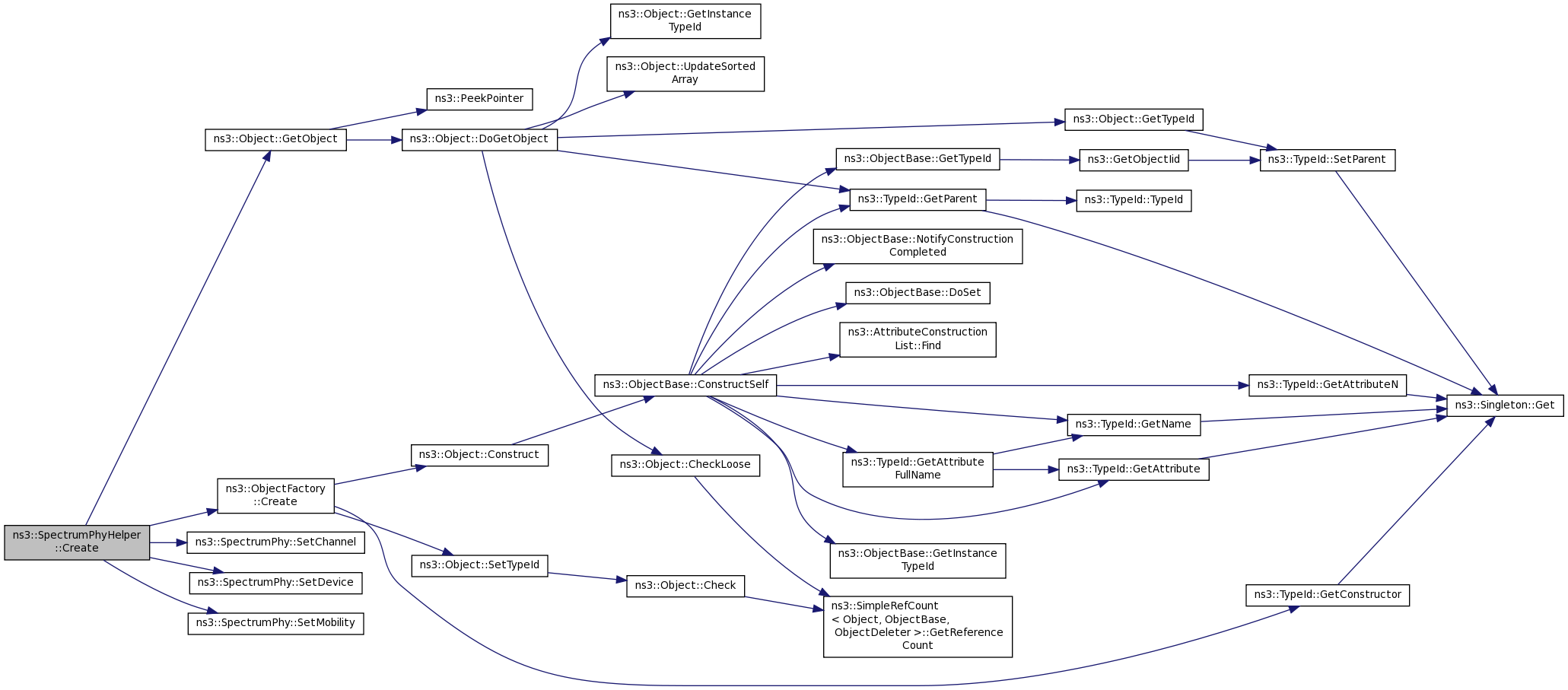

+ Here is the call graph for this function:

void ns3::SpectrumPhyHelper::SetChannel ( Ptr< SpectrumChannel channel)

set the channel that will be used by SpectrumPhy instances created by this helper

Parameters
channel

Definition at line 193 of file spectrum-helper.cc.

References m_channel.

void ns3::SpectrumPhyHelper::SetChannel ( std::string  channelName)

set the channel that will be used by SpectrumPhy instances created by this helper

Parameters
channelName

Definition at line 199 of file spectrum-helper.cc.

References m_channel.

void ns3::SpectrumPhyHelper::SetPhy ( std::string  name,
std::string  n0 = "",
const AttributeValue v0 = EmptyAttributeValue (),
std::string  n1 = "",
const AttributeValue v1 = EmptyAttributeValue (),
std::string  n2 = "",
const AttributeValue v2 = EmptyAttributeValue (),
std::string  n3 = "",
const AttributeValue v3 = EmptyAttributeValue (),
std::string  n4 = "",
const AttributeValue v4 = EmptyAttributeValue (),
std::string  n5 = "",
const AttributeValue v5 = EmptyAttributeValue (),
std::string  n6 = "",
const AttributeValue v6 = EmptyAttributeValue (),
std::string  n7 = "",
const AttributeValue v7 = EmptyAttributeValue ()
)
Parameters
namethe type of SpectrumPhy to use
n0the name of the attribute to set
v0the value of the attribute to set
n1the name of the attribute to set
v1the value of the attribute to set
n2the name of the attribute to set
v2the value of the attribute to set
n3the name of the attribute to set
v3the value of the attribute to set
n4the name of the attribute to set
v4the value of the attribute to set
n5the name of the attribute to set
v5the value of the attribute to set
n6the name of the attribute to set
v6the value of the attribute to set
n7the name of the attribute to set
v7the value of the attribute to set

Definition at line 169 of file spectrum-helper.cc.

References m_phy, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

+ Here is the call graph for this function:

void ns3::SpectrumPhyHelper::SetPhyAttribute ( std::string  name,
const AttributeValue v
)
Parameters
namethe name of the attribute to set
vthe value of the attribute

Set an attribute of the SpectrumPhy instances to be created

Definition at line 206 of file spectrum-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

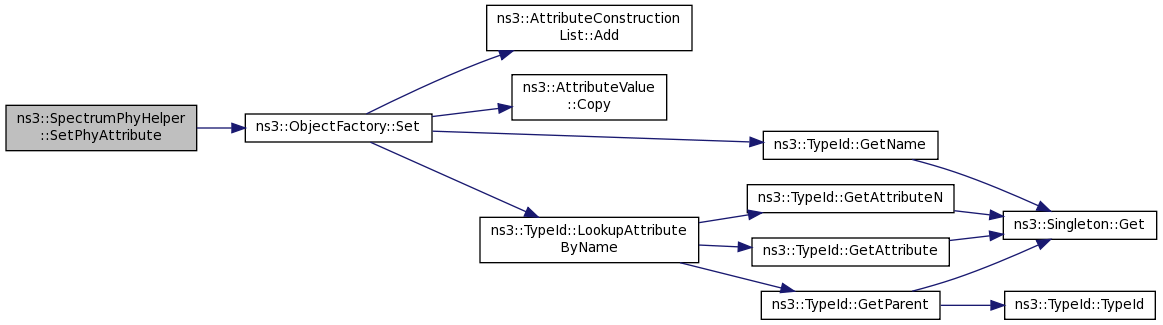

+ Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumChannel> ns3::SpectrumPhyHelper::m_channel
private

Definition at line 273 of file spectrum-helper.h.

Referenced by Create(), and SetChannel().

ObjectFactory ns3::SpectrumPhyHelper::m_phy
private

Definition at line 272 of file spectrum-helper.h.

Referenced by Create(), SetPhy(), and SetPhyAttribute().


The documentation for this class was generated from the following files:
